3-70 — BRAKE PIPING; AIR,AIR MASTER (#61073) — 365 parça

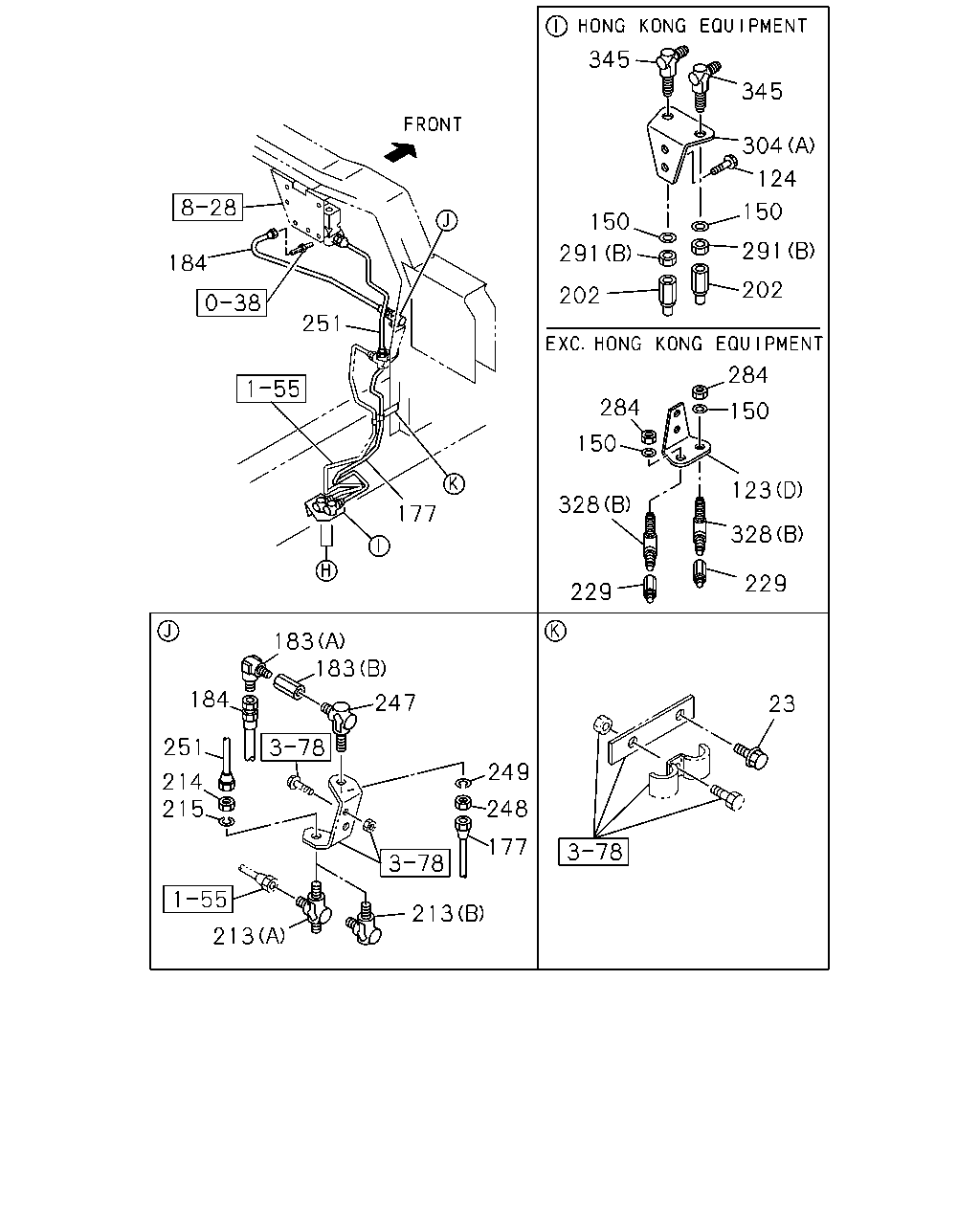

çizim 168436
184 251 177 184 183 251 214 215 213 213 177 249 248 247 183 23 229 328 150 284 229 328 123 150 284 202 291 150 124 304 345 345 150 291 202
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,AIR PIPE
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE 		0-28650-825-0 01 1 1412- ●
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1009-1302 ●
23 BOLT; BRKT,AIR PIPE
M8X12 FLANGE 		0-28050-812-0 01 1 1303- ●
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 1009-1411 ●
23 BOLT; BRKT,AIR PIPE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE 		0-28650-825-0 02 1 1412- ●
123 BRACKET; UNION
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-47479-401-0 01 1 1412- ●
123 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) 		8-98164-194-0 01 1 1412- ●
123 BRACKET; UNION
MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 1009-1302 ●
123 BRACKET; UNION
WHEEL BASE 4500MM(45W) EXC. BRAKE SYSTEM HSA(SLD) (A) 		1-47479-401-0 01 1 1009-1302 ●
123 BRACKET; UNION
WHEEL BASE 4900MM(49W) EXC. BRAKE SYSTEM HSA(SLD) (B) 		1-47479-893-1 01 1 1009-1302 ●
124 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 04 1 1009-1302 ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009- ● ●
150 WASHER; LK,UNION
MIXER TRUCK<RA2> ID=12.2 		0-91510-512-0 01 1 1009-1302 ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1009-1411 ● ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1412- ● ●
177 PIPE; AIR,UNION TO UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT>,HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=660 SERVICED BY L=700 		1-47428-811-0 01 1 1412- ●
177 PIPE; AIR,UNION TO UNION
BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=581 SERVICED BY L=600 		1-47428-809-0 01 1 1412- ●
177 PIPE; AIR,UNION TO UNION
MIXER TRUCK<RA2> L=696 SERVICED BY L=700 		1-47428-811-0 01 1 1009-1302 ●
177 PIPE; AIR,UNION TO UNION
L=650 SERVICED BY L=650 		1-47428-810-0 01 1 1303- ●
177 PIPE; AIR,UNION TO UNION
EXC. MIXER TRUCK<RA2> L=785 SERVICED BY L=800 		1-47428-812-0 01 1 1009-1302 ●
177 PIPE; AIR,UNION TO UNION
L=811 SERVICED BY L=900 		1-47428-813-0 01 1 1009-1411 ●
177 PIPE; AIR,UNION TO UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 1412- ●
183 UNION; FLEX HOSE,GOV
EXC. MIXER TRUCK<RA2> (A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1009-1302 ●
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1009-1302 ●
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1303- ● ●
183 UNION; FLEX HOSE,GOV
EXC. MIXER TRUCK<RA2> (B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1009-1302 ●
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1009-1302 ●
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1303- ● ●
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 1009-1302 ●
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=740 		1-09363-675-0 01 1 1009-1302 ●
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1009-1302 ●
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1303- ● ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1009-1411 ● ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1412- ●
202 ADAPTER
EXC. BATTERY LAYOUT REAR VAR1<NCT> DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1412- ●
202 ADAPTER
BATTERY LAYOUT REAR VAR1<NCT> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1412- ●
213 UNION; AIR PIPE
CAB SUSPENSION-FULL FLOATING(SMK) (B) M12 ELBOW 		0-92125-206-0 01 1 1412- ●
213 UNION; AIR PIPE
(A) M12 3WAY 		0-92138-906-0 01 1 1009-1411 ● ●
213 UNION; AIR PIPE
(A) M12 3WAY 		0-92138-906-0 01 1 1412- ●
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) (A) M12 3WAY 		0-92138-906-0 01 1 1412- ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1009- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1009- ● ●
229 ADAPTER; NYLON TUBE
BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1412- ●
247 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 L=66.5 		0-92113-306-0 01 1 1009-1302 ●
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> M12 ELBOW 		0-92125-206-0 01 1 1009-1302 ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1009-1302 ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1303- ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1009- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1009- ● ●
251 PIPE; AIR,UNION TO MAG VLV
MIXER TRUCK<RA2> L=346 		8-98059-952-0 01 1 1009-1302 ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. MIXER TRUCK<RA2> L=375 		1-49124-511-0 01 1 1009-1302 ●
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1009-1302 ●
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1303- ● ●
284 NUT; UNION
BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M12 		9-09840-280-0 02 1 1412- ●
284 NUT; UNION
MIXER TRUCK<RA2> M12 		9-09840-280-0 01 1 1009-1302 ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1009- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1009-1411 ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1412- ●
291 NUT; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M12 		9-09840-280-0 02 1 1412- ●
291 NUT; UNION
BATTERY LAYOUT REAR VAR1<NCT> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M12 		9-09840-280-0 02 1 1412- ●
304 BRACKET; UNION
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) 		8-98207-960-0 01 1 1412- ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1009-1411 ● ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1412- ●
304 BRACKET; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1412- ●
304 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-47478-359-0 01 1 1412- ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 1009-1302 ● ●
304 BRACKET; UNION
(B) 		8-98171-684-0 01 1 1303-1411 ● ●
304 BRACKET; UNION
(B) 		8-98171-684-0 01 1 1412- ●
304 BRACKET; UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98171-684-0 01 1 1412- ●
328 UNION; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M12 ELBOW 		0-92125-206-0 02 1 1412- ●
328 UNION; AIR PIPE
MIXER TRUCK<RA2> (A) M12 2WAY 		1-09654-059-2 01 1 1009-1302 ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1009-1411 ● ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1412- ●
345 UNION; AIR PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> M12 ELBOW 		0-92125-206-0 02 1 1412- ●
345 UNION; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M12 ELBOW 		0-92125-206-0 02 1 1412- ●

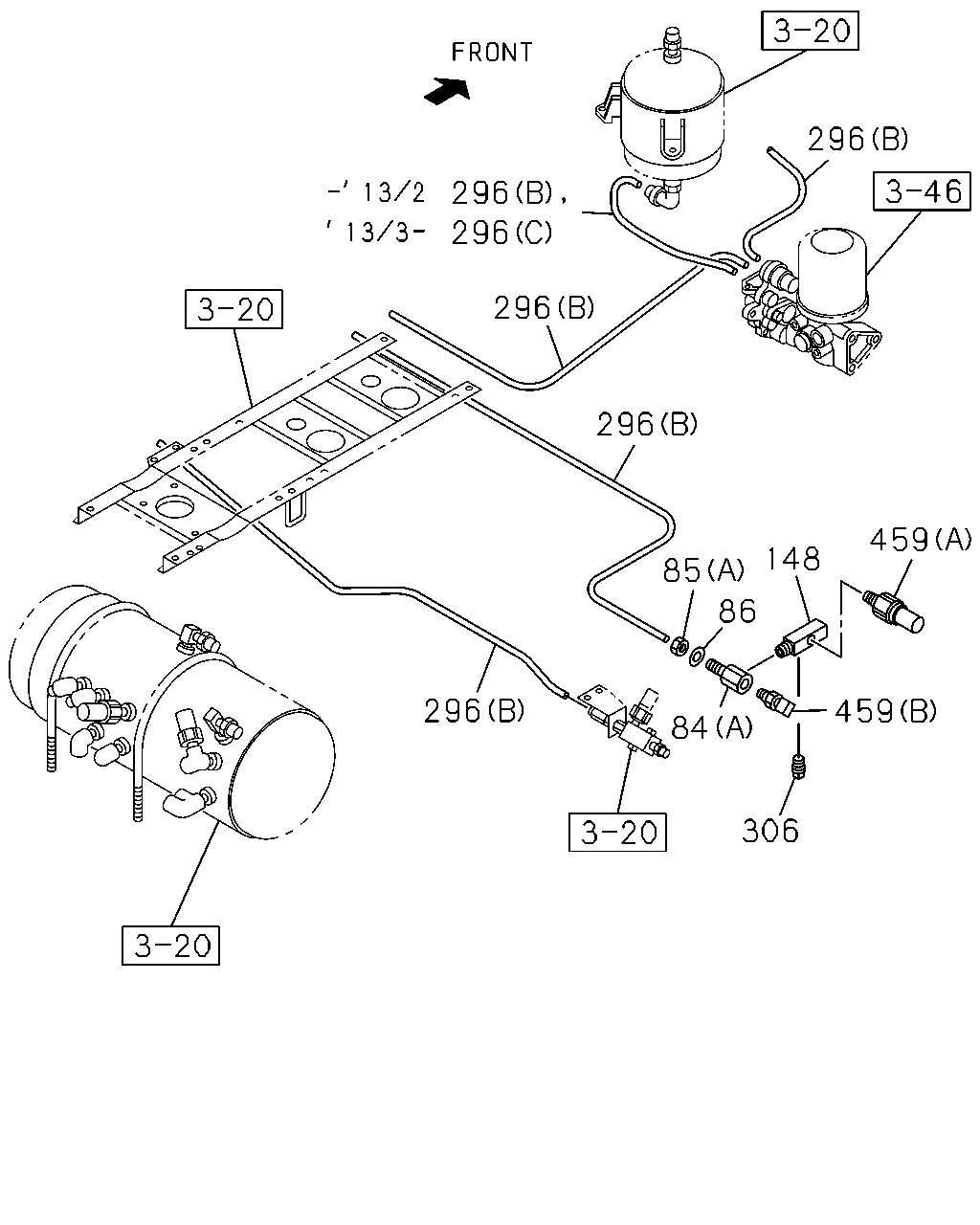

çizim 168443
296 306 84 85 86 459 459 296 296 296 296 296 148
BalonParca AdiParca NoAdetTipApplied Date A B
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 1009-1302 ● ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009-1302 ● ●
85 NUT; UNION
(B) M22 		0-91111-522-0 01 1 1303- ● ●
85 NUT; UNION
(A) M18 		0-91110-518-0 01 1 1009-1302 ● ●
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 1009-1302 ● ●
148 CONNECTOR; UNION
DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1009-1302 ● ●
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1009-1302 ● ●
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1303- ● ●
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1303- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009- ● ●
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 01 1 1009-1302 ● ●
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 1009-1302 ● ●
459 SWITCH; PRESS
(A) STAMP 5.5 		8-97609-249-0 01 1 1009-1302 ● ●

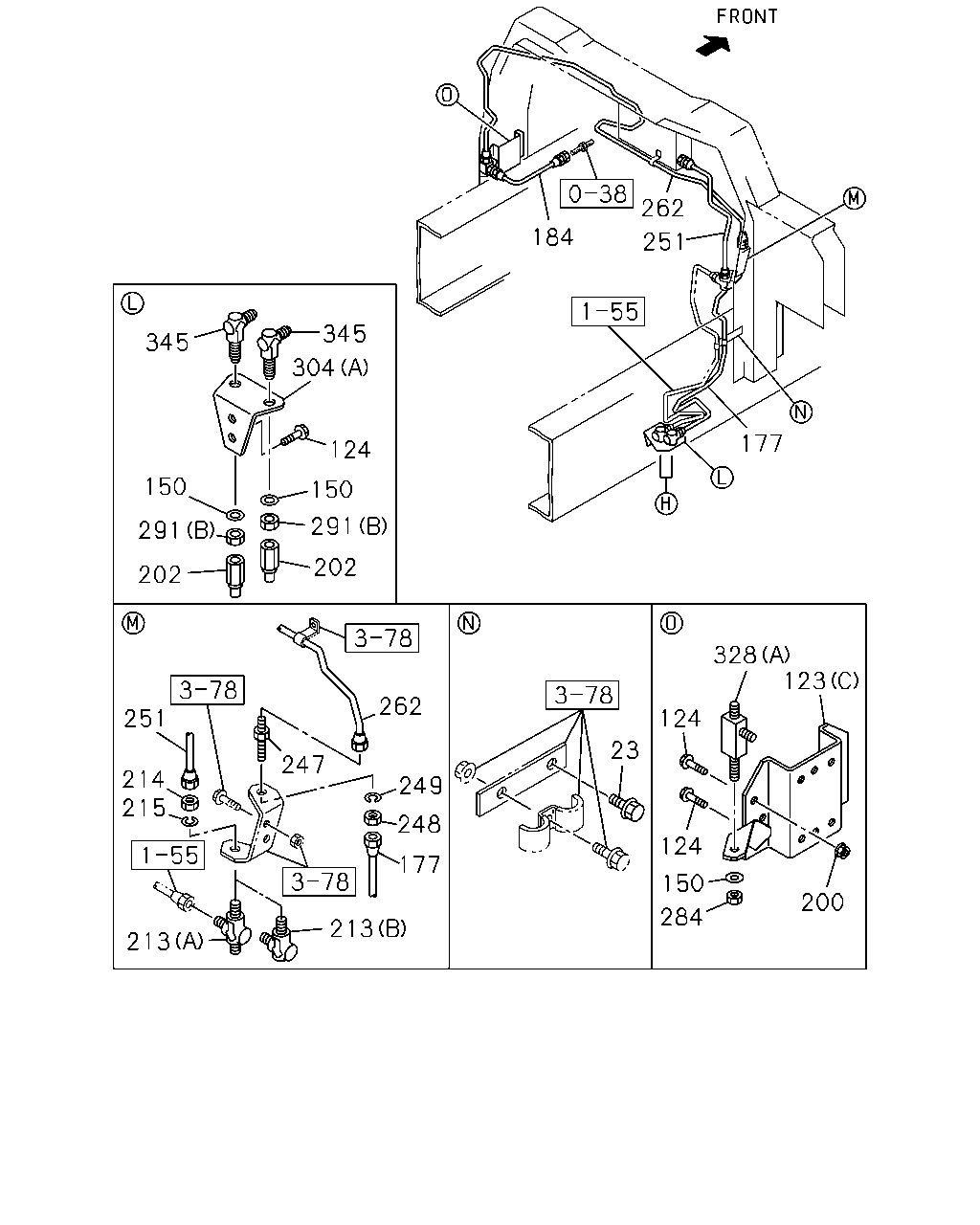

çizim 168447
345 345 304 150 291 202 202 291 124 150 251 214 215 213 213 177 249 248 262 247 23 124 150 284 200 123 328 124 177 184 262 251
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,AIR PIPE
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE 		0-28650-825-0 01 1 1412- ●
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1009-1302 ●
23 BOLT; BRKT,AIR PIPE
M8X12 FLANGE 		0-28050-812-0 01 1 1303- ●
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 1009-1411 ●
23 BOLT; BRKT,AIR PIPE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE 		0-28650-825-0 02 1 1412- ●
123 BRACKET; UNION
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-47479-401-0 01 1 1412- ●
123 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) 		8-98164-194-0 01 1 1412- ●
123 BRACKET; UNION
MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 1009-1302 ●
123 BRACKET; UNION
WHEEL BASE 4500MM(45W) EXC. BRAKE SYSTEM HSA(SLD) (A) 		1-47479-401-0 01 1 1009-1302 ●
123 BRACKET; UNION
WHEEL BASE 4900MM(49W) EXC. BRAKE SYSTEM HSA(SLD) (B) 		1-47479-893-1 01 1 1009-1302 ●
124 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 04 1 1009-1302 ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009- ● ●
150 WASHER; LK,UNION
MIXER TRUCK<RA2> ID=12.2 		0-91510-512-0 01 1 1009-1302 ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1009-1411 ● ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1412- ● ●
177 PIPE; AIR,UNION TO UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT>,HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=660 SERVICED BY L=700 		1-47428-811-0 01 1 1412- ●
177 PIPE; AIR,UNION TO UNION
BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=581 SERVICED BY L=600 		1-47428-809-0 01 1 1412- ●
177 PIPE; AIR,UNION TO UNION
MIXER TRUCK<RA2> L=696 SERVICED BY L=700 		1-47428-811-0 01 1 1009-1302 ●
177 PIPE; AIR,UNION TO UNION
L=650 SERVICED BY L=650 		1-47428-810-0 01 1 1303- ●
177 PIPE; AIR,UNION TO UNION
EXC. MIXER TRUCK<RA2> L=785 SERVICED BY L=800 		1-47428-812-0 01 1 1009-1302 ●
177 PIPE; AIR,UNION TO UNION
L=811 SERVICED BY L=900 		1-47428-813-0 01 1 1009-1411 ●
177 PIPE; AIR,UNION TO UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 1412- ●
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 1009-1302 ●
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=740 		1-09363-675-0 01 1 1009-1302 ●
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1009-1302 ●
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1303- ● ●
200 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 04 1 1009-1302 ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1009-1411 ● ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1412- ●
202 ADAPTER
EXC. BATTERY LAYOUT REAR VAR1<NCT> DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1412- ●
202 ADAPTER
BATTERY LAYOUT REAR VAR1<NCT> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1412- ●
213 UNION; AIR PIPE
CAB SUSPENSION-FULL FLOATING(SMK) (B) M12 ELBOW 		0-92125-206-0 01 1 1412- ●
213 UNION; AIR PIPE
(A) M12 3WAY 		0-92138-906-0 01 1 1009-1411 ● ●
213 UNION; AIR PIPE
(A) M12 3WAY 		0-92138-906-0 01 1 1412- ●
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) (A) M12 3WAY 		0-92138-906-0 01 1 1412- ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1009- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1009- ● ●
247 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 L=66.5 		0-92113-306-0 01 1 1009-1302 ●
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> M12 ELBOW 		0-92125-206-0 01 1 1009-1302 ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1009-1302 ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1303- ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1009- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1009- ● ●
251 PIPE; AIR,UNION TO MAG VLV
MIXER TRUCK<RA2> L=346 		8-98059-952-0 01 1 1009-1302 ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. MIXER TRUCK<RA2> L=375 		1-49124-511-0 01 1 1009-1302 ●
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1009-1302 ●
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1303- ● ●
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> 		8-98130-033-0 01 1 1009-1302 ●
284 NUT; UNION
BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M12 		9-09840-280-0 02 1 1412- ●
284 NUT; UNION
MIXER TRUCK<RA2> M12 		9-09840-280-0 01 1 1009-1302 ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1009- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1009-1411 ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1412- ●
291 NUT; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M12 		9-09840-280-0 02 1 1412- ●
291 NUT; UNION
BATTERY LAYOUT REAR VAR1<NCT> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M12 		9-09840-280-0 02 1 1412- ●
304 BRACKET; UNION
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) 		8-98207-960-0 01 1 1412- ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1009-1411 ● ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1412- ●
304 BRACKET; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1412- ●
304 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-47478-359-0 01 1 1412- ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 1009-1302 ● ●
304 BRACKET; UNION
(B) 		8-98171-684-0 01 1 1303-1411 ● ●
304 BRACKET; UNION
(B) 		8-98171-684-0 01 1 1412- ●
304 BRACKET; UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98171-684-0 01 1 1412- ●
328 UNION; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M12 ELBOW 		0-92125-206-0 02 1 1412- ●
328 UNION; AIR PIPE
MIXER TRUCK<RA2> (A) M12 2WAY 		1-09654-059-2 01 1 1009-1302 ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1009-1411 ● ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1412- ●
345 UNION; AIR PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> M12 ELBOW 		0-92125-206-0 02 1 1412- ●
345 UNION; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M12 ELBOW 		0-92125-206-0 02 1 1412- ●

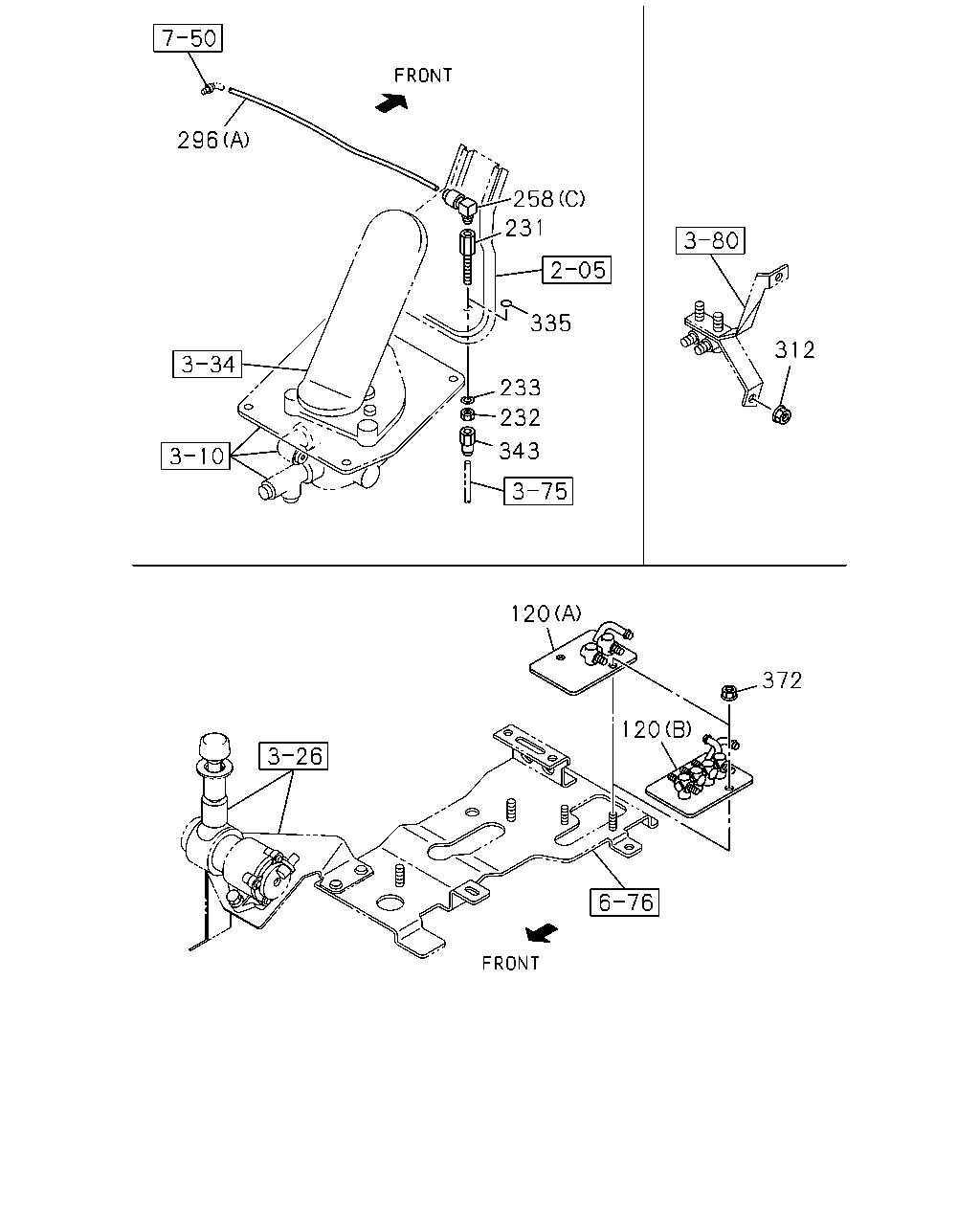

çizim 168452
296 258 335 231 312 233 343 232 120 120 372
BalonParca AdiParca NoAdetTipApplied Date A B
120 CONNECTOR; AIR PIPE
(B) 		1-47470-604-0 01 1 1303-1304 ●
120 CONNECTOR; AIR PIPE
(B) 		1-47470-604-0 01 1 1305- ●
120 CONNECTOR; AIR PIPE
FULL TRAILER PIPING<Z25> (B) 		1-47470-604-0 01 1 1305- ●
120 CONNECTOR; AIR PIPE
(A) 		1-47470-547-0 01 1 1009-1302 ● ●
120 CONNECTOR; AIR PIPE
EXC. FULL TRAILER PIPING<Z25> (A) 		1-47470-547-0 01 1 1303- ●
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1009-1302 ● ●
231 UNION; AIR PIPE
PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1303- ● ●
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 1009-1302 ● ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 1303- ● ●
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 1009-1302 ● ●
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 01 1 1303- ● ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) PT3/8 3WAY 		1-09661-300-0 01 1 1412- ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1009-1302 ● ●
258 CONNECTOR; NYLON TUBE
(C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303- ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1303- ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1303- ●
258 CONNECTOR; NYLON TUBE
(E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1303- ●
258 CONNECTOR; NYLON TUBE
EXC. BRAKE SYSTEM HSA(SLD) (A) PT3/8 3WAY 		1-09661-300-0 01 1 1009-1302 ●
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1009-1302 ● ●
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1303- ● ●
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1303- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009- ● ●
312 NUT; UNION
M8 		0-91110-508-0 01 1 1303-1304 ●
312 NUT; UNION
M8 		0-91110-508-0 01 1 1305- ●
312 NUT; UNION
FULL TRAILER PIPING<Z25> M8 		0-91110-508-0 01 1 1305- ●
335 SEAL; UNION
MJT7S M/T(Y3E) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 1009-1302 ●
335 SEAL; UNION
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 1009-1302 ●
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 1009-1302 ● ●
343 UNION; NYLON TUBE
DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 1303- ● ●
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ● ●
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1303-1304 ●
372 NUT
EXC. FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 02 1 1303-1304 ●
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1305- ● ●

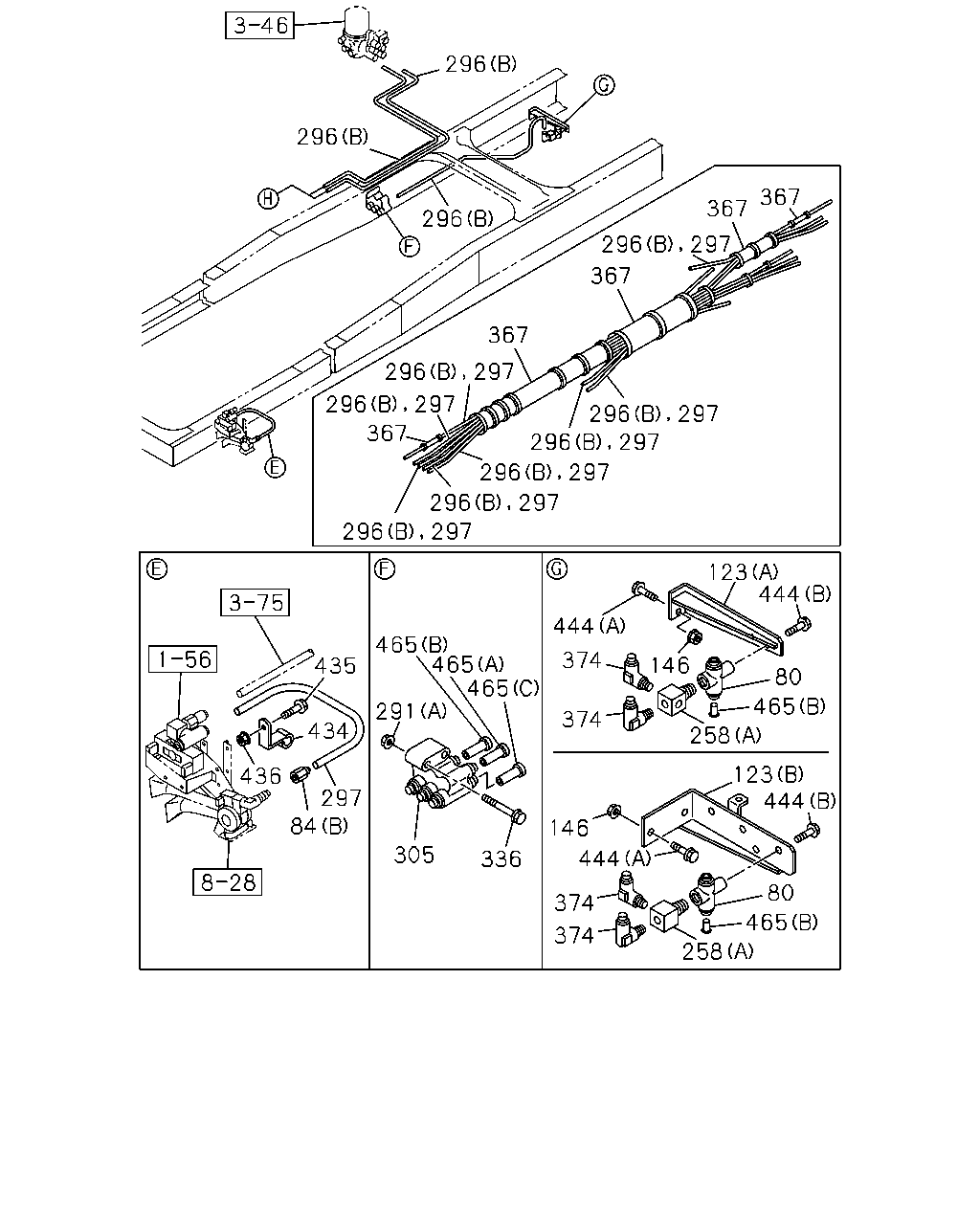

çizim 168470
296 296 296 367 367 297 396 367 367 297 296 296 297 296 297 296 296 297 296 297 297 297 297 436 84 297 434 435 465 465 465 291 305 336 444 123 444 146 374 374 80 465 258 146 444 374 374 123 444 80 465 258 367
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1412- ●
80 UNION; 3 WAY
EXC. BRAKE SYSTEM HSA(SLD) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1009-1302 ●
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 1009-1302 ● ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009-1302 ● ●
123 BRACKET; UNION
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-47479-401-0 01 1 1412- ●
123 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) 		8-98164-194-0 01 1 1412- ●
123 BRACKET; UNION
MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 1009-1302 ●
123 BRACKET; UNION
WHEEL BASE 4500MM(45W) EXC. BRAKE SYSTEM HSA(SLD) (A) 		1-47479-401-0 01 1 1009-1302 ●
123 BRACKET; UNION
WHEEL BASE 4900MM(49W) EXC. BRAKE SYSTEM HSA(SLD) (B) 		1-47479-893-1 01 1 1009-1302 ●
146 NUT; UNION
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE 		0-91180-108-0 02 1 1412- ●
146 NUT; UNION
EXC. BRAKE SYSTEM HSA(SLD) M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) PT3/8 3WAY 		1-09661-300-0 01 1 1412- ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1009-1302 ● ●
258 CONNECTOR; NYLON TUBE
(C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303- ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1303- ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1303- ●
258 CONNECTOR; NYLON TUBE
(E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1303- ●
258 CONNECTOR; NYLON TUBE
EXC. BRAKE SYSTEM HSA(SLD) (A) PT3/8 3WAY 		1-09661-300-0 01 1 1009-1302 ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1009- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1009-1411 ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1412- ●
291 NUT; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M12 		9-09840-280-0 02 1 1412- ●
291 NUT; UNION
BATTERY LAYOUT REAR VAR1<NCT> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M12 		9-09840-280-0 02 1 1412- ●
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1009-1302 ● ●
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1303- ● ●
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1303- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009- ● ●
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1009- ● ●
336 BOLT; PIPE UNION
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X70 FLANGE 		0-28050-870-0 02 1 1412- ●
336 BOLT; PIPE UNION
EXC. MIXER TRUCK<RA2> M8X60 FLANGE 		0-28050-860-0 02 1 1009-1302 ●
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1009-1302 ●
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1303-1411 ● ●
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1412- ●
336 BOLT; PIPE UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X60 FLANGE 		0-28050-860-0 02 1 1412- ●
336 BOLT; PIPE UNION
M8X80 FLANGE 		0-28050-880-0 02 1 1009-1009 ● ●
336 BOLT; PIPE UNION
MIXER TRUCK<RA2> M8X70 FLANGE 		0-28050-870-0 02 1 1009-1302 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1009- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1009- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1009- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1009- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1412- ● ●
374 CONNECTOR
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1412- ●
374 CONNECTOR
EXC. BRAKE SYSTEM HSA(SLD) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1009-1302 ●
434 CLIP
ID=6 H=20 L=20 		1-09700-603-0 01 1 1009-1302 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1303- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1303- ● ●
444 BOLT; UNION
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1412- ●
444 BOLT; UNION
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X35 FLANGE 		0-28650-835-0 02 1 1412- ●
444 BOLT; UNION
EXC. BRAKE SYSTEM HSA(SLD) (B) M8X16 FLANGE 		0-28050-816-0 01 1 1009-1302 ●
444 BOLT; UNION
EXC. BRAKE SYSTEM HSA(SLD) (A) M8X35 FLANGE 		0-28650-835-0 02 1 1009-1302 ●
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1009-1302 ● ●
465 PLUG
EXC. BRAKE SYSTEM HSA(SLD) (B) OD=8 PLASTIC 		1-09661-616-0 01 1 1009-1302 ●
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1303-1411 ● ●
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1412- ● ●
465 PLUG
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) OD=8 PLASTIC 		1-09661-616-0 01 1 1412- ●
465 PLUG
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1009-1302 ● ●
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 1009-1302 ●
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 1009-1302 ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1303-1411 ● ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1303-1411 ●
465 PLUG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) OD=6 L=27 		1-09661-615-0 01 1 1303-1411 ●
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) OD=6 L=27 		1-09661-615-0 01 1 1303-1411 ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1412- ● ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1412- ●
465 PLUG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) OD=6 L=27 		1-09661-615-0 01 1 1412- ●
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) OD=6 L=27 		1-09661-615-0 01 1 1412- ●
465 PLUG
MJT7S M/T(Y3E) CAB SUSPENSION-FULL FLOATING(SMK) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1412- ●
465 PLUG
MJX12P M/T SMOOTHER-G(Y4S) (C) OD=12 		1-09661-617-0 01 1 1009-1302 ●
465 PLUG
(C) OD=12 		1-09661-617-0 01 1 1303- ●
465 PLUG
MJX12P M/T SMOOTHER-G(Y4S) (C) OD=12 		1-09661-617-0 01 1 1303- ●

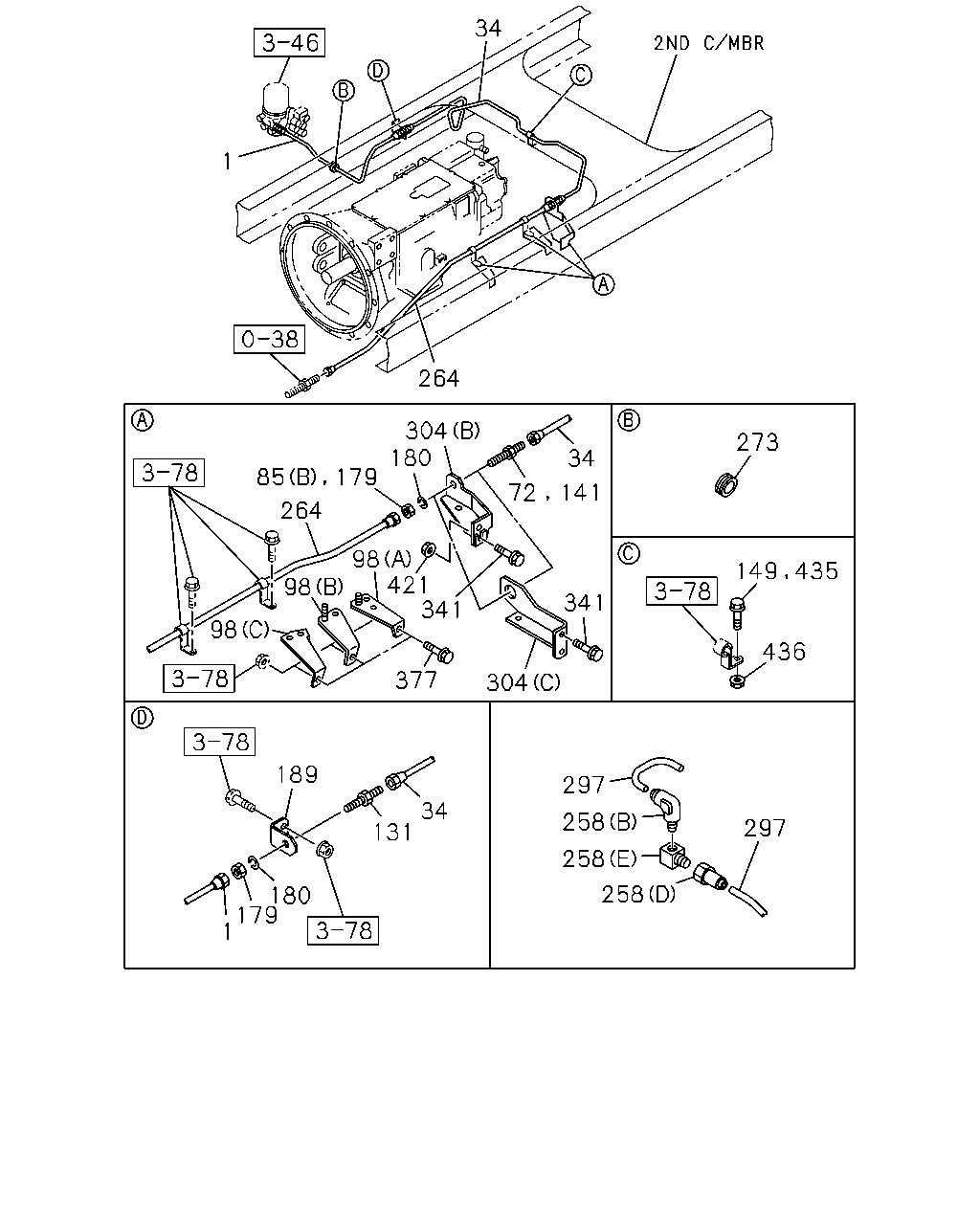

çizim 168502
34 1 264 304 180 179 85 264 98 98 98 72 34 141 421 341 341 304 377 189 34 131 180 179 1 273 149 435 436 297 258 258 258 297
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=1350 		1-09363-925-0 01 1 1009-1411 ●
1 HOSE; FLEX,AIR TANK
L=1350 		1-09363-925-0 01 1 1412- ●
1 HOSE; FLEX,AIR TANK
EXC. BATTERY LAYOUT REAR VAR1<NCT> L=1350 		1-09363-925-0 01 1 1412- ●
1 HOSE; FLEX,AIR TANK
L=660 		1-09363-766-0 01 1 1009-1411 ●
1 HOSE; FLEX,AIR TANK
BATTERY LAYOUT REAR VAR1<NCT> L=660 		1-09363-766-0 01 1 1412- ●
34 PIPE; AIR
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1159 		8-98233-192-0 01 1 1412- ●
34 PIPE; AIR
L=1126 		1-49124-667-0 01 1 1009-1302 ●
34 PIPE; AIR
L=1203 		8-98140-331-0 01 1 1303- ●
34 PIPE; AIR
L=1131 		1-49124-915-0 01 1 1009-1411 ●
34 PIPE; AIR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1131 		1-49124-915-0 01 1 1412- ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1009-1302 ● ●
85 NUT; UNION
(B) M22 		0-91111-522-0 01 1 1303- ● ●
85 NUT; UNION
(A) M18 		0-91110-518-0 01 1 1009-1302 ● ●
98 BRACKET; AIR PIPE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) 		1-47471-283-0 01 1 1009-1302 ● ●
98 BRACKET; AIR PIPE
(C) 		1-47471-283-0 01 1 1303- ●
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 1009-1302 ● ●
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 1303- ●
98 BRACKET; AIR PIPE
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) 		1-47479-639-0 01 1 1009-1302 ● ●
131 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1009- ● ●
141 UNION; FLEX HOSE
M22 		0-92123-315-0 01 1 1303- ● ●
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1303- ●
179 NUT; UNION
M22 		0-91111-522-0 02 1 1009-1302 ● ●
179 NUT; UNION
M22 		0-91111-522-0 01 1 1303- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 1009-1302 ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1303- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1303- ●
189 BRACKET; FLEX HOSE 1-47479-473-0 01 1 1009- ● ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) PT3/8 3WAY 		1-09661-300-0 01 1 1412- ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1009-1302 ● ●
258 CONNECTOR; NYLON TUBE
(C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303- ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1303- ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1303- ●
258 CONNECTOR; NYLON TUBE
(E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1009-1302 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1303- ●
258 CONNECTOR; NYLON TUBE
EXC. BRAKE SYSTEM HSA(SLD) (A) PT3/8 3WAY 		1-09661-300-0 01 1 1009-1302 ●
264 HOSE; FLEX
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=980 		1-09363-872-0 01 1 1412- ●
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 1009-1302 ● ●
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 1303-1411 ● ●
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 1412- ●
264 HOSE; FLEX
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1000 		1-09363-794-0 01 1 1412- ●
273 GROMMET
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1412- ●
273 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1009-1302 ●
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1009-1302 ●
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1303-1411 ● ●
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1412- ●
273 GROMMET
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1412- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009- ● ●
304 BRACKET; UNION
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) 		8-98207-960-0 01 1 1412- ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1009-1411 ● ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1412- ●
304 BRACKET; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1412- ●
304 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-47478-359-0 01 1 1412- ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 1009-1302 ● ●
304 BRACKET; UNION
(B) 		8-98171-684-0 01 1 1303-1411 ● ●
304 BRACKET; UNION
(B) 		8-98171-684-0 01 1 1412- ●
304 BRACKET; UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98171-684-0 01 1 1412- ●
341 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1009-1302 ● ●
341 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1303- ● ●
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 1009-1302 ● ●
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 1303- ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1303- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1303- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
