Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11290 - CYZ RHD EURO5
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶

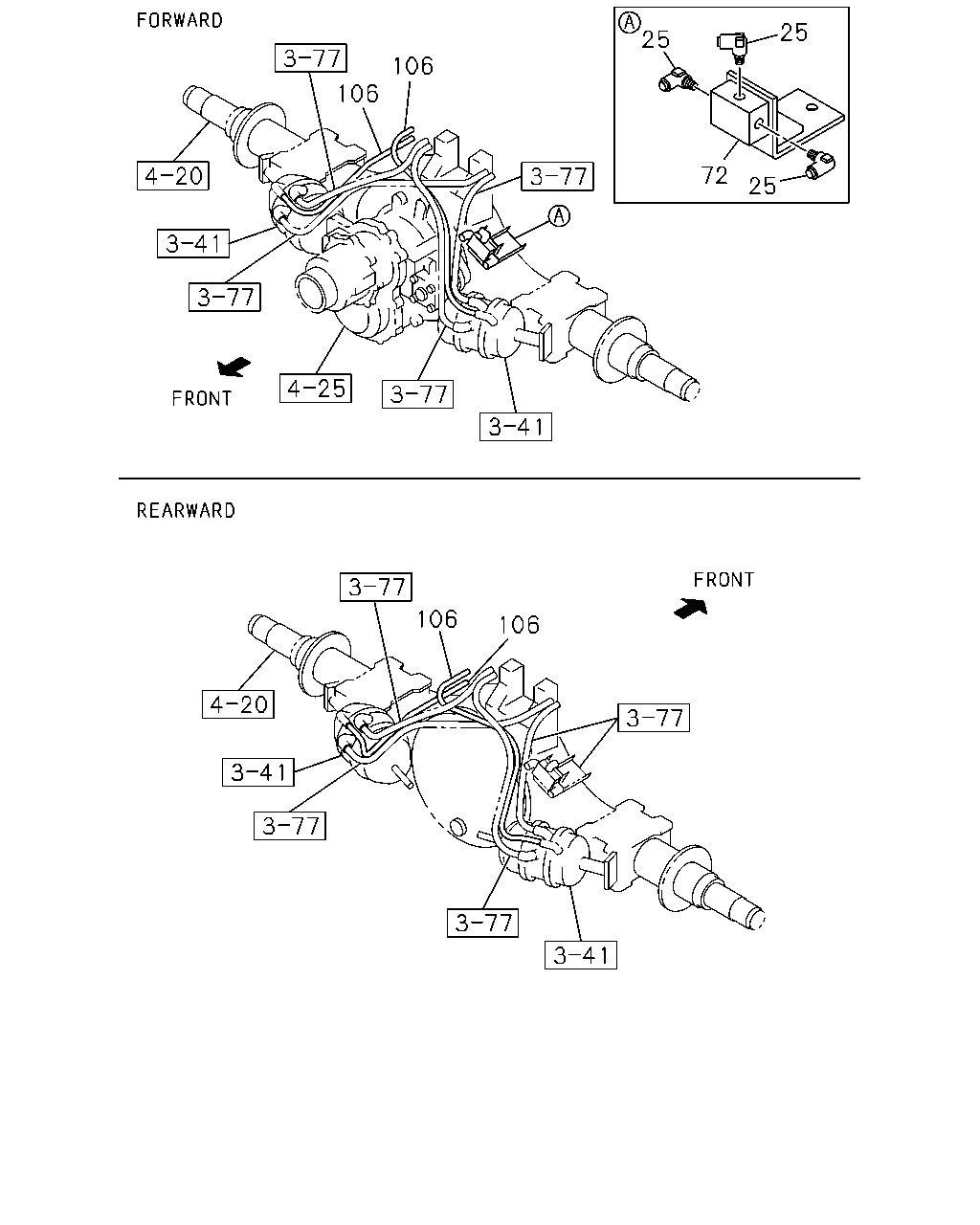

3-55 — BRAKE PIPING; OIL,REAR
(#61071) — 14 parça
Tümü
A - CYZ5MC
B - CYZ5MF
106
106
25
25
72
25
106
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
25
CONNECTOR
DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1009-1302
●
●
25
CONNECTOR
DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1303-1411
●
25
CONNECTOR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1412-
●
72
BRACKET; UNION
8-98153-830-0
01
1
1009-1302
●
●
72
BRACKET; UNION
8-98153-830-0
01
1
1303-1411
●
72
BRACKET; UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)
8-98153-830-0
01
1
1412-
●
106
TUBE; NYLON
REARWARD L=1140 OD=8
1-49218-622-1
01
1
1303-
●
106
TUBE; NYLON
REARWARD L=800 OD=8
1-49219-315-0
01
1
1303-
●
106
TUBE; NYLON
REARWARD L=800 OD=8
1-49218-610-1
01
1
1009-1302
●
●
106
TUBE; NYLON
REARWARD L=800 OD=8
1-49218-610-1
01
1
1303-
●
106
TUBE; NYLON
REARWARD L=1140 OD=8
1-49219-175-0
01
1
1009-1302
●
●
106
TUBE; NYLON
REARWARD L=1140 OD=8
1-49219-175-0
01
1
1303-
●
106
TUBE; NYLON
FORWARD L=915 OD=8
1-49221-696-0
01
1
1009-
●
●
106
TUBE; NYLON
FORWARD L=1125 OD=8
1-49221-697-0
01
1
1009-
●
●
