3-46 — AIR DRYER (#61070) — 67 parça

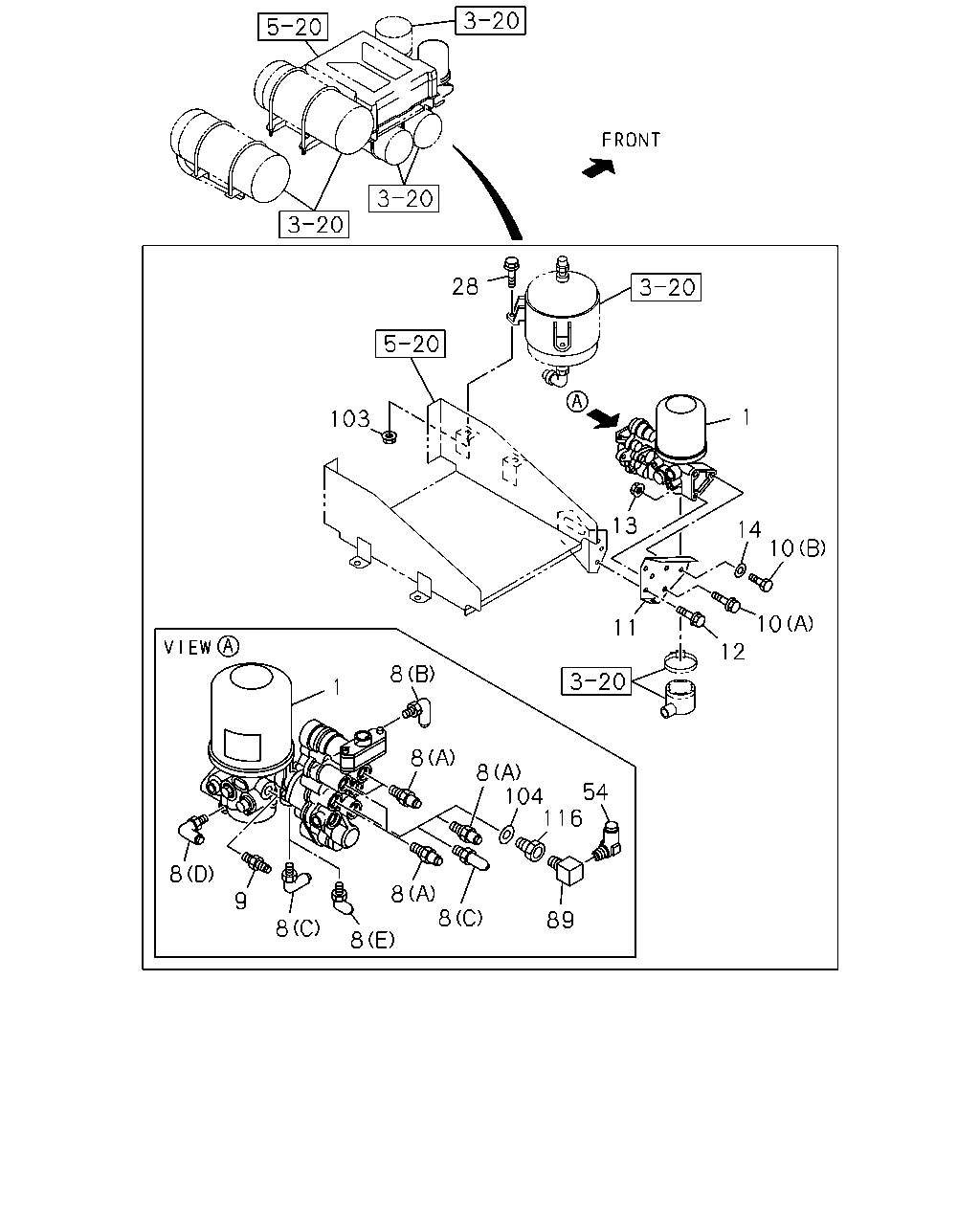

çizim 168536
28 1 14 10 10 12 11 13 103 8 1 8 8 104 116 89 8 8 8 8 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR 1-48190-368-5 01 1 1009-1302 ● ●
1 DRYER; AIR 8-98180-492-1 01 1 1303- ● ●
8 CONNECTOR; OUT,AIR DRYER
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E) 		1-09661-499-0 01 1 1412- ●
8 CONNECTOR; OUT,AIR DRYER
(A) DIN12 & M22 STRAIGHT 		1-09661-050-0 04 1 1009- ● ●
8 CONNECTOR; OUT,AIR DRYER
(E) 		1-09661-499-0 01 1 1009-1302 ● ●
8 CONNECTOR; OUT,AIR DRYER
(B) DIN8 & M16 ELBOW 		1-09661-520-0 01 1 1009- ● ●
8 CONNECTOR; OUT,AIR DRYER
(C) DIN12 & M22 ELBOW 		1-09661-521-0 01 1 1009- ● ●
8 CONNECTOR; OUT,AIR DRYER
(D) DIN6 & M10 ELBOW 		1-09661-574-0 01 1 1009- ● ●
9 CONNECTOR; PIPE,AIR DRYER
M22X2 STRAIGHT 		8-98107-103-0 01 1 1009- ● ●
10 BOLT; AIR DRYER
(A) M12X50 FLANGE 		0-28051-250-0 01 1 1009- ● ●
10 BOLT; AIR DRYER
(B) M12X25 		1-09009-081-0 02 1 1009- ● ●
11 BRACKET; AIR DRYER 1-48316-019-0 01 1 1009- ● ●
12 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 03 1 1009- ● ●
13 NUT; AIR DRYER
M12 FLANGE 		0-91180-212-0 01 1 1009- ● ●
14 WASHER; PL,AIR DRYER
ID=12.5 OD=22 		0-91610-512-0 02 1 1009- ● ●
28 BOLT; PURGE TANK
M10X25 FLANGE 		0-28651-025-0 02 1 1009- ● ●
54 CONNECTOR
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1303-1411 ● ●
54 CONNECTOR
WHEEL BASE 4900MM(49W) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1412- ●
54 CONNECTOR
WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1412- ●
54 CONNECTOR
WHEEL BASE 6100MM(61W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1412- ●
89 ADAPTER
PT3/8 ELBOW 		1-09660-696-0 01 1 1303-1411 ● ●
89 ADAPTER
WHEEL BASE 4900MM(49W) PT3/8 ELBOW 		1-09660-696-0 01 1 1412- ●
89 ADAPTER
WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) PT3/8 ELBOW 		1-09660-696-0 01 1 1412- ●
89 ADAPTER
WHEEL BASE 6100MM(61W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) PT3/8 ELBOW 		1-09660-696-0 01 1 1412- ●
103 NUT; PURGE TANK
M10 FLANGE 		0-91180-210-0 02 1 1009- ● ●
104 GASKET
ID=22.5 		9-09571-422-0 01 1 1303-1411 ● ●
104 GASKET
WHEEL BASE 4900MM(49W) ID=22.5 		9-09571-422-0 01 1 1412- ●
104 GASKET
WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) ID=22.5 		9-09571-422-0 01 1 1412- ●
104 GASKET
WHEEL BASE 6100MM(61W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=22.5 		9-09571-422-0 01 1 1412- ●
116 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1303-1411 ● ●
116 CONNECTOR; STRAIGHT
WHEEL BASE 4900MM(49W) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1412- ●
116 CONNECTOR; STRAIGHT
WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1412- ●
116 CONNECTOR; STRAIGHT
WHEEL BASE 6100MM(61W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1412- ●

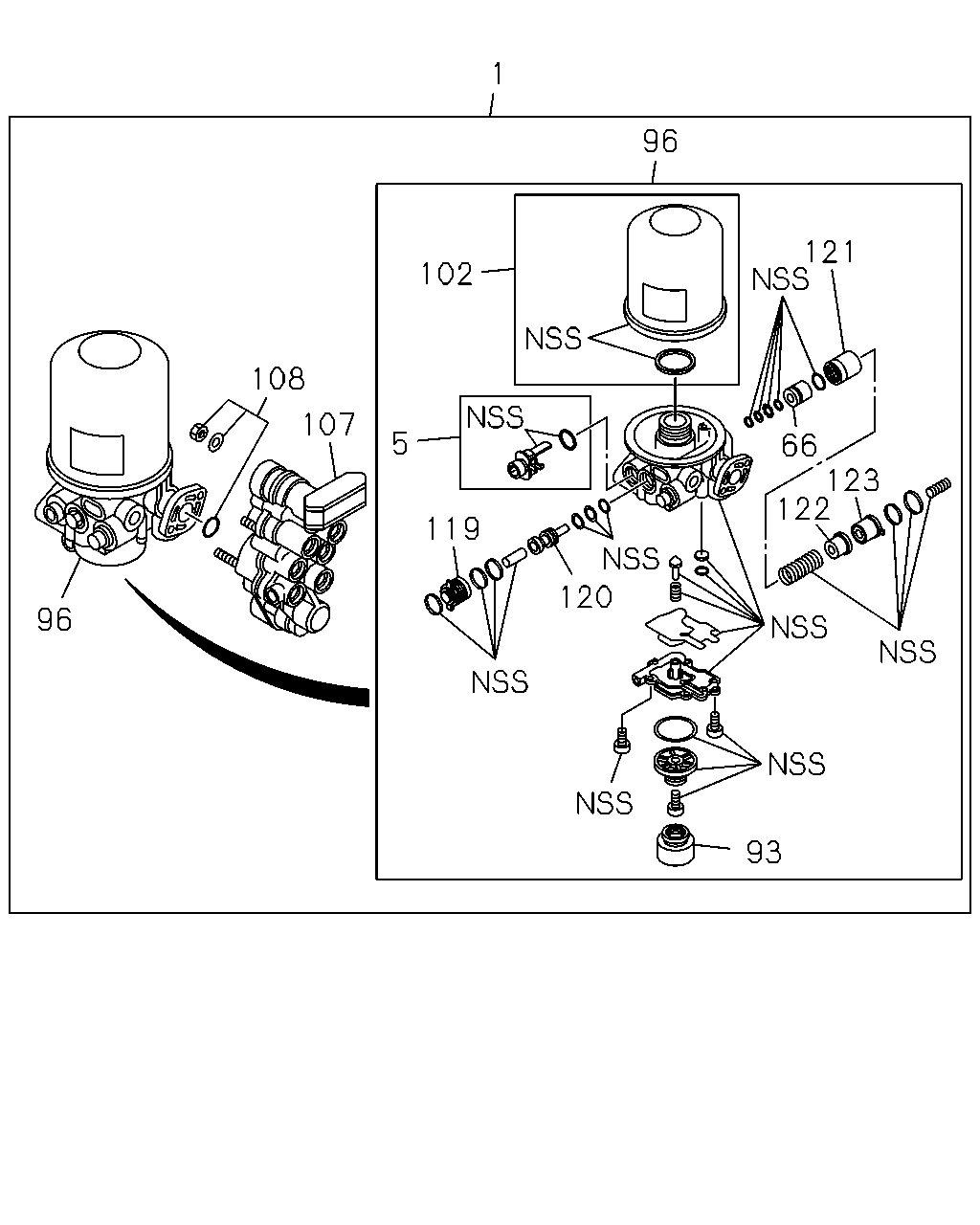

çizim 168537
1 96 121 66 122 123 93 120 119 5 102 107 108 96
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR 1-48190-368-5 01 1 1009-1302 ● ●
1 DRYER; AIR 8-98180-492-1 01 1 1303- ● ●
5 HEATER ASM; AIR DRYER 1-85576-363-0 01 1 1009- ● ●
54 CONNECTOR
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1303-1411 ● ●
54 CONNECTOR
WHEEL BASE 4900MM(49W) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1412- ●
54 CONNECTOR
WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1412- ●
54 CONNECTOR
WHEEL BASE 6100MM(61W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1412- ●
66 PISTON; AIR DRYER 1-85576-475-0 01 1 1009- ● ●
93 SILENCER; AIR DRYER 1-85576-362-0 01 1 1009- ● ●
96 DRYER KIT; AIR 1-85576-455-1 01 1 1009-1102 ● ●
96 DRYER KIT; AIR 8-98161-322-1 01 1 1103-1302 ● ●
96 DRYER KIT; AIR 8-98185-663-1 01 1 1303- ● ●
102 CARTRIDGE; AIR DRYER 1-85576-450-2 01 1 1009- ● ●
107 VALVE ASM; PROTECTION,AIR DRYER 1-85576-369-3 01 1 1009- ● ●
108 FIXING KIT; PROTECTION,AIR DRYER 1-85576-371-0 01 1 1009- ● ●
119 COVER; PURGE VALVE 1-85576-473-0 01 1 1009- ● ●
120 TAPPET 1-85576-474-0 01 1 1009-1302 ● ●
120 TAPPET 8-98185-666-0 01 1 1303- ● ●
121 HOLDER; SPRING 1-85576-476-0 01 1 1009- ● ●
122 SEAT; SPRING 1-85576-477-0 01 1 1009- ● ●
123 COVER; GOVERNER 1-85576-478-0 01 1 1009- ● ●

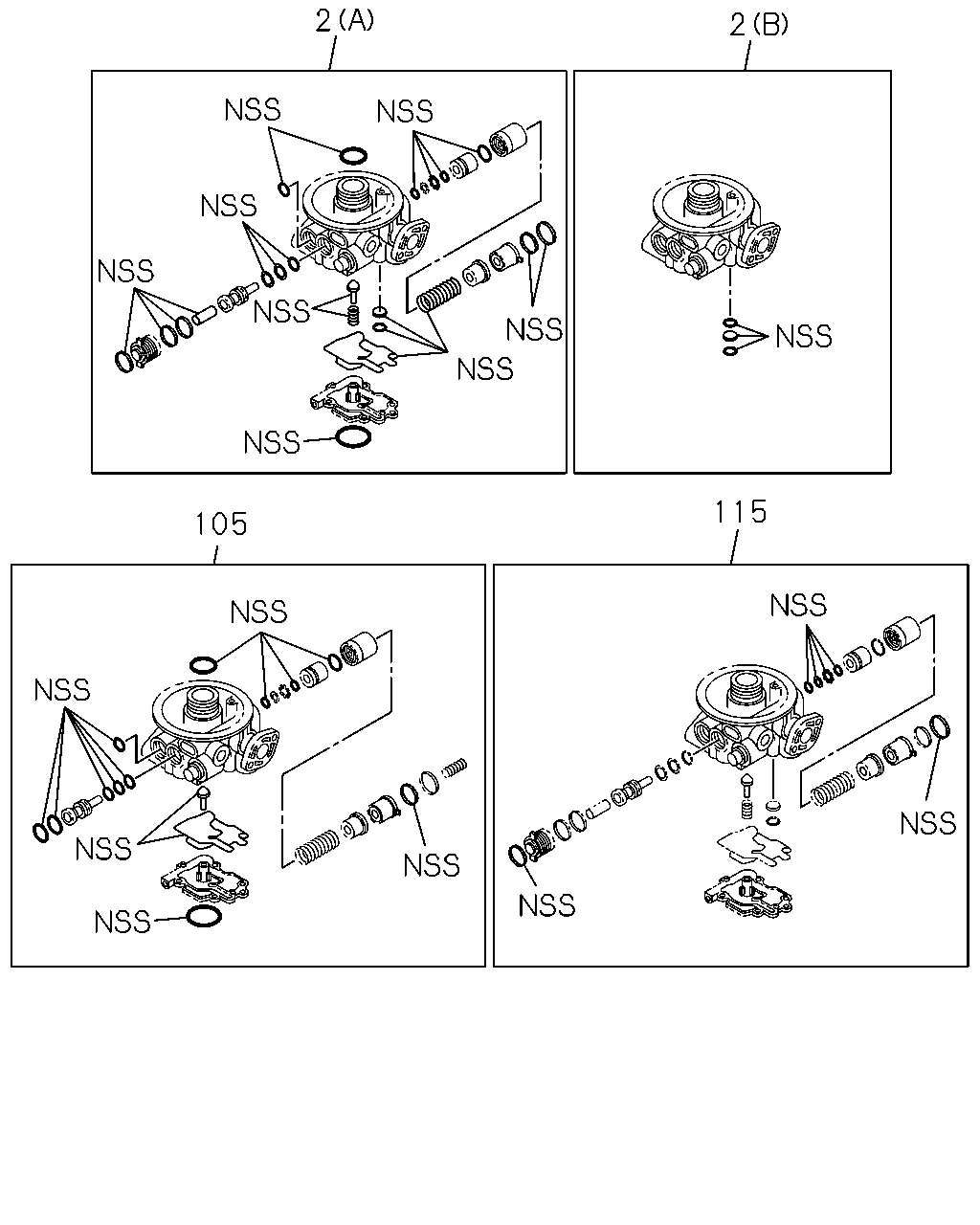

çizim 168556
2 2 105 115
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; AIR DRYER
WHEEL BASE 4900MM(49W) (B) 		8-98302-391-0 01 1 1408-1411 ●
2 REPAIR KIT; AIR DRYER
WHEEL BASE 6100MM(61W) (B) 		8-98302-391-0 01 1 1408-1411 ●
2 REPAIR KIT; AIR DRYER
(B) 		8-98302-391-0 01 1 1412- ● ●
2 REPAIR KIT; AIR DRYER
(A) 		1-85576-398-0 01 1 1009-1102 ● ●
2 REPAIR KIT; AIR DRYER
(A) 		8-98161-324-0 01 1 1103-1302 ● ●
2 REPAIR KIT; AIR DRYER
(A) 		8-98185-664-0 01 1 1303- ● ●
54 CONNECTOR
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1303-1411 ● ●
54 CONNECTOR
WHEEL BASE 4900MM(49W) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1412- ●
54 CONNECTOR
WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1412- ●
54 CONNECTOR
WHEEL BASE 6100MM(61W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1412- ●
105 SEAL KIT; AIR DRYER 1-85576-397-0 01 1 1009-1302 ● ●
105 SEAL KIT; AIR DRYER 8-98185-665-0 01 1 1303- ● ●
115 REPAIR KIT; GOVERNOR,AIR DRYER 1-85576-400-0 01 1 1009- ● ●
