Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#61065) — 470 parça

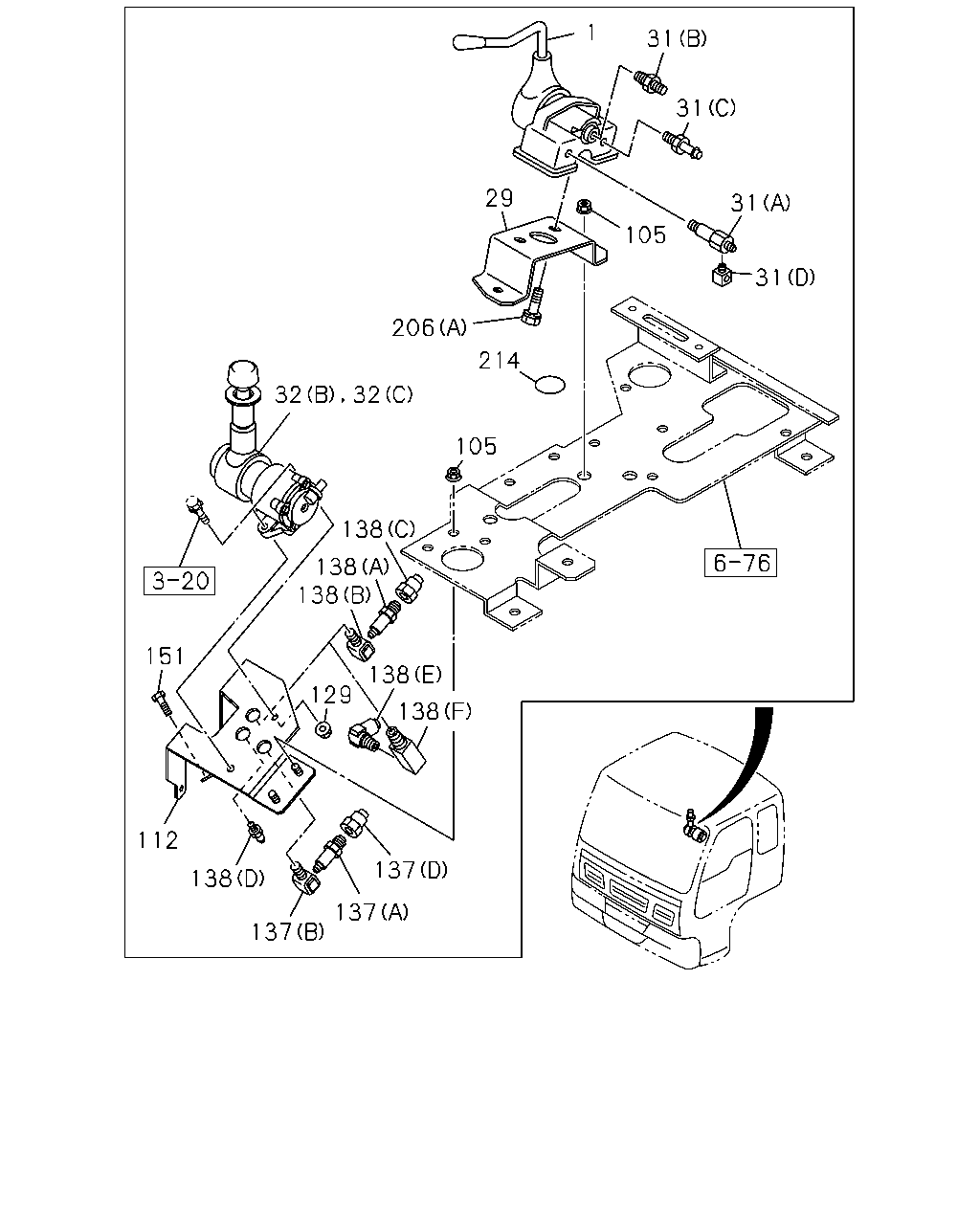

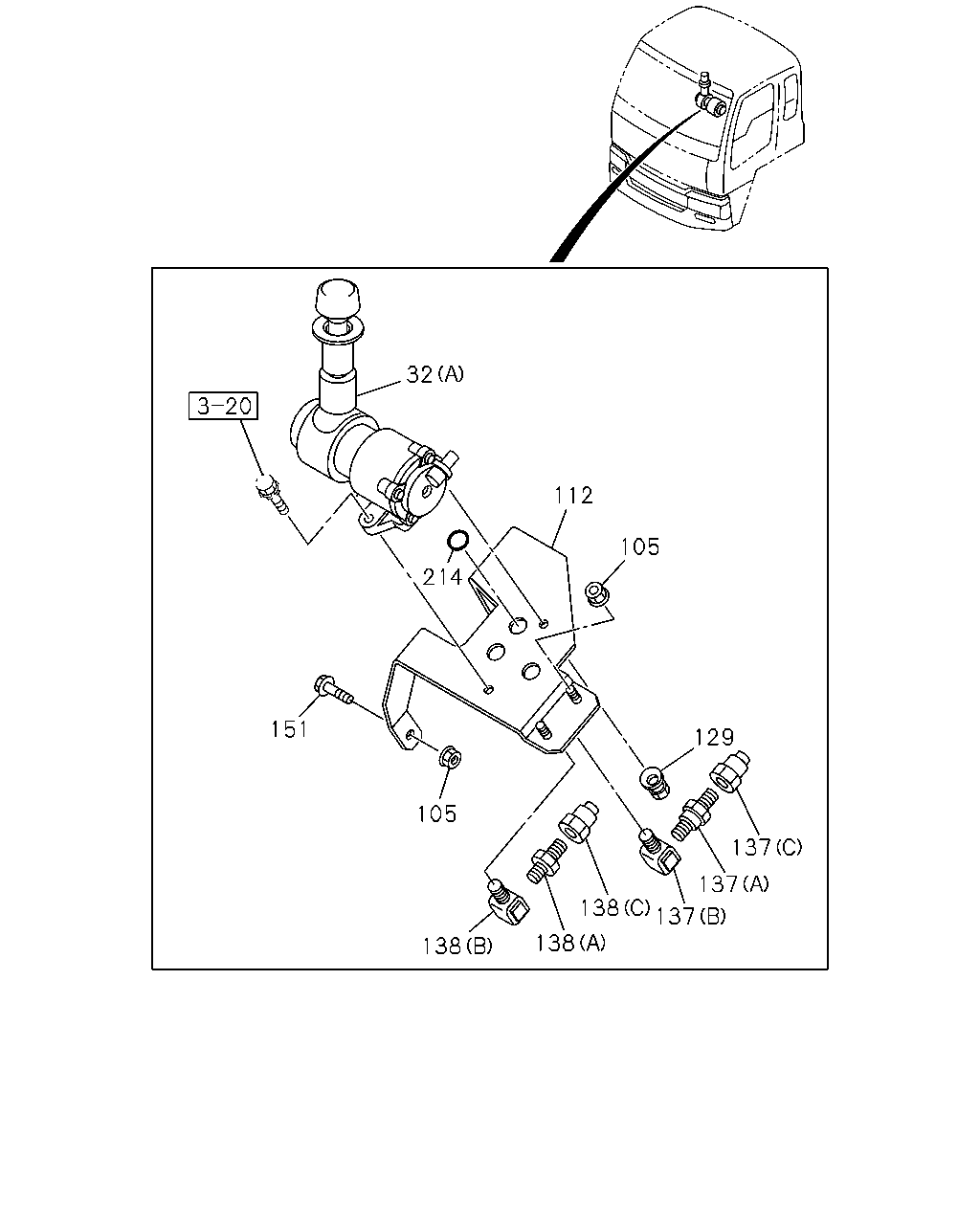

32 214 112 105 129 105 151 138 138 137 138 137 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT (C)	1-48460-316-0	01	1	1303-	●
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-339-1	01	1	1303-		●
32	VALVE; BRK,HAND CONT (A)	1-48460-340-1	01	1	1009-1302	●	●
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-340-1	01	1	1303-		●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-1302	●	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1304	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1304	●
105	NUT; BRKT EXC. FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1303-1304		●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1305-	●	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1305-	●
105	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1305-		●
112	BRACKET; CONT VLV	1-79996-336-1	01	1	1303-	●
112	BRACKET; CONT VLV	1-79996-387-0	01	1	1009-1302	●	●
112	BRACKET; CONT VLV EXC. FULL TRAILER PIPING<Z25>	1-79996-387-0	01	1	1303-1304		●
112	BRACKET; CONT VLV	1-79996-387-0	01	1	1305-		●
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	1303-	●
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	05	1	1303-		●
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
137	CONNECTOR; SUPPLY FULL TRAILER PIPING<Z25> (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1305-		●
137	CONNECTOR; SUPPLY (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1303-	●
137	CONNECTOR; SUPPLY (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1009-1302	●	●
137	CONNECTOR; SUPPLY EXC. FULL TRAILER PIPING<Z25> (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1303-1304		●
137	CONNECTOR; SUPPLY (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1305-		●
137	CONNECTOR; SUPPLY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1009-1302	●	●
137	CONNECTOR; SUPPLY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1303-1304	●
137	CONNECTOR; SUPPLY EXC. FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1303-1304		●
137	CONNECTOR; SUPPLY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1305-	●	●
137	CONNECTOR; SUPPLY (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1009-1302	●	●
137	CONNECTOR; SUPPLY EXC. FULL TRAILER PIPING<Z25> (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1303-		●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1305-		●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (F) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	1305-		●
138	CONNECTOR; DELIVERY (A) M14	1-09656-391-2	01	1	1303-	●
138	CONNECTOR; DELIVERY (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1303-1304	●
138	CONNECTOR; DELIVERY (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1305-	●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1305-		●
138	CONNECTOR; DELIVERY (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1009-1302	●	●
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1303-		●
138	CONNECTOR; DELIVERY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1009-1302	●	●
138	CONNECTOR; DELIVERY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1303-	●
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1303-		●
138	CONNECTOR; DELIVERY (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1009-1302	●	●
138	CONNECTOR; DELIVERY (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1303-	●
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1303-		●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1009-1302	●	●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1303-1304	●
151	BOLT; VLV BRKT EXC. FULL TRAILER PIPING<Z25> M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1303-1304		●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1305-	●	●
214	SEAL; COVER,HAND BRK EXC. FULL TRAILER PIPING<Z25> OD=25 BLACK	1-76798-019-0	02	1	1303-		●
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	02	1	1009-1302	●	●
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	1303-	●
214	SEAL; COVER,HAND BRK FULL TRAILER PIPING<Z25> OD=25 BLACK	1-76798-019-0	01	1	1303-		●

172 34 32 35 38 39 32 46 47 50 49 3 55 7 53 52 240 8 50 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

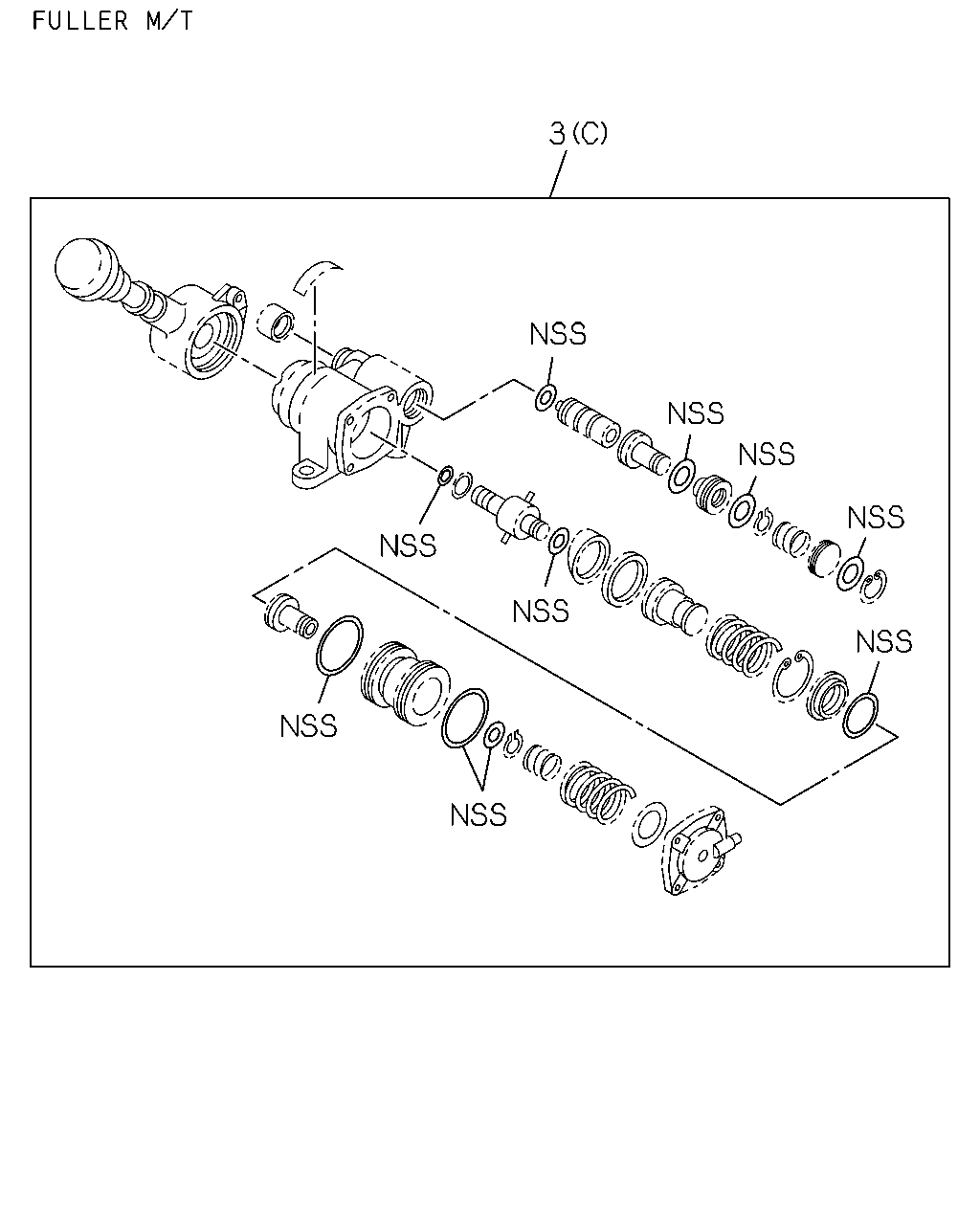

3	REPAIR KIT; HAND BRK VLV (C) W/GREASE	1-48469-083-0	01	1	1303-	●
3	REPAIR KIT; HAND BRK VLV FULL TRAILER PIPING<Z25> (B)	1-85576-376-0	01	1	1303-		●
3	REPAIR KIT; HAND BRK VLV (A)	1-85576-375-0	01	1	1009-1302	●	●
3	REPAIR KIT; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-85576-375-0	01	1	1303-		●
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	1303-	●
7	HEAD; BRK VLV TRAILER BRAKE HAND CONTROL(NLG) (A)	1-48119-131-1	01	1	1303-		●
7	HEAD; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-201-0	01	1	1303-		●
7	HEAD; BRK VLV (C)	1-48469-195-0	01	1	1009-1302	●	●
7	HEAD; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-195-0	01	1	1303-		●
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	1303-	●
8	STOPPER; BRK VLV TRAILER BRAKE HAND CONTROL(NLG) (A)	1-48119-239-0	01	1	1303-		●
8	STOPPER; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-200-0	01	1	1303-		●
8	STOPPER; BRK VLV (C)	1-48469-194-0	01	1	1009-1302	●	●
8	STOPPER; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-194-0	01	1	1303-		●
32	VALVE; BRK,HAND CONT (C)	1-48460-316-0	01	1	1303-	●
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-339-1	01	1	1303-		●
32	VALVE; BRK,HAND CONT (A)	1-48460-340-1	01	1	1009-1302	●	●
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-340-1	01	1	1303-		●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1303-	●	●
35	HOLDER; CAM	1-48469-054-0	01	1	1303-	●
35	HOLDER; CAM FULL TRAILER PIPING<Z25>	1-48469-171-0	01	1	1303-		●
35	HOLDER; CAM	1-48469-148-0	01	1	1009-1302	●	●
35	HOLDER; CAM EXC. FULL TRAILER PIPING<Z25>	1-48469-148-0	01	1	1303-		●
38	SEAT; EXH VLV	1-48469-057-0	01	1	1303-	●
38	SEAT; EXH VLV FULL TRAILER PIPING<Z25>	1-48469-172-0	01	1	1303-		●
38	SEAT; EXH VLV	1-48469-149-0	01	1	1009-1302	●	●
38	SEAT; EXH VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-149-0	01	1	1303-		●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	1303-	●
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	1009-1302	●	●
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	1303-		●
46	SPRING; MAIN,PISTON	1-48469-119-0	01	1	1303-	●
46	SPRING; MAIN,PISTON FULL TRAILER PIPING<Z25>	1-48469-173-0	01	1	1303-		●
46	SPRING; MAIN,PISTON	1-48469-152-0	01	1	1009-1302	●	●
46	SPRING; MAIN,PISTON EXC. FULL TRAILER PIPING<Z25>	1-48469-152-0	01	1	1303-		●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1303-	●	●
49	SCREW; COVER	1-48469-120-0	04	1	1303-	●
49	SCREW; COVER	1-48469-169-0	04	1	1009-1302	●	●
49	SCREW; COVER	1-48469-169-0	04	1	1303-		●
50	COVER; HAND BRK VLV (C)	1-48469-073-0	01	1	1303-	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	1009-1302	●	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	1303-		●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	1009-1302	●	●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	1303-		●
52	SCREW; HANDLE	1-48469-062-0	01	1	1303-	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	1303-	●	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	1303-	●
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	1009-1302	●	●
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	1303-		●
172	KNOB; VALVE FULL TRAILER PIPING<Z25>	1-48469-203-0	01	1	1303-		●
172	KNOB; VALVE	1-48469-204-0	01	1	1009-1302	●	●
172	KNOB; VALVE EXC. FULL TRAILER PIPING<Z25>	1-48469-204-0	01	1	1303-		●
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1303-	●
206	BOLT; HAND BRK VALVE TRAILER BRAKE HAND CONTROL(NLG) (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1303-		●
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	1009-1302	●	●
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	1303-		●
240	RING; STOPPER FULL TRAILER PIPING<Z25>	1-48469-199-0	01	1	1303-		●
240	RING; STOPPER	1-48469-193-0	01	1	1009-1302	●	●
240	RING; STOPPER EXC. FULL TRAILER PIPING<Z25>	1-48469-193-0	01	1	1303-		●

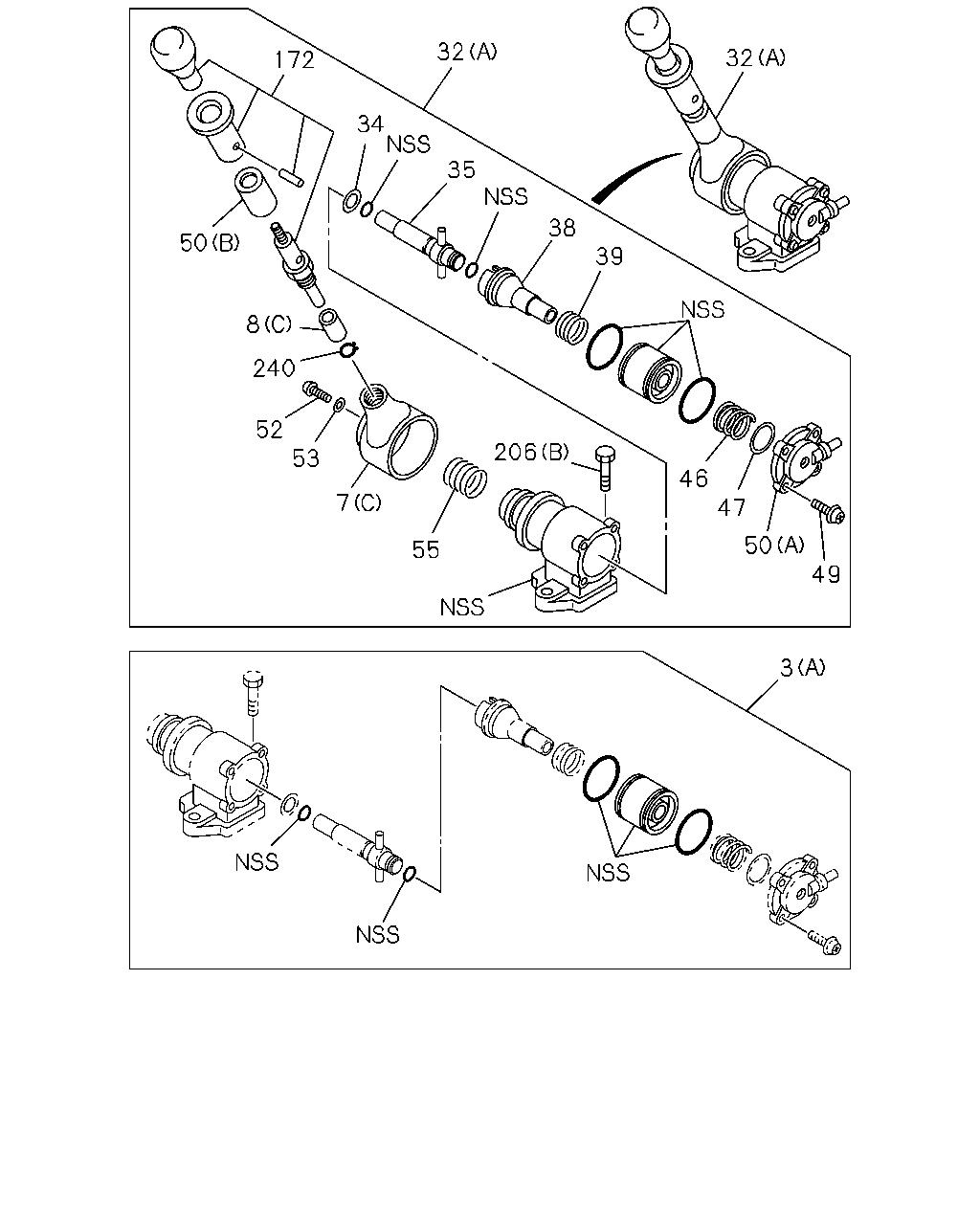

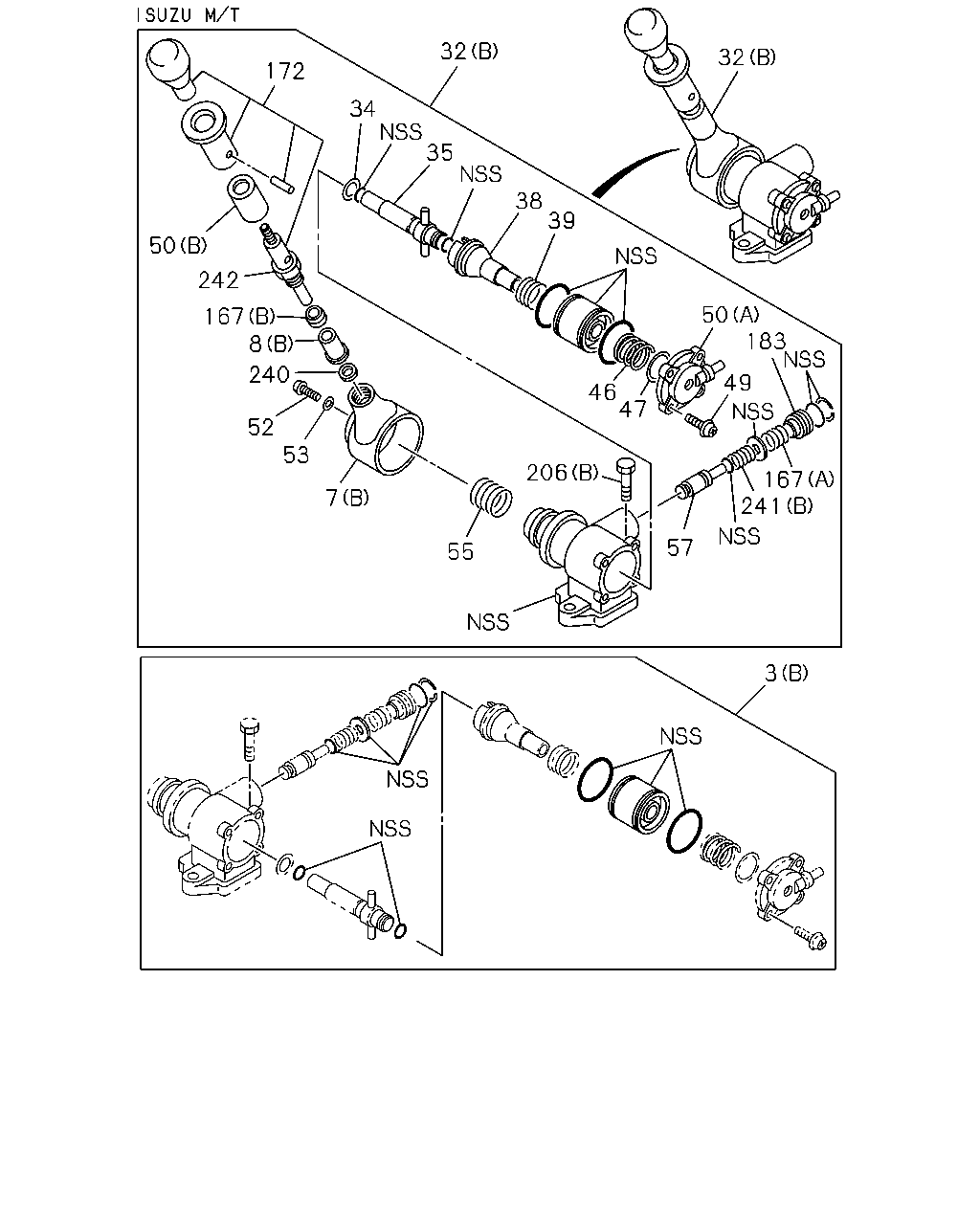

32 32 241 167 49 183 50 57 206 47 46 39 38 35 34 172 50 55 7 53 52 240 8 167 242 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV (C) W/GREASE	1-48469-083-0	01	1	1303-	●
3	REPAIR KIT; HAND BRK VLV FULL TRAILER PIPING<Z25> (B)	1-85576-376-0	01	1	1303-		●
3	REPAIR KIT; HAND BRK VLV (A)	1-85576-375-0	01	1	1009-1302	●	●
3	REPAIR KIT; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-85576-375-0	01	1	1303-		●
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	1303-	●
7	HEAD; BRK VLV TRAILER BRAKE HAND CONTROL(NLG) (A)	1-48119-131-1	01	1	1303-		●
7	HEAD; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-201-0	01	1	1303-		●
7	HEAD; BRK VLV (C)	1-48469-195-0	01	1	1009-1302	●	●
7	HEAD; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-195-0	01	1	1303-		●
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	1303-	●
8	STOPPER; BRK VLV TRAILER BRAKE HAND CONTROL(NLG) (A)	1-48119-239-0	01	1	1303-		●
8	STOPPER; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-200-0	01	1	1303-		●
8	STOPPER; BRK VLV (C)	1-48469-194-0	01	1	1009-1302	●	●
8	STOPPER; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-194-0	01	1	1303-		●
32	VALVE; BRK,HAND CONT (C)	1-48460-316-0	01	1	1303-	●
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-339-1	01	1	1303-		●
32	VALVE; BRK,HAND CONT (A)	1-48460-340-1	01	1	1009-1302	●	●
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-340-1	01	1	1303-		●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1303-	●	●
35	HOLDER; CAM	1-48469-054-0	01	1	1303-	●
35	HOLDER; CAM FULL TRAILER PIPING<Z25>	1-48469-171-0	01	1	1303-		●
35	HOLDER; CAM	1-48469-148-0	01	1	1009-1302	●	●
35	HOLDER; CAM EXC. FULL TRAILER PIPING<Z25>	1-48469-148-0	01	1	1303-		●
38	SEAT; EXH VLV	1-48469-057-0	01	1	1303-	●
38	SEAT; EXH VLV FULL TRAILER PIPING<Z25>	1-48469-172-0	01	1	1303-		●
38	SEAT; EXH VLV	1-48469-149-0	01	1	1009-1302	●	●
38	SEAT; EXH VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-149-0	01	1	1303-		●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	1303-	●
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	1009-1302	●	●
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	1303-		●
46	SPRING; MAIN,PISTON	1-48469-119-0	01	1	1303-	●
46	SPRING; MAIN,PISTON FULL TRAILER PIPING<Z25>	1-48469-173-0	01	1	1303-		●
46	SPRING; MAIN,PISTON	1-48469-152-0	01	1	1009-1302	●	●
46	SPRING; MAIN,PISTON EXC. FULL TRAILER PIPING<Z25>	1-48469-152-0	01	1	1303-		●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1303-	●	●
49	SCREW; COVER	1-48469-120-0	04	1	1303-	●
49	SCREW; COVER	1-48469-169-0	04	1	1009-1302	●	●
49	SCREW; COVER	1-48469-169-0	04	1	1303-		●
50	COVER; HAND BRK VLV (C)	1-48469-073-0	01	1	1303-	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	1009-1302	●	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	1303-		●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	1009-1302	●	●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	1303-		●
52	SCREW; HANDLE	1-48469-062-0	01	1	1303-	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	1303-	●	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	1303-	●
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	1009-1302	●	●
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	1303-		●
57	PLUNGER; HAND BRK VLV	1-48469-076-0	01	1	1303-	●
57	PLUNGER; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-180-0	01	1	1303-		●
167	SPRING; VALVE FULL TRAILER PIPING<Z25> (A)	1-48469-177-0	01	1	1303-		●
167	SPRING; VALVE FULL TRAILER PIPING<Z25> (B)	1-48469-184-0	01	1	1303-		●
172	KNOB; VALVE FULL TRAILER PIPING<Z25>	1-48469-203-0	01	1	1303-		●
172	KNOB; VALVE	1-48469-204-0	01	1	1009-1302	●	●
172	KNOB; VALVE EXC. FULL TRAILER PIPING<Z25>	1-48469-204-0	01	1	1303-		●
183	RETAINER; VALVE FULL TRAILER PIPING<Z25>	1-48469-185-0	01	1	1303-		●
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1303-	●
206	BOLT; HAND BRK VALVE TRAILER BRAKE HAND CONTROL(NLG) (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1303-		●
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	1009-1302	●	●
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	1303-		●
240	RING; STOPPER FULL TRAILER PIPING<Z25>	1-48469-199-0	01	1	1303-		●
240	RING; STOPPER	1-48469-193-0	01	1	1009-1302	●	●
240	RING; STOPPER EXC. FULL TRAILER PIPING<Z25>	1-48469-193-0	01	1	1303-		●
241	SPRING; RETURN (A)	1-48119-576-0	01	1	1303-	●
241	SPRING; RETURN FULL TRAILER PIPING<Z25> (B)	1-48469-182-0	01	1	1303-		●
242	NUT; LK FULL TRAILER PIPING<Z25>	1-48469-179-0	01	1	1303-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV (C) W/GREASE	1-48469-083-0	01	1	1303-	●
3	REPAIR KIT; HAND BRK VLV FULL TRAILER PIPING<Z25> (B)	1-85576-376-0	01	1	1303-		●
3	REPAIR KIT; HAND BRK VLV (A)	1-85576-375-0	01	1	1009-1302	●	●
3	REPAIR KIT; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-85576-375-0	01	1	1303-		●

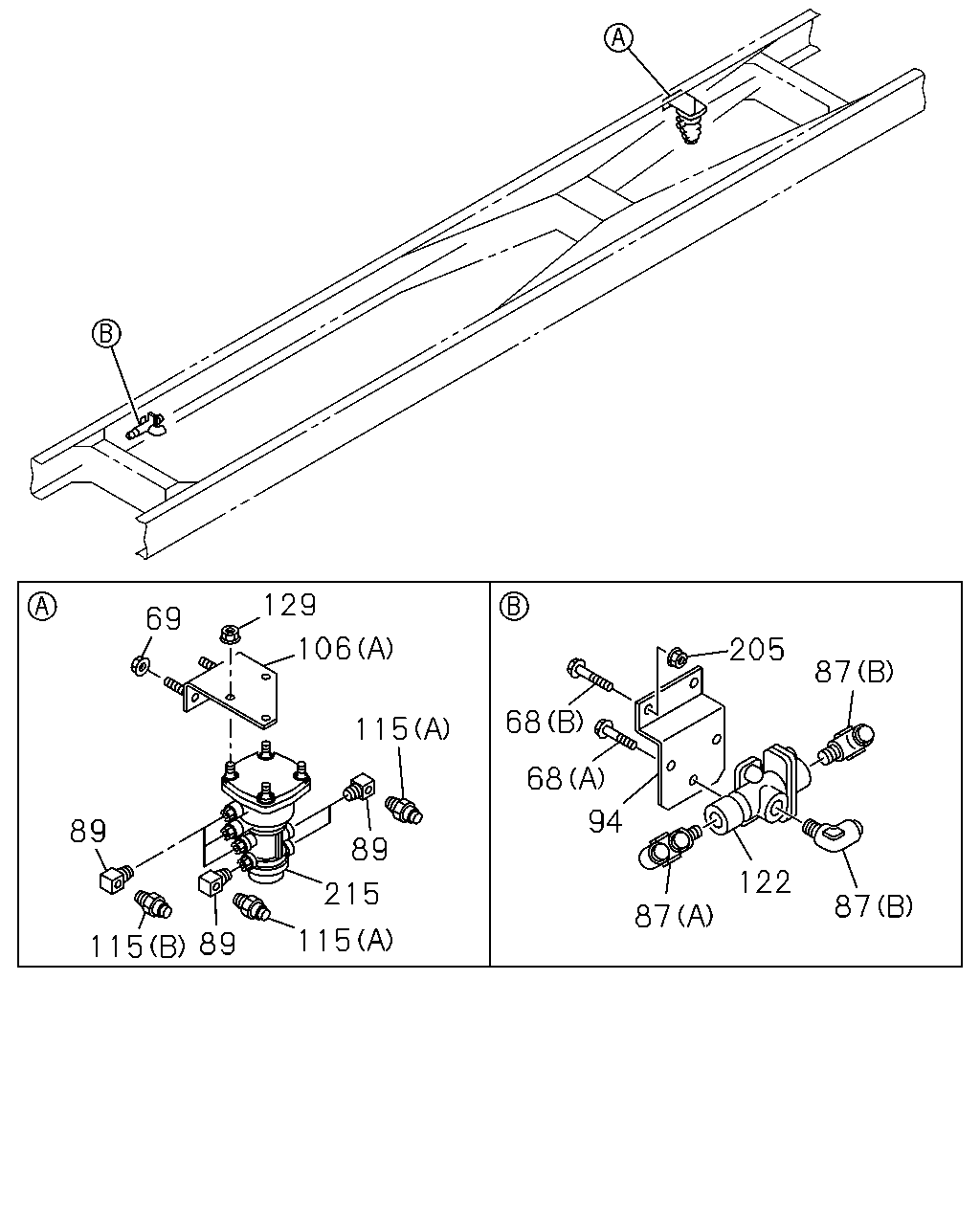

87 122 87 94 87 205 68 68 215 115 106 129 69 89 115 89 115 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
68	BOLT; DOUBLE CHECK VLV (A) M8X14 FLANGE	0-28080-814-0	02	1	1303-1404	●
68	BOLT; DOUBLE CHECK VLV (A) M8X14 FLANGE	0-28080-814-0	02	1	1405-	●
68	BOLT; DOUBLE CHECK VLV FULL TRAILER PIPING<Z25> (A) M8X14 FLANGE	0-28080-814-0	02	1	1405-		●
68	BOLT; DOUBLE CHECK VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-	●
68	BOLT; DOUBLE CHECK VLV FULL TRAILER PIPING<Z25> (C) M8X16 FLANGE	0-28050-816-0	02	1	1303-1404		●
69	NUT; VLV BRKT M10 FLANGE	0-91180-210-0	02	1	1303-	●
87	CONNECTOR; DBL CHECK VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1303-	●
87	CONNECTOR; DBL CHECK VLV (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1303-	●
89	CONNECTOR; FLARE PT3/8 ELBOW	1-09660-696-0	06	1	1303-	●
94	BRACKET; CHECK VLV	1-47479-367-0	01	1	1303-	●
94	BRACKET; CHECK VLV FULL TRAILER PIPING<Z25>	8-98153-162-0	01	1	1303-		●
106	BRACKET; VLV (A)	8-98110-679-1	01	1	1303-	●
106	BRACKET; VLV FULL TRAILER PIPING<Z25> (B)	8-98142-101-1	01	1	1303-		●
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	1303-	●
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1303-	●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1303-		●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1303-		●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	1303-		●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1303-		●
122	VALVE ASM; DOUBLE CHECK	1-48410-531-1	01	1	1303-	●
122	VALVE ASM; DOUBLE CHECK FULL TRAILER PIPING<Z25>	1-48410-531-1	01	1	1303-		●
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	1303-	●
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	05	1	1303-		●
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
205	NUT; DOUBLE CHECK VLV M8 FLANGE	0-91180-108-0	02	1	1303-	●
215	VALVE; TRAILER CONT	8-98091-694-0	01	1	1303-	●
215	VALVE; TRAILER CONT FULL TRAILER PIPING<Z25>	8-98091-694-0	01	1	1303-		●

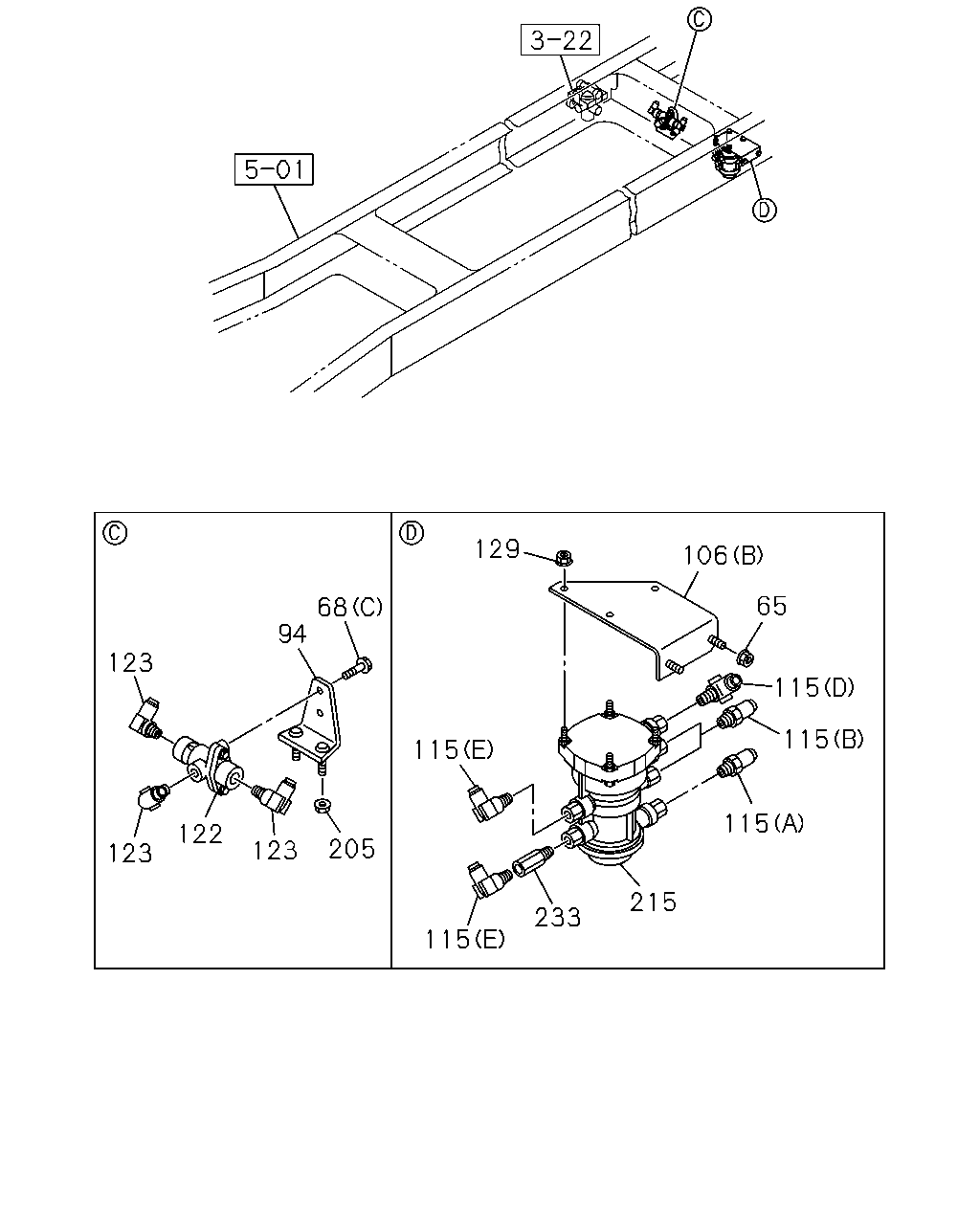

106 65 115 115 115 215 233 115 115 129 68 94 123 123 123 122 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	NUT; RELAY VLV FULL TRAILER PIPING<Z25> M10 FLANGE	0-91180-210-0	02	1	1303-		●
68	BOLT; DOUBLE CHECK VLV (A) M8X14 FLANGE	0-28080-814-0	02	1	1303-1404	●
68	BOLT; DOUBLE CHECK VLV (A) M8X14 FLANGE	0-28080-814-0	02	1	1405-	●
68	BOLT; DOUBLE CHECK VLV FULL TRAILER PIPING<Z25> (A) M8X14 FLANGE	0-28080-814-0	02	1	1405-		●
68	BOLT; DOUBLE CHECK VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-	●
68	BOLT; DOUBLE CHECK VLV FULL TRAILER PIPING<Z25> (C) M8X16 FLANGE	0-28050-816-0	02	1	1303-1404		●
94	BRACKET; CHECK VLV	1-47479-367-0	01	1	1303-	●
94	BRACKET; CHECK VLV FULL TRAILER PIPING<Z25>	8-98153-162-0	01	1	1303-		●
106	BRACKET; VLV (A)	8-98110-679-1	01	1	1303-	●
106	BRACKET; VLV FULL TRAILER PIPING<Z25> (B)	8-98142-101-1	01	1	1303-		●
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	1303-	●
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1303-	●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1303-		●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1303-		●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	1303-		●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1303-		●
122	VALVE ASM; DOUBLE CHECK	1-48410-531-1	01	1	1303-	●
122	VALVE ASM; DOUBLE CHECK FULL TRAILER PIPING<Z25>	1-48410-531-1	01	1	1303-		●
123	CONNECTOR; DBL CHECK VLV FULL TRAILER PIPING<Z25> DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1303-		●
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	1303-	●
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	05	1	1303-		●
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
205	NUT; DOUBLE CHECK VLV M8 FLANGE	0-91180-108-0	02	1	1303-	●
215	VALVE; TRAILER CONT	8-98091-694-0	01	1	1303-	●
215	VALVE; TRAILER CONT FULL TRAILER PIPING<Z25>	8-98091-694-0	01	1	1303-		●
233	ADAPTER; VLV FULL TRAILER PIPING<Z25> PT3/8	1-48319-058-0	01	1	1303-		●

1 31 31 31 31 105 29 206 32 32 214 105 138 151 138 138 138 138 129 112 138 137 137 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	1303-	●
1	VALVE ASM; HAND BRK TRAILER BRAKE HAND CONTROL(NLG)	1-48100-848-0	01	1	1303-		●
29	BRACKET; HAND BRK	1-79997-357-1	01	1	1303-1304	●
29	BRACKET; HAND BRK	1-79997-357-1	01	1	1305-	●
29	BRACKET; HAND BRK FULL TRAILER PIPING<Z25>	1-79997-357-1	01	1	1305-		●
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1303-1304	●
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1305-	●
31	CONNECTOR; HAND BRK VLV FULL TRAILER PIPING<Z25> (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1305-		●
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	1303-1304	●
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	1305-	●
31	CONNECTOR; HAND BRK VLV FULL TRAILER PIPING<Z25> (A) M14	1-09656-391-2	01	1	1305-		●
31	CONNECTOR; HAND BRK VLV (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1303-1304	●
31	CONNECTOR; HAND BRK VLV (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1305-	●
31	CONNECTOR; HAND BRK VLV FULL TRAILER PIPING<Z25> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1305-		●
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	1303-1304	●
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	1305-	●
31	CONNECTOR; HAND BRK VLV FULL TRAILER PIPING<Z25> (C) L=45	8-94338-874-0	01	1	1305-		●
32	VALVE; BRK,HAND CONT (C)	1-48460-316-0	01	1	1303-	●
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-339-1	01	1	1303-		●
32	VALVE; BRK,HAND CONT (A)	1-48460-340-1	01	1	1009-1302	●	●
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-340-1	01	1	1303-		●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-1302	●	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1304	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1304	●
105	NUT; BRKT EXC. FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1303-1304		●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1305-	●	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1305-	●
105	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1305-		●
112	BRACKET; CONT VLV	1-79996-336-1	01	1	1303-	●
112	BRACKET; CONT VLV	1-79996-387-0	01	1	1009-1302	●	●
112	BRACKET; CONT VLV EXC. FULL TRAILER PIPING<Z25>	1-79996-387-0	01	1	1303-1304		●
112	BRACKET; CONT VLV	1-79996-387-0	01	1	1305-		●
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	1303-	●
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	05	1	1303-		●
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
137	CONNECTOR; SUPPLY FULL TRAILER PIPING<Z25> (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1305-		●
137	CONNECTOR; SUPPLY (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1303-	●
137	CONNECTOR; SUPPLY (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1009-1302	●	●
137	CONNECTOR; SUPPLY EXC. FULL TRAILER PIPING<Z25> (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1303-1304		●
137	CONNECTOR; SUPPLY (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1305-		●
137	CONNECTOR; SUPPLY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1009-1302	●	●
137	CONNECTOR; SUPPLY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1303-1304	●
137	CONNECTOR; SUPPLY EXC. FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1303-1304		●
137	CONNECTOR; SUPPLY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1305-	●	●
137	CONNECTOR; SUPPLY (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1009-1302	●	●
137	CONNECTOR; SUPPLY EXC. FULL TRAILER PIPING<Z25> (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1303-		●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1305-		●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (F) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	1305-		●
138	CONNECTOR; DELIVERY (A) M14	1-09656-391-2	01	1	1303-	●
138	CONNECTOR; DELIVERY (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1303-1304	●
138	CONNECTOR; DELIVERY (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1305-	●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1305-		●
138	CONNECTOR; DELIVERY (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1009-1302	●	●
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1303-		●
138	CONNECTOR; DELIVERY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1009-1302	●	●
138	CONNECTOR; DELIVERY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1303-	●
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1303-		●
138	CONNECTOR; DELIVERY (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1009-1302	●	●
138	CONNECTOR; DELIVERY (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1303-	●
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1303-		●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1009-1302	●	●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1303-1304	●
151	BOLT; VLV BRKT EXC. FULL TRAILER PIPING<Z25> M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1303-1304		●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1305-	●	●
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1303-	●
206	BOLT; HAND BRK VALVE TRAILER BRAKE HAND CONTROL(NLG) (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1303-		●
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	1009-1302	●	●
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	1303-		●
214	SEAL; COVER,HAND BRK EXC. FULL TRAILER PIPING<Z25> OD=25 BLACK	1-76798-019-0	02	1	1303-		●
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	02	1	1009-1302	●	●
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	1303-	●
214	SEAL; COVER,HAND BRK FULL TRAILER PIPING<Z25> OD=25 BLACK	1-76798-019-0	01	1	1303-		●

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	180	REPAIR KIT; RELAY VLV	1-85576-449-0	01	1	1303-	●
	180	REPAIR KIT; RELAY VLV FULL TRAILER PIPING<Z25>	1-85576-449-0	01	1	1303-		●

32 49 47 46 44 45 50 43 164 42 41 40 39 38 37 36 35 34 145 40 59 45 44 58 57 42 33 56 54 55 54 53 52 51 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT (C)	1-48460-316-0	01	1	1303-	●
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-339-1	01	1	1303-		●
32	VALVE; BRK,HAND CONT (A)	1-48460-340-1	01	1	1009-1302	●	●
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-340-1	01	1	1303-		●
33	PLATE; CAUTION	1-48469-121-0	01	1	1303-	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1303-	●	●
35	HOLDER; CAM	1-48469-054-0	01	1	1303-	●
35	HOLDER; CAM FULL TRAILER PIPING<Z25>	1-48469-171-0	01	1	1303-		●
35	HOLDER; CAM	1-48469-148-0	01	1	1009-1302	●	●
35	HOLDER; CAM EXC. FULL TRAILER PIPING<Z25>	1-48469-148-0	01	1	1303-		●
36	RING; CAM	1-48469-056-0	01	1	1303-	●
37	GUIDE; CAM RING	1-48469-058-0	01	1	1303-	●
38	SEAT; EXH VLV	1-48469-057-0	01	1	1303-	●
38	SEAT; EXH VLV FULL TRAILER PIPING<Z25>	1-48469-172-0	01	1	1303-		●
38	SEAT; EXH VLV	1-48469-149-0	01	1	1009-1302	●	●
38	SEAT; EXH VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-149-0	01	1	1303-		●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	1303-	●
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	1009-1302	●	●
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	1303-		●
40	RING; SNAP (A)	1-48469-067-0	01	1	1303-	●
40	RING; SNAP (B)	1-48469-079-0	01	1	1303-	●
41	SEAT; FEED VLV	1-48469-066-0	01	1	1303-	●
42	VALVE; FEED	1-48469-065-0	02	1	1303-	●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	1303-	●
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	1303-	●
45	SPRING; FEED VLV	1-48469-070-0	02	1	1303-	●
46	SPRING; MAIN,PISTON	1-48469-119-0	01	1	1303-	●
46	SPRING; MAIN,PISTON FULL TRAILER PIPING<Z25>	1-48469-173-0	01	1	1303-		●
46	SPRING; MAIN,PISTON	1-48469-152-0	01	1	1009-1302	●	●
46	SPRING; MAIN,PISTON EXC. FULL TRAILER PIPING<Z25>	1-48469-152-0	01	1	1303-		●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1303-	●	●
49	SCREW; COVER	1-48469-120-0	04	1	1303-	●
49	SCREW; COVER	1-48469-169-0	04	1	1009-1302	●	●
49	SCREW; COVER	1-48469-169-0	04	1	1303-		●
50	COVER; HAND BRK VLV (C)	1-48469-073-0	01	1	1303-	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	1009-1302	●	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	1303-		●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	1009-1302	●	●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	1303-		●
51	HANDLE ASM; HAND BRK VLV	1-48469-060-0	01	1	1303-	●
52	SCREW; HANDLE	1-48469-062-0	01	1	1303-	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	1303-	●	●
54	SEAT; SPRING	1-48469-082-0	02	1	1303-	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	1303-	●
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	1009-1302	●	●
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	1303-		●
56	BOOT; PLUNGER	1-48469-080-0	01	1	1303-	●
57	PLUNGER; HAND BRK VLV	1-48469-076-0	01	1	1303-	●
57	PLUNGER; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-180-0	01	1	1303-		●
58	HOLDER; FEED VLV	1-48469-077-0	01	1	1303-	●
59	HOLDER; SPRING	1-48469-078-0	01	1	1303-	●
145	STUD; HAND BRK VLV	1-48469-069-0	01	1	1303-	●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	1303-	●

1 1 5 6 4 7 9 8 13 12 241 10 24 25 23 22 21 20 19 18 17 16 15 14 25 24 28 13 21 18 15 14 5 2 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	1303-	●
1	VALVE ASM; HAND BRK TRAILER BRAKE HAND CONTROL(NLG)	1-48100-848-0	01	1	1303-		●
2	REPAIR KIT; HAND BRK VLV	1-85576-305-0	01	1	1303-	●
2	REPAIR KIT; HAND BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-85576-181-0	01	1	1303-		●
4	HANDLE ASM; BRK VLV	1-48119-580-1	01	1	1303-	●
4	HANDLE ASM; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48119-517-0	01	1	1303-		●
5	GASKET; HANDLE	1-48119-128-0	01	1	1303-	●
5	GASKET; HANDLE TRAILER BRAKE HAND CONTROL(NLG)	1-48119-128-0	01	1	1303-		●
6	PIN; SPR	1-48119-143-0	01	1	1303-	●
6	PIN; SPR TRAILER BRAKE HAND CONTROL(NLG)	1-48119-143-0	01	1	1303-		●
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	1303-	●
7	HEAD; BRK VLV TRAILER BRAKE HAND CONTROL(NLG) (A)	1-48119-131-1	01	1	1303-		●
7	HEAD; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-201-0	01	1	1303-		●
7	HEAD; BRK VLV (C)	1-48469-195-0	01	1	1009-1302	●	●
7	HEAD; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-195-0	01	1	1303-		●
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	1303-	●
8	STOPPER; BRK VLV TRAILER BRAKE HAND CONTROL(NLG) (A)	1-48119-239-0	01	1	1303-		●
8	STOPPER; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-200-0	01	1	1303-		●
8	STOPPER; BRK VLV (C)	1-48469-194-0	01	1	1009-1302	●	●
8	STOPPER; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-194-0	01	1	1303-		●
9	WASHER; LK,ADJ	1-48119-123-0	01	1	1303-	●
9	WASHER; LK,ADJ TRAILER BRAKE HAND CONTROL(NLG)	1-48119-123-0	01	1	1303-		●
10	RING; ADJ	1-48119-122-0	01	1	1303-	●
10	RING; ADJ TRAILER BRAKE HAND CONTROL(NLG)	1-48119-122-0	01	1	1303-		●
12	COVER; BRK VLV	1-48129-319-1	01	1	1303-	●
12	COVER; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-097-1	01	1	1303-		●
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	1303-	●
13	GASKET; BODY TO COVER TRAILER BRAKE HAND CONTROL(NLG)	1-48119-120-0	01	1	1303-		●
14	FOLLOWER; CAM	1-48129-135-0	01	1	1303-	●
14	FOLLOWER; CAM TRAILER BRAKE HAND CONTROL(NLG)	1-48129-135-0	01	1	1303-		●
15	CAM; FOLLOWER	1-48129-134-0	01	1	1303-	●
15	CAM; FOLLOWER TRAILER BRAKE HAND CONTROL(NLG)	1-48129-134-0	01	1	1303-		●
16	SPRING; GRUDUATING	1-48129-101-0	01	1	1303-	●
16	SPRING; GRUDUATING TRAILER BRAKE HAND CONTROL(NLG)	1-48129-101-0	01	1	1303-		●
17	PISTON; SPR	1-48129-095-0	01	1	1303-	●
17	PISTON; SPR TRAILER BRAKE HAND CONTROL(NLG)	1-48129-095-0	01	1	1303-		●
18	GASKET; BODY	1-48129-096-0	01	1	1303-	●
18	GASKET; BODY TRAILER BRAKE HAND CONTROL(NLG)	1-48129-096-0	01	1	1303-		●
19	SPRING; PISTON	1-48129-094-0	01	1	1303-	●
19	SPRING; PISTON TRAILER BRAKE HAND CONTROL(NLG)	1-48129-094-0	01	1	1303-		●
20	GUIDE; VLV	1-48129-090-0	01	1	1303-	●
20	GUIDE; VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-090-0	01	1	1303-		●
21	VALVE; IN & EXH	1-48121-017-0	01	1	1303-	●
21	VALVE; IN & EXH TRAILER BRAKE HAND CONTROL(NLG)	1-48121-017-0	01	1	1303-		●
22	SPRING; VLV	1-48123-024-0	01	1	1303-	●
22	SPRING; VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48123-024-0	01	1	1303-		●
23	BODY; BRK VLV	1-48111-060-1	01	1	1303-	●
23	BODY; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48111-060-1	01	1	1303-		●
24	BOLT; EXH VLV	1-48129-092-0	02	1	1303-	●
24	BOLT; EXH VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-092-0	02	1	1303-		●
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	1303-	●
25	WASHER; LK,EXH VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-093-0	02	1	1303-		●
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	1303-	●
28	STEM ASM; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-089-0	01	1	1303-		●
241	SPRING; RETURN (A)	1-48119-576-0	01	1	1303-	●
241	SPRING; RETURN FULL TRAILER PIPING<Z25> (B)	1-48469-182-0	01	1	1303-		●

1 1 5 4 24 25 23 22 21 20 13 12 11 10 9 8 7 6 14 19 18 17 16 15 25 24 28 28 13 11 21 5 2 15 18 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	1303-	●
1	VALVE ASM; HAND BRK TRAILER BRAKE HAND CONTROL(NLG)	1-48100-848-0	01	1	1303-		●
2	REPAIR KIT; HAND BRK VLV	1-85576-305-0	01	1	1303-	●
2	REPAIR KIT; HAND BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-85576-181-0	01	1	1303-		●
4	HANDLE ASM; BRK VLV	1-48119-580-1	01	1	1303-	●
4	HANDLE ASM; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48119-517-0	01	1	1303-		●
5	GASKET; HANDLE	1-48119-128-0	01	1	1303-	●
5	GASKET; HANDLE TRAILER BRAKE HAND CONTROL(NLG)	1-48119-128-0	01	1	1303-		●
6	PIN; SPR	1-48119-143-0	01	1	1303-	●
6	PIN; SPR TRAILER BRAKE HAND CONTROL(NLG)	1-48119-143-0	01	1	1303-		●
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	1303-	●
7	HEAD; BRK VLV TRAILER BRAKE HAND CONTROL(NLG) (A)	1-48119-131-1	01	1	1303-		●
7	HEAD; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-201-0	01	1	1303-		●
7	HEAD; BRK VLV (C)	1-48469-195-0	01	1	1009-1302	●	●
7	HEAD; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-195-0	01	1	1303-		●
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	1303-	●
8	STOPPER; BRK VLV TRAILER BRAKE HAND CONTROL(NLG) (A)	1-48119-239-0	01	1	1303-		●
8	STOPPER; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-200-0	01	1	1303-		●
8	STOPPER; BRK VLV (C)	1-48469-194-0	01	1	1009-1302	●	●
8	STOPPER; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-194-0	01	1	1303-		●
9	WASHER; LK,ADJ	1-48119-123-0	01	1	1303-	●
9	WASHER; LK,ADJ TRAILER BRAKE HAND CONTROL(NLG)	1-48119-123-0	01	1	1303-		●
10	RING; ADJ	1-48119-122-0	01	1	1303-	●
10	RING; ADJ TRAILER BRAKE HAND CONTROL(NLG)	1-48119-122-0	01	1	1303-		●
11	GASKET; HD TO COVER TRAILER BRAKE HAND CONTROL(NLG)	1-48119-130-0	01	1	1303-		●
12	COVER; BRK VLV	1-48129-319-1	01	1	1303-	●
12	COVER; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-097-1	01	1	1303-		●
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	1303-	●
13	GASKET; BODY TO COVER TRAILER BRAKE HAND CONTROL(NLG)	1-48119-120-0	01	1	1303-		●
14	FOLLOWER; CAM	1-48129-135-0	01	1	1303-	●
14	FOLLOWER; CAM TRAILER BRAKE HAND CONTROL(NLG)	1-48129-135-0	01	1	1303-		●
15	CAM; FOLLOWER	1-48129-134-0	01	1	1303-	●
15	CAM; FOLLOWER TRAILER BRAKE HAND CONTROL(NLG)	1-48129-134-0	01	1	1303-		●
16	SPRING; GRUDUATING	1-48129-101-0	01	1	1303-	●
16	SPRING; GRUDUATING TRAILER BRAKE HAND CONTROL(NLG)	1-48129-101-0	01	1	1303-		●
17	PISTON; SPR	1-48129-095-0	01	1	1303-	●
17	PISTON; SPR TRAILER BRAKE HAND CONTROL(NLG)	1-48129-095-0	01	1	1303-		●
18	GASKET; BODY	1-48129-096-0	01	1	1303-	●
18	GASKET; BODY TRAILER BRAKE HAND CONTROL(NLG)	1-48129-096-0	01	1	1303-		●
19	SPRING; PISTON	1-48129-094-0	01	1	1303-	●
19	SPRING; PISTON TRAILER BRAKE HAND CONTROL(NLG)	1-48129-094-0	01	1	1303-		●
20	GUIDE; VLV	1-48129-090-0	01	1	1303-	●
20	GUIDE; VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-090-0	01	1	1303-		●
21	VALVE; IN & EXH	1-48121-017-0	01	1	1303-	●
21	VALVE; IN & EXH TRAILER BRAKE HAND CONTROL(NLG)	1-48121-017-0	01	1	1303-		●
22	SPRING; VLV	1-48123-024-0	01	1	1303-	●
22	SPRING; VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48123-024-0	01	1	1303-		●
23	BODY; BRK VLV	1-48111-060-1	01	1	1303-	●
23	BODY; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48111-060-1	01	1	1303-		●
24	BOLT; EXH VLV	1-48129-092-0	02	1	1303-	●
24	BOLT; EXH VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-092-0	02	1	1303-		●
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	1303-	●
25	WASHER; LK,EXH VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-093-0	02	1	1303-		●
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	1303-	●
28	STEM ASM; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-089-0	01	1	1303-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
