◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#61061) — 78 parça

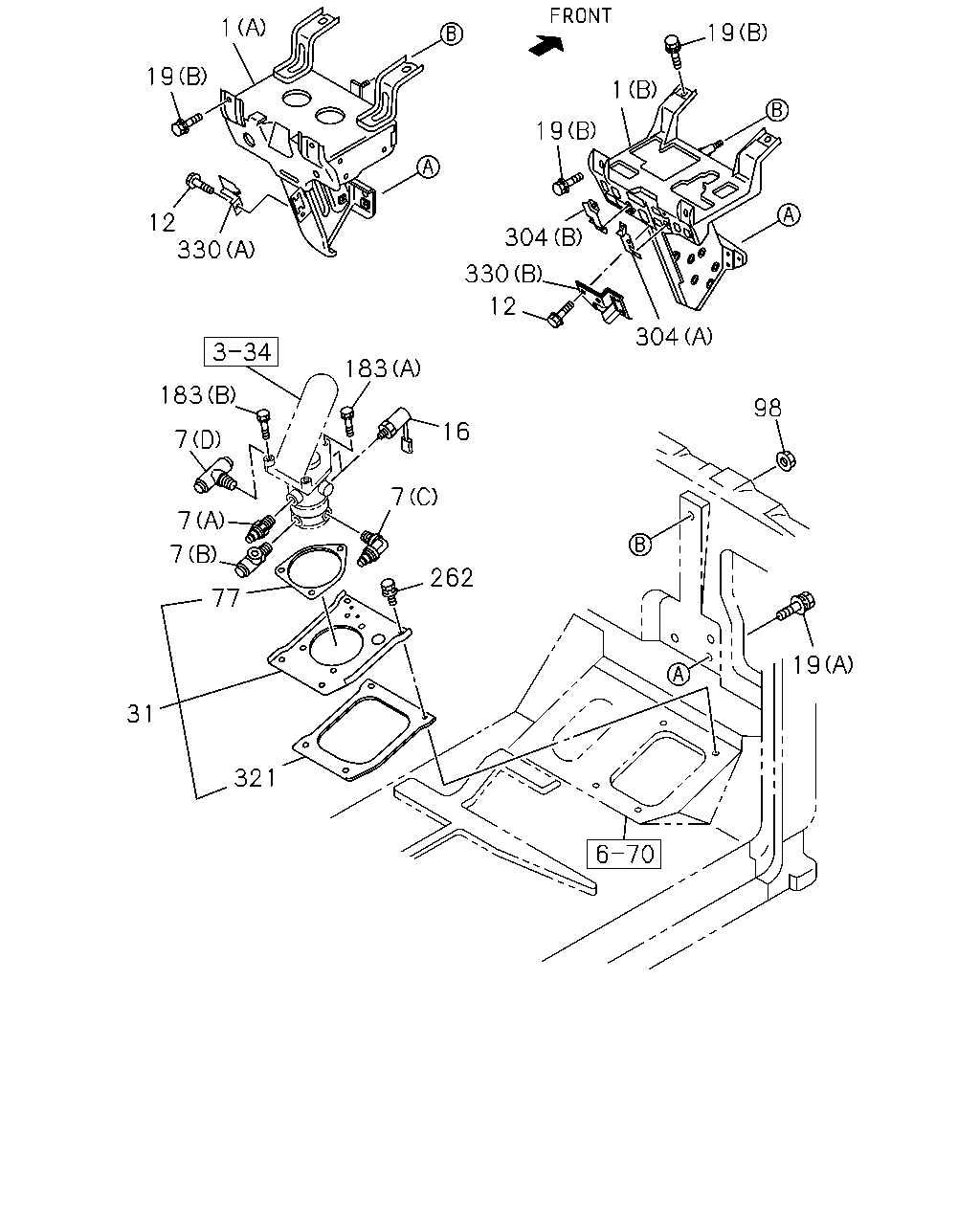

çizim 168382
1 19 2 330 183 7 7 7 31 321 77 262 7 16 183 19 304 330 12 304 19 1 98 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL
MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) (A) 		1-73908-477-0 01 1 1412- ●
1 BRACKET ASM; PEDAL
EXC. AIR BAG(TFQ) (A) 		1-73908-477-0 01 1 1009-1302 ●
1 BRACKET ASM; PEDAL
AIR BAG(TFQ) (B) 		1-73908-191-7 01 1 1009-1302 ●
1 BRACKET ASM; PEDAL
(B) 		1-73908-191-7 01 1 1009-1302 ●
1 BRACKET ASM; PEDAL
(B) 		1-73908-191-7 01 1 1303-1411 ● ●
1 BRACKET ASM; PEDAL
TRANSMISSION-FULLER RTLO149 18(Y4C) (B) 		1-73908-191-7 01 1 1412- ●
1 BRACKET ASM; PEDAL
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) AIR BAG(TFQ) (B) 		1-73908-191-7 01 1 1412- ●
7 CONNECTOR; BRK VALVE
CAB SUSPENSION-FULL FLOATING(SMK) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1511- ●
7 CONNECTOR; BRK VALVE
(D) DIN8 & R3/8 & RC1/4 3WAY 		8-97620-116-0 01 1 1303-1510 ●
7 CONNECTOR; BRK VALVE
(D) DIN8 & R3/8 & RC1/4 3WAY 		8-97620-116-0 01 1 1511- ●
7 CONNECTOR; BRK VALVE
FULL FLOATING CAB(W16) EXC. BRAKE SYSTEM HSA(SLD) (D) DIN8 & R3/8 & RC1/4 3WAY 		8-97620-116-0 01 1 1511- ●
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM HSA(SLD) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1009-1302 ●
7 CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1009-1302 ●
7 CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1303-1411 ●
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM HSA(SLD) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1303-1411 ●
7 CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1412-1510 ●
7 CONNECTOR; BRK VALVE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) BRAKE SYSTEM HSA(SLD) FULL FLOATING CAB(W16) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1412-1510 ●
7 CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1511- ●
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM HSA(SLD) CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1511- ●
7 CONNECTOR; BRK VALVE
FULL FLOATING CAB(W16) EXC. BRAKE SYSTEM HSA(SLD) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1511- ●
7 CONNECTOR; BRK VALVE
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1009-1302 ● ●
7 CONNECTOR; BRK VALVE
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1303-1411 ●
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM HSA(SLD) (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1303-1411 ●
7 CONNECTOR; BRK VALVE
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1412-1510 ●
7 CONNECTOR; BRK VALVE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) BRAKE SYSTEM HSA(SLD) FULL FLOATING CAB(W16) (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1412-1510 ●
7 CONNECTOR; BRK VALVE
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1511- ●
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM HSA(SLD) CAB SUSPENSION-FULL FLOATING(SMK),FULL FLOATING CAB(W16) (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1511- ●
7 CONNECTOR; BRK VALVE
FULL FLOATING CAB(W16) EXC. BRAKE SYSTEM HSA(SLD) (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1511- ●
7 CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1009-1302 ● ●
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM HSA(SLD) (B) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1303-1411 ●
7 CONNECTOR; BRK VALVE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) BRAKE SYSTEM HSA(SLD) FULL FLOATING CAB(W16) (B) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1412- ●
7 CONNECTOR; BRK VALVE
(D) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-776-1 01 1 1009-1302 ● ●
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM HSA(SLD) (D) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-776-1 01 1 1303-1411 ●
7 CONNECTOR; BRK VALVE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) BRAKE SYSTEM HSA(SLD) FULL FLOATING CAB(W16) (D) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-776-1 01 1 1412- ●
7 CONNECTOR; BRK VALVE
EXC. BRAKE SYSTEM HSA(SLD) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-1302 ●
7 CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 & RC1/4 3WAY 		1-09661-687-0 01 1 1303-1510 ●
7 CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 & RC1/4 3WAY 		1-09661-687-0 01 1 1511- ●
7 CONNECTOR; BRK VALVE
FULL FLOATING CAB(W16) EXC. BRAKE SYSTEM HSA(SLD) (B) DIN8 & R3/8 & RC1/4 3WAY 		1-09661-687-0 01 1 1511- ●
12 BOLT; BRKT
MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1412- ●
12 BOLT; BRKT
AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-1302 ●
12 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-1302 ●
12 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-1411 ● ●
12 BOLT; BRKT
TRANSMISSION-FULLER RTLO149 18(Y4C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412- ●
12 BOLT; BRKT
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412- ●
12 BOLT; BRKT
EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1009-1302 ●
16 SWITCH; STOP LAMP
STAMP 0.3 		8-98010-857-0 02 1 1009- ● ●
19 BOLT; BRKT
EXC. AIR BAG(TFQ) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1412- ●
19 BOLT; BRKT
AIR BAG(TFQ) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1009-1302 ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1009-1302 ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1303-1411 ● ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1412- ●
19 BOLT; BRKT
AIR BAG(TFQ) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1412- ●
19 BOLT; BRKT
(A) M8X20 		1-79198-002-0 02 1 1009- ● ●
19 BOLT; BRKT
EXC. AIR BAG(TFQ) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1009-1302 ●
31 PLATE; MTG,BRKT VLV 1-73996-329-1 01 1 1009- ● ●
77 RUBBER; SEAL,BRK 1-73996-207-0 01 1 1009- ● ●
98 NUT; BRKT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 1009- ● ●
183 BOLT; BRK VLV
(A) M10X25 W/LK WASHER 		1-09980-503-0 01 1 1009- ● ●
183 BOLT; BRK VLV
(B) M10X35 W/LK WASHER 		1-09980-504-0 02 1 1009- ● ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1009- ● ●
304 SUPPORT ASM; PEDAL BRKT
AIR BAG(TFQ) (A) 		1-73996-341-1 01 1 1009-1302 ●
304 SUPPORT ASM; PEDAL BRKT
(A) 		1-73996-341-1 01 1 1009-1302 ●
304 SUPPORT ASM; PEDAL BRKT
(A) 		1-73996-341-1 01 1 1303-1411 ● ●
304 SUPPORT ASM; PEDAL BRKT
TRANSMISSION-FULLER RTLO149 18(Y4C) (A) 		1-73996-341-1 01 1 1412- ●
304 SUPPORT ASM; PEDAL BRKT
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) AIR BAG(TFQ) (A) 		1-73996-341-1 01 1 1412- ●
304 SUPPORT ASM; PEDAL BRKT
AIR BAG(TFQ) (B) 		1-73996-342-1 01 1 1009-1302 ●
304 SUPPORT ASM; PEDAL BRKT
(B) 		1-73996-342-1 01 1 1009-1302 ●
304 SUPPORT ASM; PEDAL BRKT
(B) 		1-73996-342-1 01 1 1303-1411 ● ●
304 SUPPORT ASM; PEDAL BRKT
TRANSMISSION-FULLER RTLO149 18(Y4C) (B) 		1-73996-342-1 01 1 1412- ●
304 SUPPORT ASM; PEDAL BRKT
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) AIR BAG(TFQ) (B) 		1-73996-342-1 01 1 1412- ●
321 SEAL; VALVE 1-73996-143-0 01 1 1009- ● ●
330 BRACKET; CONNECTOR
MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) (A) 		8-97616-605-0 01 1 1412- ●
330 BRACKET; CONNECTOR
EXC. AIR BAG(TFQ) (A) 		8-97616-605-0 01 1 1009-1302 ●
330 BRACKET; CONNECTOR
AIR BAG(TFQ) (B) 		8-97616-564-1 01 1 1009-1302 ●
330 BRACKET; CONNECTOR
(B) 		8-97616-564-1 01 1 1009-1302 ●
330 BRACKET; CONNECTOR
(B) 		8-97616-564-1 01 1 1303-1411 ● ●
330 BRACKET; CONNECTOR
TRANSMISSION-FULLER RTLO149 18(Y4C) (B) 		8-97616-564-1 01 1 1412- ●
330 BRACKET; CONNECTOR
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) AIR BAG(TFQ) (B) 		8-97616-564-1 01 1 1412- ●
