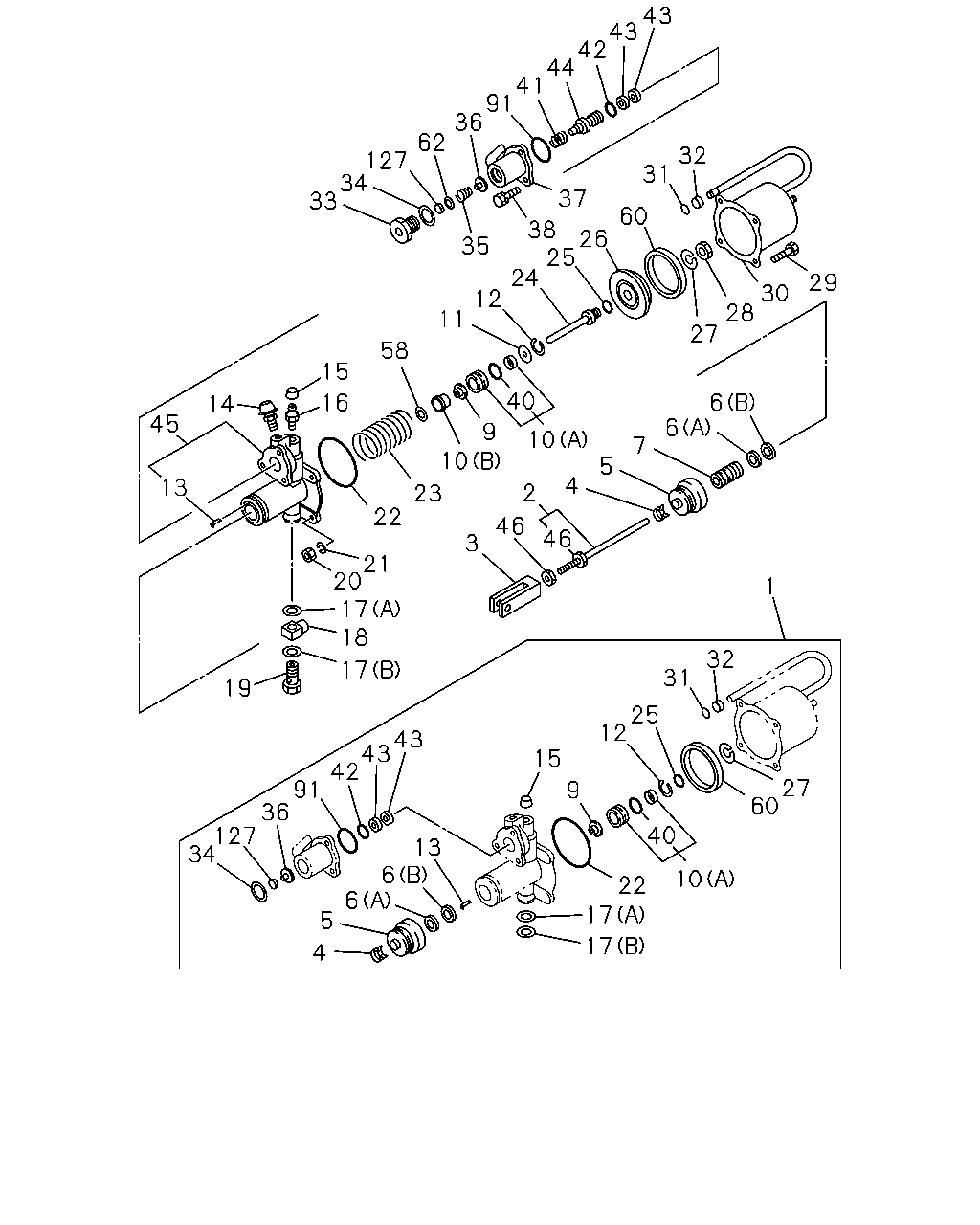

2-07 — CLUTCH BOOSTER; MINIPACK (#6106) — 166 parça

43 43 42 44 41 91 36 62 32 127 34 33 31 37 60 38 26 25 24 12 35 29 30 28 27 11 58 15 40 6 16 14 45 6 9 10 10 7 5 4 13 2 23 22 46 46 3 21 20 17 18 1 32 17 31 19 25 12 43 43 42 15 27 60 91 36 127 34 9 40 13 6 10 22 17 6 5 17 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	REPAIR KIT; CLU BOOSTER	1-31829-330-0	01	1	9905-9905	●	●
1	REPAIR KIT; CLU BOOSTER	1-31829-552-0	01	1	9906-0004	●	●
1	REPAIR KIT; CLU BOOSTER CLUTCH BRAKE(BBG)	1-31829-552-0	01	1	0005-0301	●	●
1	REPAIR KIT; CLU BOOSTER	1-31829-552-0	01	1	0302-	●	●	●
1	REPAIR KIT; CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31829-330-0	01	1	0005-0106	●	●
1	REPAIR KIT; CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31829-551-0	01	1	0107-0301	●	●
2	ROD; PUSH,CLU BOOSTER	1-31824-172-0	01	1	9905-0301	●	●
2	ROD; PUSH,CLU BOOSTER	1-31824-172-0	01	1	0302-	●	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-187-0	01	1	9905-0301	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-187-0	01	1	0302-	●	●	●
4	CLAMP; BOOSTER	1-31829-168-0	01	1	9905-0301	●	●
4	CLAMP; BOOSTER	1-31829-168-0	01	1	0302-	●	●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-174-0	01	1	9905-0301	●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-174-0	01	1	0302-	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	9905-0301	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	0302-	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	9905-0301	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	0302-	●	●	●
7	PISTON; CLU BOOSTER	1-31821-013-0	01	1	9905-9905	●	●
7	PISTON; CLU BOOSTER	1-31821-048-0	01	1	9906-0004	●	●
7	PISTON; CLU BOOSTER CLUTCH BRAKE(BBG)	1-31821-048-0	01	1	0005-0106	●	●
7	PISTON; CLU BOOSTER	1-31821-048-0	01	1	0107-0301	●	●
7	PISTON; CLU BOOSTER	1-31821-048-0	01	1	0302-	●	●	●
7	PISTON; CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31821-013-0	01	1	0005-0106	●	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	9905-0301	●	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0302-	●	●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	9905-0301	●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0302-	●	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-293-0	01	1	9905-9905	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	9906-0004	●	●
10	RETAINER; PISTON,CLU BOOSTER CLUTCH BRAKE(BBG) (B)	1-31829-428-0	01	1	0005-0106	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0107-0301	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0302-	●	●	●
10	RETAINER; PISTON,CLU BOOSTER EXC. CLUTCH BRAKE(BBG) (B)	1-31829-293-0	01	1	0005-0106	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	9905-0301	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0302-	●	●	●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	9905-0301	●	●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	0302-	●	●	●
13	PIN; SPR	1-31829-109-0	01	1	9905-0301	●	●
13	PIN; SPR	1-31829-109-0	01	1	0302-	●	●	●
14	COVER; EXH,CLU BOOSTER	1-31829-415-0	01	1	9905-9905	●	●
14	COVER; EXH,CLU BOOSTER	1-31829-365-0	01	1	9906-0004	●	●
14	COVER; EXH,CLU BOOSTER CLUTCH BRAKE(BBG)	1-31829-365-0	01	1	0005-0106	●	●
14	COVER; EXH,CLU BOOSTER	1-31829-365-0	01	1	0107-0301	●	●
14	COVER; EXH,CLU BOOSTER	1-31829-365-0	01	1	0302-	●	●	●
14	COVER; EXH,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31829-415-0	01	1	0005-0106	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	9905-0301	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0302-	●	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	9905-0301	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0302-	●	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	9905-0301	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0302-	●	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	9905-0301	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0302-	●	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	9905-0301	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0302-	●	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	9905-0301	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0302-	●	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-83315-085-0	04	1	9905-0301	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-83315-085-0	04	1	0302-	●	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=8.2	9-09150-508-0	04	1	9905-0301	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=8.2	9-09150-508-0	04	1	0302-	●	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-327-0	01	1	9905-0301	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-327-0	01	1	0302-	●	●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-358-0	01	1	9905-0301	●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-358-0	01	1	0302-	●	●	●
24	ROD; PUSH,CLU BOOSTER	1-31829-340-0	01	1	9905-9905	●	●
24	ROD; PUSH,CLU BOOSTER	1-31829-334-0	01	1	9906-0004	●	●
24	ROD; PUSH,CLU BOOSTER CLUTCH BRAKE(BBG)	1-31829-334-0	01	1	0005-0106	●	●
24	ROD; PUSH,CLU BOOSTER	1-31829-334-0	01	1	0107-0301	●	●
24	ROD; PUSH,CLU BOOSTER	1-31829-334-0	01	1	0302-	●	●	●
24	ROD; PUSH,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31829-340-0	01	1	0005-0106	●	●
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	9905-0301	●	●
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	0302-	●	●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-057-0	01	1	9905-9905	●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-083-0	01	1	9906-0004	●	●
26	PISTON; SHELL,CLU BOOSTER CLUTCH BRAKE(BBG)	1-31821-083-0	01	1	0005-0301	●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-083-0	01	1	0302-	●	●	●
26	PISTON; SHELL,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31821-057-0	01	1	0005-0106	●	●
26	PISTON; SHELL,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31821-083-0	01	1	0107-0301	●	●
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	9905-0301	●	●
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	0302-	●	●	●
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	9905-0301	●	●
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	0302-	●	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	1-31829-015-0	04	1	9905-0301	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	1-31829-015-0	04	1	0302-	●	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-026-0	01	1	9905-9905	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-123-0	01	1	9906-0004	●	●
30	SHELL; CYL,CLU BOOSTER CLUTCH BRAKE(BBG)	1-31811-123-0	01	1	0005-0106	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-123-0	01	1	0107-0301	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-123-0	01	1	0302-	●	●	●
30	SHELL; CYL,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31811-026-0	01	1	0005-0106	●	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-113-0	01	1	9905-0301	●	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-113-0	01	1	0302-	●	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-114-0	01	1	9905-0301	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-114-0	01	1	0302-	●	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	9905-0301	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	0302-	●	●	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	9905-0301	●	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0302-	●	●	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-077-0	01	1	9905-9905	●	●
35	SPRING; POPPET VLV,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31829-077-0	01	1	0005-0106	●	●
35	SPRING; POPPET VLV,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31829-451-0	01	1	0107-0301	●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-016-0	01	1	9905-9905	●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	9906-0004	●	●
36	VALVE; POPPET,CLU BOOSTER CLUTCH BRAKE(BBG)	1-31829-452-0	01	1	0005-0106	●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0107-0301	●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0302-	●	●	●
36	VALVE; POPPET,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31829-016-0	01	1	0005-0106	●	●
37	BODY; UPR,VLV,CLU BOOSTER CLUTCH BRAKE(BBG)	1-31811-084-0	01	1	0005-0301	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-084-0	01	1	0302-	●	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-014-0	01	1	9905-9905	●	●
37	BODY; UPR,VLV,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31811-014-0	01	1	0005-0106	●	●
37	BODY; UPR,VLV,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31811-092-0	01	1	0107-0301	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-084-0	01	1	9906-0004	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	9905-0301	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0302-	●	●	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	9905-9905	●	●
40	GASKET; PISTON,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31829-037-0	01	1	0005-0301	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-104-0	01	1	9905-9905	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-329-0	01	1	9906-0004	●	●
41	SPRING; DIAPH,CLU BOOSTER CLUTCH BRAKE(BBG)	1-31829-329-0	01	1	0005-0301	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-329-0	01	1	0302-	●	●	●
41	SPRING; DIAPH,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31829-104-0	01	1	0005-0106	●	●
41	SPRING; DIAPH,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31829-420-0	01	1	0107-0301	●	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-123-0	01	1	9905-0301	●	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-123-0	01	1	0302-	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-083-0	02	1	9905-9905	●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-069-0	02	1	9906-0004	●	●
43	GASKET; UPR VLV,CLU BOOSTER CLUTCH BRAKE(BBG)	1-31829-069-0	02	1	0005-0301	●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-069-0	02	1	0302-	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31829-083-0	02	1	0005-0301	●	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-030-0	01	1	9905-9905	●	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-055-0	01	1	9906-0004	●	●
44	PISTON; UPR VLV,CLU BOOSTER CLUTCH BRAKE(BBG)	1-31821-055-0	01	1	0005-0301	●	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-055-0	01	1	0302-	●	●	●
44	PISTON; UPR VLV,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31821-030-0	01	1	0005-0301	●	●
45	PLATE; END,CLU BOOSTER	1-31811-064-0	01	1	9905-9905	●	●
45	PLATE; END,CLU BOOSTER	1-31811-065-0	01	1	9906-0004	●	●
45	PLATE; END,CLU BOOSTER CLUTCH BRAKE(BBG)	1-31811-065-0	01	1	0005-0301	●	●
45	PLATE; END,CLU BOOSTER	1-31811-065-0	01	1	0302-	●	●	●
45	PLATE; END,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31811-064-0	01	1	0005-0301	●	●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	01	1	9905-9905	●	●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	9906-0004	●	●
46	NUT; PUSH ROD,CLU BOOSTER CLUTCH BRAKE(BBG) M10	9-09111-410-0	02	1	0005-0106	●	●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0107-0301	●	●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0302-	●	●	●
46	NUT; PUSH ROD,CLU BOOSTER EXC. CLUTCH BRAKE(BBG) M10	9-09111-410-0	01	1	0005-0106	●	●
58	WASHER; PISTON,CLU BOOSTER	1-31829-301-0	01	1	9905-9905	●	●
58	WASHER; PISTON,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31829-301-0	01	1	0005-0106	●	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-066-0	01	1	9905-9905	●	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-535-0	01	1	9906-0004	●	●
60	GASKET; SHELL,CLU BOOSTER CLUTCH BRAKE(BBG)	1-31829-535-0	01	1	0005-0106	●	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-535-0	01	1	0107-0301	●	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-535-0	01	1	0302-	●	●	●
60	GASKET; SHELL,CLU BOOSTER EXC. CLUTCH BRAKE(BBG)	1-31829-066-0	01	1	0005-0106	●	●
62	RETAINER; POPPET	1-31829-489-0	01	1	9905-0004	●	●
62	RETAINER; POPPET CLUTCH BRAKE(BBG)	1-31829-489-0	01	1	0005-0106	●	●
62	RETAINER; POPPET	1-31829-489-0	01	1	0107-0301	●	●
62	RETAINER; POPPET	1-31829-489-0	01	1	0302-	●	●	●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	9905-0301	●	●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0302-	●	●	●
127	FILTER; POPPET	1-31829-495-0	01	1	9905-0004	●	●
127	FILTER; POPPET CLUTCH BRAKE(BBG)	1-31829-495-0	01	1	0005-0106	●	●
127	FILTER; POPPET	1-31829-495-0	01	1	0107-0301	●	●
127	FILTER; POPPET	1-31829-495-0	01	1	0302-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
