Sayfa 2-53 - Isuzu EPC

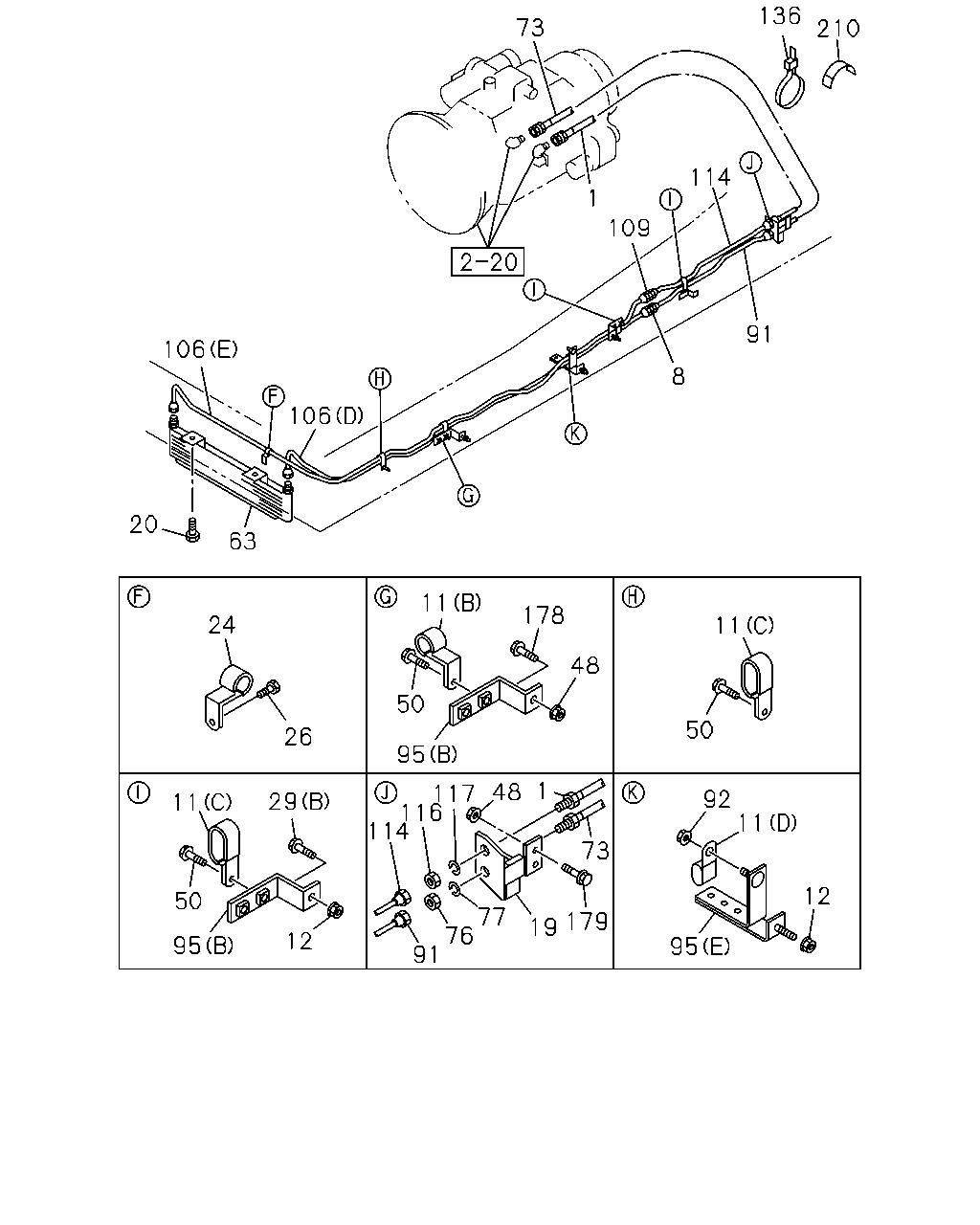

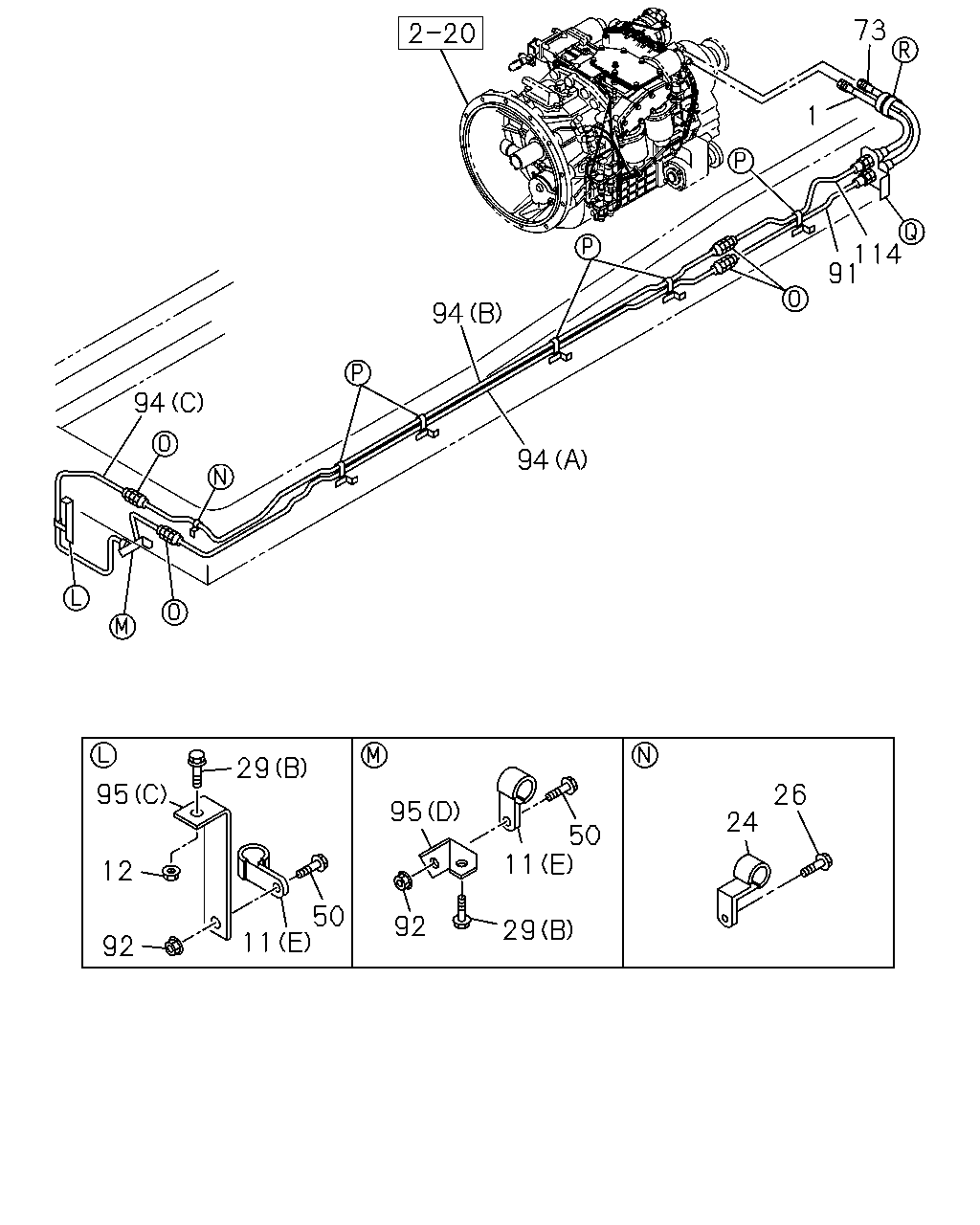

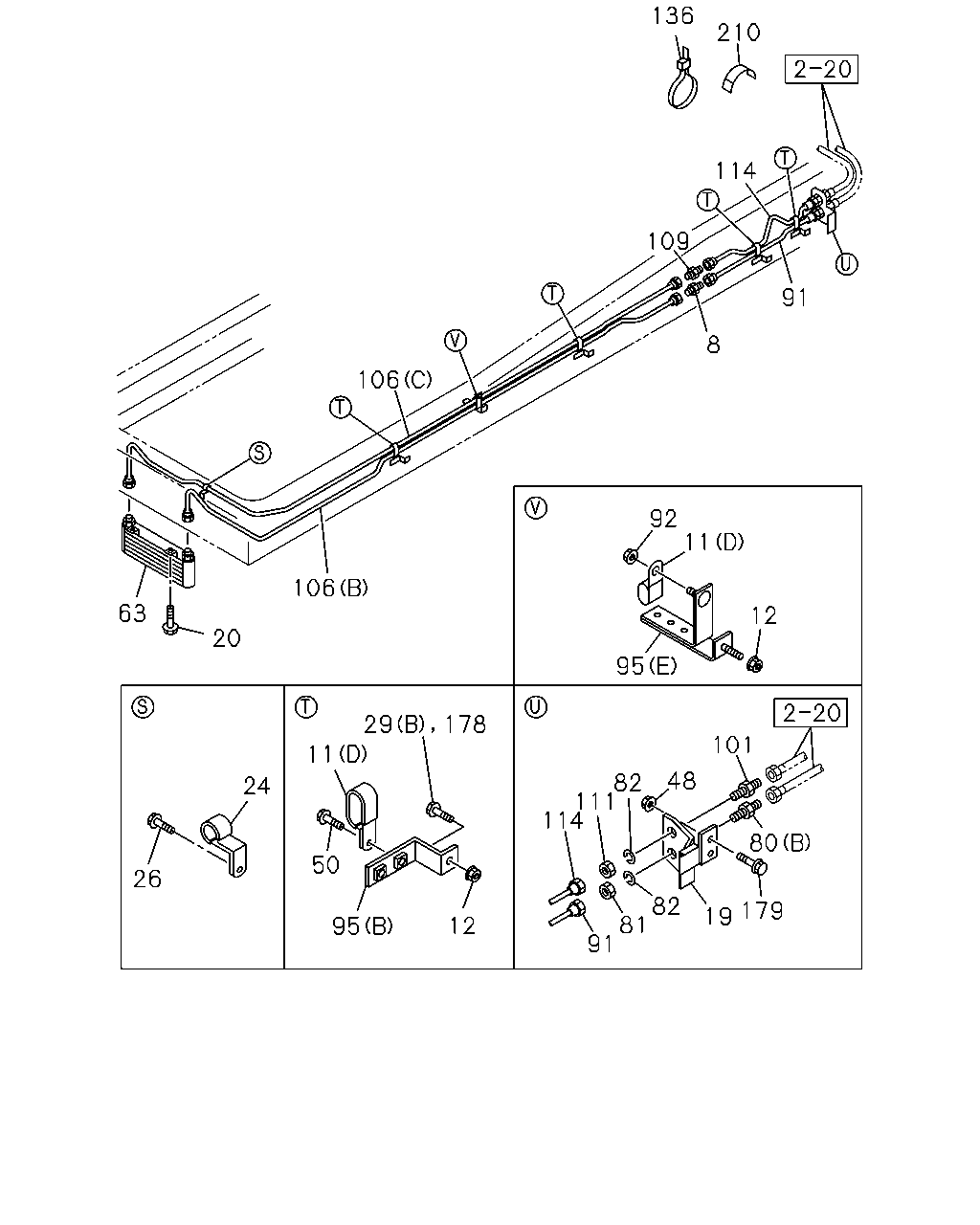

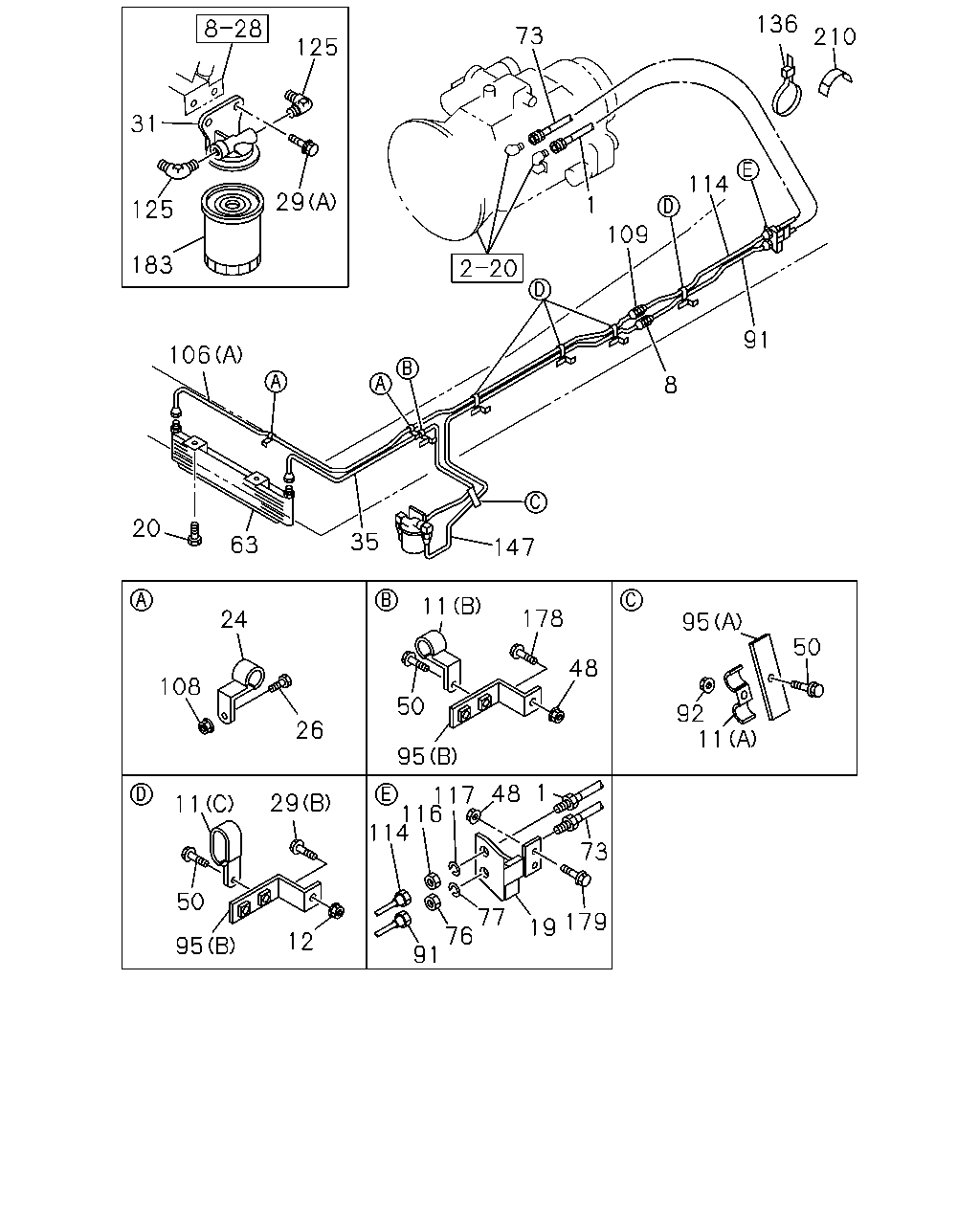

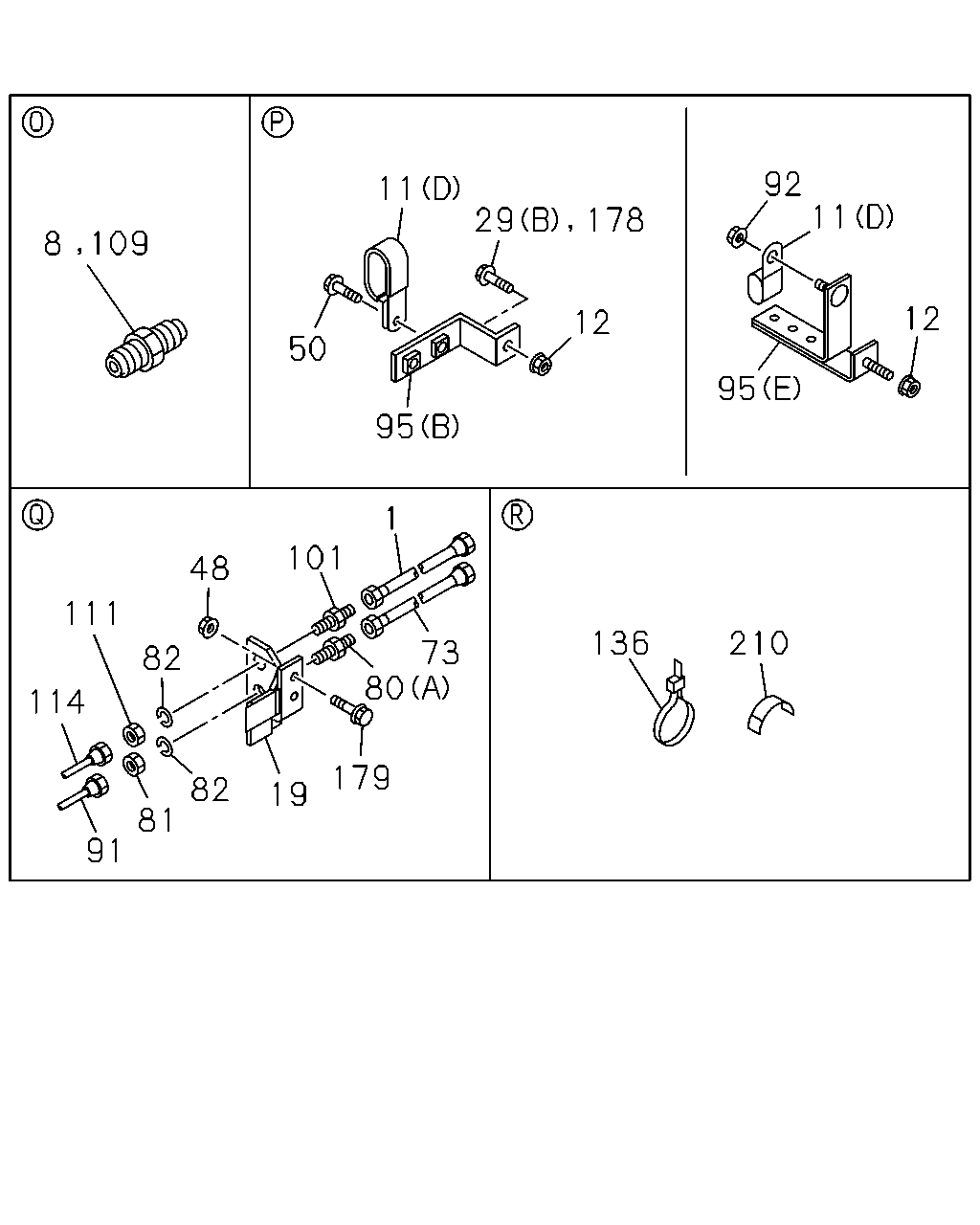

2-53 — TRANSMISSION OIL COOLER SYSTEM (#61056) — 602 parça

94 94 91 114 1 73 94 95 12 92 29 11 92 50 29 95 11 50 24 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF L=430	1-09364-872-0	01	1	1009-1302	●
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302		●
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-		●
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=550	1-09365-231-0	01	1	1009-1302		●
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=620	1-09365-350-0	01	1	1303-		●
11	CLIP; PIPE (C) ID=11X2 L=20	9-09535-036-0	01	1	1009-1302	●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	9-09535-036-0	01	1	1009-1302		●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	05	1	1303-		●
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302	●
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302		●
11	CLIP; PIPE (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302	●
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302		●
11	CLIP; PIPE (C) ID=11X2 L=20	9-09535-036-0	03	1	1009-1302	●
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	03	1	1009-1302		●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (E) ID=19 L=28	0-95235-856-0	02	1	1009-		●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1009-1302		●
11	CLIP; PIPE (D) ID=16X2 L=20	0-95325-535-0	05	1	1303-	●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1303-		●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302	●	●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-	●	●
24	CLIP; OIL PIPE ID=11 H=20 L=20	8-98033-780-0	02	1	1009-1302	●
24	CLIP; OIL PIPE MJT7 M/T<Y9E> ID=11 H=20 L=20	8-98033-780-0	02	1	1009-1302		●
24	CLIP; OIL PIPE MJT7S M/T(Y3E) ID=11 H=20 L=20	8-98033-780-0	01	1	1303-		●
24	CLIP; OIL PIPE MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-1302		●
24	CLIP; OIL PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1303-	●
24	CLIP; OIL PIPE MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20	1-09700-606-0	01	1	1303-		●
26	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
26	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1009-1302	●
26	BOLT; PIPE CLIP MJT7 M/T<Y9E> M8X30 FLANGE	0-28650-830-0	01	1	1009-1302		●
29	BOLT; FILTER TO BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302	●
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302		●
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	04	1	1009-1302	●	●
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-	●	●
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M10X20 FLANGE	0-28051-020-0	01	1	1009-		●
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-		●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	1009-1302	●
50	BOLT; CLIP MJT7S M/T(Y3E) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302		●
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1009-1302	●	●
50	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	01	1	1009-1302	●
50	BOLT; CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28050-820-0	01	1	1009-1302		●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1009-1302	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1303-	●	●
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X25 FLANGE	0-28650-825-0	04	1	1009-1302		●
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	02	1	1303-		●
73	HOSE; FLEX,TRANS L=430	1-09364-872-0	01	1	1009-1302	●
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302		●
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-		●
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=500	1-09365-247-0	01	1	1009-1302		●
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=560	1-09365-369-0	01	1	1303-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=792	8-98234-202-0	01	1	1412-		●
91	PIPE; OIL,FLEX HOSE TO UNION MIXER TRUCK<RA2> L=920 SERVICED BY L=1000	1-47428-874-0	01	1	1009-1302	●
91	PIPE; OIL,FLEX HOSE TO UNION L=916	8-98233-184-0	01	1	1303-	●
91	PIPE; OIL,FLEX HOSE TO UNION WHEEL BASE 4900MM(49W) EXC. MIXER TRUCK<RA2> L=876 SERVICED BY L=900	1-47428-873-0	01	1	1009-1302	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=876 SERVICED BY L=900	1-47428-873-0	01	1	1009-1302		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1303-1411		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1412-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJX12P M/T SMOOTHER-G(Y4S) L=917	8-98043-391-0	01	1	1009-		●
92	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-1302	●
92	NUT; CLIP MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	1009-1302		●
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	1009-		●
94	PIPE; OIL,UNION TO UNION MJX12P M/T SMOOTHER-G(Y4S) (B) L=2045	1-49167-291-0	01	1	1009-1302		●
94	PIPE; OIL,UNION TO UNION MJX12P M/T SMOOTHER-G(Y4S) (B) L=2001	8-98240-385-0	01	1	1303-		●
94	PIPE; OIL,UNION TO UNION MJX12P M/T SMOOTHER-G(Y4S) (A) L=1610	1-49167-565-0	01	1	1009-1302		●
94	PIPE; OIL,UNION TO UNION MJX12P M/T SMOOTHER-G(Y4S) (A) L=1592	8-98240-376-0	01	1	1303-		●
94	PIPE; OIL,UNION TO UNION MJX12P M/T SMOOTHER-G(Y4S) (C) L=1010	1-49167-738-0	01	1	1009-		●
95	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1009-1302	●
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	1009-1302		●
95	BRACKET; CLIP (E)	8-98199-287-2	01	1	1303-	●	●
95	BRACKET; CLIP (B)	1-47479-482-0	05	1	1009-1302	●	●
95	BRACKET; CLIP (B)	1-47479-482-0	03	1	1303-	●	●
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-663-0	01	1	1009-		●
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D)	8-97610-664-0	01	1	1009-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=853	8-98234-203-0	01	1	1412-		●
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> L=860	8-98100-826-0	01	1	1009-1302	●
114	PIPE; OIL,UNION TO FLEX HOSE L=835	8-98233-185-0	01	1	1303-	●
114	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4900MM(49W) EXC. MIXER TRUCK<RA2> L=841	8-98100-827-0	01	1	1009-1302	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=841	8-98100-827-0	01	1	1009-1302		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=841	8-98100-827-0	01	1	1303-1411		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=841	8-98100-827-0	01	1	1412-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=838	8-98043-392-0	01	1	1009-		●

31 125 183 29 125 106 20 63 24 108 11 26 29 50 95 12 35 73 1 109 114 136 210 91 8 147 11 50 178 48 95 114 116 117 48 1 73 91 76 77 19 179 95 92 11 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF L=430	1-09364-872-0	01	1	1009-1302	●
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302		●
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-		●
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=550	1-09365-231-0	01	1	1009-1302		●
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=620	1-09365-350-0	01	1	1303-		●
8	UNION M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302	●
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302		●
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-		●
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	1009-1302		●
8	UNION M22 L=51	0-92123-015-0	01	1	1303-	●
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-		●
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-		●
11	CLIP; PIPE (C) ID=11X2 L=20	9-09535-036-0	01	1	1009-1302	●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	9-09535-036-0	01	1	1009-1302		●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	05	1	1303-		●
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302	●
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302		●
11	CLIP; PIPE (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302	●
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302		●
11	CLIP; PIPE (C) ID=11X2 L=20	9-09535-036-0	03	1	1009-1302	●
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	03	1	1009-1302		●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (E) ID=19 L=28	0-95235-856-0	02	1	1009-		●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1009-1302		●
11	CLIP; PIPE (D) ID=16X2 L=20	0-95325-535-0	05	1	1303-	●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1303-		●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302	●	●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-	●	●
19	BRACKET; FLEX HOSE	1-47479-613-1	01	1	1303-	●
19	BRACKET; FLEX HOSE	1-47479-559-0	01	1	1009-1302	●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1009-1302		●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1303-		●
19	BRACKET; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S)	1-47479-561-1	01	1	1009-		●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1009-	●
20	BOLT; COOLER TO BRKT MJT7S M/T(Y3E) M10X20 FLANGE	0-28051-020-0	02	1	1009-		●
24	CLIP; OIL PIPE ID=11 H=20 L=20	8-98033-780-0	02	1	1009-1302	●
24	CLIP; OIL PIPE MJT7 M/T<Y9E> ID=11 H=20 L=20	8-98033-780-0	02	1	1009-1302		●
24	CLIP; OIL PIPE MJT7S M/T(Y3E) ID=11 H=20 L=20	8-98033-780-0	01	1	1303-		●
24	CLIP; OIL PIPE MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-1302		●
24	CLIP; OIL PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1303-	●
24	CLIP; OIL PIPE MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20	1-09700-606-0	01	1	1303-		●
26	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
26	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1009-1302	●
26	BOLT; PIPE CLIP MJT7 M/T<Y9E> M8X30 FLANGE	0-28650-830-0	01	1	1009-1302		●
29	BOLT; FILTER TO BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302	●
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302		●
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	04	1	1009-1302	●	●
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-	●	●
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M10X20 FLANGE	0-28051-020-0	01	1	1009-		●
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-		●
31	BRACKET; OIL FILTER	1-33119-222-0	01	1	1009-1302	●
31	BRACKET; OIL FILTER MJT7 M/T<Y9E>	1-33119-222-0	01	1	1009-1302		●
35	PIPE; OIL,OIL COOLER TO FILTER WHEEL BASE 4500MM(45W) L=1324 SERVICED BY L=1400	1-47428-878-0	01	1	1009-1302	●
35	PIPE; OIL,OIL COOLER TO FILTER WHEEL BASE 4900MM(49W) MIXER TRUCK<RA2> L=1324 SERVICED BY L=1400	1-47428-878-0	01	1	1009-1302	●
35	PIPE; OIL,OIL COOLER TO FILTER WHEEL BASE 4900MM(49W) EXC. MIXER TRUCK<RA2> L=1328 SERVICED BY L=1400	1-47428-878-0	01	1	1009-1302	●
35	PIPE; OIL,OIL COOLER TO FILTER MJT7 M/T<Y9E> L=1328 SERVICED BY L=1400	1-47428-878-0	01	1	1009-1302		●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	1009-1302	●
50	BOLT; CLIP MJT7S M/T(Y3E) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302		●
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1009-1302	●	●
50	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	01	1	1009-1302	●
50	BOLT; CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28050-820-0	01	1	1009-1302		●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1009-1302	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1303-	●	●
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X25 FLANGE	0-28650-825-0	04	1	1009-1302		●
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	02	1	1303-		●
63	COOLER; OIL MJT7S M/T(Y3E)	8-98240-506-0	01	1	1303-1405		●
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1406-		●
63	COOLER; OIL	1-21700-394-0	01	1	1009-1302	●
63	COOLER; OIL MJT7 M/T<Y9E>	1-21700-394-0	01	1	1009-1302		●
63	COOLER; OIL	8-98199-221-0	01	1	1303-1303	●
63	COOLER; OIL MJT7S M/T(Y3E)	8-98199-221-0	01	1	1303-1303		●
63	COOLER; OIL	8-98240-507-0	01	1	1303-	●
73	HOSE; FLEX,TRANS L=430	1-09364-872-0	01	1	1009-1302	●
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302		●
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-		●
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=500	1-09365-247-0	01	1	1009-1302		●
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=560	1-09365-369-0	01	1	1303-		●
76	NUT; FLEX HOSE M16	0-91111-516-0	01	1	1009-1302	●
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1009-1302		●
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1303-		●
77	WASHER; LK ID=16.2	0-91510-516-0	01	1	1009-1302	●
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1009-1302		●
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1303-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=792	8-98234-202-0	01	1	1412-		●
91	PIPE; OIL,FLEX HOSE TO UNION MIXER TRUCK<RA2> L=920 SERVICED BY L=1000	1-47428-874-0	01	1	1009-1302	●
91	PIPE; OIL,FLEX HOSE TO UNION L=916	8-98233-184-0	01	1	1303-	●
91	PIPE; OIL,FLEX HOSE TO UNION WHEEL BASE 4900MM(49W) EXC. MIXER TRUCK<RA2> L=876 SERVICED BY L=900	1-47428-873-0	01	1	1009-1302	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=876 SERVICED BY L=900	1-47428-873-0	01	1	1009-1302		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1303-1411		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1412-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJX12P M/T SMOOTHER-G(Y4S) L=917	8-98043-391-0	01	1	1009-		●
92	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-1302	●
92	NUT; CLIP MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	1009-1302		●
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	1009-		●
95	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1009-1302	●
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	1009-1302		●
95	BRACKET; CLIP (E)	8-98199-287-2	01	1	1303-	●	●
95	BRACKET; CLIP (B)	1-47479-482-0	05	1	1009-1302	●	●
95	BRACKET; CLIP (B)	1-47479-482-0	03	1	1303-	●	●
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-663-0	01	1	1009-		●
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D)	8-97610-664-0	01	1	1009-		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98233-616-0	01	1	1412-		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98233-617-0	01	1	1412-		●
106	PIPE ASM; OIL,COOLER TO UNION (C)	8-98240-382-0	01	1	1303-	●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (D)	8-98240-377-0	01	1	1303-1411		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98240-377-0	01	1	1412-		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (E)	8-98240-381-0	01	1	1303-1411		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98240-381-0	01	1	1412-		●
106	PIPE ASM; OIL,COOLER TO UNION (A)	8-98034-834-0	01	1	1009-1302	●
106	PIPE ASM; OIL,COOLER TO UNION MJT7 M/T<Y9E> (A)	8-98034-834-0	01	1	1009-1302		●
106	PIPE ASM; OIL,COOLER TO UNION (B)	8-98240-378-0	01	1	1303-	●
108	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1009-1302	●
108	NUT; PIPE CLIP MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	01	1	1009-1302		●
109	UNION M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302	●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302		●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-		●
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	1009-1302		●
109	UNION M22 L=51	0-92123-015-0	01	1	1303-	●
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-		●
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=853	8-98234-203-0	01	1	1412-		●
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> L=860	8-98100-826-0	01	1	1009-1302	●
114	PIPE; OIL,UNION TO FLEX HOSE L=835	8-98233-185-0	01	1	1303-	●
114	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4900MM(49W) EXC. MIXER TRUCK<RA2> L=841	8-98100-827-0	01	1	1009-1302	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=841	8-98100-827-0	01	1	1009-1302		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=841	8-98100-827-0	01	1	1303-1411		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=841	8-98100-827-0	01	1	1412-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=838	8-98043-392-0	01	1	1009-		●
116	NUT; BRKT,FLEX HOSE M16	0-91111-516-0	01	1	1009-1302	●
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1009-1302		●
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1303-		●
117	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	01	1	1009-1302	●
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1009-1302		●
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1303-		●
125	CONNECTOR; OIL FILTER M16 & PT1/4 ELBOW	0-92134-310-0	02	1	1009-1302	●
125	CONNECTOR; OIL FILTER MJT7 M/T<Y9E> M16 & PT1/4 ELBOW	0-92134-310-0	02	1	1009-1302		●
136	CLIP; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	02	1	1303-		●
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1009-1302	●	●
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1303-	●
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1303-		●
147	PIPE; OIL,UNION TO FILTER L=1764	8-98069-775-0	01	1	1009-1302	●
147	PIPE; OIL,UNION TO FILTER MJT7 M/T<Y9E> L=1764	8-98069-775-0	01	1	1009-1302		●
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1009-	●	●
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-	●	●
183	CARTRIDGE; OIL FILTER	8-94459-700-1	01	1	1009-1302	●
183	CARTRIDGE; OIL FILTER MJT7 M/T<Y9E>	8-94459-700-1	01	1	1009-1302		●
210	BAND; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=175	1-09707-178-0	02	1	1303-		●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1009-1302	●	●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1303-	●
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1303-		●

73 136 114 210 109 91 8 106 106 20 63 24 26 50 11 178 48 11 50 92 11 12 95 179 73 1 48 117 116 114 76 91 19 77 29 2 11 50 95 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF L=430	1-09364-872-0	01	1	1009-1302	●
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302		●
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-		●
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=550	1-09365-231-0	01	1	1009-1302		●
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=620	1-09365-350-0	01	1	1303-		●
8	UNION M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302	●
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302		●
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-		●
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	1009-1302		●
8	UNION M22 L=51	0-92123-015-0	01	1	1303-	●
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-		●
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-		●
11	CLIP; PIPE (C) ID=11X2 L=20	9-09535-036-0	01	1	1009-1302	●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	9-09535-036-0	01	1	1009-1302		●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	05	1	1303-		●
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302	●
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302		●
11	CLIP; PIPE (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302	●
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302		●
11	CLIP; PIPE (C) ID=11X2 L=20	9-09535-036-0	03	1	1009-1302	●
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	03	1	1009-1302		●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (E) ID=19 L=28	0-95235-856-0	02	1	1009-		●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1009-1302		●
11	CLIP; PIPE (D) ID=16X2 L=20	0-95325-535-0	05	1	1303-	●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1303-		●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302	●	●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-	●	●
19	BRACKET; FLEX HOSE	1-47479-613-1	01	1	1303-	●
19	BRACKET; FLEX HOSE	1-47479-559-0	01	1	1009-1302	●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1009-1302		●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1303-		●
19	BRACKET; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S)	1-47479-561-1	01	1	1009-		●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1009-	●
20	BOLT; COOLER TO BRKT MJT7S M/T(Y3E) M10X20 FLANGE	0-28051-020-0	02	1	1009-		●
24	CLIP; OIL PIPE ID=11 H=20 L=20	8-98033-780-0	02	1	1009-1302	●
24	CLIP; OIL PIPE MJT7 M/T<Y9E> ID=11 H=20 L=20	8-98033-780-0	02	1	1009-1302		●
24	CLIP; OIL PIPE MJT7S M/T(Y3E) ID=11 H=20 L=20	8-98033-780-0	01	1	1303-		●
24	CLIP; OIL PIPE MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-1302		●
24	CLIP; OIL PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1303-	●
24	CLIP; OIL PIPE MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20	1-09700-606-0	01	1	1303-		●
26	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
26	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1009-1302	●
26	BOLT; PIPE CLIP MJT7 M/T<Y9E> M8X30 FLANGE	0-28650-830-0	01	1	1009-1302		●
29	BOLT; FILTER TO BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302	●
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302		●
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	04	1	1009-1302	●	●
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-	●	●
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M10X20 FLANGE	0-28051-020-0	01	1	1009-		●
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-		●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	1009-1302	●
50	BOLT; CLIP MJT7S M/T(Y3E) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302		●
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1009-1302	●	●
50	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	01	1	1009-1302	●
50	BOLT; CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28050-820-0	01	1	1009-1302		●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1009-1302	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1303-	●	●
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X25 FLANGE	0-28650-825-0	04	1	1009-1302		●
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	02	1	1303-		●
63	COOLER; OIL MJT7S M/T(Y3E)	8-98240-506-0	01	1	1303-1405		●
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1406-		●
63	COOLER; OIL	1-21700-394-0	01	1	1009-1302	●
63	COOLER; OIL MJT7 M/T<Y9E>	1-21700-394-0	01	1	1009-1302		●
63	COOLER; OIL	8-98199-221-0	01	1	1303-1303	●
63	COOLER; OIL MJT7S M/T(Y3E)	8-98199-221-0	01	1	1303-1303		●
63	COOLER; OIL	8-98240-507-0	01	1	1303-	●
73	HOSE; FLEX,TRANS L=430	1-09364-872-0	01	1	1009-1302	●
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302		●
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-		●
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=500	1-09365-247-0	01	1	1009-1302		●
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=560	1-09365-369-0	01	1	1303-		●
76	NUT; FLEX HOSE M16	0-91111-516-0	01	1	1009-1302	●
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1009-1302		●
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1303-		●
77	WASHER; LK ID=16.2	0-91510-516-0	01	1	1009-1302	●
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1009-1302		●
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1303-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=792	8-98234-202-0	01	1	1412-		●
91	PIPE; OIL,FLEX HOSE TO UNION MIXER TRUCK<RA2> L=920 SERVICED BY L=1000	1-47428-874-0	01	1	1009-1302	●
91	PIPE; OIL,FLEX HOSE TO UNION L=916	8-98233-184-0	01	1	1303-	●
91	PIPE; OIL,FLEX HOSE TO UNION WHEEL BASE 4900MM(49W) EXC. MIXER TRUCK<RA2> L=876 SERVICED BY L=900	1-47428-873-0	01	1	1009-1302	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=876 SERVICED BY L=900	1-47428-873-0	01	1	1009-1302		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1303-1411		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1412-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJX12P M/T SMOOTHER-G(Y4S) L=917	8-98043-391-0	01	1	1009-		●
92	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-1302	●
92	NUT; CLIP MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	1009-1302		●
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	1009-		●
95	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1009-1302	●
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	1009-1302		●
95	BRACKET; CLIP (E)	8-98199-287-2	01	1	1303-	●	●
95	BRACKET; CLIP (B)	1-47479-482-0	05	1	1009-1302	●	●
95	BRACKET; CLIP (B)	1-47479-482-0	03	1	1303-	●	●
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-663-0	01	1	1009-		●
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D)	8-97610-664-0	01	1	1009-		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98233-616-0	01	1	1412-		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98233-617-0	01	1	1412-		●
106	PIPE ASM; OIL,COOLER TO UNION (C)	8-98240-382-0	01	1	1303-	●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (D)	8-98240-377-0	01	1	1303-1411		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98240-377-0	01	1	1412-		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (E)	8-98240-381-0	01	1	1303-1411		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98240-381-0	01	1	1412-		●
106	PIPE ASM; OIL,COOLER TO UNION (A)	8-98034-834-0	01	1	1009-1302	●
106	PIPE ASM; OIL,COOLER TO UNION MJT7 M/T<Y9E> (A)	8-98034-834-0	01	1	1009-1302		●
106	PIPE ASM; OIL,COOLER TO UNION (B)	8-98240-378-0	01	1	1303-	●
109	UNION M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302	●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302		●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-		●
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	1009-1302		●
109	UNION M22 L=51	0-92123-015-0	01	1	1303-	●
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-		●
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=853	8-98234-203-0	01	1	1412-		●
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> L=860	8-98100-826-0	01	1	1009-1302	●
114	PIPE; OIL,UNION TO FLEX HOSE L=835	8-98233-185-0	01	1	1303-	●
114	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4900MM(49W) EXC. MIXER TRUCK<RA2> L=841	8-98100-827-0	01	1	1009-1302	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=841	8-98100-827-0	01	1	1009-1302		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=841	8-98100-827-0	01	1	1303-1411		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=841	8-98100-827-0	01	1	1412-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=838	8-98043-392-0	01	1	1009-		●
116	NUT; BRKT,FLEX HOSE M16	0-91111-516-0	01	1	1009-1302	●
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1009-1302		●
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1303-		●
117	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	01	1	1009-1302	●
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1009-1302		●
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1303-		●
136	CLIP; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	02	1	1303-		●
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1009-1302	●	●
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1303-	●
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1303-		●
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1009-	●	●
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-	●	●
210	BAND; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=175	1-09707-178-0	02	1	1303-		●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1009-1302	●	●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1303-	●
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1303-		●

109 8 111 114 48 82 101 1 73 80 179 19 82 81 91 136 210 12 95 50 11 178 29 92 12 95 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF L=430	1-09364-872-0	01	1	1009-1302	●
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302		●
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-		●
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=550	1-09365-231-0	01	1	1009-1302		●
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) L=620	1-09365-350-0	01	1	1303-		●
8	UNION M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302	●
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302		●
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-		●
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	1009-1302		●
8	UNION M22 L=51	0-92123-015-0	01	1	1303-	●
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-		●
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-		●
11	CLIP; PIPE (C) ID=11X2 L=20	9-09535-036-0	01	1	1009-1302	●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	9-09535-036-0	01	1	1009-1302		●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	05	1	1303-		●
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302	●
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302		●
11	CLIP; PIPE (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302	●
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302		●
11	CLIP; PIPE (C) ID=11X2 L=20	9-09535-036-0	03	1	1009-1302	●
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	03	1	1009-1302		●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (E) ID=19 L=28	0-95235-856-0	02	1	1009-		●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1009-1302		●
11	CLIP; PIPE (D) ID=16X2 L=20	0-95325-535-0	05	1	1303-	●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1303-		●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302	●	●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-	●	●
19	BRACKET; FLEX HOSE	1-47479-613-1	01	1	1303-	●
19	BRACKET; FLEX HOSE	1-47479-559-0	01	1	1009-1302	●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1009-1302		●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1303-		●
19	BRACKET; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S)	1-47479-561-1	01	1	1009-		●
29	BOLT; FILTER TO BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302	●
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302		●
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	04	1	1009-1302	●	●
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-	●	●
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M10X20 FLANGE	0-28051-020-0	01	1	1009-		●
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-		●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	1009-1302	●
50	BOLT; CLIP MJT7S M/T(Y3E) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302		●
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1009-1302	●	●
50	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	01	1	1009-1302	●
50	BOLT; CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28050-820-0	01	1	1009-1302		●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1009-1302	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1303-	●	●
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X25 FLANGE	0-28650-825-0	04	1	1009-1302		●
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	02	1	1303-		●
73	HOSE; FLEX,TRANS L=430	1-09364-872-0	01	1	1009-1302	●
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302		●
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-		●
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=500	1-09365-247-0	01	1	1009-1302		●
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) L=560	1-09365-369-0	01	1	1303-		●
80	UNION; FLEX HOSE (B)	1-09654-261-1	01	1	1303-	●
80	UNION; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) (A) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-		●
81	NUT; UNION MJX12P M/T SMOOTHER-G(Y4S) M22	0-91111-522-0	01	1	1009-1302		●
81	NUT; UNION M22	0-91111-522-0	01	1	1303-	●
81	NUT; UNION MJX12P M/T SMOOTHER-G(Y4S) M22	0-91111-522-0	01	1	1303-		●
82	WASHER; LK,UNION MJX12P M/T SMOOTHER-G(Y4S) ID=22.5	0-91510-522-0	02	1	1009-1302		●
82	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	1303-	●
82	WASHER; LK,UNION MJX12P M/T SMOOTHER-G(Y4S) ID=22.5	0-91510-522-0	02	1	1303-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=792	8-98234-202-0	01	1	1412-		●
91	PIPE; OIL,FLEX HOSE TO UNION MIXER TRUCK<RA2> L=920 SERVICED BY L=1000	1-47428-874-0	01	1	1009-1302	●
91	PIPE; OIL,FLEX HOSE TO UNION L=916	8-98233-184-0	01	1	1303-	●
91	PIPE; OIL,FLEX HOSE TO UNION WHEEL BASE 4900MM(49W) EXC. MIXER TRUCK<RA2> L=876 SERVICED BY L=900	1-47428-873-0	01	1	1009-1302	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=876 SERVICED BY L=900	1-47428-873-0	01	1	1009-1302		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1303-1411		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1412-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJX12P M/T SMOOTHER-G(Y4S) L=917	8-98043-391-0	01	1	1009-		●
92	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-1302	●
92	NUT; CLIP MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	1009-1302		●
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	1009-		●
95	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1009-1302	●
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	1009-1302		●
95	BRACKET; CLIP (E)	8-98199-287-2	01	1	1303-	●	●
95	BRACKET; CLIP (B)	1-47479-482-0	05	1	1009-1302	●	●
95	BRACKET; CLIP (B)	1-47479-482-0	03	1	1303-	●	●
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-663-0	01	1	1009-		●
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D)	8-97610-664-0	01	1	1009-		●
101	UNION; FLEX HOSE	1-09654-261-1	01	1	1303-	●
101	UNION; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-		●
109	UNION M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302	●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302		●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-		●
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	1009-1302		●
109	UNION M22 L=51	0-92123-015-0	01	1	1303-	●
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-		●
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-		●
111	NUT; UNION MJX12P M/T SMOOTHER-G(Y4S) M22	0-91111-522-0	01	1	1009-1302		●
111	NUT; UNION M22	0-91111-522-0	01	1	1303-	●
111	NUT; UNION MJX12P M/T SMOOTHER-G(Y4S) M22	0-91111-522-0	01	1	1303-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=853	8-98234-203-0	01	1	1412-		●
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> L=860	8-98100-826-0	01	1	1009-1302	●
114	PIPE; OIL,UNION TO FLEX HOSE L=835	8-98233-185-0	01	1	1303-	●
114	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4900MM(49W) EXC. MIXER TRUCK<RA2> L=841	8-98100-827-0	01	1	1009-1302	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=841	8-98100-827-0	01	1	1009-1302		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=841	8-98100-827-0	01	1	1303-1411		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=841	8-98100-827-0	01	1	1412-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=838	8-98043-392-0	01	1	1009-		●
136	CLIP; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	02	1	1303-		●
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1009-1302	●	●
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1303-	●
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1303-		●
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1009-	●	●
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-	●	●
210	BAND; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=175	1-09707-178-0	02	1	1303-		●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1009-1302	●	●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1303-	●
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1303-		●

136 114 210 91 8 109 106 106 20 63 24 26 11 178 29 12 95 50 114 91 111 81 82 48 80 179 19 101 95 12 11 92 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	UNION M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302	●
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302		●
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-		●
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	1009-1302		●
8	UNION M22 L=51	0-92123-015-0	01	1	1303-	●
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-		●
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-		●
11	CLIP; PIPE (C) ID=11X2 L=20	9-09535-036-0	01	1	1009-1302	●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	9-09535-036-0	01	1	1009-1302		●
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	05	1	1303-		●
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302	●
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302		●
11	CLIP; PIPE (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302	●
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302		●
11	CLIP; PIPE (C) ID=11X2 L=20	9-09535-036-0	03	1	1009-1302	●
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	03	1	1009-1302		●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (E) ID=19 L=28	0-95235-856-0	02	1	1009-		●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1009-1302		●
11	CLIP; PIPE (D) ID=16X2 L=20	0-95325-535-0	05	1	1303-	●
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1303-		●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302	●	●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-	●	●
19	BRACKET; FLEX HOSE	1-47479-613-1	01	1	1303-	●
19	BRACKET; FLEX HOSE	1-47479-559-0	01	1	1009-1302	●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1009-1302		●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1303-		●
19	BRACKET; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S)	1-47479-561-1	01	1	1009-		●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1009-	●
20	BOLT; COOLER TO BRKT MJT7S M/T(Y3E) M10X20 FLANGE	0-28051-020-0	02	1	1009-		●
24	CLIP; OIL PIPE ID=11 H=20 L=20	8-98033-780-0	02	1	1009-1302	●
24	CLIP; OIL PIPE MJT7 M/T<Y9E> ID=11 H=20 L=20	8-98033-780-0	02	1	1009-1302		●
24	CLIP; OIL PIPE MJT7S M/T(Y3E) ID=11 H=20 L=20	8-98033-780-0	01	1	1303-		●
24	CLIP; OIL PIPE MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-1302		●
24	CLIP; OIL PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1303-	●
24	CLIP; OIL PIPE MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20	1-09700-606-0	01	1	1303-		●
26	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
26	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1009-1302	●
26	BOLT; PIPE CLIP MJT7 M/T<Y9E> M8X30 FLANGE	0-28650-830-0	01	1	1009-1302		●
29	BOLT; FILTER TO BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302	●
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302		●
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	04	1	1009-1302	●	●
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-	●	●
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M10X20 FLANGE	0-28051-020-0	01	1	1009-		●
29	BOLT; FILTER TO BRKT MJX12P M/T SMOOTHER-G(Y4S) (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-		●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	1009-1302	●
50	BOLT; CLIP MJT7S M/T(Y3E) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302		●
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1009-1302	●	●
50	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	01	1	1009-1302	●
50	BOLT; CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28050-820-0	01	1	1009-1302		●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1009-1302	●	●
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1303-	●	●
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X25 FLANGE	0-28650-825-0	04	1	1009-1302		●
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	02	1	1303-		●
63	COOLER; OIL MJT7S M/T(Y3E)	8-98240-506-0	01	1	1303-1405		●
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1406-		●
63	COOLER; OIL	1-21700-394-0	01	1	1009-1302	●
63	COOLER; OIL MJT7 M/T<Y9E>	1-21700-394-0	01	1	1009-1302		●
63	COOLER; OIL	8-98199-221-0	01	1	1303-1303	●
63	COOLER; OIL MJT7S M/T(Y3E)	8-98199-221-0	01	1	1303-1303		●
63	COOLER; OIL	8-98240-507-0	01	1	1303-	●
80	UNION; FLEX HOSE (B)	1-09654-261-1	01	1	1303-	●
80	UNION; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) (A) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-		●
81	NUT; UNION MJX12P M/T SMOOTHER-G(Y4S) M22	0-91111-522-0	01	1	1009-1302		●
81	NUT; UNION M22	0-91111-522-0	01	1	1303-	●
81	NUT; UNION MJX12P M/T SMOOTHER-G(Y4S) M22	0-91111-522-0	01	1	1303-		●
82	WASHER; LK,UNION MJX12P M/T SMOOTHER-G(Y4S) ID=22.5	0-91510-522-0	02	1	1009-1302		●
82	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	1303-	●
82	WASHER; LK,UNION MJX12P M/T SMOOTHER-G(Y4S) ID=22.5	0-91510-522-0	02	1	1303-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=792	8-98234-202-0	01	1	1412-		●
91	PIPE; OIL,FLEX HOSE TO UNION MIXER TRUCK<RA2> L=920 SERVICED BY L=1000	1-47428-874-0	01	1	1009-1302	●
91	PIPE; OIL,FLEX HOSE TO UNION L=916	8-98233-184-0	01	1	1303-	●
91	PIPE; OIL,FLEX HOSE TO UNION WHEEL BASE 4900MM(49W) EXC. MIXER TRUCK<RA2> L=876 SERVICED BY L=900	1-47428-873-0	01	1	1009-1302	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=876 SERVICED BY L=900	1-47428-873-0	01	1	1009-1302		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1303-1411		●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1412-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJX12P M/T SMOOTHER-G(Y4S) L=917	8-98043-391-0	01	1	1009-		●
92	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-1302	●
92	NUT; CLIP MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	1009-1302		●
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	1009-		●
95	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1009-1302	●
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	1009-1302		●
95	BRACKET; CLIP (E)	8-98199-287-2	01	1	1303-	●	●
95	BRACKET; CLIP (B)	1-47479-482-0	05	1	1009-1302	●	●
95	BRACKET; CLIP (B)	1-47479-482-0	03	1	1303-	●	●
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-663-0	01	1	1009-		●
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D)	8-97610-664-0	01	1	1009-		●
101	UNION; FLEX HOSE	1-09654-261-1	01	1	1303-	●
101	UNION; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98233-616-0	01	1	1412-		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98233-617-0	01	1	1412-		●
106	PIPE ASM; OIL,COOLER TO UNION (C)	8-98240-382-0	01	1	1303-	●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (D)	8-98240-377-0	01	1	1303-1411		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98240-377-0	01	1	1412-		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (E)	8-98240-381-0	01	1	1303-1411		●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98240-381-0	01	1	1412-		●
106	PIPE ASM; OIL,COOLER TO UNION (A)	8-98034-834-0	01	1	1009-1302	●
106	PIPE ASM; OIL,COOLER TO UNION MJT7 M/T<Y9E> (A)	8-98034-834-0	01	1	1009-1302		●
106	PIPE ASM; OIL,COOLER TO UNION (B)	8-98240-378-0	01	1	1303-	●
109	UNION M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302	●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302		●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-		●
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	02	1	1009-1302		●
109	UNION M22 L=51	0-92123-015-0	01	1	1303-	●
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-		●
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-		●
111	NUT; UNION MJX12P M/T SMOOTHER-G(Y4S) M22	0-91111-522-0	01	1	1009-1302		●
111	NUT; UNION M22	0-91111-522-0	01	1	1303-	●
111	NUT; UNION MJX12P M/T SMOOTHER-G(Y4S) M22	0-91111-522-0	01	1	1303-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=853	8-98234-203-0	01	1	1412-		●
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> L=860	8-98100-826-0	01	1	1009-1302	●
114	PIPE; OIL,UNION TO FLEX HOSE L=835	8-98233-185-0	01	1	1303-	●
114	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4900MM(49W) EXC. MIXER TRUCK<RA2> L=841	8-98100-827-0	01	1	1009-1302	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=841	8-98100-827-0	01	1	1009-1302		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=841	8-98100-827-0	01	1	1303-1411		●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=841	8-98100-827-0	01	1	1412-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=838	8-98043-392-0	01	1	1009-		●
136	CLIP; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	02	1	1303-		●
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1009-1302	●	●
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1303-	●
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1303-		●
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1009-	●	●
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-	●	●
210	BAND; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=175	1-09707-178-0	02	1	1303-		●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1009-1302	●	●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1303-	●
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1303-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
