Sayfa 2-36 - Isuzu EPC

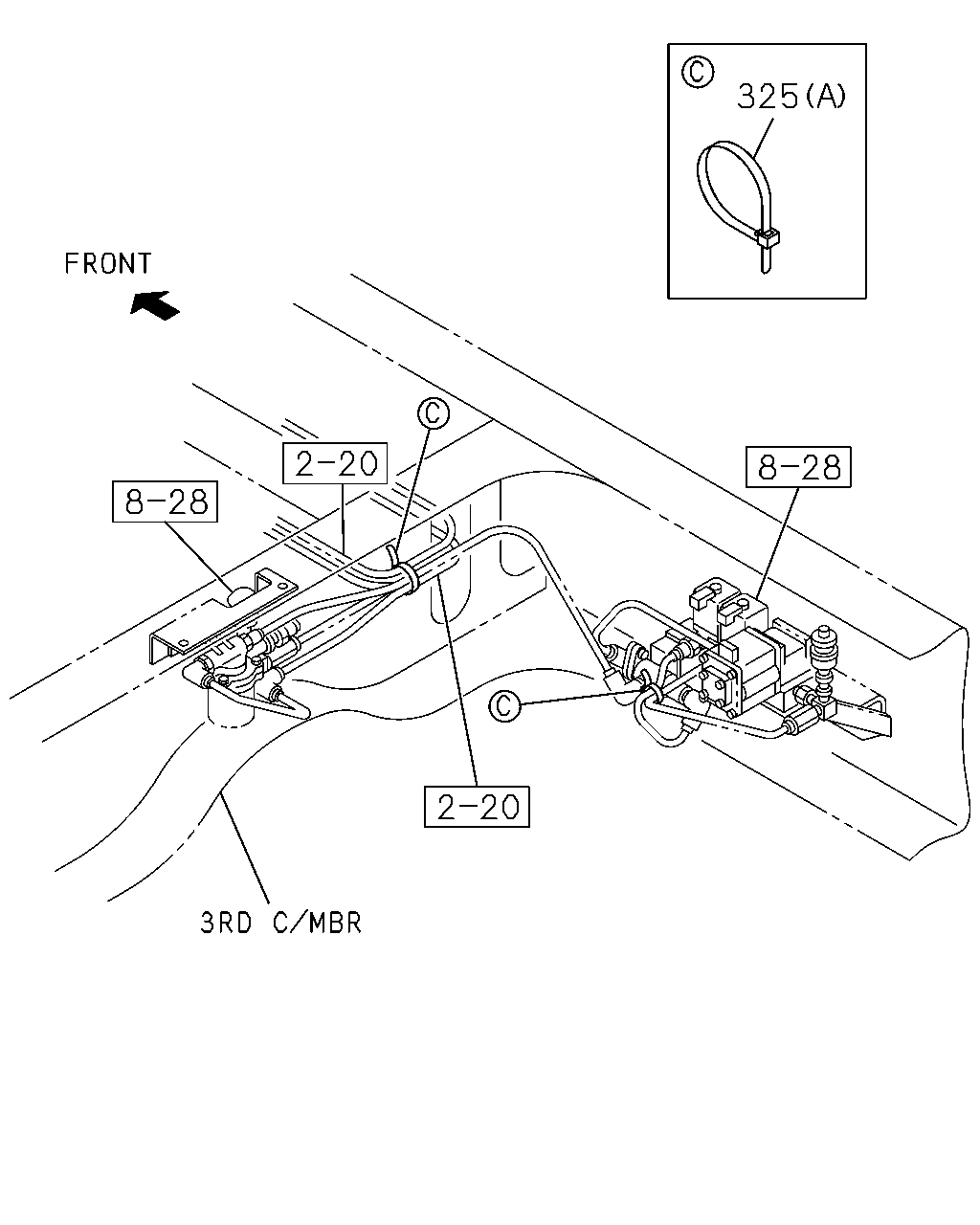

325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
325	CLIP; NYLON TUBE (B) ID=19 L=28	0-95235-856-0	01	1	1303-	●
325	CLIP; NYLON TUBE (C) L=170.3	1-09987-182-0	01	1	1303-	●
325	CLIP; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (A) L=350	1-09707-183-0	02	1	1009-		●

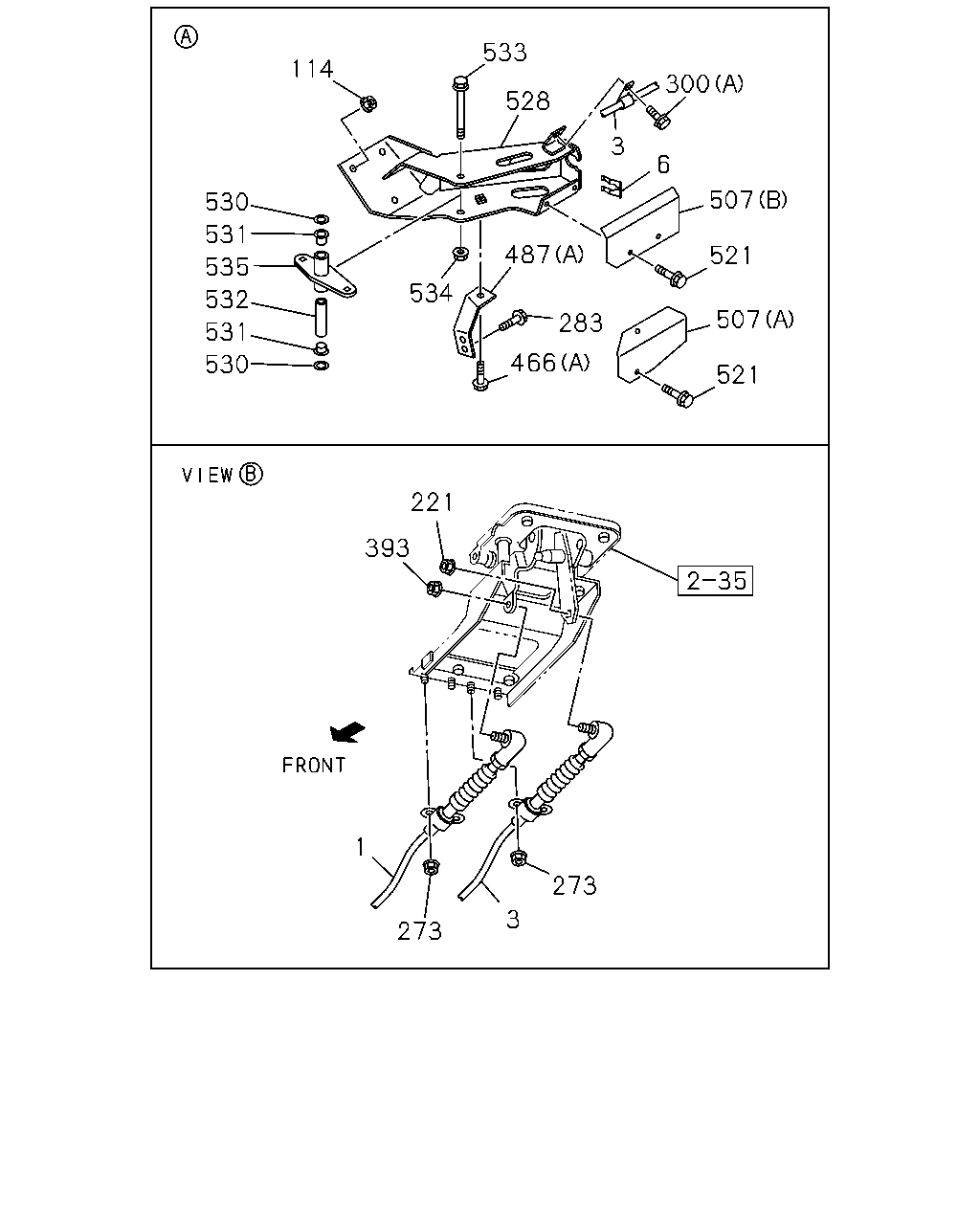

114 533 300 3 507 521 507 521 6 528 487 283 466 534 530 535 531 532 530 531 221 393 273 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT MIXER TRUCK<RA2> L=2855	8-98127-699-0	01	1	1009-1302	●
1	CABLE; SHIFT,TRANS CONT L=2776	8-98216-275-2	01	1	1303-	●
1	CABLE; SHIFT,TRANS CONT MJT7S M/T(Y3E) L=2776	8-98216-275-2	01	1	1303-		●
1	CABLE; SHIFT,TRANS CONT EXC. MIXER TRUCK<RA2> L=2788	8-98084-024-0	01	1	1009-1302	●
1	CABLE; SHIFT,TRANS CONT MJT7 M/T<Y9E> L=2788	8-98084-024-0	01	1	1009-1302		●
3	CABLE; SELECT,TRANS CONT MIXER TRUCK<RA2> L=3440	8-98127-701-0	01	1	1009-1302	●
3	CABLE; SELECT,TRANS CONT L=3391	8-98216-280-2	01	1	1303-	●
3	CABLE; SELECT,TRANS CONT EXC. MIXER TRUCK<RA2> L=3375	8-98084-029-0	01	1	1009-1302	●
3	CABLE; SELECT,TRANS CONT MJT7 M/T<Y9E> L=3375	8-98084-029-0	01	1	1009-1302		●
3	CABLE; SELECT,TRANS CONT MJT7S M/T(Y3E) L=3394	8-98222-466-2	01	1	1303-		●
6	CLIP; CABLE ID=22.2	1-09701-209-1	02	1	1009-	●
6	CLIP; CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) ID=22.2	1-09701-209-1	02	1	1009-		●
114	NUT; RELAY LEVER M12 FLANGE	0-91180-112-0	03	1	1009-1302	●
114	NUT; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M12 FLANGE	0-91180-112-0	03	1	1009-1302		●
114	NUT; RELAY LEVER M12 FLANGE	0-91180-212-0	03	1	1303-	●
114	NUT; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M12 FLANGE	0-91180-212-0	03	1	1303-		●
221	NUT; SHIFT WIRE TO LEVER M10 FLANGE	1-09440-061-0	01	1	1009-	●
221	NUT; SHIFT WIRE TO LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE	1-09440-061-0	01	1	1009-		●
273	NUT; CONT CABLE M10 FLANGE	0-91180-110-0	04	1	1009-	●
273	NUT; CONT CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE	0-91180-110-0	04	1	1009-		●
283	BOLT; RELAY LEVER M10X20 FLANGE	0-28151-020-0	02	1	1009-	●
283	BOLT; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M10X20 FLANGE	0-28151-020-0	02	1	1009-		●
300	BOLT; CLIP (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1303-	●
300	BOLT; CLIP (A) M8X20 FLANGE	0-28050-820-0	03	1	1009-	●
300	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X20 FLANGE	0-28050-820-0	03	1	1009-		●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-062-1	01	1	1009-	●
393	NUT; SELECT CABLE,CAB TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE	1-09440-062-1	01	1	1009-		●
466	BOLT; FIX (B) M6X16 FLANGE	0-28050-616-0	04	1	1303-	●
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M6X16 FLANGE	0-28050-616-0	04	1	1303-		●
466	BOLT; FIX (A) M10X20 FLANGE	0-28651-020-0	01	1	1009-	●
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X20 FLANGE	0-28651-020-0	01	1	1009-		●
487	BRACKET; CONT CABLE (B)	8-98216-294-1	01	1	1303-	●
487	BRACKET; CONT CABLE (A)	8-98049-854-0	01	1	1009-	●
487	BRACKET; CONT CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98049-854-0	01	1	1009-		●
487	BRACKET; CONT CABLE (B)	1-33657-872-2	01	1	1009-1302	●
487	BRACKET; CONT CABLE MJT7 M/T<Y9E> (B)	1-33657-872-2	01	1	1009-1302		●
487	BRACKET; CONT CABLE MJT7S M/T(Y3E) (B)	1-33657-872-2	01	1	1303-		●
507	PROTECTOR; HEAT MIXER TRUCK<RA2> (A)	8-98127-702-0	01	1	1009-1302	●
507	PROTECTOR; HEAT (C)	8-98151-604-0	01	1	1303-	●
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	8-98151-604-0	01	1	1303-		●
507	PROTECTOR; HEAT EXC. MIXER TRUCK<RA2> (B)	1-14181-357-1	01	1	1009-1302	●
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-14181-357-1	01	1	1009-1302		●
507	PROTECTOR; HEAT (A)	8-98171-722-0	01	1	1303-	●
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98171-722-0	01	1	1303-		●
521	BOLT; PROTECTOR M8X20 FLANGE	0-28050-820-0	02	1	1009-	●
521	BOLT; PROTECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE	0-28050-820-0	02	1	1009-		●
528	BRACKET; LOWER,RELAY LEVER MIXER TRUCK<RA2>	8-98127-718-0	01	1	1009-1302	●
528	BRACKET; LOWER,RELAY LEVER EXC. MIXER TRUCK<RA2>	8-98049-809-1	01	1	1009-1302	●
528	BRACKET; LOWER,RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98049-809-1	01	1	1009-1302		●
528	BRACKET; LOWER,RELAY LEVER	8-98049-809-1	01	1	1303-	●
528	BRACKET; LOWER,RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98049-809-1	01	1	1303-		●
530	RING; RELAY LEVER	1-09623-636-0	02	1	1009-	●
530	RING; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-09623-636-0	02	1	1009-		●
531	BUSHING; RELAY LEVER	1-09330-119-0	02	1	1009-	●
531	BUSHING; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-09330-119-0	02	1	1009-		●
532	COLLAR; RELAY LEVER	8-98049-429-0	01	1	1009-	●
532	COLLAR; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98049-429-0	01	1	1009-		●
533	BOLT; RELAY LEVER M10X100 FLANGE	0-28051-000-0	01	1	1009-	●
533	BOLT; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M10X100 FLANGE	0-28051-000-0	01	1	1009-		●
534	NUT; RELAY LEVER M10 FLANGE	1-09440-056-0	01	1	1009-	●
534	NUT; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE	1-09440-056-0	01	1	1009-		●
535	LEVER; RELAY,SHIFT	8-98049-430-0	01	1	1009-	●
535	LEVER; RELAY,SHIFT TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98049-430-0	01	1	1009-		●

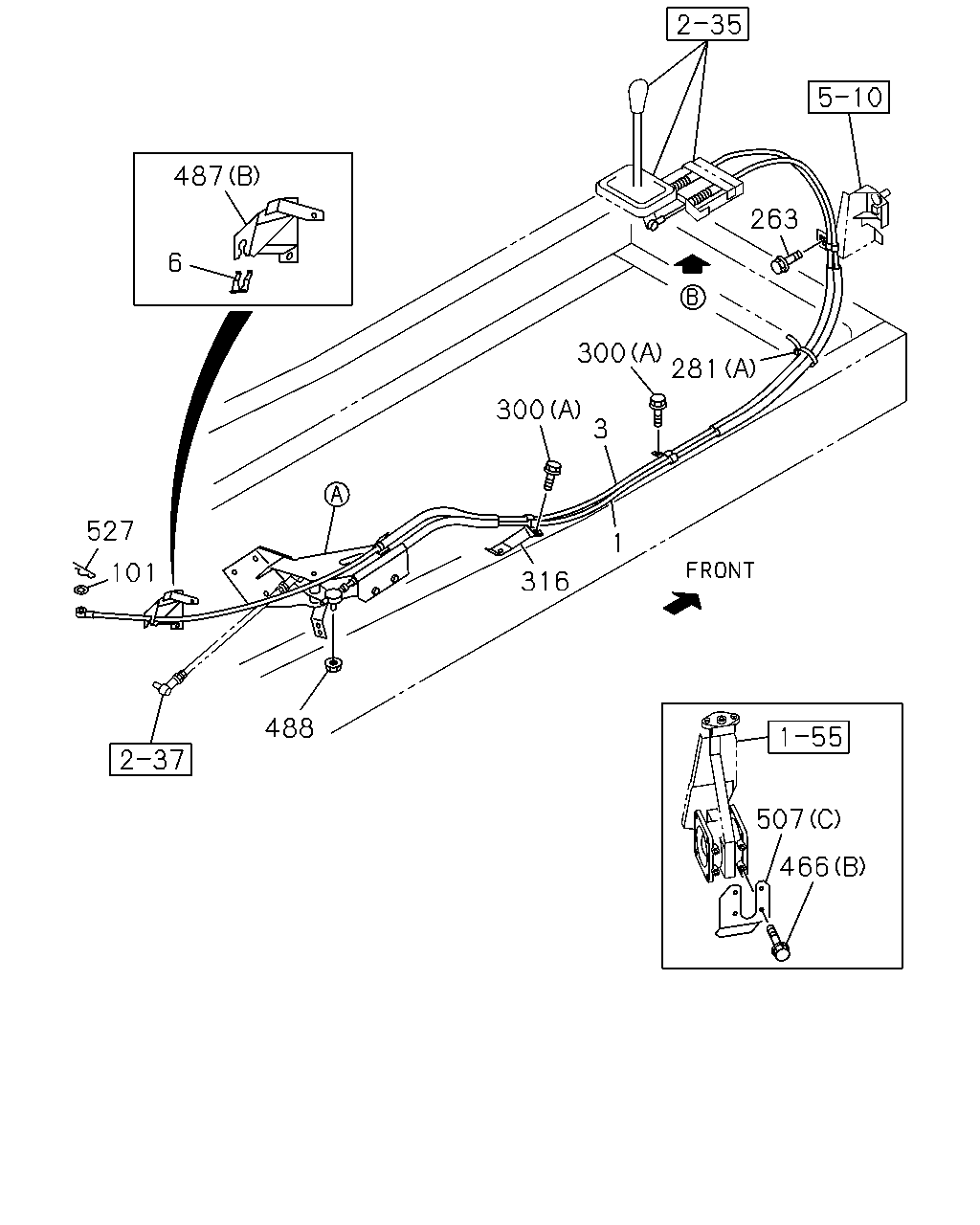

487 527 6 101 488 316 507 466 300 300 3 281 263 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT MIXER TRUCK<RA2> L=2855	8-98127-699-0	01	1	1009-1302	●
1	CABLE; SHIFT,TRANS CONT L=2776	8-98216-275-2	01	1	1303-	●
1	CABLE; SHIFT,TRANS CONT MJT7S M/T(Y3E) L=2776	8-98216-275-2	01	1	1303-		●
1	CABLE; SHIFT,TRANS CONT EXC. MIXER TRUCK<RA2> L=2788	8-98084-024-0	01	1	1009-1302	●
1	CABLE; SHIFT,TRANS CONT MJT7 M/T<Y9E> L=2788	8-98084-024-0	01	1	1009-1302		●
3	CABLE; SELECT,TRANS CONT MIXER TRUCK<RA2> L=3440	8-98127-701-0	01	1	1009-1302	●
3	CABLE; SELECT,TRANS CONT L=3391	8-98216-280-2	01	1	1303-	●
3	CABLE; SELECT,TRANS CONT EXC. MIXER TRUCK<RA2> L=3375	8-98084-029-0	01	1	1009-1302	●
3	CABLE; SELECT,TRANS CONT MJT7 M/T<Y9E> L=3375	8-98084-029-0	01	1	1009-1302		●
3	CABLE; SELECT,TRANS CONT MJT7S M/T(Y3E) L=3394	8-98222-466-2	01	1	1303-		●
6	CLIP; CABLE ID=22.2	1-09701-209-1	02	1	1009-	●
6	CLIP; CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) ID=22.2	1-09701-209-1	02	1	1009-		●
101	WASHER; PL ID=8.4 OD=16	0-91610-508-0	01	1	1009-1302	●
101	WASHER; PL TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=16	0-91610-508-0	01	1	1009-1302		●
101	WASHER; PL ID=8.4 OD=16	0-91610-508-0	01	1	1303-	●
101	WASHER; PL MJT7S M/T(Y3E) ID=8.4 OD=16	0-91610-508-0	01	1	1303-		●
263	BOLT; CLIP,TRANS CONT WIRE M8X16 FLANGE	0-28050-816-0	01	1	1009-1302	●
263	BOLT; CLIP,TRANS CONT WIRE TRANSMISSION CONTROL CABLE TYPE(C1A) M8X16 FLANGE	0-28050-816-0	01	1	1009-1302		●
263	BOLT; CLIP,TRANS CONT WIRE M8X16 FLANGE	0-28050-816-0	02	1	1303-	●
263	BOLT; CLIP,TRANS CONT WIRE TRANSMISSION CONTROL CABLE TYPE(C1A) M8X16 FLANGE	0-28050-816-0	02	1	1303-		●
281	CLIP; BAND (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1303-	●
281	CLIP; BAND TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1303-		●
281	CLIP; BAND (A) L=350	1-09707-183-0	01	1	1009-	●
281	CLIP; BAND TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=350	1-09707-183-0	01	1	1009-		●
300	BOLT; CLIP (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1303-	●
300	BOLT; CLIP (A) M8X20 FLANGE	0-28050-820-0	03	1	1009-	●
300	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X20 FLANGE	0-28050-820-0	03	1	1009-		●
316	BRACKET; CLIP	1-33657-870-2	01	1	1009-1302	●
316	BRACKET; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33657-870-2	01	1	1009-1302		●
316	BRACKET; CLIP	8-98150-331-0	01	1	1303-	●
316	BRACKET; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98150-331-0	01	1	1303-		●
466	BOLT; FIX (B) M6X16 FLANGE	0-28050-616-0	04	1	1303-	●
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M6X16 FLANGE	0-28050-616-0	04	1	1303-		●
466	BOLT; FIX (A) M10X20 FLANGE	0-28651-020-0	01	1	1009-	●
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X20 FLANGE	0-28651-020-0	01	1	1009-		●
487	BRACKET; CONT CABLE (B)	8-98216-294-1	01	1	1303-	●
487	BRACKET; CONT CABLE (A)	8-98049-854-0	01	1	1009-	●
487	BRACKET; CONT CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98049-854-0	01	1	1009-		●
487	BRACKET; CONT CABLE (B)	1-33657-872-2	01	1	1009-1302	●
487	BRACKET; CONT CABLE MJT7 M/T<Y9E> (B)	1-33657-872-2	01	1	1009-1302		●
487	BRACKET; CONT CABLE MJT7S M/T(Y3E) (B)	1-33657-872-2	01	1	1303-		●
488	NUT; CABLE M10 FLANGE	1-09440-056-0	01	1	1009-	●
488	NUT; CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE	1-09440-056-0	01	1	1009-		●
507	PROTECTOR; HEAT MIXER TRUCK<RA2> (A)	8-98127-702-0	01	1	1009-1302	●
507	PROTECTOR; HEAT (C)	8-98151-604-0	01	1	1303-	●
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	8-98151-604-0	01	1	1303-		●
507	PROTECTOR; HEAT EXC. MIXER TRUCK<RA2> (B)	1-14181-357-1	01	1	1009-1302	●
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-14181-357-1	01	1	1009-1302		●
507	PROTECTOR; HEAT (A)	8-98171-722-0	01	1	1303-	●
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98171-722-0	01	1	1303-		●
527	PIN; SNAP L=23	8-94170-378-0	01	1	1009-1302	●
527	PIN; SNAP TRANSMISSION CONTROL CABLE TYPE(C1A) L=23	8-94170-378-0	01	1	1009-1302		●
527	PIN; SNAP L=23	8-94170-378-0	01	1	1303-	●
527	PIN; SNAP MJT7S M/T(Y3E) L=23	8-94170-378-0	01	1	1303-		●

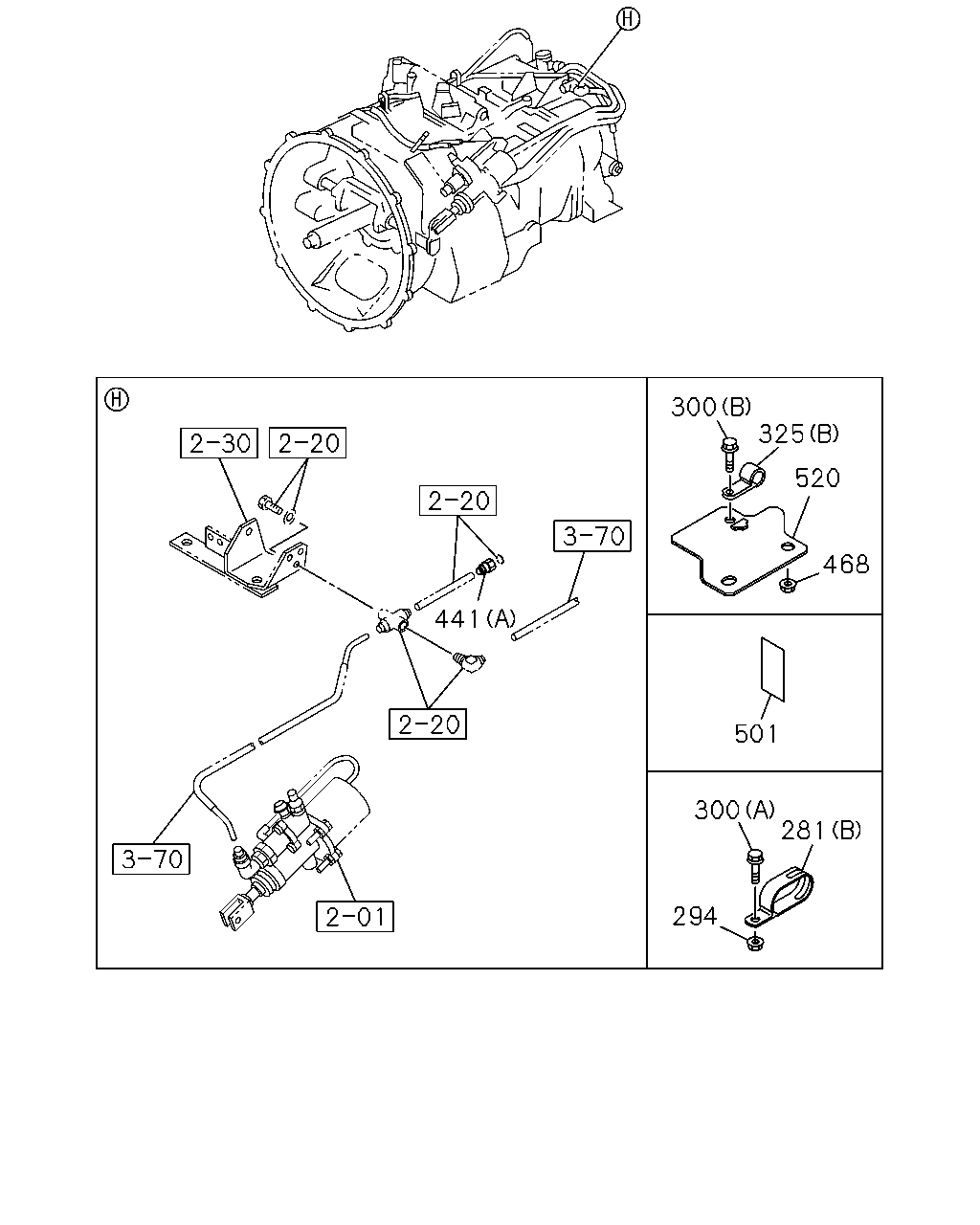

441 300 520 325 468 501 300 281 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
281	CLIP; BAND (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1303-	●
281	CLIP; BAND TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1303-		●
281	CLIP; BAND (A) L=350	1-09707-183-0	01	1	1009-	●
281	CLIP; BAND TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=350	1-09707-183-0	01	1	1009-		●
294	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1303-	●
294	NUT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE	0-91180-108-0	01	1	1303-		●
300	BOLT; CLIP (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1303-	●
300	BOLT; CLIP (A) M8X20 FLANGE	0-28050-820-0	03	1	1009-	●
300	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X20 FLANGE	0-28050-820-0	03	1	1009-		●
325	CLIP; NYLON TUBE (B) ID=19 L=28	0-95235-856-0	01	1	1303-	●
325	CLIP; NYLON TUBE (C) L=170.3	1-09987-182-0	01	1	1303-	●
325	CLIP; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (A) L=350	1-09707-183-0	02	1	1009-		●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	1303-	●
441	CONNECTOR; NYLON TUBE (B)	8-98120-561-0	06	1	1303-	●
468	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1303-1305	●
468	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1306-	●
501	SEAL; HARNESS PROTECTOR 180X40	1-72498-019-1	04	1	1303-	●
520	BRACKET; NYLON TUBE	8-98235-633-0	01	1	1303-	●

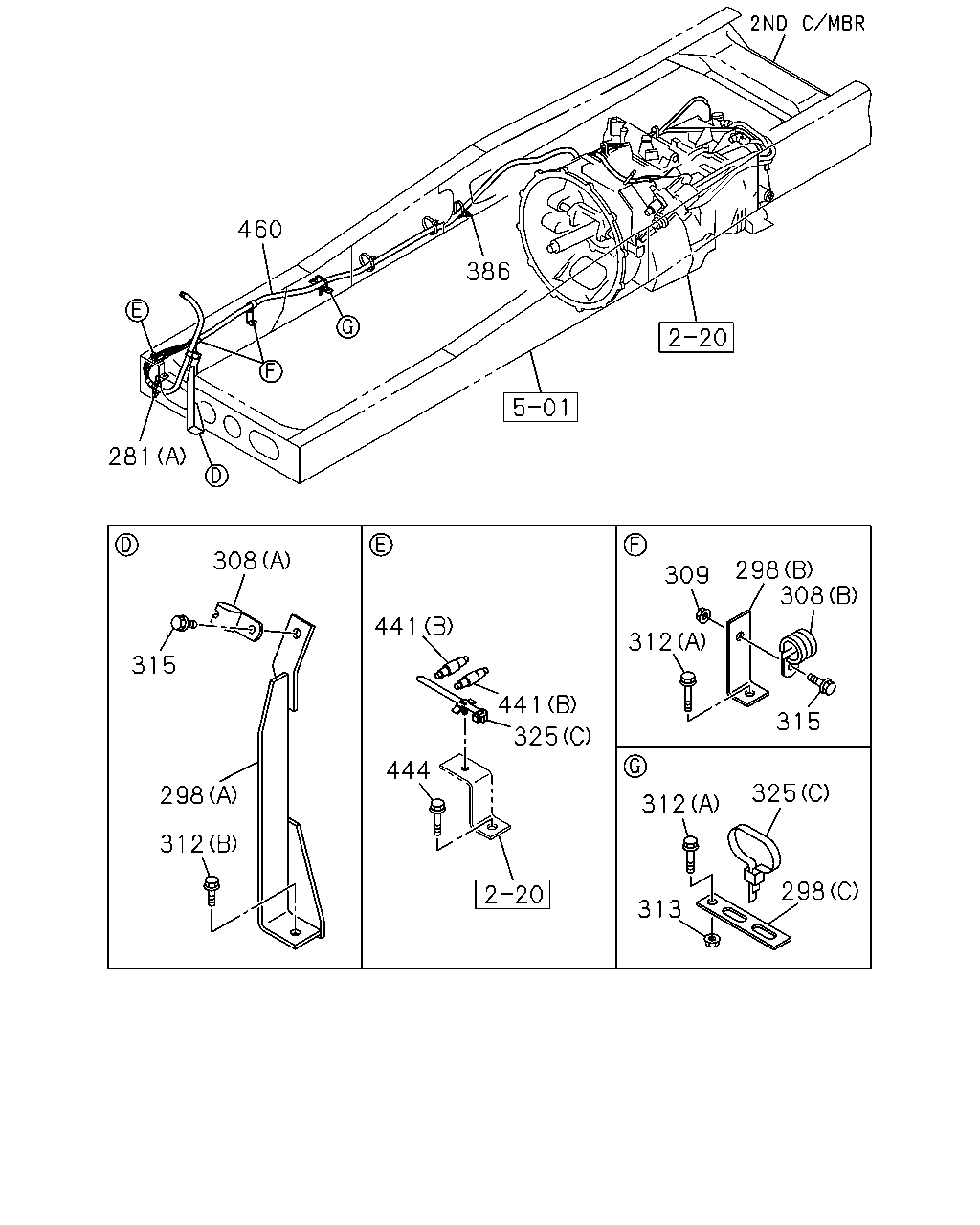

386 460 281 308 315 298 312 444 441 441 325 312 309 298 308 315 325 298 313 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
281	CLIP; BAND (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1303-	●
281	CLIP; BAND TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1303-		●
281	CLIP; BAND (A) L=350	1-09707-183-0	01	1	1009-	●
281	CLIP; BAND TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=350	1-09707-183-0	01	1	1009-		●
298	BRACKET (C)	1-47477-514-3	01	1	1303-	●
298	BRACKET (B) L=75	1-47478-323-0	02	1	1303-	●
298	BRACKET (A)	8-98233-259-0	01	1	1303-	●
308	CLIP; PIPE (A) ID=19 L=28	0-95235-856-0	01	1	1303-	●
308	CLIP; PIPE (B) ID=21 L=24	8-98019-191-0	02	1	1303-	●
309	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	1303-	●
312	BOLT; CLIP BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1303-	●
312	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	03	1	1303-	●
313	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1303-	●
315	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	03	1	1303-	●
325	CLIP; NYLON TUBE (B) ID=19 L=28	0-95235-856-0	01	1	1303-	●
325	CLIP; NYLON TUBE (C) L=170.3	1-09987-182-0	01	1	1303-	●
325	CLIP; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (A) L=350	1-09707-183-0	02	1	1009-		●
386	CLIP; CONT CABLE & TUBE L=350	1-09707-183-0	05	1	1303-	●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	1303-	●
441	CONNECTOR; NYLON TUBE (B)	8-98120-561-0	06	1	1303-	●
444	BOLT; BRKT,NIPPLE M8X30 FLANGE	0-28650-830-0	01	1	1303-	●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1303-	●
460	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1303-	●
460	TUBE; CORRUGATE L=600 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1303-	●
460	TUBE; CORRUGATE L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1303-	●
460	TUBE; CORRUGATE L=110 SERVICED BY L=2000 ID=7	1-83129-335-0	01	1	1303-	●

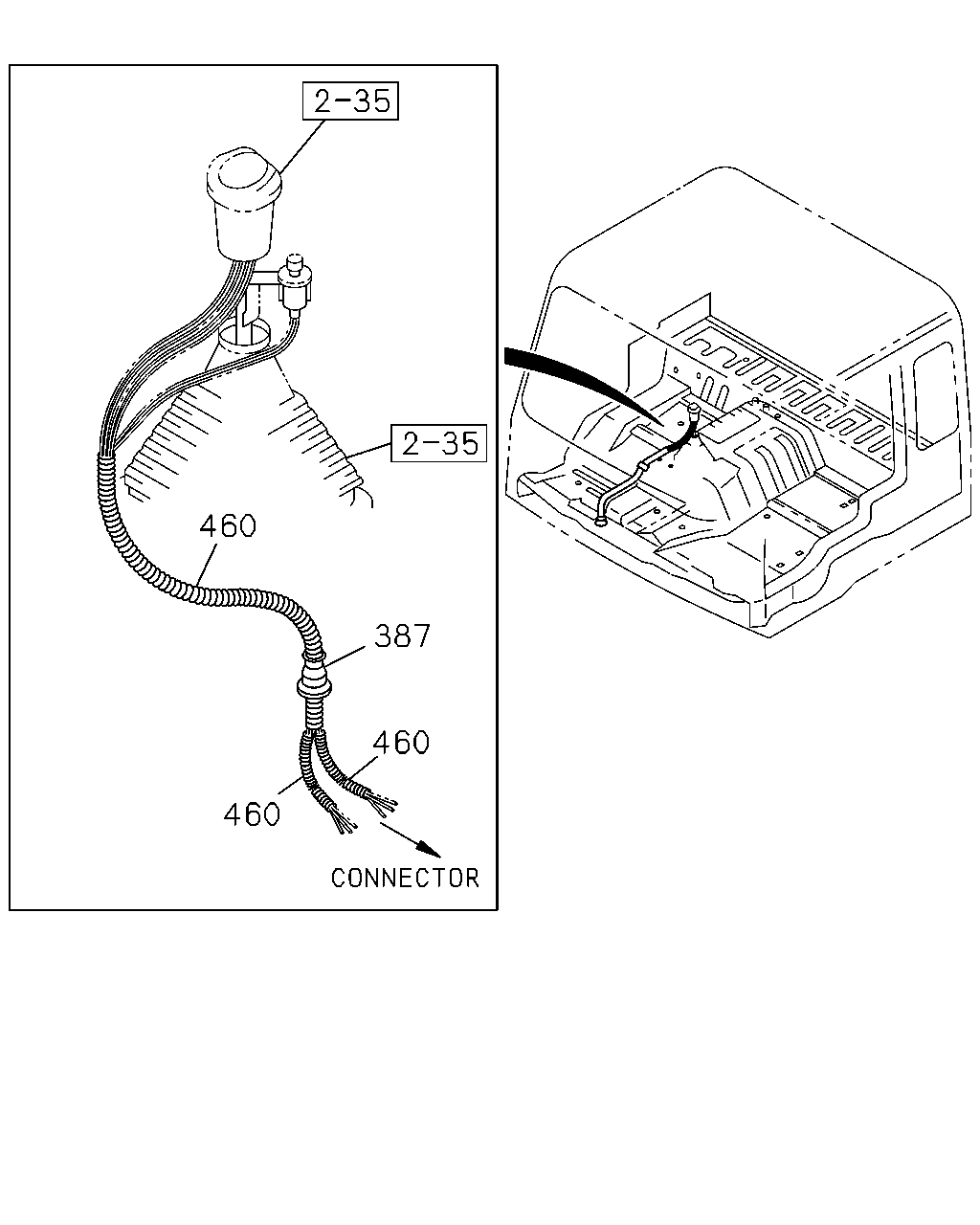

460 387 460 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
387	GROMMET; CONT TUBE,FULLER	1-09332-135-0	01	1	1303-	●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1303-	●
460	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1303-	●
460	TUBE; CORRUGATE L=600 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1303-	●
460	TUBE; CORRUGATE L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1303-	●
460	TUBE; CORRUGATE L=110 SERVICED BY L=2000 ID=7	1-83129-335-0	01	1	1303-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
