◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#61051) — 200 parça

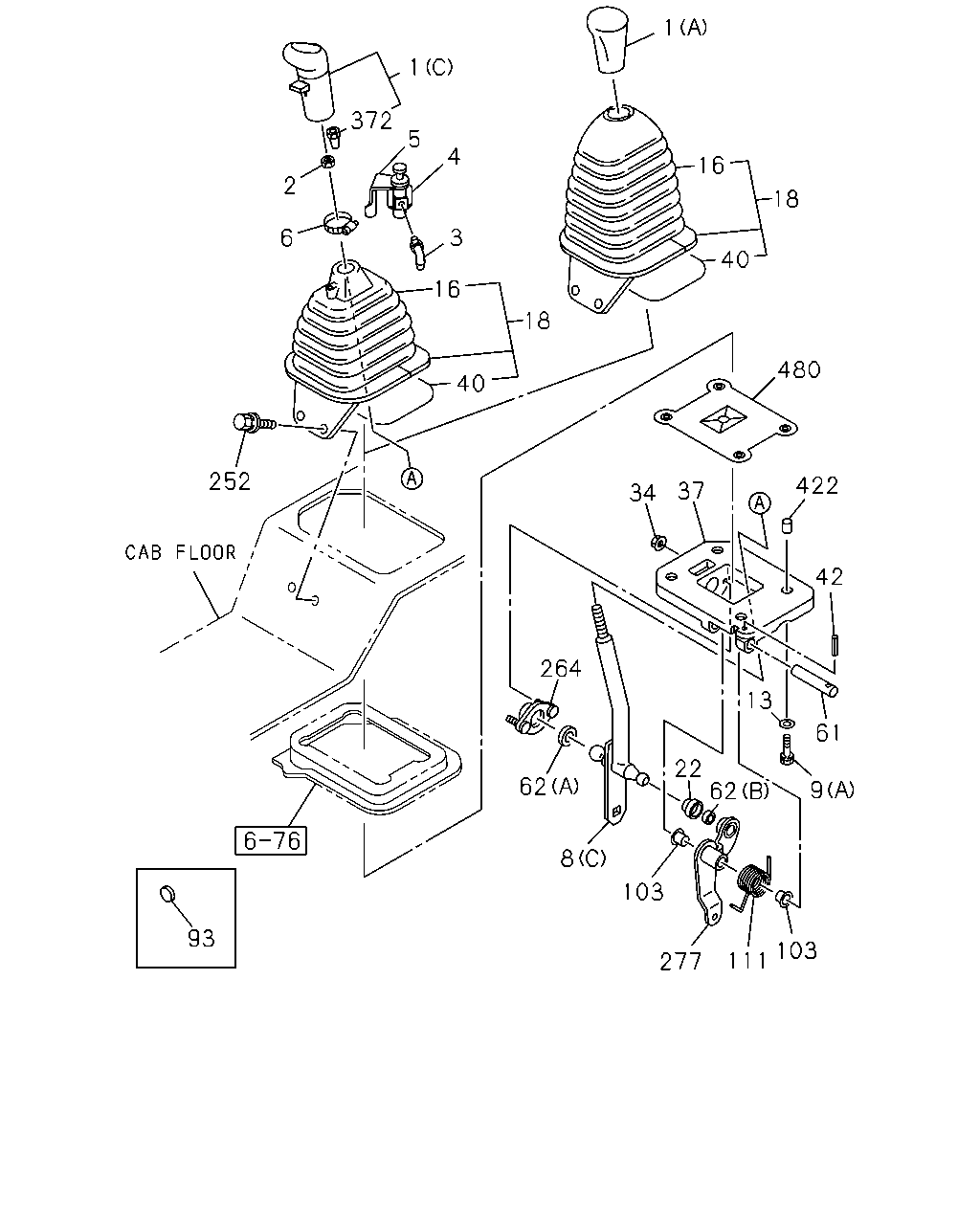

çizim 168366
93 277 111 103 103 62 22 9 61 13 8 62 264 42 422 37 34 480 18 16 40 1 372 1 2 6 5 3 1 16 18 40 252 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
(C) 		8-98120-384-0 01 1 1303-1401 ●
1 KNOB; CHANGE LEVER
(C) 		8-98224-285-0 01 1 1402- ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-082-1 01 1 1009-1302 ●
1 KNOB; CHANGE LEVER
MJT7 M/T<Y9E> (A) 		1-33611-082-1 01 1 1009-1302 ●
1 KNOB; CHANGE LEVER
MJT7S M/T(Y3E) (A) 		1-33611-082-1 01 1 1303- ●
1 KNOB; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) 		8-98152-481-0 01 1 1009-1010 ●
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 1303- ●
3 CONNECTOR; CONT TUBE 8-98114-398-0 02 1 1303- ●
4 VALVE; ACTUATOR 1-33712-003-0 01 1 1303- ●
5 BRACKET; ACTUATOR VLV 1-33719-078-0 01 1 1303- ●
6 CLAMP; BRKT 1-33719-079-0 01 1 1303- ●
8 LEVER; CHANGE
(C) 		1-33613-349-0 01 1 1303- ●
8 LEVER; CHANGE
(C) 		1-33613-344-0 01 1 1009-1302 ●
8 LEVER; CHANGE
MJT7 M/T<Y9E> (C) 		1-33613-344-0 01 1 1009-1302 ●
8 LEVER; CHANGE
MJT7S M/T(Y3E) (C) 		1-33613-344-0 01 1 1303- ●
8 LEVER; CHANGE
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33620-114-2 01 1 1009-1010 ●
8 LEVER; CHANGE
MJX12P M/T SMOOTHER-G(Y4S) (B) 		8-98181-427-0 01 1 1011-1302 ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98181-427-0 01 1 1303-1401 ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98149-127-1 01 1 1402- ●
9 BOLT; CHANGE LEVER
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1009- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 1009- ●
9 BOLT; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (C) 		1-33619-798-0 08 1 1009-1010 ●
9 BOLT; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1009-1302 ●
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1303- ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		0-91610-708-0 04 1 1009- ●
13 WASHER; PL,SUPER SHIFT LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=22 		0-91610-708-0 04 1 1009- ●
16 BOOT; CHANGE LEVER 1-79996-367-1 01 1 1304- ●
16 BOOT; CHANGE LEVER 1-79996-688-0 01 1 1009-1303 ●
16 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-688-0 01 1 1009-1303 ●
16 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-688-0 01 1 1304- ●
16 BOOT; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-33614-145-0 01 1 1009-1010 ●
18 BOOT; CHANGE LEVER 8-98239-342-0 01 1 1304- ●
18 BOOT; CHANGE LEVER 1-79996-686-0 01 1 1009-1303 ●
18 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-686-0 01 1 1009-1303 ●
18 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-686-0 01 1 1304- ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 1009-1302 ●
22 COVER; DUST,CHANGE LEVER
MJT7 M/T<Y9E> 		1-33619-573-0 01 1 1009-1302 ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 1303- ●
22 COVER; DUST,CHANGE LEVER
MJT7S M/T(Y3E) 		1-33619-573-0 01 1 1303- ●
34 NUT
M6 FLANGE 		0-91180-106-0 02 1 1009-1302 ●
34 NUT
MJT7 M/T<Y9E> M6 FLANGE 		0-91180-106-0 02 1 1009-1302 ●
34 NUT
M6 FLANGE 		0-91180-106-0 02 1 1303- ●
34 NUT
MJT7S M/T(Y3E) M6 FLANGE 		0-91180-106-0 02 1 1303- ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98100-876-1 01 1 1009-1302 ●
37 BRACKET; CHANGE LEVER SUPPORT
MJT7 M/T<Y9E> 		8-98100-876-1 01 1 1009-1302 ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98100-876-1 01 1 1303- ●
37 BRACKET; CHANGE LEVER SUPPORT
MJT7S M/T(Y3E) 		8-98100-876-1 01 1 1303- ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 1009-1303 ●
40 SEAL; BOOT HOLDER CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-345-0 01 1 1009-1303 ●
40 SEAL; BOOT HOLDER CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-345-0 01 1 1304-1305 ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 1306- ●
40 SEAL; BOOT HOLDER CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-345-0 01 1 1306- ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 1304-1305 ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 1009-1302 ●
42 PIN; SPRING,SELECT LEVER PIN
MJT7 M/T<Y9E> D=5 L=28 		8-94252-581-0 01 1 1009-1302 ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 1303- ●
42 PIN; SPRING,SELECT LEVER PIN
MJT7S M/T(Y3E) D=5 L=28 		8-94252-581-0 01 1 1303- ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 1009-1302 ●
61 PIN; SELECT LEVER
MJT7 M/T<Y9E> 		1-33619-470-0 01 1 1009-1302 ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 1303- ●
61 PIN; SELECT LEVER
MJT7S M/T(Y3E) 		1-33619-470-0 01 1 1303- ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1009-1302 ●
62 SEAT; BALL,CHANGE LEVER
MJT7 M/T<Y9E> (A) 		1-33619-427-0 01 1 1009-1302 ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1303- ●
62 SEAT; BALL,CHANGE LEVER
MJT7S M/T(Y3E) (A) 		1-33619-427-0 01 1 1303- ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 1009-1302 ●
62 SEAT; BALL,CHANGE LEVER
MJT7 M/T<Y9E> (B) 		8-97011-900-0 01 1 1009-1302 ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 1303- ●
62 SEAT; BALL,CHANGE LEVER
MJT7S M/T(Y3E) (B) 		8-97011-900-0 01 1 1303- ●
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 02 1 1009- ● ●
93 SEAL; HOLE COVER,GEAR CONT
MJX12P M/T SMOOTHER-G(Y4S) OD=25 BLACK 		1-76798-019-0 01 1 1009-1302 ●
93 SEAL; HOLE COVER,GEAR CONT
SMOOTHER-G(C1W) OD=25 BLACK 		1-76798-019-0 01 1 1303- ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 1009-1302 ●
103 BUSHING; RELAY LEVER
MJT7 M/T<Y9E> ID=14 OD=16 		8-94252-671-0 02 1 1009-1302 ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 1303- ●
103 BUSHING; RELAY LEVER
MJT7S M/T(Y3E) ID=14 OD=16 		8-94252-671-0 02 1 1303- ●
111 SPRING 1-09585-142-1 01 1 1009-1302 ●
111 SPRING
MJT7 M/T<Y9E> 		1-09585-142-1 01 1 1009-1302 ●
111 SPRING 1-09585-142-1 01 1 1303- ●
111 SPRING
MJT7S M/T(Y3E) 		1-09585-142-1 01 1 1303- ●
252 BOLT; COVER,CHANGE LEVER
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1009-1302 ●
252 BOLT; COVER,CHANGE LEVER
MJT7S M/T(Y3E) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1009-1302 ●
252 BOLT; COVER,CHANGE LEVER
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1303- ●
252 BOLT; COVER,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1303- ●
264 PLATE; COVER 1-33619-469-0 01 1 1009-1302 ●
264 PLATE; COVER
MJT7 M/T<Y9E> 		1-33619-469-0 01 1 1009-1302 ●
264 PLATE; COVER 1-33619-469-0 01 1 1303- ●
264 PLATE; COVER
MJT7S M/T(Y3E) 		1-33619-469-0 01 1 1303- ●
277 LEVER; RELAY 1-33651-636-1 01 1 1009-1302 ●
277 LEVER; RELAY
MJT7 M/T<Y9E> 		1-33651-636-1 01 1 1009-1302 ●
277 LEVER; RELAY 1-33651-636-1 01 1 1303- ●
277 LEVER; RELAY
MJT7S M/T(Y3E) 		1-33651-636-1 01 1 1303- ●
372 CONNECTOR; CHANGE LEVER 8-98114-396-0 04 1 1303- ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 1009-1302 ●
422 BUSHING; CHANGE LEVER
MJT7 M/T<Y9E> 		8-97091-427-0 04 1 1009-1302 ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 1303- ●
422 BUSHING; CHANGE LEVER
MJT7S M/T(Y3E) 		8-97091-427-0 04 1 1303- ●
480 RUBBER; COVER 8-98119-365-0 01 1 1009-1302 ●
480 RUBBER; COVER
MJT7 M/T<Y9E> 		8-98119-365-0 01 1 1009-1302 ●
480 RUBBER; COVER 8-98119-365-0 01 1 1303- ●
480 RUBBER; COVER
MJT7S M/T(Y3E) 		8-98119-365-0 01 1 1303- ●

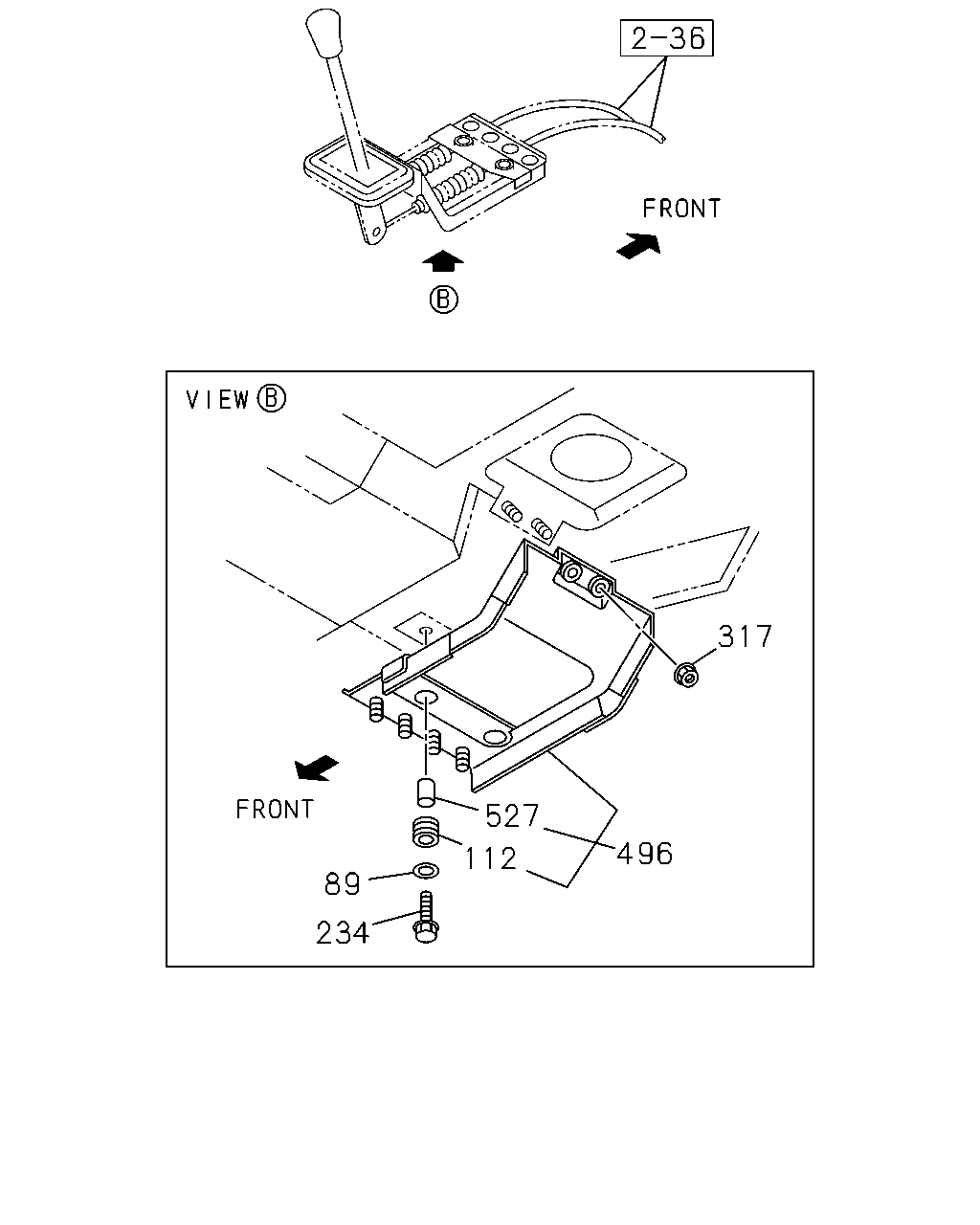

çizim 168367
89 234 527 112 496 317
BalonParca AdiParca NoAdetTipApplied Date A B
89 WASHER; PL,LWR SUPPORT BRKT
ID=8.4 OD=22 		0-91610-708-0 02 1 1009- ●
89 WASHER; PL,LWR SUPPORT BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=22 		0-91610-708-0 02 1 1009- ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 1009- ●
112 RUBBER; CUSHION
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-442-0 04 1 1009- ●
234 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009- ●
234 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X25 FLANGE 		0-28650-825-0 02 1 1009- ●
234 BOLT; BRKT
MJX12P M/T SMOOTHER-G(Y4S) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1009-1302 ●
234 BOLT; BRKT
SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1303- ●
317 NUT; BRKT
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1009- ●
317 NUT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1009- ●
317 NUT; BRKT
MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ●
317 NUT; BRKT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1303- ●
496 BRACKET ASM; T/M CABLE 1-33657-852-2 01 1 1009- ●
496 BRACKET ASM; T/M CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33657-852-2 01 1 1009- ●
527 COLLAR; DIST,T/M CABLE BRACKET 1-33619-443-0 04 1 1009- ●
527 COLLAR; DIST,T/M CABLE BRACKET
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-443-0 04 1 1009- ●
çizim 168370
1 77 16 193 423 500 8 500 193 234 211 9 121 317 234 93 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
(C) 		8-98120-384-0 01 1 1303-1401 ●
1 KNOB; CHANGE LEVER
(C) 		8-98224-285-0 01 1 1402- ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-082-1 01 1 1009-1302 ●
1 KNOB; CHANGE LEVER
MJT7 M/T<Y9E> (A) 		1-33611-082-1 01 1 1009-1302 ●
1 KNOB; CHANGE LEVER
MJT7S M/T(Y3E) (A) 		1-33611-082-1 01 1 1303- ●
1 KNOB; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) 		8-98152-481-0 01 1 1009-1010 ●
8 LEVER; CHANGE
(C) 		1-33613-349-0 01 1 1303- ●
8 LEVER; CHANGE
(C) 		1-33613-344-0 01 1 1009-1302 ●
8 LEVER; CHANGE
MJT7 M/T<Y9E> (C) 		1-33613-344-0 01 1 1009-1302 ●
8 LEVER; CHANGE
MJT7S M/T(Y3E) (C) 		1-33613-344-0 01 1 1303- ●
8 LEVER; CHANGE
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33620-114-2 01 1 1009-1010 ●
8 LEVER; CHANGE
MJX12P M/T SMOOTHER-G(Y4S) (B) 		8-98181-427-0 01 1 1011-1302 ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98181-427-0 01 1 1303-1401 ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98149-127-1 01 1 1402- ●
9 BOLT; CHANGE LEVER
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1009- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 1009- ●
9 BOLT; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (C) 		1-33619-798-0 08 1 1009-1010 ●
9 BOLT; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1009-1302 ●
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1303- ●
16 BOOT; CHANGE LEVER 1-79996-367-1 01 1 1304- ●
16 BOOT; CHANGE LEVER 1-79996-688-0 01 1 1009-1303 ●
16 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-688-0 01 1 1009-1303 ●
16 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-688-0 01 1 1304- ●
16 BOOT; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-33614-145-0 01 1 1009-1010 ●
77 PIN; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33619-780-0 01 1 1009-1010 ●
77 PIN; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-33619-795-0 01 1 1009-1010 ●
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 02 1 1009- ● ●
93 SEAL; HOLE COVER,GEAR CONT
MJX12P M/T SMOOTHER-G(Y4S) OD=25 BLACK 		1-76798-019-0 01 1 1009-1302 ●
93 SEAL; HOLE COVER,GEAR CONT
SMOOTHER-G(C1W) OD=25 BLACK 		1-76798-019-0 01 1 1303- ●
121 SEAL; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-79997-354-0 01 1 1009-1302 ●
121 SEAL; CHANGE LEVER
SMOOTHER-G(C1W) 		1-79997-354-0 01 1 1303- ●
193 SCREW; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (C) M5X12 W/LK WASHER 		0-36220-512-0 02 1 1009-1010 ●
193 SCREW; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) M4X8 W/LK WASHER 		9-03910-408-0 04 1 1009-1010 ●
193 SCREW; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (A) M5X12 W/LK WASHER 		9-03910-512-0 04 1 1009-1010 ●
211 BRACKET; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-79907-115-1 01 1 1009-1302 ●
211 BRACKET; CHANGE LEVER
SMOOTHER-G(C1W) 		1-79907-115-1 01 1 1303- ●
234 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009- ●
234 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X25 FLANGE 		0-28650-825-0 02 1 1009- ●
234 BOLT; BRKT
MJX12P M/T SMOOTHER-G(Y4S) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1009-1302 ●
234 BOLT; BRKT
SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1303- ●
317 NUT; BRKT
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1009- ●
317 NUT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1009- ●
317 NUT; BRKT
MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ●
317 NUT; BRKT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1303- ●
423 CLIP; BAND
MJX12P M/T SMOOTHER-G(Y4S) 		8-97138-392-0 01 1 1009-1010 ●
500 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) ID=9 L=16 		9-09524-822-0 02 1 1009-1010 ●

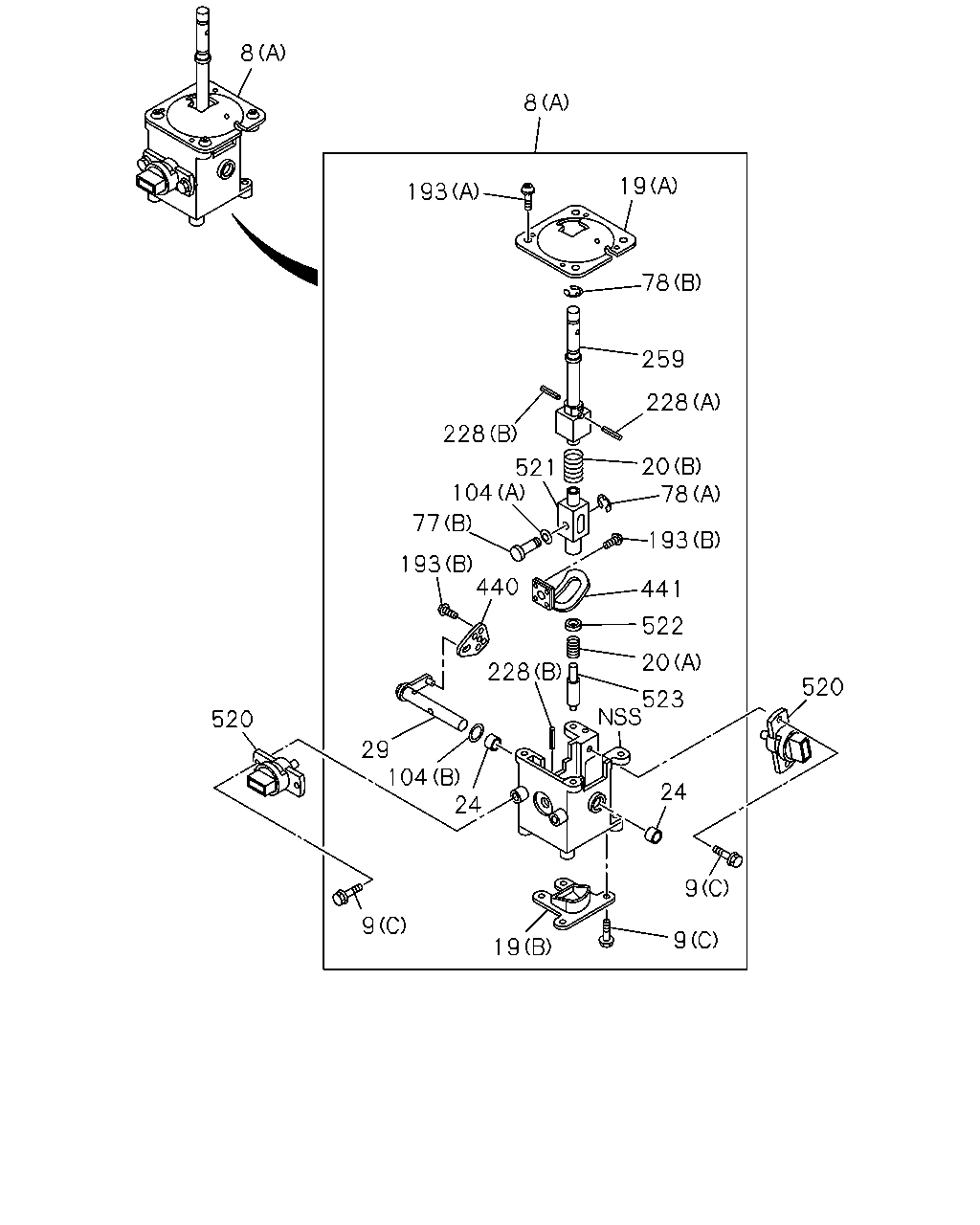

çizim 168455
8 193 8 19 78 259 228 20 193 441 522 20 523 24 9 9 520 19 9 520 29 104 24 228 440 193 77 521 104 228
BalonParca AdiParca NoAdetTipApplied Date A B
8 LEVER; CHANGE
(C) 		1-33613-349-0 01 1 1303- ●
8 LEVER; CHANGE
(C) 		1-33613-344-0 01 1 1009-1302 ●
8 LEVER; CHANGE
MJT7 M/T<Y9E> (C) 		1-33613-344-0 01 1 1009-1302 ●
8 LEVER; CHANGE
MJT7S M/T(Y3E) (C) 		1-33613-344-0 01 1 1303- ●
8 LEVER; CHANGE
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33620-114-2 01 1 1009-1010 ●
8 LEVER; CHANGE
MJX12P M/T SMOOTHER-G(Y4S) (B) 		8-98181-427-0 01 1 1011-1302 ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98181-427-0 01 1 1303-1401 ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98149-127-1 01 1 1402- ●
9 BOLT; CHANGE LEVER
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1009- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 1009- ●
9 BOLT; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (C) 		1-33619-798-0 08 1 1009-1010 ●
9 BOLT; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1009-1302 ●
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1303- ●
19 COVER; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33619-790-0 01 1 1009-1010 ●
19 COVER; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-33619-791-0 01 1 1009-1010 ●
20 SPRING; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33619-786-0 01 1 1009-1010 ●
20 SPRING; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-33619-787-0 01 1 1009-1010 ●
24 BUSHING; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-33619-797-0 02 1 1009-1010 ●
29 SHAFT
MJX12P M/T SMOOTHER-G(Y4S) 		1-33619-792-0 01 1 1009-1010 ●
77 PIN; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33619-780-0 01 1 1009-1010 ●
77 PIN; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-33619-795-0 01 1 1009-1010 ●
78 RING; SNAP,CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (A) ID=4 		9-09185-404-0 01 1 1009-1010 ●
78 RING; SNAP,CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) ID=9 		9-09185-409-0 01 1 1009-1010 ●
104 WASHER; WAVED
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33619-788-0 01 1 1009-1010 ●
104 WASHER; WAVED
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-33619-789-0 01 1 1009-1010 ●
193 SCREW; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (C) M5X12 W/LK WASHER 		0-36220-512-0 02 1 1009-1010 ●
193 SCREW; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) M4X8 W/LK WASHER 		9-03910-408-0 04 1 1009-1010 ●
193 SCREW; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (A) M5X12 W/LK WASHER 		9-03910-512-0 04 1 1009-1010 ●
228 PIN; SPR,CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33619-505-0 01 1 1009-1010 ●
228 PIN; SPR,CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-33619-796-0 02 1 1009-1010 ●
259 LEVER; CHANGE,UPR
MJX12P M/T SMOOTHER-G(Y4S) 		1-33619-782-0 01 1 1009-1010 ●
440 LEVER; SHIFT
MJX12P M/T SMOOTHER-G(Y4S) 		1-33619-794-0 01 1 1009-1010 ●
441 LEVER; SELECT
MJX12P M/T SMOOTHER-G(Y4S) 		1-33619-793-0 01 1 1009-1010 ●
520 SENSOR; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-81541-113-0 02 1 1009-1010 ●
521 LEVER; CHANGE,LOW
MJX12P M/T SMOOTHER-G(Y4S) 		1-33619-783-0 01 1 1009-1010 ●
522 GUIDE; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-33619-784-0 01 1 1009-1010 ●
523 PLUNGER; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-33619-785-0 01 1 1009-1010 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
