Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#6105) — 249 parça

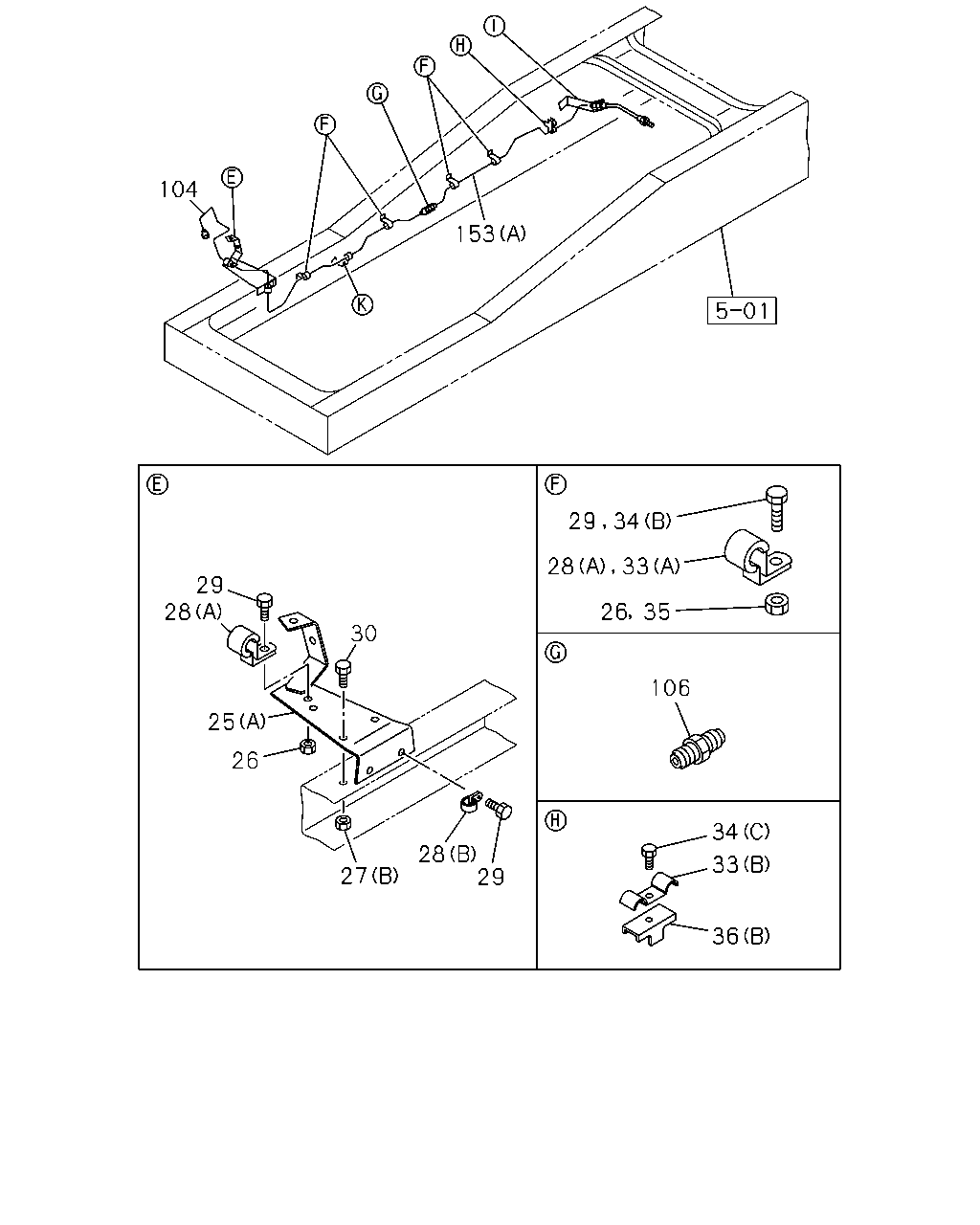

104 153 28 33 29 28 35 26 30 106 25 26 34 28 29 33 27 36 29 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	BRACKET; OIL PIPE (B)	1-47477-597-2	01	1	9905-0002	●	●
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	9905-0104	●	●
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0105-0106	●	●
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-0301	●	●
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0302-	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9905-0301	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0302-0602	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9905-0301	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0302-0602	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-0301	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0302-	●	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-0002	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0003-0301	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0302-	●	●	●
28	CLIP; OIL PIPE (C) ID=9	9-09524-845-0	01	1	9905-0002	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0105-0301	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0302-0606	●	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9905-9905	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	9906-0002	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0003-0104	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-0301	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0302-0512	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0003-0301	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0302-0512	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9905-0301	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0302-0512	●	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9905-0002	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0003-0101	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0102-0104	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-0301	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0302-	●	●	●
33	CLIP; OIL PIPE COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0105-0301	●	●
33	CLIP; OIL PIPE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-0301	●	●
33	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0302-	●	●	●
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9905-0301	●	●
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	0302-0512	●	●	●
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-0606	●	●	●
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28050-820-0	02	1	0607-	●	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-9905	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	03	1	9905-0002	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	04	1	0003-0101	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	03	1	0102-0104	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0301	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	02	1	0302-0512	●	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●
34	BOLT; PIPE CLIP (C) M8X45 FLANGE	0-28080-845-0	01	1	0105-0301	●	●
34	BOLT; PIPE CLIP (C) M8X45 FLANGE	0-28080-845-0	01	1	0302-0512	●	●	●
34	BOLT; PIPE CLIP (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9905	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9905-0002	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	0003-0101	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0102-0301	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0302-0602	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9905-0301	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0302-	●	●	●
36	BRACKET; CLIP (B)	1-47475-427-1	01	1	0105-0301	●	●
36	BRACKET; CLIP (B)	1-47475-427-1	01	1	0302-	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1589	1-49164-423-0	01	1	9905-0002	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1595	1-49165-436-0	01	1	0003-0104	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1618	1-49166-188-0	01	1	0105-0301	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1618	1-49166-188-0	01	1	0302-0602	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1628 SERVICED BY L=1700	1-47426-391-0	01	1	0603-	●	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9905-0607	●	●	●
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9905-0301	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0302-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1608 SERVICED BY L=1700	1-47426-391-0	01	1	9905-0012	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1620 SERVICED BY L=1700	1-47426-391-0	01	1	0101-0104	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1589 SERVICED BY L=1700	1-47426-391-0	01	1	0105-0301	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1589 SERVICED BY L=1700	1-47426-391-0	01	1	0302-	●	●	●

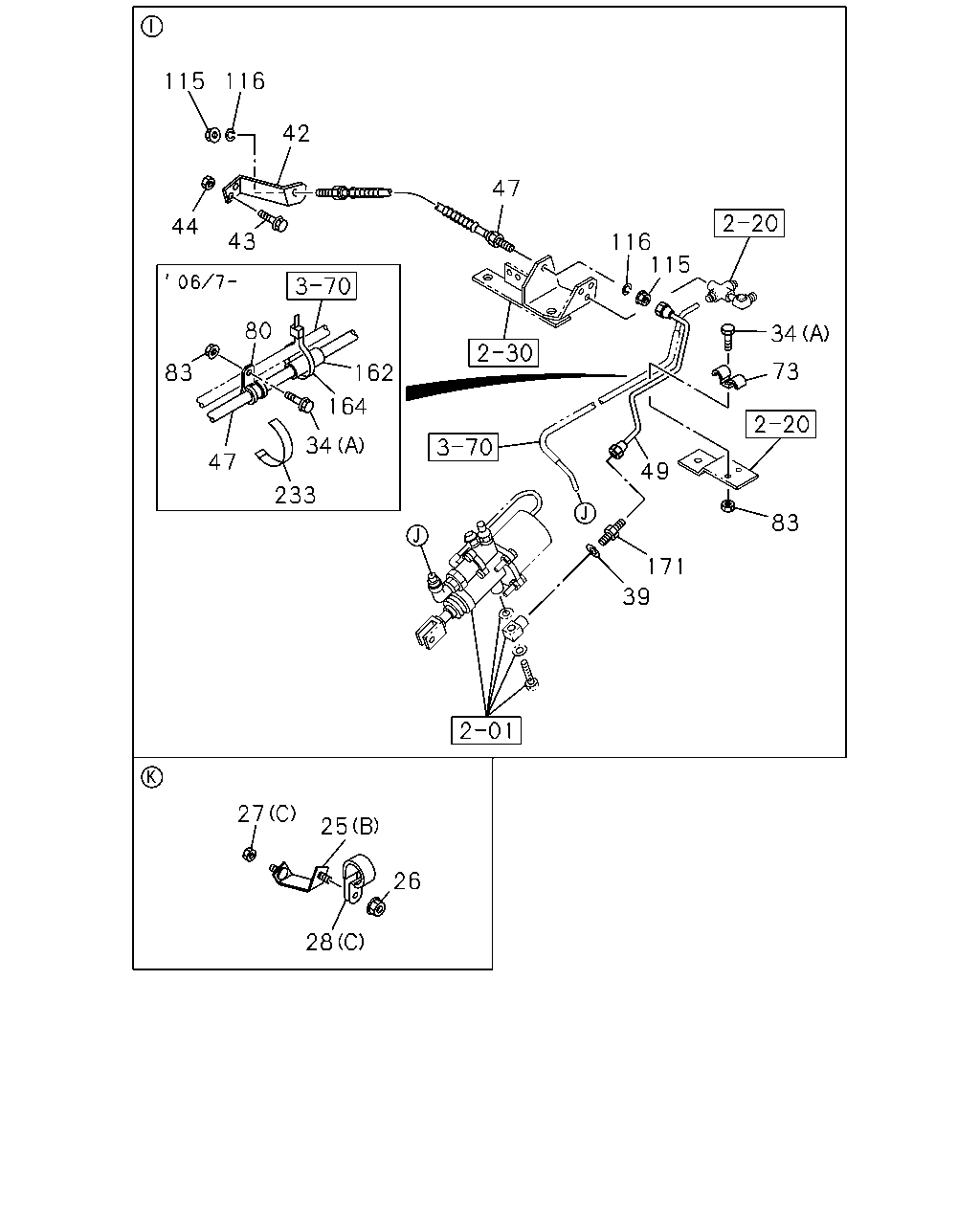

115 116 42 47 44 43 116 115 80 34 73 83 162 164 34 47 49 233 83 171 39 27 25 26 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	BRACKET; OIL PIPE (B)	1-47477-597-2	01	1	9905-0002	●	●
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	9905-0104	●	●
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0105-0106	●	●
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-0301	●	●
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0302-	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9905-0301	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0302-0602	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9905-0301	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0302-0602	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-0301	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0302-	●	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-0002	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0003-0301	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0302-	●	●	●
28	CLIP; OIL PIPE (C) ID=9	9-09524-845-0	01	1	9905-0002	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0105-0301	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0302-0606	●	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-	●	●	●
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9905-0301	●	●
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	0302-0512	●	●	●
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-0606	●	●	●
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28050-820-0	02	1	0607-	●	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-9905	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	03	1	9905-0002	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	04	1	0003-0101	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	03	1	0102-0104	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0301	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	02	1	0302-0512	●	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●
34	BOLT; PIPE CLIP (C) M8X45 FLANGE	0-28080-845-0	01	1	0105-0301	●	●
34	BOLT; PIPE CLIP (C) M8X45 FLANGE	0-28080-845-0	01	1	0302-0512	●	●	●
34	BOLT; PIPE CLIP (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●	●	●
39	GASKET; CONNECTOR ID=10.2 OD=16.0	9-09571-410-0	01	1	9905-0301	●	●
39	GASKET; CONNECTOR ID=10.2 OD=16.0	9-09571-410-0	01	1	0302-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47478-511-0	01	1	9905-0301	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47478-511-0	01	1	0302-	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9905-0301	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0302-0512	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9905-0301	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0302-0602	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
47	HOSE; FLEX,CLU CONT L=550	1-09365-377-1	01	1	0607-	●	●	●
47	HOSE; FLEX,CLU CONT L=445	1-09364-478-0	01	1	9905-0301	●	●
47	HOSE; FLEX,CLU CONT L=445	1-09364-478-0	01	1	0302-	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER	1-49161-120-0	01	1	9905-0301	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER	1-49161-120-0	01	1	0302-0606	●	●	●
73	CLIP; OIL PIPE ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-0301	●	●
73	CLIP; OIL PIPE ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0302-	●	●	●
80	CLIP; HOSE ID=16 L=50	1-09701-158-0	01	1	0607-	●	●	●
83	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9905-0301	●	●
83	NUT; PIPE CLIP M8	9-09110-408-0	01	1	0302-0512	●	●	●
83	NUT; PIPE CLIP M8	0-91110-508-0	01	1	0601-0606	●	●	●
83	NUT; PIPE CLIP M8	0-91110-508-0	02	1	0607-	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9905-0301	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	0302-0512	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	02	1	0601-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9905-0301	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	0302-0603	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	02	1	0604-	●	●	●
162	COVER; RUBBER,FLEX HOSE ID=14 OD=18 L=60	1-09337-030-0	01	1	0607-	●	●	●
164	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	01	1	0607-	●	●	●
171	CONNECTOR; CLU BOOSTER	1-09650-256-1	01	1	9905-0301	●	●
171	CONNECTOR; CLU BOOSTER	1-09650-256-2	01	1	0302-	●	●	●
233	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0607-	●	●	●

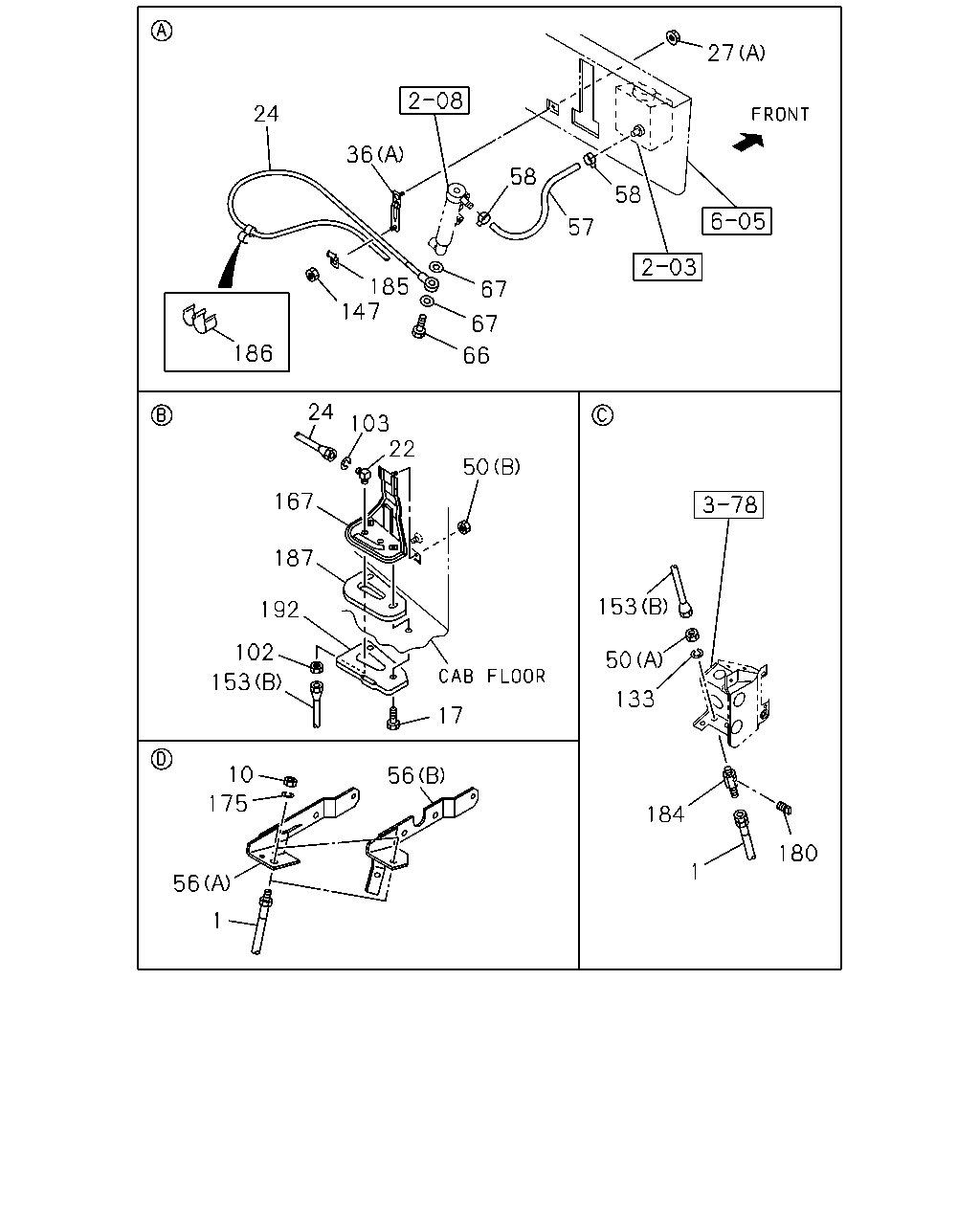

27 24 36 58 58 57 185 147 67 67 186 66 24 103 22 50 167 187 153 192 102 50 153 133 17 10 56 175 184 180 1 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	9905-0301	●	●
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0302-0703	●	●	●
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	0704-	●	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-0301	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0302-0512	●	●	●
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●	●
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	9905-0301	●	●
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0302-	●	●	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9905-0301	●	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0302-0607	●	●	●
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0608-	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	9905-0301	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0302-	●	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9905-0301	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0302-0602	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-0301	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0302-	●	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9905-0301	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0302-	●	●	●
36	BRACKET; CLIP (B)	1-47475-427-1	01	1	0105-0301	●	●
36	BRACKET; CLIP (B)	1-47475-427-1	01	1	0302-	●	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9905-0301	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0302-	●	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9905-0301	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0302-0512	●	●	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-	●	●	●
56	BRACKET; FLEX HOSE (A)	1-47477-602-1	01	1	9905-0110	●	●
56	BRACKET; FLEX HOSE (A)	1-47478-300-1	01	1	0111-0201	●	●
56	BRACKET; FLEX HOSE (A)	1-47477-602-1	01	1	0202-0301	●	●
56	BRACKET; FLEX HOSE (A)	1-47477-602-1	01	1	0302-0602	●	●	●
56	BRACKET; FLEX HOSE (B)	1-47471-200-0	01	1	0603-	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9905-0301	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0302-	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9905-0301	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0302-	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9905-0301	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0302-0805	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-0301	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0302-1312	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-0301	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0302-0512	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-0301	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0302-0603	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0711	●	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9905-0301	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0302-0603	●	●	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-	●	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9905-0301	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0302-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9905-0301	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0302-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1608 SERVICED BY L=1700	1-47426-391-0	01	1	9905-0012	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1620 SERVICED BY L=1700	1-47426-391-0	01	1	0101-0104	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1589 SERVICED BY L=1700	1-47426-391-0	01	1	0105-0301	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1589 SERVICED BY L=1700	1-47426-391-0	01	1	0302-	●	●	●
167	BRACKET; UNION	1-71117-183-3	01	1	9905-0301	●	●
167	BRACKET; UNION	1-71117-183-3	01	1	0302-	●	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-0301	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0302-0603	●	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9905-0301	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0302-0804	●	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	9905-0301	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0302-0804	●	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-	●	●	●
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	9905-0301	●	●
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0302-0606	●	●	●
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	0607-	●	●	●
186	HOLDER; CLIP	8-94107-710-0	02	1	9905-0104	●	●
186	HOLDER; CLIP ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0105-0301	●	●
186	HOLDER; CLIP	8-94107-710-0	02	1	0302-	●	●	●
187	SEAL; BRKT	1-71117-222-0	01	1	9905-0301	●	●
187	SEAL; BRKT	1-71117-222-0	01	1	0302-	●	●	●
192	PLATE	1-71117-221-0	01	1	9905-0301	●	●
192	PLATE	1-71117-221-0	01	1	0302-	●	●	●

24 153 167 56 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	9905-0301	●	●
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0302-0703	●	●	●
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	0704-	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	9905-0301	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0302-	●	●	●
56	BRACKET; FLEX HOSE (A)	1-47477-602-1	01	1	9905-0110	●	●
56	BRACKET; FLEX HOSE (A)	1-47478-300-1	01	1	0111-0201	●	●
56	BRACKET; FLEX HOSE (A)	1-47477-602-1	01	1	0202-0301	●	●
56	BRACKET; FLEX HOSE (A)	1-47477-602-1	01	1	0302-0602	●	●	●
56	BRACKET; FLEX HOSE (B)	1-47471-200-0	01	1	0603-	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1589	1-49164-423-0	01	1	9905-0002	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1595	1-49165-436-0	01	1	0003-0104	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1618	1-49166-188-0	01	1	0105-0301	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1618	1-49166-188-0	01	1	0302-0602	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1628 SERVICED BY L=1700	1-47426-391-0	01	1	0603-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9905-0301	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0302-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1608 SERVICED BY L=1700	1-47426-391-0	01	1	9905-0012	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1620 SERVICED BY L=1700	1-47426-391-0	01	1	0101-0104	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1589 SERVICED BY L=1700	1-47426-391-0	01	1	0105-0301	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1589 SERVICED BY L=1700	1-47426-391-0	01	1	0302-	●	●	●
167	BRACKET; UNION	1-71117-183-3	01	1	9905-0301	●	●
167	BRACKET; UNION	1-71117-183-3	01	1	0302-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
