Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#61042) — 342 parça

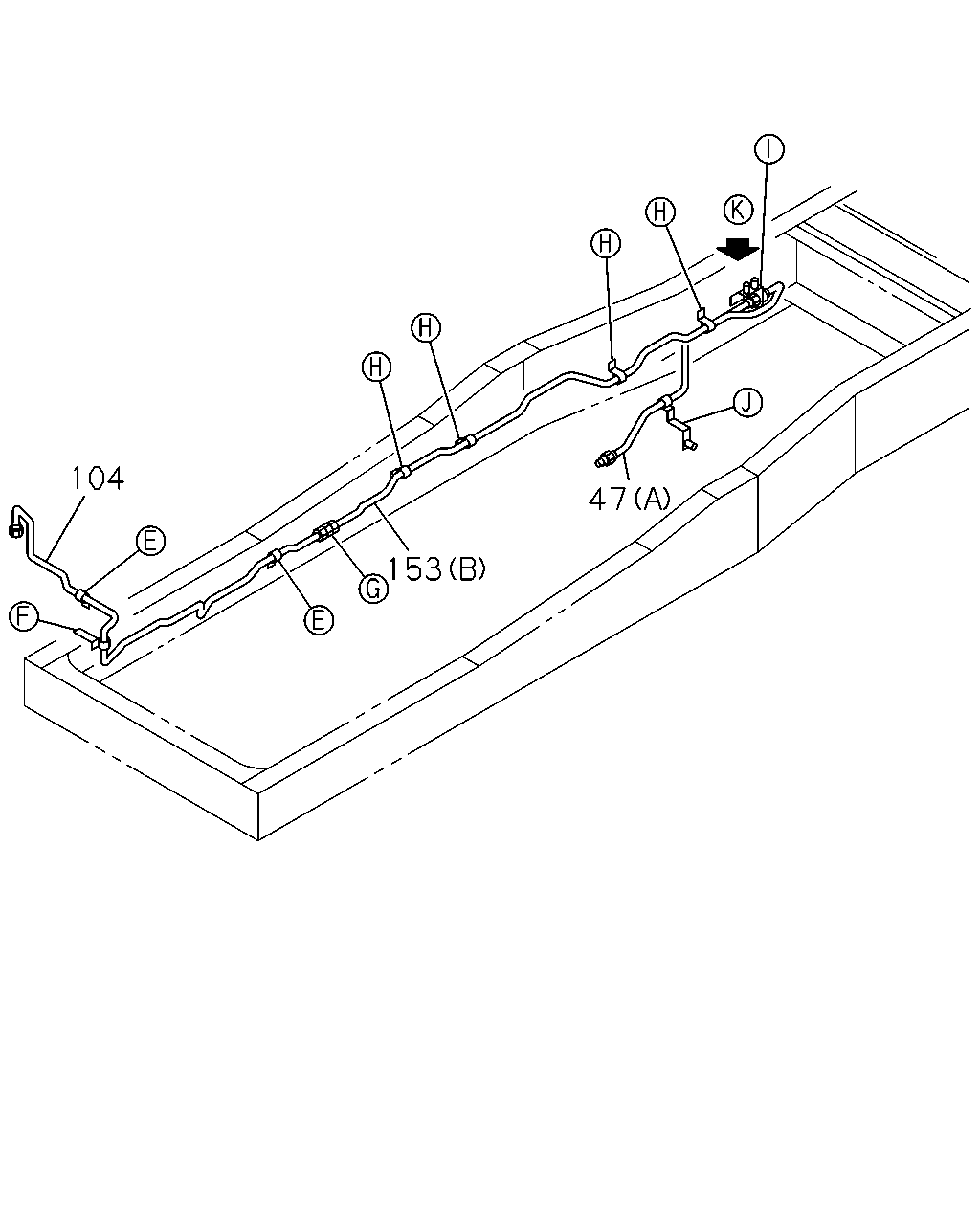

104 153 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT (C) L=445	1-09364-478-0	01	1	1303-	●
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> (A) L=550	1-09364-434-0	01	1	1009-1302	●
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-1	01	1	1303-	●
47	HOSE; FLEX,CLU CONT EXC. MIXER TRUCK<RA2> (A) L=600	1-09364-705-0	01	1	1009-1302	●
47	HOSE; FLEX,CLU CONT (A) L=600	1-09364-705-0	01	1	1009-1302		●
47	HOSE; FLEX,CLU CONT (A) L=600	1-09364-705-0	01	1	1303-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1393 SERVICED BY L=1400	1-47428-765-0	01	1	1412-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MIXER TRUCK<RA2> L=1457 SERVICED BY L=1550	1-47428-766-0	01	1	1009-1302	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1363 SERVICED BY L=1400	1-47428-765-0	01	1	1303-1411	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1363 SERVICED BY L=1400	1-47428-765-0	01	1	1412-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1363 SERVICED BY L=1400	1-47428-765-0	01	1	1412-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. MIXER TRUCK<RA2> L=1424 SERVICED BY L=1550	1-47428-766-0	01	1	1009-1302	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1424 SERVICED BY L=1550	1-47428-766-0	01	1	1009-1302		●
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2057 SERVICED BY L=2150	1-47428-770-0	01	1	1412-		●
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> (B) L=2010 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110	●
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> (B) L=2010 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302	●
153	PIPE ASM; CLU,UNION TO FLEX (C) L=1755 SERVICED BY L=1800	1-47428-768-0	01	1	1303-	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	1009-	●	●
153	PIPE ASM; CLU,UNION TO FLEX EXC. MIXER TRUCK<RA2> (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110		●
153	PIPE ASM; CLU,UNION TO FLEX EXC. MIXER TRUCK<RA2> (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302		●
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1303-1411		●
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1412-		●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2026 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110		●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2025 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302		●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2025 SERVICED BY L=2150	1-47428-770-0	01	1	1303-		●

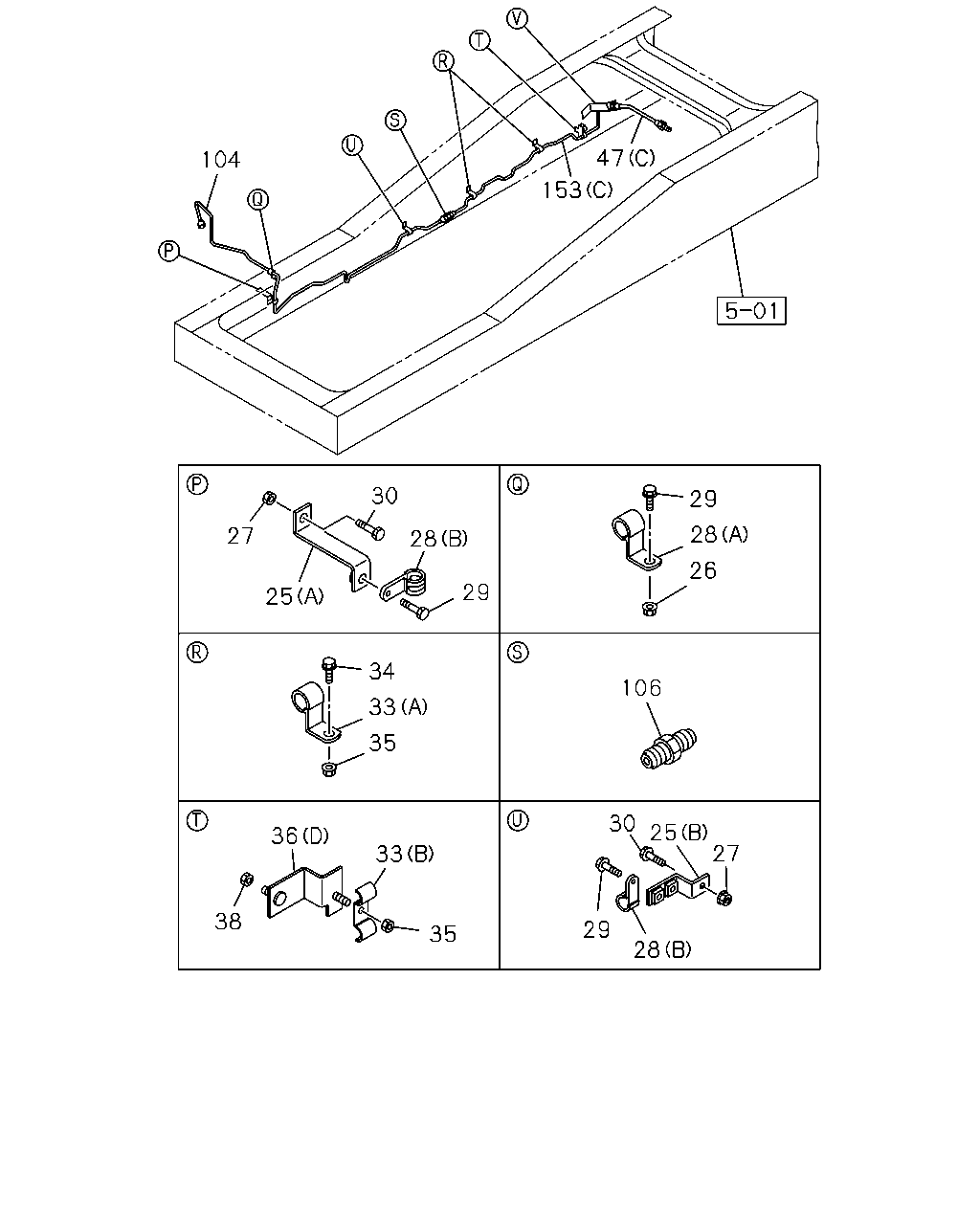

29 26 28 106 34 33 35 30 29 25 28 42 44 46 45 116 43 115 44 43 116 42 115 27 27 25 28 29 30 117 36 4 37 37 117 36 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT ID=16 H=25 L=25	1-09701-162-0	01	1	1009-1302	●	●
4	CLIP; FLEX HOSE,CLU CONT ID=16 H=25 L=25	1-09701-162-0	01	1	1303-		●
25	BRACKET; OIL PIPE (B)	1-47479-482-0	01	1	1303-1411	●	●
25	BRACKET; OIL PIPE (B)	1-47479-482-0	01	1	1412-	●
25	BRACKET; OIL PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-47479-482-0	01	1	1412-		●
25	BRACKET; OIL PIPE (A)	1-46147-101-0	01	1	1009-	●	●
26	NUT; CLIP,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	02	1	1412-		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	1009-1302	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1303-1411	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1412-	●
26	NUT; CLIP,OIL PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	01	1	1412-		●
27	NUT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	01	1	1412-		●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1302	●	●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1411	●	●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1412-	●
27	NUT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	02	1	1412-		●
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1009-	●	●
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1009-	●	●
28	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=9 L=20	0-95234-835-0	01	1	1412-		●
28	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	1412-		●
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	02	1	1009-1302	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	02	1	1303-1411	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	02	1	1412-	●
28	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=9 L=20	0-95234-835-0	02	1	1412-		●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1009-1302	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1303-1411	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1412-	●
28	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1412-		●
29	BOLT; CLIP,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	01	1	1412-		●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	1009-	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	1009-1302	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1303-1411	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1412-	●
29	BOLT; CLIP,OIL PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE	0-28650-825-0	01	1	1412-		●
30	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	01	1	1412-		●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1009-1302	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-1411	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1412-	●
30	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	02	1	1412-		●
33	CLIP; OIL PIPE (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	1303-	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	1303-		●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	1009-1302	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	1303-	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	1303-	●
34	BOLT; PIPE CLIP M8X35 FLANGE	0-28650-835-0	04	1	1303-		●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	04	1	1009-1302	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1303-	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	1303-		●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	1009-1302	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	1303-	●
36	BRACKET; CLIP (D)	8-98060-696-0	01	1	1303-	●
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	1009-1302	●
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	1009-1302		●
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	1303-		●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1009-	●	●
36	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-103-0	01	1	1009-		●
37	BOLT; CLIP BRKT M10X20 FLANGE	0-28151-020-0	01	1	1009-1302	●
37	BOLT; CLIP BRKT MJT7 M/T<Y9E> M10X20 FLANGE	0-28151-020-0	01	1	1009-1302		●
37	BOLT; CLIP BRKT MJT7 M/T<Y9E> M10X20 FLANGE	0-28151-020-0	01	1	1303-		●
37	BOLT; CLIP BRKT MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	01	1	1009-1302		●
37	BOLT; CLIP BRKT MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	01	1	1303-1411		●
37	BOLT; CLIP BRKT MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	01	1	1412-		●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47471-359-0	01	1	1303-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47471-203-0	01	1	1009-1302	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7S M/T(Y3E) (A)	1-47471-203-0	01	1	1009-1302		●
42	BRACKET; FLEX HOSE,CLU CONT MJT7S M/T(Y3E) (A)	1-47471-203-0	01	1	1303-1411		●
42	BRACKET; FLEX HOSE,CLU CONT MJT7S M/T(Y3E) (A)	1-47471-203-0	01	1	1412-		●
42	BRACKET; FLEX HOSE,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) (B)	1-47479-650-0	01	1	1009-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1303-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	1009-1302	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	1303-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1009-1302	●
45	NUT; FLEX HOSE,CLU CONT MJT7S M/T(Y3E) M12	9-09840-280-0	01	1	1009-1302		●
45	NUT; FLEX HOSE,CLU CONT MJT7S M/T(Y3E) M12	9-09840-280-0	01	1	1303-		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	1009-1302	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7S M/T(Y3E) ID=12.2	0-91510-512-0	01	1	1009-1302		●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7S M/T(Y3E) ID=12.2	0-91510-512-0	01	1	1303-		●
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	1009-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1009-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1009-	●	●
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28050-816-0	01	1	1009-1302	●	●
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28050-816-0	01	1	1303-		●

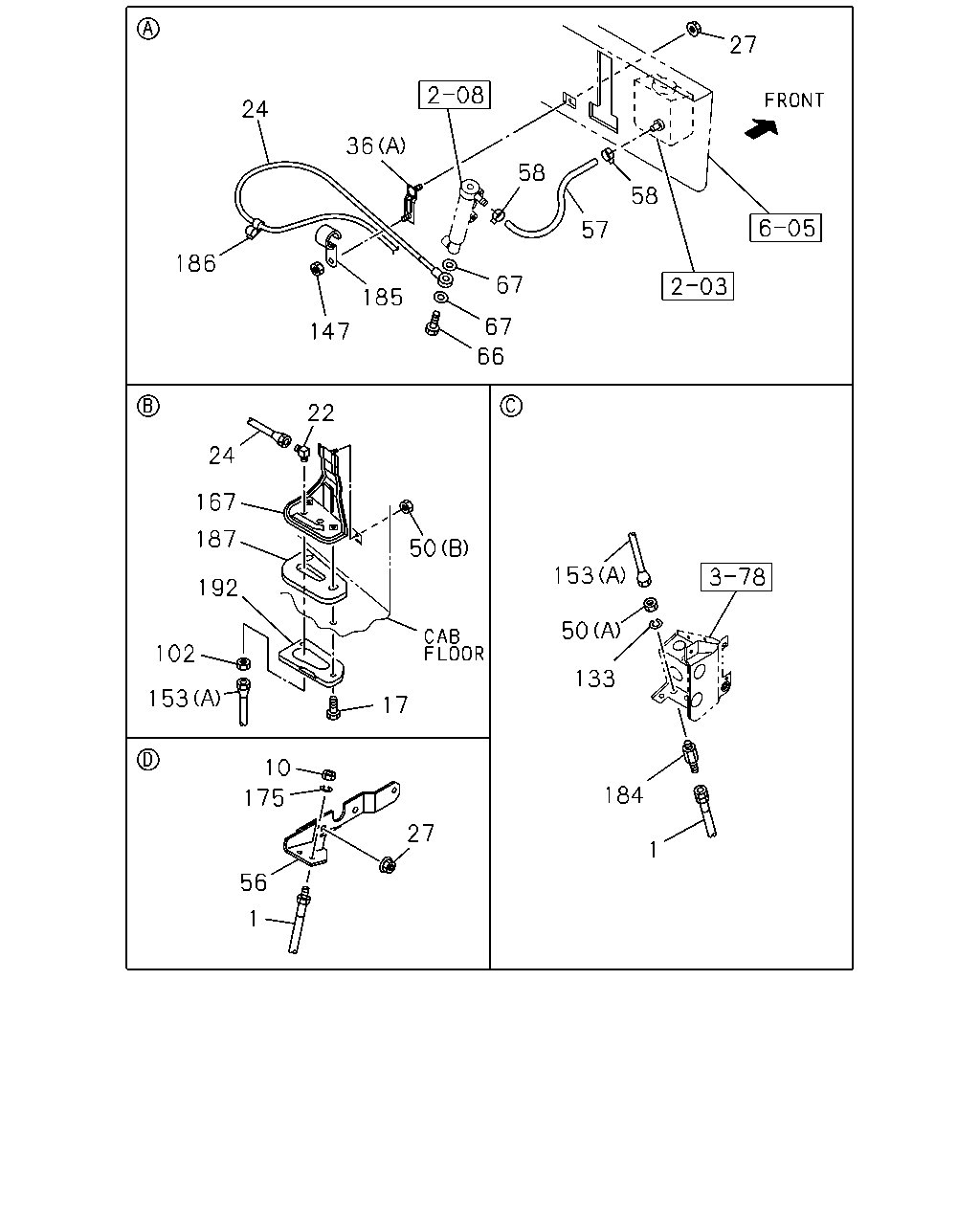

24 186 147 36 58 57 67 67 66 58 27 22 24 167 50 187 192 102 153 17 10 175 27 56 1 153 50 133 184 1 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	1009-1302	●	●
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	1303-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1009-	●	●
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	1009-	●	●
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	1009-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	1009-	●	●
27	NUT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	01	1	1412-		●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1302	●	●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1411	●	●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1412-	●
27	NUT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	02	1	1412-		●
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1009-	●	●
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1009-	●	●
36	BRACKET; CLIP (D)	8-98060-696-0	01	1	1303-	●
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	1009-1302	●
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	1009-1302		●
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	1303-		●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1009-	●	●
36	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-103-0	01	1	1009-		●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	1009-	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1009-	●	●
56	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1)	8-98151-406-1	01	1	1009-1302	●
56	BRACKET; FLEX HOSE	8-98151-406-1	01	1	1009-1302		●
56	BRACKET; FLEX HOSE	8-98151-406-1	01	1	1303-	●	●
56	BRACKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1)	1-47471-200-0	01	1	1009-1302	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	1009-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	1009-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	1009-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	1009-1312	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1009-	●	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	1009-	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	1009-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2057 SERVICED BY L=2150	1-47428-770-0	01	1	1412-		●
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> (B) L=2010 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110	●
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> (B) L=2010 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302	●
153	PIPE ASM; CLU,UNION TO FLEX (C) L=1755 SERVICED BY L=1800	1-47428-768-0	01	1	1303-	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	1009-	●	●
153	PIPE ASM; CLU,UNION TO FLEX EXC. MIXER TRUCK<RA2> (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110		●
153	PIPE ASM; CLU,UNION TO FLEX EXC. MIXER TRUCK<RA2> (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302		●
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1303-1411		●
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1412-		●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2026 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110		●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2025 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302		●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2025 SERVICED BY L=2150	1-47428-770-0	01	1	1303-		●
167	BRACKET; UNION	1-71117-183-3	01	1	1009-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1009-	●	●
184	UNION; FLEX HOSE BRAKE SYSTEM HSA(SLD) STRAIGHT 3WAY	1-09656-679-0	01	1	1009-1302	●
184	UNION; FLEX HOSE EXC. SMOOTHER-G(C1W) STRAIGHT 3WAY	1-09656-679-0	01	1	1009-1302		●
184	UNION; FLEX HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) BRAKE SYSTEM HSA(SLD) STRAIGHT 3WAY	1-09656-679-0	01	1	1303-		●
184	UNION; FLEX HOSE EXC. BRAKE SYSTEM HSA(SLD) STRAIGHT 2WAY	1-09654-435-0	01	1	1009-1302	●
184	UNION; FLEX HOSE SMOOTHER-G(C1W) STRAIGHT 2WAY	1-09654-435-0	01	1	1009-1302		●
184	UNION; FLEX HOSE STRAIGHT 2WAY	1-09654-435-0	01	1	1303-	●
184	UNION; FLEX HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. BRAKE SYSTEM HSA(SLD) STRAIGHT 2WAY	1-09654-435-0	01	1	1303-		●
184	UNION; FLEX HOSE SMOOTHER-G(C1W) STRAIGHT 2WAY	1-09654-435-0	01	1	1303-		●
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	1009-	●	●
186	HOLDER; CLIP	8-94107-710-0	02	1	1009-	●	●
187	SEAL; BRKT	1-71117-222-0	01	1	1009-	●	●
192	PLATE	1-71117-221-0	01	1	1009-	●	●

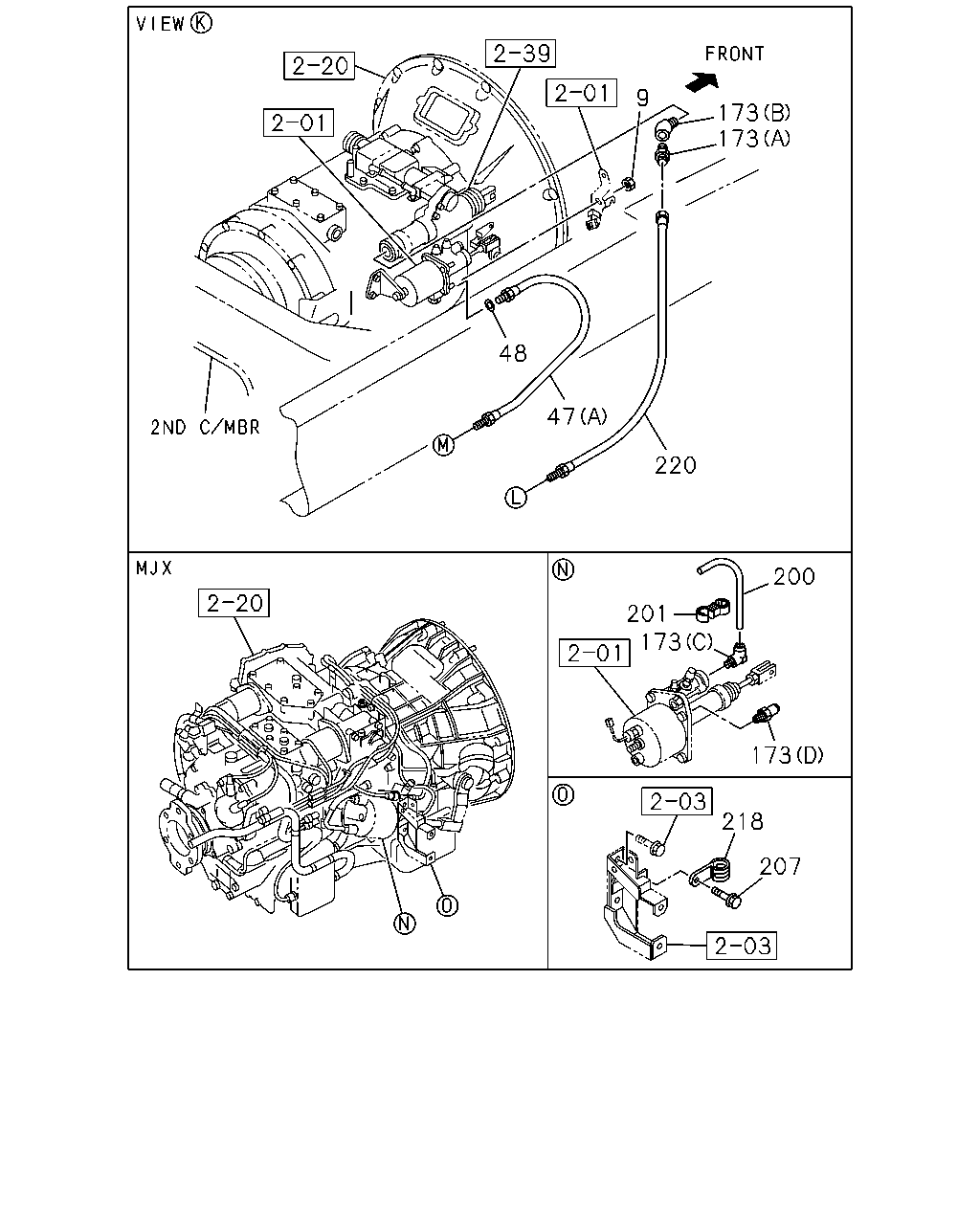

9 48 220 173 173 201 200 173 173 218 207 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	1009-1302	●
9	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M10 FLANGE	0-91180-210-0	02	1	1009-1302		●
9	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M10 FLANGE	0-91180-210-0	02	1	1303-		●
47	HOSE; FLEX,CLU CONT (C) L=445	1-09364-478-0	01	1	1303-	●
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> (A) L=550	1-09364-434-0	01	1	1009-1302	●
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-1	01	1	1303-	●
47	HOSE; FLEX,CLU CONT EXC. MIXER TRUCK<RA2> (A) L=600	1-09364-705-0	01	1	1009-1302	●
47	HOSE; FLEX,CLU CONT (A) L=600	1-09364-705-0	01	1	1009-1302		●
47	HOSE; FLEX,CLU CONT (A) L=600	1-09364-705-0	01	1	1303-		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	1009-1302	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	1303-		●
173	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302	●
173	CONNECTOR MJT7S M/T(Y3E) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302		●
173	CONNECTOR MJT7S M/T(Y3E) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1303-1411		●
173	CONNECTOR MJT7S M/T(Y3E) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1412-		●
173	CONNECTOR (B) R1/4 & RC1/4	1-09664-211-0	01	1	1009-1302	●
173	CONNECTOR MJT7S M/T(Y3E) (B) R1/4 & RC1/4	1-09664-211-0	01	1	1009-1302		●
173	CONNECTOR MJT7S M/T(Y3E) (B) R1/4 & RC1/4	1-09664-211-0	01	1	1303-1411		●
173	CONNECTOR MJT7S M/T(Y3E) (B) R1/4 & RC1/4	1-09664-211-0	01	1	1412-		●
173	CONNECTOR MJX12P M/T SMOOTHER-G(Y4S) (C) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	1009-		●
173	CONNECTOR MJX12P M/T SMOOTHER-G(Y4S) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	1009-		●
200	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	1009-		●
201	CLIP; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) ID=6.35 & 12	1-09709-275-1	01	1	1009-		●
207	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	01	1	1009-		●
218	CLIP MJX12P M/T SMOOTHER-G(Y4S) ID=11 L=20	0-95235-035-0	01	1	1009-		●
220	HOSE; FLEX,POWER ASSIST MIXER TRUCK<RA2> L=300	1-09363-608-0	01	1	1009-1302	●
220	HOSE; FLEX,POWER ASSIST EXC. MIXER TRUCK<RA2> L=350	1-09363-624-0	01	1	1009-1302	●
220	HOSE; FLEX,POWER ASSIST MJT7 M/T<Y9E> L=350	1-09363-624-0	01	1	1009-1302		●
220	HOSE; FLEX,POWER ASSIST MJT7S M/T(Y3E) L=350	1-09363-624-0	01	1	1303-		●

24 153 167 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	1009-1302	●	●
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	1303-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	1009-	●	●
56	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1)	8-98151-406-1	01	1	1009-1302	●
56	BRACKET; FLEX HOSE	8-98151-406-1	01	1	1009-1302		●
56	BRACKET; FLEX HOSE	8-98151-406-1	01	1	1303-	●	●
56	BRACKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1)	1-47471-200-0	01	1	1009-1302	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1393 SERVICED BY L=1400	1-47428-765-0	01	1	1412-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MIXER TRUCK<RA2> L=1457 SERVICED BY L=1550	1-47428-766-0	01	1	1009-1302	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1363 SERVICED BY L=1400	1-47428-765-0	01	1	1303-1411	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1363 SERVICED BY L=1400	1-47428-765-0	01	1	1412-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1363 SERVICED BY L=1400	1-47428-765-0	01	1	1412-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. MIXER TRUCK<RA2> L=1424 SERVICED BY L=1550	1-47428-766-0	01	1	1009-1302	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1424 SERVICED BY L=1550	1-47428-766-0	01	1	1009-1302		●
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2057 SERVICED BY L=2150	1-47428-770-0	01	1	1412-		●
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> (B) L=2010 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110	●
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> (B) L=2010 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302	●
153	PIPE ASM; CLU,UNION TO FLEX (C) L=1755 SERVICED BY L=1800	1-47428-768-0	01	1	1303-	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	1009-	●	●
153	PIPE ASM; CLU,UNION TO FLEX EXC. MIXER TRUCK<RA2> (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110		●
153	PIPE ASM; CLU,UNION TO FLEX EXC. MIXER TRUCK<RA2> (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302		●
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1303-1411		●
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1412-		●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2026 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110		●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2025 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302		●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2025 SERVICED BY L=2150	1-47428-770-0	01	1	1303-		●
167	BRACKET; UNION	1-71117-183-3	01	1	1009-	●	●

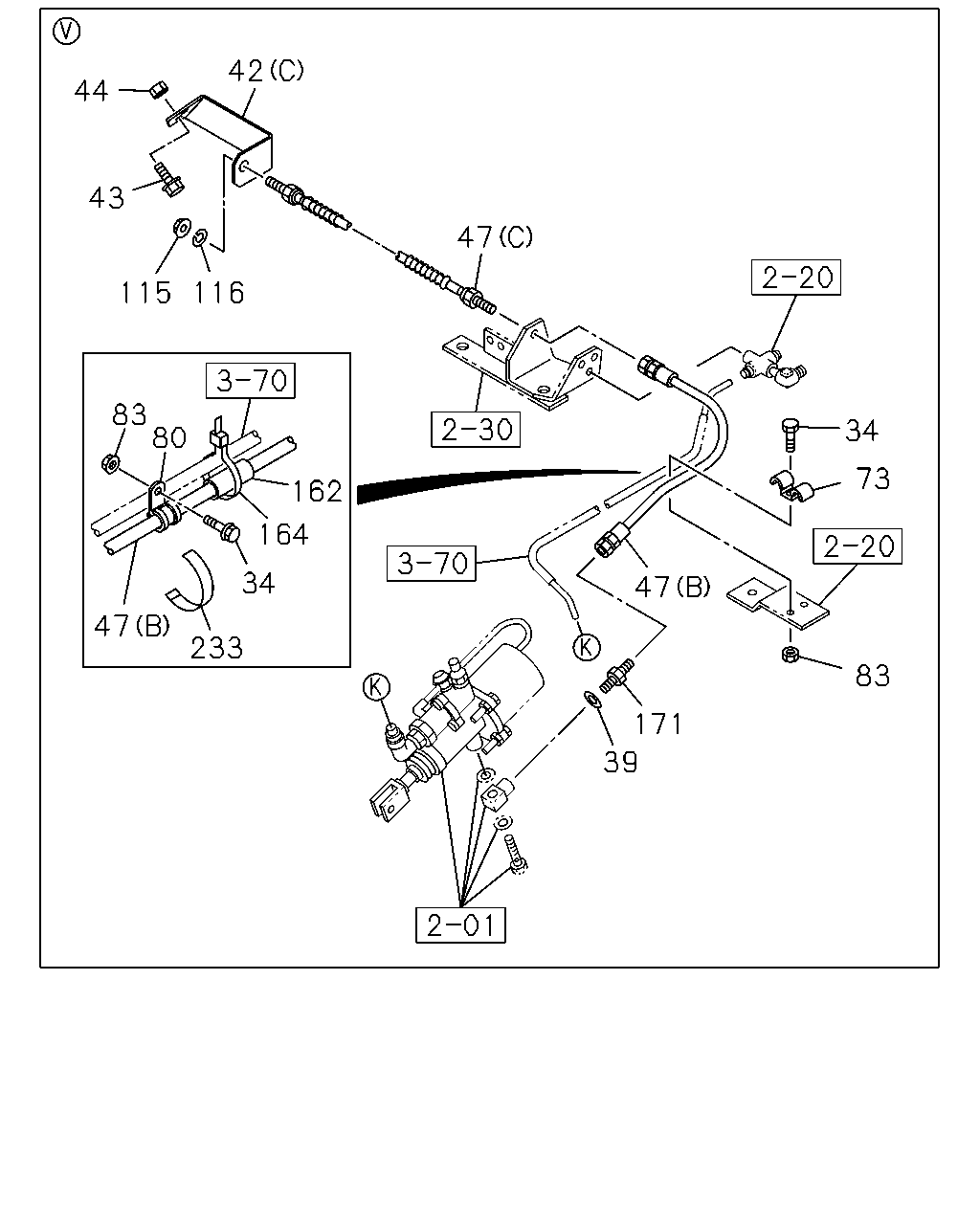

44 42 43 115 116 83 47 80 162 164 34 233 47 39 47 34 83 171 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	1303-	●
34	BOLT; PIPE CLIP M8X35 FLANGE	0-28650-835-0	04	1	1303-		●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	04	1	1009-1302	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1303-	●
39	GASKET; CONNECTOR ID=10.2 OD=16.0	9-09571-410-0	01	1	1303-	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47471-359-0	01	1	1303-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47471-203-0	01	1	1009-1302	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7S M/T(Y3E) (A)	1-47471-203-0	01	1	1009-1302		●
42	BRACKET; FLEX HOSE,CLU CONT MJT7S M/T(Y3E) (A)	1-47471-203-0	01	1	1303-1411		●
42	BRACKET; FLEX HOSE,CLU CONT MJT7S M/T(Y3E) (A)	1-47471-203-0	01	1	1412-		●
42	BRACKET; FLEX HOSE,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) (B)	1-47479-650-0	01	1	1009-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1303-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	1009-1302	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	1303-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
47	HOSE; FLEX,CLU CONT (C) L=445	1-09364-478-0	01	1	1303-	●
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> (A) L=550	1-09364-434-0	01	1	1009-1302	●
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-1	01	1	1303-	●
47	HOSE; FLEX,CLU CONT EXC. MIXER TRUCK<RA2> (A) L=600	1-09364-705-0	01	1	1009-1302	●
47	HOSE; FLEX,CLU CONT (A) L=600	1-09364-705-0	01	1	1009-1302		●
47	HOSE; FLEX,CLU CONT (A) L=600	1-09364-705-0	01	1	1303-		●
73	CLIP; OIL PIPE ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	1303-	●
80	CLIP; HOSE ID=16 L=50	1-09701-158-0	01	1	1303-	●
83	NUT; PIPE CLIP M8	0-91110-508-0	02	1	1303-	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1009-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1009-	●	●
162	COVER; RUBBER,FLEX HOSE ID=14 OD=18 L=60	1-09337-030-0	01	1	1303-	●
164	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	01	1	1303-	●
171	CONNECTOR; CLU BOOSTER	1-09650-256-2	01	1	1303-	●
233	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1303-	●

104 153 47 27 30 25 29 28 34 33 35 36 38 33 35 19 26 106 28 30 25 27 29 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE (B)	1-47479-482-0	01	1	1303-1411	●	●
25	BRACKET; OIL PIPE (B)	1-47479-482-0	01	1	1412-	●
25	BRACKET; OIL PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-47479-482-0	01	1	1412-		●
25	BRACKET; OIL PIPE (A)	1-46147-101-0	01	1	1009-	●	●
26	NUT; CLIP,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	02	1	1412-		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	1009-1302	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1303-1411	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1412-	●
26	NUT; CLIP,OIL PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	01	1	1412-		●
27	NUT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	01	1	1412-		●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1302	●	●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-1411	●	●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1412-	●
27	NUT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	02	1	1412-		●
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1009-	●	●
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1009-	●	●
28	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=9 L=20	0-95234-835-0	01	1	1412-		●
28	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	1412-		●
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	02	1	1009-1302	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	02	1	1303-1411	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	02	1	1412-	●
28	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=9 L=20	0-95234-835-0	02	1	1412-		●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1009-1302	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1303-1411	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1412-	●
28	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1412-		●
29	BOLT; CLIP,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	01	1	1412-		●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	1009-	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	1009-1302	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1303-1411	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1412-	●
29	BOLT; CLIP,OIL PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE	0-28650-825-0	01	1	1412-		●
30	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	01	1	1412-		●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1009-1302	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-1411	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1412-	●
30	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	02	1	1412-		●
33	CLIP; OIL PIPE (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	1303-	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	1303-		●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	1009-1302	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	1303-	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	1303-	●
34	BOLT; PIPE CLIP M8X35 FLANGE	0-28650-835-0	04	1	1303-		●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	04	1	1009-1302	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1303-	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	1303-		●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	1009-1302	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	1303-	●
36	BRACKET; CLIP (D)	8-98060-696-0	01	1	1303-	●
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	1009-1302	●
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	1009-1302		●
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	1303-		●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1009-	●	●
36	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-103-0	01	1	1009-		●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1303-	●
47	HOSE; FLEX,CLU CONT (C) L=445	1-09364-478-0	01	1	1303-	●
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> (A) L=550	1-09364-434-0	01	1	1009-1302	●
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-1	01	1	1303-	●
47	HOSE; FLEX,CLU CONT EXC. MIXER TRUCK<RA2> (A) L=600	1-09364-705-0	01	1	1009-1302	●
47	HOSE; FLEX,CLU CONT (A) L=600	1-09364-705-0	01	1	1009-1302		●
47	HOSE; FLEX,CLU CONT (A) L=600	1-09364-705-0	01	1	1303-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1393 SERVICED BY L=1400	1-47428-765-0	01	1	1412-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MIXER TRUCK<RA2> L=1457 SERVICED BY L=1550	1-47428-766-0	01	1	1009-1302	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1363 SERVICED BY L=1400	1-47428-765-0	01	1	1303-1411	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1363 SERVICED BY L=1400	1-47428-765-0	01	1	1412-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1363 SERVICED BY L=1400	1-47428-765-0	01	1	1412-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. MIXER TRUCK<RA2> L=1424 SERVICED BY L=1550	1-47428-766-0	01	1	1009-1302	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1424 SERVICED BY L=1550	1-47428-766-0	01	1	1009-1302		●
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	1009-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2057 SERVICED BY L=2150	1-47428-770-0	01	1	1412-		●
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> (B) L=2010 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110	●
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> (B) L=2010 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302	●
153	PIPE ASM; CLU,UNION TO FLEX (C) L=1755 SERVICED BY L=1800	1-47428-768-0	01	1	1303-	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	1009-	●	●
153	PIPE ASM; CLU,UNION TO FLEX EXC. MIXER TRUCK<RA2> (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110		●
153	PIPE ASM; CLU,UNION TO FLEX EXC. MIXER TRUCK<RA2> (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302		●
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1303-1411		●
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2041 SERVICED BY L=2150	1-47428-770-0	01	1	1412-		●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2026 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110		●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2025 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302		●
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2025 SERVICED BY L=2150	1-47428-770-0	01	1	1303-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
