◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#61041) — 91 parça

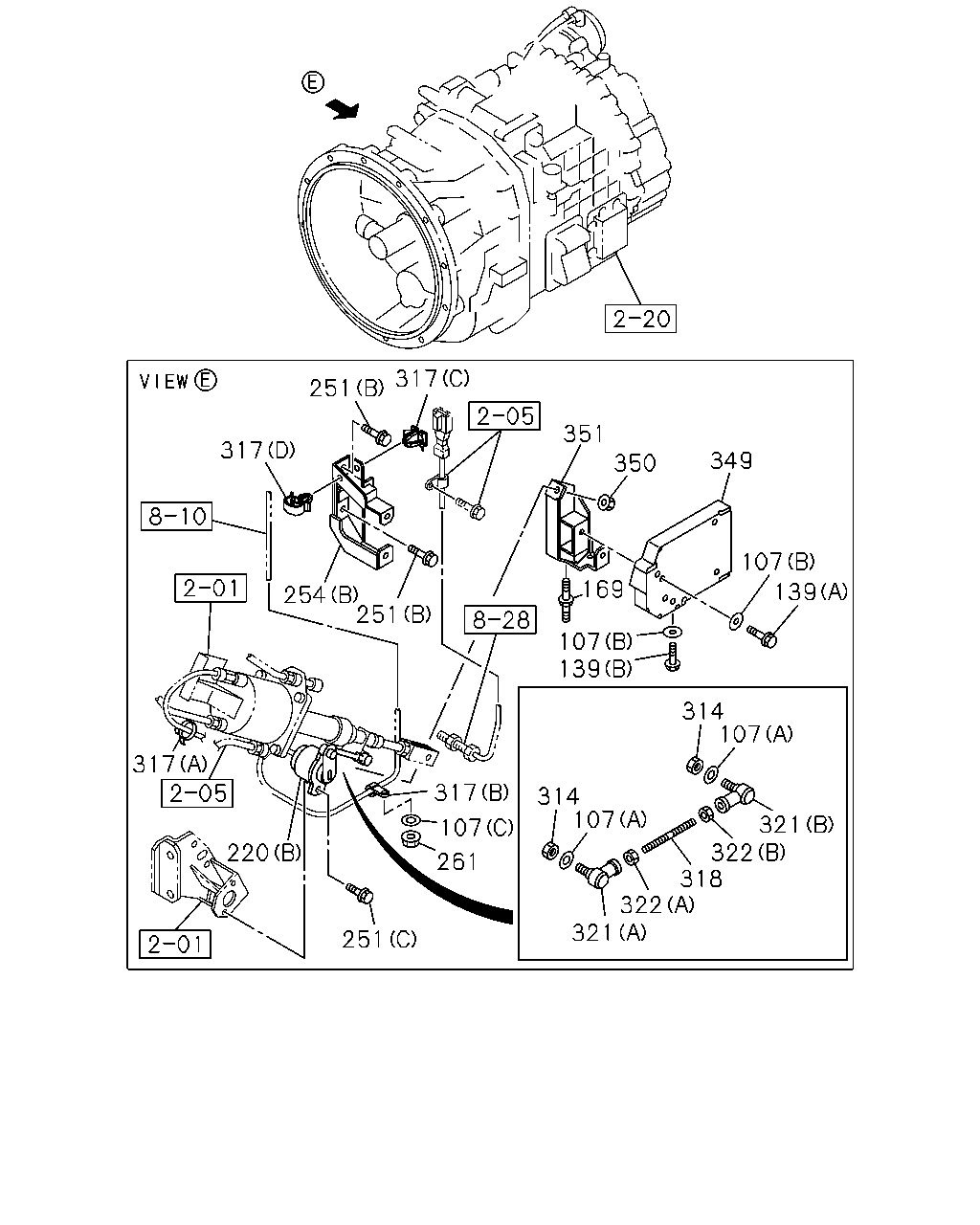

çizim 168743
251 317 317 351 349 350 107 139 107 139 169 314 107 321 322 318 322 321 107 314 317 107 261 251 220 317 251 254
BalonParca AdiParca NoAdetTipApplied Date A B
107 WASHER; PL
MJX12P M/T SMOOTHER-G(Y4S) (C) ID=8.4 OD=16 		0-91610-508-0 01 1 1009- ●
107 WASHER; PL
MJX12P M/T SMOOTHER-G(Y4S) (B) ID=8.4 OD=22 		0-91610-708-0 06 1 1009- ●
107 WASHER; PL
MJX12P M/T SMOOTHER-G(Y4S) (A) ID=5.3 OD=16 		0-91614-705-0 02 1 1009- ●
139 BOLT; COVER
MJX12P M/T SMOOTHER-G(Y4S) (A) M8X16 FLANGE 		0-28050-816-0 05 1 1009- ●
139 BOLT; COVER
MJX12P M/T SMOOTHER-G(Y4S) (B) M8X35 FLANGE 		0-28650-835-0 01 1 1009- ●
169 BOLT; CLIP
MJX12P M/T SMOOTHER-G(Y4S) M8X15,M8X17 L=40 		8-98009-913-0 01 1 1009- ●
220 SENSOR; CLUTCH
BRAKE SYSTEM HSA(SLD) (A) 		1-80250-014-0 01 1 1009-1302 ●
220 SENSOR; CLUTCH
(A) 		1-80250-014-0 01 1 1009-1302 ●
220 SENSOR; CLUTCH
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (A) 		1-80250-014-0 01 1 1303- ●
220 SENSOR; CLUTCH
BRAKE SYSTEM HSA(SLD) EXC. SMOOTHER-G(C1W) (A) 		1-80250-014-0 01 1 1303- ●
220 SENSOR; CLUTCH
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-81541-109-0 01 1 1009-1302 ●
220 SENSOR; CLUTCH
MJX12P M/T SMOOTHER-G(Y4S) (B) 		8-98123-908-0 01 1 1303- ●
251 BOLT; SENSOR
BRAKE SYSTEM HSA(SLD) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-1302 ●
251 BOLT; SENSOR
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-1302 ●
251 BOLT; SENSOR
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303- ●
251 BOLT; SENSOR
BRAKE SYSTEM HSA(SLD) EXC. SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303- ●
251 BOLT; SENSOR
MJX12P M/T SMOOTHER-G(Y4S) (C) M6X16 FLANGE 		0-28650-616-0 02 1 1009- ●
251 BOLT; SENSOR
MJX12P M/T SMOOTHER-G(Y4S) (B) M10X25 FLANGE 		0-28751-025-0 02 1 1009- ●
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 1009- ● ●
254 BRACKET; CLU SENSOR
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-31349-076-1 01 1 1009- ●
261 NUT; CLIP
MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE 		0-91180-108-0 01 1 1009- ●
314 NUT; ROD
MJX12P M/T SMOOTHER-G(Y4S) M5 		0-91110-505-0 02 1 1009- ●
317 CLIP; CABLE
MJX12P M/T SMOOTHER-G(Y4S) (B) ID=11 L=32 		0-95235-065-0 01 1 1009- ●
317 CLIP; CABLE
MJX12P M/T SMOOTHER-G(Y4S) (A) L=180 		1-09707-162-1 01 1 1009- ●
317 CLIP; CABLE
MJX12P M/T SMOOTHER-G(Y4S) (C) OD=9 H=6 		1-09709-178-0 01 1 1009- ●
317 CLIP; CABLE
MJX12P M/T SMOOTHER-G(Y4S) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009- ●
318 ROD; CLU
MJX12P M/T SMOOTHER-G(Y4S) 		0-84100-506-0 01 1 1009- ●
321 END; ROD
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-09760-103-2 01 1 1009- ●
321 END; ROD
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-09760-104-2 01 1 1009- ●
322 NUT; ROD END
MJX12P M/T SMOOTHER-G(Y4S) (A) M5 		0-91110-505-0 01 1 1009- ●
322 NUT; ROD END
MJX12P M/T SMOOTHER-G(Y4S) (B) M5 LH THREAD 		9-09840-277-0 01 1 1009- ●
349 COVER; SENSOR
MJX12P M/T SMOOTHER-G(Y4S) 		1-31349-077-0 01 1 1009- ●
350 NUT; COVER
MJX12P M/T SMOOTHER-G(Y4S) M10 FLANGE 		0-91180-210-0 01 1 1009- ●
351 BRACKET; COVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-31349-078-1 01 1 1009- ●

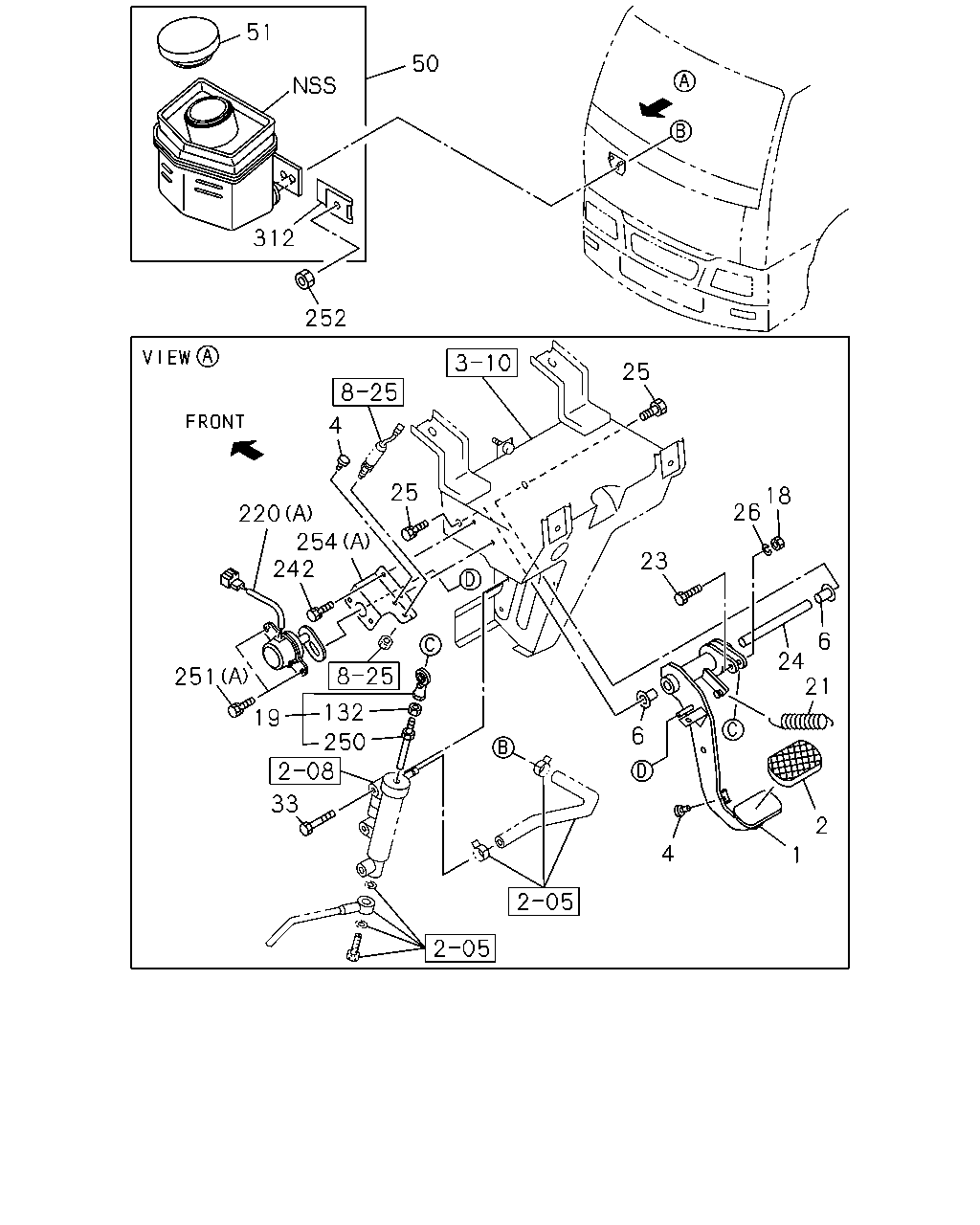

çizim 168756
26 18 23 6 24 21 2 1 4 25 4 25 220 254 242 251 19 250 132 33 312 51 50 6 252
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) 		1-73907-321-4 01 1 1412- ●
1 PEDAL; CLU
AIR BAG(TFQ) 		1-73907-474-1 01 1 1009-1302 ●
1 PEDAL; CLU 1-73907-474-1 01 1 1009-1302 ●
1 PEDAL; CLU 1-73907-474-1 01 1 1303-1411 ● ●
1 PEDAL; CLU
TRANSMISSION-FULLER RTLO149 18(Y4C) 		1-73907-474-1 01 1 1412- ●
1 PEDAL; CLU
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) AIR BAG(TFQ) 		1-73907-474-1 01 1 1412- ●
1 PEDAL; CLU
EXC. AIR BAG(TFQ) 		1-73907-321-4 01 1 1009-1302 ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 1009- ● ●
4 STOPPER; CLU PEDAL 1-47319-014-1 04 1 1009- ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 1009- ● ●
18 NUT; PUSH ROD
M8 		0-91110-508-0 01 1 1009- ● ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 1009- ● ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 1009- ● ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 1009- ● ●
24 SHAFT; CLU PEDAL
MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) 		1-73998-936-1 01 1 1412- ●
24 SHAFT; CLU PEDAL
AIR BAG(TFQ) 		1-73908-195-1 01 1 1009-1302 ●
24 SHAFT; CLU PEDAL 1-73908-195-1 01 1 1009-1302 ●
24 SHAFT; CLU PEDAL 1-73908-195-1 01 1 1303-1411 ● ●
24 SHAFT; CLU PEDAL
TRANSMISSION-FULLER RTLO149 18(Y4C) 		1-73908-195-1 01 1 1412- ●
24 SHAFT; CLU PEDAL
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) AIR BAG(TFQ) 		1-73908-195-1 01 1 1412- ●
24 SHAFT; CLU PEDAL
EXC. AIR BAG(TFQ) 		1-73998-936-1 01 1 1009-1302 ●
25 BOLT; PEDAL
MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) M10X25 W/LK WASHER 		0-50051-025-0 02 1 1412- ●
25 BOLT; PEDAL
AIR BAG(TFQ) M10X35 W/LK WASHER 		0-50051-035-0 02 1 1009-1302 ●
25 BOLT; PEDAL
M10X35 W/LK WASHER 		0-50051-035-0 02 1 1009-1302 ●
25 BOLT; PEDAL
M10X35 W/LK WASHER 		0-50051-035-0 02 1 1303-1411 ● ●
25 BOLT; PEDAL
TRANSMISSION-FULLER RTLO149 18(Y4C) M10X35 W/LK WASHER 		0-50051-035-0 02 1 1412- ●
25 BOLT; PEDAL
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) AIR BAG(TFQ) M10X35 W/LK WASHER 		0-50051-035-0 02 1 1412- ●
25 BOLT; PEDAL
EXC. AIR BAG(TFQ) M10X25 W/LK WASHER 		0-50051-025-0 02 1 1009-1302 ●
26 WASHER; LK,PUSH ROD
ID=8.2 		0-91510-608-0 01 1 1009- ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 1009- ● ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 1009- ● ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 1009- ● ●
132 NUT; LK,PUSH ROD
M8 		0-91110-508-0 01 1 1009- ● ●
220 SENSOR; CLUTCH
BRAKE SYSTEM HSA(SLD) (A) 		1-80250-014-0 01 1 1009-1302 ●
220 SENSOR; CLUTCH
(A) 		1-80250-014-0 01 1 1009-1302 ●
220 SENSOR; CLUTCH
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (A) 		1-80250-014-0 01 1 1303- ●
220 SENSOR; CLUTCH
BRAKE SYSTEM HSA(SLD) EXC. SMOOTHER-G(C1W) (A) 		1-80250-014-0 01 1 1303- ●
220 SENSOR; CLUTCH
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-81541-109-0 01 1 1009-1302 ●
220 SENSOR; CLUTCH
MJX12P M/T SMOOTHER-G(Y4S) (B) 		8-98123-908-0 01 1 1303- ●
242 BOLT; BRKT,CLUTCH
MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) M6X16 W/LK WASHER 		0-50040-616-0 02 1 1412- ●
242 BOLT; BRKT,CLUTCH
AIR BAG(TFQ) M6X16 W/LK WASHER 		0-50040-616-0 04 1 1009-1302 ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 04 1 1009-1302 ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 04 1 1303-1411 ● ●
242 BOLT; BRKT,CLUTCH
TRANSMISSION-FULLER RTLO149 18(Y4C) M6X16 W/LK WASHER 		0-50040-616-0 04 1 1412- ●
242 BOLT; BRKT,CLUTCH
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) AIR BAG(TFQ) M6X16 W/LK WASHER 		0-50040-616-0 04 1 1412- ●
242 BOLT; BRKT,CLUTCH
EXC. AIR BAG(TFQ) M6X16 W/LK WASHER 		0-50040-616-0 02 1 1009-1302 ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 1009- ● ●
251 BOLT; SENSOR
BRAKE SYSTEM HSA(SLD) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-1302 ●
251 BOLT; SENSOR
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-1302 ●
251 BOLT; SENSOR
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303- ●
251 BOLT; SENSOR
BRAKE SYSTEM HSA(SLD) EXC. SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303- ●
251 BOLT; SENSOR
MJX12P M/T SMOOTHER-G(Y4S) (C) M6X16 FLANGE 		0-28650-616-0 02 1 1009- ●
251 BOLT; SENSOR
MJX12P M/T SMOOTHER-G(Y4S) (B) M10X25 FLANGE 		0-28751-025-0 02 1 1009- ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 1009- ● ●
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 1009- ● ●
254 BRACKET; CLU SENSOR
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-31349-076-1 01 1 1009- ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 1009- ● ●
