Sayfa 1-41 - Isuzu EPC

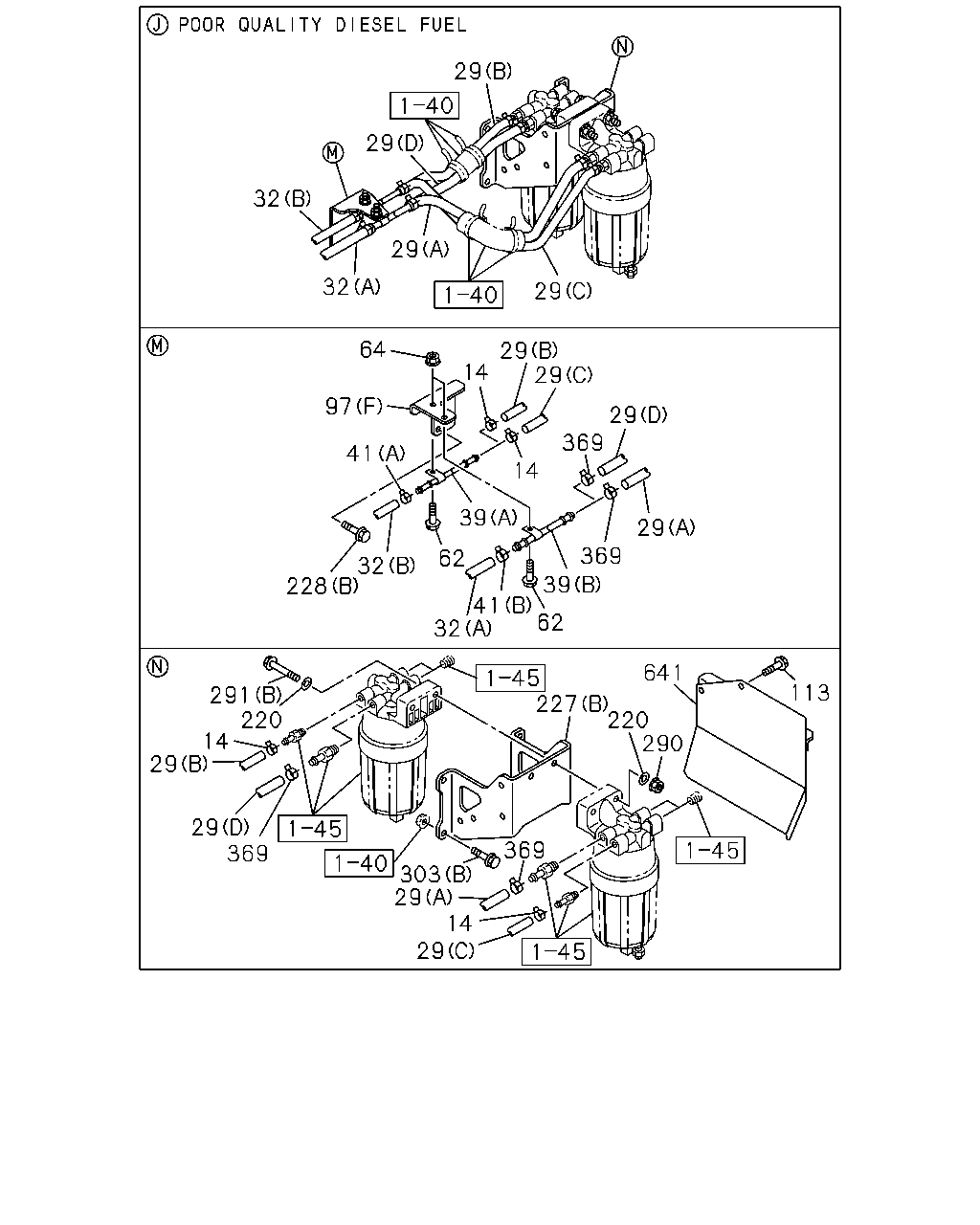

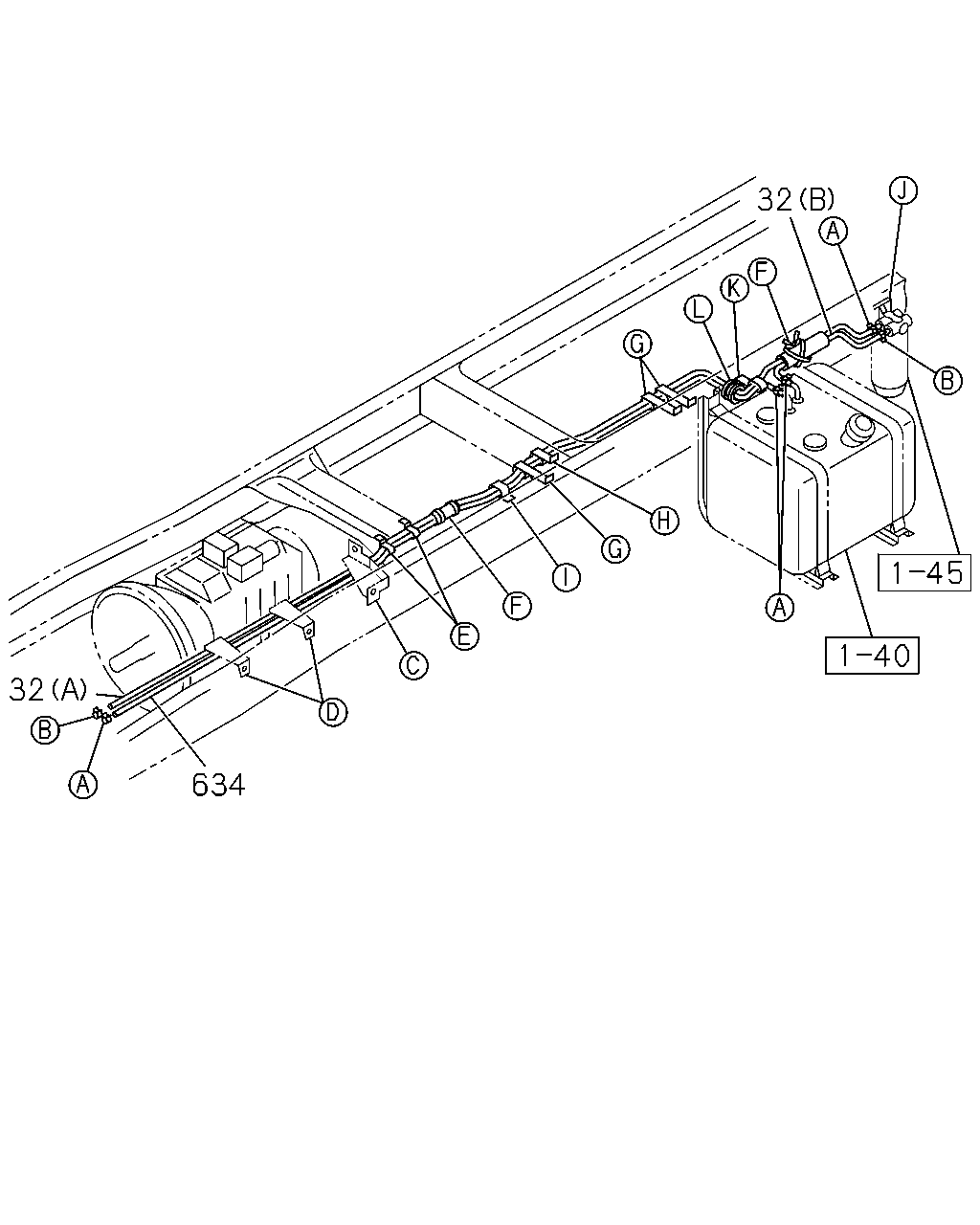

1-41 — FUEL PIPING; CHASSIS (#61035) — 338 parça

29 29 32 29 32 29 64 97 41 29 14 29 14 369 29 39 32 62 228 32 41 62 39 369 29 291 220 29 14 29 369 227 220 290 641 113 303 29 14 29 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; HOSE POOR QUALITY DIESEL FUEL<KF0> ID=14	1-09704-102-0	04	1	1103-1302	●	●
14	CLIP; HOSE ID=14	1-09704-102-0	04	1	1303-	●	●
29	HOSE; FUEL WHEEL BASE 4500MM(45W) POOR QUALITY DIESEL FUEL<KF0> (B)	8-98188-424-0	01	1	1103-1302	●
29	HOSE; FUEL WHEEL BASE 4500MM(45W) POOR QUALITY DIESEL FUEL<KF0> (D)	8-98188-452-0	01	1	1103-1302	●
29	HOSE; FUEL WHEEL BASE 4500MM(45W) POOR QUALITY DIESEL FUEL<KF0> (C) L=350 OD=14.5	8-98188-445-0	01	1	1103-1302	●
29	HOSE; FUEL WHEEL BASE 5300MM(53W) POOR QUALITY DIESEL FUEL<KF0> (C) L=350 OD=14.5	8-98188-445-0	01	1	1103-1302		●
29	HOSE; FUEL WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98188-456-0	01	1	1103-1302	●
29	HOSE; FUEL (D)	8-98188-456-0	01	1	1303-	●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> (B) L=260 OD=14.5	8-98188-441-0	01	1	1103-1302	●
29	HOSE; FUEL (B) L=260 OD=14.5	8-98188-441-0	01	1	1303-	●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> (C) L=370 OD=14.5	8-98188-446-0	01	1	1103-1302	●
29	HOSE; FUEL WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> (C) L=370 OD=14.5	8-98188-446-0	01	1	1103-1302		●
29	HOSE; FUEL (C) L=370 OD=14.5	8-98188-446-0	01	1	1303-	●	●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> (A) L=310 OD=19	8-98188-459-0	01	1	1103-1302	●
29	HOSE; FUEL WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> (A) L=310 OD=19	8-98188-459-0	01	1	1103-1302		●
29	HOSE; FUEL (A) L=310 OD=19	8-98188-459-0	01	1	1303-	●	●
29	HOSE; FUEL WHEEL BASE 5300MM(53W) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98188-458-0	01	1	1103-1302		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B)	8-98188-440-0	01	1	1103-1302		●
29	HOSE; FUEL (B)	8-98188-440-0	01	1	1303-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (D)	8-98188-454-0	01	1	1103-1302		●
29	HOSE; FUEL (D)	8-98188-454-0	01	1	1303-		●
32	PIPE; DELIVERY,FUEL TANK BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=3050 SERVICED BY L=5050	0-01262-505-0	01	1	1412-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1412-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1412-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (B) L=280 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302	●
32	PIPE; DELIVERY,FUEL TANK (B) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	1303-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (A) L=1650 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302	●
32	PIPE; DELIVERY,FUEL TANK (A) L=1800 SERVICED BY L=3000	0-01262-300-0	01	1	1303-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (B) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (A) L=1850 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (A) L=2600 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=640 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W) (B) L=640 SERVICED BY L=3000	0-01260-300-0	01	1	1303-1411		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=640 SERVICED BY L=3000	0-01260-300-0	01	1	1412-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=2800 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W) (A) L=2800 SERVICED BY L=3000	0-01262-300-0	01	1	1303-1411		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=2800 SERVICED BY L=3000	0-01262-300-0	01	1	1412-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	1303-1411		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	1412-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=2100 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (A) L=2100 SERVICED BY L=3000	0-01262-300-0	01	1	1303-1411		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=2100 SERVICED BY L=3000	0-01262-300-0	01	1	1412-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) FUEL TANK 200L AL<THF> (B) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (B) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) FUEL TANK 200L AL<THF> (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> (A) L=2950 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=2950 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W) FUEL TANK 400L<SDH> (A) L=3100 SERVICED BY L=5350	0-01262-535-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=3100 SERVICED BY L=5350	0-01262-535-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> (B) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302		●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 300L AL<EBF>,FUEL TANK 200L AL<THF> (A)	8-98186-862-1	01	1	1103-1302	●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 300L AL<EBF>,FUEL TANK 400L<SDH> (A)	8-98186-862-1	01	1	1103-1302		●
39	PIPE; FUEL (A)	8-98186-862-1	01	1	1303-	●	●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 300L AL<EBF>,FUEL TANK 200L AL<THF> (B)	8-98186-864-1	01	1	1103-1302	●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 300L AL<EBF>,FUEL TANK 400L<SDH> (B)	8-98186-864-1	01	1	1103-1302		●
39	PIPE; FUEL (B)	8-98186-864-1	01	1	1303-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) (D) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1009-1302	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (D) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1009-1302		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1009-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1009-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1009-1302		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1303-	●	●
62	BOLT; CLIP FIX POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 300L AL<EBF>,FUEL TANK 200L AL<THF> M8X20 FLANGE	0-28650-820-0	02	1	1103-1302	●
62	BOLT; CLIP FIX POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 300L AL<EBF>,FUEL TANK 400L<SDH> M8X20 FLANGE	0-28650-820-0	02	1	1103-1302		●
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	1303-	●	●
64	NUT; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 300L AL<EBF>,FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	02	1	1103-1302	●
64	NUT; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 300L AL<EBF>,FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	02	1	1103-1302		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1303-	●	●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) L=55	1-47475-304-0	01	1	1412-1511		●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=55	1-47475-304-0	01	1	1512-		●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) W/NUT	8-98172-059-0	02	1	1412-1511		●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) W/NUT	8-98172-059-0	02	1	1512-		●
97	BRACKET; CLIP FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (F)	8-98186-871-0	01	1	1103-1302	●	●
97	BRACKET; CLIP (H)	1-47479-646-0	01	1	1303-	●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (F)	8-98186-869-0	01	1	1103-1302	●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (F)	8-98186-869-0	01	1	1103-1302		●
97	BRACKET; CLIP (F)	8-98186-869-0	01	1	1303-	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (E) L=68	1-47475-525-0	01	1	1009-1010	●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (E) L=68	1-47475-525-0	01	1	1009-1010		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (E) L=68	1-47475-525-0	01	1	1011-1302	●
97	BRACKET; CLIP (E) L=68	1-47475-525-0	01	1	1011-1302		●
97	BRACKET; CLIP (E) L=68	1-47475-525-0	01	1	1303-	●	●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (C) L=55	1-47475-304-0	01	1	1009-1302		●
97	BRACKET; CLIP (G)	1-47479-723-0	01	1	1303-	●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) (A)	1-82698-358-0	02	1	1009-1302		●
97	BRACKET; CLIP WHEEL BASE 6100MM(61W) (A)	1-82698-358-0	02	1	1303-		●
97	BRACKET; CLIP WHEEL BASE 6100MM(61W) (B)	1-82698-511-0	01	1	1009-		●
97	BRACKET; CLIP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (D)	1-47475-927-0	01	1	1009-1010		●
113	BOLT; PROTECTOR WHEEL BASE 4500MM(45W) POOR QUALITY DIESEL FUEL<KF0> M8X25 FLANGE	0-28050-825-0	02	1	1103-1302	●
113	BOLT; PROTECTOR WHEEL BASE 5300MM(53W) POOR QUALITY DIESEL FUEL<KF0> M8X25 FLANGE	0-28050-825-0	02	1	1103-1302		●
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1412-		●
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1103-1302	●	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	04	1	1303-	●	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1009-1102	●	●
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1103-1302	●	●
227	BRACKET; FUEL SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (B)	8-98184-813-0	01	1	1103-1302	●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> (B)	8-98184-813-0	01	1	1103-1302		●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 5300MM(53W) POOR QUALITY DIESEL FUEL<KF0> (B)	8-98184-812-0	01	1	1103-1302		●
227	BRACKET; FUEL SEDIMENTER (B)	8-98184-813-0	01	1	1303-	●	●
227	BRACKET; FUEL SEDIMENTER SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) (A)	1-82698-661-0	01	1	1009-1102		●
227	BRACKET; FUEL SEDIMENTER SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	1-82698-661-0	01	1	1103-1302		●
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (B) M8X35 FLANGE	0-28650-835-0	02	1	1103-1302	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-	●	●
228	BOLT; BRKT,SEDIMENTER SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) (A) M10X35 FLANGE	0-28051-035-0	04	1	1009-1102		●
228	BOLT; BRKT,SEDIMENTER SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M10X35 FLANGE	0-28051-035-0	04	1	1103-1302		●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1009-	●	●
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M10X60 FLANGE	0-28051-060-0	02	1	1412-		●
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X90 FLANGE	0-28051-090-0	02	1	1103-1302	●	●
291	BOLT; FILER TO BRKT (B) M10X90 FLANGE	0-28051-090-0	02	1	1303-	●	●
291	BOLT; FILER TO BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	1009-1102	●	●
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M10X60 FLANGE	0-28051-060-0	02	1	1103-1302	●	●
303	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X35 FLANGE	0-28650-835-0	01	1	1412-1511		●
303	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) M8X35 FLANGE	0-28650-835-0	01	1	1512-		●
303	BOLT; BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M8X35 FLANGE	0-28650-835-0	01	1	1512-		●
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X40 FLANGE	0-28051-040-0	04	1	1103-1302	●	●
303	BOLT; BRKT (B) M10X40 FLANGE	0-28051-040-0	04	1	1303-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302		●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1303-1411	●	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-	●
303	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-		●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-1102	●
303	BOLT; BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE	0-28650-830-0	02	1	1103-1302	●
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> ID=19	8-94238-569-0	04	1	1103-1302	●	●
369	CLAMP; HOSE,FUEL ID=19	8-94238-569-0	04	1	1303-	●	●
641	PROTECTOR; SEDIMENTER WHEEL BASE 4500MM(45W) POOR QUALITY DIESEL FUEL<KF0>	8-98184-817-0	01	1	1103-1302	●
641	PROTECTOR; SEDIMENTER WHEEL BASE 5300MM(53W) POOR QUALITY DIESEL FUEL<KF0>	8-98184-816-0	01	1	1103-1302		●

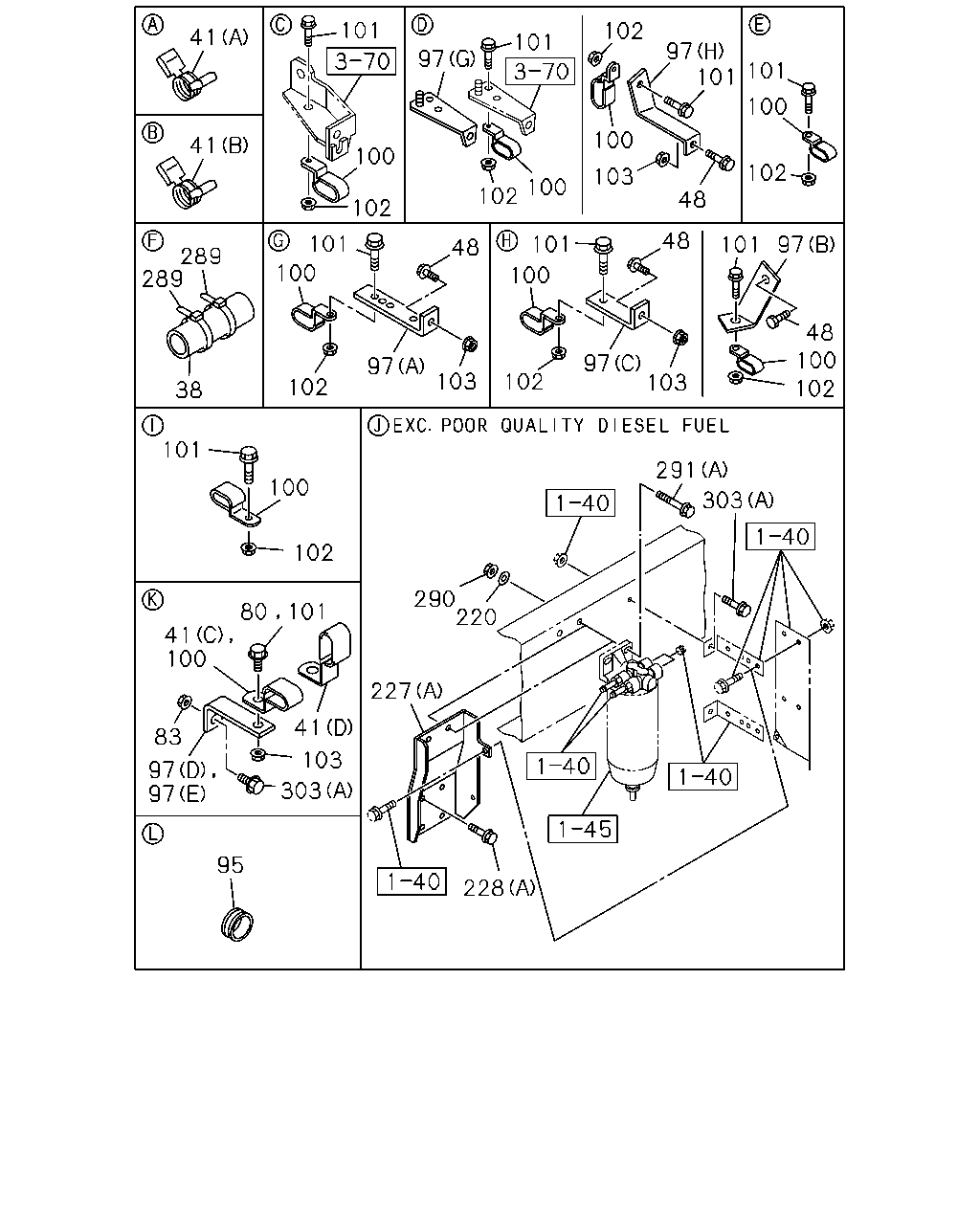

41 41 289 289 38 101 100 102 80 41 100 101 41 103 303 83 97 97 95 227 290 220 291 303 97 102 103 97 102 100 101 48 102 100 101 101 97 100 102 101 100 48 48 103 100 102 101 97 100 101 102 97 101 48 100 102 103 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SLEEVE; RUBBER,RUBBER HOSE BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1412-		●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 6100MM(61W) EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1103-1302		●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1009-1102	●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 5300MM(53W),WHEEL BASE 6300MM(63W) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1009-1102		●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1103-1302	●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1103-1302		●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1303-1411	●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 6300MM(63W) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1303-1411		●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 4900MM(49W) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1412-	●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1412-		●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 6100MM(61W) L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1009-1102		●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1103-1302	●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 5300MM(53W),WHEEL BASE 6300MM(63W) EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1103-1302		●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1103-1302		●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 6100MM(61W) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1303-1411		●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 6100MM(61W) POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1412-		●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1412-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) (D) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1009-1302	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (D) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1009-1302		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1009-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1009-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1009-1302		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1303-	●	●
48	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-	●
48	BOLT; BRKT WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) M8X25 FLANGE	0-28650-825-0	01	1	1009-1302		●
48	BOLT; BRKT WHEEL BASE 6100MM(61W) M8X25 FLANGE	0-28650-825-0	01	1	1303-		●
48	BOLT; BRKT WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) M8X35 FLANGE	0-28650-835-0	02	1	1009-1302		●
48	BOLT; BRKT WHEEL BASE 6100MM(61W) M8X35 FLANGE	0-28650-835-0	02	1	1303-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1009-1302		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	1009-1302	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1009-1302		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1303-	●	●
95	BUSHING; PIPE,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=32 OD=40 T=23	1-09332-112-0	01	1	1412-1511		●
95	BUSHING; PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> ID=32 OD=40 T=23	1-09332-112-0	01	1	1512-		●
95	BUSHING; PIPE,FUEL TANK ID=32 OD=40 T=23	1-09332-112-0	01	1	1009-1302	●	●
95	BUSHING; PIPE,FUEL TANK ID=39 OD=45 T=13	1-09332-076-0	01	1	1303-1411	●	●
95	BUSHING; PIPE,FUEL TANK ID=39 OD=45 T=13	1-09332-076-0	01	1	1412-	●
95	BUSHING; PIPE,FUEL TANK HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=39 OD=45 T=13	1-09332-076-0	01	1	1412-		●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) L=55	1-47475-304-0	01	1	1412-1511		●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=55	1-47475-304-0	01	1	1512-		●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) W/NUT	8-98172-059-0	02	1	1412-1511		●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) W/NUT	8-98172-059-0	02	1	1512-		●
97	BRACKET; CLIP FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (F)	8-98186-871-0	01	1	1103-1302	●	●
97	BRACKET; CLIP (H)	1-47479-646-0	01	1	1303-	●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (F)	8-98186-869-0	01	1	1103-1302	●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (F)	8-98186-869-0	01	1	1103-1302		●
97	BRACKET; CLIP (F)	8-98186-869-0	01	1	1303-	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (E) L=68	1-47475-525-0	01	1	1009-1010	●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (E) L=68	1-47475-525-0	01	1	1009-1010		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (E) L=68	1-47475-525-0	01	1	1011-1302	●
97	BRACKET; CLIP (E) L=68	1-47475-525-0	01	1	1011-1302		●
97	BRACKET; CLIP (E) L=68	1-47475-525-0	01	1	1303-	●	●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (C) L=55	1-47475-304-0	01	1	1009-1302		●
97	BRACKET; CLIP (G)	1-47479-723-0	01	1	1303-	●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) (A)	1-82698-358-0	02	1	1009-1302		●
97	BRACKET; CLIP WHEEL BASE 6100MM(61W) (A)	1-82698-358-0	02	1	1303-		●
97	BRACKET; CLIP WHEEL BASE 6100MM(61W) (B)	1-82698-511-0	01	1	1009-		●
97	BRACKET; CLIP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (D)	1-47475-927-0	01	1	1009-1010		●
100	CLIP; FUEL PIPE WHEEL BASE 4500MM(45W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	04	1	1009-1302	●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	04	1	1303-	●
100	CLIP; FUEL PIPE WHEEL BASE 4900MM(49W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1009-1302	●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1009-1302		●
100	CLIP; FUEL PIPE WHEEL BASE 6100MM(61W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	1303-		●
100	CLIP; FUEL PIPE WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	1009-1302		●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1303-1511		●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1) ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1512-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 4500MM(45W) M8X25 FLANGE	0-28650-825-0	01	1	1009-1302	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1303-	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	03	1	1009-	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8X20 FLANGE	0-28650-820-0	03	1	1009-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 4900MM(49W) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	02	1	1009-1302		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	02	1	1303-1511		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	02	1	1512-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) M8X20 FLANGE	0-28650-820-0	06	1	1009-1302		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6100MM(61W) M8X20 FLANGE	0-28650-820-0	06	1	1303-		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	04	1	1009-1302	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	04	1	1303-	●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	05	1	1009-1302	●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	05	1	1009-1302		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6100MM(61W) M8 FLANGE	0-91180-108-0	08	1	1303-		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) M8 FLANGE	0-91180-108-0	08	1	1009-1302		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	05	1	1303-1511		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	05	1	1512-		●
103	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	01	1	1412-1511		●
103	NUT; BRKT WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	03	1	1009-1302		●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-	●
103	NUT; BRKT WHEEL BASE 6100MM(61W) M8 FLANGE	0-91180-108-0	02	1	1303-		●
103	NUT; BRKT WHEEL BASE 6100MM(61W) M8 FLANGE	0-91180-108-0	02	1	1009-1302		●
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1412-		●
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1103-1302	●	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	04	1	1303-	●	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1009-1102	●	●
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1103-1302	●	●
227	BRACKET; FUEL SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (B)	8-98184-813-0	01	1	1103-1302	●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> (B)	8-98184-813-0	01	1	1103-1302		●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 5300MM(53W) POOR QUALITY DIESEL FUEL<KF0> (B)	8-98184-812-0	01	1	1103-1302		●
227	BRACKET; FUEL SEDIMENTER (B)	8-98184-813-0	01	1	1303-	●	●
227	BRACKET; FUEL SEDIMENTER SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) (A)	1-82698-661-0	01	1	1009-1102		●
227	BRACKET; FUEL SEDIMENTER SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	1-82698-661-0	01	1	1103-1302		●
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (B) M8X35 FLANGE	0-28650-835-0	02	1	1103-1302	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-	●	●
228	BOLT; BRKT,SEDIMENTER SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) (A) M10X35 FLANGE	0-28051-035-0	04	1	1009-1102		●
228	BOLT; BRKT,SEDIMENTER SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M10X35 FLANGE	0-28051-035-0	04	1	1103-1302		●
289	CLIP; BAND,HOSE BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	06	1	1412-		●
289	CLIP; BAND,HOSE WHEEL BASE 6100MM(61W) EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	06	1	1103-1302		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	1009-1102	●
289	CLIP; BAND,HOSE WHEEL BASE 5300MM(53W),WHEEL BASE 6300MM(63W) L=250	5-09707-030-1	04	1	1009-1102		●
289	CLIP; BAND,HOSE WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	02	1	1103-1302	●
289	CLIP; BAND,HOSE WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	02	1	1103-1302		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	1303-1411	●
289	CLIP; BAND,HOSE WHEEL BASE 6300MM(63W) L=250	5-09707-030-1	02	1	1303-1411		●
289	CLIP; BAND,HOSE WHEEL BASE 4900MM(49W) L=250	5-09707-030-1	02	1	1412-	●
289	CLIP; BAND,HOSE WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	02	1	1412-		●
289	CLIP; BAND,HOSE WHEEL BASE 6100MM(61W) L=250	5-09707-030-1	06	1	1009-1102		●
289	CLIP; BAND,HOSE WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1103-1302	●
289	CLIP; BAND,HOSE WHEEL BASE 5300MM(53W),WHEEL BASE 6300MM(63W) EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1103-1302		●
289	CLIP; BAND,HOSE WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1103-1302		●
289	CLIP; BAND,HOSE WHEEL BASE 6100MM(61W) L=250	5-09707-030-1	04	1	1303-1411		●
289	CLIP; BAND,HOSE WHEEL BASE 6100MM(61W) POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1412-		●
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> L=250	5-09707-030-1	04	1	1412-		●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1009-	●	●
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M10X60 FLANGE	0-28051-060-0	02	1	1412-		●
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X90 FLANGE	0-28051-090-0	02	1	1103-1302	●	●
291	BOLT; FILER TO BRKT (B) M10X90 FLANGE	0-28051-090-0	02	1	1303-	●	●
291	BOLT; FILER TO BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	1009-1102	●	●
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M10X60 FLANGE	0-28051-060-0	02	1	1103-1302	●	●
303	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X35 FLANGE	0-28650-835-0	01	1	1412-1511		●
303	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) M8X35 FLANGE	0-28650-835-0	01	1	1512-		●
303	BOLT; BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M8X35 FLANGE	0-28650-835-0	01	1	1512-		●
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X40 FLANGE	0-28051-040-0	04	1	1103-1302	●	●
303	BOLT; BRKT (B) M10X40 FLANGE	0-28051-040-0	04	1	1303-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302		●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1303-1411	●	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-	●
303	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-		●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-1102	●
303	BOLT; BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE	0-28650-830-0	02	1	1103-1302	●

32 634 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=3050 SERVICED BY L=5050	0-01262-505-0	01	1	1412-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1412-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1412-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (B) L=280 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302	●
32	PIPE; DELIVERY,FUEL TANK (B) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	1303-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (A) L=1650 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302	●
32	PIPE; DELIVERY,FUEL TANK (A) L=1800 SERVICED BY L=3000	0-01262-300-0	01	1	1303-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (B) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (A) L=1850 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (A) L=2600 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=640 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W) (B) L=640 SERVICED BY L=3000	0-01260-300-0	01	1	1303-1411		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=640 SERVICED BY L=3000	0-01260-300-0	01	1	1412-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=2800 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W) (A) L=2800 SERVICED BY L=3000	0-01262-300-0	01	1	1303-1411		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=2800 SERVICED BY L=3000	0-01262-300-0	01	1	1412-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	1303-1411		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	1412-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=2100 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (A) L=2100 SERVICED BY L=3000	0-01262-300-0	01	1	1303-1411		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=2100 SERVICED BY L=3000	0-01262-300-0	01	1	1412-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) FUEL TANK 200L AL<THF> (B) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (B) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) FUEL TANK 200L AL<THF> (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W) FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> (A) L=2950 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=2950 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W) FUEL TANK 400L<SDH> (A) L=3100 SERVICED BY L=5350	0-01262-535-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=3100 SERVICED BY L=5350	0-01262-535-0	01	1	1103-1302		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> (B) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302		●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> L=1950 SERVICED BY L=3000	0-01260-300-0	01	1	1412-		●
634	HOSE; RUBBER RETURN BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=2700 SERVICED BY L=3000	0-01260-300-0	01	1	1412-1510		●
634	HOSE; RUBBER RETURN BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> L=2700 SERVICED BY L=3000	0-01260-300-0	01	1	1511-1511		●
634	HOSE; RUBBER RETURN BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=2700 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4500MM(45W) FUEL TANK 200L AL<THF> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1302	●
634	HOSE; RUBBER RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	1303-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) FUEL TANK 300L AL<EBF> L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1302	●
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) FUEL TANK 300L AL<EBF> L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1302		●
634	HOSE; RUBBER RETURN WHEEL BASE 6100MM(61W) FUEL TANK 400L<SDH> L=2800 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1302		●
634	HOSE; RUBBER RETURN WHEEL BASE 6100MM(61W) L=2800 SERVICED BY L=3000	0-01260-300-0	01	1	1303-1411		●
634	HOSE; RUBBER RETURN WHEEL BASE 6100MM(61W) FUEL TANK 400L<SDH> L=2800 SERVICED BY L=3000	0-01260-300-0	01	1	1412-		●
634	HOSE; RUBBER RETURN WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1302		●
634	HOSE; RUBBER RETURN WHEEL BASE 6300MM(63W) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1303-1411		●
634	HOSE; RUBBER RETURN WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1412-1510		●
634	HOSE; RUBBER RETURN WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1) FUEL TANK 400L<SDH> L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1511-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
