Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#61034) — 192 parça

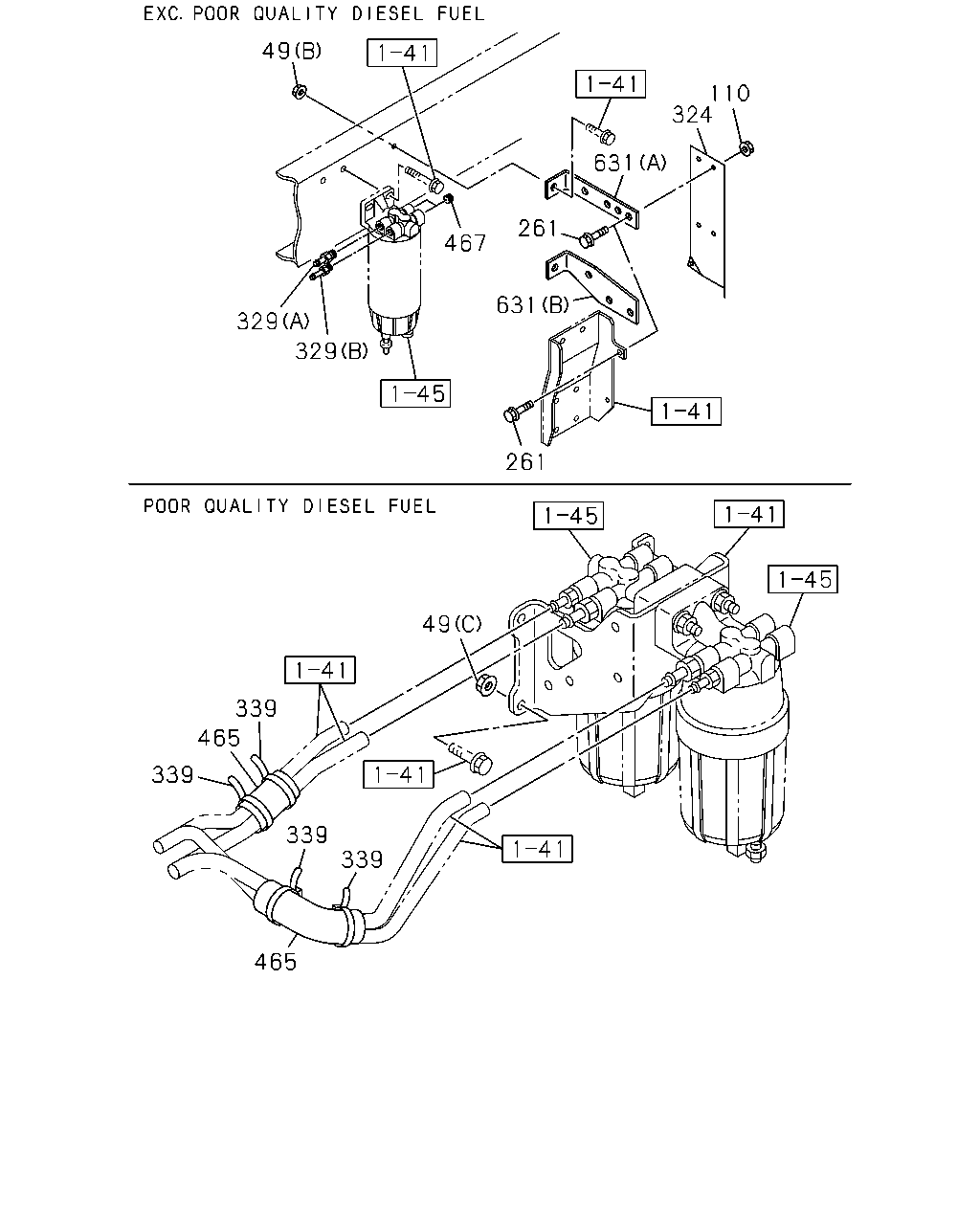

49 110 324 631 261 467 631 329 329 261 49 339 465 339 339 339 465

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	NUT; BRKT WHEEL BASE 4500MM(45W) POOR QUALITY DIESEL FUEL<KF0> (C) M10 FLANGE	0-91180-110-0	03	1	1103-1302	●
49	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	1303-	●
49	NUT; BRKT WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> (C) M10 FLANGE	0-91180-110-0	04	1	1103-1302	●
49	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (C) M10 FLANGE	0-91180-110-0	04	1	1103-1302		●
49	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	04	1	1303-		●
49	NUT; BRKT FUEL TANK 300L AL<EBF> (A) M12	0-91110-512-0	12	1	1009-1302	●
49	NUT; BRKT (A) M12	0-91110-512-0	12	1	1009-1302		●
49	NUT; BRKT (A) M12	0-91110-512-0	11	1	1303-	●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	1009-1302	●
49	NUT; BRKT WHEEL BASE 6100MM(61W) (A) M12	0-91110-512-0	12	1	1303-		●
49	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1009-1102	●
49	NUT; BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (B) M8 FLANGE	0-91180-108-0	02	1	1103-1302	●
49	NUT; BRKT WHEEL BASE 6300MM(63W) (A) M12	0-91110-512-0	08	1	1303-		●
110	NUT; PROTECTOR M8 FLANGE	0-91180-108-0	04	1	1009-1102	●
110	NUT; PROTECTOR EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	04	1	1103-1302	●
110	NUT; PROTECTOR SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	02	1	1009-1102		●
110	NUT; PROTECTOR SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	02	1	1103-1302		●
261	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	04	1	1009-1102	●
261	BOLT; PROTECTOR EXC. POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	04	1	1103-1302	●
261	BOLT; PROTECTOR SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) M8X20 FLANGE	0-28650-820-0	02	1	1009-1102		●
261	BOLT; PROTECTOR SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) EXC. POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	02	1	1103-1302		●
324	PROTECTOR; FUEL SEDIMENTER	1-47471-216-0	01	1	1009-1102	●
324	PROTECTOR; FUEL SEDIMENTER SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W)	1-47471-216-0	01	1	1009-1102		●
324	PROTECTOR; FUEL SEDIMENTER EXC. POOR QUALITY DIESEL FUEL<KF0>	1-47471-216-0	01	1	1103-1302	●
324	PROTECTOR; FUEL SEDIMENTER SILENCER LAYOUT REAR VAR1<JAZ> WHEEL BASE 5300MM(53W) EXC. POOR QUALITY DIESEL FUEL<KF0>	1-47471-216-0	01	1	1103-1302		●
329	JOINT ASM; EYE,FUEL PIPE (A) NPTF3/8-18 OD=12	8-98122-952-0	01	1	1009-1102	●	●
329	JOINT ASM; EYE,FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=12	8-98122-952-0	01	1	1103-1302	●	●
329	JOINT ASM; EYE,FUEL PIPE (B) NPTF3/8-18 OD=10	8-98122-953-0	01	1	1009-1102	●	●
329	JOINT ASM; EYE,FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) NPTF3/8-18 OD=10	8-98122-953-0	01	1	1103-1302	●	●
339	CLIP; BAND,FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1103-1302	●	●
339	CLIP; BAND,FUEL HOSE L=250	5-09707-030-1	04	1	1303-	●	●
465	SLEEVE; RUBBER POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1103-1302	●	●
465	SLEEVE; RUBBER L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1303-	●	●
467	BOLT NPTF3/8-18	8-97329-623-0	02	1	1009-1102	●	●
467	BOLT EXC. POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18	8-97329-623-0	02	1	1103-1302	●	●
631	BRACKET; PROTECTOR (A)	1-82698-358-0	01	1	1009-1102	●
631	BRACKET; PROTECTOR EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	1-82698-358-0	01	1	1103-1302	●
631	BRACKET; PROTECTOR (B)	1-82698-625-0	01	1	1009-1102	●
631	BRACKET; PROTECTOR EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	1-82698-625-0	01	1	1103-1302	●

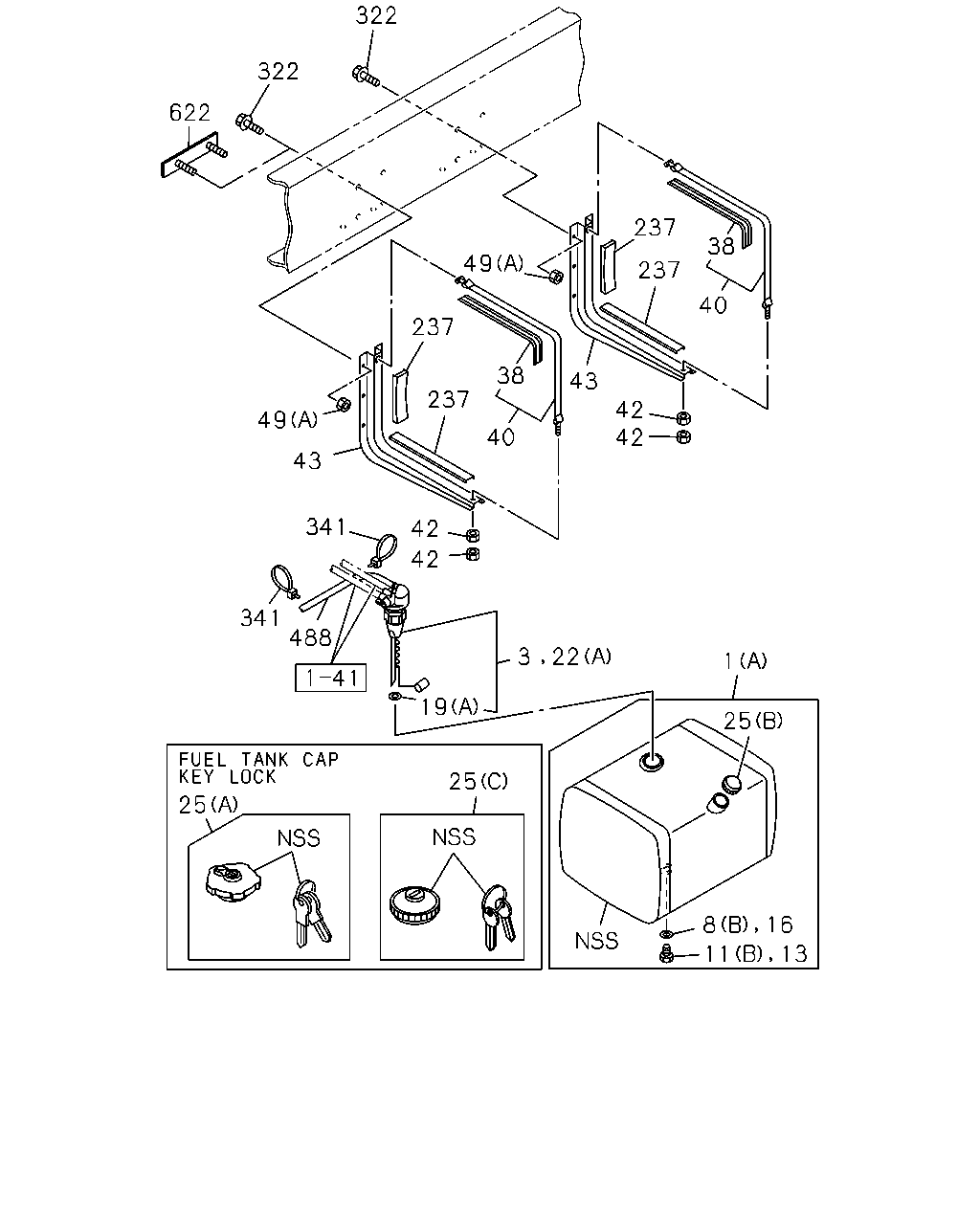

622 322 322 49 43 341 341 488 237 237 42 42 25 25 19 3 22 49 38 40 43 237 237 38 40 42 42 1 25 8 11 16 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 300L AL<EBF> (B) 790X730X635 300L	8-98115-603-1	01	1	1009-1302	●	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (A) 745X650X480 200L	1-87411-169-0	01	1	1009-1302	●
1	TANK; FUEL FUEL TANK 400L<SDH> (A) 1050X680X625 400L	1-87411-699-1	01	1	1009-1109		●
1	TANK; FUEL FUEL TANK 400L<SDH> (A) 1050X680X625 400L	1-87411-788-3	01	1	1110-1302		●
1	TANK; FUEL (A) 1050X680X625 400L	1-87411-788-3	01	1	1303-	●	●
3	UNIT; FUEL TANK,SUB FUEL TANK 200L AL<THF>	8-98217-750-0	01	1	1211-1302	●
3	UNIT; FUEL TANK,SUB FUEL TANK 400L<SDH>	8-98217-749-0	01	1	1211-1302		●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1303-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-1302	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-1302		●
8	GASKET; DRAIN PLUG,FUEL TANK (B) ID=18.2 T=1.6	8-98030-453-0	01	1	1303-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 300L AL<EBF> (A)	1-22416-006-0	01	1	1009-1302	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L AL<THF> (B) M18X12	0-92002-418-0	01	1	1211-1302	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> (B) M18X12	0-92002-418-0	01	1	1211-1302		●
11	PLUG; DRAIN,FUEL TANK (B) M18X12	0-92002-418-0	01	1	1303-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L AL<EBF> (A) M36	1-09604-052-0	01	1	1009-1302	●	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L AL<THF> M18X12	0-92002-418-0	01	1	1009-1210	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	1009-1210		●
16	GASKET; PLUG FUEL TANK 200L AL<THF> ID=18.2 T=1.6	8-98030-453-0	01	1	1009-1210	●
16	GASKET; PLUG FUEL TANK 400L<SDH> ID=18.2 T=1.6	8-98030-453-0	01	1	1009-1210		●
19	GASKET; FUEL TANK UNIT (A) ID=54.5	8-98299-580-0	01	1	1211-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (B)	1-22459-001-1	02	1	1009-1302	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (A) ID=58	1-83149-005-0	01	1	1009-1210	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> (A) ID=58	1-83149-005-0	01	1	1009-1210		●
22	UNIT; FUEL TANK FUEL TANK 300L AL<EBF> (B)	1-83141-146-0	01	1	1009-1302	●	●
22	UNIT; FUEL TANK FUEL TANK 200L AL<THF> (A)	1-83141-131-0	01	1	1009-1210	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH> (A)	1-83141-132-0	01	1	1009-1210		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> (B)	8-98115-780-0	01	1	1009-1109	●
25	CAP; FILLER,FUEL TANK (B)	8-98115-780-0	01	1	1009-1109		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> (B)	8-98182-306-0	01	1	1110-1302	●
25	CAP; FILLER,FUEL TANK (B)	8-98182-306-0	01	1	1110-1302		●
25	CAP; FILLER,FUEL TANK (B)	8-98182-306-0	01	1	1303-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> FUEL TANK CAP KEY LOCK<N05> (A)	8-98108-595-0	01	1	1009-1302	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF>,FUEL TANK 400L<SDH> (A)	8-98108-595-0	01	1	1009-1302		●
25	CAP; FILLER,FUEL TANK (A)	8-98108-595-0	01	1	1303-1411	●	●
25	CAP; FILLER,FUEL TANK (A)	8-98108-595-0	01	1	1412-	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> (A)	8-98108-595-0	01	1	1412-		●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (C)	1-22440-057-2	01	1	1009-1302	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (B)	1-22440-056-0	01	1	1009-1302	●
38	INSULATION; SUPPORT BELT FUEL TANK 300L AL<EBF> L=1156	1-22553-039-1	02	1	1009-1302	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1009-1302		●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1303-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> L=960	1-22553-044-0	02	1	1009-1302	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> L=1210	1-22550-261-0	02	1	1009-1110	●
40	BELT; SUPPORT,FUEL TANK L=1210	1-22550-261-0	02	1	1009-1110		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> L=1210	8-98202-448-0	02	1	1111-1302	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1111-1302		●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1303-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> L=1045	1-22550-262-0	02	1	1009-1302	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1009-	●	●
43	BRACKET; FUEL TANK FUEL TANK 300L AL<EBF>	8-97620-945-0	02	1	1009-1302	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF>	1-53461-543-0	02	1	1009-1302	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	1009-1302		●
43	BRACKET; FUEL TANK	1-53461-525-1	02	1	1303-	●	●
49	NUT; BRKT WHEEL BASE 4500MM(45W) POOR QUALITY DIESEL FUEL<KF0> (C) M10 FLANGE	0-91180-110-0	03	1	1103-1302	●
49	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	1303-	●
49	NUT; BRKT WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> (C) M10 FLANGE	0-91180-110-0	04	1	1103-1302	●
49	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (C) M10 FLANGE	0-91180-110-0	04	1	1103-1302		●
49	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	04	1	1303-		●
49	NUT; BRKT FUEL TANK 300L AL<EBF> (A) M12	0-91110-512-0	12	1	1009-1302	●
49	NUT; BRKT (A) M12	0-91110-512-0	12	1	1009-1302		●
49	NUT; BRKT (A) M12	0-91110-512-0	11	1	1303-	●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	1009-1302	●
49	NUT; BRKT WHEEL BASE 6100MM(61W) (A) M12	0-91110-512-0	12	1	1303-		●
49	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1009-1102	●
49	NUT; BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (B) M8 FLANGE	0-91180-108-0	02	1	1103-1302	●
49	NUT; BRKT WHEEL BASE 6300MM(63W) (A) M12	0-91110-512-0	08	1	1303-		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=340	1-22553-043-2	02	1	1009-1302	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=540	1-22553-064-1	02	1	1009-1302	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	1009-1302		●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-1	04	1	1303-	●	●
322	BOLT; BRKT FIX SILENCER LAYOUT REAR VAR1<JAZ> M12X40 FLANGE	0-28051-240-0	12	1	1306-		●
322	BOLT; BRKT FIX FUEL TANK 300L AL<EBF> M12X40 FLANGE	0-28051-240-0	12	1	1009-1302	●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	12	1	1009-1302		●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	12	1	1303-1305	●	●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	10	1	1306-	●
322	BOLT; BRKT FIX EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12X40 FLANGE	0-28051-240-0	10	1	1306-		●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	1009-1302	●
341	CLIP; BAND,RUBBER HOSE L=350	1-09707-183-0	02	1	1303-	●	●
488	HOSE; RUBBER	8-98134-936-0	01	1	1303-	●	●
622	STUD; BRACKET	1-53461-534-0	01	1	1306-	●
622	STUD; BRACKET EXC. SILENCER LAYOUT REAR VAR1<JAZ>	1-53461-534-0	01	1	1306-		●

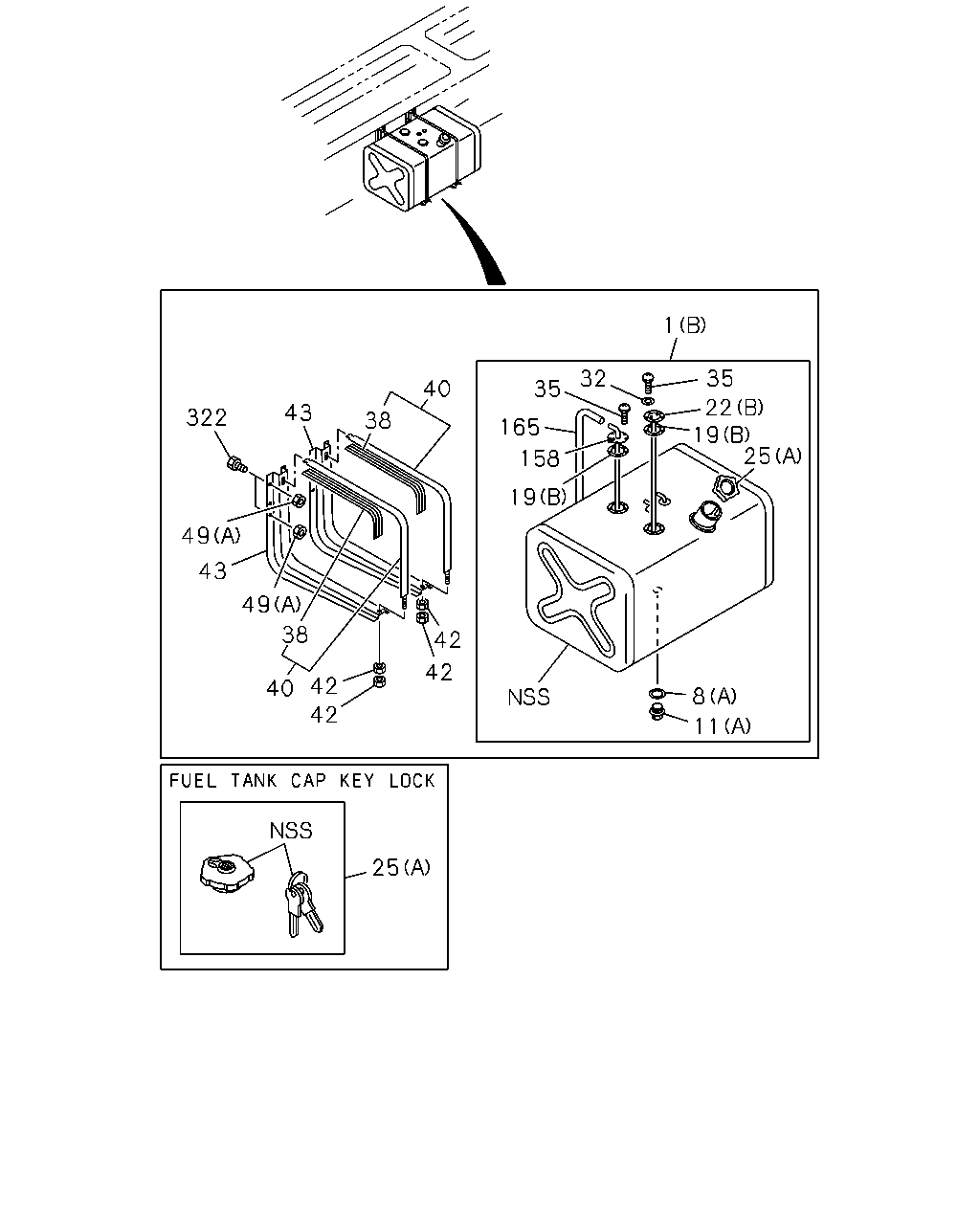

25 11 8 19 158 165 35 32 1 35 22 19 25 40 38 42 42 42 42 40 38 49 43 49 322 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 300L AL<EBF> (B) 790X730X635 300L	8-98115-603-1	01	1	1009-1302	●	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (A) 745X650X480 200L	1-87411-169-0	01	1	1009-1302	●
1	TANK; FUEL FUEL TANK 400L<SDH> (A) 1050X680X625 400L	1-87411-699-1	01	1	1009-1109		●
1	TANK; FUEL FUEL TANK 400L<SDH> (A) 1050X680X625 400L	1-87411-788-3	01	1	1110-1302		●
1	TANK; FUEL (A) 1050X680X625 400L	1-87411-788-3	01	1	1303-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-1302	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-1302		●
8	GASKET; DRAIN PLUG,FUEL TANK (B) ID=18.2 T=1.6	8-98030-453-0	01	1	1303-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 300L AL<EBF> (A)	1-22416-006-0	01	1	1009-1302	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L AL<THF> (B) M18X12	0-92002-418-0	01	1	1211-1302	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> (B) M18X12	0-92002-418-0	01	1	1211-1302		●
11	PLUG; DRAIN,FUEL TANK (B) M18X12	0-92002-418-0	01	1	1303-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L AL<EBF> (A) M36	1-09604-052-0	01	1	1009-1302	●	●
19	GASKET; FUEL TANK UNIT (A) ID=54.5	8-98299-580-0	01	1	1211-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (B)	1-22459-001-1	02	1	1009-1302	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (A) ID=58	1-83149-005-0	01	1	1009-1210	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> (A) ID=58	1-83149-005-0	01	1	1009-1210		●
22	UNIT; FUEL TANK FUEL TANK 300L AL<EBF> (B)	1-83141-146-0	01	1	1009-1302	●	●
22	UNIT; FUEL TANK FUEL TANK 200L AL<THF> (A)	1-83141-131-0	01	1	1009-1210	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH> (A)	1-83141-132-0	01	1	1009-1210		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> (B)	8-98115-780-0	01	1	1009-1109	●
25	CAP; FILLER,FUEL TANK (B)	8-98115-780-0	01	1	1009-1109		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> (B)	8-98182-306-0	01	1	1110-1302	●
25	CAP; FILLER,FUEL TANK (B)	8-98182-306-0	01	1	1110-1302		●
25	CAP; FILLER,FUEL TANK (B)	8-98182-306-0	01	1	1303-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> FUEL TANK CAP KEY LOCK<N05> (A)	8-98108-595-0	01	1	1009-1302	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF>,FUEL TANK 400L<SDH> (A)	8-98108-595-0	01	1	1009-1302		●
25	CAP; FILLER,FUEL TANK (A)	8-98108-595-0	01	1	1303-1411	●	●
25	CAP; FILLER,FUEL TANK (A)	8-98108-595-0	01	1	1412-	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> (A)	8-98108-595-0	01	1	1412-		●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (C)	1-22440-057-2	01	1	1009-1302	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (B)	1-22440-056-0	01	1	1009-1302	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 300L AL<EBF> ID=5.1	0-91510-505-0	01	1	1009-1302	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L AL<EBF> M5X12 W/LK WASHER	0-36220-512-0	10	1	1009-1302	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 300L AL<EBF> L=1156	1-22553-039-1	02	1	1009-1302	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1009-1302		●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1303-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> L=960	1-22553-044-0	02	1	1009-1302	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> L=1210	1-22550-261-0	02	1	1009-1110	●
40	BELT; SUPPORT,FUEL TANK L=1210	1-22550-261-0	02	1	1009-1110		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> L=1210	8-98202-448-0	02	1	1111-1302	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1111-1302		●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1303-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> L=1045	1-22550-262-0	02	1	1009-1302	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1009-	●	●
43	BRACKET; FUEL TANK FUEL TANK 300L AL<EBF>	8-97620-945-0	02	1	1009-1302	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF>	1-53461-543-0	02	1	1009-1302	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	1009-1302		●
43	BRACKET; FUEL TANK	1-53461-525-1	02	1	1303-	●	●
49	NUT; BRKT WHEEL BASE 4500MM(45W) POOR QUALITY DIESEL FUEL<KF0> (C) M10 FLANGE	0-91180-110-0	03	1	1103-1302	●
49	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	1303-	●
49	NUT; BRKT WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> (C) M10 FLANGE	0-91180-110-0	04	1	1103-1302	●
49	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (C) M10 FLANGE	0-91180-110-0	04	1	1103-1302		●
49	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	04	1	1303-		●
49	NUT; BRKT FUEL TANK 300L AL<EBF> (A) M12	0-91110-512-0	12	1	1009-1302	●
49	NUT; BRKT (A) M12	0-91110-512-0	12	1	1009-1302		●
49	NUT; BRKT (A) M12	0-91110-512-0	11	1	1303-	●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	1009-1302	●
49	NUT; BRKT WHEEL BASE 6100MM(61W) (A) M12	0-91110-512-0	12	1	1303-		●
49	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1009-1102	●
49	NUT; BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (B) M8 FLANGE	0-91180-108-0	02	1	1103-1302	●
49	NUT; BRKT WHEEL BASE 6300MM(63W) (A) M12	0-91110-512-0	08	1	1303-		●
158	VALVE; ROLL OVER & FLOAT FUEL TANK 300L AL<EBF>	1-22452-002-0	01	1	1009-1302	●	●
165	HOSE; ROLL OVER & FLOAT VLV TO FUEL TA FUEL TANK 300L AL<EBF>	1-09366-262-0	01	1	1009-1302	●	●
322	BOLT; BRKT FIX SILENCER LAYOUT REAR VAR1<JAZ> M12X40 FLANGE	0-28051-240-0	12	1	1306-		●
322	BOLT; BRKT FIX FUEL TANK 300L AL<EBF> M12X40 FLANGE	0-28051-240-0	12	1	1009-1302	●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	12	1	1009-1302		●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	12	1	1303-1305	●	●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	10	1	1306-	●
322	BOLT; BRKT FIX EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12X40 FLANGE	0-28051-240-0	10	1	1306-		●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	1009-1302	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
