1-31 — AIR DUCT (#61032) — 107 parça

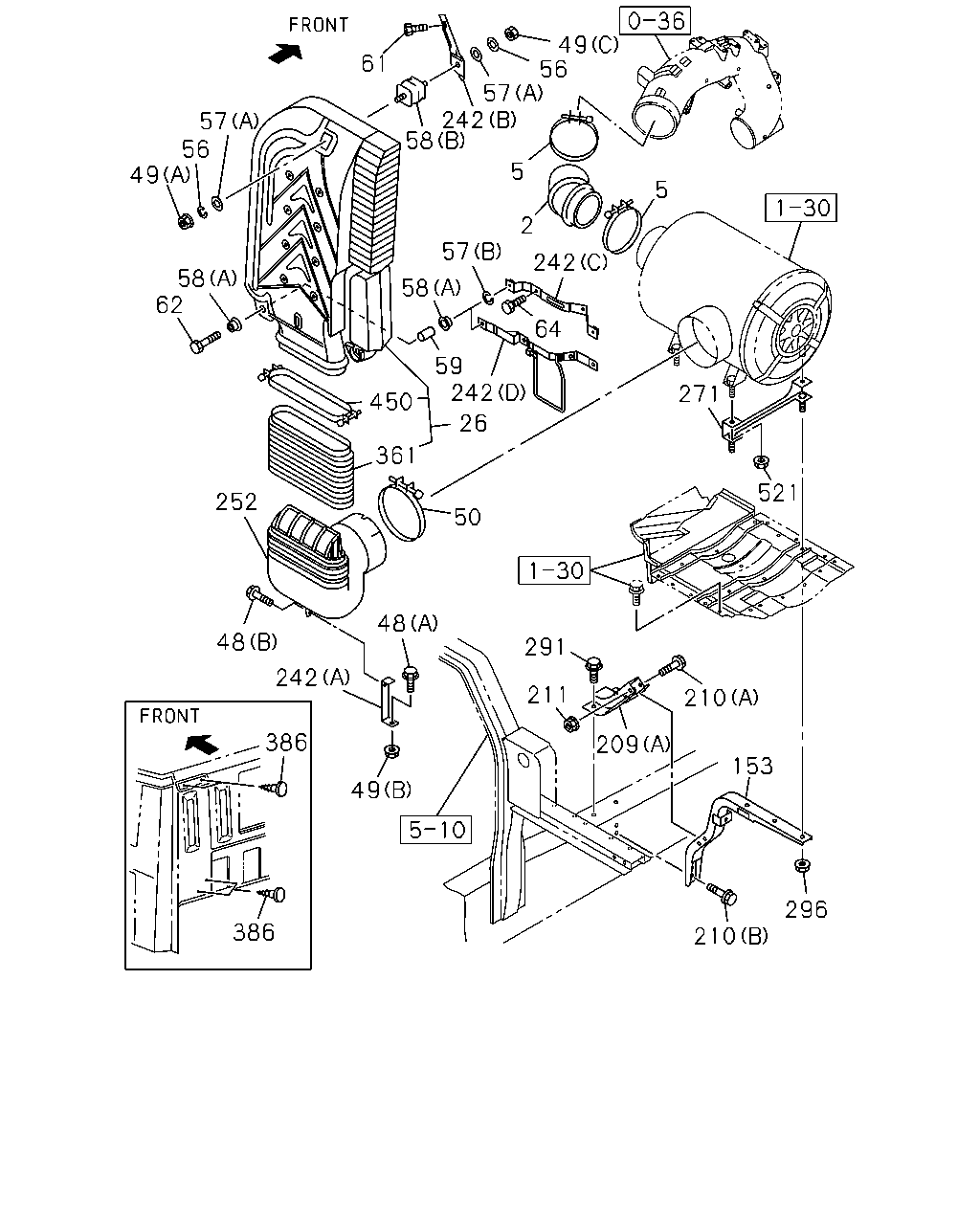

çizim 168708
49 56 57 242 58 61 57 56 49 58 62 252 48 386 386 242 49 48 50 361 450 242 59 26 58 57 5 2 64 242 5 271 521 291 211 209 210 153 296 210
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL 8-98168-974-0 01 1 1009-
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 1009-
26 DUCT; AIR INT
PRE CLEANER<W17> 		1-14219-258-1 01 1 1303-
26 DUCT; AIR INT 8-98122-904-2 01 1 1009-1302
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		8-98122-904-2 01 1 1303-
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X60 		1-09030-044-1 02 1 1303-
48 BOLT; AIR DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1009-
48 BOLT; AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 01 1 1009-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 01 1 1303-
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91180-210-0 01 1 1009-
49 NUT; AIR DUCT
(C) M8 FLANGE 		1-09984-122-0 01 1 1009-1302
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-122-0 01 1 1303-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1009-1302
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 04 1 1303-
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 1009-
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 1303-
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 02 1 1009-1302
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 1303-
57 WASHER; PL,AIR INT DUCT
GRIP OUT SIDE<W52> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1009-1302
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 02 1 1303-
57 WASHER; PL,AIR INT DUCT
(A) ID=8.4 OD=22 		1-09985-188-0 02 1 1009-1302
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 04 1 1303-
58 SUPPORT; AIR INL DUCT
GRIP OUT SIDE<W52> (B) 		8-98125-944-1 01 1 1009-1302
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1009-1302
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 1303-
58 SUPPORT; AIR INL DUCT
EXC. GRIP OUT SIDE<W52> (B) 		8-97080-149-0 01 1 1009-1302
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (B) 		8-97080-149-0 01 1 1303-
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 1009-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1009-1302
61 BOLT; BRKT,AIR DUCT
EXC. PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 02 1 1303-
62 BOLT; AIR INT DUCT
M10X60 		1-09030-044-1 02 1 1009-1302
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> M10X60 		1-09030-044-1 02 1 1303-
64 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1009-1302
64 BOLT; BRKT,AIR DUCT
EXC. PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 02 1 1303-
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 1009-
209 BRACKET; ACL
PRE CLEANER<W17> (C) 		1-79990-045-2 01 1 1303-
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		8-98115-405-1 01 1 1303-
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 1009-
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1009-
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 1009-
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
242 BRACKET; AIR DUCT
GRIP OUT SIDE<W52> (C) 		8-98113-588-1 01 1 1009-1302
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		8-98041-994-1 01 1 1303-
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 1009-
242 BRACKET; AIR DUCT
(B) 		1-53419-325-1 01 1 1009-1302
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-53419-325-1 01 1 1303-
242 BRACKET; AIR DUCT
EXC. GRIP OUT SIDE<W52> (D) 		8-98041-993-1 01 1 1009-1302
252 DUCT; AIR INT 1-14230-194-0 01 1 1009-1302
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 1303-
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 1009-
291 BOLT; ACL
M12X30 FLANGE 		0-28051-230-0 02 1 1009-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1009-
361 RUBBER; CUSHION,AIR DUCT 1-14230-149-2 01 1 1009-1302
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-149-2 01 1 1303-
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 1009-
450 CLAMP; HOSE 1-14239-237-0 01 1 1009-1302
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 1303-
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 1009-

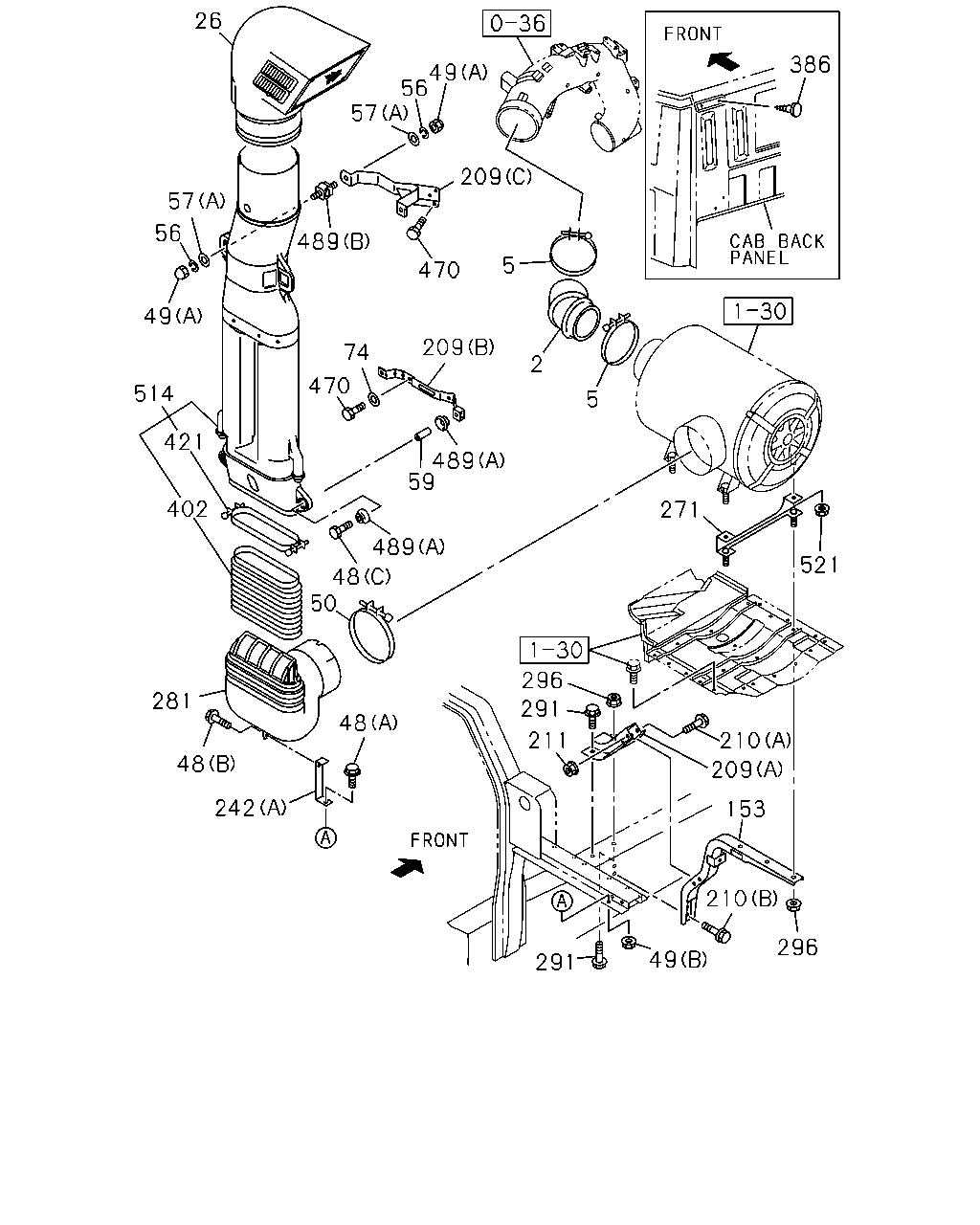

çizim 337192
26 57 56 49 514 421 402 281 48 242 48 50 489 48 59 489 209 74 470 489 470 5 2 5 209 57 56 49 386 271 521 153 210 209 296 210 49 291 211 291 296
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL 8-98168-974-0 01 1 1009-
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 1009-
26 DUCT; AIR INT
PRE CLEANER<W17> 		1-14219-258-1 01 1 1303-
26 DUCT; AIR INT 8-98122-904-2 01 1 1009-1302
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		8-98122-904-2 01 1 1303-
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X60 		1-09030-044-1 02 1 1303-
48 BOLT; AIR DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1009-
48 BOLT; AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 01 1 1009-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 01 1 1303-
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91180-210-0 01 1 1009-
49 NUT; AIR DUCT
(C) M8 FLANGE 		1-09984-122-0 01 1 1009-1302
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-122-0 01 1 1303-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1009-1302
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 04 1 1303-
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 1009-
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 1303-
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 02 1 1009-1302
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 1303-
57 WASHER; PL,AIR INT DUCT
GRIP OUT SIDE<W52> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1009-1302
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 02 1 1303-
57 WASHER; PL,AIR INT DUCT
(A) ID=8.4 OD=22 		1-09985-188-0 02 1 1009-1302
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 04 1 1303-
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 1009-
74 WASHER; PL,ACL
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 01 1 1303-
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 1009-
209 BRACKET; ACL
PRE CLEANER<W17> (C) 		1-79990-045-2 01 1 1303-
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		8-98115-405-1 01 1 1303-
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 1009-
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1009-
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 1009-
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
242 BRACKET; AIR DUCT
GRIP OUT SIDE<W52> (C) 		8-98113-588-1 01 1 1009-1302
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		8-98041-994-1 01 1 1303-
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 1009-
242 BRACKET; AIR DUCT
(B) 		1-53419-325-1 01 1 1009-1302
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-53419-325-1 01 1 1303-
242 BRACKET; AIR DUCT
EXC. GRIP OUT SIDE<W52> (D) 		8-98041-993-1 01 1 1009-1302
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 1009-
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-194-0 01 1 1303-
291 BOLT; ACL
M12X30 FLANGE 		0-28051-230-0 02 1 1009-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1009-
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 1009-
402 GASKET; RUBBER
PRE CLEANER<W17> 		1-14230-149-2 01 1 1303-
421 CLAMP; AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 1303-
470 BOLT; BRKT
PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 04 1 1303-
489 RUBBER; SUPPORT
PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 1303-
489 RUBBER; SUPPORT
PRE CLEANER<W17> (B) 		8-97080-149-0 02 1 1303-
514 DUCT; PRE CLEANER
PRE CLEANER<W17> 		1-14230-170-1 01 1 1303-
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 1009-
