2-01 — CLUTCH (#6103) — 78 parça

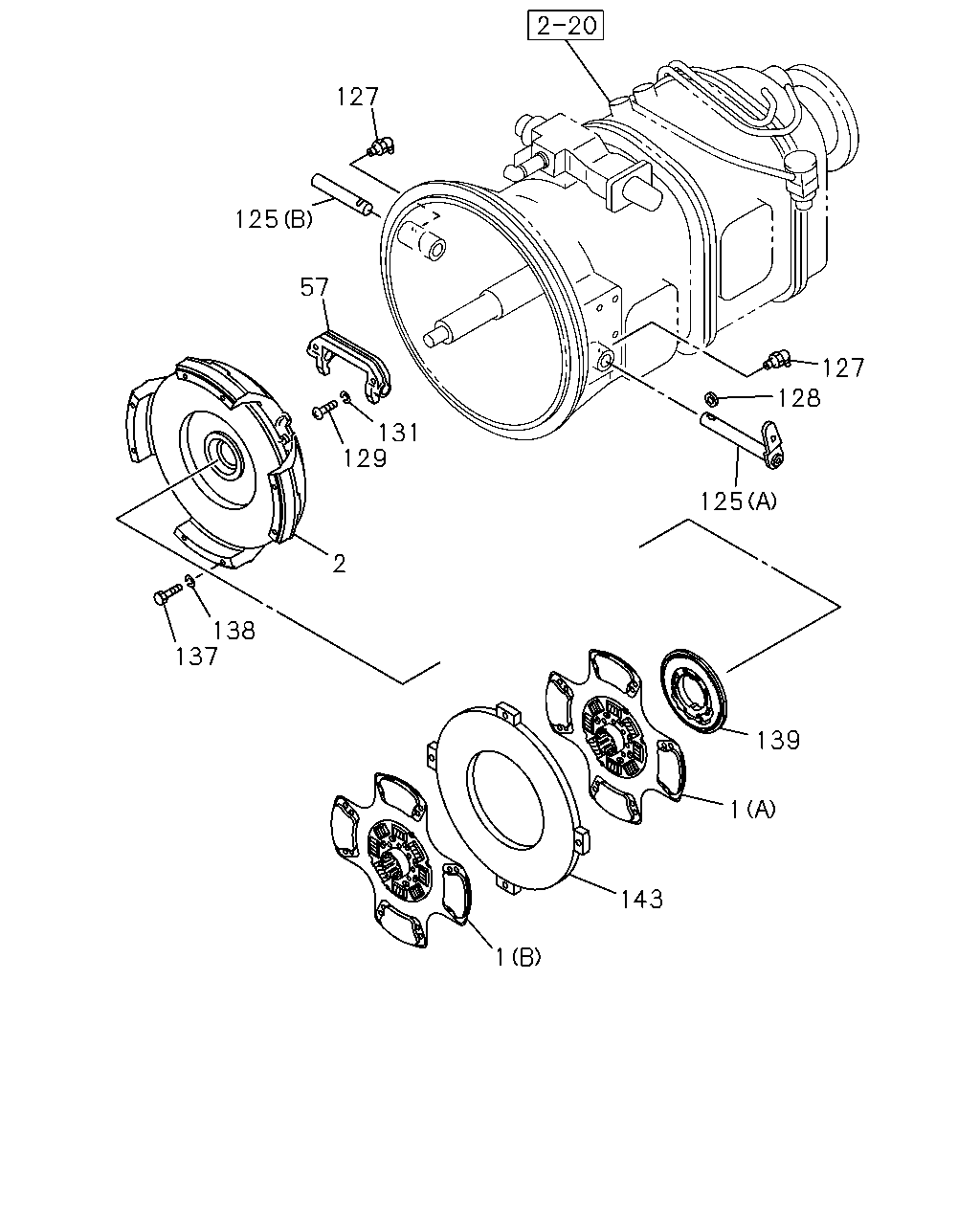

çizim 37771
127 125 57 127 128 131 129 125 2 138 137 139 1 143 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DISC; CLUTCH
(A) 15.5" 		1-31240-792-0 01 1 9905-0301 ● ●
1 DISC; CLUTCH
(A) 15.5" 		1-31240-792-0 01 1 0302- ● ● ●
1 DISC; CLUTCH
(B) 15.5" 		1-31240-793-0 01 1 9905-0301 ● ●
1 DISC; CLUTCH
(B) 15.5" 		1-31240-793-0 01 1 0302- ● ● ●
2 PLATE ASM; PRESSURE,CLU 1-31220-327-0 01 1 9905-0104 ● ●
2 PLATE ASM; PRESSURE,CLU 1-31220-347-0 01 1 0105-0301 ● ●
2 PLATE ASM; PRESSURE,CLU 1-31220-347-0 01 1 0302- ● ● ●
57 FORK; SHIFT,CLU 1-31341-020-0 01 1 9905-0301 ● ●
57 FORK; SHIFT,CLU 1-31341-020-0 01 1 0302- ● ● ●
125 SHAFT; CLU
(A) 		1-31342-279-0 01 1 9905-0301 ● ●
125 SHAFT; CLU
(A) 		1-31342-279-0 01 1 0302- ● ● ●
125 SHAFT; CLU
(B) L=146 		1-31342-283-0 01 1 9905-0301 ● ●
125 SHAFT; CLU
(B) L=146 		1-31342-283-0 01 1 0302- ● ● ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9905-0301 ● ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 0302-0512 ● ● ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ●
128 KEY; FEATHER,CLU SHAFT 1-31349-007-0 01 1 9905-0301 ● ●
128 KEY; FEATHER,CLU SHAFT 1-31349-007-0 01 1 0302- ● ● ●
129 BOLT; SHIFT FORK 1-09087-021-0 02 1 9905-0301 ● ●
129 BOLT; SHIFT FORK 1-09087-021-0 02 1 0302-1206 ● ● ●
129 BOLT; SHIFT FORK 8-98224-040-0 02 1 1207- ● ● ●
131 WASHER; LK,SHIFT FORK
ID=11.4 		9-09850-072-0 02 1 9905-0301 ● ●
131 WASHER; LK,SHIFT FORK
ID=11.4 		9-09850-072-0 02 1 0302- ● ● ●
137 BOLT; CLU COVER 1-09087-022-0 08 1 9905-0301 ● ●
137 BOLT; CLU COVER 1-09087-022-0 08 1 0302- ● ● ●
138 WASHER; LK,CLU COVER
ID=11.4 		9-09850-072-0 08 1 9905-0301 ● ●
138 WASHER; LK,CLU COVER
ID=11.4 		9-09850-072-0 08 1 0302- ● ● ●
139 BRAKE; CLU 1-31259-038-0 01 1 9905-0004 ● ●
139 BRAKE; CLU
CLUTCH BRAKE(BBG) 		1-31259-038-0 01 1 0005-0301 ● ●
139 BRAKE; CLU 1-31259-038-0 01 1 0302- ● ● ●
143 PLATE; INTERMEDIATE 1-31221-124-0 01 1 9905-0104 ● ●
143 PLATE; INTERMEDIATE 1-31221-098-0 01 1 0105-0301 ● ●
143 PLATE; INTERMEDIATE 1-31221-098-0 01 1 0302-1509 ● ● ●
143 PLATE; INTERMEDIATE 8-98305-946-0 01 1 1510- ● ● ●

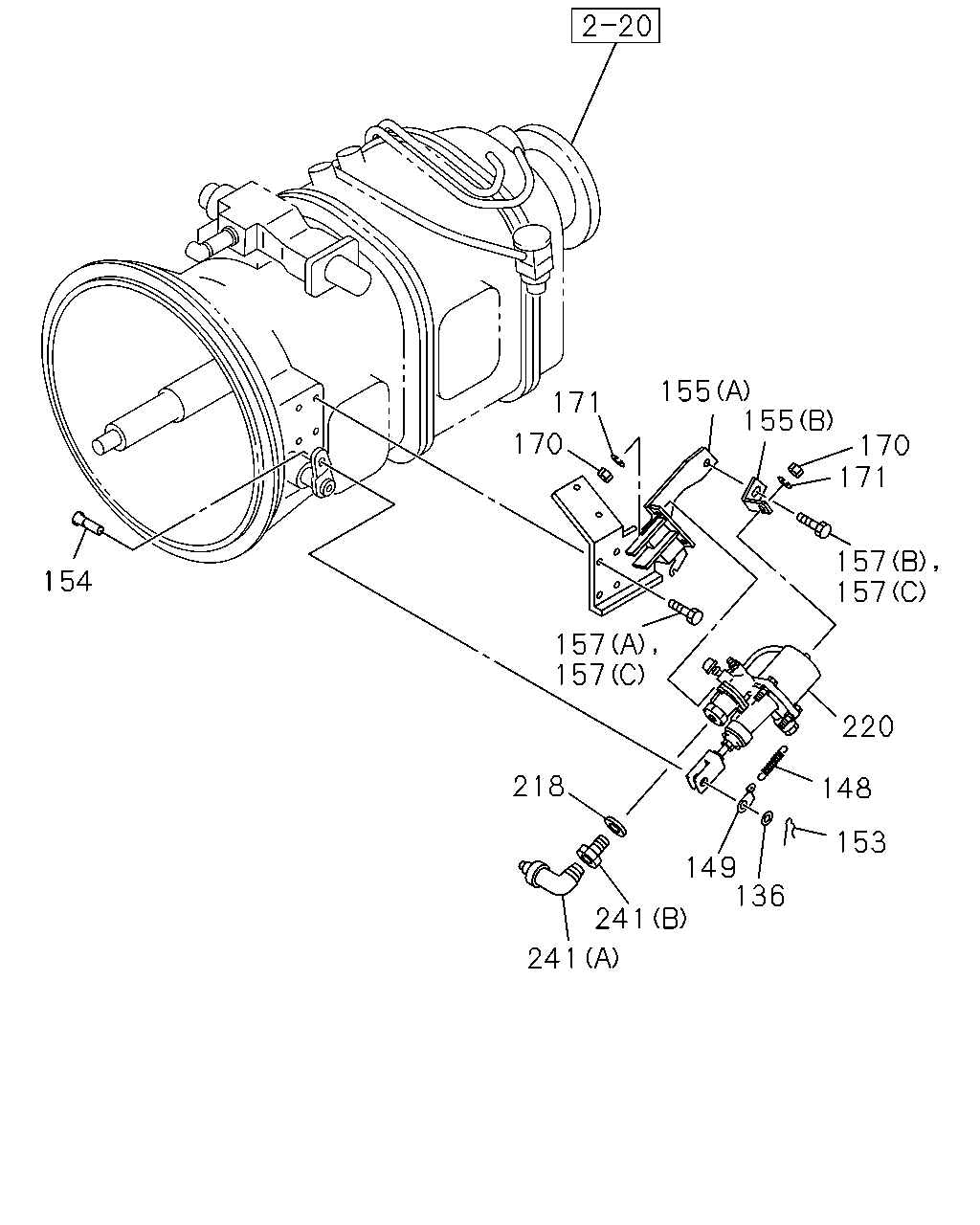

çizim 37866
155 155 171 170 170 171 157 157 154 157 157 220 218 148 153 149 136 241 241
BalonParca AdiParca NoAdetTipApplied Date A B C
136 WASHER; PL
ID=15 		9-09160-514-0 01 1 9905-0301 ● ●
136 WASHER; PL
ID=15 		9-09160-514-0 01 1 0302-0605 ● ● ●
136 WASHER; PL
ID=15 		0-91610-514-0 01 1 0606- ● ● ●
148 SPRING; CLU RETURN 9-09744-034-0 01 1 9905-0301 ● ●
148 SPRING; CLU RETURN 9-09744-034-0 01 1 0302- ● ● ●
149 EYE; SPRING,RETURN SPRING 1-31426-025-0 01 1 9905-0301 ● ●
149 EYE; SPRING,RETURN SPRING 1-31426-025-0 01 1 0302- ● ● ●
153 PIN; SPLIT,CLU SHAFT 1-09747-009-0 01 1 9905-0301 ● ●
153 PIN; SPLIT,CLU SHAFT 1-09747-009-0 01 1 0302- ● ● ●
154 PIN; JAW JOINT
L=35 		1-31424-003-0 01 1 9905-0301 ● ●
154 PIN; JAW JOINT
L=35 		1-31424-003-0 01 1 0302- ● ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-366-0 01 1 9905-0103 ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-458-0 01 1 0104-0301 ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-458-0 01 1 0302- ● ● ●
155 BRACKET; MINIPACK
(B) 		1-31429-367-0 01 1 9905-0301 ● ●
155 BRACKET; MINIPACK
(B) 		1-31429-367-0 01 1 0302- ● ● ●
157 BOLT; BRKT
(C) M10X25 W/LK WASHER 		0-50051-025-0 05 1 9905-0103 ● ●
157 BOLT; BRKT
(A) M10X25 W/LK WASHER 		0-50051-025-0 04 1 0104-0301 ● ●
157 BOLT; BRKT
(A) M10X25 W/LK WASHER 		0-50051-025-0 04 1 0302-0906 ● ● ●
157 BOLT; BRKT
(A) M10X25 W/LK WASHER 		0-50551-025-0 04 1 0907- ● ● ●
157 BOLT; BRKT
(B) M10X16 FLANGE 		0-28181-016-0 01 1 0104-0301 ● ●
157 BOLT; BRKT
(B) M10X16 FLANGE 		0-28181-016-0 01 1 0302-0512 ● ● ●
157 BOLT; BRKT
(B) M10X16 FLANGE 		0-28151-016-0 01 1 0601- ● ● ●
170 NUT; BOOSTER FIX
M8 		9-09110-408-0 03 1 9905-0301 ● ●
170 NUT; BOOSTER FIX
M8 		9-09110-408-0 03 1 0302-0512 ● ● ●
170 NUT; BOOSTER FIX
M8 		0-91110-508-0 03 1 0601- ● ● ●
171 WASHER; LK,BOOSTER FIX
ID=8.2 		9-09150-508-0 03 1 9905-0301 ● ●
171 WASHER; LK,BOOSTER FIX
ID=8.2 		9-09150-508-0 03 1 0302-0603 ● ● ●
171 WASHER; LK,BOOSTER FIX
ID=8.2 		0-91510-508-0 03 1 0604- ● ● ●
218 GASKET
ID=14.2 OD=23.0 		9-09572-014-0 01 1 9905-0301 ● ●
218 GASKET
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0302- ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-398-0 01 1 9905-9905 ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-431-0 01 1 9906-0004 ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. CLUTCH BRAKE(BBG) 		1-31800-431-1 01 1 0005-0301 ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. EXC. CLUTCH BRAKE(BBG) 		1-31800-398-1 01 1 0005-0301 ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-431-1 01 1 0302- ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. CLUTCH BRAKE(BBG) BEST VALUE PARTS 		1-87610-085-0 01 1 0005-0301 ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. EXC. CLUTCH BRAKE(BBG) BEST VALUE PARTS 		1-87610-085-0 01 1 0005-0301 ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-085-0 01 1 0302- ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-085-0 01 1 9905-0004 ● ●
241 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9905-0301 ● ●
241 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0302- ● ● ●
241 CONNECTOR
(B) M14 & PT1/4 		9-48319-149-0 01 1 9905-0301 ● ●
241 CONNECTOR
(B) M14 & PT1/4 		9-48319-149-0 01 1 0302- ● ● ●
