Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11290 - CYZ RHD EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#61029) — 123 parça
◀
[110A] -'13/2 COMPONENT (18 parça)
[110A] -'13/2 FIXING (44 parça)
[110A] '13/3- COMPONENT (23 parça)
[110A] '13/3- RADIATOR SCREEN (4 parça)
[110A] '13/3- FIXING (34 parça)
▶
1
526
529
232
267
89
528
267
235
89
529
527
528
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-933-2
01
1
1009-1302
1
RADIATOR ASM
8-98221-567-2
01
1
1303-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1009-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1009-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1009-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
1009-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
1009-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
1009-
526
TANK; UPR,RADIATOR CORE
1-21414-031-1
01
1
1009-1302
526
TANK; UPR,RADIATOR CORE
1-21414-041-2
01
1
1303-
527
TANK; LWR,RADIATOR CORE
1-21415-031-2
01
1
1009-1302
527
TANK; LWR,RADIATOR CORE
1-21415-042-2
01
1
1303-
528
PLATE; SIDE,RADIATOR CORE
1-21416-134-1
01
1
1009-1302
528
PLATE; SIDE,RADIATOR CORE
8-98231-330-0
01
1
1303-
528
PLATE; SIDE,RADIATOR CORE
1-21416-135-1
01
1
1009-1302
528
PLATE; SIDE,RADIATOR CORE
8-98231-331-0
01
1
1303-
529
GASKET; CORE,RADIATOR
1-21439-121-0
02
1
1009-1302
529
GASKET; CORE,RADIATOR
1-21439-142-0
02
1
1303-

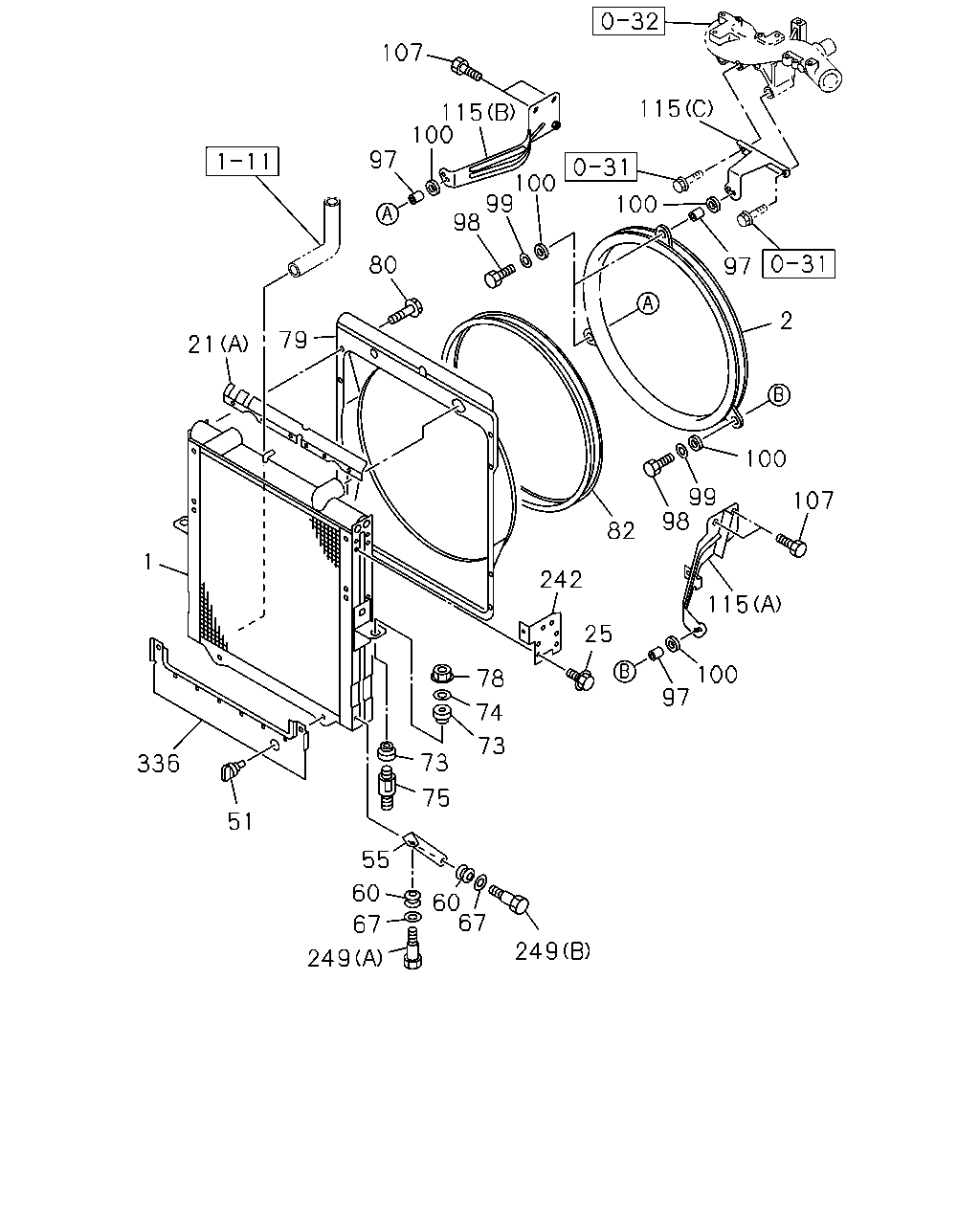

107
97
80
79
21
1
336
51
249
60
67
55
67
60
249
75
78
74
73
73
100
115
98
99
100
115
100
97
2
100
99
98
82
242
25
97
115
100
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-933-2
01
1
1009-1302
1
RADIATOR ASM
8-98221-567-2
01
1
1303-
2
GUIDE; FAN
8-98171-163-0
01
1
1009-1302
2
GUIDE; FAN
8-98212-401-0
01
1
1303-
21
SEAL; RAD
(C)
8-98228-089-0
01
1
1303-
21
SEAL; RAD
(A)
8-98165-047-0
01
1
1009-1112
21
SEAL; RAD
(A)
8-98209-255-0
01
1
1201-1302
21
SEAL; RAD
(B)
8-98219-021-1
01
1
1303-
25
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
08
1
1009-1112
25
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
08
1
1201-1302
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1009-
55
STAY; RAD TO UPR MBR
1-21464-778-0
01
1
1009-1302
55
STAY; RAD TO UPR MBR
1-21464-803-0
01
1
1303-
55
STAY; RAD TO UPR MBR
1-21464-779-0
01
1
1009-1302
55
STAY; RAD TO UPR MBR
1-21464-804-0
01
1
1303-
60
GROMMET
1-09332-117-0
04
1
1009-
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
0-91610-612-0
04
1
1009-
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
1009-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1009-
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
1009-
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91180-210-0
02
1
1009-
79
GUIDE; FAN,RAD
1-21551-546-1
01
1
1009-1302
79
GUIDE; FAN,RAD
1-21551-556-0
01
1
1303-
80
BOLT; FAN GUIDE
M8X16 FLANGE
0-28080-816-0
06
1
1009-1112
80
BOLT; FAN GUIDE
M8X16 FLANGE
0-28050-816-0
06
1
1201-
82
COVER; FAN,RAD
1-21559-491-1
01
1
1009-1302
82
COVER; FAN,RAD
8-98221-560-0
01
1
1303-
97
TUBE; DIST,FAN GUIDE
ID=11.8 L=27
1-21559-149-0
03
1
1009-
98
BOLT; RAD FAN GUIDE
M10X40 FLANGE
0-28051-040-0
02
1
1009-
98
BOLT; RAD FAN GUIDE
M10X45 FLANGE
0-28051-045-0
01
1
1009-
99
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
03
1
1009-
100
RUBBER; MTG
1-09337-017-0
06
1
1009-
107
BOLT; BRKT TO STAY
M14X25 FLANGE
0-28951-425-0
04
1
1009-
115
BRACKET; FAN GUIDE
(B)
1-21559-421-1
01
1
1009-
115
BRACKET; FAN GUIDE
(C)
1-21559-422-0
01
1
1009-1301
115
BRACKET; FAN GUIDE
(E)
8-97643-211-0
01
1
1302-
115
BRACKET; FAN GUIDE
(A)
8-97612-230-0
01
1
1009-1301
115
BRACKET; FAN GUIDE
(D)
8-97643-212-0
01
1
1302-
242
BRACKET; RAD
1-21464-808-1
01
1
1009-1302
242
BRACKET; RAD
1-21464-809-1
01
1
1009-1302
249
BOLT; STAY,RAD MBR
(A) M8X30
1-09009-020-1
02
1
1009-
249
BOLT; STAY,RAD MBR
(B) M8X26
1-09009-175-0
02
1
1009-
336
SEAL; LWR,RAD
1-21464-810-1
01
1
1009-1112
336
SEAL; LWR,RAD
8-98209-256-0
01
1
1201-1302
528
21
1
526
529
232
267
89
528
267
235
89
51
21
527
529
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-933-2
01
1
1009-1302
1
RADIATOR ASM
8-98221-567-2
01
1
1303-
21
SEAL; RAD
(C)
8-98228-089-0
01
1
1303-
21
SEAL; RAD
(A)
8-98165-047-0
01
1
1009-1112
21
SEAL; RAD
(A)
8-98209-255-0
01
1
1201-1302
21
SEAL; RAD
(B)
8-98219-021-1
01
1
1303-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1009-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1009-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1009-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1009-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
1009-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
1009-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
1009-
526
TANK; UPR,RADIATOR CORE
1-21414-031-1
01
1
1009-1302
526
TANK; UPR,RADIATOR CORE
1-21414-041-2
01
1
1303-
527
TANK; LWR,RADIATOR CORE
1-21415-031-2
01
1
1009-1302
527
TANK; LWR,RADIATOR CORE
1-21415-042-2
01
1
1303-
528
PLATE; SIDE,RADIATOR CORE
1-21416-134-1
01
1
1009-1302
528
PLATE; SIDE,RADIATOR CORE
8-98231-330-0
01
1
1303-
528
PLATE; SIDE,RADIATOR CORE
1-21416-135-1
01
1
1009-1302
528
PLATE; SIDE,RADIATOR CORE
8-98231-331-0
01
1
1303-
529
GASKET; CORE,RADIATOR
1-21439-121-0
02
1
1009-1302
529
GASKET; CORE,RADIATOR
1-21439-142-0
02
1
1303-
570
571
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-933-2
01
1
1009-1302
1
RADIATOR ASM
8-98221-567-2
01
1
1303-
570
SCREEN ASM; RADIATOR
SHORT CHASSIS & RHD(CYZ5MC)
8-98232-194-0
01
1
1303-
571
SPRING; RADIATOR SCREEN
SHORT CHASSIS & RHD(CYZ5MC)
8-98211-362-0
02
1
1303-

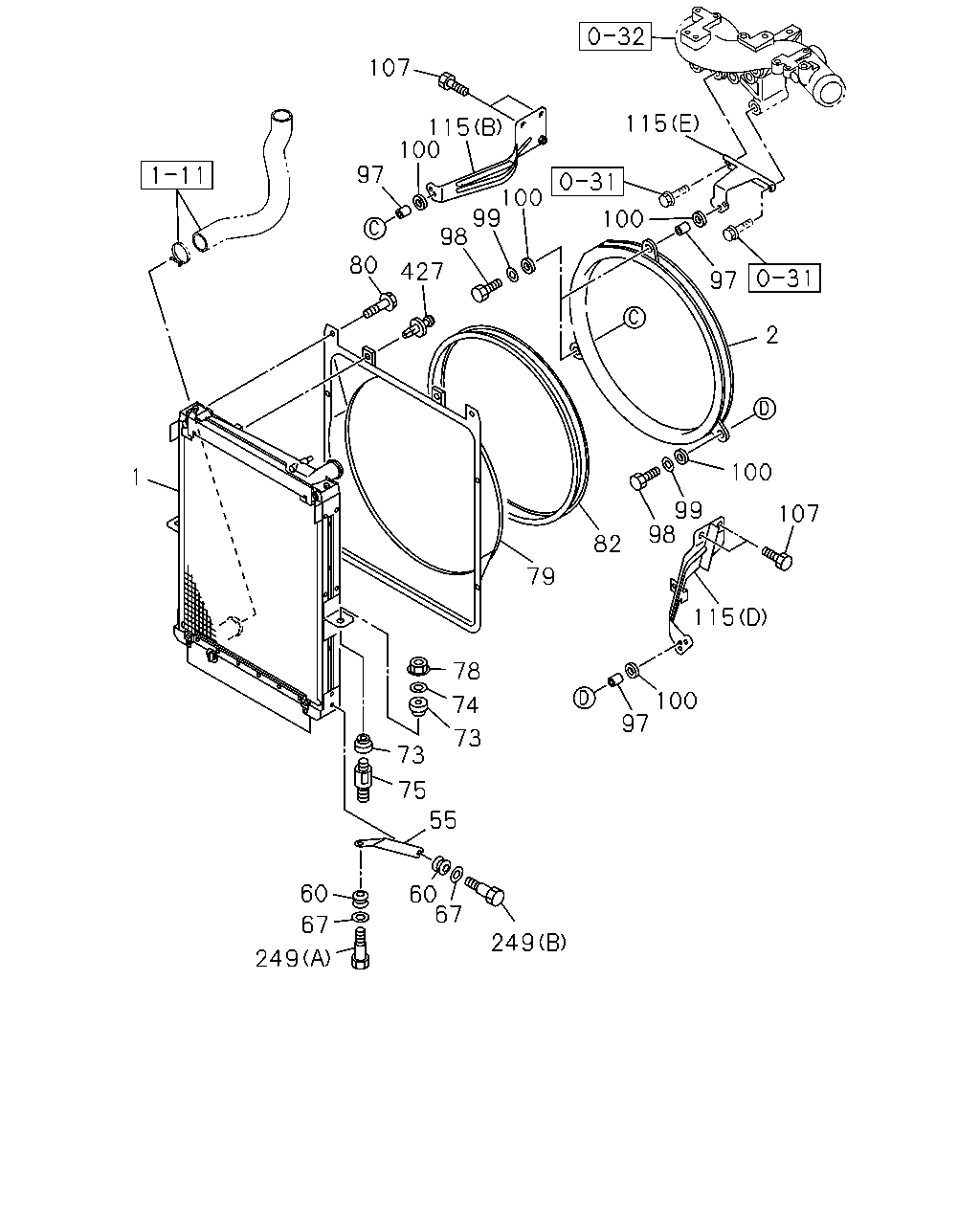

107
100
97
80
1
427
98
99
100
115
115
100
97
2
100
99
98
82
79
97
100
115
107
78
74
73
73
75
55
60
67
249
60
67
249
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-933-2
01
1
1009-1302
1
RADIATOR ASM
8-98221-567-2
01
1
1303-
2
GUIDE; FAN
8-98171-163-0
01
1
1009-1302
2
GUIDE; FAN
8-98212-401-0
01
1
1303-
55
STAY; RAD TO UPR MBR
1-21464-778-0
01
1
1009-1302
55
STAY; RAD TO UPR MBR
1-21464-803-0
01
1
1303-
55
STAY; RAD TO UPR MBR
1-21464-779-0
01
1
1009-1302
55
STAY; RAD TO UPR MBR
1-21464-804-0
01
1
1303-
60
GROMMET
1-09332-117-0
04
1
1009-
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
0-91610-612-0
04
1
1009-
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
1009-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1009-
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
1009-
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91180-210-0
02
1
1009-
79
GUIDE; FAN,RAD
1-21551-546-1
01
1
1009-1302
79
GUIDE; FAN,RAD
1-21551-556-0
01
1
1303-
80
BOLT; FAN GUIDE
M8X16 FLANGE
0-28080-816-0
06
1
1009-1112
80
BOLT; FAN GUIDE
M8X16 FLANGE
0-28050-816-0
06
1
1201-
82
COVER; FAN,RAD
1-21559-491-1
01
1
1009-1302
82
COVER; FAN,RAD
8-98221-560-0
01
1
1303-
97
TUBE; DIST,FAN GUIDE
ID=11.8 L=27
1-21559-149-0
03
1
1009-
98
BOLT; RAD FAN GUIDE
M10X40 FLANGE
0-28051-040-0
02
1
1009-
98
BOLT; RAD FAN GUIDE
M10X45 FLANGE
0-28051-045-0
01
1
1009-
99
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
03
1
1009-
100
RUBBER; MTG
1-09337-017-0
06
1
1009-
107
BOLT; BRKT TO STAY
M14X25 FLANGE
0-28951-425-0
04
1
1009-
115
BRACKET; FAN GUIDE
(B)
1-21559-421-1
01
1
1009-
115
BRACKET; FAN GUIDE
(C)
1-21559-422-0
01
1
1009-1301
115
BRACKET; FAN GUIDE
(E)
8-97643-211-0
01
1
1302-
115
BRACKET; FAN GUIDE
(A)
8-97612-230-0
01
1
1009-1301
115
BRACKET; FAN GUIDE
(D)
8-97643-212-0
01
1
1302-
249
BOLT; STAY,RAD MBR
(A) M8X30
1-09009-020-1
02
1
1009-
249
BOLT; STAY,RAD MBR
(B) M8X26
1-09009-175-0
02
1
1009-
427
CLIP; FAN GUIDE
1-09470-009-0
02
1
1303-
