Sayfa 0-61 - Isuzu EPC

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#61024) — 210 parça

9 9 18 22 9 22 99 99 9 9 22 9 22 9 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	CLIP; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	01	1	1412-	●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	1304-1304		●
9	CLIP; BATTERY CABLE WHEEL BASE 4500MM(45W) (D) ID=18 L=28	1-09701-067-0	02	1	1009-1302		●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	02	1	1009-1302	●
9	CLIP; BATTERY CABLE (B) ID=18 L=28 H=30	1-09701-110-0	01	1	1303-		●
9	CLIP; BATTERY CABLE WHEEL BASE 4900MM(49W) (D) ID=18 L=28	1-09701-067-0	03	1	1009-1302		●
9	CLIP; BATTERY CABLE (B) ID=18 L=28 H=30	1-09701-110-0	02	1	1303-	●
9	CLIP; BATTERY CABLE (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-	●	●
9	CLIP; BATTERY CABLE (C) ID=21 L=30 H=40	1-09700-991-1	01	1	1009-	●	●
9	CLIP; BATTERY CABLE (B) ID=18 L=28 H=30	1-09701-110-0	02	1	1009-1302	●	●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	03	1	1303-	●	●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	1009-1302	●	●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	03	1	1303-		●
9	CLIP; BATTERY CABLE (G) ID=21 L=24	8-94176-807-1	02	1	1009-	●	●
9	CLIP; BATTERY CABLE (E) ID=21 L=24	8-98019-191-0	01	1	1009-1302	●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	1303-1411	●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	02	1	1412-	●
18	CLIP; BATTERY CABLE ID=21 L=24	8-94176-807-1	01	1	1009-	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-1302	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	04	1	1303-		●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-1302	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-	●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	1009-1302	●	●
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	1009-1302	●	●
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	03	1	1303-	●	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	02	1	1009-1411	●	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	02	1	1412-	●	●
99	CLIP; BATTERY CABLE (B) ID=18 L=25 H=50	1-09701-096-0	02	1	1009-	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1009-	●	●

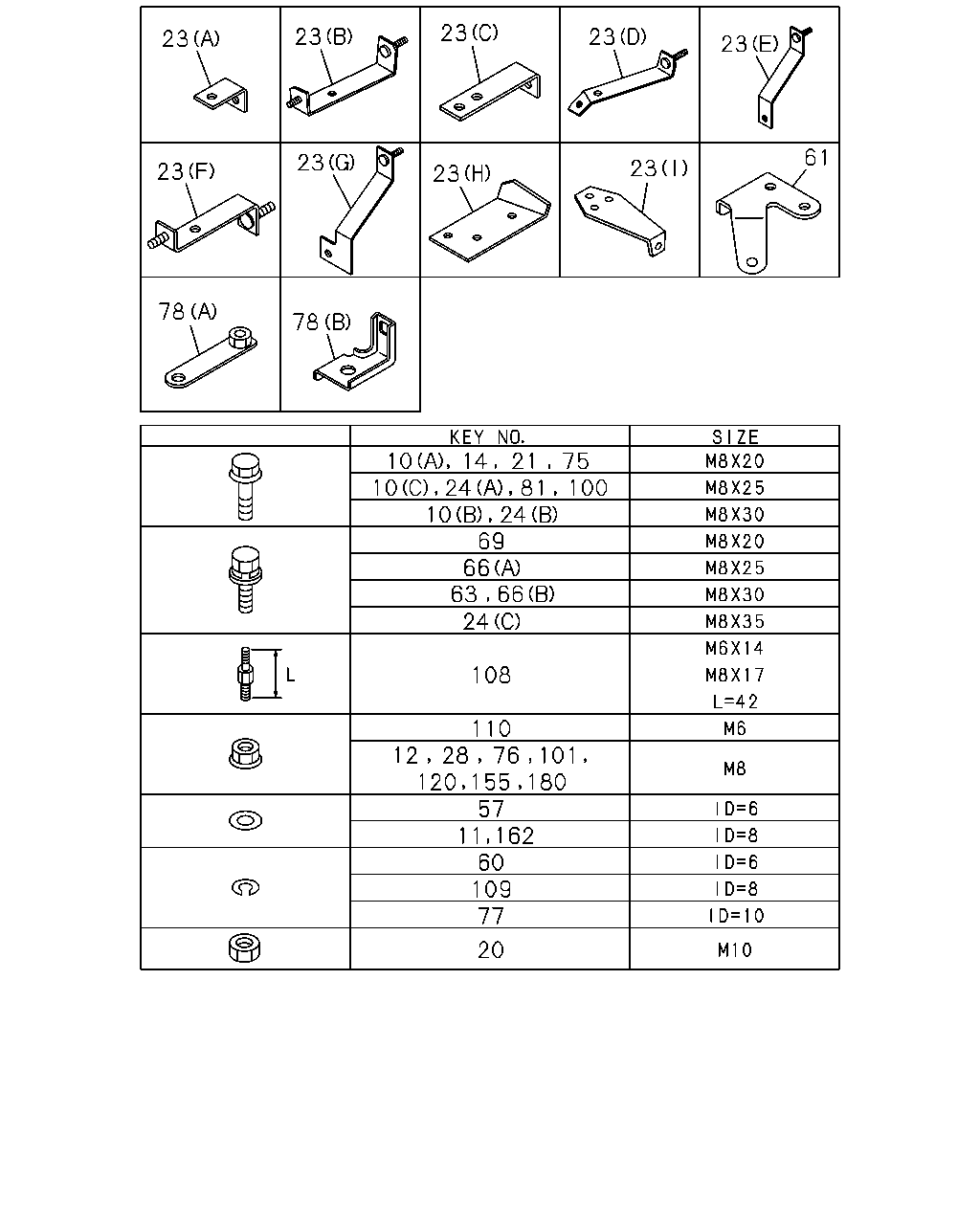

23 23 78 23 23 78 23 23 23 23 23 61 10 14 21 75 10 24 81 100 10 24 60 66 63 66 24 108 110 12 28 76 101 120 155 180 57 11 162 60 109 77 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	BOLT; BATTERY CABLE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	1303-1411	●
10	BOLT; BATTERY CABLE CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X30 FLANGE	0-28650-830-0	02	1	1412-	●
10	BOLT; BATTERY CABLE CLIP (A) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302	●	●
10	BOLT; BATTERY CABLE CLIP (C) M8X25 FLANGE	0-28650-825-0	05	1	1303-	●	●
10	BOLT; BATTERY CABLE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	1009-1302	●	●
10	BOLT; BATTERY CABLE CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	1303-		●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1009-	●	●
12	NUT; BATTERY CABLE CLIP WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	07	1	1009-1302		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	08	1	1303-1411	●
12	NUT; BATTERY CABLE CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	08	1	1412-1510	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	08	1	1511-	●
12	NUT; BATTERY CABLE CLIP WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	08	1	1009-1302		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	08	1	1009-1302	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	07	1	1303-1411		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	07	1	1412-1510		●
12	NUT; BATTERY CABLE CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	07	1	1412-1510	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	07	1	1511-		●
14	BOLT; BRKT CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	01	1	1412-	●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	01	1	1304-1304		●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-1302		●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-1303	●	●
20	NUT; STARTER CABLE M10	8-98011-328-0	01	1	1009-	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
23	BRACKET; CABLE CLIP TO FRAME MIXER TRUCK<RA2> (C) L=95	1-82698-557-0	01	1	1009-1302		●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82698-557-0	01	1	1303-	●	●
23	BRACKET; CABLE CLIP TO FRAME MIXER TRUCK<RA2> (G)	1-82698-628-0	01	1	1009-1302		●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4500MM(45W) (F)	1-82698-590-0	01	1	1009-1302		●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4900MM(49W) (B)	1-82698-589-0	01	1	1009-1302		●
23	BRACKET; CABLE CLIP TO FRAME (B)	1-82698-589-0	01	1	1009-1302	●
23	BRACKET; CABLE CLIP TO FRAME (B)	1-82698-589-0	01	1	1303-	●	●
23	BRACKET; CABLE CLIP TO FRAME (A) L=40	1-47478-410-0	01	1	1009-	●	●
23	BRACKET; CABLE CLIP TO FRAME (D)	1-82698-574-0	01	1	1009-	●	●
23	BRACKET; CABLE CLIP TO FRAME (H)	8-98062-598-0	01	1	1009-	●	●
23	BRACKET; CABLE CLIP TO FRAME EXC. MIXER TRUCK<RA2> (C) L=95	1-82698-557-0	02	1	1009-1302		●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82698-557-0	02	1	1009-1302	●
23	BRACKET; CABLE CLIP TO FRAME (I)	8-98171-604-0	01	1	1303-	●	●
23	BRACKET; CABLE CLIP TO FRAME EXC. MIXER TRUCK<RA2> (E)	1-82698-575-1	01	1	1009-1302		●
23	BRACKET; CABLE CLIP TO FRAME (E)	1-82698-575-1	01	1	1009-1302	●
23	BRACKET; CABLE CLIP TO FRAME (E)	1-82698-575-1	01	1	1303-	●	●
24	BOLT; BRKT TO FRAME EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X30 FLANGE	0-28650-830-0	02	1	1511-	●
24	BOLT; BRKT TO FRAME EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M8X35 FLANGE	0-28650-835-0	02	1	1511-	●
24	BOLT; BRKT TO FRAME WHEEL BASE 4500MM(45W) (B) M8X30 FLANGE	0-28650-830-0	03	1	1009-1302		●
24	BOLT; BRKT TO FRAME (B) M8X30 FLANGE	0-28650-830-0	04	1	1303-1411	●	●
24	BOLT; BRKT TO FRAME (B) M8X30 FLANGE	0-28650-830-0	04	1	1412-		●
24	BOLT; BRKT TO FRAME HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X30 FLANGE	0-28650-830-0	04	1	1412-	●
24	BOLT; BRKT TO FRAME WHEEL BASE 4900MM(49W) (B) M8X30 FLANGE	0-28650-830-0	04	1	1009-1302		●
24	BOLT; BRKT TO FRAME (B) M8X30 FLANGE	0-28650-830-0	04	1	1009-1302	●
24	BOLT; BRKT TO FRAME (A) M8X25 FLANGE	0-28650-825-0	01	1	1009-1302	●	●
24	BOLT; BRKT TO FRAME (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-	●	●
28	NUT; BRKT TO FRAME WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	05	1	1009-1302		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	05	1	1303-	●	●
28	NUT; BRKT TO FRAME WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	06	1	1009-1302		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	06	1	1009-1302	●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	1009-1302	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	0-91614-506-0	01	1	1303-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1009-	●	●
61	BRACKET; BATTERY CABLE	8-97632-262-1	01	1	1009-	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1009-	●	●
66	BOLT; COVER,BATTERY RELAY (A) M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-1302	●	●
66	BOLT; COVER,BATTERY RELAY (B) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1303-	●	●
75	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	1009-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1511-	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	02	1	1009-1302		●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	07	1	1303-		●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1009-1302	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	04	1	1303-1411	●
76	NUT; BATTERY CABLE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	04	1	1412-1510	●
76	NUT; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	01	1	1511-	●
77	WASHER; LK,STARTER CABLE ID=10.2	0-91510-610-0	01	1	1009-	●	●
78	BRACKET; CLIP BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (A)	1-47476-396-1	01	1	1412-	●
78	BRACKET; CLIP BATTERY (A)	1-47476-396-1	01	1	1304-1304		●
78	BRACKET; CLIP BATTERY (A)	1-47476-396-1	01	1	1009-1302		●
78	BRACKET; CLIP BATTERY (B)	8-97304-944-0	01	1	1303-1303	●	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	02	1	1303-	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	03	1	1009-1302	●	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	05	1	1303-		●
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	04	1	1009-	●	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	1009-	●	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1009-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1009-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1009-	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	01	1	1009-1302	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	1303-	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1009-	●	●
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	1009-1302	●	●
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	1303-	●	●

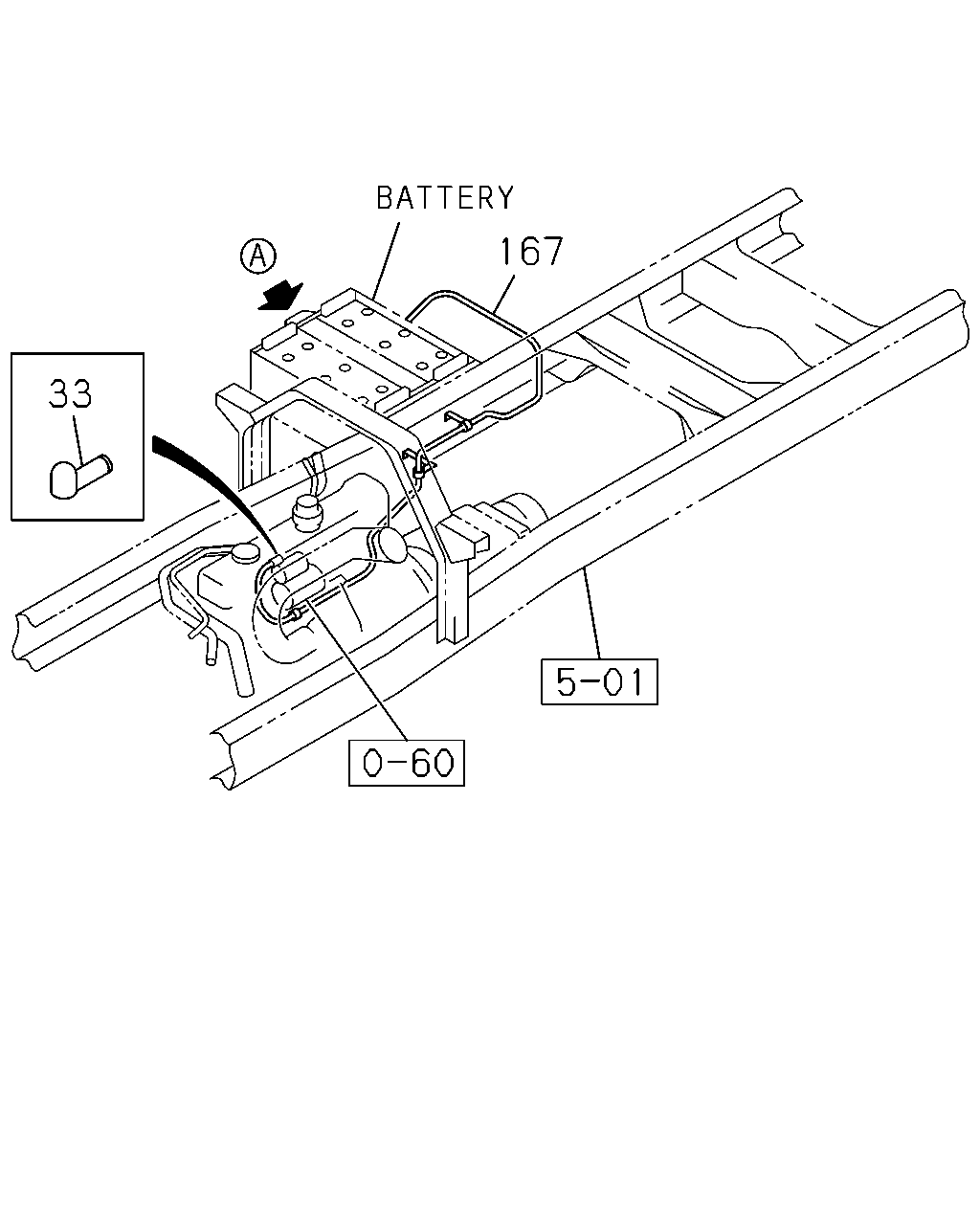

33 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	CAP; INSULATOR	8-97181-965-0	01	1	1009-	●	●
167	CABLE; BATTERY RELAY TO STARTER EXC. BATTERY LAYOUT REAR VAR1<NCT>	8-98240-978-0	01	1	1412-1510	●
167	CABLE; BATTERY RELAY TO STARTER MIXER TRUCK<RA2>	8-97632-941-0	01	1	1009-1302		●
167	CABLE; BATTERY RELAY TO STARTER	8-98236-453-0	01	1	1303-		●
167	CABLE; BATTERY RELAY TO STARTER EXC. MIXER TRUCK<RA2>	8-97632-939-0	01	1	1009-1302		●
167	CABLE; BATTERY RELAY TO STARTER	8-97632-940-0	01	1	1009-1302	●
167	CABLE; BATTERY RELAY TO STARTER	8-98223-228-0	01	1	1303-1411	●
167	CABLE; BATTERY RELAY TO STARTER BATTERY LAYOUT REAR VAR1<NCT>	8-98223-228-0	01	1	1412-	●

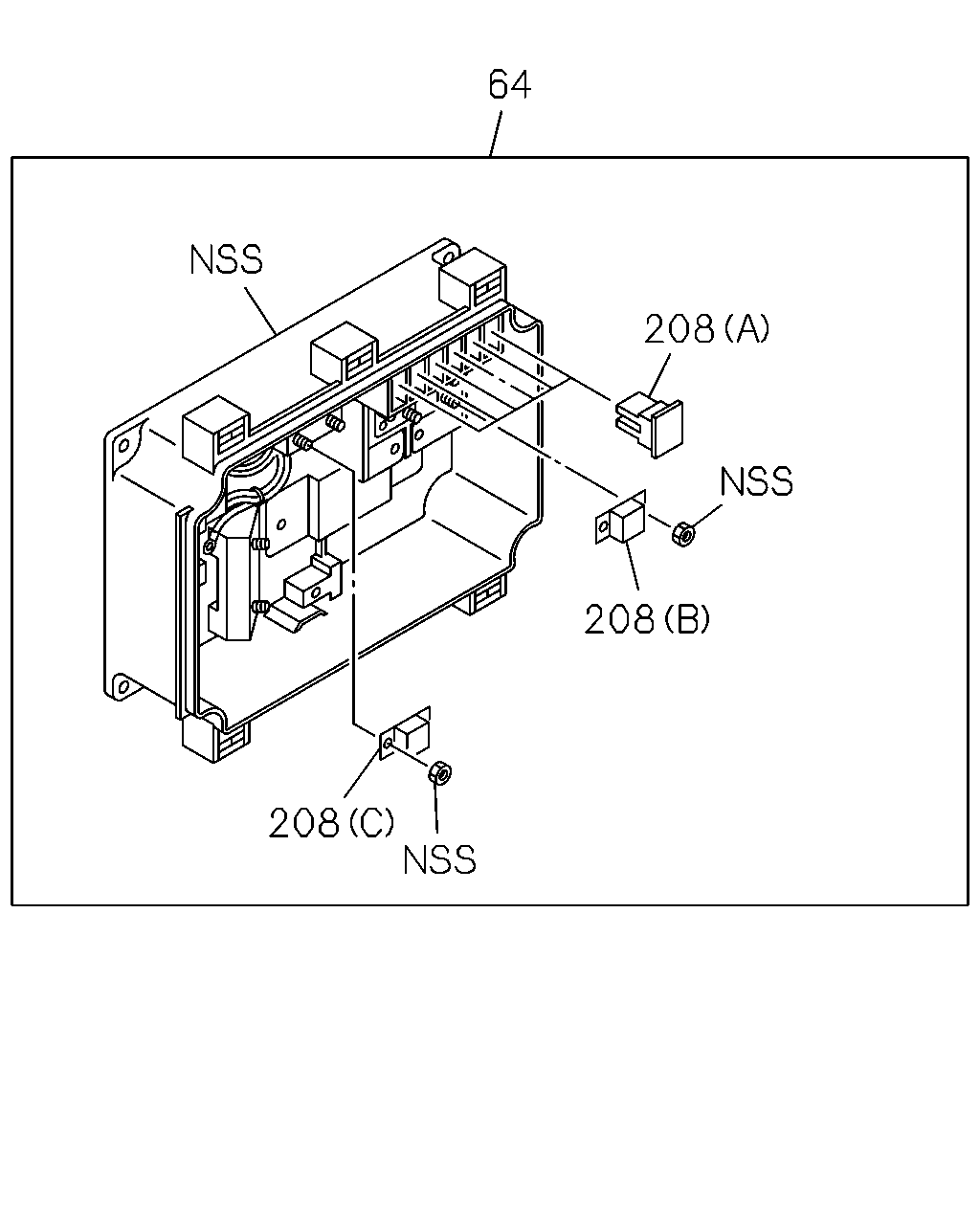

64 208 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	BOX; BATTERY RELAY	1-82510-648-0	01	1	1009-		●
64	BOX; BATTERY RELAY EXC. SMOOTHER-G(C1W)	1-82510-648-0	01	1	1009-	●
64	BOX; BATTERY RELAY SMOOTHER-G(C1W)	1-82510-650-0	01	1	1009-	●
208	FUSE (C) 80A	1-82516-031-0	01	1	1009-	●	●
208	FUSE (B) 100A	1-82516-032-0	01	1	1009-	●	●
208	FUSE (A) 40A GREEN	8-94468-662-0	05	1	1009-		●
208	FUSE EXC. SMOOTHER-G(C1W) (A) 40A GREEN	8-94468-662-0	05	1	1009-	●
208	FUSE SMOOTHER-G(C1W) (A) 40A GREEN	8-94468-662-0	06	1	1009-	●

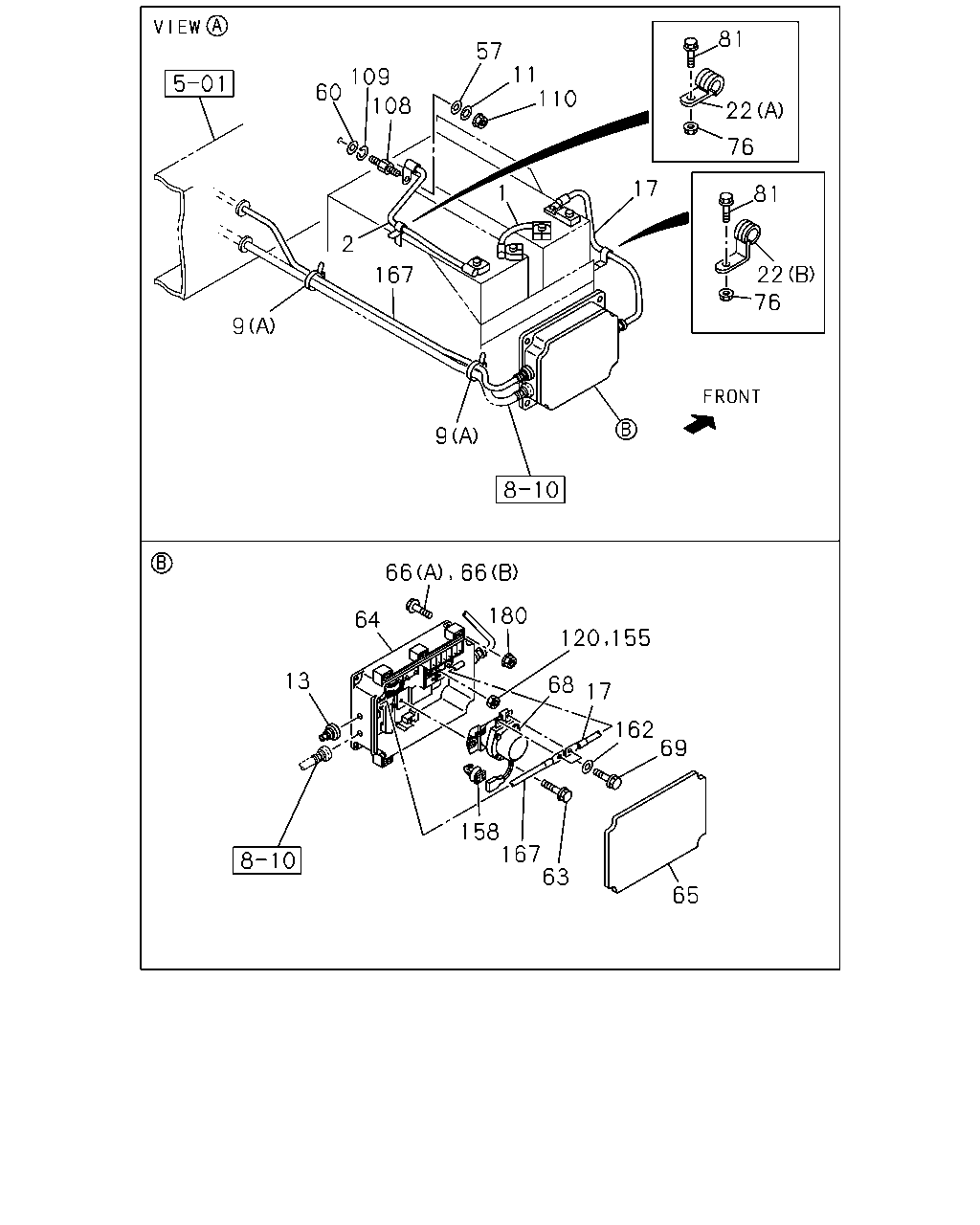

9 17 81 76 22 76 22 81 110 11 57 108 109 60 2 9 167 1 155 120 180 66 64 13 158 167 63 65 69 162 17 68 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	1009-1302	●	●
1	CABLE; BATTERY L=265	1-82650-388-1	01	1	1303-	●	●
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8> L=450	1-82650-389-1	01	1	1009-1302	●	●
2	CABLE; BATTERY L=720	1-82650-384-1	01	1	1009-1302		●
2	CABLE; BATTERY L=710	8-98219-867-0	01	1	1303-1411		●
2	CABLE; BATTERY L=710	8-98219-867-0	01	1	1412-		●
2	CABLE; BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> L=710	8-98219-867-0	01	1	1412-	●
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	1009-1302	●
2	CABLE; BATTERY L=640	8-98223-230-0	01	1	1303-1411	●
2	CABLE; BATTERY BATTERY LAYOUT REAR VAR1<NCT> L=640	8-98223-230-0	01	1	1412-	●
9	CLIP; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	01	1	1412-	●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	1304-1304		●
9	CLIP; BATTERY CABLE WHEEL BASE 4500MM(45W) (D) ID=18 L=28	1-09701-067-0	02	1	1009-1302		●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	02	1	1009-1302	●
9	CLIP; BATTERY CABLE (B) ID=18 L=28 H=30	1-09701-110-0	01	1	1303-		●
9	CLIP; BATTERY CABLE WHEEL BASE 4900MM(49W) (D) ID=18 L=28	1-09701-067-0	03	1	1009-1302		●
9	CLIP; BATTERY CABLE (B) ID=18 L=28 H=30	1-09701-110-0	02	1	1303-	●
9	CLIP; BATTERY CABLE (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-	●	●
9	CLIP; BATTERY CABLE (C) ID=21 L=30 H=40	1-09700-991-1	01	1	1009-	●	●
9	CLIP; BATTERY CABLE (B) ID=18 L=28 H=30	1-09701-110-0	02	1	1009-1302	●	●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	03	1	1303-	●	●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	1009-1302	●	●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	03	1	1303-		●
9	CLIP; BATTERY CABLE (G) ID=21 L=24	8-94176-807-1	02	1	1009-	●	●
9	CLIP; BATTERY CABLE (E) ID=21 L=24	8-98019-191-0	01	1	1009-1302	●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	1303-1411	●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	02	1	1412-	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1009-	●	●
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	1009-	●	●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	1009-1302	●	●
17	CABLE; BATTERY (+) TO RELAY L=480	8-98198-310-0	01	1	1303-1303	●	●
17	CABLE; BATTERY (+) TO RELAY L=480	8-98239-412-0	01	1	1303-	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-1302	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	04	1	1303-		●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-1302	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-	●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	1009-1302	●	●
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	1009-1302	●	●
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	03	1	1303-	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	1009-1302	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	0-91614-506-0	01	1	1303-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1009-	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1009-	●	●
64	BOX; BATTERY RELAY	1-82510-648-0	01	1	1009-		●
64	BOX; BATTERY RELAY EXC. SMOOTHER-G(C1W)	1-82510-648-0	01	1	1009-	●
64	BOX; BATTERY RELAY SMOOTHER-G(C1W)	1-82510-650-0	01	1	1009-	●
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	1009-	●	●
66	BOLT; COVER,BATTERY RELAY (A) M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-1302	●	●
66	BOLT; COVER,BATTERY RELAY (B) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1303-	●	●
68	RELAY; BATTERY	1-82550-313-0	01	1	1009-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1009-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1511-	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	02	1	1009-1302		●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	07	1	1303-		●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1009-1302	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	04	1	1303-1411	●
76	NUT; BATTERY CABLE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	04	1	1412-1510	●
76	NUT; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	01	1	1511-	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	02	1	1303-	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	03	1	1009-1302	●	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	05	1	1303-		●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1009-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1009-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1009-	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	01	1	1009-1302	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	1303-	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1009-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1009-	●	●
167	CABLE; BATTERY RELAY TO STARTER EXC. BATTERY LAYOUT REAR VAR1<NCT>	8-98240-978-0	01	1	1412-1510	●
167	CABLE; BATTERY RELAY TO STARTER MIXER TRUCK<RA2>	8-97632-941-0	01	1	1009-1302		●
167	CABLE; BATTERY RELAY TO STARTER	8-98236-453-0	01	1	1303-		●
167	CABLE; BATTERY RELAY TO STARTER EXC. MIXER TRUCK<RA2>	8-97632-939-0	01	1	1009-1302		●
167	CABLE; BATTERY RELAY TO STARTER	8-97632-940-0	01	1	1009-1302	●
167	CABLE; BATTERY RELAY TO STARTER	8-98223-228-0	01	1	1303-1411	●
167	CABLE; BATTERY RELAY TO STARTER BATTERY LAYOUT REAR VAR1<NCT>	8-98223-228-0	01	1	1412-	●
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	1009-1302	●	●
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	1303-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
