◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#61016) — 81 parça

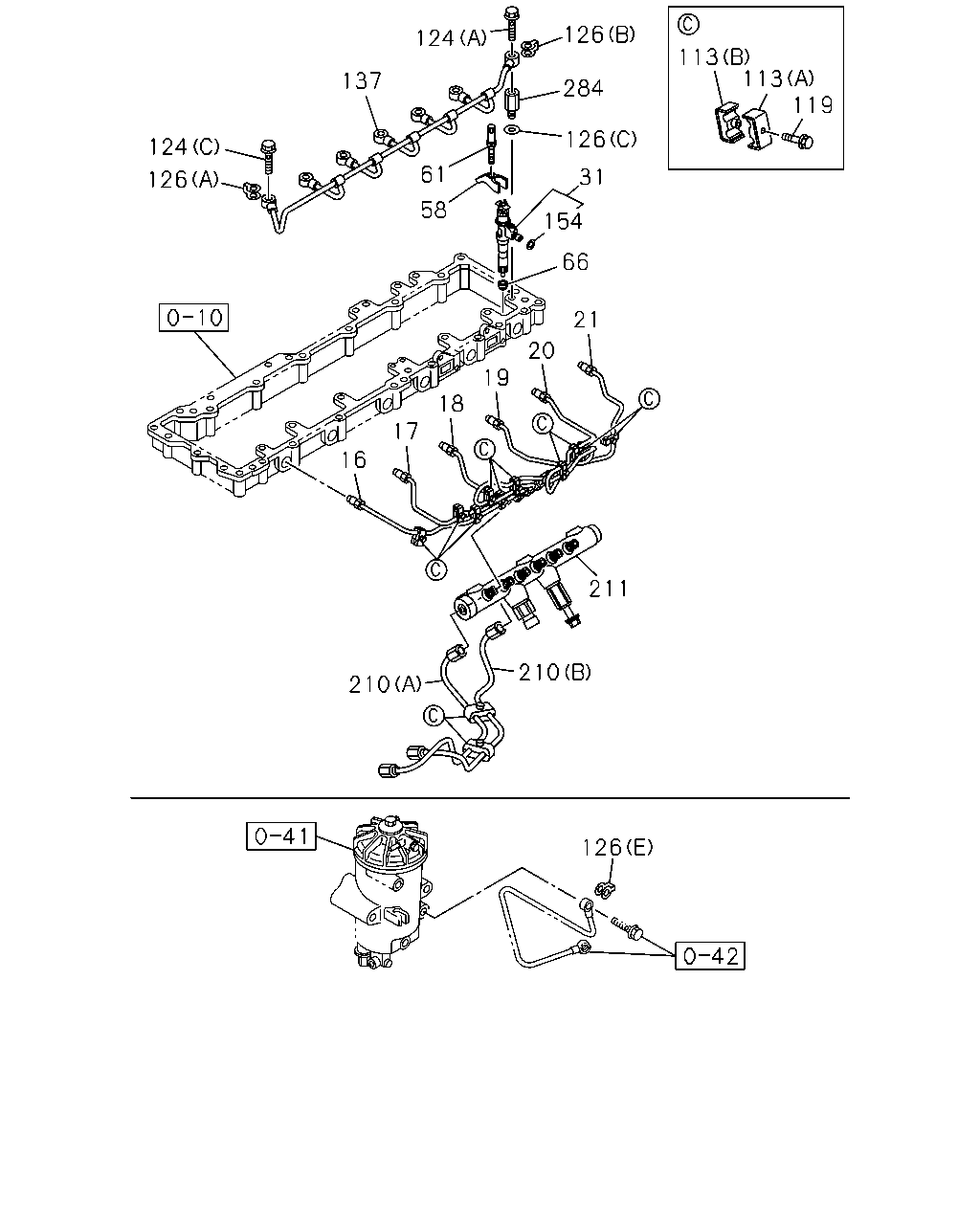

çizim 168412
124 137 124 126 61 58 154 66 31 126 284 126 113 113 119 20 21 19 16 17 18 210 126 210 211
BalonParca AdiParca NoAdetTipApplied Date
16 PIPE; INJ NO.1 8-97628-190-1 01 1 1009-
17 PIPE; INJ NO.2 8-97628-191-1 01 1 1009-
18 PIPE; INJ NO.3 8-97628-192-1 01 1 1009-
19 PIPE; INJ NO.4 8-97628-193-1 01 1 1009-
20 PIPE; INJ NO.5 8-97628-194-1 01 1 1009-
21 PIPE; INJ NO.6 8-97628-195-1 01 1 1009-
31 NOZZLE ASM; INJ 8-98139-816-3 06 1 1009-
58 FLANGE; INJ,NOZZLE HOLDER 8-97603-469-0 06 1 1009-
61 BOLT; CLAMP NOZZLE HOLDER 1-09070-121-0 06 1 1009-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10 		8-97216-082-0 06 1 1009-
113 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 12 1 1009-
113 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 12 1 1009-
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28050-630-0 12 1 1009-
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1009-
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1009-
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 1009-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 02 1 1009-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=14.2 OD=21 		8-97251-047-0 01 1 1009-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=20 		8-98065-990-0 01 1 1009-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1009-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6 		8-98065-993-0 01 1 1009-
137 PIPE ASM; LEAK OFF 8-97617-161-0 01 1 1009-
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 1009-1106
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1107-
210 PIPE; INJ,C/R
(A) 		8-97628-196-0 01 1 1009-
210 PIPE; INJ,C/R
(B) 		8-97628-197-0 01 1 1009-
211 RAIL ASM; COMMON 8-97622-718-1 01 1 1009-1501
211 RAIL ASM; COMMON 8-98299-773-0 01 1 1502-
284 ADAPTER; FUEL LEAK OFF 1-15419-525-2 01 1 1009-

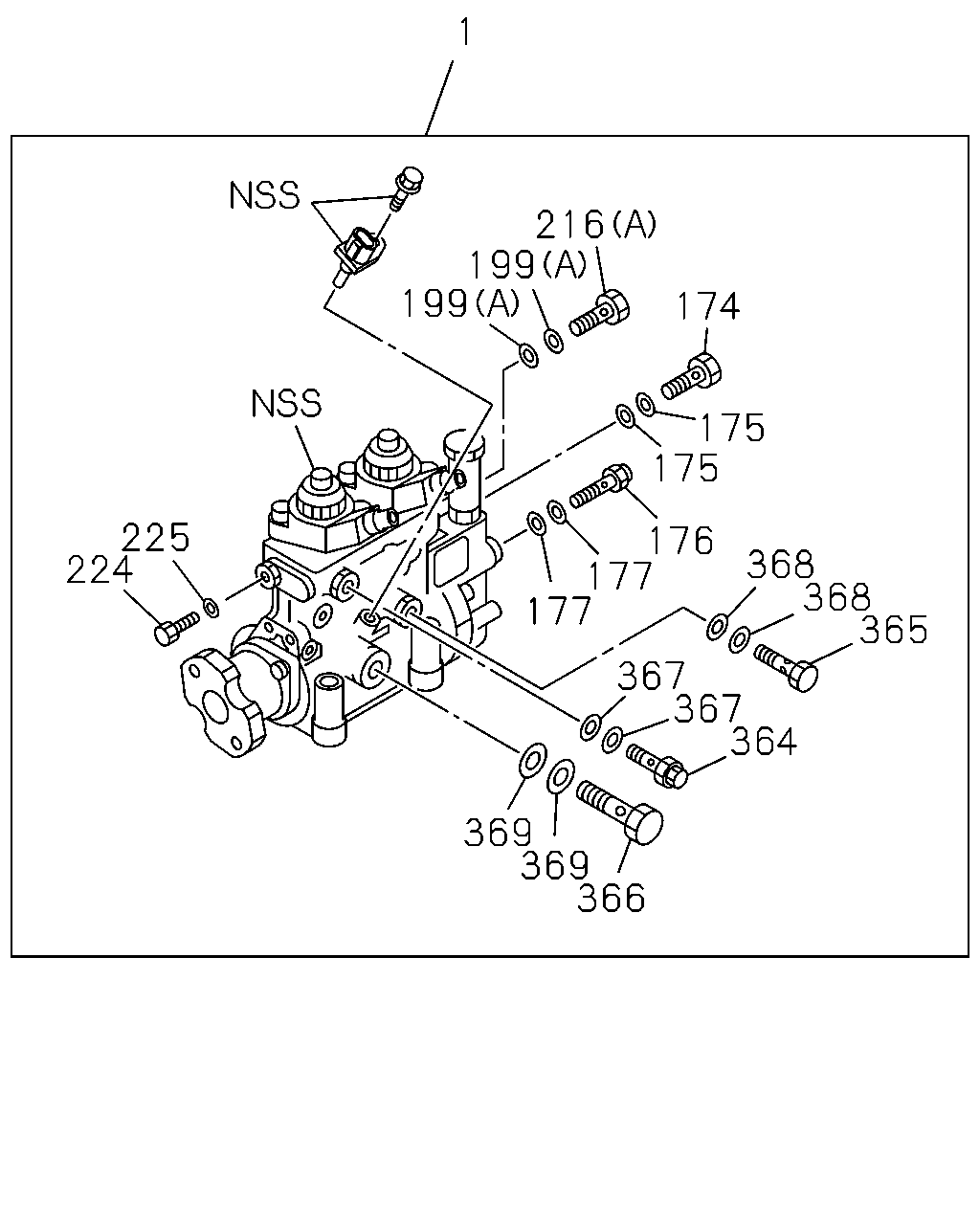

çizim 168705
216 199 199 175 175 176 177 177 368 365 367 367 364 369 369 366 368 224 225 174 1
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-98167-763-0 01 1 1009-
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 1009-
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-507-0 02 1 1009-
176 BOLT; EYE,FEED PUMP 1-15619-509-0 01 1 1009-
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 1009-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1009-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 1009-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1009-
216 BOLT; EYE
(B) 		8-98043-033-0 01 1 1009-
224 PLUG; INJ PUMP 1-15619-500-0 01 1 1009-
225 GASKET; PLUG 1-15619-502-0 01 1 1009-
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 1009-
365 BOLT; EYE,OIL INLET 9-88130-088-0 01 1 1009-
366 BOLT; EYE,OIL OUTLET 1-15619-497-0 01 1 1009-
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 1009-
368 GASKET; EYE BOLT,OIL INLET 1-15619-508-0 02 1 1009-
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-504-0 02 1 1009-

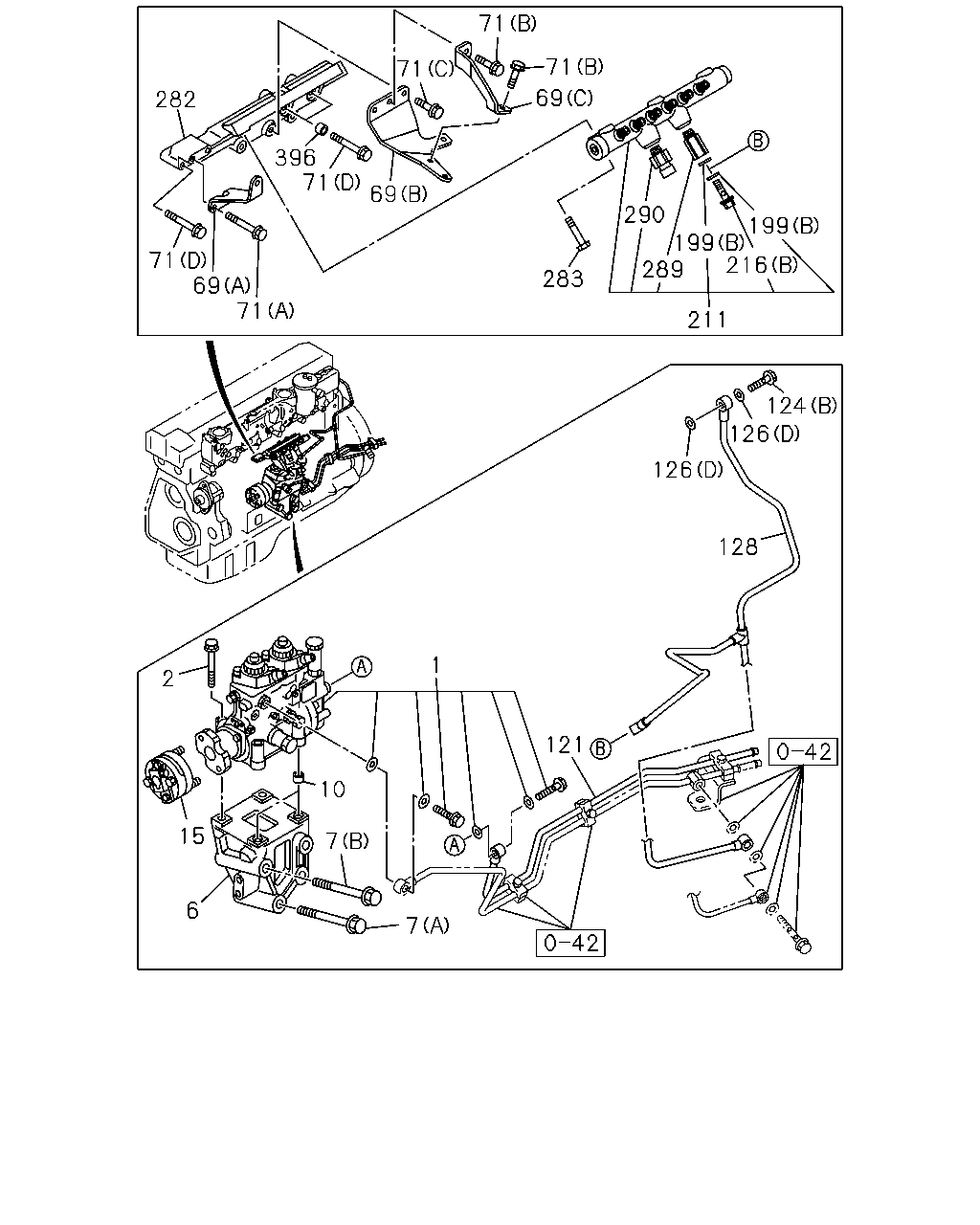

çizim 168727
71 71 71 69 69 71 396 71 71 69 282 283 290 289 211 216 199 199 124 126 126 128 121 1 7 7 10 6 15 2
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-98167-763-0 01 1 1009-
2 BOLT; INJ PUMP
M10X100 FLANGE 		0-28151-000-0 04 1 1009-
6 BRACKET; INJ PUMP TO C/BL 8-98147-419-0 01 1 1009-
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28951-490-0 02 1 1009-
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28956-412-0 02 1 1009-
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 1009-
15 COUPLING ASM; INJ PUMP 8-97610-800-0 01 1 1009-
69 BRACKET; INJ PIPE CLIP
(B) 		8-98098-854-0 01 1 1009-
69 BRACKET; INJ PIPE CLIP
(C) 		8-98119-361-0 01 1 1009-
69 BRACKET; INJ PIPE CLIP
(A) 		8-98167-672-0 01 1 1009-
71 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1009-
71 BOLT; BRKT
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1009-
71 BOLT; BRKT
(C) M10X20 FLANGE 		0-28151-020-0 02 1 1009-
71 BOLT; BRKT
(D) M10X60 FLANGE 		0-28151-060-0 03 1 1009-
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97629-193-0 01 1 1009-
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1009-
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1009-
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 1009-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 02 1 1009-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=14.2 OD=21 		8-97251-047-0 01 1 1009-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=20 		8-98065-990-0 01 1 1009-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1009-
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6 		8-98065-993-0 01 1 1009-
128 PIPE ASM; INJ 8-98162-864-0 01 1 1009-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1009-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 1009-
211 RAIL ASM; COMMON 8-97622-718-1 01 1 1009-1501
211 RAIL ASM; COMMON 8-98299-773-0 01 1 1502-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1009-
216 BOLT; EYE
(B) 		8-98043-033-0 01 1 1009-
282 BRACKET; COMMON RAIL 8-98098-852-0 01 1 1009-
283 BOLT; COMMON RAIL
M10X50 FLANGE 		0-28151-050-0 02 1 1009-
289 LIMITER; FUEL PRESS 8-98097-606-0 01 1 1009-
290 SENSOR; PRESS 8-97318-684-0 01 1 1009-
396 DOWEL; RAIL ASM 1-13119-004-0 02 1 1009-
