Sayfa 0-39 - Isuzu EPC

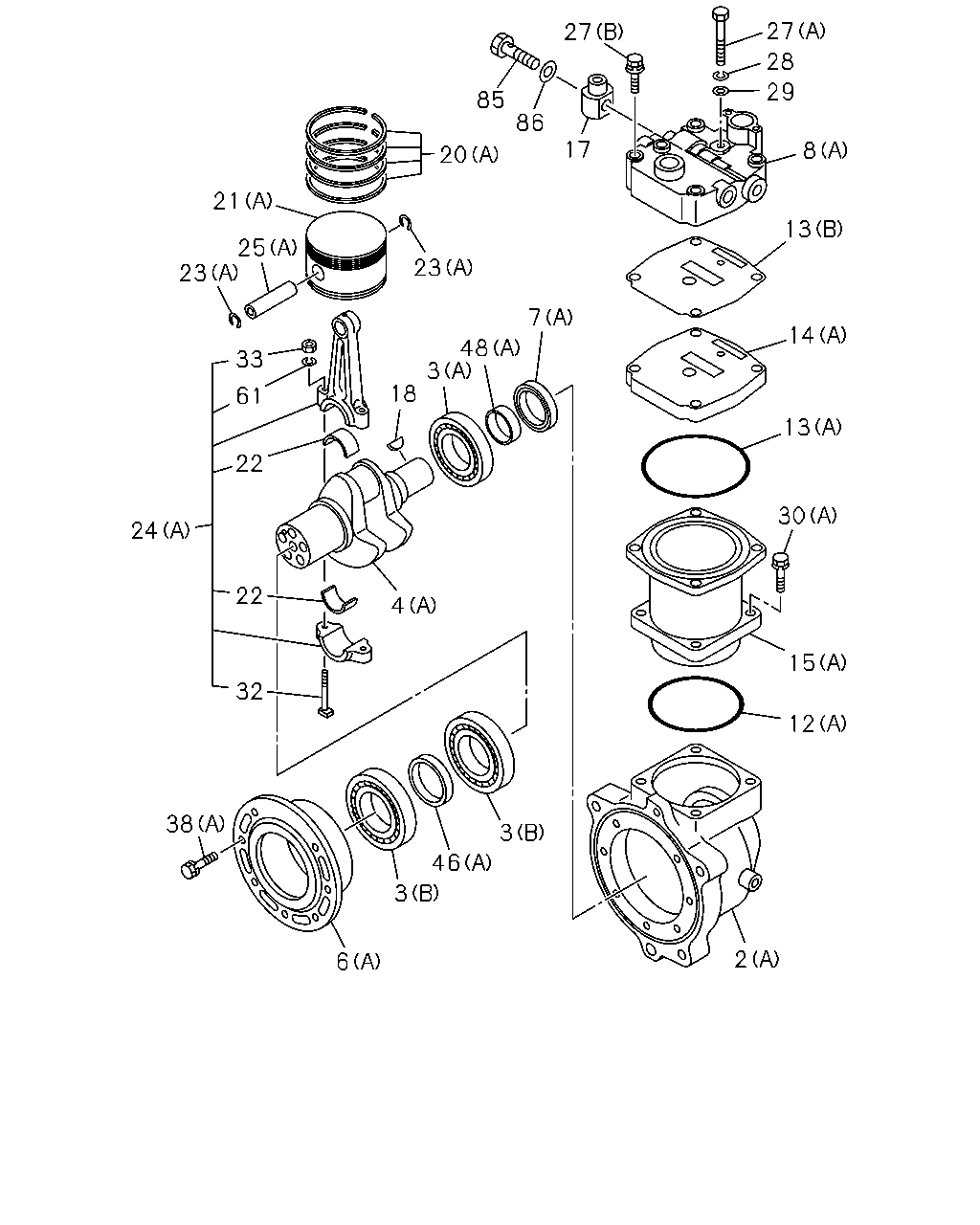

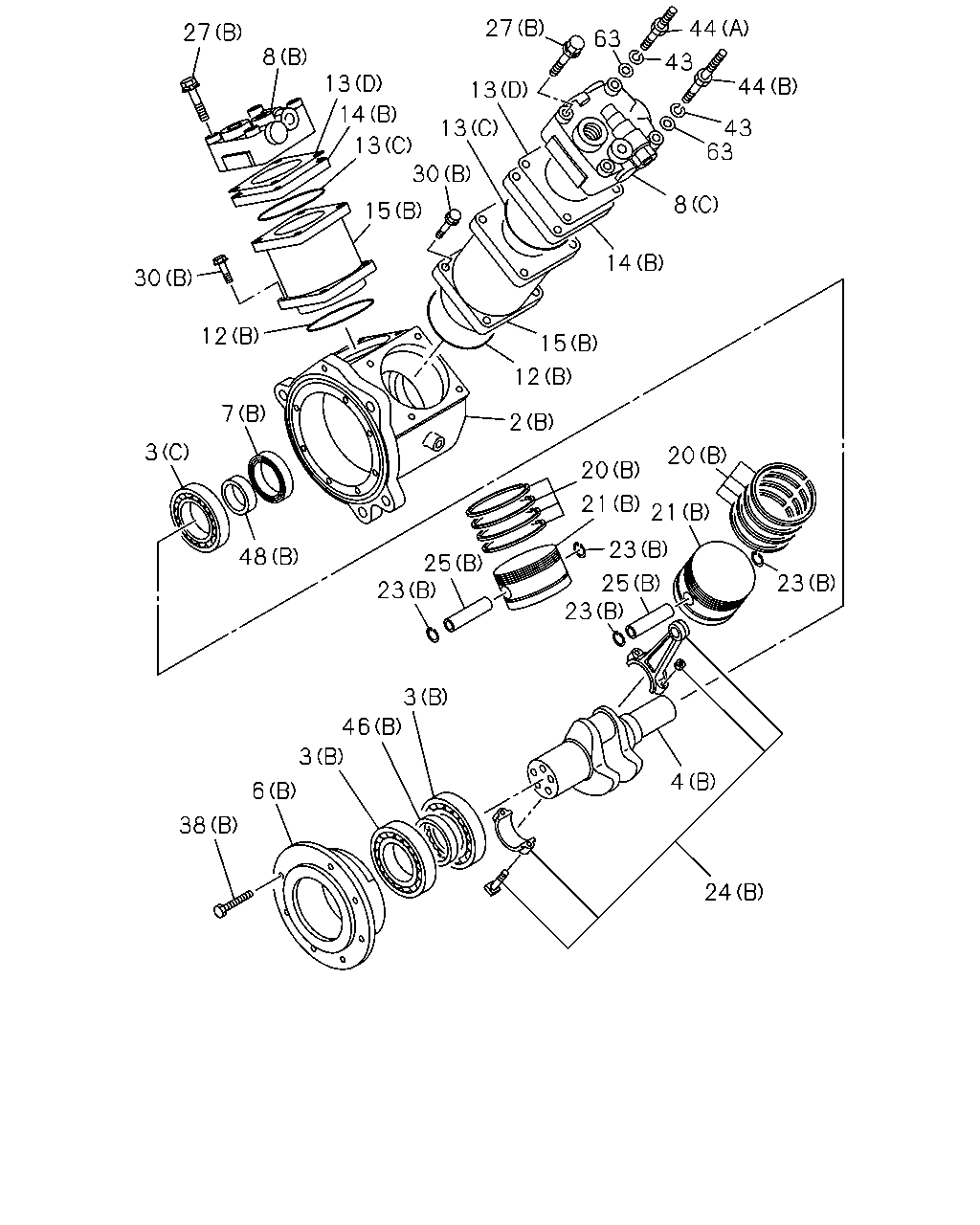

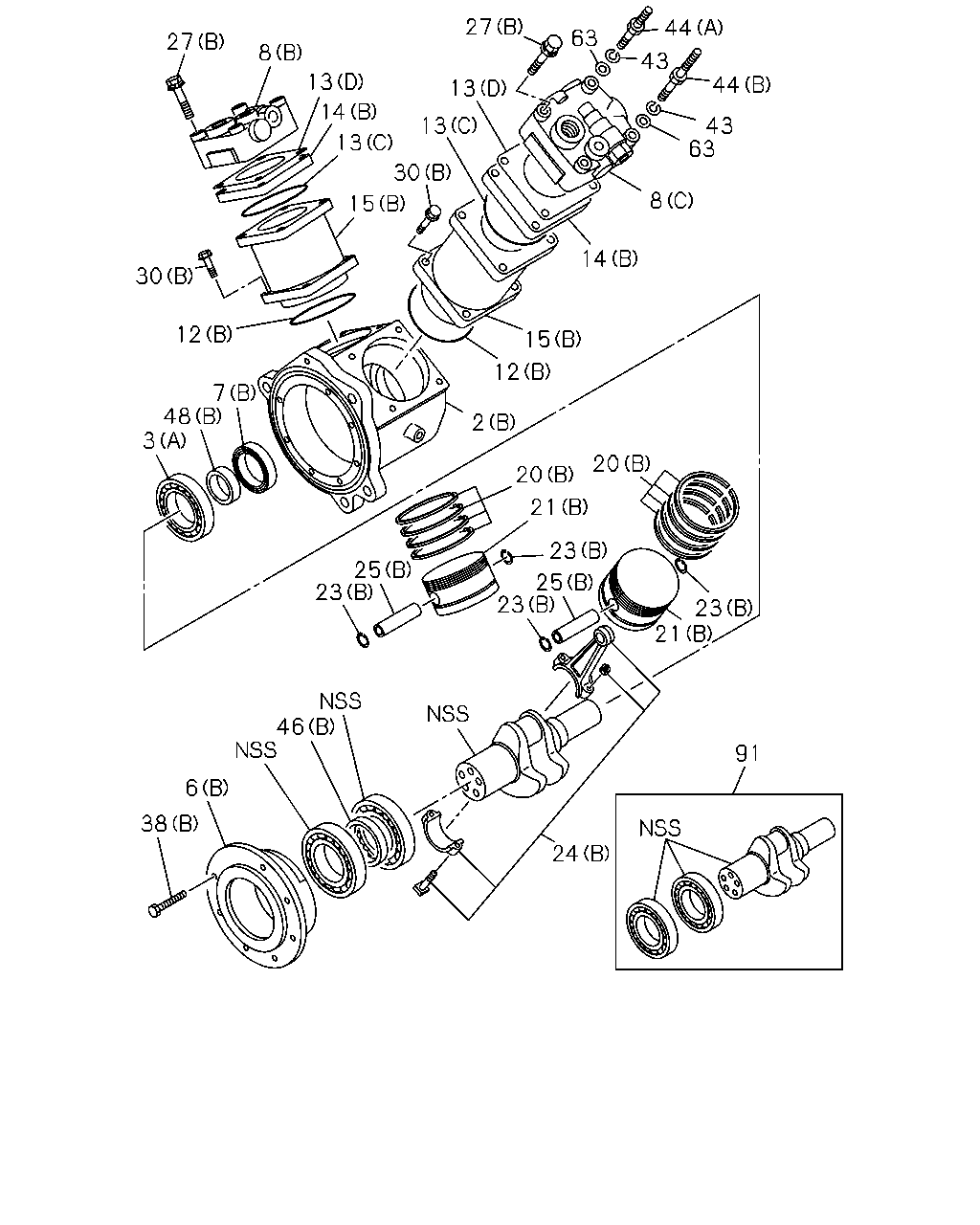

0-39 — AIR COMPRESSOR; BRAKE (#61015) — 331 parça

38 6 3 3 46 2 12 15 30 13 14 13 8 29 28 27 27 17 86 85 20 23 7 48 3 18 21 25 23 33 61 22 24 22 32 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CRANKCASE; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19151-269-6	01	1	1303-
2	CRANKCASE; AIR CMPR (A)	1-19151-286-3	01	1	1009-1302
2	CRANKCASE; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19151-286-3	01	1	1303-1411
2	CRANKCASE; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19151-286-3	01	1	1412-
3	BEARING; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-09800-232-0	01	1	1303-
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	1009-1406
3	BEARING; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B)	1-09800-246-0	02	1	1407-1411
3	BEARING; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-09800-246-0	02	1	1412-
3	BEARING; AIR CMPR (A)	8-98171-672-0	01	1	1009-1302
3	BEARING; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	8-98171-672-0	01	1	1303-1411
3	BEARING; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98171-672-0	01	1	1412-
4	CRANKSHAFT; AIR CMPR SHORT CHASSIS & RHD(CYZ5MC) (B)	1-19171-088-0	01	1	1303-1406
4	CRANKSHAFT; AIR CMPR (A)	1-19171-080-0	01	1	1009-1302
4	CRANKSHAFT; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19171-080-0	01	1	1303-1411
4	CRANKSHAFT; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19171-080-0	01	1	1412-
6	COVER ASM; BRG,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19156-068-1	01	1	1303-
6	COVER ASM; BRG,AIR CMPR (A)	1-19156-079-1	01	1	1009-1302
6	COVER ASM; BRG,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19156-079-1	01	1	1303-1411
6	COVER ASM; BRG,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19156-079-1	01	1	1412-
7	SEAL; OIL,BRG COVER,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-09625-534-0	01	1	1303-
7	SEAL; OIL,BRG COVER,AIR CMPR (A)	1-09625-619-0	01	1	1009-1302
7	SEAL; OIL,BRG COVER,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-09625-619-0	01	1	1303-1411
7	SEAL; OIL,BRG COVER,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09625-619-0	01	1	1412-
8	HEAD ASM; CYL,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19110-073-0	01	1	1303-
8	HEAD ASM; CYL,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-19110-074-0	01	1	1303-
8	HEAD ASM; CYL,AIR CMPR (A)	1-19110-072-0	01	1	1009-1012
8	HEAD ASM; CYL,AIR CMPR (A)	8-98167-016-0	01	1	1101-1302
8	HEAD ASM; CYL,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	8-98167-016-0	01	1	1303-1411
8	HEAD ASM; CYL,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98167-016-0	01	1	1412-
12	GASKET; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-98192-459-0	02	1	1303-
12	GASKET; AIR CMPR (A)	1-09623-651-1	01	1	1009-1302
12	GASKET; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-09623-651-1	01	1	1303-1411
12	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-651-1	01	1	1412-
13	GASKET; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-19115-012-0	02	1	1303-
13	GASKET; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	8-98048-640-0	02	1	1303-
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	1009-1302
13	GASKET; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-09623-650-1	01	1	1303-1411
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-650-1	01	1	1412-
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	1009-1302
13	GASKET; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B)	1-19139-019-0	01	1	1303-1306
13	GASKET; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B)	8-98242-649-0	01	1	1307-1402
13	GASKET; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B)	8-98269-488-0	01	1	1403-1411
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98269-488-0	01	1	1412-
14	PLATE; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-98208-785-0	02	1	1303-
14	PLATE; AIR CMPR (A)	1-19110-064-1	01	1	1009-1302
14	PLATE; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19110-064-1	01	1	1303-1411
14	PLATE; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19110-064-1	01	1	1412-
15	CYLINDER; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19163-067-0	02	1	1303-
15	CYLINDER; AIR CMPR (A)	1-19163-065-0	01	1	1009-1302
15	CYLINDER; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19163-065-0	01	1	1303-1411
15	CYLINDER; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19163-065-0	01	1	1412-
17	ADAPTER; AIR CMPR	1-19119-034-1	01	1	1009-1302
17	ADAPTER; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-19119-034-1	01	1	1303-1411
17	ADAPTER; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-19119-034-1	01	1	1412-1412
17	ADAPTER; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-19119-034-1	01	1	1412-
18	KEY; AIR CMPR	9-08055-622-0	01	1	1009-1302
18	KEY; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	9-08055-622-0	01	1	1303-1411
18	KEY; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60)	9-08055-622-0	01	1	1412-1412
18	KEY; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-08055-622-0	01	1	1412-
20	RING KIT; PISTON,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19163-058-0	02	1	1303-
20	RING KIT; PISTON,AIR CMPR (A)	1-19163-064-0	01	1	1009-1302
20	RING KIT; PISTON,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19163-064-0	01	1	1303-1411
20	RING KIT; PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19163-064-0	01	1	1412-
21	PISTON; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19161-026-0	02	1	1303-
21	PISTON; AIR CMPR (A)	1-19161-023-0	01	1	1009-1302
21	PISTON; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19161-023-0	01	1	1303-1411
21	PISTON; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19161-023-0	01	1	1412-
22	METAL; CONNROD,AIR CMPR	1-19179-025-0	02	1	1009-1302
22	METAL; CONNROD,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-19179-025-0	02	1	1303-1411
22	METAL; CONNROD,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-19179-025-0	02	1	1412-1412
22	METAL; CONNROD,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-19179-025-0	02	1	1412-
23	RING; SNAP,PISTON,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19169-004-0	04	1	1303-
23	RING; SNAP,PISTON,AIR CMPR (A)	1-19169-001-0	02	1	1009-1302
23	RING; SNAP,PISTON,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19169-001-0	02	1	1303-1411
23	RING; SNAP,PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19169-001-0	02	1	1412-
24	ROD ASM; CONN,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19173-006-0	02	1	1303-
24	ROD ASM; CONN,AIR CMPR (A)	1-19171-078-0	01	1	1009-1302
24	ROD ASM; CONN,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19171-078-0	01	1	1303-1411
24	ROD ASM; CONN,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19171-078-0	01	1	1412-
25	PIN; PISTON,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19167-006-0	02	1	1303-
25	PIN; PISTON,AIR CMPR (A)	1-19167-007-0	01	1	1009-1302
25	PIN; PISTON,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19167-007-0	01	1	1303-1411
25	PIN; PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19167-007-0	01	1	1412-
27	BOLT; HD AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M10X75	8-98167-018-0	06	1	1303-
27	BOLT; HD (A)	1-09044-071-0	01	1	1009-1302
27	BOLT; HD CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-09044-071-0	01	1	1303-1411
27	BOLT; HD HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09044-071-0	01	1	1412-
27	BOLT; HD (B) M10X80	1-19119-024-0	04	1	1009-1012
27	BOLT; HD (B) M10X75	8-98167-018-0	04	1	1101-1302
27	BOLT; HD CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B) M10X75	8-98167-018-0	04	1	1303-1411
27	BOLT; HD HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X75	8-98167-018-0	04	1	1412-
28	WASHER; LK,HD BOLT ID=8.2	9-09150-508-0	01	1	1009-1302
28	WASHER; LK,HD BOLT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ID=8.2	9-09150-508-0	01	1	1303-1411
28	WASHER; LK,HD BOLT AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-508-0	01	1	1412-1412
28	WASHER; LK,HD BOLT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-508-0	01	1	1412-
29	WASHER; PL,HD BOLT ID=8.4	9-09160-508-0	01	1	1009-1302
29	WASHER; PL,HD BOLT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ID=8.4	9-09160-508-0	01	1	1303-1411
29	WASHER; PL,HD BOLT AIR CONDITIONER MANUAL CONTROL(C60) ID=8.4	9-09160-508-0	01	1	1412-1412
29	WASHER; PL,HD BOLT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=8.4	9-09160-508-0	01	1	1412-
30	BOLT; CYL TO CRANKCASE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M10X25	9-01911-025-0	08	1	1303-
30	BOLT; CYL TO CRANKCASE (A) M10X30	1-19119-026-0	04	1	1009-1302
30	BOLT; CYL TO CRANKCASE CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A) M10X30	1-19119-026-0	04	1	1303-1411
30	BOLT; CYL TO CRANKCASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X30	1-19119-026-0	04	1	1412-
32	BOLT; CONNROD	1-19179-021-0	02	1	1009-1302
32	BOLT; CONNROD CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-19179-021-0	02	1	1303-1411
32	BOLT; CONNROD AIR CONDITIONER MANUAL CONTROL(C60)	1-19179-021-0	02	1	1412-1412
32	BOLT; CONNROD HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-19179-021-0	02	1	1412-
33	NUT; CONNROD BOLT	1-19179-026-0	02	1	1009-1302
33	NUT; CONNROD BOLT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-19179-026-0	02	1	1303-1411
33	NUT; CONNROD BOLT AIR CONDITIONER MANUAL CONTROL(C60)	1-19179-026-0	02	1	1412-1412
33	NUT; CONNROD BOLT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-19179-026-0	02	1	1412-
38	BOLT; COVER FIX AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19159-016-0	07	1	1303-
38	BOLT; COVER FIX (A) M8X30	0-20800-830-0	07	1	1009-1302
38	BOLT; COVER FIX CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A) M8X30	0-20800-830-0	07	1	1303-1411
38	BOLT; COVER FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X30	0-20800-830-0	07	1	1412-
46	SPACER; BRG AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19179-016-0	01	1	1303-
46	SPACER; BRG (A)	1-19179-029-0	01	1	1009-1302
46	SPACER; BRG CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19179-029-0	01	1	1303-1411
46	SPACER; BRG HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19179-029-0	01	1	1412-
48	SLEEVE; CR/SHF AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19179-018-0	01	1	1303-
48	SLEEVE; CR/SHF (A)	1-19179-027-0	01	1	1009-1302
48	SLEEVE; CR/SHF CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19179-027-0	01	1	1303-1411
48	SLEEVE; CR/SHF HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19179-027-0	01	1	1412-
61	WASHER; LK,CONNROD BOLT	1-19179-022-0	02	1	1009-1302
61	WASHER; LK,CONNROD BOLT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-19179-022-0	02	1	1303-1411
61	WASHER; LK,CONNROD BOLT AIR CONDITIONER MANUAL CONTROL(C60)	1-19179-022-0	02	1	1412-1412
61	WASHER; LK,CONNROD BOLT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-19179-022-0	02	1	1412-
85	BOLT; ADAPTER M14X39 FLANGE	1-09675-089-0	01	1	1009-1302
85	BOLT; ADAPTER CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) M14X39 FLANGE	1-09675-089-0	01	1	1303-1411
85	BOLT; ADAPTER AIR CONDITIONER MANUAL CONTROL(C60) M14X39 FLANGE	1-09675-089-0	01	1	1412-1412
85	BOLT; ADAPTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M14X39 FLANGE	1-09675-089-0	01	1	1412-
86	GASKET; ADAPTER ID=14.2 OD=19.2	1-09630-085-0	02	1	1009-1302
86	GASKET; ADAPTER CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ID=14.2 OD=19.2	1-09630-085-0	02	1	1303-1306
86	GASKET; ADAPTER CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ID=14.2 OD=19.2	8-98251-345-0	02	1	1307-1411
86	GASKET; ADAPTER AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2 OD=19.2	8-98251-345-0	02	1	1412-1412
86	GASKET; ADAPTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2 OD=19.2	8-98251-345-0	02	1	1412-

38 3 6 24 4 23 46 25 21 23 23 20 21 23 20 25 2 12 15 14 8 63 43 44 44 43 63 27 13 13 30 15 13 14 13 8 27 30 12 3 7 48 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CRANKCASE; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19151-269-6	01	1	1303-
2	CRANKCASE; AIR CMPR (A)	1-19151-286-3	01	1	1009-1302
2	CRANKCASE; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19151-286-3	01	1	1303-1411
2	CRANKCASE; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19151-286-3	01	1	1412-
3	BEARING; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-09800-232-0	01	1	1303-
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	1009-1406
3	BEARING; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B)	1-09800-246-0	02	1	1407-1411
3	BEARING; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-09800-246-0	02	1	1412-
3	BEARING; AIR CMPR (A)	8-98171-672-0	01	1	1009-1302
3	BEARING; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	8-98171-672-0	01	1	1303-1411
3	BEARING; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98171-672-0	01	1	1412-
4	CRANKSHAFT; AIR CMPR SHORT CHASSIS & RHD(CYZ5MC) (B)	1-19171-088-0	01	1	1303-1406
4	CRANKSHAFT; AIR CMPR (A)	1-19171-080-0	01	1	1009-1302
4	CRANKSHAFT; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19171-080-0	01	1	1303-1411
4	CRANKSHAFT; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19171-080-0	01	1	1412-
6	COVER ASM; BRG,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19156-068-1	01	1	1303-
6	COVER ASM; BRG,AIR CMPR (A)	1-19156-079-1	01	1	1009-1302
6	COVER ASM; BRG,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19156-079-1	01	1	1303-1411
6	COVER ASM; BRG,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19156-079-1	01	1	1412-
7	SEAL; OIL,BRG COVER,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-09625-534-0	01	1	1303-
7	SEAL; OIL,BRG COVER,AIR CMPR (A)	1-09625-619-0	01	1	1009-1302
7	SEAL; OIL,BRG COVER,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-09625-619-0	01	1	1303-1411
7	SEAL; OIL,BRG COVER,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09625-619-0	01	1	1412-
8	HEAD ASM; CYL,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19110-073-0	01	1	1303-
8	HEAD ASM; CYL,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-19110-074-0	01	1	1303-
8	HEAD ASM; CYL,AIR CMPR (A)	1-19110-072-0	01	1	1009-1012
8	HEAD ASM; CYL,AIR CMPR (A)	8-98167-016-0	01	1	1101-1302
8	HEAD ASM; CYL,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	8-98167-016-0	01	1	1303-1411
8	HEAD ASM; CYL,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98167-016-0	01	1	1412-
12	GASKET; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-98192-459-0	02	1	1303-
12	GASKET; AIR CMPR (A)	1-09623-651-1	01	1	1009-1302
12	GASKET; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-09623-651-1	01	1	1303-1411
12	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-651-1	01	1	1412-
13	GASKET; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-19115-012-0	02	1	1303-
13	GASKET; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	8-98048-640-0	02	1	1303-
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	1009-1302
13	GASKET; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-09623-650-1	01	1	1303-1411
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-650-1	01	1	1412-
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	1009-1302
13	GASKET; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B)	1-19139-019-0	01	1	1303-1306
13	GASKET; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B)	8-98242-649-0	01	1	1307-1402
13	GASKET; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B)	8-98269-488-0	01	1	1403-1411
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98269-488-0	01	1	1412-
14	PLATE; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-98208-785-0	02	1	1303-
14	PLATE; AIR CMPR (A)	1-19110-064-1	01	1	1009-1302
14	PLATE; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19110-064-1	01	1	1303-1411
14	PLATE; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19110-064-1	01	1	1412-
15	CYLINDER; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19163-067-0	02	1	1303-
15	CYLINDER; AIR CMPR (A)	1-19163-065-0	01	1	1009-1302
15	CYLINDER; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19163-065-0	01	1	1303-1411
15	CYLINDER; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19163-065-0	01	1	1412-
20	RING KIT; PISTON,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19163-058-0	02	1	1303-
20	RING KIT; PISTON,AIR CMPR (A)	1-19163-064-0	01	1	1009-1302
20	RING KIT; PISTON,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19163-064-0	01	1	1303-1411
20	RING KIT; PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19163-064-0	01	1	1412-
21	PISTON; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19161-026-0	02	1	1303-
21	PISTON; AIR CMPR (A)	1-19161-023-0	01	1	1009-1302
21	PISTON; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19161-023-0	01	1	1303-1411
21	PISTON; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19161-023-0	01	1	1412-
23	RING; SNAP,PISTON,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19169-004-0	04	1	1303-
23	RING; SNAP,PISTON,AIR CMPR (A)	1-19169-001-0	02	1	1009-1302
23	RING; SNAP,PISTON,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19169-001-0	02	1	1303-1411
23	RING; SNAP,PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19169-001-0	02	1	1412-
24	ROD ASM; CONN,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19173-006-0	02	1	1303-
24	ROD ASM; CONN,AIR CMPR (A)	1-19171-078-0	01	1	1009-1302
24	ROD ASM; CONN,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19171-078-0	01	1	1303-1411
24	ROD ASM; CONN,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19171-078-0	01	1	1412-
25	PIN; PISTON,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19167-006-0	02	1	1303-
25	PIN; PISTON,AIR CMPR (A)	1-19167-007-0	01	1	1009-1302
25	PIN; PISTON,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19167-007-0	01	1	1303-1411
25	PIN; PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19167-007-0	01	1	1412-
27	BOLT; HD AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M10X75	8-98167-018-0	06	1	1303-
27	BOLT; HD (A)	1-09044-071-0	01	1	1009-1302
27	BOLT; HD CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-09044-071-0	01	1	1303-1411
27	BOLT; HD HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09044-071-0	01	1	1412-
27	BOLT; HD (B) M10X80	1-19119-024-0	04	1	1009-1012
27	BOLT; HD (B) M10X75	8-98167-018-0	04	1	1101-1302
27	BOLT; HD CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B) M10X75	8-98167-018-0	04	1	1303-1411
27	BOLT; HD HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X75	8-98167-018-0	04	1	1412-
30	BOLT; CYL TO CRANKCASE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M10X25	9-01911-025-0	08	1	1303-
30	BOLT; CYL TO CRANKCASE (A) M10X30	1-19119-026-0	04	1	1009-1302
30	BOLT; CYL TO CRANKCASE CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A) M10X30	1-19119-026-0	04	1	1303-1411
30	BOLT; CYL TO CRANKCASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X30	1-19119-026-0	04	1	1412-
38	BOLT; COVER FIX AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19159-016-0	07	1	1303-
38	BOLT; COVER FIX (A) M8X30	0-20800-830-0	07	1	1009-1302
38	BOLT; COVER FIX CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A) M8X30	0-20800-830-0	07	1	1303-1411
38	BOLT; COVER FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X30	0-20800-830-0	07	1	1412-
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=10.2	9-09150-610-0	02	1	1303-
44	STUD; CYL HD,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	8-97614-054-0	01	1	1303-
44	STUD; CYL HD,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-98119-750-0	01	1	1303-
46	SPACER; BRG AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19179-016-0	01	1	1303-
46	SPACER; BRG (A)	1-19179-029-0	01	1	1009-1302
46	SPACER; BRG CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19179-029-0	01	1	1303-1411
46	SPACER; BRG HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19179-029-0	01	1	1412-
48	SLEEVE; CR/SHF AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19179-018-0	01	1	1303-
48	SLEEVE; CR/SHF (A)	1-19179-027-0	01	1	1009-1302
48	SLEEVE; CR/SHF CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19179-027-0	01	1	1303-1411
48	SLEEVE; CR/SHF HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19179-027-0	01	1	1412-
63	WASHER; PL,STUD AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=10.5 OD=18	9-09160-510-0	02	1	1303-

27 13 8 27 13 14 30 13 63 44 44 43 43 63 8 14 15 12 2 7 12 30 48 3 15 13 20 20 21 23 25 23 25 23 23 21 46 6 38 24 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CRANKCASE; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19151-269-6	01	1	1303-
2	CRANKCASE; AIR CMPR (A)	1-19151-286-3	01	1	1009-1302
2	CRANKCASE; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19151-286-3	01	1	1303-1411
2	CRANKCASE; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19151-286-3	01	1	1412-
3	BEARING; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-09800-232-0	01	1	1303-
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	1009-1406
3	BEARING; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B)	1-09800-246-0	02	1	1407-1411
3	BEARING; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-09800-246-0	02	1	1412-
3	BEARING; AIR CMPR (A)	8-98171-672-0	01	1	1009-1302
3	BEARING; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	8-98171-672-0	01	1	1303-1411
3	BEARING; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98171-672-0	01	1	1412-
6	COVER ASM; BRG,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19156-068-1	01	1	1303-
6	COVER ASM; BRG,AIR CMPR (A)	1-19156-079-1	01	1	1009-1302
6	COVER ASM; BRG,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19156-079-1	01	1	1303-1411
6	COVER ASM; BRG,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19156-079-1	01	1	1412-
7	SEAL; OIL,BRG COVER,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-09625-534-0	01	1	1303-
7	SEAL; OIL,BRG COVER,AIR CMPR (A)	1-09625-619-0	01	1	1009-1302
7	SEAL; OIL,BRG COVER,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-09625-619-0	01	1	1303-1411
7	SEAL; OIL,BRG COVER,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09625-619-0	01	1	1412-
8	HEAD ASM; CYL,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19110-073-0	01	1	1303-
8	HEAD ASM; CYL,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-19110-074-0	01	1	1303-
8	HEAD ASM; CYL,AIR CMPR (A)	1-19110-072-0	01	1	1009-1012
8	HEAD ASM; CYL,AIR CMPR (A)	8-98167-016-0	01	1	1101-1302
8	HEAD ASM; CYL,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	8-98167-016-0	01	1	1303-1411
8	HEAD ASM; CYL,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98167-016-0	01	1	1412-
12	GASKET; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-98192-459-0	02	1	1303-
12	GASKET; AIR CMPR (A)	1-09623-651-1	01	1	1009-1302
12	GASKET; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-09623-651-1	01	1	1303-1411
12	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-651-1	01	1	1412-
13	GASKET; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-19115-012-0	02	1	1303-
13	GASKET; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	8-98048-640-0	02	1	1303-
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	1009-1302
13	GASKET; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-09623-650-1	01	1	1303-1411
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-650-1	01	1	1412-
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	1009-1302
13	GASKET; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B)	1-19139-019-0	01	1	1303-1306
13	GASKET; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B)	8-98242-649-0	01	1	1307-1402
13	GASKET; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B)	8-98269-488-0	01	1	1403-1411
13	GASKET; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98269-488-0	01	1	1412-
14	PLATE; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-98208-785-0	02	1	1303-
14	PLATE; AIR CMPR (A)	1-19110-064-1	01	1	1009-1302
14	PLATE; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19110-064-1	01	1	1303-1411
14	PLATE; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19110-064-1	01	1	1412-
15	CYLINDER; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19163-067-0	02	1	1303-
15	CYLINDER; AIR CMPR (A)	1-19163-065-0	01	1	1009-1302
15	CYLINDER; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19163-065-0	01	1	1303-1411
15	CYLINDER; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19163-065-0	01	1	1412-
20	RING KIT; PISTON,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19163-058-0	02	1	1303-
20	RING KIT; PISTON,AIR CMPR (A)	1-19163-064-0	01	1	1009-1302
20	RING KIT; PISTON,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19163-064-0	01	1	1303-1411
20	RING KIT; PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19163-064-0	01	1	1412-
21	PISTON; AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19161-026-0	02	1	1303-
21	PISTON; AIR CMPR (A)	1-19161-023-0	01	1	1009-1302
21	PISTON; AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19161-023-0	01	1	1303-1411
21	PISTON; AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19161-023-0	01	1	1412-
23	RING; SNAP,PISTON,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19169-004-0	04	1	1303-
23	RING; SNAP,PISTON,AIR CMPR (A)	1-19169-001-0	02	1	1009-1302
23	RING; SNAP,PISTON,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19169-001-0	02	1	1303-1411
23	RING; SNAP,PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19169-001-0	02	1	1412-
24	ROD ASM; CONN,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19173-006-0	02	1	1303-
24	ROD ASM; CONN,AIR CMPR (A)	1-19171-078-0	01	1	1009-1302
24	ROD ASM; CONN,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19171-078-0	01	1	1303-1411
24	ROD ASM; CONN,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19171-078-0	01	1	1412-
25	PIN; PISTON,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19167-006-0	02	1	1303-
25	PIN; PISTON,AIR CMPR (A)	1-19167-007-0	01	1	1009-1302
25	PIN; PISTON,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19167-007-0	01	1	1303-1411
25	PIN; PISTON,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19167-007-0	01	1	1412-
27	BOLT; HD AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M10X75	8-98167-018-0	06	1	1303-
27	BOLT; HD (A)	1-09044-071-0	01	1	1009-1302
27	BOLT; HD CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-09044-071-0	01	1	1303-1411
27	BOLT; HD HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09044-071-0	01	1	1412-
27	BOLT; HD (B) M10X80	1-19119-024-0	04	1	1009-1012
27	BOLT; HD (B) M10X75	8-98167-018-0	04	1	1101-1302
27	BOLT; HD CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B) M10X75	8-98167-018-0	04	1	1303-1411
27	BOLT; HD HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X75	8-98167-018-0	04	1	1412-
30	BOLT; CYL TO CRANKCASE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M10X25	9-01911-025-0	08	1	1303-
30	BOLT; CYL TO CRANKCASE (A) M10X30	1-19119-026-0	04	1	1009-1302
30	BOLT; CYL TO CRANKCASE CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A) M10X30	1-19119-026-0	04	1	1303-1411
30	BOLT; CYL TO CRANKCASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X30	1-19119-026-0	04	1	1412-
38	BOLT; COVER FIX AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19159-016-0	07	1	1303-
38	BOLT; COVER FIX (A) M8X30	0-20800-830-0	07	1	1009-1302
38	BOLT; COVER FIX CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A) M8X30	0-20800-830-0	07	1	1303-1411
38	BOLT; COVER FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X30	0-20800-830-0	07	1	1412-
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=10.2	9-09150-610-0	02	1	1303-
44	STUD; CYL HD,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	8-97614-054-0	01	1	1303-
44	STUD; CYL HD,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-98119-750-0	01	1	1303-
46	SPACER; BRG AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19179-016-0	01	1	1303-
46	SPACER; BRG (A)	1-19179-029-0	01	1	1009-1302
46	SPACER; BRG CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19179-029-0	01	1	1303-1411
46	SPACER; BRG HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19179-029-0	01	1	1412-
48	SLEEVE; CR/SHF AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19179-018-0	01	1	1303-
48	SLEEVE; CR/SHF (A)	1-19179-027-0	01	1	1009-1302
48	SLEEVE; CR/SHF CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-19179-027-0	01	1	1303-1411
48	SLEEVE; CR/SHF HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-19179-027-0	01	1	1412-
63	WASHER; PL,STUD AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=10.5 OD=18	9-09160-510-0	02	1	1303-
91	SHAFT KIT; CRANK AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98277-387-0	01	1	1407-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
