Sayfa 0-38 - Isuzu EPC

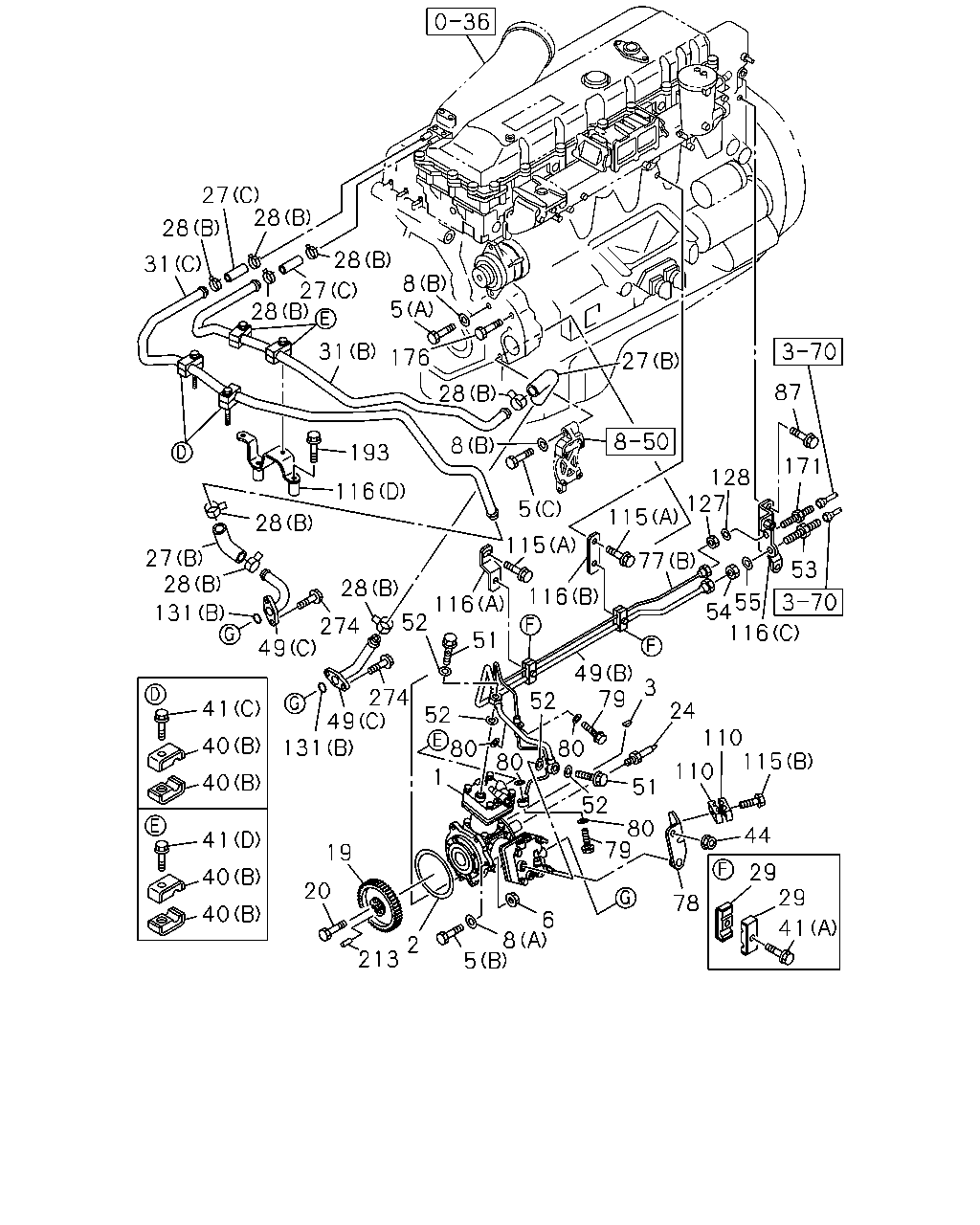

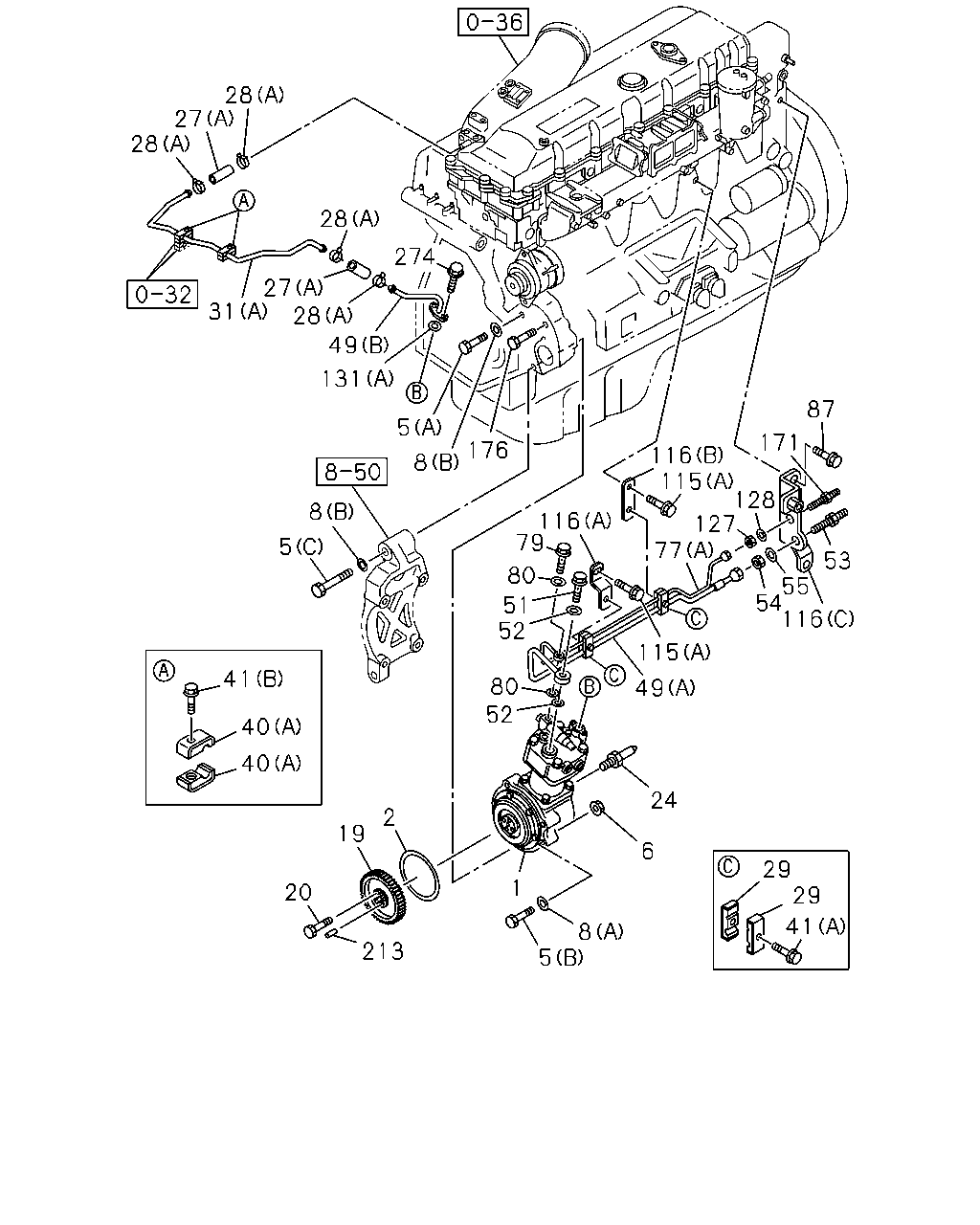

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#61014) — 223 parça

28 27 28 28 31 27 28 274 49 131 5 8 176 8 5 20 19 2 213 5 8 6 24 52 80 52 80 79 116 116 115 77 127 128 171 87 53 116 55 54 115 49 41 40 40 29 29 41 51 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. SHORT CHASSIS & RHD(CYZ5MC)	8-98203-543-1	01	1	1303-1406
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98277-235-0	01	1	1407-
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-9	01	1	1009-1302
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-19100-328-9	01	1	1303-1306
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	8-98242-646-1	01	1	1307-1411
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR CONDITIONER MANUAL CONTROL(C60)	8-98242-646-1	01	1	1412-1412
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98242-646-1	01	1	1412-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	1009-
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	1412-
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	1009-1302
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	1009-
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	1009-
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	1-09029-027-1	01	1	1009-1302
5	BOLT; AIR CMPR FIX (C) M14X150	1-09029-027-1	01	1	1303-1411
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) M14X150	1-09029-027-1	01	1	1412-
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	1009-
8	WASHER; PL,AIR CMPR HEATER & DEFROSTER(C41) (B) ID=15 OD=26	9-09164-514-0	03	1	1412-
8	WASHER; PL,AIR CMPR HEATER & DEFROSTER(C41) (B) ID=15 OD=26	9-09164-514-0	03	1	1009-1302
8	WASHER; PL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=14.2	1-09503-050-0	01	1	1009-1302
8	WASHER; PL,AIR CMPR (A) ID=14.2	1-09503-050-0	01	1	1303-1411
8	WASHER; PL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=14.2	1-09503-050-0	01	1	1412-
8	WASHER; PL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15 OD=26	9-09164-514-0	02	1	1009-1302
8	WASHER; PL,AIR CMPR (B) ID=15 OD=26	9-09164-514-0	02	1	1303-1411
8	WASHER; PL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=15 OD=26	9-09164-514-0	02	1	1412-
19	GEAR; INJ PUMP Z=54	1-12524-164-1	01	1	1009-
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	1009-
24	POINTER; AIR CMPR	1-11327-017-1	01	1	1009-
27	HOSE; AIR CMPR,SUCTION AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	0-02117-080-0	02	1	1303-
27	HOSE; AIR CMPR,SUCTION AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-09360-916-0	02	1	1303-
27	HOSE; AIR CMPR,SUCTION (A) L=55	1-09360-784-0	02	1	1009-1302
27	HOSE; AIR CMPR,SUCTION CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A) L=55	1-09360-784-0	02	1	1303-1411
27	HOSE; AIR CMPR,SUCTION HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) L=55	1-09360-784-0	02	1	1412-
28	CLIP; HOSE,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=22.7	8-94466-382-0	08	1	1303-
28	CLIP; HOSE,AIR CMPR (A) ID=28.5	1-09707-150-0	04	1	1009-1302
28	CLIP; HOSE,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A) ID=28.5	1-09707-150-0	04	1	1303-1411
28	CLIP; HOSE,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=28.5	1-09707-150-0	04	1	1412-
29	CLIP; AIR PIPE	1-09701-210-0	04	1	1009-
31	PIPE; AIR,AIR CMPR SUCTION AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	8-97629-441-0	01	1	1303-
31	PIPE; AIR,AIR CMPR SUCTION AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-97632-684-0	01	1	1303-
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-97629-439-0	01	1	1009-1302
31	PIPE; AIR,AIR CMPR SUCTION CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	8-97629-439-0	01	1	1303-1411
31	PIPE; AIR,AIR CMPR SUCTION HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97629-439-0	01	1	1412-
40	CLIP; AIR PIPE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=17 L=17	1-09701-284-0	08	1	1303-
40	CLIP; AIR PIPE (A)	1-09701-281-1	04	1	1009-1302
40	CLIP; AIR PIPE CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-09701-281-1	04	1	1303-1411
40	CLIP; AIR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09701-281-1	04	1	1412-
41	BOLT; CLIP AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) M8X40 FLANGE	0-28050-840-0	02	1	1303-
41	BOLT; CLIP AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) M8X75 FLANGE	8-98020-385-0	02	1	1303-
41	BOLT; CLIP (A) M6X40 FLANGE	0-28050-640-0	02	1	1009-
41	BOLT; CLIP (B) M8X80 FLANGE	0-28050-880-0	02	1	1009-1302
41	BOLT; CLIP CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B) M8X80 FLANGE	0-28050-880-0	02	1	1303-1411
41	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X80 FLANGE	0-28050-880-0	02	1	1412-
49	PIPE; AIR,CHARGE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-19193-402-0	02	1	1303-
49	PIPE; AIR,CHARGE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19193-459-0	01	1	1303-
49	PIPE; AIR,CHARGE (A)	8-97606-616-0	01	1	1009-1302
49	PIPE; AIR,CHARGE CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	8-97606-616-0	01	1	1303-1411
49	PIPE; AIR,CHARGE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97606-616-0	01	1	1412-
49	PIPE; AIR,CHARGE (B)	8-98100-022-0	01	1	1009-1302
49	PIPE; AIR,CHARGE CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B)	8-98100-022-0	01	1	1303-1411
49	PIPE; AIR,CHARGE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98100-022-0	01	1	1412-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1009-1302
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1303-1411
51	BOLT; EYE,AIR PIPE TO CMPR CLUTCH-15.5" TWIN PLATE SPICER(TEY) M24X39	1-09675-175-2	01	1	1303-1411
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1412-
51	BOLT; EYE,AIR PIPE TO CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M24X39	1-09675-175-2	01	1	1412-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1009-1302
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	1303-1411
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CLUTCH-15.5" TWIN PLATE SPICER(TEY) ID=24.5 OD=32	9-09571-424-0	02	1	1303-1411
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	1412-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=24.5 OD=32	9-09571-424-0	02	1	1412-
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1009-
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	1009-
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	1009-
77	PIPE; AIR,GOV AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19193-460-0	01	1	1303-
77	PIPE; AIR,GOV (A)	8-97606-617-0	01	1	1009-1302
77	PIPE; AIR,GOV CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	8-97606-617-0	01	1	1303-1411
77	PIPE; AIR,GOV HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97606-617-0	01	1	1412-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	1009-1302
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	1303-1411
79	BOLT; EYE,AIR PIPE TO CMPR CLUTCH-15.5" TWIN PLATE SPICER(TEY) M14X27 FLANGE	1-09675-086-0	01	1	1303-1411
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	1412-
79	BOLT; EYE,AIR PIPE TO CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M14X27 FLANGE	1-09675-086-0	01	1	1412-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	1009-1302
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	1303-1411
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CLUTCH-15.5" TWIN PLATE SPICER(TEY) ID=14.2 OD=25	1-09630-141-0	02	1	1303-1411
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	1412-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=14.2 OD=25	1-09630-141-0	02	1	1412-
87	BOLT; BRKT FIX M10X20 FLANGE	0-28151-020-0	02	1	1009-
115	BOLT; AIR PIPE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M6X30 FLANGE	0-28050-630-0	01	1	1303-
115	BOLT; AIR PIPE (A) M10X20 FLANGE	0-28151-020-0	01	1	1009-1111
115	BOLT; AIR PIPE (A) M10X20 FLANGE	0-28151-020-0	02	1	1112-
116	BRACKET; AIR PIPE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	8-97632-685-1	01	1	1303-
116	BRACKET; AIR PIPE (A)	1-19199-221-0	01	1	1009-
116	BRACKET; AIR PIPE (B)	1-19199-412-0	01	1	1009-
116	BRACKET; AIR PIPE (C)	8-98157-648-0	01	1	1009-
127	NUT; UNION M12	9-09840-280-0	01	1	1009-
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	1009-
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=26.8	1-09623-415-0	02	1	1303-
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5	8-94399-398-0	01	1	1009-1302
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A) ID=24.5	8-94399-398-0	01	1	1303-1411
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24.5	8-94399-398-0	01	1	1412-
171	UNION M12 L=62.5	0-92113-206-0	01	1	1009-
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	1009-
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	1009-
274	BOLT; PIPE M8X20 FLANGE	0-28050-820-0	02	1	1009-1302
274	BOLT; PIPE M8X20 FLANGE	0-28050-820-0	02	1	1303-1411
274	BOLT; PIPE CLUTCH-15.5" TWIN PLATE SPICER(TEY) M8X20 FLANGE	0-28050-820-0	02	1	1303-1411
274	BOLT; PIPE M8X20 FLANGE	0-28050-820-0	02	1	1412-
274	BOLT; PIPE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE	0-28050-820-0	02	1	1412-

27 28 31 28 27 28 28 31 5 8 176 8 28 5 115 116 116 51 274 49 131 49 28 274 52 115 77 127 27 87 171 53 116 54 193 116 28 27 28 131 41 40 40 41 40 40 19 20 213 5 2 8 79 6 78 29 41 29 80 52 80 52 3 73 49 110 51 24 110 115 44 128 80 80 1 52 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. SHORT CHASSIS & RHD(CYZ5MC)	8-98203-543-1	01	1	1303-1406
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98277-235-0	01	1	1407-
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-9	01	1	1009-1302
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-19100-328-9	01	1	1303-1306
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	8-98242-646-1	01	1	1307-1411
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR CONDITIONER MANUAL CONTROL(C60)	8-98242-646-1	01	1	1412-1412
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98242-646-1	01	1	1412-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	1009-
3	KEY; COUPLING,INJ PUMP AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	9-08055-622-0	01	1	1303-
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	1412-
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	1009-1302
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	1009-
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	1009-
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	1-09029-027-1	01	1	1009-1302
5	BOLT; AIR CMPR FIX (C) M14X150	1-09029-027-1	01	1	1303-1411
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) M14X150	1-09029-027-1	01	1	1412-
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	1009-
8	WASHER; PL,AIR CMPR HEATER & DEFROSTER(C41) (B) ID=15 OD=26	9-09164-514-0	03	1	1412-
8	WASHER; PL,AIR CMPR HEATER & DEFROSTER(C41) (B) ID=15 OD=26	9-09164-514-0	03	1	1009-1302
8	WASHER; PL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=14.2	1-09503-050-0	01	1	1009-1302
8	WASHER; PL,AIR CMPR (A) ID=14.2	1-09503-050-0	01	1	1303-1411
8	WASHER; PL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=14.2	1-09503-050-0	01	1	1412-
8	WASHER; PL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15 OD=26	9-09164-514-0	02	1	1009-1302
8	WASHER; PL,AIR CMPR (B) ID=15 OD=26	9-09164-514-0	02	1	1303-1411
8	WASHER; PL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=15 OD=26	9-09164-514-0	02	1	1412-
19	GEAR; INJ PUMP Z=54	1-12524-164-1	01	1	1009-
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	1009-
24	POINTER; AIR CMPR	1-11327-017-1	01	1	1009-
27	HOSE; AIR CMPR,SUCTION AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	0-02117-080-0	02	1	1303-
27	HOSE; AIR CMPR,SUCTION AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-09360-916-0	02	1	1303-
27	HOSE; AIR CMPR,SUCTION (A) L=55	1-09360-784-0	02	1	1009-1302
27	HOSE; AIR CMPR,SUCTION CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A) L=55	1-09360-784-0	02	1	1303-1411
27	HOSE; AIR CMPR,SUCTION HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) L=55	1-09360-784-0	02	1	1412-
28	CLIP; HOSE,AIR CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=22.7	8-94466-382-0	08	1	1303-
28	CLIP; HOSE,AIR CMPR (A) ID=28.5	1-09707-150-0	04	1	1009-1302
28	CLIP; HOSE,AIR CMPR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A) ID=28.5	1-09707-150-0	04	1	1303-1411
28	CLIP; HOSE,AIR CMPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=28.5	1-09707-150-0	04	1	1412-
29	CLIP; AIR PIPE	1-09701-210-0	04	1	1009-
31	PIPE; AIR,AIR CMPR SUCTION AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	8-97629-441-0	01	1	1303-
31	PIPE; AIR,AIR CMPR SUCTION AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-97632-684-0	01	1	1303-
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-97629-439-0	01	1	1009-1302
31	PIPE; AIR,AIR CMPR SUCTION CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	8-97629-439-0	01	1	1303-1411
31	PIPE; AIR,AIR CMPR SUCTION HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97629-439-0	01	1	1412-
40	CLIP; AIR PIPE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=17 L=17	1-09701-284-0	08	1	1303-
40	CLIP; AIR PIPE (A)	1-09701-281-1	04	1	1009-1302
40	CLIP; AIR PIPE CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-09701-281-1	04	1	1303-1411
40	CLIP; AIR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09701-281-1	04	1	1412-
41	BOLT; CLIP AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) M8X40 FLANGE	0-28050-840-0	02	1	1303-
41	BOLT; CLIP AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) M8X75 FLANGE	8-98020-385-0	02	1	1303-
41	BOLT; CLIP (A) M6X40 FLANGE	0-28050-640-0	02	1	1009-
41	BOLT; CLIP (B) M8X80 FLANGE	0-28050-880-0	02	1	1009-1302
41	BOLT; CLIP CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B) M8X80 FLANGE	0-28050-880-0	02	1	1303-1411
41	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X80 FLANGE	0-28050-880-0	02	1	1412-
44	NUT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE	0-91180-208-0	02	1	1303-
49	PIPE; AIR,CHARGE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-19193-402-0	02	1	1303-
49	PIPE; AIR,CHARGE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19193-459-0	01	1	1303-
49	PIPE; AIR,CHARGE (A)	8-97606-616-0	01	1	1009-1302
49	PIPE; AIR,CHARGE CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	8-97606-616-0	01	1	1303-1411
49	PIPE; AIR,CHARGE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97606-616-0	01	1	1412-
49	PIPE; AIR,CHARGE (B)	8-98100-022-0	01	1	1009-1302
49	PIPE; AIR,CHARGE CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B)	8-98100-022-0	01	1	1303-1411
49	PIPE; AIR,CHARGE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98100-022-0	01	1	1412-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1009-1302
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1303-1411
51	BOLT; EYE,AIR PIPE TO CMPR CLUTCH-15.5" TWIN PLATE SPICER(TEY) M24X39	1-09675-175-2	01	1	1303-1411
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1412-
51	BOLT; EYE,AIR PIPE TO CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M24X39	1-09675-175-2	01	1	1412-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1009-1302
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	1303-1411
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CLUTCH-15.5" TWIN PLATE SPICER(TEY) ID=24.5 OD=32	9-09571-424-0	02	1	1303-1411
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	1412-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=24.5 OD=32	9-09571-424-0	02	1	1412-
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1009-
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	1009-
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	1009-
77	PIPE; AIR,GOV AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-19193-460-0	01	1	1303-
77	PIPE; AIR,GOV (A)	8-97606-617-0	01	1	1009-1302
77	PIPE; AIR,GOV CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	8-97606-617-0	01	1	1303-1411
77	PIPE; AIR,GOV HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97606-617-0	01	1	1412-
78	BRACKET; PIPE,AIR GOV AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-13729-095-0	01	1	1303-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	1009-1302
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	1303-1411
79	BOLT; EYE,AIR PIPE TO CMPR CLUTCH-15.5" TWIN PLATE SPICER(TEY) M14X27 FLANGE	1-09675-086-0	01	1	1303-1411
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	1412-
79	BOLT; EYE,AIR PIPE TO CMPR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M14X27 FLANGE	1-09675-086-0	01	1	1412-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	1009-1302
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	1303-1411
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CLUTCH-15.5" TWIN PLATE SPICER(TEY) ID=14.2 OD=25	1-09630-141-0	02	1	1303-1411
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	1412-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=14.2 OD=25	1-09630-141-0	02	1	1412-
87	BOLT; BRKT FIX M10X20 FLANGE	0-28151-020-0	02	1	1009-
110	CLIP; AIR PIPE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-09701-240-0	02	1	1303-
115	BOLT; AIR PIPE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M6X30 FLANGE	0-28050-630-0	01	1	1303-
115	BOLT; AIR PIPE (A) M10X20 FLANGE	0-28151-020-0	01	1	1009-1111
115	BOLT; AIR PIPE (A) M10X20 FLANGE	0-28151-020-0	02	1	1112-
116	BRACKET; AIR PIPE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	8-97632-685-1	01	1	1303-
116	BRACKET; AIR PIPE (A)	1-19199-221-0	01	1	1009-
116	BRACKET; AIR PIPE (B)	1-19199-412-0	01	1	1009-
116	BRACKET; AIR PIPE (C)	8-98157-648-0	01	1	1009-
127	NUT; UNION M12	9-09840-280-0	01	1	1009-
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	1009-
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=26.8	1-09623-415-0	02	1	1303-
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5	8-94399-398-0	01	1	1009-1302
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A) ID=24.5	8-94399-398-0	01	1	1303-1411
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24.5	8-94399-398-0	01	1	1412-
171	UNION M12 L=62.5	0-92113-206-0	01	1	1009-
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	1009-
193	BOLT; BRKT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X50 FLANGE	0-28050-850-0	02	1	1303-
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	1009-
274	BOLT; PIPE M8X20 FLANGE	0-28050-820-0	02	1	1009-1302
274	BOLT; PIPE M8X20 FLANGE	0-28050-820-0	02	1	1303-1411
274	BOLT; PIPE CLUTCH-15.5" TWIN PLATE SPICER(TEY) M8X20 FLANGE	0-28050-820-0	02	1	1303-1411
274	BOLT; PIPE M8X20 FLANGE	0-28050-820-0	02	1	1412-
274	BOLT; PIPE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE	0-28050-820-0	02	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
