◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#61012) — 15 parça

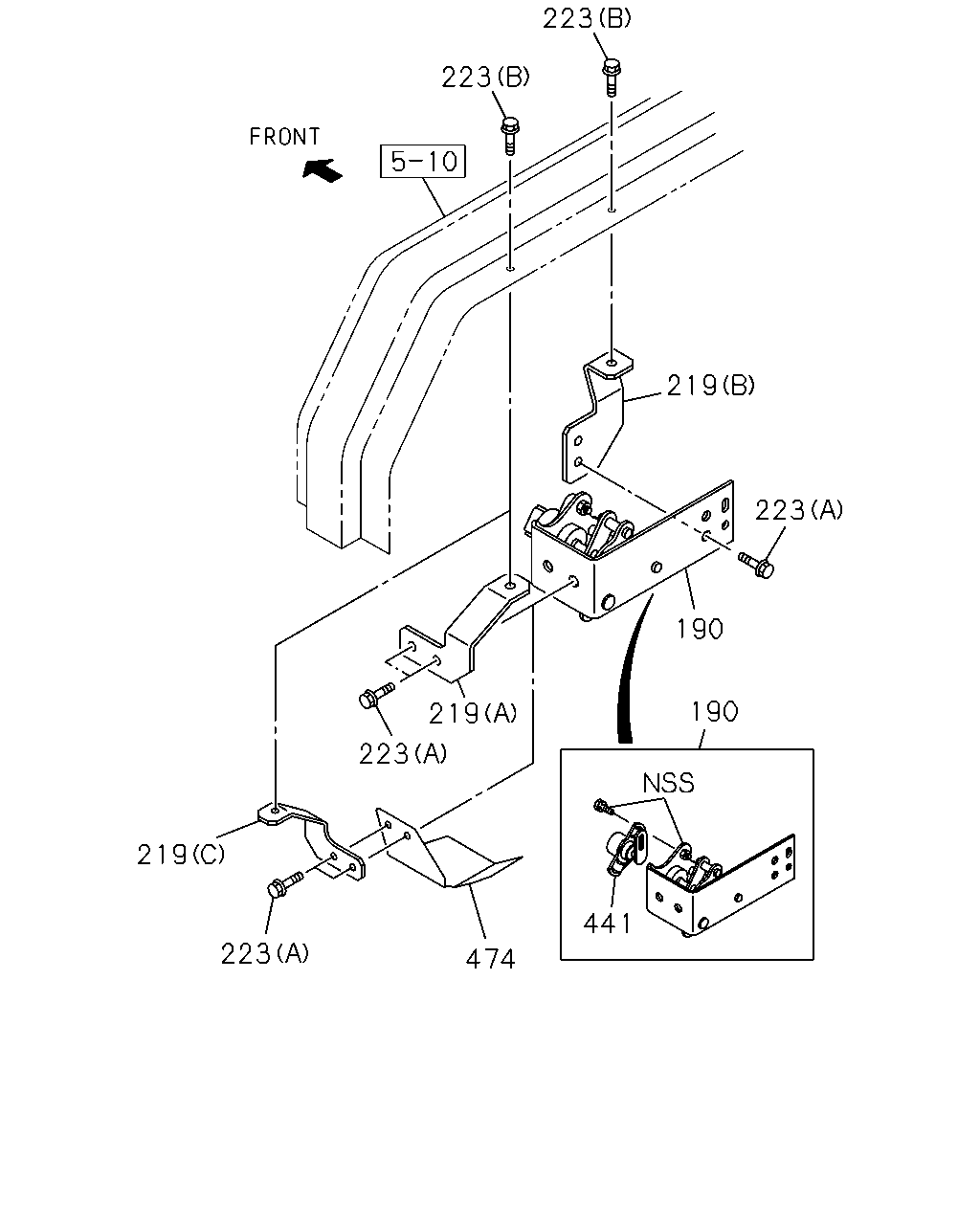

çizim 168709
223 223 219 223 190 190 219 223 223 474 219 441
BalonParca AdiParca NoAdetTipApplied Date
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97219-466-4 01 1 1009-
219 BRACKET; ENG CONT
SHORT CHASSIS & RHD(CYZ5MC) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		8-98080-371-0 01 1 1009-1302
219 BRACKET; ENG CONT
SHORT CHASSIS & RHD(CYZ5MC) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		8-98080-935-0 01 1 1009-1302
219 BRACKET; ENG CONT
SHORT CHASSIS & RHD(CYZ5MC) DUMP TRUCK<RA1> PTO CONTROL OPERATION CAB BACK<TBZ> EXC. HONG KONG EQUIPMENT(PQ1) (A) 		8-98046-183-0 01 1 1009-1302
219 BRACKET; ENG CONT
LONG CHASSIS & RHD(CYZ5MF) PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		8-98046-183-0 01 1 1009-1302
219 BRACKET; ENG CONT
SHORT CHASSIS & RHD(CYZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> EXC. DUMP TRUCK<RA1> (A) 		8-98046-183-0 01 1 1009-1302
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		8-98046-183-0 01 1 1303-
219 BRACKET; ENG CONT
SHORT CHASSIS & RHD(CYZ5MC) DUMP TRUCK<RA1> PTO CONTROL OPERATION CAB BACK<TBZ> EXC. HONG KONG EQUIPMENT(PQ1) (B) 		8-98046-184-0 01 1 1009-1302
219 BRACKET; ENG CONT
LONG CHASSIS & RHD(CYZ5MF) PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		8-98046-184-0 01 1 1009-1302
219 BRACKET; ENG CONT
SHORT CHASSIS & RHD(CYZ5MC) PTO CONTROL OPERATION CAB BACK<TBZ> EXC. DUMP TRUCK<RA1> (B) 		8-98046-184-0 01 1 1009-1302
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		8-98046-184-0 01 1 1303-
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X16 FLANGE 		0-28050-816-0 04 1 1009-
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1009-
441 SENSOR; THROTTLE POSITION
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97200-308-0 01 1 1009-
474 PROTECTOR; HEAT
SHORT CHASSIS & RHD(CYZ5MC) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) PTO CONTROL OPERATION CAB BACK<TBZ> 		8-98080-377-0 01 1 1009-1302
