◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#61010) — 171 parça

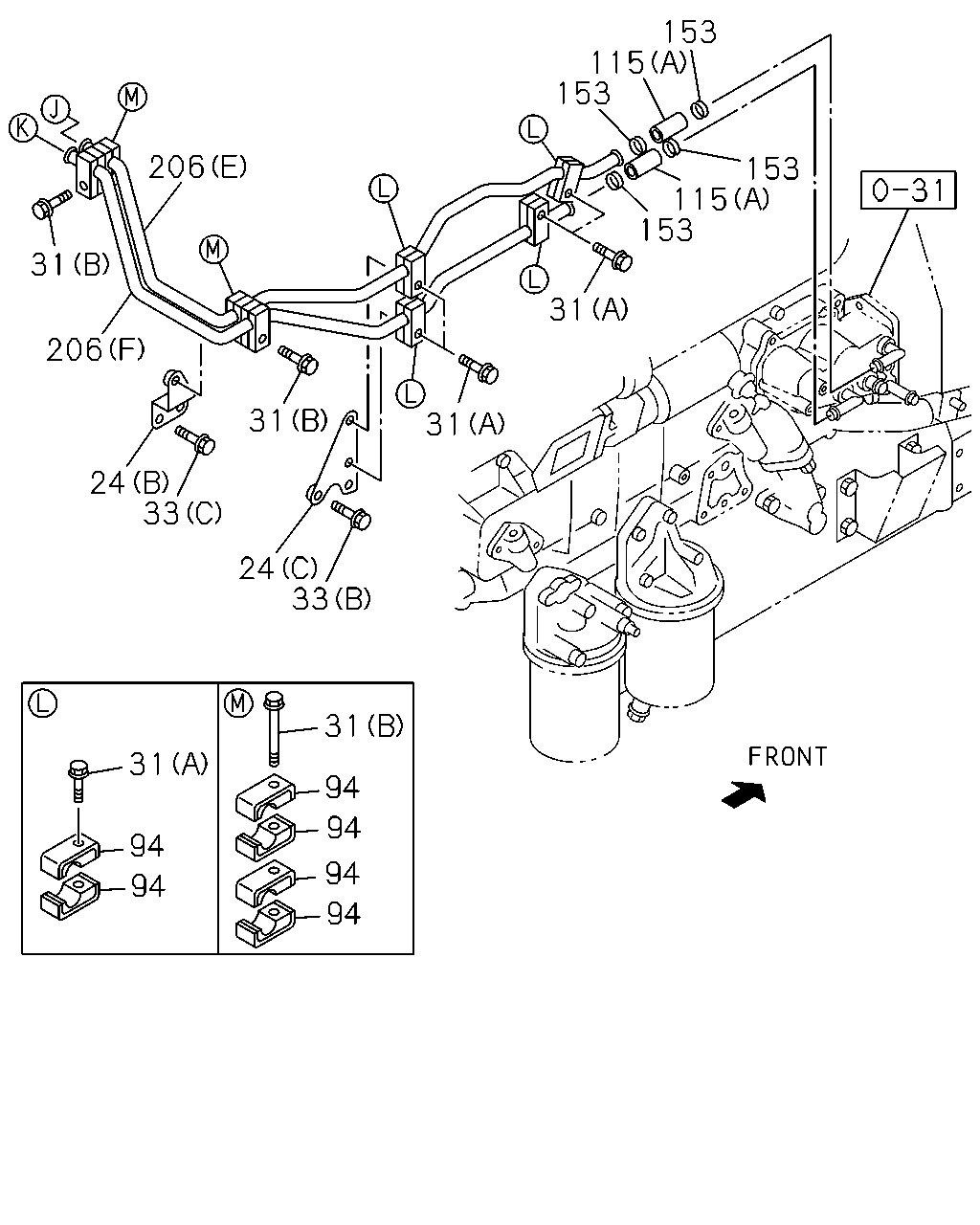

çizim 168685
206 31 206 24 33 153 115 153 153 115 153 31 31 31 24 33 31 94 94 31 94 94 94 94
BalonParca AdiParca NoAdetTipApplied Date
24 BRACKET; WATER PIPE
(A) 		8-97609-581-1 01 1 1009-
24 BRACKET; WATER PIPE
(B) 		8-97610-306-1 01 1 1009-
24 BRACKET; WATER PIPE
(C) 		8-97610-307-1 01 1 1009-
24 BRACKET; WATER PIPE
(E) 		8-97613-004-0 01 1 1009-
24 BRACKET; WATER PIPE
(F) 		8-97613-005-1 01 1 1009-
24 BRACKET; WATER PIPE
(G) 		8-97613-007-1 01 1 1009-
24 BRACKET; WATER PIPE
(H) 		8-97613-530-0 01 1 1009-
24 BRACKET; WATER PIPE
(I) 		8-97613-531-0 01 1 1009-
24 BRACKET; WATER PIPE
(J) 		8-97615-507-0 01 1 1009-
24 BRACKET; WATER PIPE
(K) 		8-97618-746-0 01 1 1009-
24 BRACKET; WATER PIPE
(D) 		8-97628-207-0 01 1 1009-
24 BRACKET; WATER PIPE
(L) 		8-97628-300-0 01 1 1009-
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 12 1 1009-1507
31 BOLT; CLIP
(B) M8X70 FLANGE 		0-28050-870-0 07 1 1009-
33 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1009-
33 BOLT; BRKT
(H) M8X25 FLANGE 		0-28050-825-0 02 1 1009-
33 BOLT; BRKT
(G) M10X20 FLANGE 		0-28051-020-0 02 1 1009-
33 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 02 1 1009-
33 BOLT; BRKT
(C) M10X20 FLANGE 		0-28151-020-0 05 1 1009-
33 BOLT; BRKT
(F) M10X25 FLANGE 		0-28151-025-0 03 1 1009-
33 BOLT; BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 1009-
33 BOLT; BRKT
(E) M10X90 FLANGE 		0-28151-090-0 02 1 1009-
94 CLIP; WATER PIPE
ID=17 L=17 		1-09701-284-0 56 1 1009-
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 08 1 1009-
115 HOSE; RUBBER
(B) 		8-97604-063-0 04 1 1009-
115 HOSE; RUBBER
(C) 		8-97628-219-0 01 1 1009-
115 HOSE; RUBBER
(D) 		8-97628-220-0 01 1 1009-
153 CLIP; RUBBER HOSE
ID=25 		8-97177-581-0 28 1 1009-
206 PIPE; WATER,EGR COOLER
(E) 		8-97613-292-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(F) 		8-97613-294-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(B) 		8-97623-511-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(C) 		8-97628-203-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(D) 		8-97628-204-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(G) 		8-97628-205-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(H) 		8-97628-206-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(A) 		8-97629-442-0 01 1 1009-

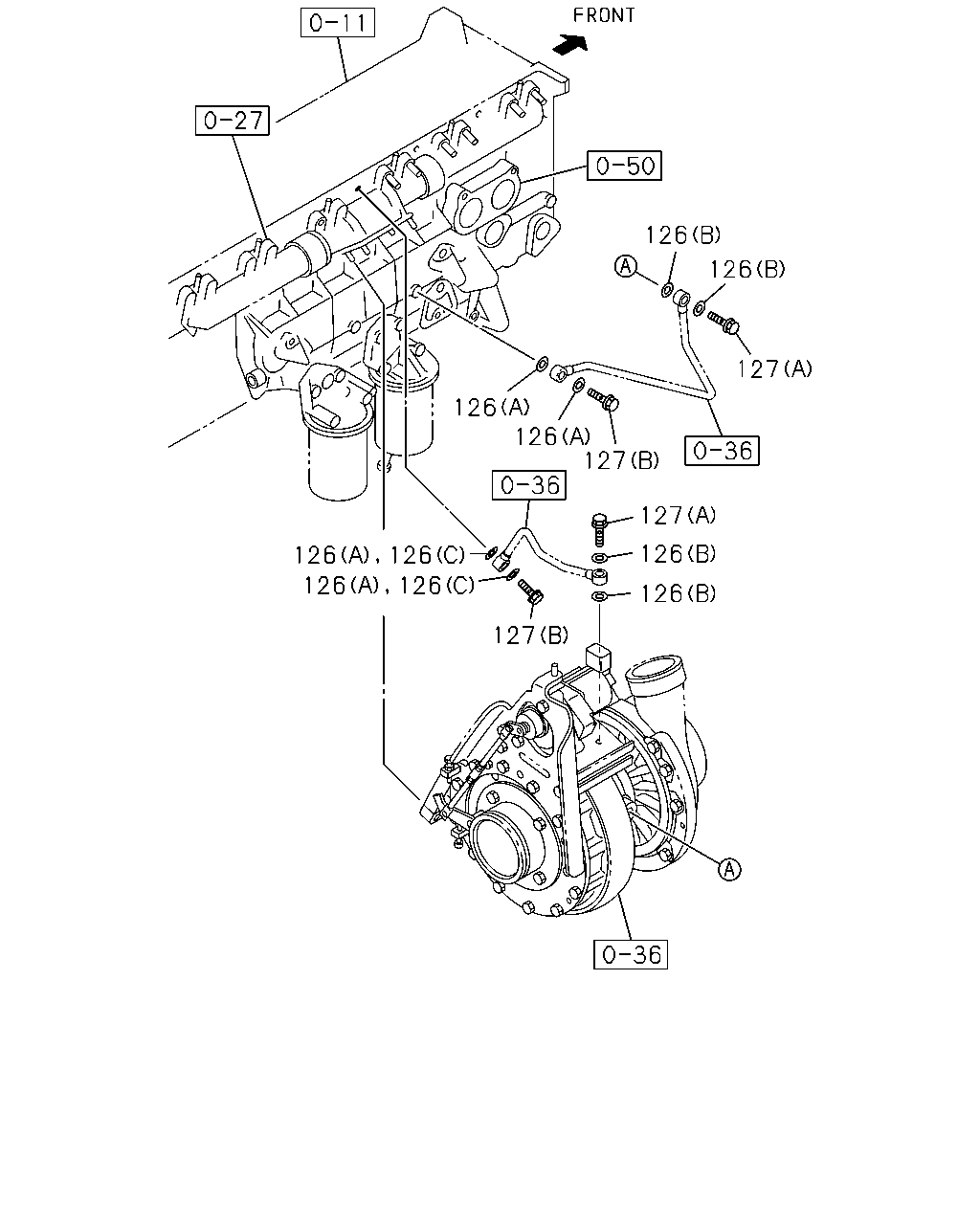

çizim 168688
126 126 127 126 127 127 126 126 126 126 126 126 127 126
BalonParca AdiParca NoAdetTipApplied Date
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1009-1312
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 04 1 1009-
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25 		1-09630-141-0 04 1 1009-
127 BOLT; EYE
(A) M16X30 FLANGE 		1-09675-095-1 02 1 1009-
127 BOLT; EYE
(B) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1009-

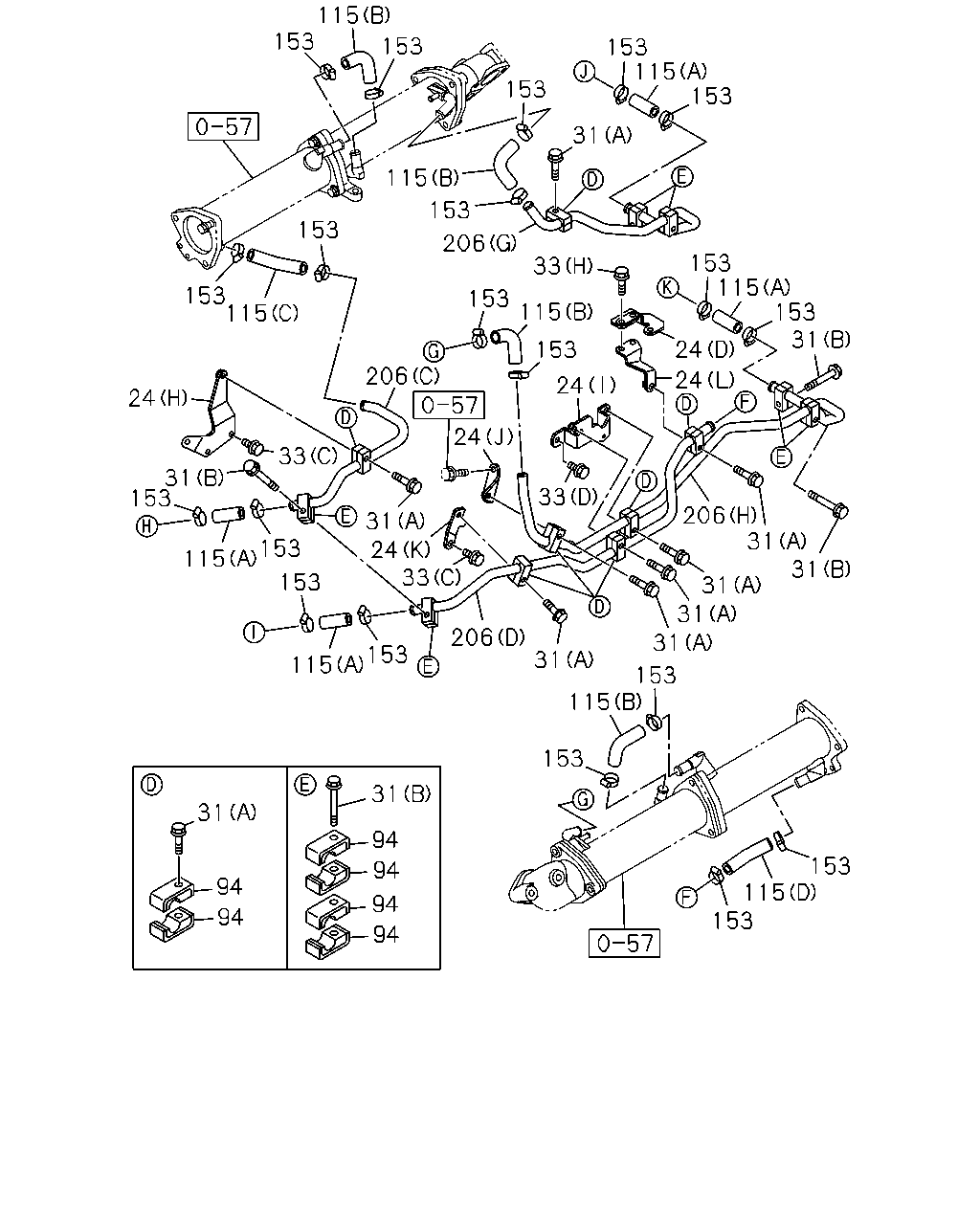

çizim 168691
153 153 153 115 115 153 153 31 115 153 153 153 115 206 24 31 153 33 115 153 153 115 153 31 24 33 206 206 153 24 33 115 153 24 33 31 153 115 153 31 31 31 206 31 31 153 115 153 31 24 24 153 115 153 31 94 94 31 94 94 94 94
BalonParca AdiParca NoAdetTipApplied Date
24 BRACKET; WATER PIPE
(A) 		8-97609-581-1 01 1 1009-
24 BRACKET; WATER PIPE
(B) 		8-97610-306-1 01 1 1009-
24 BRACKET; WATER PIPE
(C) 		8-97610-307-1 01 1 1009-
24 BRACKET; WATER PIPE
(E) 		8-97613-004-0 01 1 1009-
24 BRACKET; WATER PIPE
(F) 		8-97613-005-1 01 1 1009-
24 BRACKET; WATER PIPE
(G) 		8-97613-007-1 01 1 1009-
24 BRACKET; WATER PIPE
(H) 		8-97613-530-0 01 1 1009-
24 BRACKET; WATER PIPE
(I) 		8-97613-531-0 01 1 1009-
24 BRACKET; WATER PIPE
(J) 		8-97615-507-0 01 1 1009-
24 BRACKET; WATER PIPE
(K) 		8-97618-746-0 01 1 1009-
24 BRACKET; WATER PIPE
(D) 		8-97628-207-0 01 1 1009-
24 BRACKET; WATER PIPE
(L) 		8-97628-300-0 01 1 1009-
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 12 1 1009-1507
31 BOLT; CLIP
(B) M8X70 FLANGE 		0-28050-870-0 07 1 1009-
33 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1009-
33 BOLT; BRKT
(H) M8X25 FLANGE 		0-28050-825-0 02 1 1009-
33 BOLT; BRKT
(G) M10X20 FLANGE 		0-28051-020-0 02 1 1009-
33 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 02 1 1009-
33 BOLT; BRKT
(C) M10X20 FLANGE 		0-28151-020-0 05 1 1009-
33 BOLT; BRKT
(F) M10X25 FLANGE 		0-28151-025-0 03 1 1009-
33 BOLT; BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 1009-
33 BOLT; BRKT
(E) M10X90 FLANGE 		0-28151-090-0 02 1 1009-
94 CLIP; WATER PIPE
ID=17 L=17 		1-09701-284-0 56 1 1009-
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 08 1 1009-
115 HOSE; RUBBER
(B) 		8-97604-063-0 04 1 1009-
115 HOSE; RUBBER
(C) 		8-97628-219-0 01 1 1009-
115 HOSE; RUBBER
(D) 		8-97628-220-0 01 1 1009-
153 CLIP; RUBBER HOSE
ID=25 		8-97177-581-0 28 1 1009-
206 PIPE; WATER,EGR COOLER
(E) 		8-97613-292-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(F) 		8-97613-294-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(B) 		8-97623-511-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(C) 		8-97628-203-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(D) 		8-97628-204-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(G) 		8-97628-205-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(H) 		8-97628-206-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(A) 		8-97629-442-0 01 1 1009-

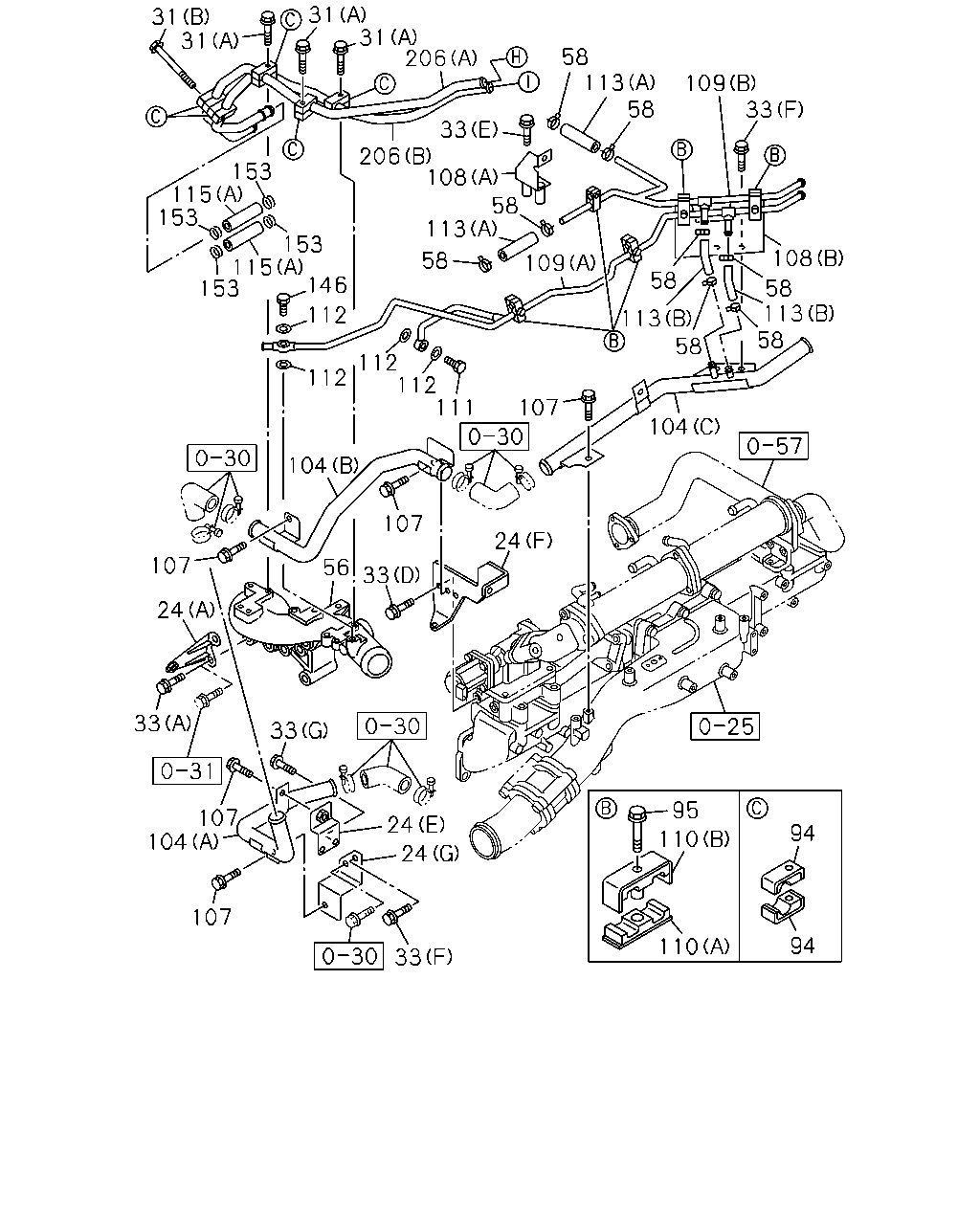

çizim 168697
31 31 31 31 153 115 153 206 206 153 115 153 146 112 33 108 113 58 58 58 58 113 109 33 109 58 113 58 108 58 113 58 112 112 112 111 107 104 104 107 107 24 56 33 24 33 33 107 104 107 24 24 33 95 110 110 94 94
BalonParca AdiParca NoAdetTipApplied Date
24 BRACKET; WATER PIPE
(A) 		8-97609-581-1 01 1 1009-
24 BRACKET; WATER PIPE
(B) 		8-97610-306-1 01 1 1009-
24 BRACKET; WATER PIPE
(C) 		8-97610-307-1 01 1 1009-
24 BRACKET; WATER PIPE
(E) 		8-97613-004-0 01 1 1009-
24 BRACKET; WATER PIPE
(F) 		8-97613-005-1 01 1 1009-
24 BRACKET; WATER PIPE
(G) 		8-97613-007-1 01 1 1009-
24 BRACKET; WATER PIPE
(H) 		8-97613-530-0 01 1 1009-
24 BRACKET; WATER PIPE
(I) 		8-97613-531-0 01 1 1009-
24 BRACKET; WATER PIPE
(J) 		8-97615-507-0 01 1 1009-
24 BRACKET; WATER PIPE
(K) 		8-97618-746-0 01 1 1009-
24 BRACKET; WATER PIPE
(D) 		8-97628-207-0 01 1 1009-
24 BRACKET; WATER PIPE
(L) 		8-97628-300-0 01 1 1009-
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 12 1 1009-1507
31 BOLT; CLIP
(B) M8X70 FLANGE 		0-28050-870-0 07 1 1009-
33 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1009-
33 BOLT; BRKT
(H) M8X25 FLANGE 		0-28050-825-0 02 1 1009-
33 BOLT; BRKT
(G) M10X20 FLANGE 		0-28051-020-0 02 1 1009-
33 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 02 1 1009-
33 BOLT; BRKT
(C) M10X20 FLANGE 		0-28151-020-0 05 1 1009-
33 BOLT; BRKT
(F) M10X25 FLANGE 		0-28151-025-0 03 1 1009-
33 BOLT; BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 1009-
33 BOLT; BRKT
(E) M10X90 FLANGE 		0-28151-090-0 02 1 1009-
56 PIPE; WATER OUTLET 8-98038-588-0 01 1 1009-
58 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 04 1 1009-1105
58 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 08 1 1106-
94 CLIP; WATER PIPE
ID=17 L=17 		1-09701-284-0 56 1 1009-
95 BOLT; CLIP
M6X35 FLANGE 		0-28050-635-0 06 1 1009-
104 PIPE; WATER CHARGE
(B) 		8-97613-001-1 01 1 1009-
104 PIPE; WATER CHARGE
(C) 		8-97613-002-1 01 1 1009-1105
104 PIPE; WATER CHARGE
(C) 		8-98191-341-0 01 1 1106-
104 PIPE; WATER CHARGE
(A) 		8-97617-188-0 01 1 1009-
107 BOLT; WATER PIPE
M10X20 FLANGE 		0-28151-020-0 05 1 1009-
108 BRACKET; WATER CHARGE
(A) 		8-97613-672-0 01 1 1009-
108 BRACKET; WATER CHARGE
(B) 		8-97615-508-2 01 1 1009-
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(B) 		8-97628-172-0 01 1 1009-1105
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(B) 		8-98191-343-0 01 1 1106-
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(A) 		8-97623-510-0 01 1 1009-1105
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(A) 		8-98191-497-0 01 1 1106-
110 CLIP; AIR PIPE
(A) ID=9 & 9 L=25 		1-09701-180-0 06 1 1009-
110 CLIP; AIR PIPE
(B) ID=9 & 9 L=25 		8-94393-280-3 06 1 1009-
111 BOLT; EYE,LEAK,THERMOSTAT HSG
M14X27 EYE-BOLT 		1-09675-193-0 01 1 1009-
112 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 04 1 1009-
113 HOSE; RUBBER,AIR LEAK
(B) 		8-98191-351-0 02 1 1106-
113 HOSE; RUBBER,AIR LEAK
(A) L=100 SERVICED BY L=3000 		0-03559-300-0 02 1 1009-
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 08 1 1009-
115 HOSE; RUBBER
(B) 		8-97604-063-0 04 1 1009-
115 HOSE; RUBBER
(C) 		8-97628-219-0 01 1 1009-
115 HOSE; RUBBER
(D) 		8-97628-220-0 01 1 1009-
146 BOLT; EYE
M14X27 EYE-BOLT 		1-09675-193-0 01 1 1009-
153 CLIP; RUBBER HOSE
ID=25 		8-97177-581-0 28 1 1009-
206 PIPE; WATER,EGR COOLER
(E) 		8-97613-292-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(F) 		8-97613-294-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(B) 		8-97623-511-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(C) 		8-97628-203-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(D) 		8-97628-204-0 01 1 1009-
206 PIPE; WATER,EGR COOLER
(G) 		8-97628-205-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(H) 		8-97628-206-1 01 1 1009-
206 PIPE; WATER,EGR COOLER
(A) 		8-97629-442-0 01 1 1009-

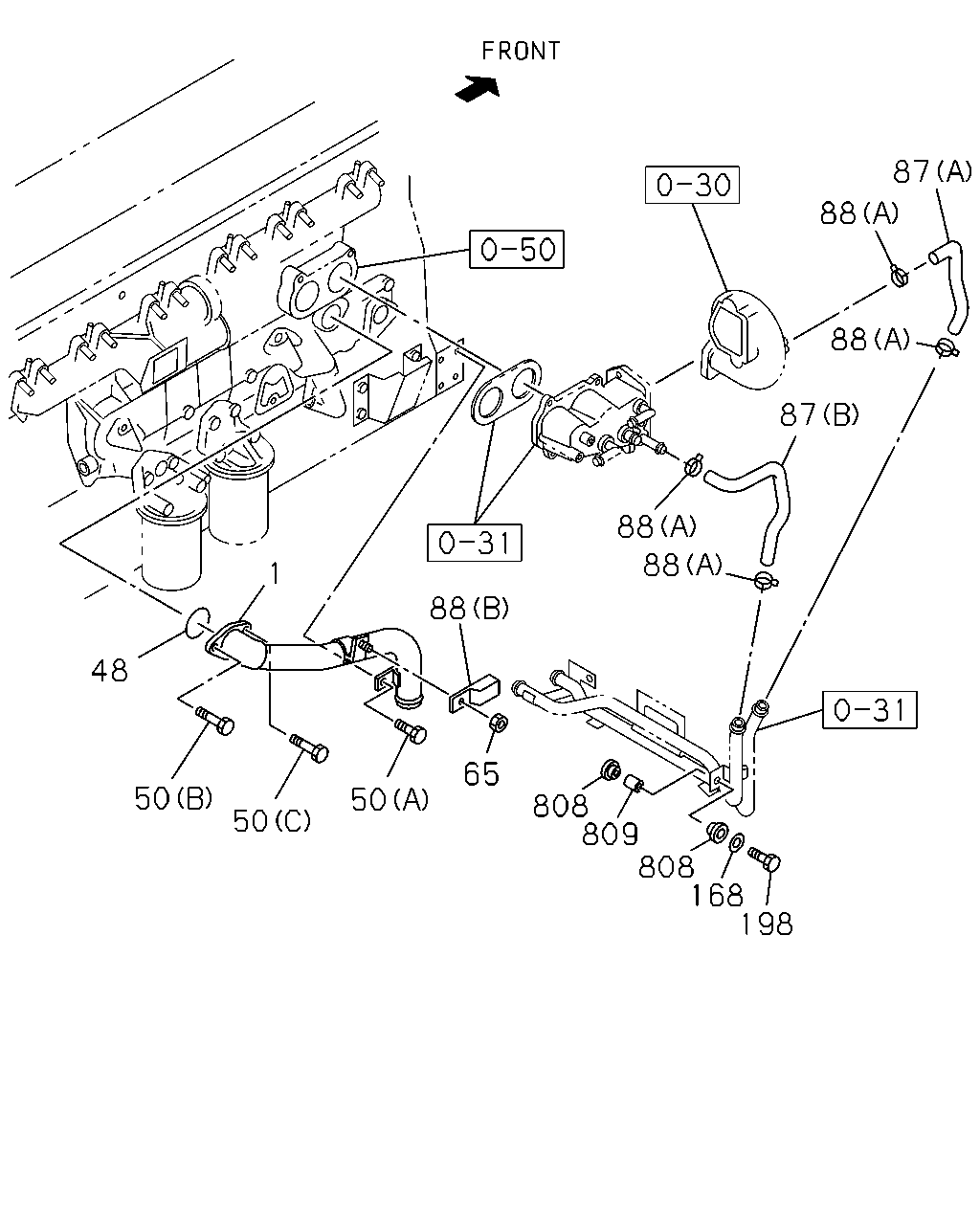

çizim 168700
87 88 88 87 88 88 88 48 50 50 65 50 808 809 808 168 198 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; WATER PUMP,INL 8-97606-255-2 01 1 1009-
48 GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-406-0 01 1 1009-
50 BOLT; WATER PIPE INL
(C) M10X90 FLANGE 		0-28051-090-0 01 1 1009-1306
50 BOLT; WATER PIPE INL
(C) M10X90 FLANGE 		0-28151-090-0 01 1 1307-
50 BOLT; WATER PIPE INL
(B) M10X30 FLANGE 		0-28151-030-0 01 1 1009-
50 BOLT; WATER PIPE INL
(A) M14X25 FLANGE 		0-28951-425-0 01 1 1009-
65 NUT
M10 FLANGE 		0-91180-110-0 01 1 1009-
87 HOSE; RUBBER,HTR
(B) 		1-83565-572-0 01 1 1009-
87 HOSE; RUBBER,HTR
(A) 		1-83565-577-0 01 1 1009-
88 CLIP; HOSE,HTR
(A) ID=20 		1-09707-084-1 04 1 1009-
88 CLIP; HOSE,HTR
(B) 		9-09915-663-0 01 1 1009-1206
88 CLIP; HOSE,HTR
(B) 		8-98166-024-0 01 1 1207-
168 WASHER; PL,PIPE
ID=10.5 OD=26 		0-91614-710-0 02 1 1009-
198 BOLT; PIPE
M10X45 FLANGE 		0-28051-045-0 02 1 1009-
808 RUBBER; MTG 1-09337-017-0 04 1 1009-
809 TUBE; DIST
ID=11.8 L=27 		1-21559-149-0 02 1 1009-

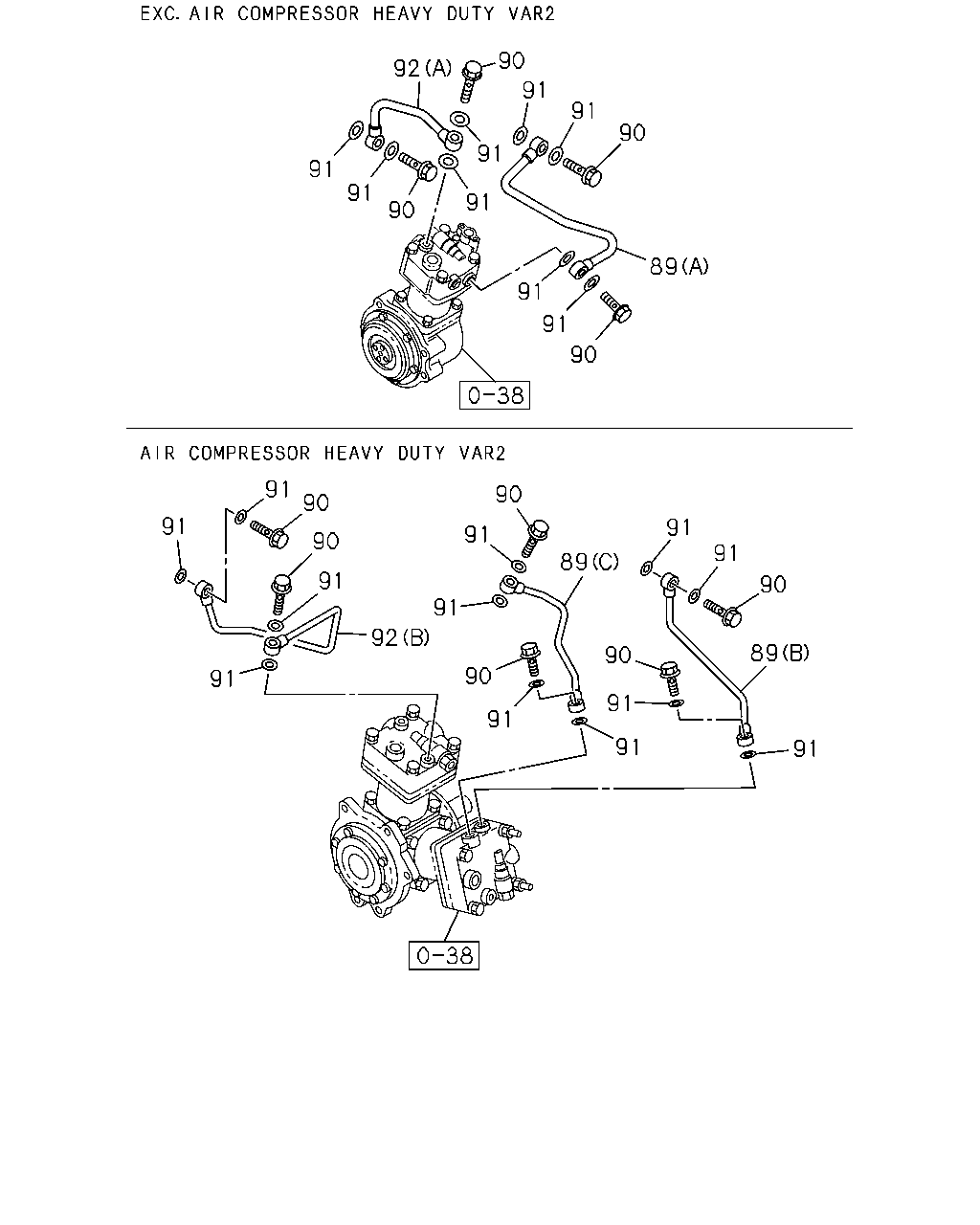

çizim 168721
91 92 90 91 91 91 91 90 91 89 90 91 91 90 90 91 91 91 92 91 90 90 91 90 91 89 90 91 91 91 91 89 90 91 91
BalonParca AdiParca NoAdetTipApplied Date
89 PIPE; WATER,AIR CMPR,IN
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-13722-007-0 01 1 1303-
89 PIPE; WATER,AIR CMPR,IN
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-13722-008-0 01 1 1303-
89 PIPE; WATER,AIR CMPR,IN
(A) 		1-13721-794-0 01 1 1009-1302
89 PIPE; WATER,AIR CMPR,IN
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A) 		1-13721-794-0 01 1 1303-1411
89 PIPE; WATER,AIR CMPR,IN
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-13721-794-0 01 1 1412-
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 02 1 1303-1411
90 BOLT; EYE,WATER PIPE,AIR CMPR
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1303-1411
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 02 1 1412-1412
90 BOLT; EYE,WATER PIPE,AIR CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1412-1412
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 02 1 1412-
90 BOLT; EYE,WATER PIPE,AIR CMPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1412-
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 04 1 1009-1302
90 BOLT; EYE,WATER PIPE,AIR CMPR
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M14X27 EYE-BOLT 		1-09675-193-0 04 1 1303-
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=14.2 OD=25 		1-09630-141-0 04 1 1303-
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 08 1 1009-
92 PIPE; WATER,AIR CMPR,OUT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-13722-009-0 01 1 1303-
92 PIPE; WATER,AIR CMPR,OUT
(A) 		1-13722-003-0 01 1 1009-1302
92 PIPE; WATER,AIR CMPR,OUT
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A) 		1-13722-003-0 01 1 1303-1411
92 PIPE; WATER,AIR CMPR,OUT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-13722-003-0 01 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
