0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#61003) — 104 parça

192 197 191 197 196 196 197 175 196 197 191 196 197 197 192 236 224 177 115 211 211 213 219 169 278 254 211 480 492 2 207 42 207 208 255 242 290 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

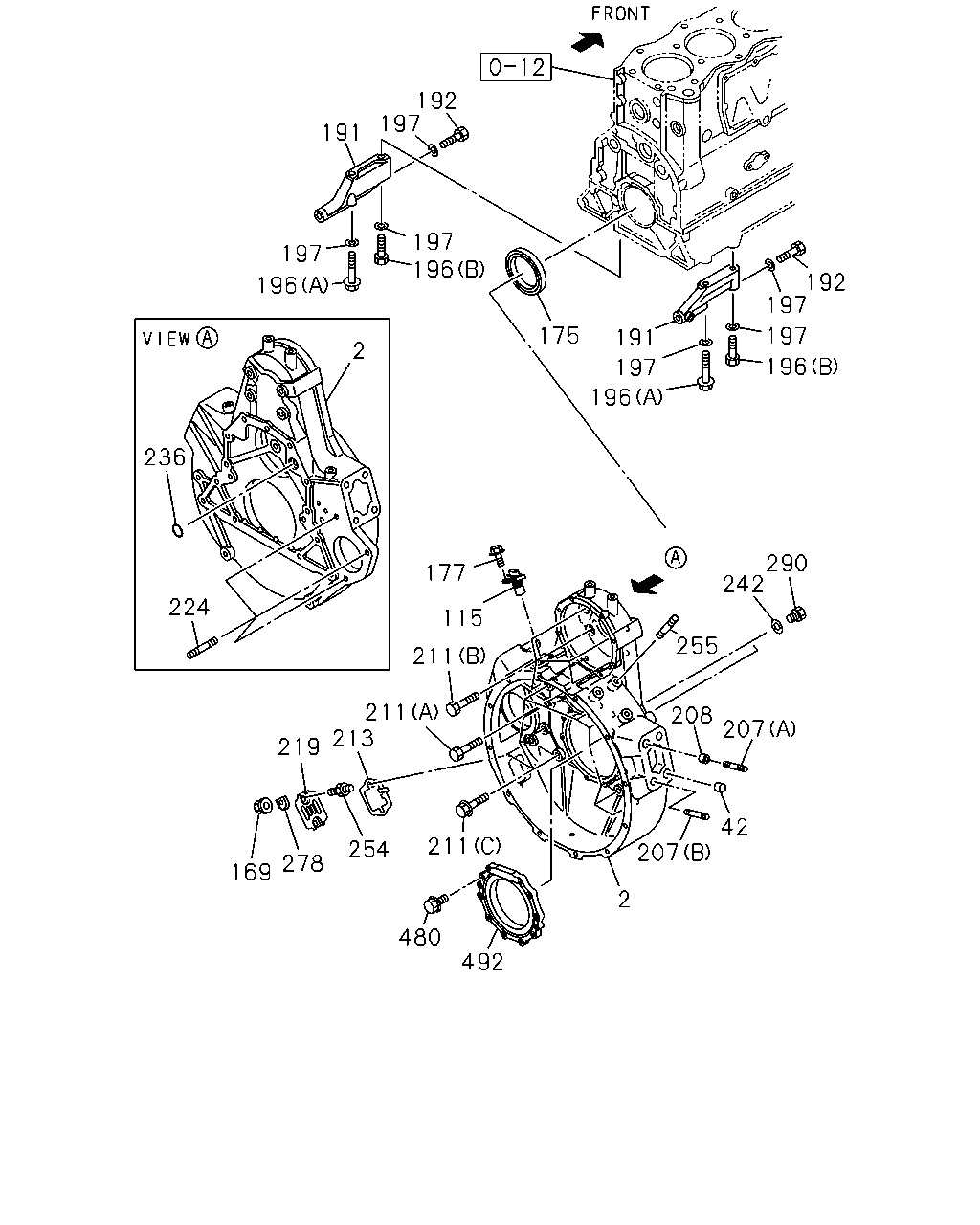

2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	1-11341-622-5	01	1	1009-1103
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	8-98181-926-0	01	1	1104-1302
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	1-11340-311-2	01	1	1009-1103
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	8-98182-194-0	01	1	1104-1302
2	HOUSING; FLYWHEEL	8-98182-194-0	01	1	1303-1403
2	HOUSING; FLYWHEEL	8-98182-183-2	01	1	1404-
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	1009-
115	SENSOR; REVOLUTION,ENG SPD	8-94390-279-0	01	1	1009-
169	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	1009-
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	8-97617-309-0	01	1	1009-
177	BOLT; SENSOR M6X16 FLANGE	0-28650-616-0	01	1	1009-
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	1009-
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	1009-
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	1009-
196	BOLT; STAY TO C/BL (A) M14X100	0-16956-400-0	02	1	1009-
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	02	1	1009-
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	1009-
207	STUD; ENG FOOT (B) M18X60 L=96	0-43211-860-0	04	1	1009-
207	STUD; ENG FOOT (A) M18X80 L=116	0-43211-880-0	04	1	1009-
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	1009-
211	BOLT; HSG ENGINE REAR PTO(SV1) (A) M14X30 FLANGE	0-28761-430-0	01	1	1009-1302
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28761-440-0	05	1	1009-1302
211	BOLT; HSG ENGINE REAR PTO(SV1) (C) M14X110 FLANGE	0-28966-411-0	11	1	1009-1302
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (F) M14X50	0-16956-450-0	02	1	1009-1302
211	BOLT; HSG (F) M14X50	0-16956-450-0	02	1	1303-
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (E) M8X35 FLANGE	0-28050-835-0	08	1	1009-1302
211	BOLT; HSG (E) M8X35 FLANGE	0-28050-835-0	08	1	1303-
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (G) M14X70	9-91666-470-0	02	1	1009-1302
211	BOLT; HSG (G) M14X70	9-91666-470-0	02	1	1303-
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M14X45	9-92361-445-0	10	1	1009-1302
211	BOLT; HSG (D) M14X45	9-92361-445-0	10	1	1303-
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	1009-
219	COVER; POINTER	1-11349-131-0	01	1	1009-
224	STUD; STARTER M14X35 L=56	0-44011-435-0	03	1	1009-
236	GASKET; FLYWHEEL HSG ENGINE REAR PTO(SV1) ID=29.7	1-09623-273-0	01	1	1009-1302
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	01	1	1009-
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	1009-
255	STUD; RELAY LEVER BRKT M12X30 L=48	8-98059-951-0	03	1	1009-
278	WASHER; COVER FIX	1-11349-127-0	01	1	1009-
290	PLUG; SENSOR HOLE M20X10.5	8-98009-333-0	01	1	1009-
480	BOLT; COVER ENGINE REAR PTO(SV1) M8X30 FLANGE	0-28650-830-0	10	1	1009-1302
492	COVER; OIL SEAL ENGINE REAR PTO(SV1)	1-12363-043-0	01	1	1009-1302

37 36 1 36 36 36 37 36 36 36 37 36 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

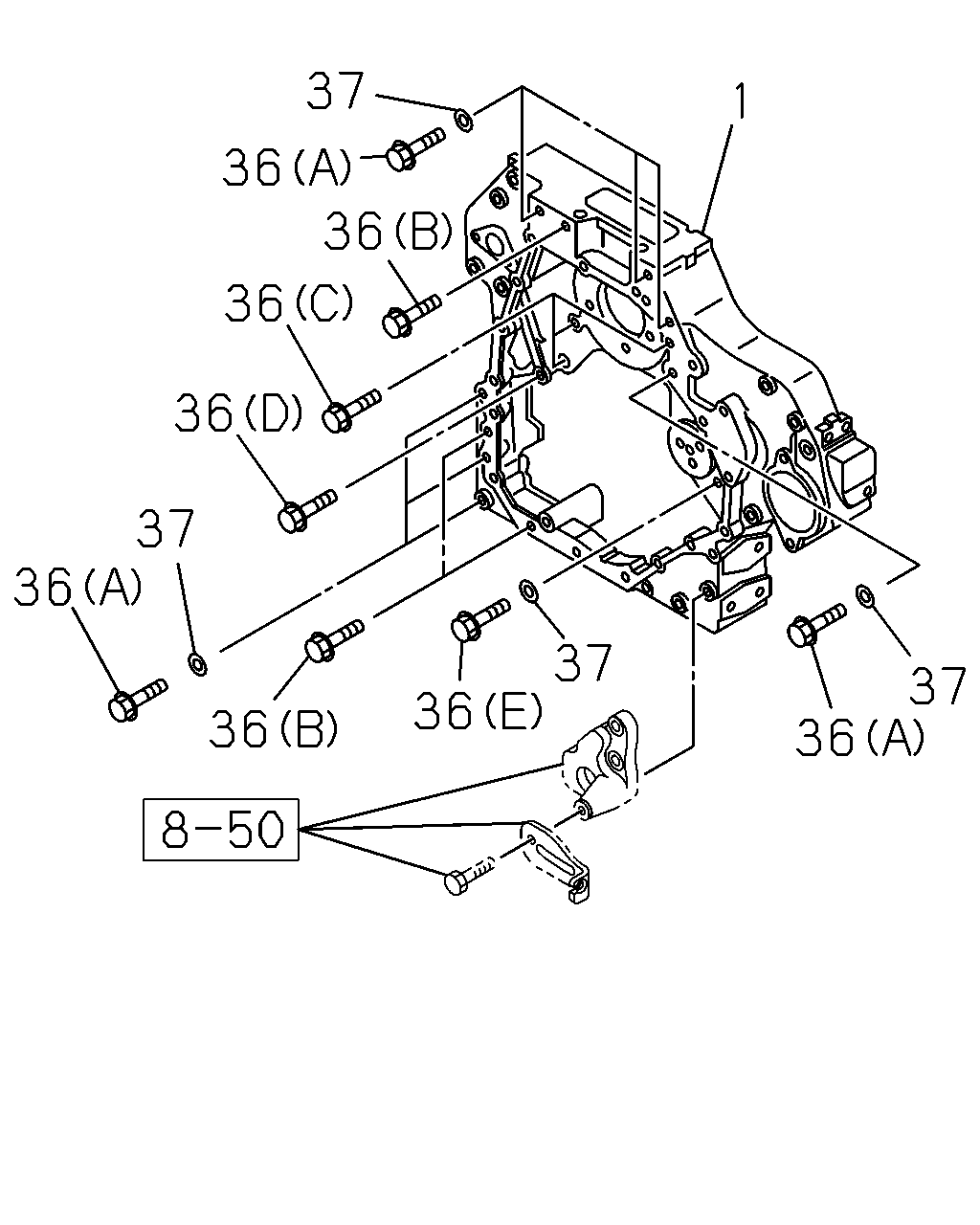

1	CASE; TIMING GEAR	8-98032-286-5	01	1	1009-1309
1	CASE; TIMING GEAR	8-98249-369-0	01	1	1310-
36	BOLT; GEAR CASE (B) M10X100 FLANGE	0-28151-000-0	03	1	1009-
36	BOLT; GEAR CASE (C) M10X25 FLANGE	0-28151-025-0	04	1	1009-
36	BOLT; GEAR CASE (D) M10X35 FLANGE	0-28151-035-0	01	1	1009-
36	BOLT; GEAR CASE (A) M14X110	1-09020-007-0	07	1	1009-
36	BOLT; GEAR CASE (E) M14X60	1-09020-146-0	01	1	1009-
37	WASHER; PL,GEAR CASE ID=15 OD=26	9-09164-514-0	08	1	1009-1301
37	WASHER; PL,GEAR CASE ID=15 OD=26	0-91614-514-0	08	1	1302-

49 1 46 51 51 51 54 51 35 51 51 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

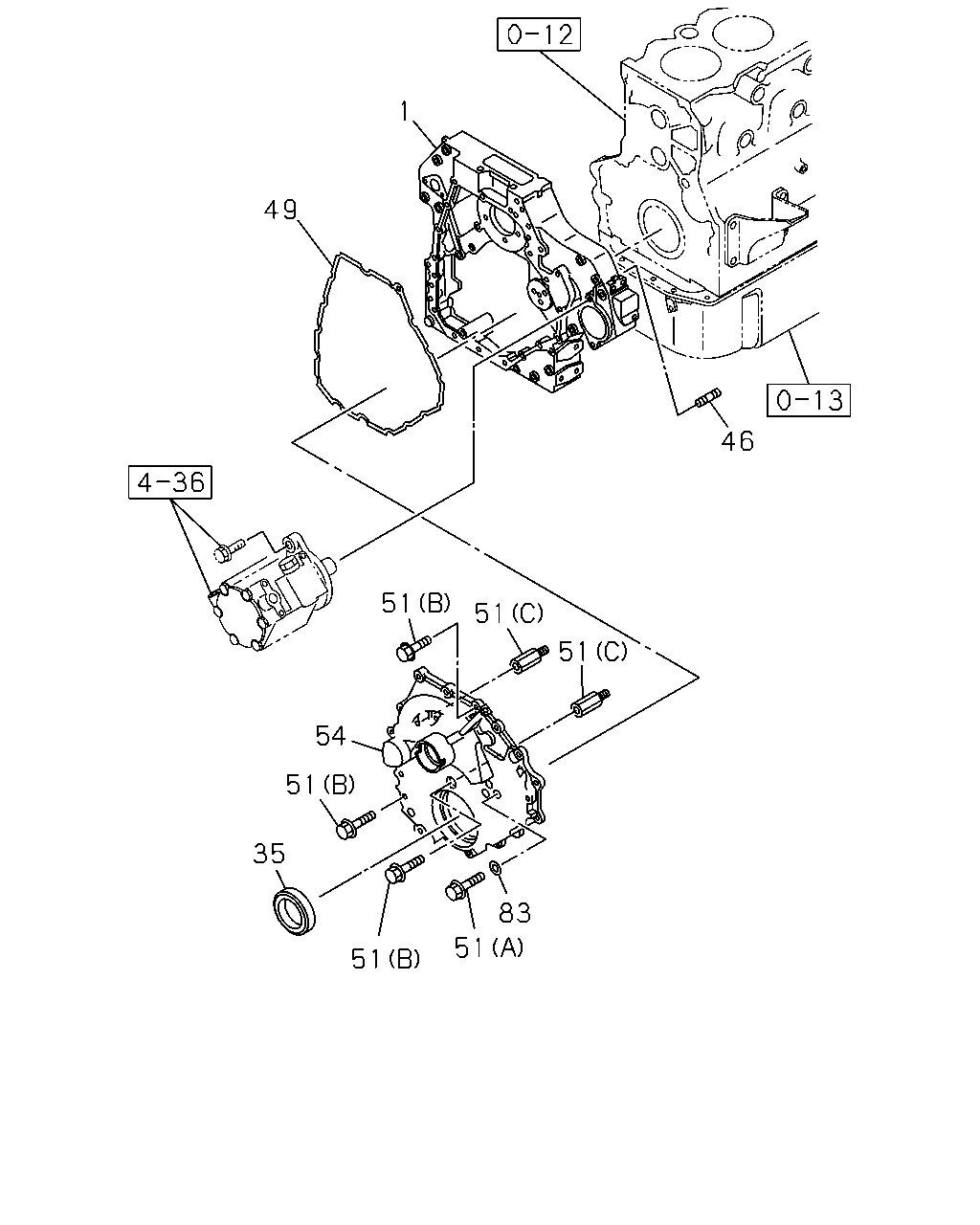

1	CASE; TIMING GEAR	8-98032-286-5	01	1	1009-1309
1	CASE; TIMING GEAR	8-98249-369-0	01	1	1310-
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	8-97617-308-0	01	1	1009-
46	STUD; BRG COVER,RR M14X45 L=66	0-44011-445-0	01	1	1009-
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98061-423-0	01	1	1009-
51	BOLT; GEAR CASE COVER (A) M8X40	0-10955-840-0	03	1	1009-
51	BOLT; GEAR CASE COVER (B) M10X30 FLANGE	0-28151-030-0	17	1	1009-
51	BOLT; GEAR CASE COVER (C) M10X90	8-97603-482-0	03	1	1009-
54	COVER; GEAR CASE	1-11321-174-3	01	1	1009-
83	WASHER; PL,COVER ID=8.5 OD=20	5-09503-111-0	03	1	1009-

192 191 197 196 196 197 197 175 177 115 211 241 205 169 278 219 211 241 213 254 211 211 241 2 207 42 207 208 255 224 241 242 290 197 191 196 196 197 197 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

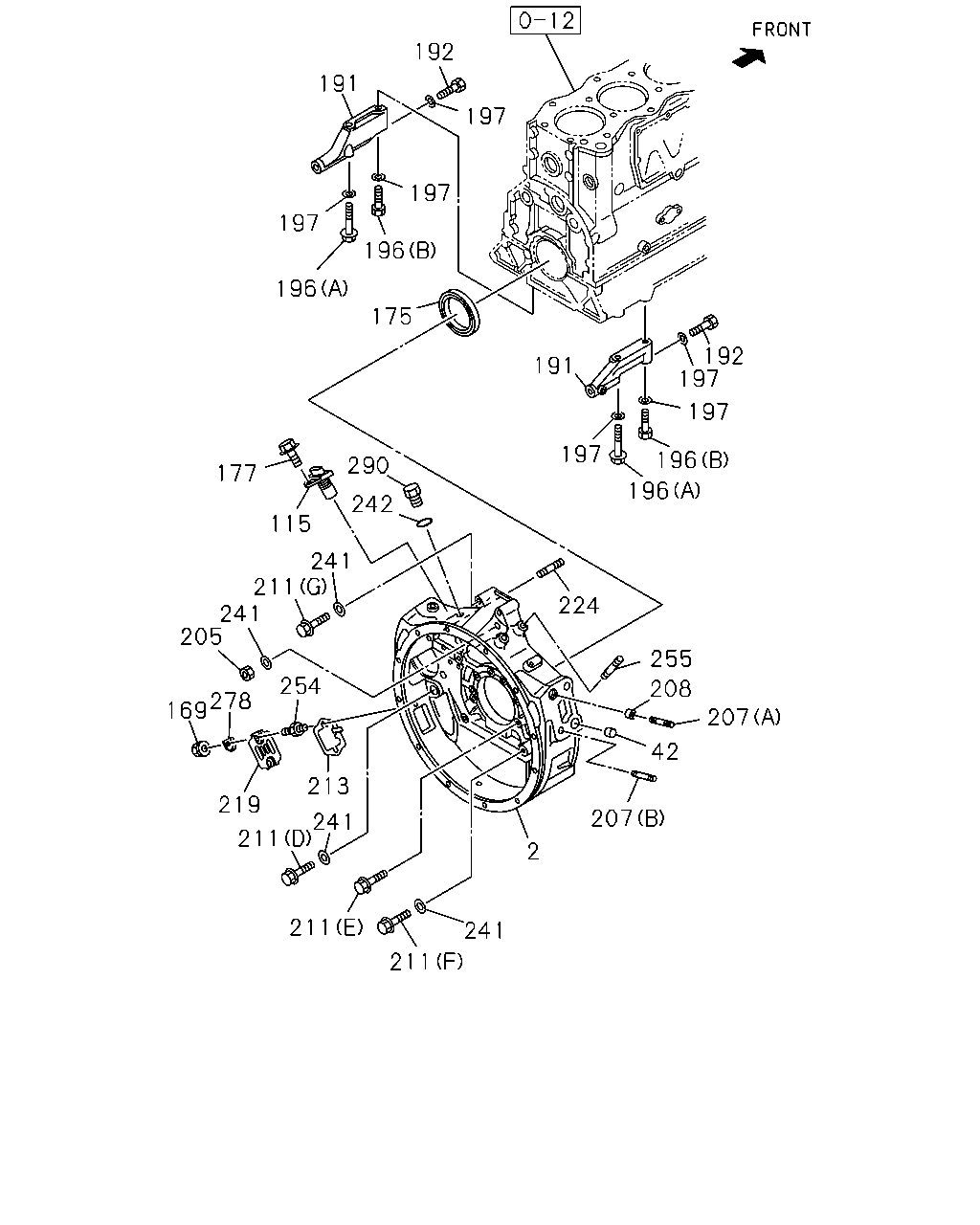

2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	1-11341-622-5	01	1	1009-1103
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	8-98181-926-0	01	1	1104-1302
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	1-11340-311-2	01	1	1009-1103
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	8-98182-194-0	01	1	1104-1302
2	HOUSING; FLYWHEEL	8-98182-194-0	01	1	1303-1403
2	HOUSING; FLYWHEEL	8-98182-183-2	01	1	1404-
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	1009-
115	SENSOR; REVOLUTION,ENG SPD	8-94390-279-0	01	1	1009-
169	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	1009-
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	8-97617-309-0	01	1	1009-
177	BOLT; SENSOR M6X16 FLANGE	0-28650-616-0	01	1	1009-
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	1009-
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	1009-
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	1009-
196	BOLT; STAY TO C/BL (A) M14X100	0-16956-400-0	02	1	1009-
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	02	1	1009-
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	1009-
205	NUT; HSG EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	01	1	1009-1302
205	NUT; HSG M14	0-91110-514-0	01	1	1303-
207	STUD; ENG FOOT (B) M18X60 L=96	0-43211-860-0	04	1	1009-
207	STUD; ENG FOOT (A) M18X80 L=116	0-43211-880-0	04	1	1009-
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	1009-
211	BOLT; HSG ENGINE REAR PTO(SV1) (A) M14X30 FLANGE	0-28761-430-0	01	1	1009-1302
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28761-440-0	05	1	1009-1302
211	BOLT; HSG ENGINE REAR PTO(SV1) (C) M14X110 FLANGE	0-28966-411-0	11	1	1009-1302
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (F) M14X50	0-16956-450-0	02	1	1009-1302
211	BOLT; HSG (F) M14X50	0-16956-450-0	02	1	1303-
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (E) M8X35 FLANGE	0-28050-835-0	08	1	1009-1302
211	BOLT; HSG (E) M8X35 FLANGE	0-28050-835-0	08	1	1303-
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (G) M14X70	9-91666-470-0	02	1	1009-1302
211	BOLT; HSG (G) M14X70	9-91666-470-0	02	1	1303-
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M14X45	9-92361-445-0	10	1	1009-1302
211	BOLT; HSG (D) M14X45	9-92361-445-0	10	1	1303-
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	1009-
219	COVER; POINTER	1-11349-131-0	01	1	1009-
224	STUD; STARTER M14X35 L=56	0-44011-435-0	03	1	1009-
241	WASHER; PL,HSG EXC. ENGINE REAR PTO(SV1) ID=15 OD=26	9-09164-514-0	15	1	1009-1302
241	WASHER; PL,HSG ID=15 OD=26	9-09164-514-0	15	1	1303-
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	01	1	1009-
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	1009-
255	STUD; RELAY LEVER BRKT M12X30 L=48	8-98059-951-0	03	1	1009-
278	WASHER; COVER FIX	1-11349-127-0	01	1	1009-
290	PLUG; SENSOR HOLE M20X10.5	8-98009-333-0	01	1	1009-
