◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#6100) — 114 parça

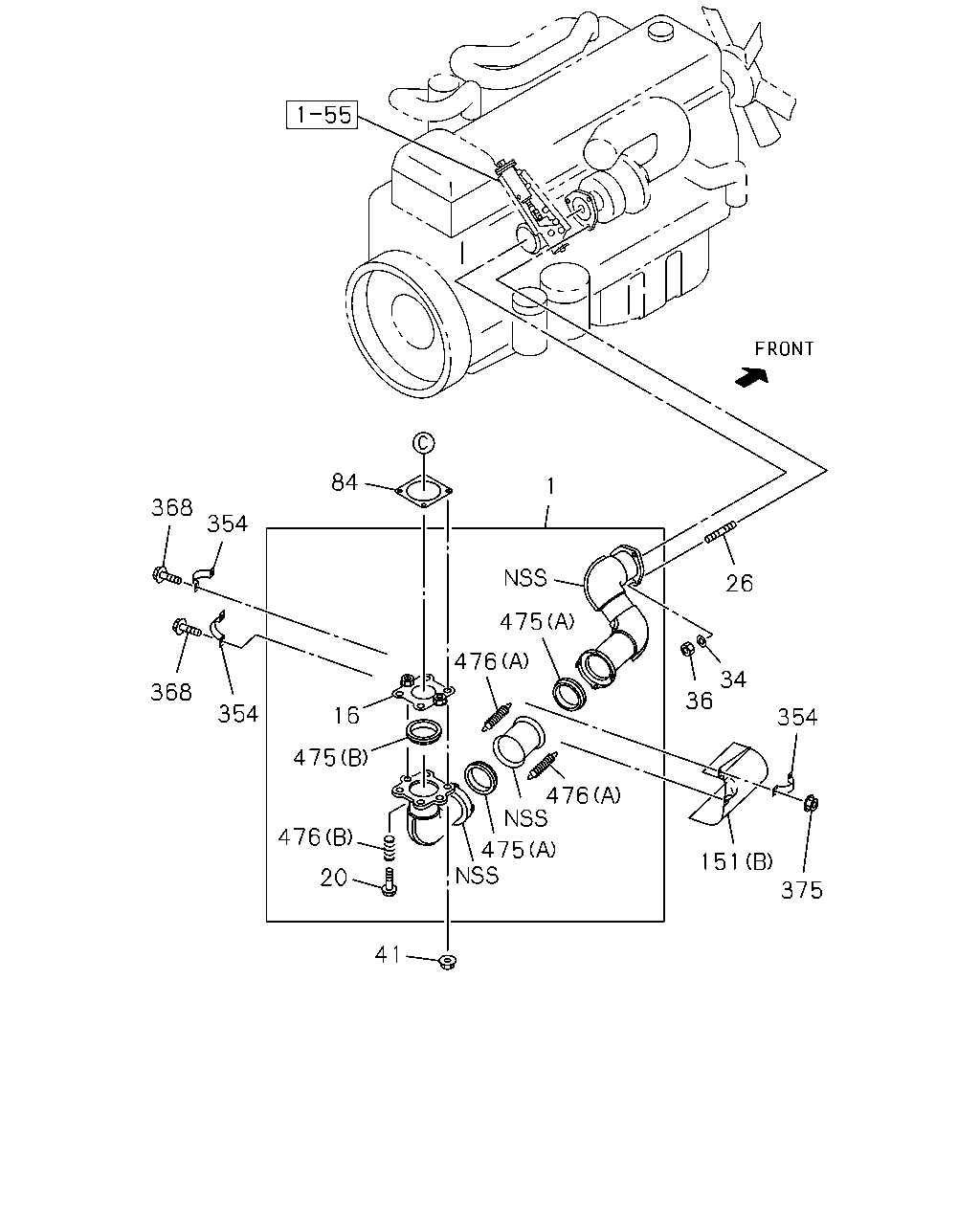

çizim 37523
84 1 368 354 26 475 476 34 36 368 354 16 354 475 476 476 475 151 375 20 41
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH 1-22123-084-0 01 1 9905-0301
1 PIPE; EXH 1-22123-402-1 01 1 0302-
16 FLANGE; EXH PIPE 1-22115-148-1 01 1 9905-
20 BOLT; FLANGE,EXH PIPE
M10X51.4 		8-94436-943-0 02 1 9905-
26 STUD; EXH MANIF
M12X140 L=160 		1-09302-163-0 03 1 9905-0602
26 STUD; EXH MANIF
M12X140 L=160 		1-09302-163-0 04 1 0603-
34 WASHER; EXH PIPE
ID=13 OD=26 		1-09556-020-0 03 1 9905-0602
34 WASHER; EXH PIPE
ID=13 OD=26 		1-09556-020-0 04 1 0603-
36 NUT; EXH PIPE
M12 		1-09400-131-0 03 1 9905-0602
36 NUT; EXH PIPE
M12 		1-09400-131-0 04 1 0603-
41 NUT; EXH PIPE TO EXH SILENCER
M10 		9-09110-510-0 01 1 9905-0301
41 NUT; EXH PIPE TO EXH SILENCER
M10 		9-09110-510-0 01 1 0302-0512
41 NUT; EXH PIPE TO EXH SILENCER
M10 		0-91110-510-0 01 1 0601-0602
41 NUT; EXH PIPE TO EXH SILENCER
M12 		9-99110-512-0 04 1 9905-0512
41 NUT; EXH PIPE TO EXH SILENCER
M12 		0-91110-512-0 04 1 0601-
84 GASKET; EXH PIPE 1-22116-030-0 01 1 9905-9905
151 PROTECTOR; HEAT,EXH PIPE
(B) 		1-22119-444-0 01 1 9905-0305
151 PROTECTOR; HEAT,EXH PIPE
(B) 		1-22119-548-0 01 1 0306-
151 PROTECTOR; HEAT,EXH PIPE
(A) 		1-22159-334-0 01 1 9905-
354 CLAMP; HEAT PROTECTOR 1-22119-445-0 03 1 9905-
368 BOLT; CLAMP
M8X30 FLANGE 		0-28680-830-0 04 1 9905-0512
368 BOLT; CLAMP
M8X30 FLANGE 		0-28650-830-0 04 1 0601-
375 NUT; CLAMP
M8 FLANGE 		0-91150-108-0 02 1 9905-0602
375 NUT; CLAMP
M8 FLANGE 		0-91180-108-0 02 1 0603-
475 BEARING; SEAL,VIBNON,EXH PIPE
(B) OD=112 		1-22119-294-1 01 1 9905-
475 BEARING; SEAL,VIBNON,EXH PIPE
(A) OD=122 		1-22119-297-1 02 1 9905-
476 SPRING; VIBNON,EXH PIPE
(A) 		1-09583-298-0 04 1 9905-
476 SPRING; VIBNON,EXH PIPE
(B) 		8-94141-851-0 02 1 9905-

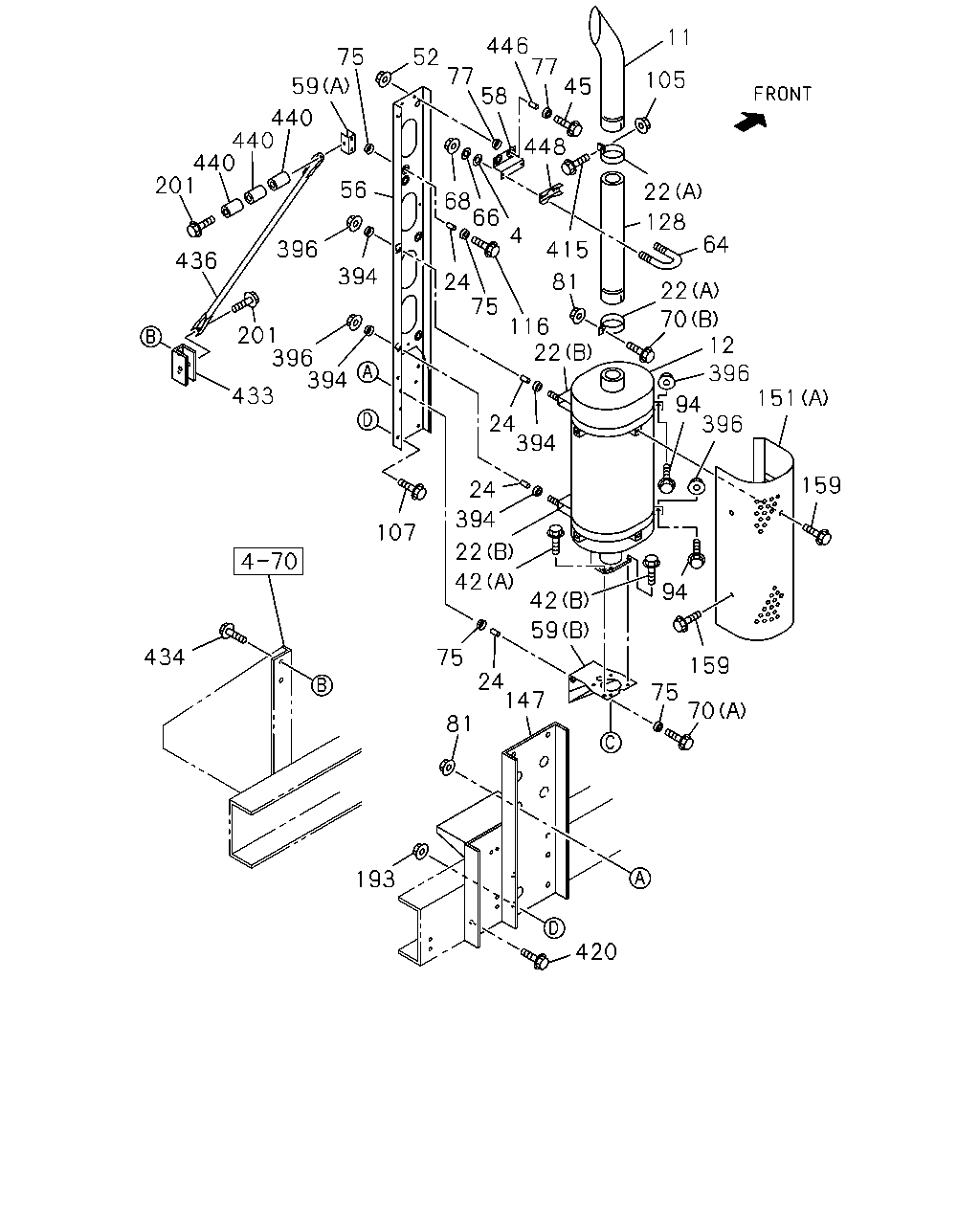

çizim 100570
11 446 77 45 75 52 77 58 105 59 440 440 440 201 448 68 56 22 128 4 64 396 415 436 394 81 24 75 22 70 12 396 151 116 22 201 396 394 94 396 433 24 394 24 159 394 107 22 42 42 94 59 434 75 159 24 147 75 70 81 193 420 66
BalonParca AdiParca NoAdetTipApplied Date
4 WASHER; PL,U BOLT
ID=8.4 OD=22 		9-09160-708-0 02 1 9905-0605
4 WASHER; PL,U BOLT
ID=8.4 OD=22 		0-91610-708-0 02 1 0606-
11 PIPE; EXH,RR 1-22123-086-1 01 1 9905-
12 SILENCER ASM; EXH 1-22140-865-0 01 1 9905-0003
12 SILENCER ASM; EXH 1-22140-925-2 01 1 0004-
22 CLAMP; EXH PIPE
(A) 		1-22133-266-1 02 1 9905-0011
22 CLAMP; EXH PIPE
(A) 		1-22133-266-1 01 1 0012-
22 CLAMP; EXH PIPE
(A) 		1-22133-266-1 01 1 0012-
22 CLAMP; EXH PIPE
(B) 		1-22133-270-0 02 1 9905-
24 COLLAR; DIST,CLAMP
L=25 		1-14234-083-0 10 1 9905-
42 BOLT; EXH PIPE TO EXH SILENCER
(A) M10X35 FLANGE 		0-28681-035-0 01 1 9905-0212
42 BOLT; EXH PIPE TO EXH SILENCER
(B) M12X35 FLANGE 		1-09000-653-0 04 1 9905-0212
42 BOLT; EXH PIPE TO EXH SILENCER
(B) M12X35 FLANGE 		1-09000-653-0 03 1 0301-0602
42 BOLT; EXH PIPE TO EXH SILENCER
(B) M12X35 FLANGE 		1-09000-653-0 04 1 0603-
45 BOLT; BRKT
M10X50 FLANGE 		0-28081-050-0 02 1 9905-0512
45 BOLT; BRKT
M10X50 FLANGE 		0-28051-050-0 02 1 0601-
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9905-0602
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
56 BRACKET; CLAMP,EXH PIPE 1-22151-766-2 01 1 9905-0001
56 BRACKET; CLAMP,EXH PIPE 1-22151-860-3 01 1 0002-
58 BRACKET; EXH PIPE,RR 1-22131-799-0 01 1 9905-
59 BRACKET; EXH SILENCER,FRT
(A) 		1-22119-408-0 01 1 9905-
59 BRACKET; EXH SILENCER,FRT
(B) 		1-22151-768-1 01 1 9905-
64 U-BOLT; EXH PIPE,RR 1-22113-097-0 01 1 9905-
66 WASHER; LK,U BOLT
ID=8.2 		9-09150-508-0 02 1 9905-0603
66 WASHER; LK,U BOLT
ID=8.2 		0-91510-508-0 02 1 0604-
68 NUT; U BOLT
M8 FLANGE 		0-91150-108-0 02 1 9905-0011
68 NUT; U BOLT
M8 FLANGE 		0-91150-108-0 01 1 0012-0602
68 NUT; U BOLT
M8 FLANGE 		0-91180-108-0 01 1 0603-
70 BOLT; BRKT
(A) M10X60 FLANGE 		0-28081-060-0 04 1 9905-0512
70 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 04 1 0601-
70 BOLT; BRKT
(B) M10X40 FLANGE 		0-28681-040-0 01 1 0012-0512
70 BOLT; BRKT
(B) M10X40 FLANGE 		0-28651-040-0 01 1 0601-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 04 1 9905-0602
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 12 1 0603-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 08 1 9905-0602
77 RUBBER; CUSHION,BRKT
OD=40 		1-22159-094-0 04 1 9905-
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9905-0602
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 01 1 0603-0603
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0603-
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 01 1 0012-0602
81 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0603-0603
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 03 1 9905-0011
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 0012-0512
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0601-
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9905-0011
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 01 1 0012-0602
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 01 1 0603-
107 BOLT; BRKT
M12X40 FLANGE 		0-28681-240-0 04 1 9905-0212
107 BOLT; BRKT
M12X40 FLANGE 		0-28681-240-0 03 1 0301-0302
107 BOLT; BRKT
M12X40 FLANGE 		0-28681-240-0 04 1 0303-0512
107 BOLT; BRKT
M12X40 FLANGE 		0-28651-240-0 04 1 0601-
116 BOLT; BRKT
M10X50 FLANGE 		0-28081-050-0 02 1 9905-0512
116 BOLT; BRKT
M10X50 FLANGE 		0-28051-050-0 02 1 0601-
128 PIPE; EXH,RR 1-22123-087-1 01 1 9905-0011
128 PIPE; EXH,RR 1-22123-444-0 01 1 0012-
147 BRACKET; VERTICAL PIPE 1-22151-776-1 01 1 9905-0001
147 BRACKET; VERTICAL PIPE 1-22151-861-0 01 1 0002-0004
147 BRACKET; VERTICAL PIPE 1-22151-882-1 01 1 0005-
151 PROTECTOR; HEAT,EXH PIPE
(B) 		1-22119-444-0 01 1 9905-0305
151 PROTECTOR; HEAT,EXH PIPE
(B) 		1-22119-548-0 01 1 0306-
151 PROTECTOR; HEAT,EXH PIPE
(A) 		1-22159-334-0 01 1 9905-
159 BOLT; HEAT PROTECTOR
M8X25 W/LK&PL WASHER 		1-09030-027-0 06 1 9905-
193 NUT; BRKT,VERTICAL PIPE
M12 FLANGE 		0-91150-212-0 04 1 9905-0602
193 NUT; BRKT,VERTICAL PIPE
M12 FLANGE 		0-91180-212-0 04 1 0603-
201 BOLT; STAY
M10X50 FLANGE 		0-28081-050-0 02 1 9905-0512
201 BOLT; STAY
M10X50 FLANGE 		0-28051-050-0 02 1 0601-0602
201 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 02 1 9905-0512
201 BOLT; STAY
M10X25 FLANGE 		0-28651-025-0 02 1 0601-0602
201 BOLT; STAY
M10X25 FLANGE 		0-28651-025-0 04 1 0603-
394 RUBBER; SUPPORT,CLAMP
OD=40 		1-22159-094-0 08 1 9905-
396 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 06 1 9905-0602
396 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 06 1 0603-
415 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 01 1 9905-0512
415 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 01 1 0601-
420 BOLT; BRKT,VERTICAL PIPE
M12X35 FLANGE 		0-28681-235-0 06 1 9905-0512
420 BOLT; BRKT,VERTICAL PIPE
M12X35 FLANGE 		0-28651-235-0 06 1 0601-
433 BRACKET; STAY,EXH PIPE 1-22151-775-0 01 1 9905-
434 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 9905-0512
434 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601-0704
434 BOLT; BRKT
M10X30 FLANGE 		0-28051-030-0 02 1 0705-
436 STAY; SUPPORT,EXH 1-22131-798-2 02 1 9905-
440 SPACER; PIPE STAY 8-94369-173-0 06 1 9905-
446 PIECE; DIST,EXH PIPE,RR
L=25 		1-14234-083-0 02 1 9905-
448 PIECE; DIST,U-BOLT 1-22113-095-0 01 1 9905-
