1-40 — FUEL TANK (#60990) — 120 parça

51 43 43 49 40 285 38 217 40 51 38 237 223 35 32 35 72 237 42 42 32 29 49 42 42 22 19 25 1 8 11 8 11 8 11

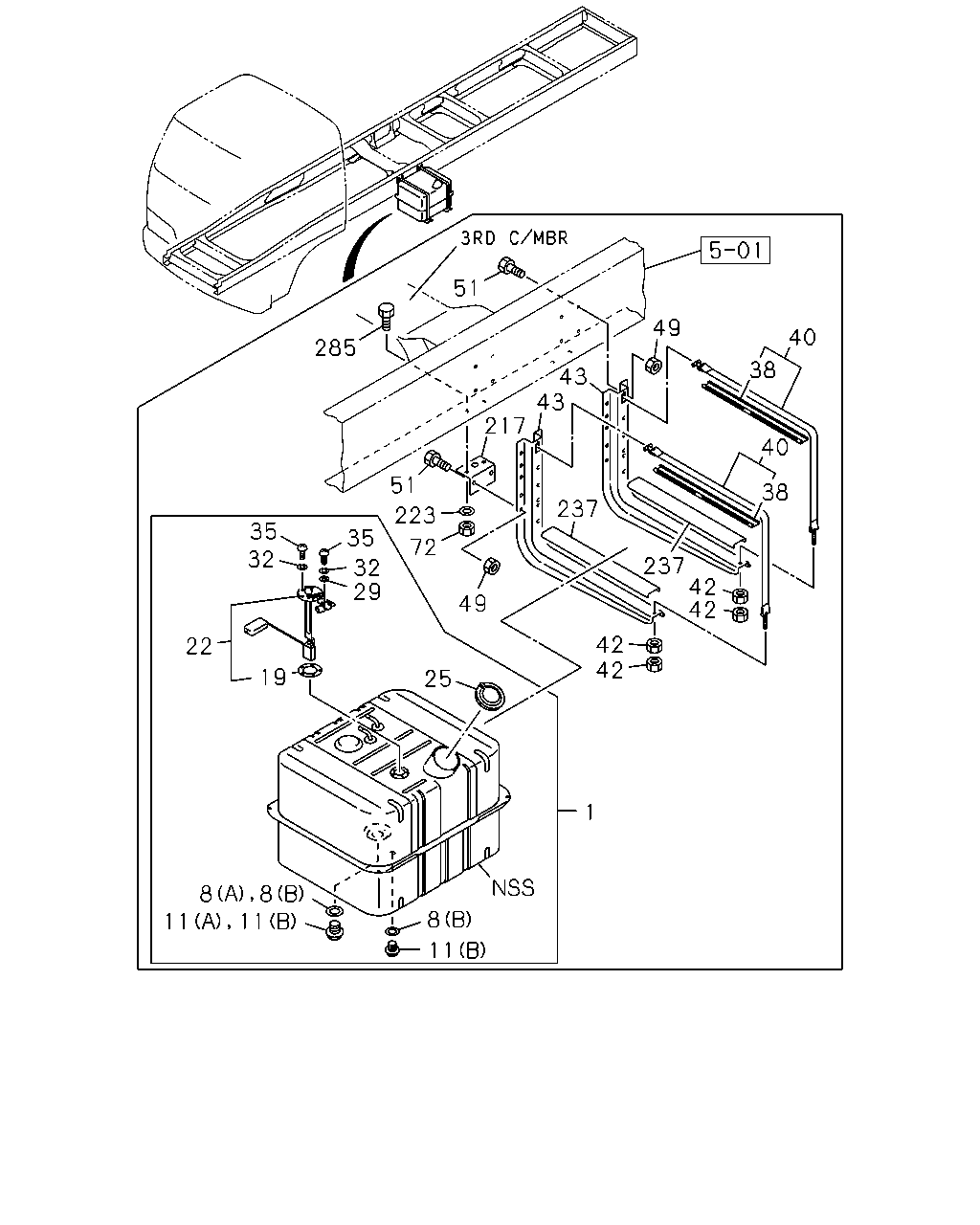

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL 720X610X496 200L	1-22401-120-1	01	1	0006-0112
1	TANK; FUEL 720X610X496 200L	1-22401-192-2	01	1	0201-1505
1	TANK; FUEL 720X610X496 200L	8-98299-274-0	01	1	1506-
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	0006-0112
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	0006-0106
8	GASKET; DRAIN PLUG,FUEL TANK (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112
8	GASKET; DRAIN PLUG,FUEL TANK (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0006-0106
11	PLUG; DRAIN,FUEL TANK (B) M14X14	9-09862-156-0	01	1	0107-0112
11	PLUG; DRAIN,FUEL TANK (A),(B) M14X14	9-09862-156-0	02	1	0201-
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	0006-0112
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0006-
22	UNIT; FUEL TANK	1-83141-124-0	01	1	0006-1505
22	UNIT; FUEL TANK	8-98296-671-0	01	1	1506-
25	CAP; FILLER,FUEL TANK	1-22440-067-0	01	1	0006-0109
25	CAP; FILLER,FUEL TANK	1-22440-069-0	01	1	0110-0112
25	CAP; FILLER,FUEL TANK	1-22440-067-0	01	1	0201-0309
25	CAP; FILLER,FUEL TANK	1-22440-070-0	01	1	0310-0404
25	CAP; FILLER,FUEL TANK	1-22440-046-1	01	1	0405-
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	0006-0605
29	WASHER; PL,FUEL TANK UNIT ID=5.3	0-91610-505-0	01	1	0606-
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	0006-0603
32	WASHER; LK,FUEL TANK UNIT ID=5.1	0-91510-505-0	05	1	0604-
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	0006-0604
35	SCREW; FUEL TANK UNIT M5X10	0-34218-510-0	05	1	0605-
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	0006-
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L(NF7) L=650	1-22553-022-1	02	1	0006-
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	02	1	0006-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7) L=1030	1-22550-204-2	02	1	0006-
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0006-0512
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	0006-0512
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	0-91110-510-0	04	1	0601-
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	0006-
43	BRACKET; FUEL TANK FUEL TANK 200L+200L(NF7)	1-53461-279-4	02	1	0006-
49	NUT; BRKT M12	9-99110-512-0	12	1	0006-0512
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	12	1	0006-0512
49	NUT; BRKT M12	0-91110-512-0	12	1	0601-
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	0-91110-512-0	12	1	0601-
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0006-0512
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28681-240-0	12	1	0006-0512
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	12	1	0601-
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28651-240-0	12	1	0601-
72	NUT; BRKT M12	9-99110-512-0	04	1	0006-0512
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	04	1	0006-0512
72	NUT; BRKT M12	0-91110-512-0	04	1	0601-
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	0-91110-512-0	04	1	0601-
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	0006-
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7)	1-53461-283-2	02	1	0006-
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	0006-0006
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L(NF7) ID=12.5 OD=26	9-09160-612-0	04	1	0006-0006
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	0006-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L(NF7) L=580	1-22553-003-0	02	1	0006-
285	BOLT; BRKT M12X50 FLANGE	0-28081-250-0	04	1	0006-0512
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28081-250-0	04	1	0006-0512
285	BOLT; BRKT M12X50 FLANGE	0-28051-250-0	04	1	0601-
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28051-250-0	04	1	0601-

1 285 217 55 2 51 56 223 55 6 183 184 72 176 43 40 38 9 12 40 9 9 12 12 49 237 43 237 42 42 42 42 3 617 7 166

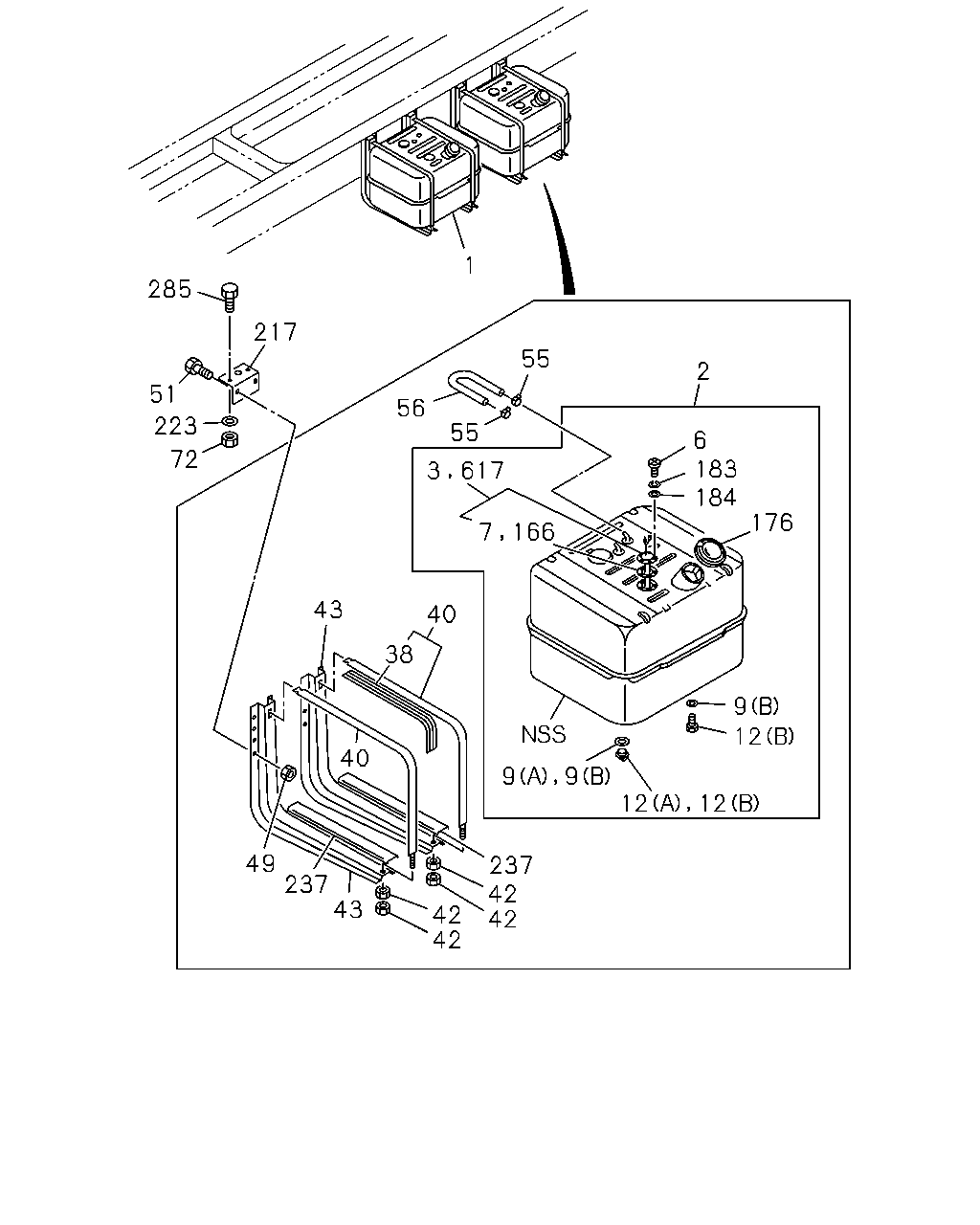

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL 720X610X496 200L	1-22401-120-1	01	1	0006-0112
1	TANK; FUEL 720X610X496 200L	1-22401-192-2	01	1	0201-1505
1	TANK; FUEL 720X610X496 200L	8-98299-274-0	01	1	1506-
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L(NF7) 720X610X496 200L	1-22401-120-1	01	1	0006-0112
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L(NF7) 720X610X496 200L	1-22401-192-0	01	1	0201-0404
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L(NF7) 720X610X496 200L	1-22401-213-1	01	1	0405-
3	UNIT; FUEL TANK,SUB FUEL TANK 200L+200L(NF7)	1-83141-124-0	01	1	0006-0404
6	SCREW; TANK UNIT TO SUB FUEL TANK FUEL TANK 200L+200L(NF7) M5X10	9-93497-510-0	05	1	0006-0604
6	SCREW; TANK UNIT TO SUB FUEL TANK FUEL TANK 200L+200L(NF7) M5X10	0-34218-510-0	05	1	0605-
7	GASKET; TANK UNIT,SUB TANK FUEL TANK 200L+200L(NF7)	9-83135-003-0	01	1	0006-0404
9	GASKET; DRAIN PLUG,SUB TANK FUEL TANK 200L+200L(NF7) (A) T=1.60	1-22416-001-0	01	1	0006-0112
9	GASKET; DRAIN PLUG,SUB TANK FUEL TANK 200L+200L(NF7) (B) T=2.0	9-09923-030-0	01	1	0006-0106
9	GASKET; DRAIN PLUG,SUB TANK FUEL TANK 200L+200L(NF7) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112
9	GASKET; DRAIN PLUG,SUB TANK FUEL TANK 200L+200L(NF7) (A),(B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L(NF7) (B) M36	1-09604-052-0	01	1	0006-0106
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L(NF7) (B) M14X14	9-09862-156-0	01	1	0107-0112
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L(NF7) (A) M14X14	9-09862-156-0	02	1	0201-
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L(NF7) (A) M18X12	1-09604-081-0	01	1	0006-0112
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	0006-
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L(NF7) L=650	1-22553-022-1	02	1	0006-
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	02	1	0006-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7) L=1030	1-22550-204-2	02	1	0006-
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0006-0512
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	0006-0512
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	0-91110-510-0	04	1	0601-
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	0006-
43	BRACKET; FUEL TANK FUEL TANK 200L+200L(NF7)	1-53461-279-4	02	1	0006-
49	NUT; BRKT M12	9-99110-512-0	12	1	0006-0512
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	12	1	0006-0512
49	NUT; BRKT M12	0-91110-512-0	12	1	0601-
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	0-91110-512-0	12	1	0601-
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0006-0512
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28681-240-0	12	1	0006-0512
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	12	1	0601-
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28651-240-0	12	1	0601-
55	CLIP; FUEL PIPE FUEL TANK 200L+200L(NF7) ID=14	1-09704-102-0	02	1	0006-
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L(NF7) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0006-
72	NUT; BRKT M12	9-99110-512-0	04	1	0006-0512
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	04	1	0006-0512
72	NUT; BRKT M12	0-91110-512-0	04	1	0601-
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	0-91110-512-0	04	1	0601-
166	GASKET FUEL TANK 200L+200L(NF7)	8-94366-904-0	01	1	0405-
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L(NF7)	1-22440-067-0	01	1	0006-0109
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L(NF7)	1-22440-069-0	01	1	0110-0112
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L(NF7)	1-22440-067-0	01	1	0201-0309
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L(NF7)	1-22440-070-0	01	1	0310-0404
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L(NF7)	1-22440-046-1	01	1	0405-
183	WASHER; LK,SUB TANK UNIT FUEL TANK 200L+200L(NF7) ID=5.1	9-09150-505-0	05	1	0006-0603
183	WASHER; LK,SUB TANK UNIT FUEL TANK 200L+200L(NF7) ID=5.1	0-91510-505-0	05	1	0604-
184	WASHER; PL,SUB TANK UNIT FUEL TANK 200L+200L(NF7) ID=5.3	9-09160-505-0	01	1	0006-0605
184	WASHER; PL,SUB TANK UNIT FUEL TANK 200L+200L(NF7) ID=5.3	0-91610-505-0	01	1	0606-
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	0006-
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7)	1-53461-283-2	02	1	0006-
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	0006-0006
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L(NF7) ID=12.5 OD=26	9-09160-612-0	04	1	0006-0006
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	0006-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L(NF7) L=580	1-22553-003-0	02	1	0006-
285	BOLT; BRKT M12X50 FLANGE	0-28081-250-0	04	1	0006-0512
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28081-250-0	04	1	0006-0512
285	BOLT; BRKT M12X50 FLANGE	0-28051-250-0	04	1	0601-
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28051-250-0	04	1	0601-
617	PLATE FUEL TANK 200L+200L(NF7)	1-22419-021-0	01	1	0405-
