1-41 — FUEL PIPING; CHASSIS (#6098) — 78 parça

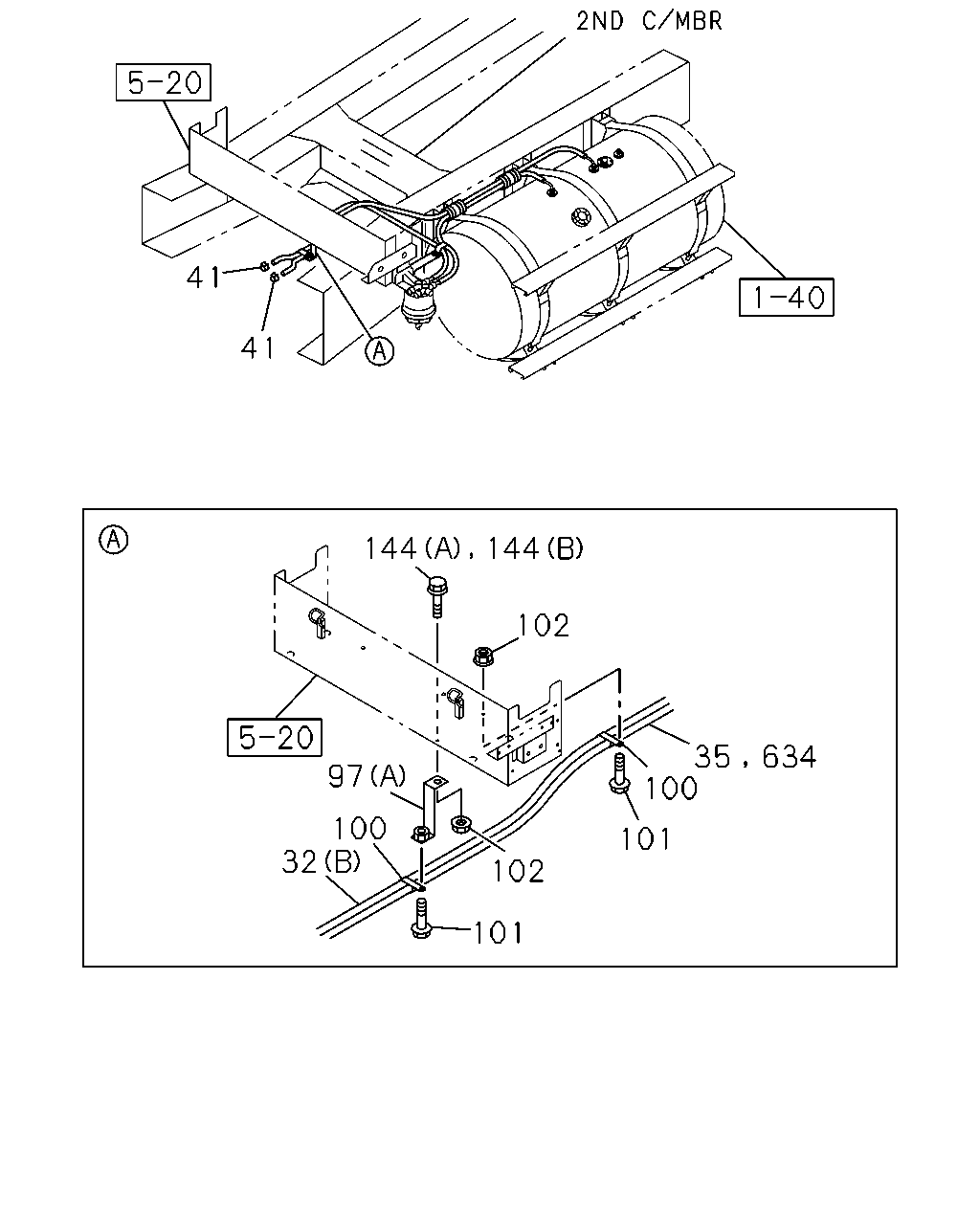

çizim 38130
41 41 144 144 102 35 634 100 101 102 101 97 100 32
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
(B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0202-
32 PIPE; DELIVERY,FUEL TANK
(A) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 9905-0002
32 PIPE; DELIVERY,FUEL TANK
(A) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 0003-0703
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0704-
32 PIPE; DELIVERY,FUEL TANK
(B) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 9905-0002
32 PIPE; DELIVERY,FUEL TANK
(B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0003-0201
35 PIPE; FUEL TANK,RETURN
L=1550 SERVICED BY L=3000 		0-01260-300-0 01 1 9905-0002
35 PIPE; FUEL TANK,RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0003-0602
41 CLIP; FUEL PIPE,FUEL TANK
ID=14 		1-09704-102-0 06 1 9905-
97 BRACKET; CLIP
(A) 		1-46147-101-0 01 1 9905-
97 BRACKET; CLIP
(B) L=115 		1-47475-305-0 01 1 9905-
97 BRACKET; CLIP
FUEL TANK 450L+450L<NBR> (C) 		1-53461-494-1 01 1 9905-
100 CLIP; FUEL PIPE
ID=16X2 L=20 		9-09535-536-0 03 1 9905-0104
100 CLIP; FUEL PIPE
ID=14X29 H=15 L=20 		1-09700-744-0 03 1 0105-
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28680-825-0 03 1 9905-0512
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28650-825-0 03 1 0601-
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 05 1 9905-0008
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 03 1 0009-0602
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 03 1 0603-
144 BOLT; CLIP,FUEL PIPE,C/MBR
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0512
144 BOLT; CLIP,FUEL PIPE,C/MBR
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
144 BOLT; CLIP,FUEL PIPE,C/MBR
(A) M8X35 FLANGE 		0-28680-835-0 02 1 9905-0301
144 BOLT; CLIP,FUEL PIPE,C/MBR
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0302-0512
144 BOLT; CLIP,FUEL PIPE,C/MBR
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
634 HOSE; RUBBER RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0603-

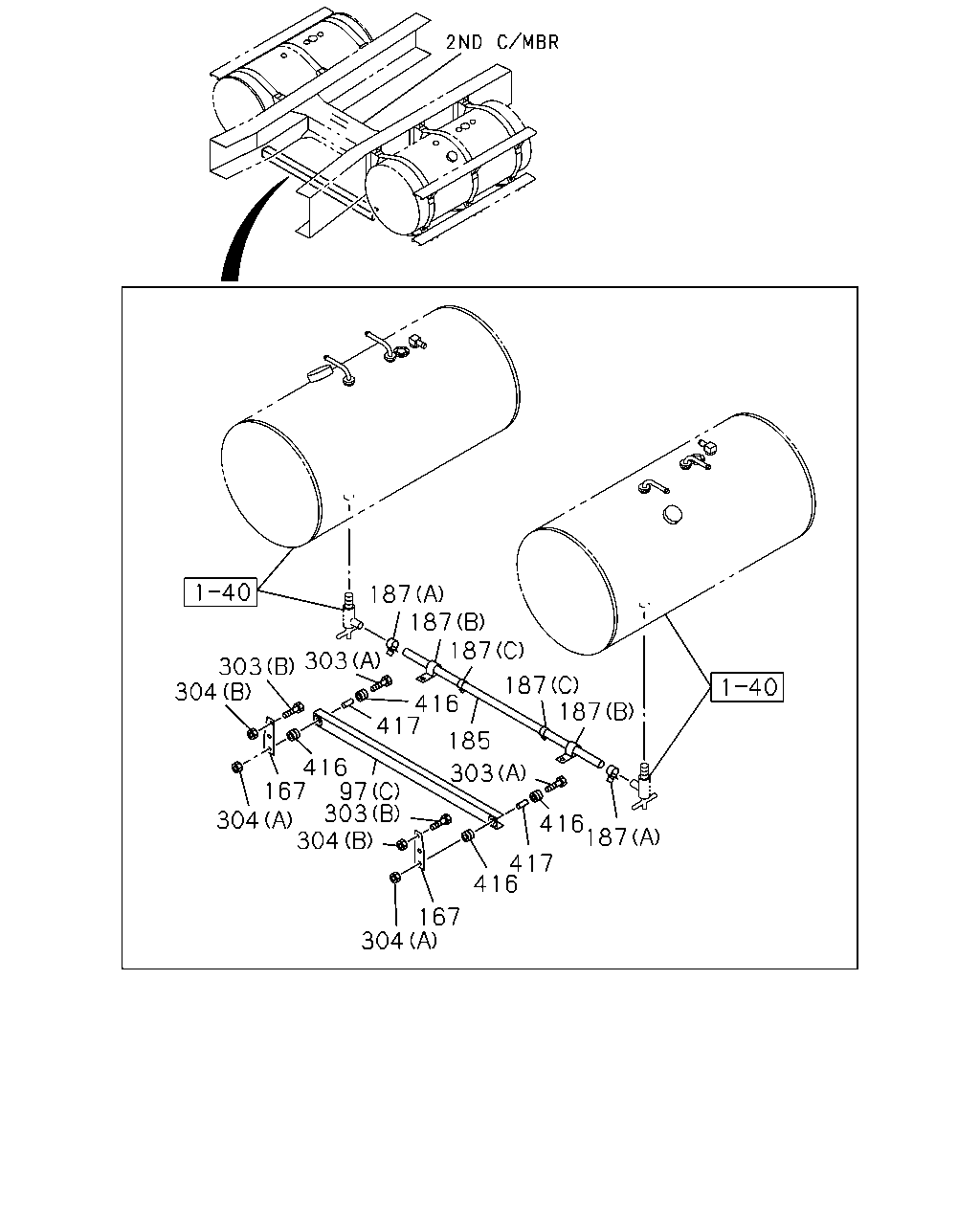

çizim 38248
187 187 187 303 303 304 187 187 416 417 185 416 303 304 304 303 416 187 417 416 167 304 97 167
BalonParca AdiParca NoAdetTipApplied Date
97 BRACKET; CLIP
(A) 		1-46147-101-0 01 1 9905-
97 BRACKET; CLIP
(B) L=115 		1-47475-305-0 01 1 9905-
97 BRACKET; CLIP
FUEL TANK 450L+450L<NBR> (C) 		1-53461-494-1 01 1 9905-
167 BRACKET
FUEL TANK 450L+450L<NBR> 		1-47478-081-0 02 1 9905-
185 PIPE; FUEL TANK TO TANK
FUEL TANK 450L+450L<NBR> L=2200 SERVICED BY L=3000 		0-01262-300-0 01 1 9905-
187 CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 450L+450L<NBR> (A) ID=19 		8-94238-569-0 02 1 9905-
187 CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 450L+450L<NBR> (B) ID=19 H=25 L=25 		9-09917-035-0 02 1 9905-
187 CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 450L+450L<NBR> (C) ID=22 L=52 		9-09917-431-0 02 1 9905-
303 BOLT; BRKT
FUEL TANK 450L+450L<NBR> (A) M10X50 FLANGE 		0-28081-050-0 02 1 9905-0512
303 BOLT; BRKT
FUEL TANK 450L+450L<NBR> (A) M10X50 FLANGE 		0-28051-050-0 02 1 0601-
303 BOLT; BRKT
FUEL TANK 450L+450L<NBR> (B) M8X25 FLANGE 		0-28680-825-0 04 1 9905-0512
303 BOLT; BRKT
FUEL TANK 450L+450L<NBR> (B) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
304 NUT; BRKT
FUEL TANK 450L+450L<NBR> (B) M8 FLANGE 		0-91150-108-0 04 1 9905-0602
304 NUT; BRKT
FUEL TANK 450L+450L<NBR> (B) M8 FLANGE 		0-91180-108-0 04 1 0603-
304 NUT; BRKT
FUEL TANK 450L+450L<NBR> (A) M10 FLANGE 		0-91150-210-0 02 1 9905-0602
304 NUT; BRKT
FUEL TANK 450L+450L<NBR> (A) M10 FLANGE 		0-91180-210-0 02 1 0603-
416 RUBBER; SUPPORT
FUEL TANK 450L+450L<NBR> OD=40 		1-22159-094-0 04 1 9905-
417 TUBE; DISTANCE,BRKT
FUEL TANK 450L+450L<NBR> L=22 		9-22159-024-0 02 1 9905-

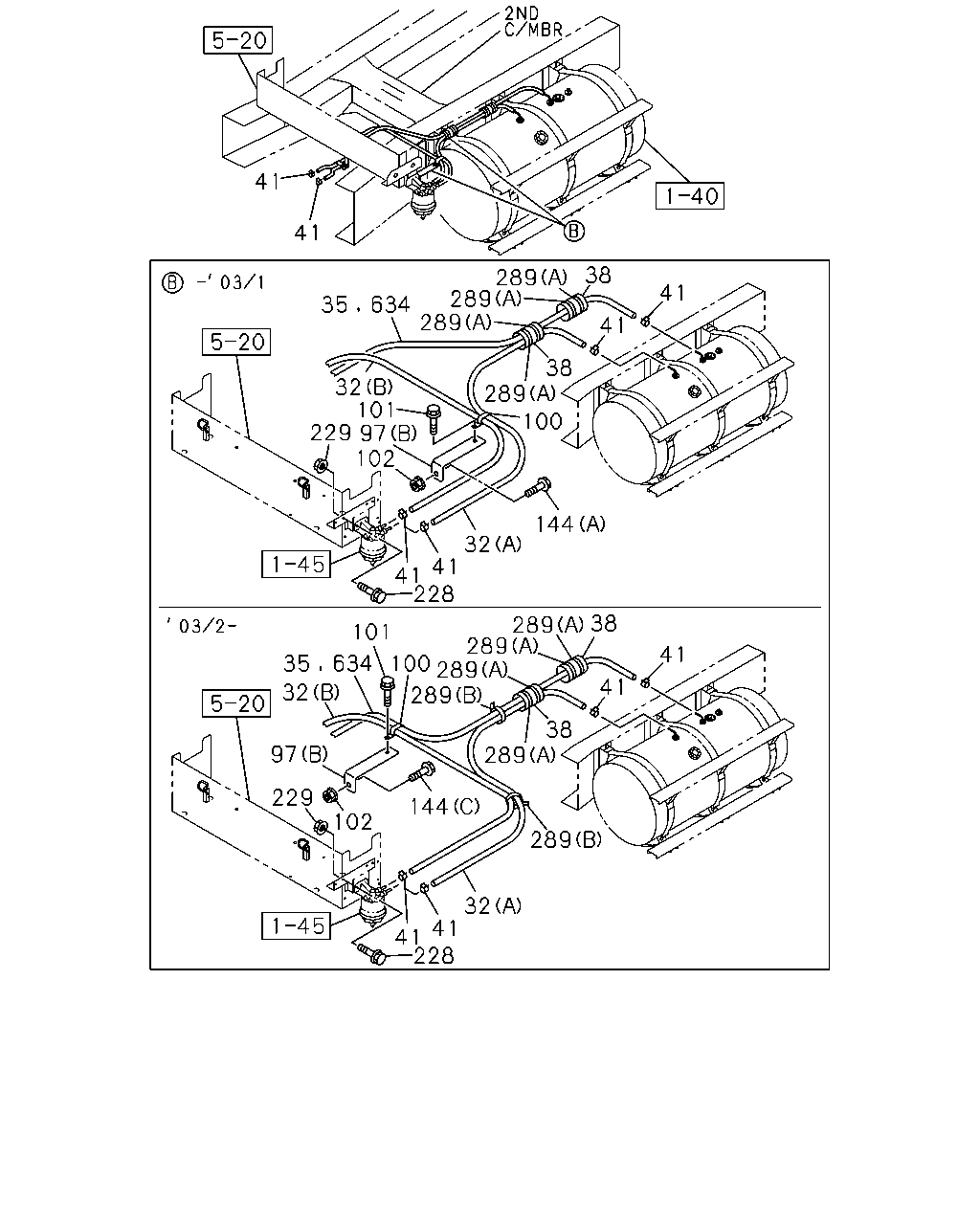

çizim 100569
228 41 41 32 144 102 97 229 101 32 35 634 289 289 289 38 100 289 38 41 41 38 289 289 289 289 100 101 634 35 32 97 229 102 144 289 41 38 41 289 32 41 41 228
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
(B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0202-
32 PIPE; DELIVERY,FUEL TANK
(A) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 9905-0002
32 PIPE; DELIVERY,FUEL TANK
(A) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 0003-0703
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0704-
32 PIPE; DELIVERY,FUEL TANK
(B) L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 9905-0002
32 PIPE; DELIVERY,FUEL TANK
(B) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0003-0201
35 PIPE; FUEL TANK,RETURN
L=1550 SERVICED BY L=3000 		0-01260-300-0 01 1 9905-0002
35 PIPE; FUEL TANK,RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0003-0602
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 		1-09360-677-1 02 1 9905-0703
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 0704-
41 CLIP; FUEL PIPE,FUEL TANK
ID=14 		1-09704-102-0 06 1 9905-
97 BRACKET; CLIP
(A) 		1-46147-101-0 01 1 9905-
97 BRACKET; CLIP
(B) L=115 		1-47475-305-0 01 1 9905-
97 BRACKET; CLIP
FUEL TANK 450L+450L<NBR> (C) 		1-53461-494-1 01 1 9905-
100 CLIP; FUEL PIPE
ID=16X2 L=20 		9-09535-536-0 03 1 9905-0104
100 CLIP; FUEL PIPE
ID=14X29 H=15 L=20 		1-09700-744-0 03 1 0105-
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28680-825-0 03 1 9905-0512
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28650-825-0 03 1 0601-
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 05 1 9905-0008
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 03 1 0009-0602
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 03 1 0603-
144 BOLT; CLIP,FUEL PIPE,C/MBR
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0512
144 BOLT; CLIP,FUEL PIPE,C/MBR
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
144 BOLT; CLIP,FUEL PIPE,C/MBR
(A) M8X35 FLANGE 		0-28680-835-0 02 1 9905-0301
144 BOLT; CLIP,FUEL PIPE,C/MBR
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0302-0512
144 BOLT; CLIP,FUEL PIPE,C/MBR
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28681-035-0 02 1 9905-0512
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28651-035-0 02 1 0601-
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9905-0602
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603-
289 CLIP; BAND,HOSE
(A) L=250 		5-09707-030-1 04 1 9905-0703
289 CLIP; BAND,HOSE
(A) L=250 		5-09707-030-1 06 1 0704-
289 CLIP; BAND,HOSE
(B) L=250 		1-09707-126-0 02 1 0302-0304
289 CLIP; BAND,HOSE
(B) L=350 		1-09707-183-0 02 1 0305-
634 HOSE; RUBBER RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0603-
