◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11312 - FVZ(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#60973) — 53 parça

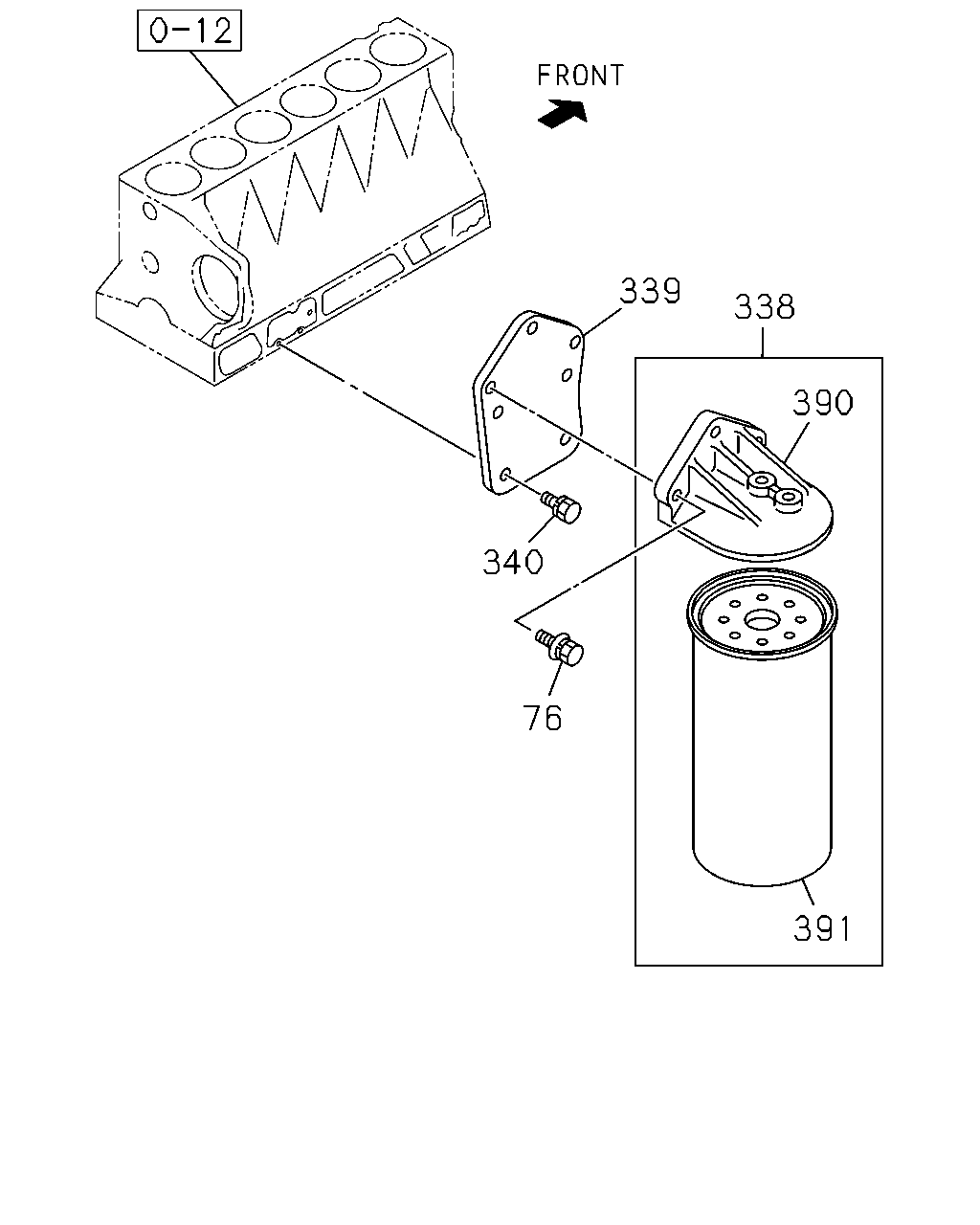

çizim 177114
339 338 390 340 76 391
BalonParca AdiParca NoAdetTipApplied Date
76 BOLT; OIL FILTER
M10X35 W/LK&PL WASHER 		0-50141-035-0 03 1 0006-0512
76 BOLT; OIL FILTER
M10X35 W/LK&PL WASHER 		0-50641-035-0 03 1 0601-
338 FILTER ASM; OIL PARTIAL 1-13200-744-0 01 1 0006-
339 BRACKET; PARTIAL OIL FILTER 1-19755-062-1 01 1 0006-
340 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 04 1 0006-0906
340 BOLT; BRKT
M10X25 W/LK WASHER 		0-50551-025-0 04 1 0907-
390 BODY; OIL FILTER,PARTIAL 1-13212-089-2 01 1 0006-
391 CARTRIDGE; OIL FILTER,PARTIAL 1-13240-163-2 01 1 0006-
391 CARTRIDGE; OIL FILTER,PARTIAL
BEST VALUE PARTS 		1-87610-065-0 01 1 0006-

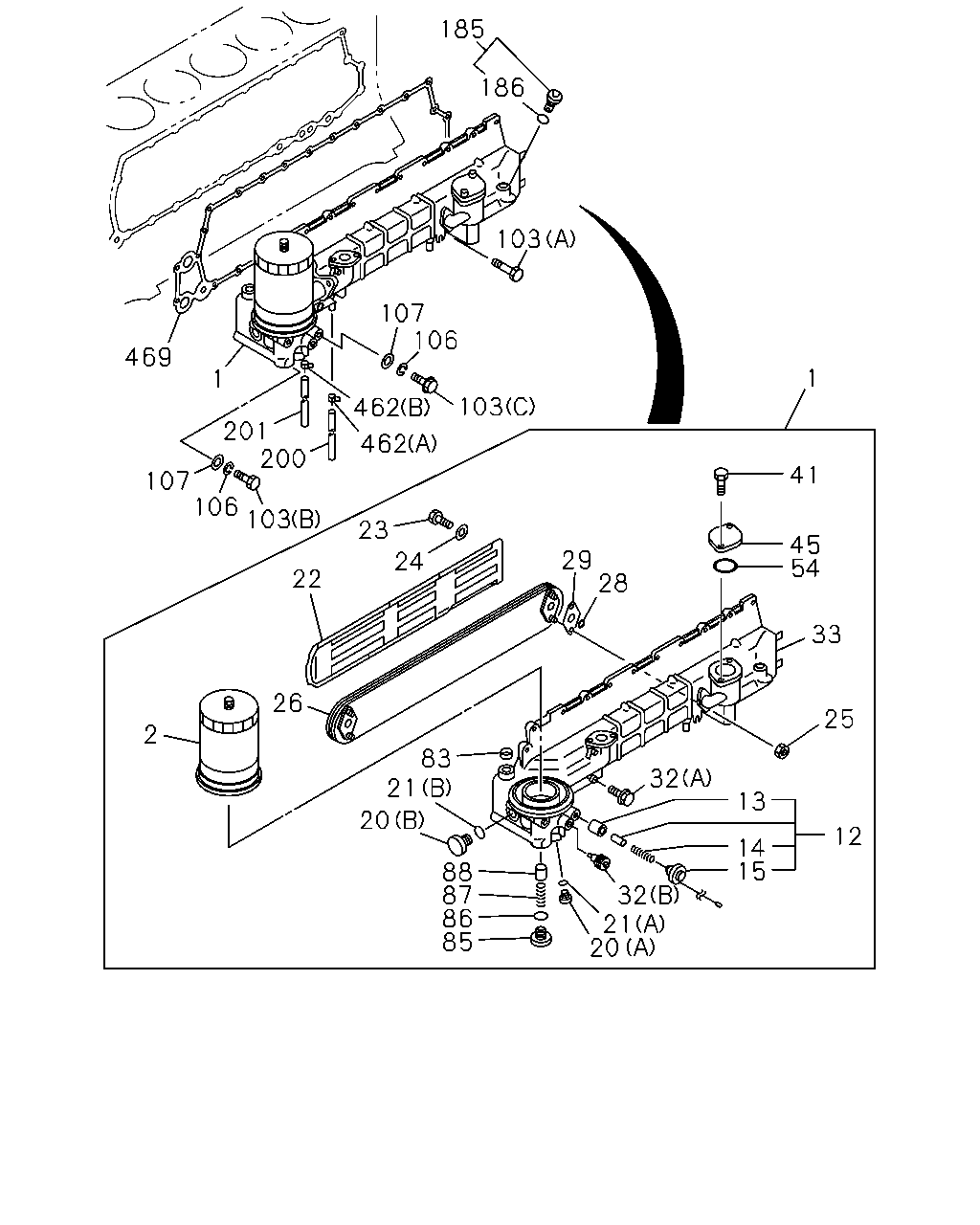

çizim 177116
185 186 103 107 106 469 1 1 103 462 201 200 462 41 107 106 103 23 24 45 54 29 28 22 33 26 25 2 83 21 32 13 20 12 14 15 88 87 86 85 32 21 20
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER & COOLER ASM; OIL 1-13200-935-2 01 1 0006-
2 ELEMENT; OIL FILTER 1-13240-168-1 01 1 0006-
12 VALVE ASM; BYPASS 1-13260-110-0 01 1 0006-
13 VALVE; RELIEF 9-13262-010-0 01 1 0006-
14 SPRING; RELIEF VLV 1-13263-006-0 01 1 0006-
15 PLUG; RELIEF VLV 1-13219-322-0 01 1 0006-
20 PLUG; COOLER BODY
(B) M26 		1-13219-153-0 04 1 0006-
20 PLUG; COOLER BODY
(A) M24 		1-13219-356-0 01 1 0006-
21 GASKET; PLUG
(B) M26 		1-13219-159-0 04 1 0006-
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0006-
22 GUIDE; WATER 1-13219-155-1 01 1 0006-
23 SCREW; WATER GUIDE 1-13219-156-0 07 1 0006-
24 WASHER; WATER GUIDE 1-13219-157-0 07 1 0006-
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0006-
26 CORE ASM; OIL COOLER 1-21723-058-0 01 1 0006-
28 GASKET; CORE TO BODY 8-94396-810-0 02 1 0006-
29 GASKET; CORE TO BODY 8-94394-930-0 02 1 0006-
32 PLUG; DRAIN
(A) 		1-13219-276-0 01 1 0006-
32 PLUG; DRAIN
(B) 		1-13219-295-1 01 1 0006-
33 HOUSING ASM; COOLER 1-13211-307-0 01 1 0006-
41 BOLT; COVER FIX
M10X25 FLANGE 		8-98272-067-0 02 1 0006-
45 COVER; OIL PORT 1-13219-172-0 01 1 0006-
54 GASKET; OIL PIPE 1-13219-162-0 01 1 0006-
83 CUP; SEALING,BODY,OIL COOLER & FILTER
OD=20 		9-11129-128-0 01 1 0006-
85 PLUG; DRAIN UNIT,OIL FILTER 1-13219-146-0 01 1 0006-
86 GASKET; DRAIN UNIT,OIL FILTER 1-13219-147-0 01 1 0006-
87 SPRING; DRAIN UNIT,OIL FILTER 1-13219-148-0 01 1 0006-
88 VALVE; DRAIN UNIT,OIL FILTER 9-13262-009-0 01 1 0006-
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28080-825-0 24 1 0006-0512
103 BOLT; OIL COOLER
(A) M8X25 FLANGE 		0-28050-825-0 24 1 0601-
103 BOLT; OIL COOLER
(B) M8X138 		5-09000-031-1 02 1 0006-
103 BOLT; OIL COOLER
(C) M8X155 		9-09801-275-0 02 1 0006-
106 WASHER; LK,OIL COOLER
ID=8.2 		9-09150-508-0 04 1 0006-0603
106 WASHER; LK,OIL COOLER
ID=8.2 		0-91510-508-0 04 1 0604-
107 WASHER; PL,OIL COOLER
ID=8.4 		9-09160-508-0 04 1 0006-0605
107 WASHER; PL,OIL COOLER
ID=8.4 OD=16 		0-91610-508-0 04 1 0606-
185 VALVE; OIL RELIEF,OIL COOLER 1-13160-017-1 01 1 0006-
186 GASKET; RELIEF VLV,OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		9-09565-228-0 01 1 0006-
200 PIPE; VINYL,WATER DRAIN
L=360 SERVICED BY L=3000 		0-03157-300-0 01 1 0006-0206
200 PIPE; VINYL,WATER DRAIN
L=360 SERVICED BY L=3000 		0-03457-300-0 01 1 0207-
201 PIPE; VINYL,OIL DRAIN
L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 0006-
462 CLIP; HOSE,DRAIN
(A) 		1-09704-100-0 01 1 0006-
462 CLIP; HOSE,DRAIN
(B) ID=13.5 		8-97015-754-1 01 1 0006-
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11219-177-1 01 1 0006-
