1-40 — FUEL TANK (#6097) — 143 parça

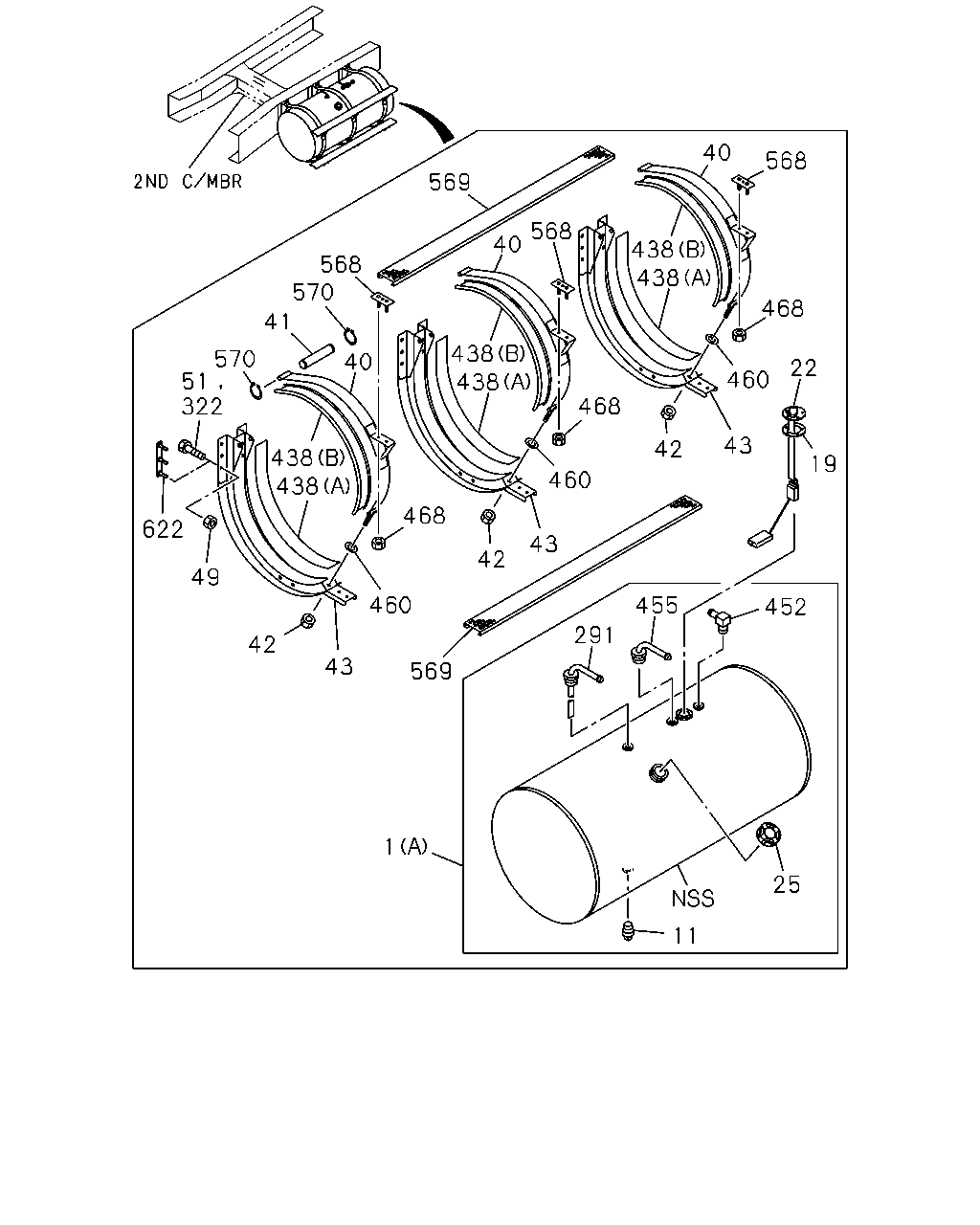

40 568 569 568 40 438 438 568 570 468 41 438 438 570 40 22 460 51 322 468 43 42 438 438 19 460 468 622 43 42 49 460 455 452 291 42 43 569 1 25 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL (A)	1-22401-081-0	01	1	9905-0301
1	TANK; FUEL (A)	1-22401-081-2	01	1	0302-
1	TANK; FUEL FUEL TANK 450L+450L<NBR> (B)	1-22401-082-2	01	1	9905-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 450L+450L<NBR>	1-22419-018-0	02	1	9905-
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22419-018-0	01	1	9905-
19	GASKET; FUEL TANK UNIT ID=45 OD=67	1-83149-003-0	01	1	0603-
22	UNIT; FUEL TANK	1-83141-129-0	01	1	9905-
25	CAP; FILLER,FUEL TANK FUEL TANK 450L+450L<NBR>	1-22441-015-0	02	1	0603-
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22441-015-0	01	1	0603-
25	CAP; FILLER,FUEL TANK FUEL TANK 450L+450L<NBR>	1-22441-015-0	02	1	9905-0305
25	CAP; FILLER,FUEL TANK FUEL TANK 450L+450L<NBR>	1-22441-016-0	02	1	0306-0602
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22441-015-0	01	1	9905-0305
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22441-016-0	01	1	0306-0602
40	BELT; SUPPORT,FUEL TANK FUEL TANK 450L+450L<NBR>	1-22550-242-0	06	1	9905-0509
40	BELT; SUPPORT,FUEL TANK FUEL TANK 450L+450L<NBR>	1-22550-264-0	06	1	0510-
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22550-242-0	03	1	9905-0509
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22550-264-0	03	1	0510-
41	PIN; SUPPORT BELT FUEL TANK 450L+450L<NBR>	1-22559-023-0	06	1	9905-
41	PIN; SUPPORT BELT EXC. FUEL TANK 450L+450L<NBR>	1-22559-023-0	03	1	9905-
42	NUT; SUPPORT BELT FUEL TANK 450L+450L<NBR>	1-22559-025-0	06	1	9905-0509
42	NUT; SUPPORT BELT FUEL TANK 450L+450L<NBR>	1-22559-027-0	06	1	0510-
42	NUT; SUPPORT BELT EXC. FUEL TANK 450L+450L<NBR>	1-22559-025-0	03	1	9905-0509
42	NUT; SUPPORT BELT EXC. FUEL TANK 450L+450L<NBR>	1-22559-027-0	03	1	0510-
43	BRACKET; FUEL TANK FUEL TANK 450L+450L<NBR>	1-53461-495-1	06	1	9905-
43	BRACKET; FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-53461-495-1	03	1	9905-
49	NUT; BRKT FUEL TANK 450L+450L<NBR> M12	9-99110-512-0	24	1	9905-0512
49	NUT; BRKT FUEL TANK 450L+450L<NBR> M12	0-91110-512-0	24	1	0601-
49	NUT; BRKT EXC. FUEL TANK 450L+450L<NBR> M12	9-99110-512-0	18	1	9905-0001
49	NUT; BRKT EXC. FUEL TANK 450L+450L<NBR> M12	9-99110-512-0	12	1	0002-0512
49	NUT; BRKT EXC. FUEL TANK 450L+450L<NBR> M12	0-91110-512-0	12	1	0601-
51	BOLT; BRKT TO FRAME FUEL TANK 450L+450L<NBR> M12X40 FLANGE	0-28681-240-0	36	1	9905-0302
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 450L+450L<NBR> M12X40 FLANGE	0-28681-240-0	18	1	9905-0302
291	PIPE; FUEL,SUCTION FUEL TANK 450L+450L<NBR>	1-22419-015-0	02	1	9905-
291	PIPE; FUEL,SUCTION EXC. FUEL TANK 450L+450L<NBR>	1-22419-015-0	01	1	9905-
322	BOLT; BRKT FIX FUEL TANK 450L+450L<NBR> M12X35 FLANGE	0-28081-235-0	36	1	0303-0512
322	BOLT; BRKT FIX FUEL TANK 450L+450L<NBR> M12X35 FLANGE	0-28051-235-0	36	1	0601-0602
322	BOLT; BRKT FIX FUEL TANK 450L+450L<NBR> M12X35 FLANGE	0-28051-235-0	12	1	0603-
322	BOLT; BRKT FIX EXC. FUEL TANK 450L+450L<NBR> M12X35 FLANGE	0-28081-235-0	18	1	0303-0512
322	BOLT; BRKT FIX EXC. FUEL TANK 450L+450L<NBR> M12X35 FLANGE	0-28051-235-0	18	1	0601-0602
322	BOLT; BRKT FIX EXC. FUEL TANK 450L+450L<NBR> M12X35 FLANGE	0-28051-235-0	06	1	0603-
438	LINER; RUBBER FUEL TANK 450L+450L<NBR> (B)	1-22553-047-0	06	1	9905-
438	LINER; RUBBER FUEL TANK 450L+450L<NBR> (A)	1-22553-048-0	06	1	9905-
438	LINER; RUBBER EXC. FUEL TANK 450L+450L<NBR> (B)	1-22553-047-0	03	1	9905-
438	LINER; RUBBER EXC. FUEL TANK 450L+450L<NBR> (A)	1-22553-048-0	03	1	9905-
452	BREATHER; FUEL TANK FUEL TANK 450L+450L<NBR>	1-22419-017-0	02	1	0603-
452	BREATHER; FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22419-017-0	01	1	0603-
452	BREATHER; FUEL TANK FUEL TANK 450L+450L<NBR>	1-22419-017-0	02	1	9905-0305
452	BREATHER; FUEL TANK FUEL TANK 450L+450L<NBR>	1-22419-022-0	02	1	0306-0602
452	BREATHER; FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22419-017-0	01	1	9905-0305
452	BREATHER; FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22419-022-0	01	1	0306-0602
455	PIPE; FUEL,RETURN FUEL TANK 450L+450L<NBR>	1-22419-016-0	02	1	9905-
455	PIPE; FUEL,RETURN EXC. FUEL TANK 450L+450L<NBR>	1-22419-016-0	01	1	9905-
460	WASHER; PL,BRKT FUEL TANK 450L+450L<NBR> ID=17 OD=32	9-09160-616-0	06	1	9907-
460	WASHER; PL,BRKT EXC. FUEL TANK 450L+450L<NBR> ID=17 OD=32	9-09160-616-0	03	1	9907-
468	NUT FUEL TANK 450L+450L<NBR> M8 FLANGE	0-91150-208-0	24	1	9905-0308
468	NUT FUEL TANK 450L+450L<NBR> M8 FLANGE	0-91150-108-0	24	1	0309-0602
468	NUT FUEL TANK 450L+450L<NBR> M8 FLANGE	0-91180-108-0	24	1	0603-
468	NUT EXC. FUEL TANK 450L+450L<NBR> M8 FLANGE	0-91150-208-0	12	1	9905-0308
468	NUT EXC. FUEL TANK 450L+450L<NBR> M8 FLANGE	0-91150-108-0	12	1	0309-0602
468	NUT EXC. FUEL TANK 450L+450L<NBR> M8 FLANGE	0-91180-108-0	12	1	0603-
568	BAR; STEP FUEL TANK 450L+450L<NBR>	1-53469-021-0	12	1	9905-
568	BAR; STEP EXC. FUEL TANK 450L+450L<NBR>	1-53469-021-0	06	1	9905-
569	STEP; BAND FUEL TANK 450L+450L<NBR>	1-53469-018-0	04	1	9905-
569	STEP; BAND EXC. FUEL TANK 450L+450L<NBR>	1-53469-018-0	02	1	9905-
570	CLIP; PIN FUEL TANK 450L+450L<NBR>	1-22559-024-0	12	1	9905-
570	CLIP; PIN EXC. FUEL TANK 450L+450L<NBR>	1-22559-024-0	06	1	9905-
622	STUD; BRACKET FUEL TANK 450L+450L<NBR>	1-53461-545-0	08	1	0603-
622	STUD; BRACKET EXC. FUEL TANK 450L+450L<NBR>	1-53461-545-0	04	1	0603-

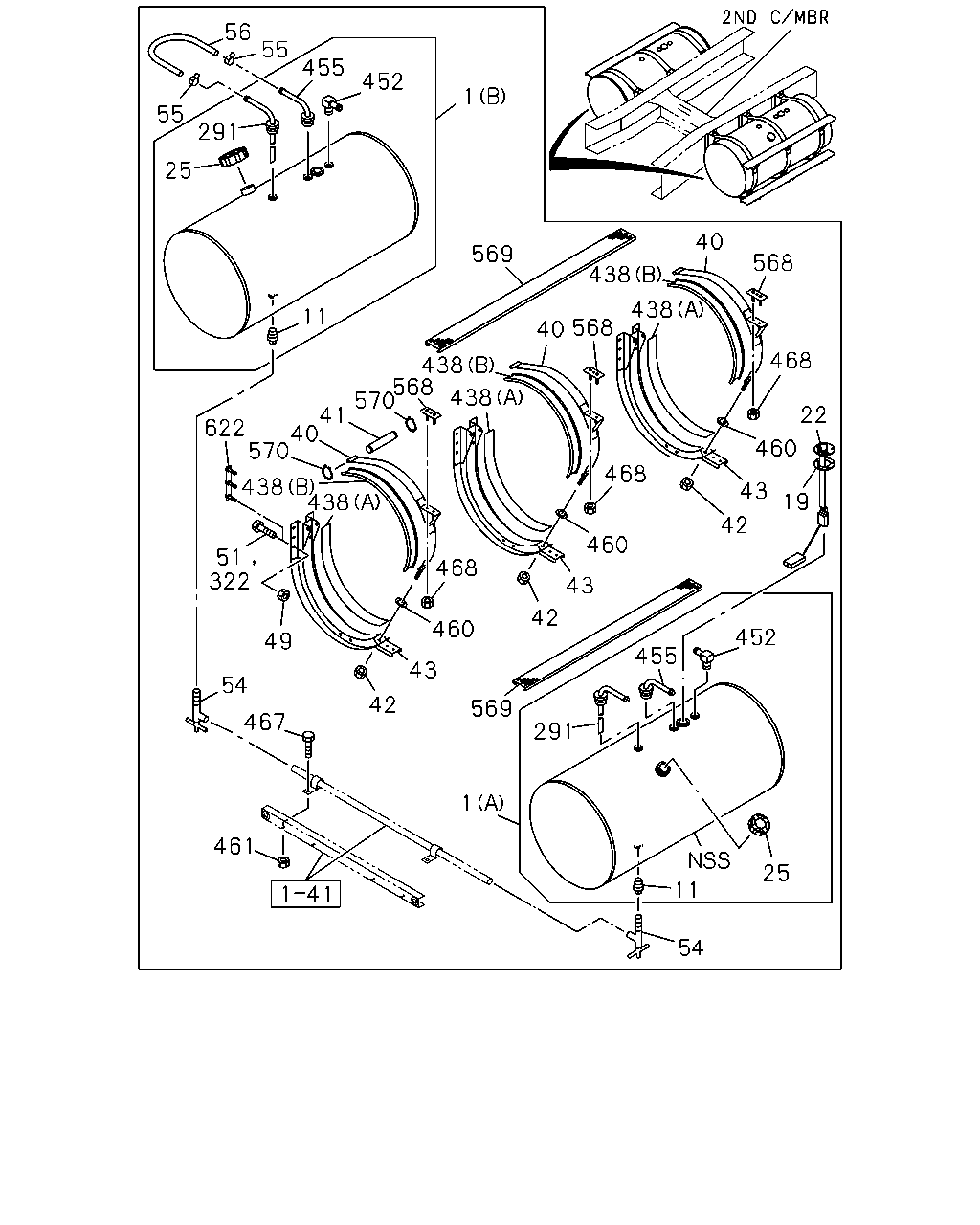

56 55 455 452 1 55 291 25 40 569 568 438 438 11 468 438 568 570 438 22 41 622 40 570 460 468 438 438 43 19 42 460 51 322 468 43 42 460 452 49 455 43 54 42 569 467 291 1 461 25 11 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL (A)	1-22401-081-0	01	1	9905-0301
1	TANK; FUEL (A)	1-22401-081-2	01	1	0302-
1	TANK; FUEL FUEL TANK 450L+450L<NBR> (B)	1-22401-082-2	01	1	9905-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 450L+450L<NBR>	1-22419-018-0	02	1	9905-
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22419-018-0	01	1	9905-
19	GASKET; FUEL TANK UNIT ID=45 OD=67	1-83149-003-0	01	1	0603-
22	UNIT; FUEL TANK	1-83141-129-0	01	1	9905-
25	CAP; FILLER,FUEL TANK FUEL TANK 450L+450L<NBR>	1-22441-015-0	02	1	0603-
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22441-015-0	01	1	0603-
25	CAP; FILLER,FUEL TANK FUEL TANK 450L+450L<NBR>	1-22441-015-0	02	1	9905-0305
25	CAP; FILLER,FUEL TANK FUEL TANK 450L+450L<NBR>	1-22441-016-0	02	1	0306-0602
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22441-015-0	01	1	9905-0305
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22441-016-0	01	1	0306-0602
40	BELT; SUPPORT,FUEL TANK FUEL TANK 450L+450L<NBR>	1-22550-242-0	06	1	9905-0509
40	BELT; SUPPORT,FUEL TANK FUEL TANK 450L+450L<NBR>	1-22550-264-0	06	1	0510-
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22550-242-0	03	1	9905-0509
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22550-264-0	03	1	0510-
41	PIN; SUPPORT BELT FUEL TANK 450L+450L<NBR>	1-22559-023-0	06	1	9905-
41	PIN; SUPPORT BELT EXC. FUEL TANK 450L+450L<NBR>	1-22559-023-0	03	1	9905-
42	NUT; SUPPORT BELT FUEL TANK 450L+450L<NBR>	1-22559-025-0	06	1	9905-0509
42	NUT; SUPPORT BELT FUEL TANK 450L+450L<NBR>	1-22559-027-0	06	1	0510-
42	NUT; SUPPORT BELT EXC. FUEL TANK 450L+450L<NBR>	1-22559-025-0	03	1	9905-0509
42	NUT; SUPPORT BELT EXC. FUEL TANK 450L+450L<NBR>	1-22559-027-0	03	1	0510-
43	BRACKET; FUEL TANK FUEL TANK 450L+450L<NBR>	1-53461-495-1	06	1	9905-
43	BRACKET; FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-53461-495-1	03	1	9905-
49	NUT; BRKT FUEL TANK 450L+450L<NBR> M12	9-99110-512-0	24	1	9905-0512
49	NUT; BRKT FUEL TANK 450L+450L<NBR> M12	0-91110-512-0	24	1	0601-
49	NUT; BRKT EXC. FUEL TANK 450L+450L<NBR> M12	9-99110-512-0	18	1	9905-0001
49	NUT; BRKT EXC. FUEL TANK 450L+450L<NBR> M12	9-99110-512-0	12	1	0002-0512
49	NUT; BRKT EXC. FUEL TANK 450L+450L<NBR> M12	0-91110-512-0	12	1	0601-
51	BOLT; BRKT TO FRAME FUEL TANK 450L+450L<NBR> M12X40 FLANGE	0-28681-240-0	36	1	9905-0302
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 450L+450L<NBR> M12X40 FLANGE	0-28681-240-0	18	1	9905-0302
54	COCK ASM; FUEL TANK FUEL TANK 450L+450L<NBR>	1-09680-097-0	02	1	9905-
55	CLIP; FUEL PIPE FUEL TANK 450L+450L<NBR> ID=14	1-09704-102-0	02	1	9905-
56	PIPE; FUEL SHUTTER FUEL TANK 450L+450L<NBR> L=350 SERVICED BY L=3000	0-01260-300-0	01	1	9905-
291	PIPE; FUEL,SUCTION FUEL TANK 450L+450L<NBR>	1-22419-015-0	02	1	9905-
291	PIPE; FUEL,SUCTION EXC. FUEL TANK 450L+450L<NBR>	1-22419-015-0	01	1	9905-
322	BOLT; BRKT FIX FUEL TANK 450L+450L<NBR> M12X35 FLANGE	0-28081-235-0	36	1	0303-0512
322	BOLT; BRKT FIX FUEL TANK 450L+450L<NBR> M12X35 FLANGE	0-28051-235-0	36	1	0601-0602
322	BOLT; BRKT FIX FUEL TANK 450L+450L<NBR> M12X35 FLANGE	0-28051-235-0	12	1	0603-
322	BOLT; BRKT FIX EXC. FUEL TANK 450L+450L<NBR> M12X35 FLANGE	0-28081-235-0	18	1	0303-0512
322	BOLT; BRKT FIX EXC. FUEL TANK 450L+450L<NBR> M12X35 FLANGE	0-28051-235-0	18	1	0601-0602
322	BOLT; BRKT FIX EXC. FUEL TANK 450L+450L<NBR> M12X35 FLANGE	0-28051-235-0	06	1	0603-
438	LINER; RUBBER FUEL TANK 450L+450L<NBR> (B)	1-22553-047-0	06	1	9905-
438	LINER; RUBBER FUEL TANK 450L+450L<NBR> (A)	1-22553-048-0	06	1	9905-
438	LINER; RUBBER EXC. FUEL TANK 450L+450L<NBR> (B)	1-22553-047-0	03	1	9905-
438	LINER; RUBBER EXC. FUEL TANK 450L+450L<NBR> (A)	1-22553-048-0	03	1	9905-
452	BREATHER; FUEL TANK FUEL TANK 450L+450L<NBR>	1-22419-017-0	02	1	0603-
452	BREATHER; FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22419-017-0	01	1	0603-
452	BREATHER; FUEL TANK FUEL TANK 450L+450L<NBR>	1-22419-017-0	02	1	9905-0305
452	BREATHER; FUEL TANK FUEL TANK 450L+450L<NBR>	1-22419-022-0	02	1	0306-0602
452	BREATHER; FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22419-017-0	01	1	9905-0305
452	BREATHER; FUEL TANK EXC. FUEL TANK 450L+450L<NBR>	1-22419-022-0	01	1	0306-0602
455	PIPE; FUEL,RETURN FUEL TANK 450L+450L<NBR>	1-22419-016-0	02	1	9905-
455	PIPE; FUEL,RETURN EXC. FUEL TANK 450L+450L<NBR>	1-22419-016-0	01	1	9905-
460	WASHER; PL,BRKT FUEL TANK 450L+450L<NBR> ID=17 OD=32	9-09160-616-0	06	1	9907-
460	WASHER; PL,BRKT EXC. FUEL TANK 450L+450L<NBR> ID=17 OD=32	9-09160-616-0	03	1	9907-
461	NUT; CLIP,FUEL PIPE FUEL TANK 450L+450L<NBR> M8 FLANGE	0-91150-108-0	02	1	9905-0602
461	NUT; CLIP,FUEL PIPE FUEL TANK 450L+450L<NBR> M8 FLANGE	0-91180-108-0	02	1	0603-
467	BOLT FUEL TANK 450L+450L<NBR> M8X20 FLANGE	0-28680-820-0	02	1	9905-0512
467	BOLT FUEL TANK 450L+450L<NBR> M8X20 FLANGE	0-28650-820-0	02	1	0601-
468	NUT FUEL TANK 450L+450L<NBR> M8 FLANGE	0-91150-208-0	24	1	9905-0308
468	NUT FUEL TANK 450L+450L<NBR> M8 FLANGE	0-91150-108-0	24	1	0309-0602
468	NUT FUEL TANK 450L+450L<NBR> M8 FLANGE	0-91180-108-0	24	1	0603-
468	NUT EXC. FUEL TANK 450L+450L<NBR> M8 FLANGE	0-91150-208-0	12	1	9905-0308
468	NUT EXC. FUEL TANK 450L+450L<NBR> M8 FLANGE	0-91150-108-0	12	1	0309-0602
468	NUT EXC. FUEL TANK 450L+450L<NBR> M8 FLANGE	0-91180-108-0	12	1	0603-
568	BAR; STEP FUEL TANK 450L+450L<NBR>	1-53469-021-0	12	1	9905-
568	BAR; STEP EXC. FUEL TANK 450L+450L<NBR>	1-53469-021-0	06	1	9905-
569	STEP; BAND FUEL TANK 450L+450L<NBR>	1-53469-018-0	04	1	9905-
569	STEP; BAND EXC. FUEL TANK 450L+450L<NBR>	1-53469-018-0	02	1	9905-
570	CLIP; PIN FUEL TANK 450L+450L<NBR>	1-22559-024-0	12	1	9905-
570	CLIP; PIN EXC. FUEL TANK 450L+450L<NBR>	1-22559-024-0	06	1	9905-
622	STUD; BRACKET FUEL TANK 450L+450L<NBR>	1-53461-545-0	08	1	0603-
622	STUD; BRACKET EXC. FUEL TANK 450L+450L<NBR>	1-53461-545-0	04	1	0603-
