Isuzu WW
▶
TRUCKS
▶
EXY
▶
10805 - EXY RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶
1-35 — CHARGE AIR COOLER
(#6096) — 73 parça
◀

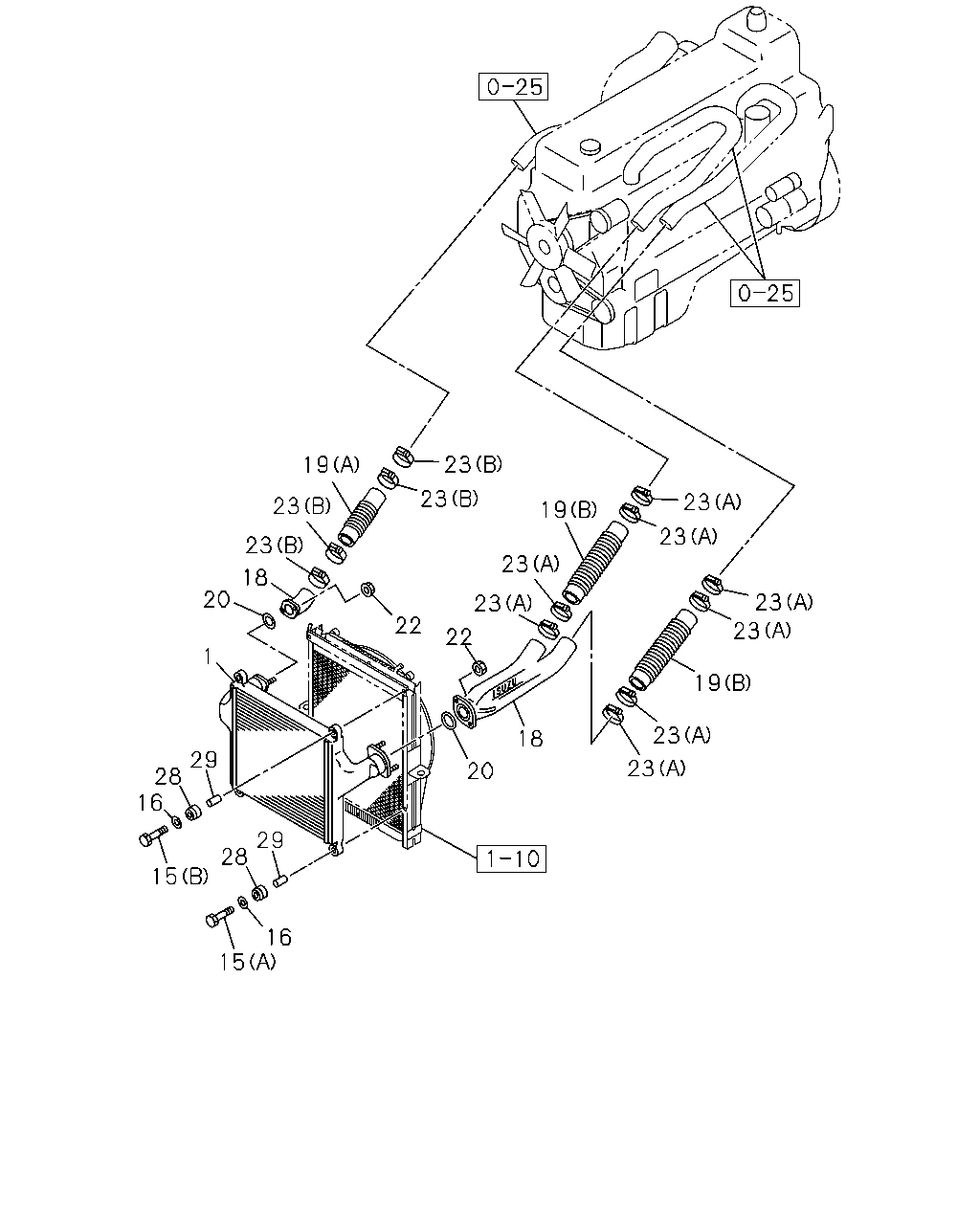

[135A] -'03/1 (28 parça)

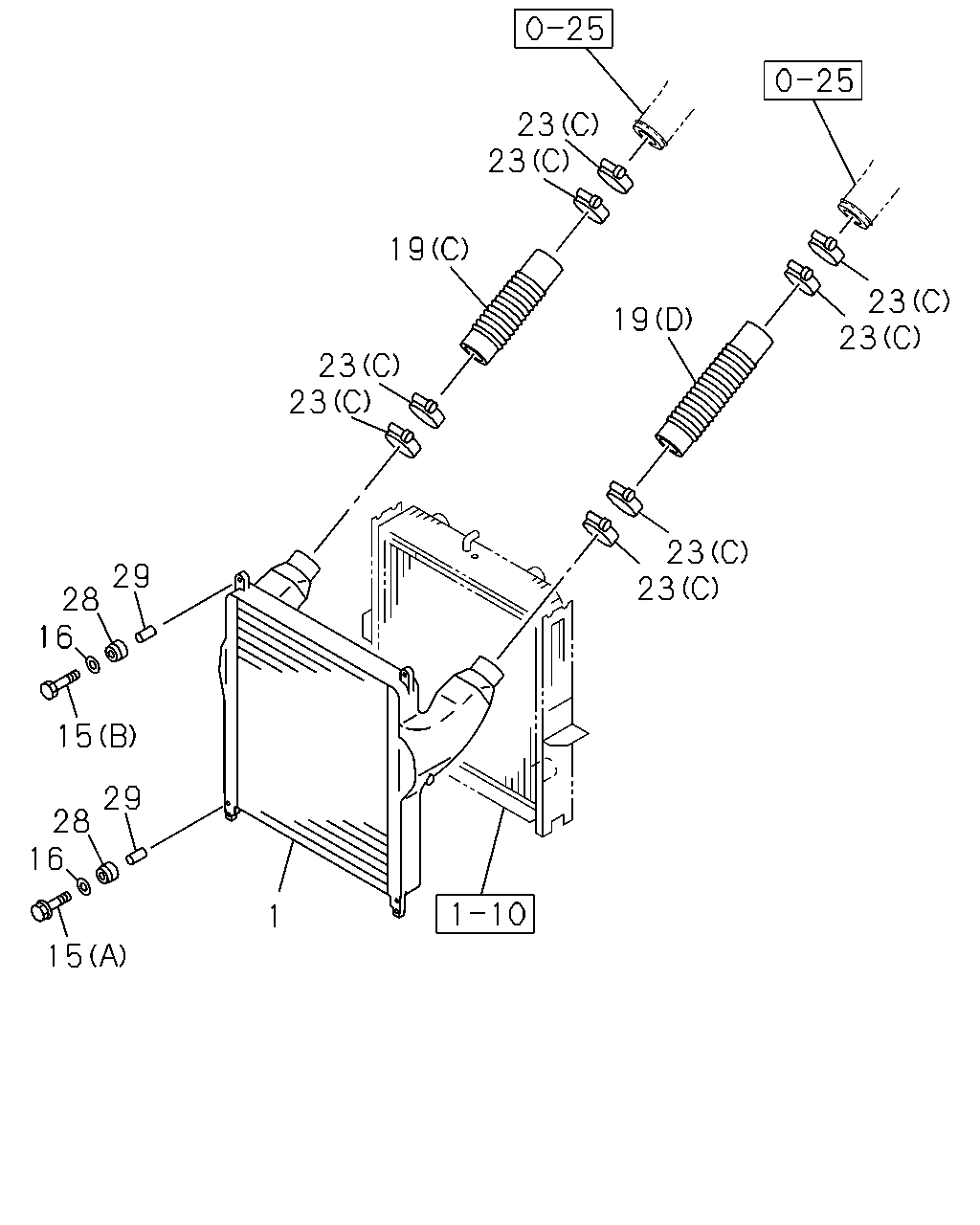

[135A] '03/2-'04/6 (24 parça)

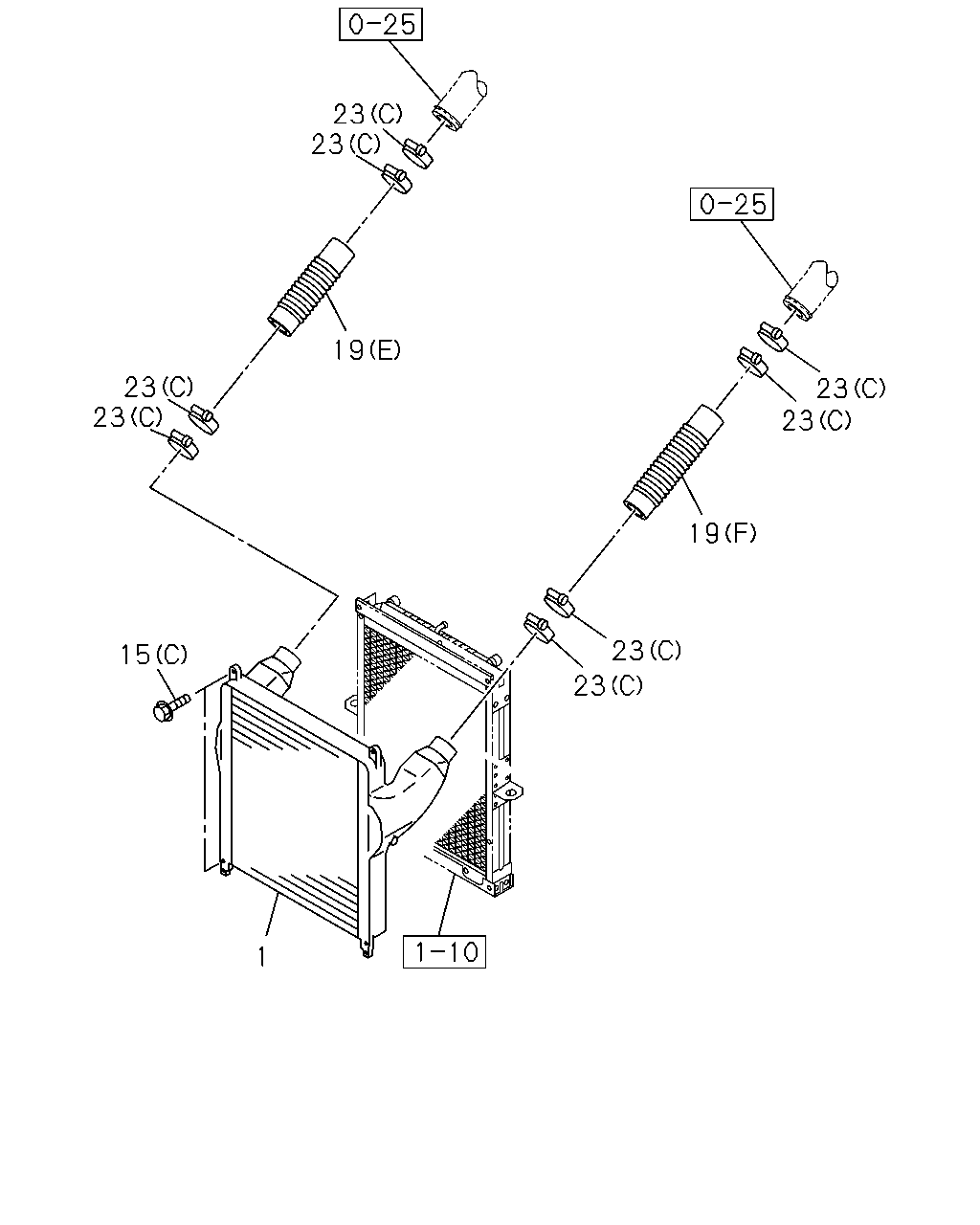

[135A] '04/7- (21 parça)
▶
23
19
23
23
23
19
23
23
23
18
20
23
23
22
23
22
1
19
23
18
29
28
16
23
20
29
28
15
16
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
1-14431-047-0
01
1
9905-0301
1
COOLER; CHARGE AIR
1-14431-057-1
01
1
0302-0406
1
COOLER; CHARGE AIR
1-14431-055-6
01
1
0407-
15
BOLT; CHARGE AIR COOLER
(A) M8X35 FLANGE
0-28080-835-0
02
1
9905-0406
15
BOLT; CHARGE AIR COOLER
(C) M8X35 FLANGE
1-21469-151-0
04
1
0407-
15
BOLT; CHARGE AIR COOLER
(B) M8X50 FLANGE
0-28080-850-0
02
1
9905-0406
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
08
1
9905-0406
18
ADAPTER
1-14112-491-1
01
1
9905-0301
18
ADAPTER
1-14112-719-0
01
1
9905-0301
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280
1-09360-757-3
01
1
9905-0301
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(C)
1-09361-102-1
01
1
0302-0406
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(F)
1-09361-088-0
01
1
0407-0602
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(E)
1-09361-147-0
01
1
0603-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09361-010-1
02
1
9905-0301
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(D)
1-09361-103-0
01
1
0302-0406
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(E)
1-09361-089-1
01
1
0407-0602
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(F)
1-09361-148-0
01
1
0603-
20
GASKET
ID=84.6
1-09623-431-0
02
1
9905-0301
22
NUT
M10 FLANGE
0-91150-210-0
04
1
9905-0301
23
CLIP; HOSE
(B) ID=77-95
1-09707-114-0
04
1
9905-0301
23
CLIP; HOSE
(C) ID=87-116
1-09707-144-0
08
1
0302-0306
23
CLIP; HOSE
(C) ID=87-113
1-09707-199-0
08
1
0307-0811
23
CLIP; HOSE
(C) ID=90-110
8-98133-365-0
08
1
0812-1001
23
CLIP; HOSE
(C) ID=87-112
8-97375-040-0
08
1
1002-1010
23
CLIP; HOSE
(C) ID=87-116
1-09707-138-0
08
1
1011-
23
CLIP; HOSE
(A) ID=68-85
8-94320-428-0
08
1
9905-0301
28
RUBBER; MTG,CHARGE AIR COOLER
1-21467-015-1
04
1
9905-0406
29
COLLAR; MTG RUBBER,CAC BRKT
1-21469-100-0
04
1
9905-0406
23
23
19
23
23
19
23
23
23
23
29
28
1
15
29
28
16
1
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
1-14431-047-0
01
1
9905-0301
1
COOLER; CHARGE AIR
1-14431-057-1
01
1
0302-0406
1
COOLER; CHARGE AIR
1-14431-055-6
01
1
0407-
15
BOLT; CHARGE AIR COOLER
(A) M8X35 FLANGE
0-28080-835-0
02
1
9905-0406
15
BOLT; CHARGE AIR COOLER
(C) M8X35 FLANGE
1-21469-151-0
04
1
0407-
15
BOLT; CHARGE AIR COOLER
(B) M8X50 FLANGE
0-28080-850-0
02
1
9905-0406
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
08
1
9905-0406
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280
1-09360-757-3
01
1
9905-0301
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(C)
1-09361-102-1
01
1
0302-0406
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(F)
1-09361-088-0
01
1
0407-0602
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(E)
1-09361-147-0
01
1
0603-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09361-010-1
02
1
9905-0301
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(D)
1-09361-103-0
01
1
0302-0406
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(E)
1-09361-089-1
01
1
0407-0602
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(F)
1-09361-148-0
01
1
0603-
23
CLIP; HOSE
(B) ID=77-95
1-09707-114-0
04
1
9905-0301
23
CLIP; HOSE
(C) ID=87-116
1-09707-144-0
08
1
0302-0306
23
CLIP; HOSE
(C) ID=87-113
1-09707-199-0
08
1
0307-0811
23
CLIP; HOSE
(C) ID=90-110
8-98133-365-0
08
1
0812-1001
23
CLIP; HOSE
(C) ID=87-112
8-97375-040-0
08
1
1002-1010
23
CLIP; HOSE
(C) ID=87-116
1-09707-138-0
08
1
1011-
23
CLIP; HOSE
(A) ID=68-85
8-94320-428-0
08
1
9905-0301
28
RUBBER; MTG,CHARGE AIR COOLER
1-21467-015-1
04
1
9905-0406
29
COLLAR; MTG RUBBER,CAC BRKT
1-21469-100-0
04
1
9905-0406
23
23
19
23
23
23
23
19
23
15
23
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
1-14431-047-0
01
1
9905-0301
1
COOLER; CHARGE AIR
1-14431-057-1
01
1
0302-0406
1
COOLER; CHARGE AIR
1-14431-055-6
01
1
0407-
15
BOLT; CHARGE AIR COOLER
(A) M8X35 FLANGE
0-28080-835-0
02
1
9905-0406
15
BOLT; CHARGE AIR COOLER
(C) M8X35 FLANGE
1-21469-151-0
04
1
0407-
15
BOLT; CHARGE AIR COOLER
(B) M8X50 FLANGE
0-28080-850-0
02
1
9905-0406
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280
1-09360-757-3
01
1
9905-0301
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(C)
1-09361-102-1
01
1
0302-0406
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(F)
1-09361-088-0
01
1
0407-0602
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(E)
1-09361-147-0
01
1
0603-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09361-010-1
02
1
9905-0301
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(D)
1-09361-103-0
01
1
0302-0406
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(E)
1-09361-089-1
01
1
0407-0602
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(F)
1-09361-148-0
01
1
0603-
23
CLIP; HOSE
(B) ID=77-95
1-09707-114-0
04
1
9905-0301
23
CLIP; HOSE
(C) ID=87-116
1-09707-144-0
08
1
0302-0306
23
CLIP; HOSE
(C) ID=87-113
1-09707-199-0
08
1
0307-0811
23
CLIP; HOSE
(C) ID=90-110
8-98133-365-0
08
1
0812-1001
23
CLIP; HOSE
(C) ID=87-112
8-97375-040-0
08
1
1002-1010
23
CLIP; HOSE
(C) ID=87-116
1-09707-138-0
08
1
1011-
23
CLIP; HOSE
(A) ID=68-85
8-94320-428-0
08
1
9905-0301
