Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11312 - FVZ(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

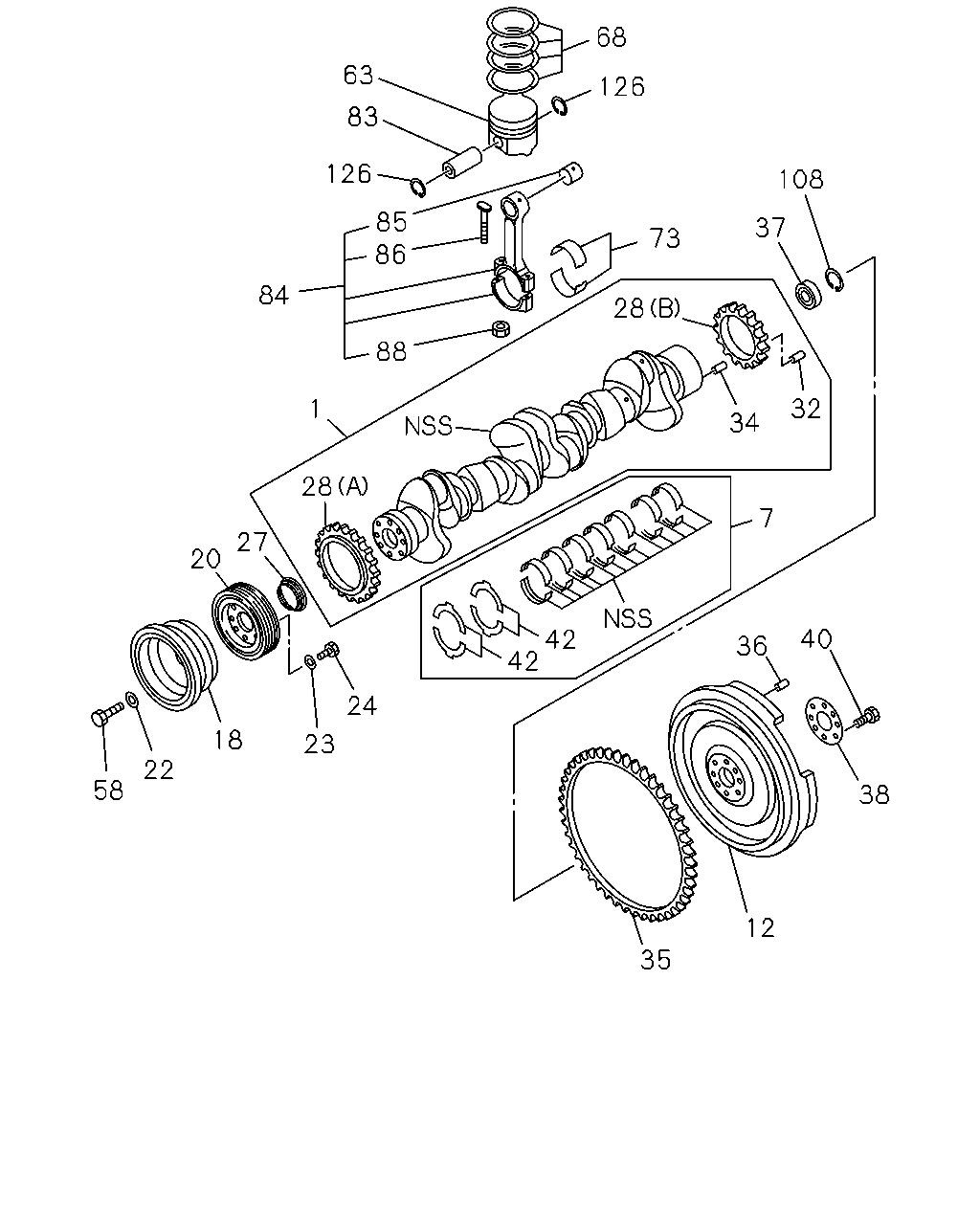

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#60956) — 35 parça
68
63
126
83
126
86
85
84
88
28
73
37
108
32
34
7
42
42
36
38
40
12
35
24
23
18
22
58
20
27
28
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
1-12310-671-0
01
1
0006-
7
METAL KIT; CRANKSHAFT,STANDARD
1-11510-087-2
01
1
0006-
12
FLYWHEEL
1-12331-162-4
01
1
0006-
18
PULLEY; CR/SHF
3-GROOVE
1-12371-414-1
01
1
0006-
20
DAMPER; CR/SHF
1-12375-131-0
01
1
0006-
22
PLATE; PULLEY
ID=17 OD=30
9-09851-935-0
04
1
0006-
23
WASHER; DAMPER
ID=12.5
9-09851-682-0
06
1
0006-
24
BOLT; DAMPER
9-02361-220-0
06
1
0006-
27
THROWER; DUST
1-12362-004-0
01
1
0006-
28
GEAR; CR/SHF
(A) Z=53
1-12521-027-1
01
1
0006-
28
GEAR; CR/SHF
(B) Z=46
1-12521-053-1
01
1
0006-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
0006-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
0006-
35
GEAR; RING
Z=140
1-12333-016-0
01
1
0006-0501
35
GEAR; RING
Z=140
1-12333-025-0
01
1
0502-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
0006-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-214-0
01
1
0006-
38
WASHER; FLYWHEEL
1-12336-005-1
01
1
0006-
40
BOLT; FLYWHEEL
1-09000-183-1
08
1
0006-0905
40
BOLT; FLYWHEEL
M16X62
1-09070-146-1
08
1
0906-
42
WASHER; THRUST,CR/SHF
1-11599-007-1
02
1
0006-
58
BOLT; CR/SHF PULLEY
M16X60
9-91066-660-0
04
1
0006-0512
58
BOLT; CR/SHF PULLEY
M16X60
0-10956-660-0
04
1
0601-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX
1-12111-840-1
06
1
0006-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX
1-12111-841-1
06
1
0006-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-088-2
06
1
0006-
73
METAL SET; CONN ROD,STANDARD
1-12271-068-0
06
1
0006-0211
73
METAL SET; CONN ROD,STANDARD
1-12271-084-0
06
1
0212-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-022-0
06
1
0006-
84
ROD ASM; CONN
1-12230-097-1
06
1
0006-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-021-1
06
1
0006-
86
BOLT; CONNROD
1-12235-025-1
12
1
0006-
88
NUT; CONNROD
1-09840-003-1
12
1
0006-
108
RING; SNAP,BRG SET
OD=59.2
9-09180-155-0
01
1
0006-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-065-0
12
1
0006-
