Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11312 - FVZ(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶

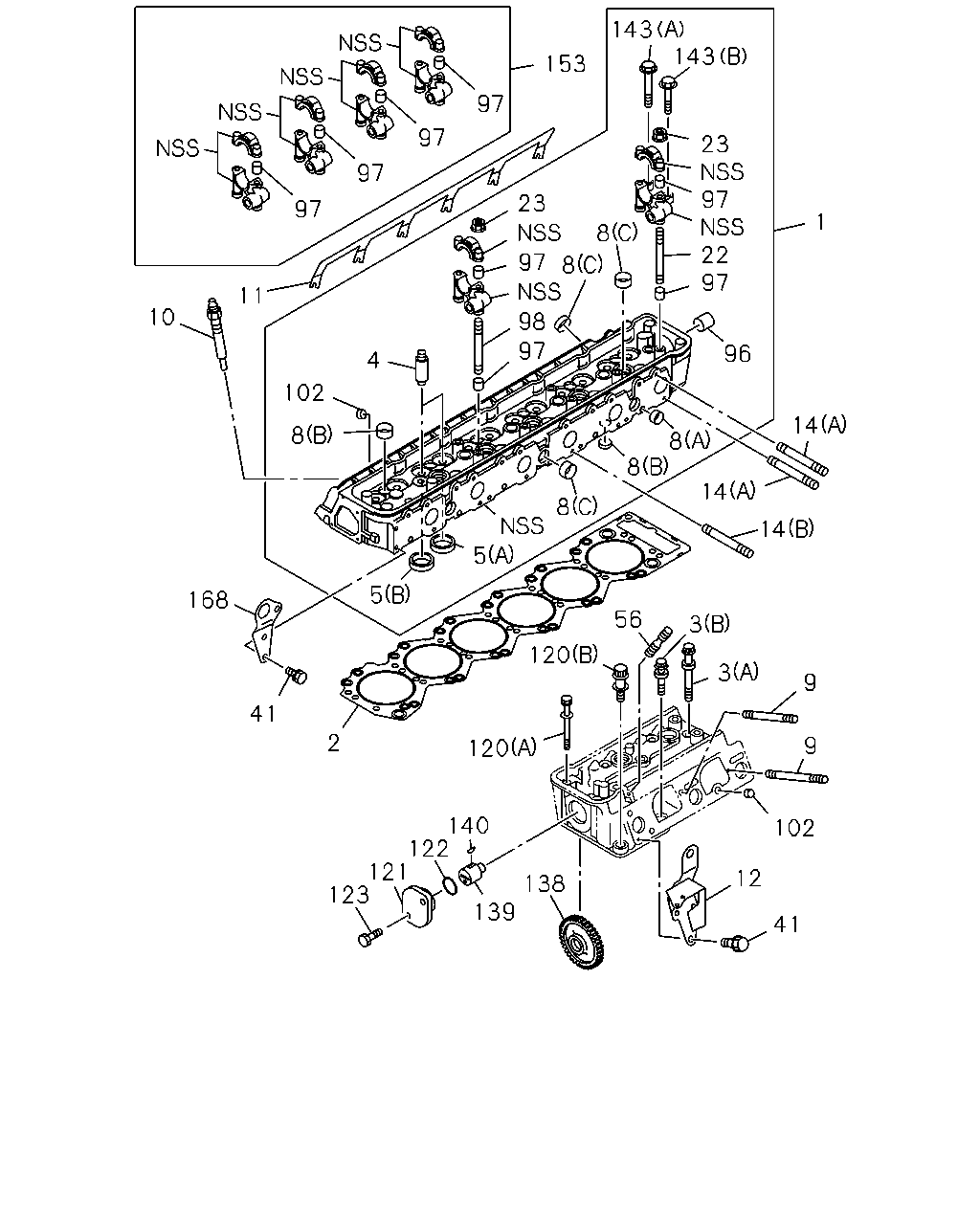

0-11 — CYLINDER HEAD
(#60952) — 44 parça
143
143
153
97
97
23
97
22
97
97
23
97
1
8
97
8
11
10
98
97
96
4
102
14
8
8
8
14
8
14
5
5
168
56
3
120
3
9
41
2
9
120
140
122
121
123
102
12
138
139
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
1-11110-816-7
01
1
0006-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11141-216-4
01
1
0006-
3
BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER
1-09070-043-1
20
1
0006-
3
BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER
1-09070-044-1
06
1
0006-
4
GUIDE; VLV
1-11721-008-0
12
1
0006-
5
SEAT; VLV INSERT
(A) EXHAUST
1-11711-051-0
06
1
0006-
5
SEAT; VLV INSERT
(B) INLET
1-11715-121-0
06
1
0006-
8
CUP; SEALING,WATER JACKET
(A) OD=12
1-09600-010-2
06
1
0006-
8
CUP; SEALING,WATER JACKET
(B) OD=22
1-09600-011-2
11
1
0006-
8
CUP; SEALING,WATER JACKET
(C) OD=32
1-09600-012-1
14
1
0006-0105
8
CUP; SEALING,WATER JACKET
(C) OD=32
1-09600-012-2
09
1
0106-
8
CUP; SEALING,WATER JACKET
(C) OD=30
8-94241-638-0
05
1
0106-
9
STUD; INL MANIF
M8X86 L=99
9-09630-026-0
04
1
0006-
10
PLUG; GLOW
1-82513-043-2
06
1
0006-
11
CONNECTOR; GLOW PLUG
1-19732-011-1
01
1
0006-
12
HANGER; ENG,RR
1-11777-099-0
01
1
0006-
14
STUD; EXH MANIF
(B) M10X104 L=119
1-09302-104-1
06
1
0006-
14
STUD; EXH MANIF
(A) M10X130 L=145
1-09302-107-0
06
1
0006-
22
STUD; CAM BRKT
M8X124 L=142
1-09300-033-1
02
1
0006-
23
NUT; CAM BRKT
M8 FLANGE
9-09844-190-0
08
1
0006-0809
23
NUT; CAM BRKT
M8 FLANGE
8-98053-188-0
08
1
0810-
41
BOLT; ENG HANGER
M10X20 W/LK WASHER
0-50051-020-0
05
1
0006-0512
41
BOLT; ENG HANGER
M10X20 W/LK WASHER
0-50551-020-0
05
1
0601-
56
STUD; NOZZLE HOLDER
M8X40 L=58
1-09300-018-0
12
1
0006-
96
BUSHING; IDLE SHAFT
1-12528-007-0
01
1
0006-
97
DOWEL; CAM BRKT SET
1-11229-012-1
16
1
0006-
98
STUD; CAM BRKT
M8X114 L=132
1-09300-028-1
06
1
0006-
102
SEAT; VLV
1-11119-021-0
06
1
0006-
120
BOLT; CYL HD TO HSG
(B) M10X34 FLANGE W/PL WASHER
1-09070-059-0
01
1
0006-
120
BOLT; CYL HD TO HSG
(A) M10X122 FLANGE W/PL WASHER
1-09070-060-0
02
1
0006-
121
COVER; IDLE GEAR,CYL HD
1-11321-100-0
01
1
0006-
122
GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-208-0
01
1
0006-
123
BOLT; COVER
M8X16 FLANGE
0-28080-816-0
02
1
0006-0512
123
BOLT; COVER
M8X16 FLANGE
0-28050-816-0
02
1
0601-
138
GEAR; IDLE
Z=48
1-12523-246-1
01
1
0006-
139
SHAFT; IDLE GEAR
1-12531-014-2
01
1
0006-0011
139
SHAFT; IDLE GEAR
1-12531-098-0
01
1
0012-
140
KEY; IDLE GEAR
9-08055-522-0
01
1
0006-
143
BOLT; FIX
(A) M8X100 FLANGE
0-28080-800-0
01
1
0006-0512
143
BOLT; FIX
(A) M8X100 FLANGE
0-28050-800-0
01
1
0601-
143
BOLT; FIX
(B) M8X60 FLANGE
0-28090-860-0
01
1
0006-0512
143
BOLT; FIX
(B) M8X60 FLANGE
0-28060-860-0
01
1
0601-
153
BRACKET KIT; CAM,CYL HD
1-12516-180-0
AR
1
0006-
168
HANGER; ENG,FRT
1-11777-207-0
01
1
0006-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
