Sayfa 1-31 - Isuzu EPC

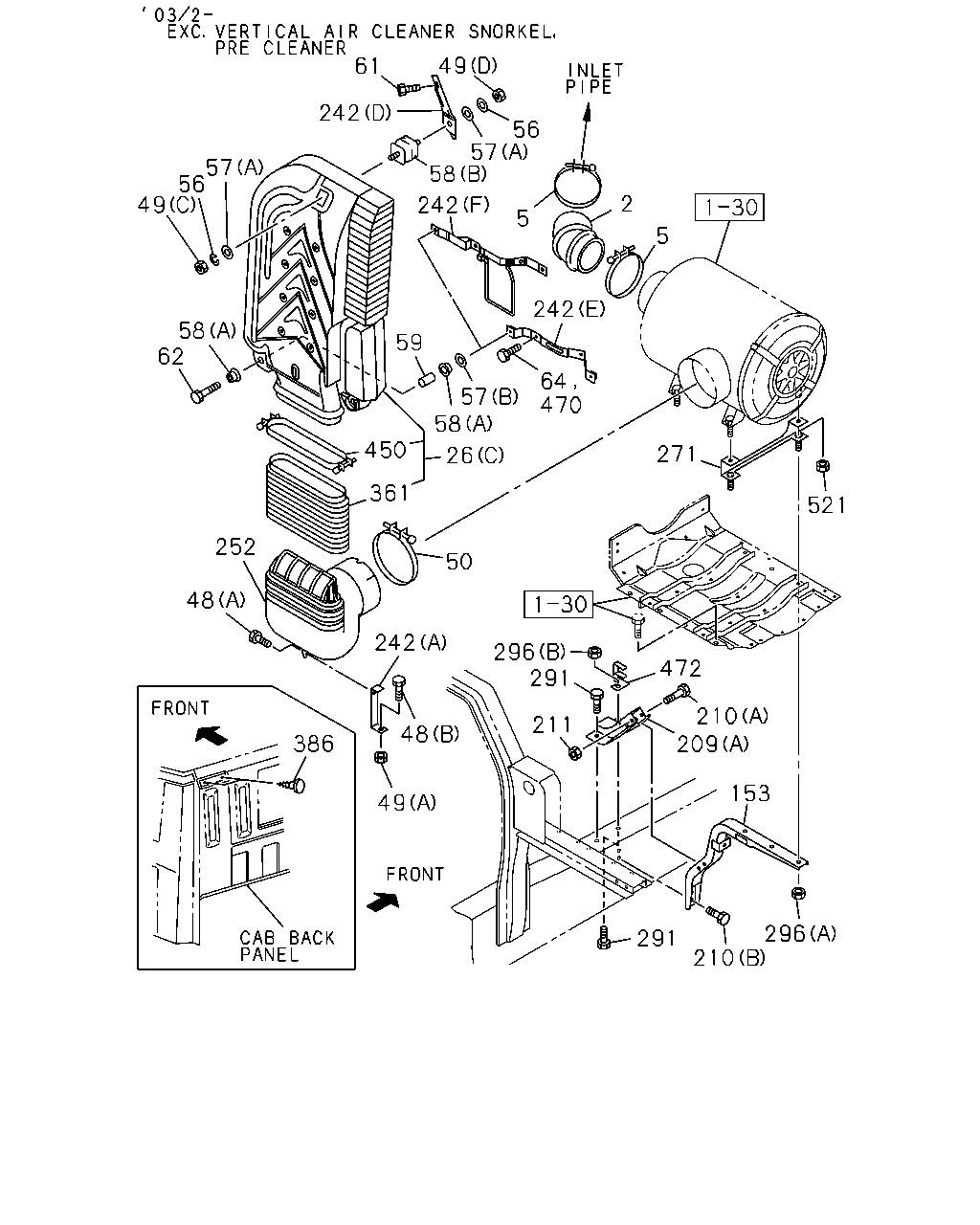

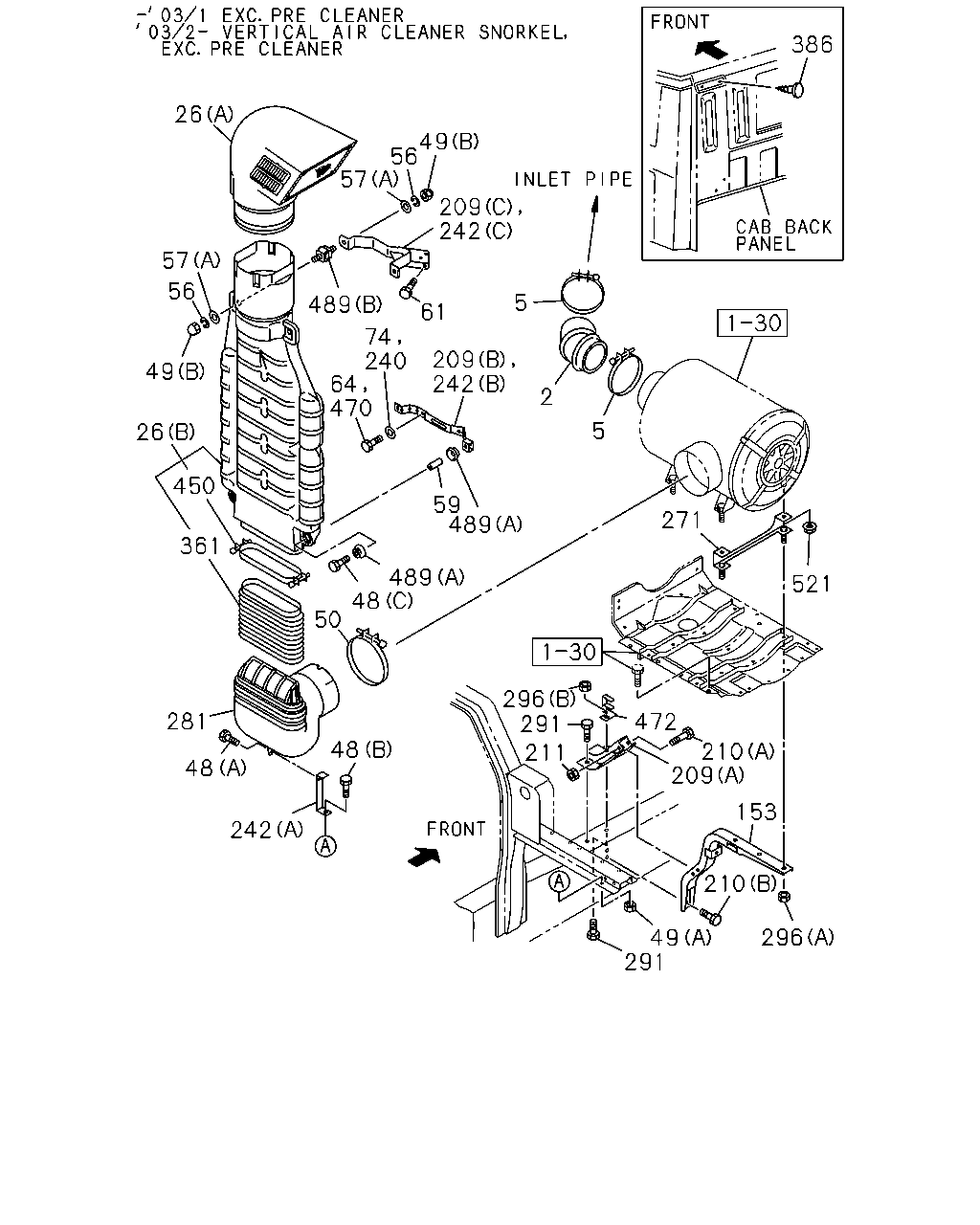

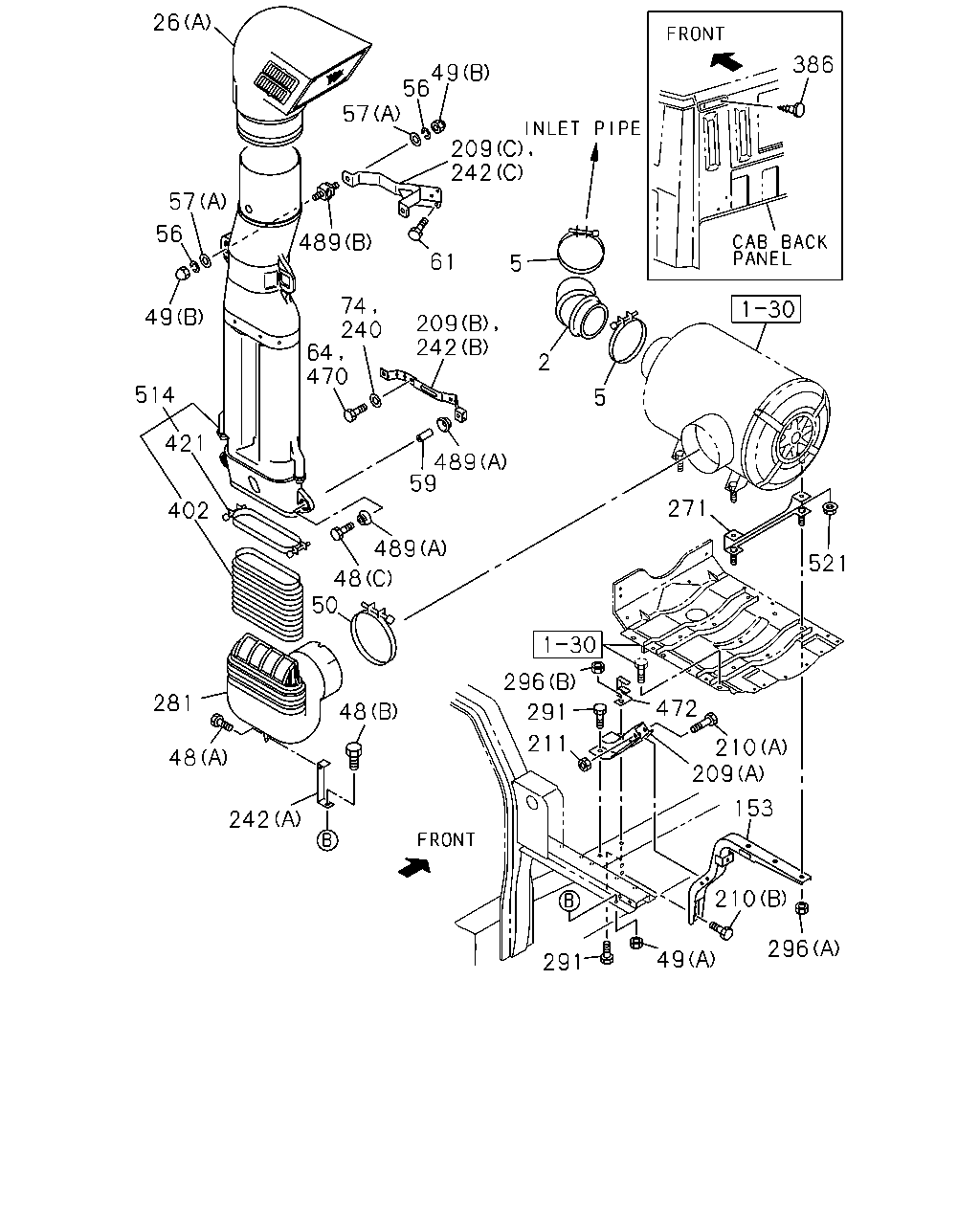

1-31 — AIR DUCT (#6095) — 290 parça

26 386 49 56 57 242 57 56 489 61 5 74 240 64 470 49 209 242 2 514 5 421 489 59 271 402 489 521 48 50 296 281 472 48 291 211 210 209 48 153 242 210 296 49 291 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL	1-14231-955-1	01	1	9905-
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	9905-
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (C)	1-14230-202-2	01	1	0302-1003
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (C)	8-98122-904-2	01	1	1004-
26	DUCT; AIR INT (A)	1-14219-258-0	01	1	9905-0301
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (A)	1-14219-258-1	01	1	0302-
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14219-258-1	01	1	0302-
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (B)	1-14230-168-0	01	1	9905-0301
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B)	1-14230-168-0	01	1	0302-
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	9905-0512
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	9905-0512
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
48	BOLT; AIR DUCT (C) M10X60	1-09030-044-1	02	1	9905-0301
48	BOLT; AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0302-
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0302-
49	NUT; AIR DUCT (A) M10 FLANGE	0-91150-210-0	01	1	9905-0602
49	NUT; AIR DUCT (A) M10 FLANGE	0-91180-210-0	01	1	0603-
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-126-0	04	1	9905-0301
49	NUT; AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B) M8 FLANGE	1-09984-126-0	04	1	0302-
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M8 FLANGE	1-09984-126-0	04	1	0302-
49	NUT; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0302-
49	NUT; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (D) M8	9-09110-408-0	01	1	0302-0512
49	NUT; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (D) M8	0-91110-508-0	01	1	0601-0808
49	NUT; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (D) M8 FLANGE	1-09984-122-0	01	1	0809-
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9905-
56	WASHER; LK,AIR INT DUCT ID=8.2	1-09985-177-0	04	1	9905-0301
56	WASHER; LK,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0302-
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0302-
56	WASHER; LK,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	0302-
57	WASHER; PL,AIR INT DUCT (A) ID=8.4 OD=22	1-09985-188-0	04	1	9905-0301
57	WASHER; PL,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	0302-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	0302-
57	WASHER; PL,AIR INT DUCT GRIP OUT SIDE<W52> EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0302-
57	WASHER; PL,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	02	1	0302-
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	9905-
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9905-0702
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0703-0807
61	BOLT; BRKT,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	0808-
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9905-0702
64	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0703-0807
64	BOLT; BRKT,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	0808-
74	WASHER; PL,ACL VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0808-
74	WASHER; PL,ACL PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0808-
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9905-
209	BRACKET; ACL VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (C)	1-79990-045-2	01	1	0808-
209	BRACKET; ACL PRE CLEANER<W17> (C)	1-79990-045-2	01	1	0808-
209	BRACKET; ACL VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B)	8-98115-405-1	01	1	0808-
209	BRACKET; ACL PRE CLEANER<W17> (B)	8-98115-405-1	01	1	0808-
209	BRACKET; ACL (A)	1-53419-276-0	01	1	9905-
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	9905-0512
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	9905-0303
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	0304-0512
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0601-
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-0602
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
240	WASHER; PL,BRKT ID=8.4 OD=22	1-09985-188-0	01	1	9905-0301
240	WASHER; PL,BRKT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0302-0807
240	WASHER; PL,BRKT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0302-0807
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	9905-
242	BRACKET; AIR DUCT (B) LOWER	1-79990-041-0	01	1	9905-0301
242	BRACKET; AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B) LOWER	1-79990-041-0	01	1	0302-0807
242	BRACKET; AIR DUCT PRE CLEANER<W17> (B) LOWER	1-79990-041-0	01	1	0302-0807
242	BRACKET; AIR DUCT (C) UPPER	1-79990-045-1	01	1	9905-0301
242	BRACKET; AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (C) UPPER	1-79990-045-1	01	1	0302-0807
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C) UPPER	1-79990-045-1	01	1	0302-0807
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (E)	1-53419-351-1	01	1	0302-0807
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (E)	8-98113-588-1	01	1	0808-
242	BRACKET; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (D)	1-53419-325-1	01	1	0302-
242	BRACKET; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17>,GRIP OUT SIDE<W52> (E)	1-53419-324-0	01	1	0302-0606
242	BRACKET; AIR DUCT FULL FLOATING CAB(W16) EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17>,GRIP OUT SIDE<W52> (F)	8-98041-993-1	01	1	0607-
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	9905-
281	DUCT; AIR,VERTICAL INT	1-14230-194-0	01	1	9905-0301
281	DUCT; AIR,VERTICAL INT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0302-
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-194-0	01	1	0302-
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	9905-0512
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	9905-0602
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	9905-0602
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	9905-9909
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	01	1	9910-0002
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0003-
402	GASKET; RUBBER PRE CLEANER<W17>	1-14230-149-2	01	1	9905-
421	CLAMP; AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	9905-
470	BOLT; BRKT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	04	1	0808-
470	BOLT; BRKT PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	04	1	0808-
472	STOPPER; LINK ROD	1-33659-196-0	01	1	9905-0104
472	STOPPER; LINK ROD	1-33659-230-0	01	1	0105-
489	RUBBER; SUPPORT (A) OD=40 T=18.5	1-14119-267-0	04	1	9905-0301
489	RUBBER; SUPPORT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0302-
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0302-
489	RUBBER; SUPPORT (B)	8-97080-149-0	02	1	9905-0301
489	RUBBER; SUPPORT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B)	8-97080-149-0	02	1	0302-
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	0302-
514	DUCT; PRE CLEANER PRE CLEANER<W17>	1-14230-170-1	01	1	9905-
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0103-0602
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0603-

386 26 49 56 57 209 242 57 56 5 489 61 74 240 64 470 209 242 49 2 5 26 450 59 489 271 361 489 48 521 50 296 291 211 281 472 48 210 209 48 153 242 210 296 49 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL	1-14231-955-1	01	1	9905-
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	9905-
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (C)	1-14230-202-2	01	1	0302-1003
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (C)	8-98122-904-2	01	1	1004-
26	DUCT; AIR INT (A)	1-14219-258-0	01	1	9905-0301
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (A)	1-14219-258-1	01	1	0302-
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14219-258-1	01	1	0302-
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (B)	1-14230-168-0	01	1	9905-0301
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B)	1-14230-168-0	01	1	0302-
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	9905-0512
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	9905-0512
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
48	BOLT; AIR DUCT (C) M10X60	1-09030-044-1	02	1	9905-0301
48	BOLT; AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0302-
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0302-
49	NUT; AIR DUCT (A) M10 FLANGE	0-91150-210-0	01	1	9905-0602
49	NUT; AIR DUCT (A) M10 FLANGE	0-91180-210-0	01	1	0603-
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-126-0	04	1	9905-0301
49	NUT; AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B) M8 FLANGE	1-09984-126-0	04	1	0302-
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M8 FLANGE	1-09984-126-0	04	1	0302-
49	NUT; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0302-
49	NUT; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (D) M8	9-09110-408-0	01	1	0302-0512
49	NUT; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (D) M8	0-91110-508-0	01	1	0601-0808
49	NUT; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (D) M8 FLANGE	1-09984-122-0	01	1	0809-
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9905-
56	WASHER; LK,AIR INT DUCT ID=8.2	1-09985-177-0	04	1	9905-0301
56	WASHER; LK,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0302-
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0302-
56	WASHER; LK,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	0302-
57	WASHER; PL,AIR INT DUCT (A) ID=8.4 OD=22	1-09985-188-0	04	1	9905-0301
57	WASHER; PL,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	0302-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	0302-
57	WASHER; PL,AIR INT DUCT GRIP OUT SIDE<W52> EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0302-
57	WASHER; PL,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	02	1	0302-
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	9905-
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9905-0702
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0703-0807
61	BOLT; BRKT,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	0808-
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9905-0702
64	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0703-0807
64	BOLT; BRKT,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	0808-
74	WASHER; PL,ACL VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0808-
74	WASHER; PL,ACL PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0808-
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9905-
209	BRACKET; ACL VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (C)	1-79990-045-2	01	1	0808-
209	BRACKET; ACL PRE CLEANER<W17> (C)	1-79990-045-2	01	1	0808-
209	BRACKET; ACL VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B)	8-98115-405-1	01	1	0808-
209	BRACKET; ACL PRE CLEANER<W17> (B)	8-98115-405-1	01	1	0808-
209	BRACKET; ACL (A)	1-53419-276-0	01	1	9905-
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	9905-0512
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	9905-0303
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	0304-0512
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0601-
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-0602
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
240	WASHER; PL,BRKT ID=8.4 OD=22	1-09985-188-0	01	1	9905-0301
240	WASHER; PL,BRKT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0302-0807
240	WASHER; PL,BRKT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0302-0807
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	9905-
242	BRACKET; AIR DUCT (B) LOWER	1-79990-041-0	01	1	9905-0301
242	BRACKET; AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B) LOWER	1-79990-041-0	01	1	0302-0807
242	BRACKET; AIR DUCT PRE CLEANER<W17> (B) LOWER	1-79990-041-0	01	1	0302-0807
242	BRACKET; AIR DUCT (C) UPPER	1-79990-045-1	01	1	9905-0301
242	BRACKET; AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (C) UPPER	1-79990-045-1	01	1	0302-0807
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C) UPPER	1-79990-045-1	01	1	0302-0807
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (E)	1-53419-351-1	01	1	0302-0807
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (E)	8-98113-588-1	01	1	0808-
242	BRACKET; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (D)	1-53419-325-1	01	1	0302-
242	BRACKET; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17>,GRIP OUT SIDE<W52> (E)	1-53419-324-0	01	1	0302-0606
242	BRACKET; AIR DUCT FULL FLOATING CAB(W16) EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17>,GRIP OUT SIDE<W52> (F)	8-98041-993-1	01	1	0607-
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	9905-
281	DUCT; AIR,VERTICAL INT	1-14230-194-0	01	1	9905-0301
281	DUCT; AIR,VERTICAL INT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0302-
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-194-0	01	1	0302-
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	9905-0512
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	9905-0602
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	9905-0602
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-2	01	1	9905-
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	9905-9909
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	01	1	9910-0002
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0003-
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	9905-
470	BOLT; BRKT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	04	1	0808-
470	BOLT; BRKT PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	04	1	0808-
472	STOPPER; LINK ROD	1-33659-196-0	01	1	9905-0104
472	STOPPER; LINK ROD	1-33659-230-0	01	1	0105-
489	RUBBER; SUPPORT (A) OD=40 T=18.5	1-14119-267-0	04	1	9905-0301
489	RUBBER; SUPPORT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0302-
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0302-
489	RUBBER; SUPPORT (B)	8-97080-149-0	02	1	9905-0301
489	RUBBER; SUPPORT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B)	8-97080-149-0	02	1	0302-
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	0302-
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0103-0602
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0603-

61 49 242 56 57 58 57 56 49 2 242 5 5 242 58 62 59 64 470 57 58 450 271 26 361 521 252 50 48 242 296 291 472 210 209 211 48 386 153 49 296 210 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL	1-14231-955-1	01	1	9905-
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	9905-
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (C)	1-14230-202-2	01	1	0302-1003
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (C)	8-98122-904-2	01	1	1004-
26	DUCT; AIR INT (A)	1-14219-258-0	01	1	9905-0301
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (A)	1-14219-258-1	01	1	0302-
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14219-258-1	01	1	0302-
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (B)	1-14230-168-0	01	1	9905-0301
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B)	1-14230-168-0	01	1	0302-
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	9905-0512
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	9905-0512
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
48	BOLT; AIR DUCT (C) M10X60	1-09030-044-1	02	1	9905-0301
48	BOLT; AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0302-
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0302-
49	NUT; AIR DUCT (A) M10 FLANGE	0-91150-210-0	01	1	9905-0602
49	NUT; AIR DUCT (A) M10 FLANGE	0-91180-210-0	01	1	0603-
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-126-0	04	1	9905-0301
49	NUT; AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B) M8 FLANGE	1-09984-126-0	04	1	0302-
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M8 FLANGE	1-09984-126-0	04	1	0302-
49	NUT; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0302-
49	NUT; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (D) M8	9-09110-408-0	01	1	0302-0512
49	NUT; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (D) M8	0-91110-508-0	01	1	0601-0808
49	NUT; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (D) M8 FLANGE	1-09984-122-0	01	1	0809-
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9905-
56	WASHER; LK,AIR INT DUCT ID=8.2	1-09985-177-0	04	1	9905-0301
56	WASHER; LK,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0302-
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0302-
56	WASHER; LK,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	0302-
57	WASHER; PL,AIR INT DUCT (A) ID=8.4 OD=22	1-09985-188-0	04	1	9905-0301
57	WASHER; PL,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	0302-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	0302-
57	WASHER; PL,AIR INT DUCT GRIP OUT SIDE<W52> EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0302-
57	WASHER; PL,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	02	1	0302-
58	SUPPORT; AIR INL DUCT GRIP OUT SIDE<W52> EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0302-0810
58	SUPPORT; AIR INL DUCT GRIP OUT SIDE<W52> EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (B)	8-98125-944-1	01	1	0811-
58	SUPPORT; AIR INL DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0302-
58	SUPPORT; AIR INL DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17>,GRIP OUT SIDE<W52> (B)	8-97080-149-0	01	1	0302-
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	9905-
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9905-0702
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0703-0807
61	BOLT; BRKT,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	0808-
62	BOLT; AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> M10X60	1-09030-044-1	02	1	0302-
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9905-0702
64	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0703-0807
64	BOLT; BRKT,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	0808-
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9905-
209	BRACKET; ACL VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (C)	1-79990-045-2	01	1	0808-
209	BRACKET; ACL PRE CLEANER<W17> (C)	1-79990-045-2	01	1	0808-
209	BRACKET; ACL VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B)	8-98115-405-1	01	1	0808-
209	BRACKET; ACL PRE CLEANER<W17> (B)	8-98115-405-1	01	1	0808-
209	BRACKET; ACL (A)	1-53419-276-0	01	1	9905-
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	9905-0512
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	9905-0303
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	0304-0512
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0601-
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-0602
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	9905-
242	BRACKET; AIR DUCT (B) LOWER	1-79990-041-0	01	1	9905-0301
242	BRACKET; AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B) LOWER	1-79990-041-0	01	1	0302-0807
242	BRACKET; AIR DUCT PRE CLEANER<W17> (B) LOWER	1-79990-041-0	01	1	0302-0807
242	BRACKET; AIR DUCT (C) UPPER	1-79990-045-1	01	1	9905-0301
242	BRACKET; AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (C) UPPER	1-79990-045-1	01	1	0302-0807
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C) UPPER	1-79990-045-1	01	1	0302-0807
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (E)	1-53419-351-1	01	1	0302-0807
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (E)	8-98113-588-1	01	1	0808-
242	BRACKET; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17> (D)	1-53419-325-1	01	1	0302-
242	BRACKET; AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17>,GRIP OUT SIDE<W52> (E)	1-53419-324-0	01	1	0302-0606
242	BRACKET; AIR DUCT FULL FLOATING CAB(W16) EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17>,GRIP OUT SIDE<W52> (F)	8-98041-993-1	01	1	0607-
252	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,PRE CLEANER<W17>	1-14230-194-0	01	1	0302-
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	9905-
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	9905-0512
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	9905-0602
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	9905-0602
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-2	01	1	9905-
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	9905-9909
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	01	1	9910-0002
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0003-
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	9905-
470	BOLT; BRKT VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	04	1	0808-
470	BOLT; BRKT PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	04	1	0808-
472	STOPPER; LINK ROD	1-33659-196-0	01	1	9905-0104
472	STOPPER; LINK ROD	1-33659-230-0	01	1	0105-
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0103-0602
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
