Isuzu WW
▶
TRUCKS
▶
FVR
▶
11235 - FVR-RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-08 - HEAD LAMP WASHER
▶

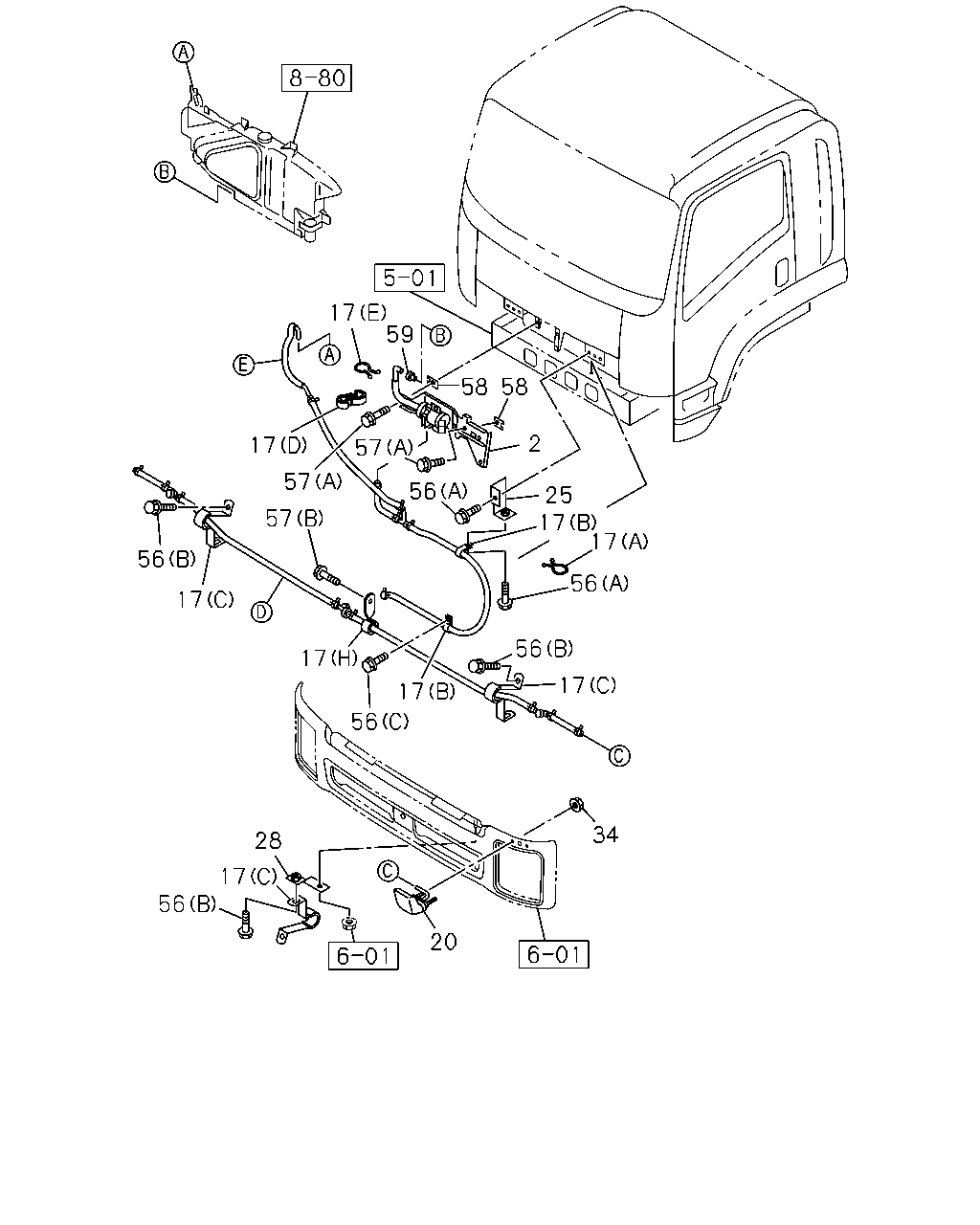

8-08 — HEAD LAMP WASHER
(#60948) — 56 parça
◀
[808A] NO.2 (15 parça)
[808A] NO.1 (20 parça)
[808A] NO.3 (21 parça)
▶
2
61
22
60
16
7
22
15
3
15
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
PUMP ASM; HEADLAMP CLEANER
HEAD LAMP WASHER<CE4>
8-98041-459-1
01
1
0906-
3
PUMP; WASHER TANK
HEAD LAMP WASHER<CE4>
8-98073-188-0
01
1
0906-
6
BRACKET; HEADLAMP CLEANER PUMP
HEAD LAMP WASHER<CE4>
8-98073-189-0
01
1
0906-
7
HOSE; HLC
HEAD LAMP WASHER<CE4> (E)
8-98071-478-0
01
1
0906-
7
HOSE; HLC
HEAD LAMP WASHER<CE4> (D)
8-98071-479-0
01
1
0906-
7
HOSE; HLC
HEAD LAMP WASHER<CE4> (C)
8-98071-480-0
02
1
0906-
7
HOSE; HLC
HEAD LAMP WASHER<CE4> (A)
8-98071-485-0
01
1
0906-
7
HOSE; HLC
HEAD LAMP WASHER<CE4> (G)
8-98071-486-0
01
1
0906-
7
HOSE; HLC
HEAD LAMP WASHER<CE4> (F)
8-98071-487-0
01
1
0906-
7
HOSE; HLC
HEAD LAMP WASHER<CE4> (B)
8-98073-183-0
01
1
0906-
15
BOLT; PUMP BRKT
HEAD LAMP WASHER<CE4>
8-98073-207-0
03
1
0906-
16
NUT; PUMP BRKT
HEAD LAMP WASHER<CE4>
8-98073-213-0
01
1
0906-
22
CLIP; BAND,HEADLAMP CLEANER HOSE
HEAD LAMP WASHER<CE4>
8-98071-476-0
02
1
0906-
60
RELAY; CONTROL
HEAD LAMP WASHER<CE4>
8-98073-187-0
01
1
0906-
61
JOINT; HOSE
HEAD LAMP WASHER<CE4>
8-98073-184-0
01
1
0906-
17
59
58
58
2
17
57
57
56
25
17
17
57
56
56
17
56
17
17
17
56
34
28
17
56
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
PUMP ASM; HEADLAMP CLEANER
HEAD LAMP WASHER<CE4>
8-98041-459-1
01
1
0906-
17
CLIP; HLC HOSE
HEAD LAMP WASHER<CE4> (H) ID=13 L=50
1-09700-027-1
01
1
0906-
17
CLIP; HLC HOSE
HEAD LAMP WASHER<CE4> (B) ID=14
1-09700-057-1
02
1
0906-
17
CLIP; HLC HOSE
HEAD LAMP WASHER<CE4> (C) ID=14 H=50 L=20
1-09700-843-0
04
1
0906-
17
CLIP; HLC HOSE
HEAD LAMP WASHER<CE4> (D) ID=6.35 & 10.0
1-09709-274-1
01
1
0906-
17
CLIP; HLC HOSE
HEAD LAMP WASHER<CE4> (E) ID=30
8-94315-423-0
01
1
0906-
17
CLIP; HLC HOSE
HEAD LAMP WASHER<CE4> (A) ID=37
8-94481-468-0
01
1
0906-
17
CLIP; HLC HOSE
HEAD LAMP WASHER<CE4> (F)
8-98071-476-0
09
1
0906-
17
CLIP; HLC HOSE
HEAD LAMP WASHER<CE4> (G)
8-98071-477-0
03
1
0906-
20
NOZZLE; HEADLAMP CLEANER
HEAD LAMP WASHER<CE4>
8-98041-460-0
02
1
0906-
25
BRACKET; HLC HOSE
HEAD LAMP WASHER<CE4>
8-98041-462-1
01
1
0906-
28
BRACKET; NOZZLE
HEAD LAMP WASHER<CE4>
8-98041-463-1
02
1
0906-
34
NUT; NOZZLE
HEAD LAMP WASHER<CE4> M6 FLANGE
0-91180-106-0
04
1
0906-
56
BOLT; CLIP
HEAD LAMP WASHER<CE4> (A) M8X20 FLANGE
0-28650-820-0
02
1
0906-
56
BOLT; CLIP
HEAD LAMP WASHER<CE4> (C) M8X20 W/LK&PL WASHER
0-50640-820-0
01
1
0906-
56
BOLT; CLIP
HEAD LAMP WASHER<CE4> (B) M8X16 W/LK WASHER
0-50740-816-0
03
1
0906-
57
BOLT; HEAD LAMP WASHER
HEAD LAMP WASHER<CE4> (A) M8X20 FLANGE
0-28650-820-0
02
1
0906-
57
BOLT; HEAD LAMP WASHER
HEAD LAMP WASHER<CE4> (B) M8X16 W/LK WASHER
0-50740-816-0
01
1
0906-
58
NUT; HEAD LAMP WASHER
HEAD LAMP WASHER<CE4> M8
8-98041-929-0
02
1
0906-
59
RUBBER; BOOT,HLC HOSE
HEAD LAMP WASHER<CE4>
8-98065-994-0
01
1
0906-
7
17
5
17
17
7
9
17
17
9
7
17
17
5
17
7
7
63
17
17
7
17
7
63
9
9
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
VALVE; CHECK,HLC HOSE
HEAD LAMP WASHER<CE4>
8-98071-475-0
02
1
0906-
7
HOSE; HLC
HEAD LAMP WASHER<CE4> (E)
8-98071-478-0
01
1
0906-
7
HOSE; HLC
HEAD LAMP WASHER<CE4> (D)
8-98071-479-0
01
1
0906-
7
HOSE; HLC
HEAD LAMP WASHER<CE4> (C)
8-98071-480-0
02
1
0906-
7
HOSE; HLC
HEAD LAMP WASHER<CE4> (A)
8-98071-485-0
01
1
0906-
7
HOSE; HLC
HEAD LAMP WASHER<CE4> (G)
8-98071-486-0
01
1
0906-
7
HOSE; HLC
HEAD LAMP WASHER<CE4> (F)
8-98071-487-0
01
1
0906-
7
HOSE; HLC
HEAD LAMP WASHER<CE4> (B)
8-98073-183-0
01
1
0906-
9
JOINT; HLC HOSE
HEAD LAMP WASHER<CE4> (A)
8-98071-473-0
01
1
0906-
9
JOINT; HLC HOSE
HEAD LAMP WASHER<CE4> (B)
8-98071-474-0
02
1
0906-
9
JOINT; HLC HOSE
HEAD LAMP WASHER<CE4> (C)
8-98071-484-0
01
1
0906-
17
CLIP; HLC HOSE
HEAD LAMP WASHER<CE4> (H) ID=13 L=50
1-09700-027-1
01
1
0906-
17
CLIP; HLC HOSE
HEAD LAMP WASHER<CE4> (B) ID=14
1-09700-057-1
02
1
0906-
17
CLIP; HLC HOSE
HEAD LAMP WASHER<CE4> (C) ID=14 H=50 L=20
1-09700-843-0
04
1
0906-
17
CLIP; HLC HOSE
HEAD LAMP WASHER<CE4> (D) ID=6.35 & 10.0
1-09709-274-1
01
1
0906-
17
CLIP; HLC HOSE
HEAD LAMP WASHER<CE4> (E) ID=30
8-94315-423-0
01
1
0906-
17
CLIP; HLC HOSE
HEAD LAMP WASHER<CE4> (A) ID=37
8-94481-468-0
01
1
0906-
17
CLIP; HLC HOSE
HEAD LAMP WASHER<CE4> (F)
8-98071-476-0
09
1
0906-
17
CLIP; HLC HOSE
HEAD LAMP WASHER<CE4> (G)
8-98071-477-0
03
1
0906-
63
CORRUGATE; TUBE
HEAD LAMP WASHER<CE4> (A)
8-98071-488-0
01
1
0906-
63
CORRUGATE; TUBE
HEAD LAMP WASHER<CE4> (B)
8-98071-489-0
01
1
0906-
