◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11235 - FVR-RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#60938) — 150 parça

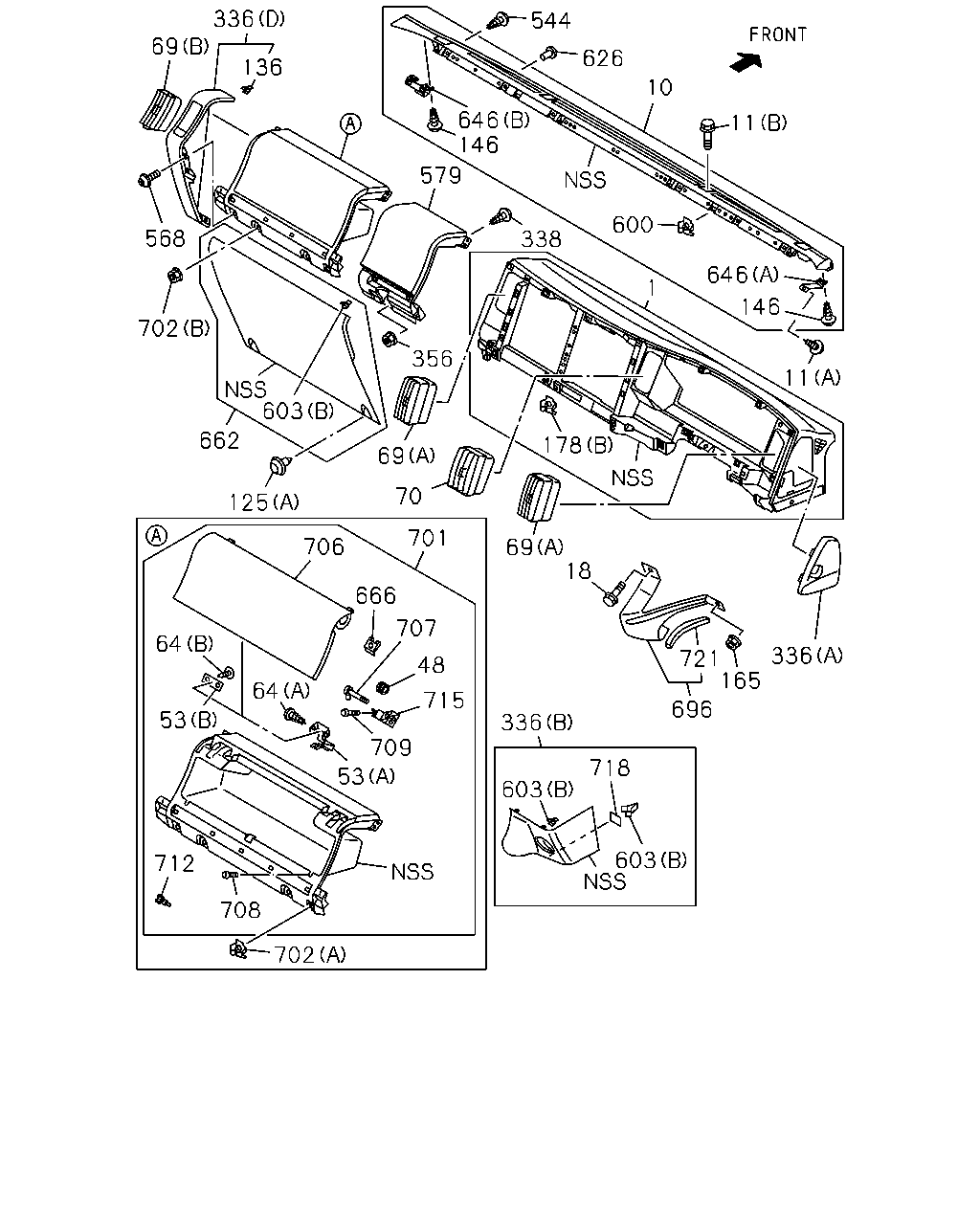

çizim 164660
11 10 626 544 646 600 146 646 11 1 146 338 579 136 336 69 568 702 603 662 125 69 70 356 178 69 336 165 721 696 18 718 336 603 603 702 708 712 53 715 48 707 666 706 701 53 64 64 709
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0906-
10 PANEL ASM; GARNISH
GRAY 		8-97414-686-0 01 1 0906-1008
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1009-
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0906-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0906-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0906-
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 0906-1311
48 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 0906-1311
48 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 0906-1405
53 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 0906-1405
64 SCREW; STRIKER
(B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0906-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0906-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0906-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0906-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-1504
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) (A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0906-
136 CLIP; INST COVER 8-98076-254-0 02 1 0906-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0906-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0906-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0906-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0906-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0906-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0906-1012
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0906-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0906-
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0906-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 0906-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0906-
568 BOLT; COVER
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 0906-
600 NUT; PANEL 8-98037-629-0 02 1 0906-1008
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0906-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0906-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0906-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0906-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 0906-
666 INSERT; INST PANEL 8-98038-450-0 04 1 0906-1311
666 INSERT; INST PANEL
M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98066-085-1 01 1 0906-
701 TRAY; INST
GRAY 		8-97415-540-6 01 1 0906-1405
701 TRAY; INST
GRAY 		8-97429-703-1 01 1 1406-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0906-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0906-
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 0906-1405
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0906-1311
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0906-
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 0906-
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 0906-
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 0906-1311
715 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 0906-1311
715 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1312-
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0906-
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0906-

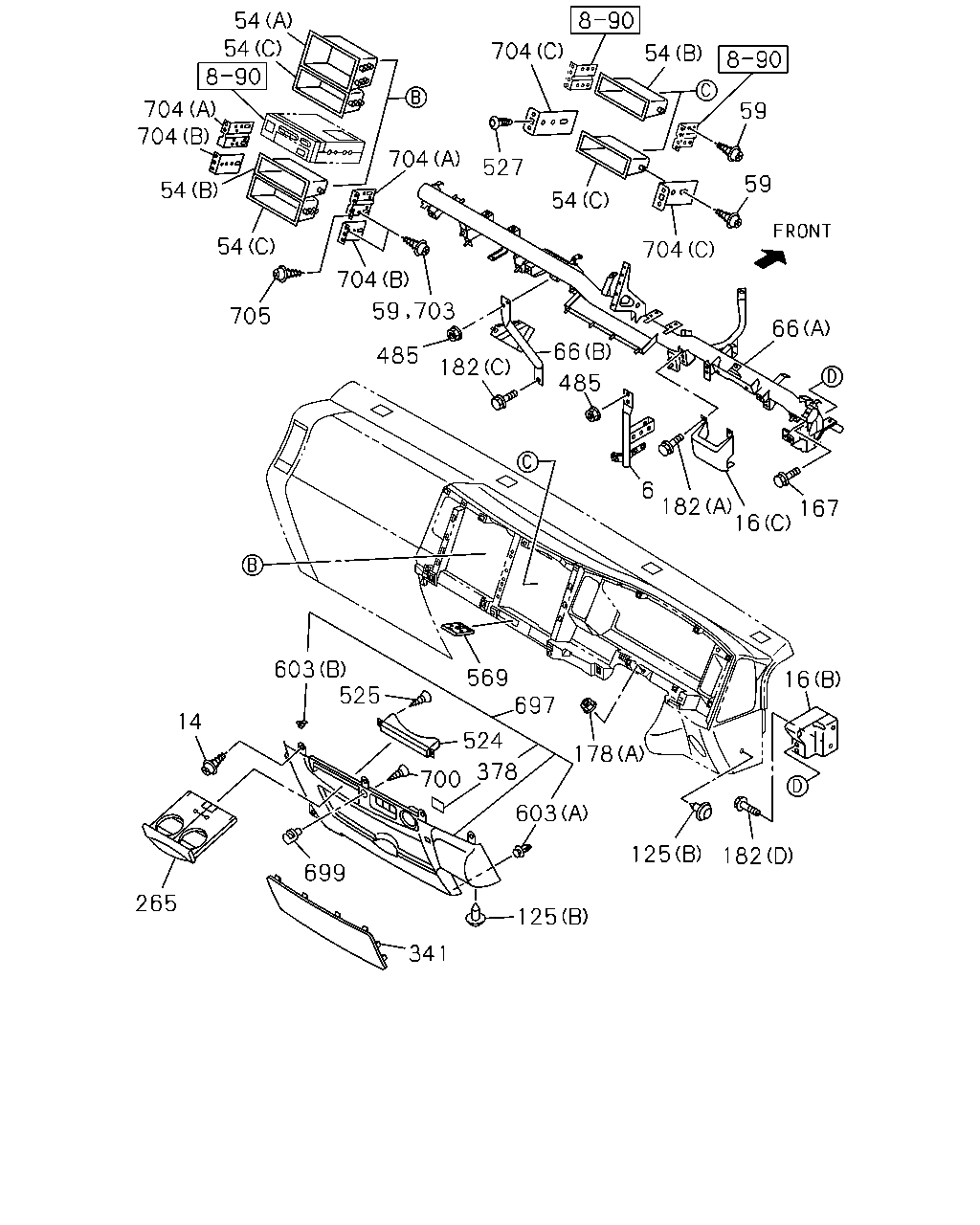

çizim 164662
54 54 704 704 54 54 705 704 704 59 703 485 182 704 527 54 54 59 59 704 66 167 16 182 6 485 66 16 182 125 178 697 569 524 378 603 125 341 699 525 603 14 265 700
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 0906-1109
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0906-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0906-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0906-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0906-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 0906-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-528-0 01 1 0906-1105
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0906-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 0906-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILA TOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 0906-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0906-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 0906-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILA TOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0906-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0906-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0906-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0906-
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3) (B) 		8-98151-167-0 01 1 0910-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0906-0909
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) (B) 		8-97585-580-2 01 1 0910-
66 REINFORCEMENT; INST PANEL
(A) 		8-98009-971-9 01 1 0906-0911
66 REINFORCEMENT; INST PANEL
(A) 		8-98154-701-1 01 1 0912-1111
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1112-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1407-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0906-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-1504
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) (A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0906-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0906-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0906-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0906-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0906-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0906-1011
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1012-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0906-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0906-0909
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910-
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0906-1010
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0906-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0906-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0906-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILA TOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 0906-
569 HOLDER; CARD 8-97410-276-1 01 1 0906-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0906-
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 0906-1010
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0906-
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0906-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0906-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0906-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILA TOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 0906-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0906-1209
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILA TOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0906-

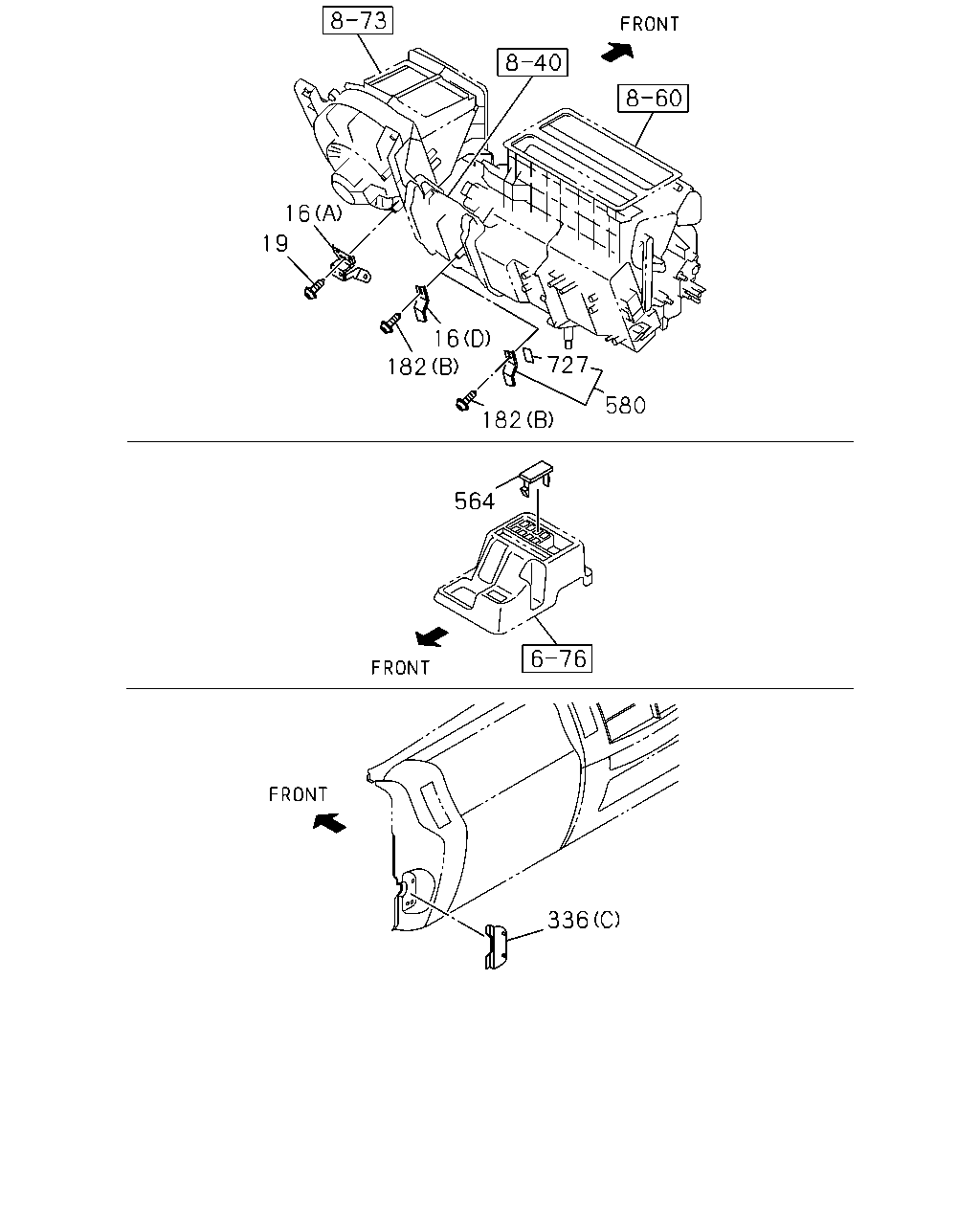

çizim 164863
16 19 16 182 727 580 182 564 336
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0906-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0906-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0906-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 0906-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-528-0 01 1 0906-1105
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0906-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0906-1011
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1012-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0906-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0906-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0906-1012
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0906-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0906-
564 COVER; SW 8-97043-732-1 06 1 0906-
580 BRACKET; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) 		8-98017-528-1 01 1 1106-
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) 		8-98186-934-0 01 1 1106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
