◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11235 - FVR-RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#60935) — 13 parça

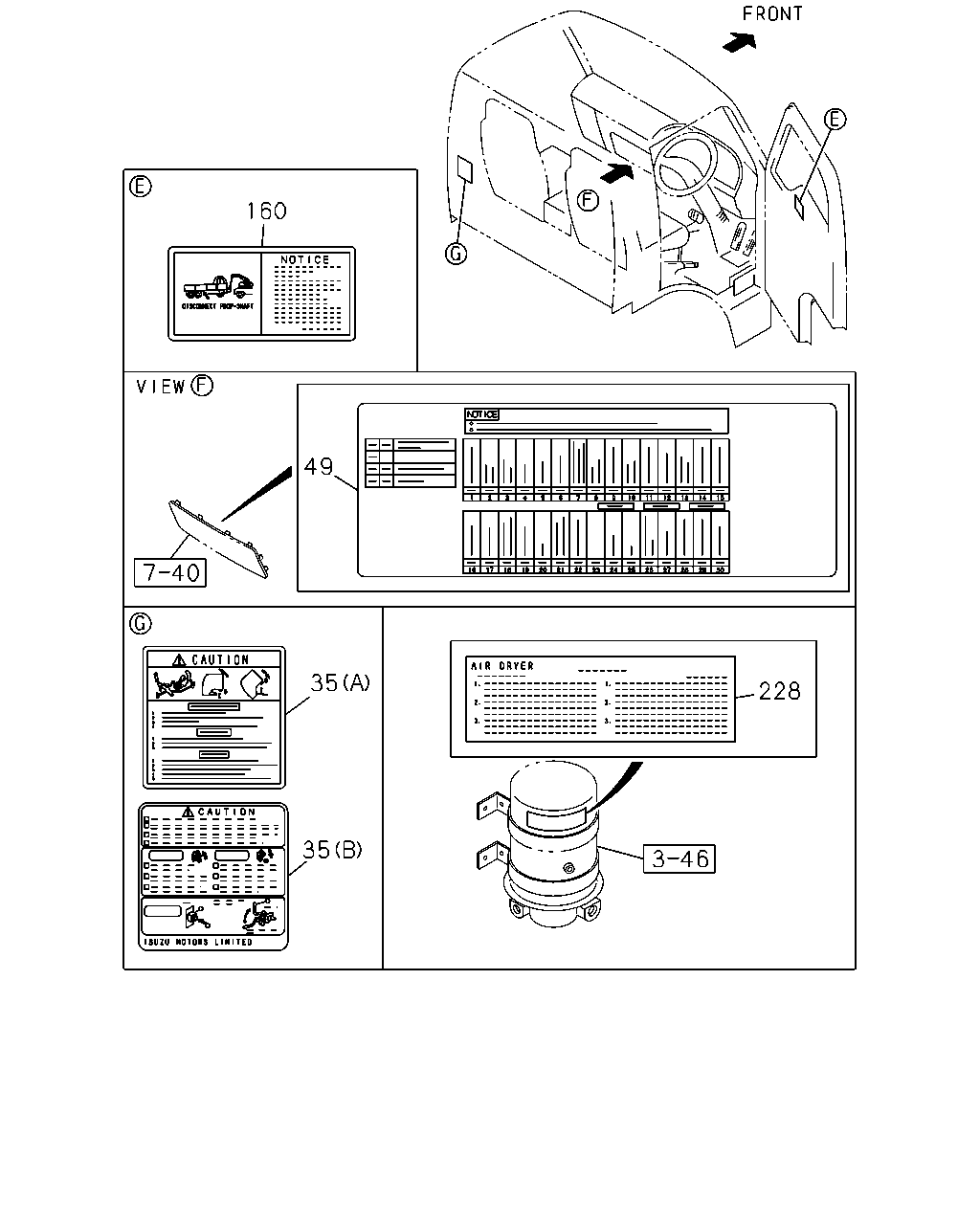

çizim 164822
160 49 35 228 35
BalonParca AdiParca NoAdetTipApplied Date
35 PLATE; CAUTION,CAB
AUTO CAB TILT<WV2> (B) 		8-98017-667-1 01 1 0906-
35 PLATE; CAUTION,CAB
EXC. AUTO CAB TILT<WV2> (A) 		8-98065-363-0 01 1 0906-0907
35 PLATE; CAUTION,CAB
(A) 		8-98065-363-0 01 1 0908-1006
35 PLATE; CAUTION,CAB
EXC. AUTO CAB TILT<WV2> (A) 		8-98065-363-0 01 1 1007-
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 0906-
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) 		1-85888-737-1 01 1 0906-
228 PLATE; CAUTION,AIR DRYER 1-85887-935-0 01 1 0906-1001

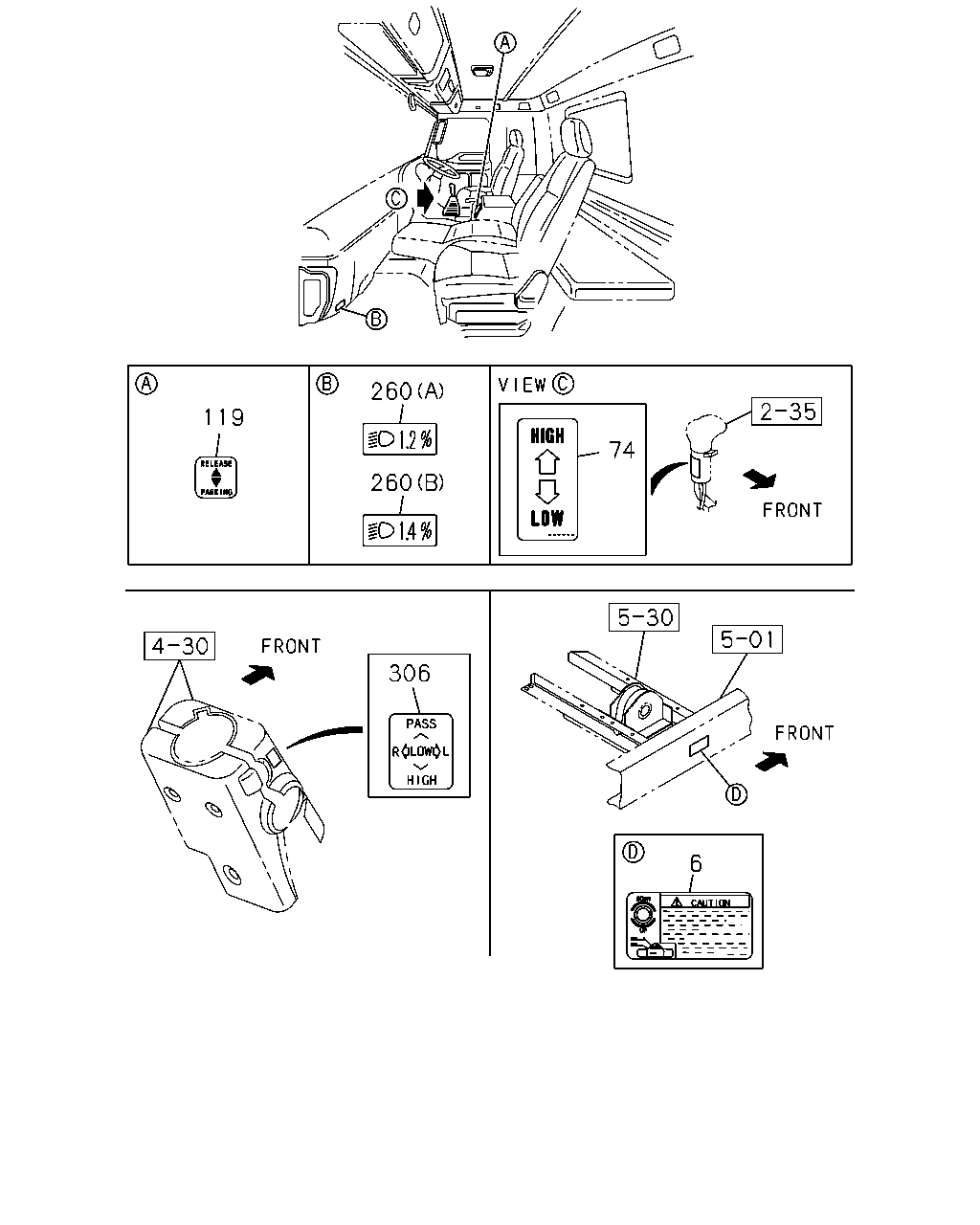

çizim 164823
260 119 74 260 306 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 0906-
74 PLATE; CAUTION,CHANGE LEV
ZF9S1110 M/T(Y5E) 		8-98118-493-0 01 1 0906-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0906-
260 PLATE; CAUTION,HEAD LAMP LEVELING
(A) 		1-85878-416-1 01 1 0906-0906
260 PLATE; CAUTION,HEAD LAMP LEVELING
(B) 		8-98008-779-0 01 1 0906-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
