◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11235 - FVR-RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#60927) — 23 parça

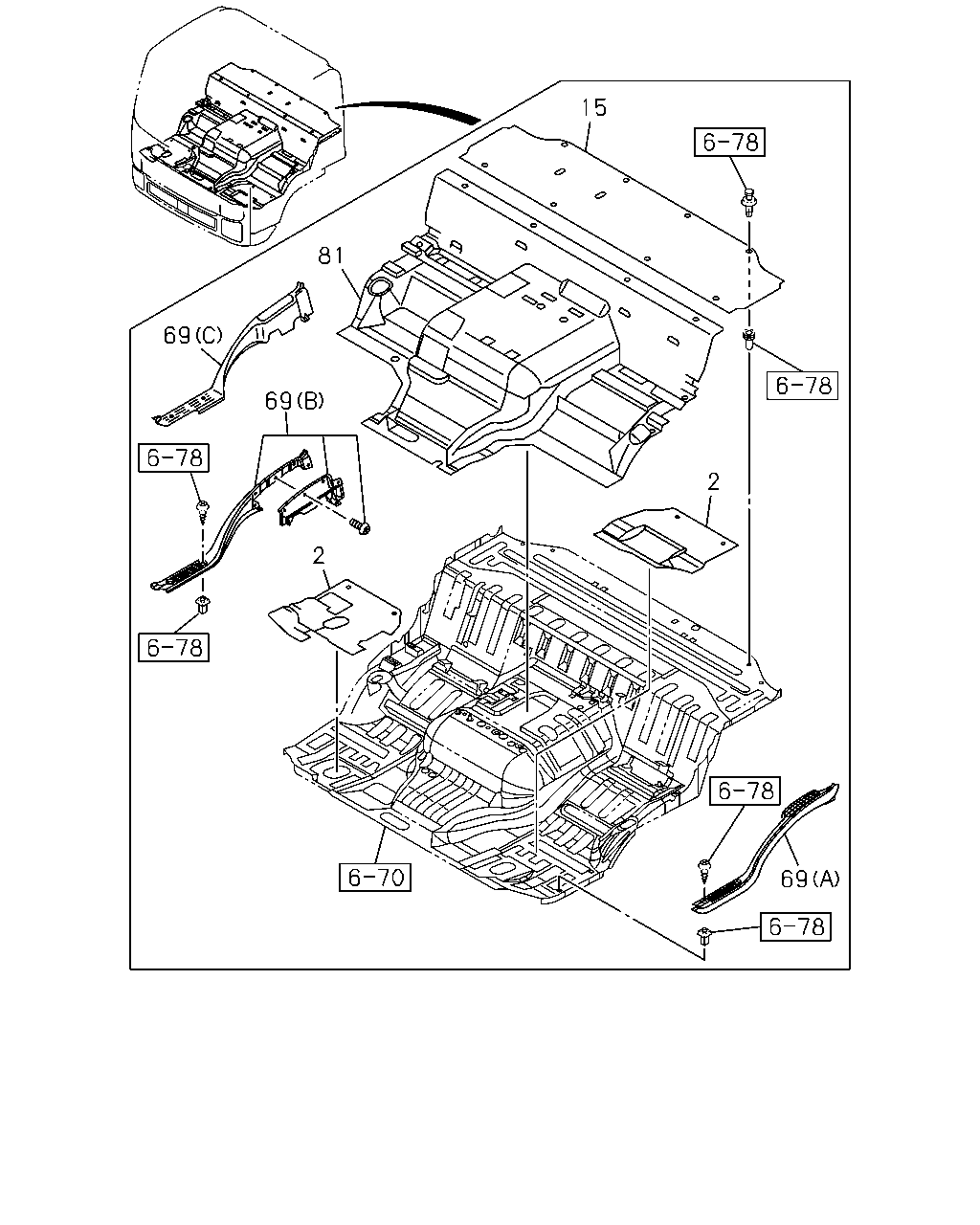

çizim 164820
15 81 69 69 2 2 69
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-745-1 01 1 0906-0906
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-747-2 01 1 0907-1003
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-747-2 01 1 1004-
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97413-023-2 01 1 0906-1003
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97413-023-2 01 1 1004-
2 MAT; FLOOR
EXC. FLOOR COVER<6WX> GRAY 		8-97407-751-1 01 1 0906-1003
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-751-1 01 1 1004-1005
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY 		8-97418-949-0 01 1 1006-
2 MAT; FLOOR
EXC. FLOOR COVER<6WX> GRAY 		8-97413-021-1 01 1 0906-1003
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97413-021-1 01 1 1004-1005
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97422-081-0 01 1 1006-
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1004-1005
15 MAT; FLOOR REAR
VINYL CARPET<B30>,FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1006-
15 MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 0906-
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> GRAY 		8-97407-397-0 01 1 0906-1003
15 MAT; FLOOR REAR
EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> GRAY 		8-97407-397-0 01 1 1004-1005
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY 		8-97412-927-0 01 1 0906-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97412-928-1 01 1 0906-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97412-926-0 01 1 0906-
81 MAT; FLOOR,CENTER
FLOOR COVER<6WX> GRAY 		8-97407-410-3 01 1 0906-1003
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-410-3 01 1 1004-
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> GRAY 		8-97407-391-6 01 1 0906-1005
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> DARK GRAY 		8-97418-941-0 01 1 1006-
