◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11235 - FVR-RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#60924) — 40 parça

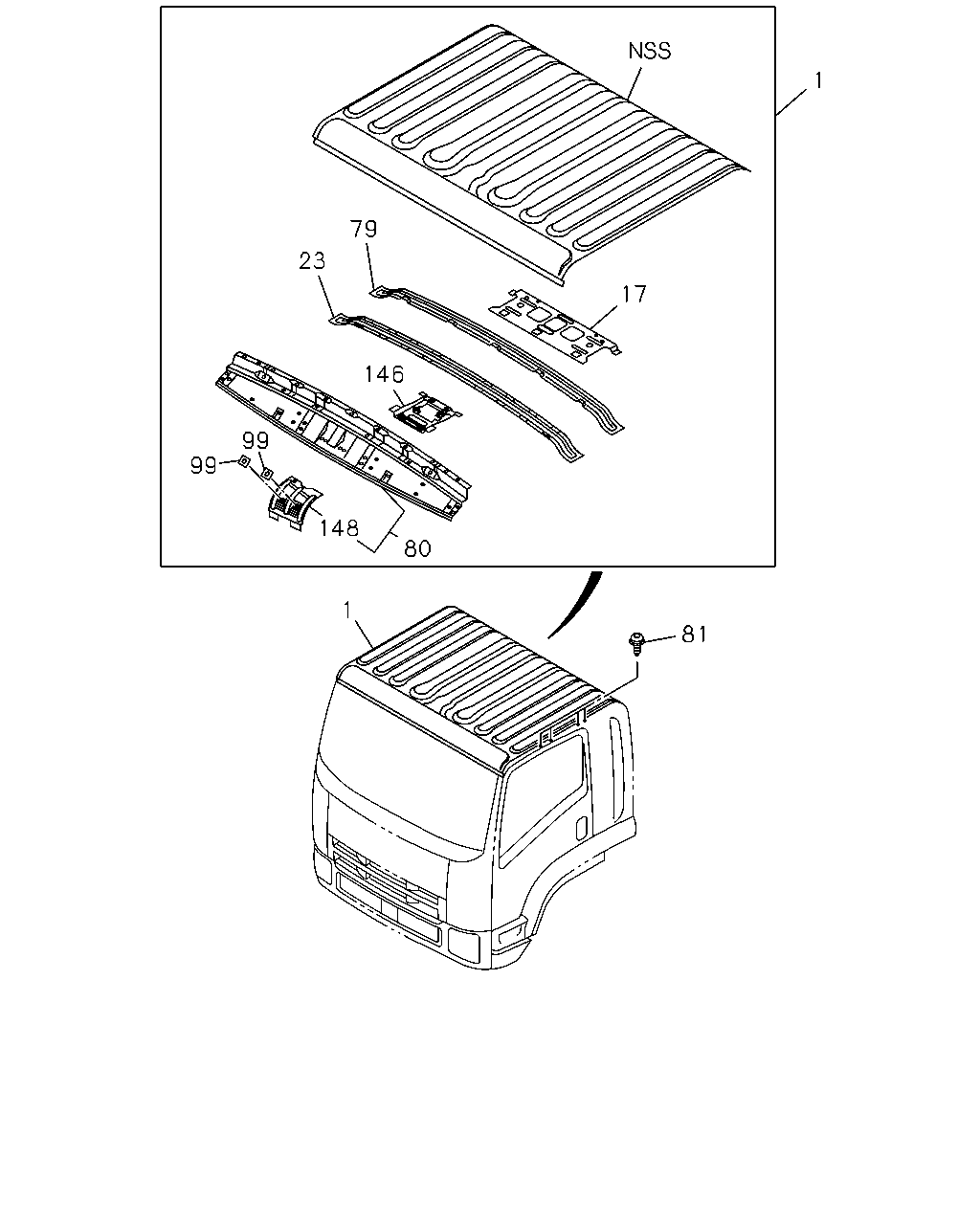

çizim 164855
1 79 23 17 146 99 99 148 80 1 81
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. FLUORESCENT LAMP<6UC> 		8-98152-805-0 01 1 1002-1101
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, FLUORESCENT LAMP<6UC> 		8-98152-805-0 01 1 1002-1101
1 PANEL; ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>,FLUORESCENT LAMP<6UC> 		8-98152-805-0 01 1 1102-1308
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> EXC. FLUORESCENT LAMP<6UC> 		8-98152-805-0 01 1 1102-1308
1 PANEL; ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>,FLUORESCENT LAMP<6UC> 		8-98246-477-0 01 1 1309-
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> EXC. FLUORESCENT LAMP<6UC> 		8-98246-477-0 01 1 1309-
1 PANEL; ROOF
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,FLUORESCENT LAMP<6UC> 		8-98152-806-0 01 1 1002-1203
1 PANEL; ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97584-177-6 01 1 0906-1001
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97584-177-6 01 1 0906-1001
1 PANEL; ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> FLUORESCENT LAMP<6UC> 		8-97584-177-6 01 1 1002-1101
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97584-177-6 01 1 1002-1101
1 PANEL; ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-97584-177-6 01 1 1102-1308
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> FLUORESCENT LAMP<6UC> 		8-97584-177-6 01 1 1102-1308
1 PANEL; ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-98196-922-0 01 1 1309-
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> FLUORESCENT LAMP<6UC> 		8-98196-922-0 01 1 1309-
1 PANEL; ROOF
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-498-5 01 1 0906-1001
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-498-5 01 1 1002-1101
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-97584-498-5 01 1 1102-1308
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-98246-475-0 01 1 1309-
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 0906-1001
17 REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC> 		8-97584-203-5 01 1 1002-
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 0906-
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-200-1 01 1 0906-
80 PANEL; HEADER,ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97584-192-3 01 1 0906-1101
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97584-192-3 01 1 0906-1101
80 PANEL; HEADER,ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-97584-192-3 01 1 1102-1308
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> 		8-97584-192-3 01 1 1102-1308
80 PANEL; HEADER,ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-98196-921-0 01 1 1309-
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> 		8-98196-921-0 01 1 1309-
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98028-744-0 08 1 0906-0910
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 0911-
99 SEAL; BODY,METAL
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 0906-1101
99 SEAL; BODY,METAL
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 0906-1101
99 SEAL; BODY,METAL
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1102-
99 SEAL; BODY,METAL
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1102-
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 0906-
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97411-015-1 01 1 0906-1101
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97411-015-1 01 1 0906-1101
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-97411-015-1 01 1 1102-
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> 		8-97411-015-1 01 1 1102-
