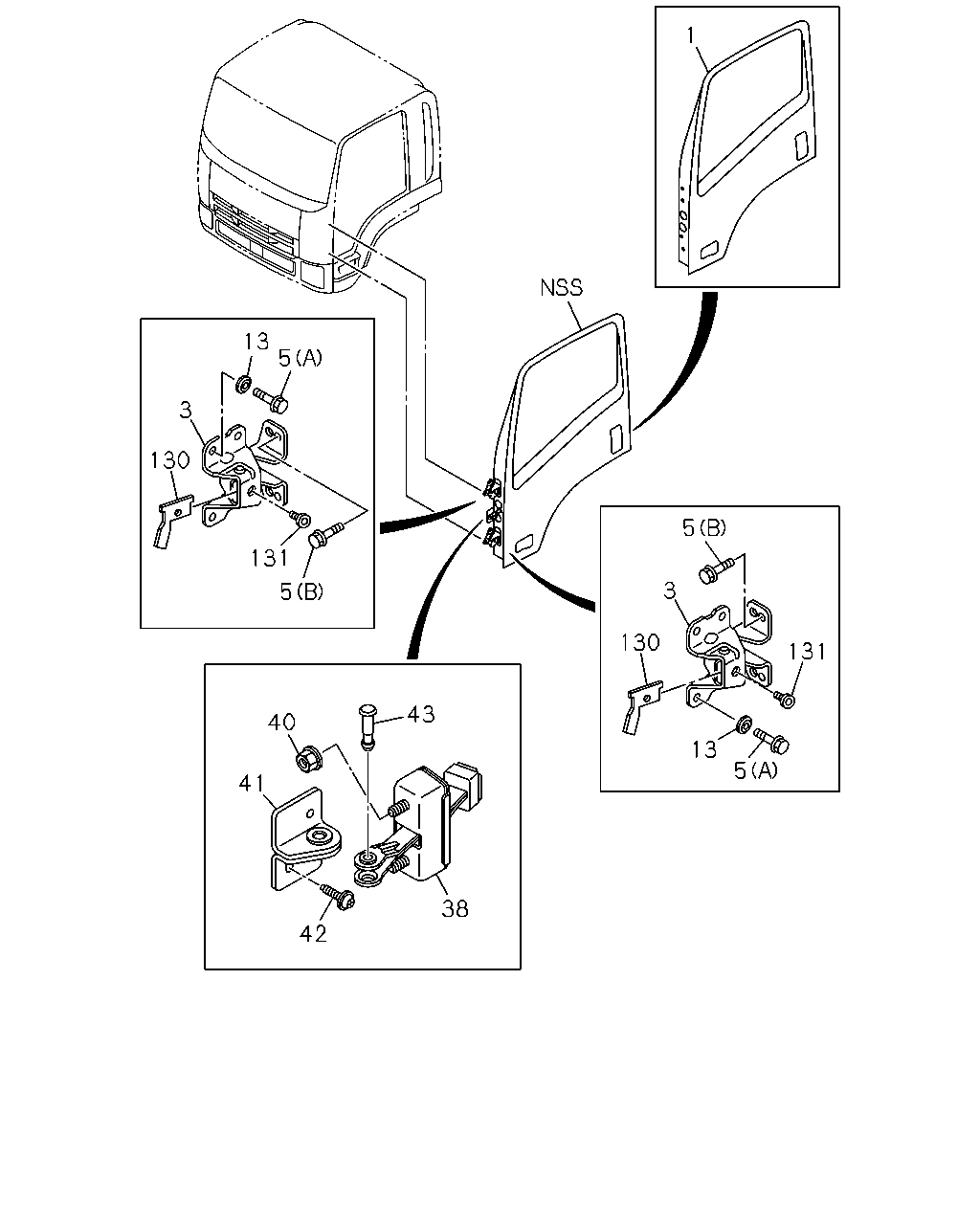

1 |
DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98064-822-0 |
01 |
1 |
0906-1012 |
| |
1 |
DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98171-232-0 |
01 |
1 |
1101-1411 |
| |
1 |
DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98260-600-0 |
01 |
1 |
1412- |
| |
1 |
DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98064-821-0 |
01 |
1 |
0906-1012 |
| |
1 |
DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98171-224-0 |
01 |
1 |
1101-1411 |
| |
1 |
DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98260-599-0 |
01 |
1 |
1412- |
| |
1 |
DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98060-798-1 |
01 |
1 |
0906-1012 |
| |
1 |
DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98171-231-0 |
01 |
1 |
1101-1411 |
| |
1 |
DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98260-598-0 |
01 |
1 |
1412- |
| |
1 |
DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98060-797-1 |
01 |
1 |
0906-1012 |
| |
1 |
DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98171-223-0 |
01 |
1 |
1101-1411 |
| |
1 |
DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98260-597-0 |
01 |
1 |
1412- |
| |
3 |
HINGE; DOOR FRT
|
8-98038-293-0 |
04 |
1 |
0906-1011 |
| |
3 |
HINGE; DOOR FRT
|
8-98038-293-0 |
04 |
1 |
1012-1104 |
| |
3 |
HINGE; DOOR FRT
|
8-98191-302-0 |
04 |
1 |
1105- |
| |
5 |
BOLT; HINGE
(A)
M8X20 FLANGE
|
8-98049-756-0 |
12 |
1 |
0906-1009 |
| |
5 |
BOLT; HINGE
(A)
M8X20 FLANGE
|
8-98049-756-0 |
12 |
1 |
0906-1009 |
| |
5 |
BOLT; HINGE
(A)
M8X20 FLANGE
|
8-98049-756-0 |
24 |
1 |
1010-1011 |
| |
5 |
BOLT; HINGE
(A)
M8X20 FLANGE
|
8-98049-756-0 |
24 |
1 |
1012- |
| |
5 |
BOLT; HINGE
(B)
M8X23 FLANGE
|
8-98029-440-0 |
08 |
1 |
0906-1011 |
| |
5 |
BOLT; HINGE
(B)
M8X23 FLANGE
|
8-98029-440-0 |
08 |
1 |
1012- |
| |
13 |
WASHER; HINGE
ID=8.1 W/SEAL
|
8-97890-584-1 |
04 |
1 |
0906-1011 |
| |
13 |
WASHER; HINGE
ID=8.1 W/SEAL
|
8-97890-584-1 |
04 |
1 |
1012- |
| |
38 |
CHECKER ASM; DOOR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98029-417-5 |
02 |
1 |
0906-1203 |
| |
38 |
CHECKER ASM; DOOR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98208-189-1 |
02 |
1 |
1204-1508 |
| |
38 |
CHECKER ASM; DOOR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98296-601-0 |
02 |
1 |
1509- |
| |
38 |
CHECKER ASM; DOOR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98031-730-6 |
02 |
1 |
0906-1508 |
| |
38 |
CHECKER ASM; DOOR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98296-602-0 |
02 |
1 |
1509- |
| |
40 |
NUT; CHECKER
M8 FLANGE
|
8-98029-441-0 |
04 |
1 |
0906-1011 |
| |
40 |
NUT; CHECKER
M8 FLANGE
|
8-98029-441-0 |
04 |
1 |
1012-1012 |
| |
40 |
NUT; CHECKER
M8 W/DISHED WASHER
|
8-97329-625-0 |
04 |
1 |
1101-1508 |
| |
40 |
NUT; CHECKER
M8 W/DISHED WASHER
|
8-98302-918-0 |
04 |
1 |
1509- |
| |
41 |
BRACKET; CHECKER
|
8-98029-290-3 |
02 |
1 |
0906- |
| |
42 |
BOLT; BRKT
M6X20 W/PL WASHER
|
8-98032-159-2 |
04 |
1 |
0906- |
| |
43 |
PIN
|
8-98037-152-2 |
02 |
1 |
0906- |
| |
130 |
STOPPER; HINGE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98038-299-1 |
04 |
1 |
0906- |
| |
131 |
BOLT; DOOR STOPPER
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
M10X11
|
8-98039-593-1 |
04 |
1 |
0906- |
