Isuzu WW
▶
TRUCKS
▶
FVR
▶
11235 - FVR-RHD EURO5
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

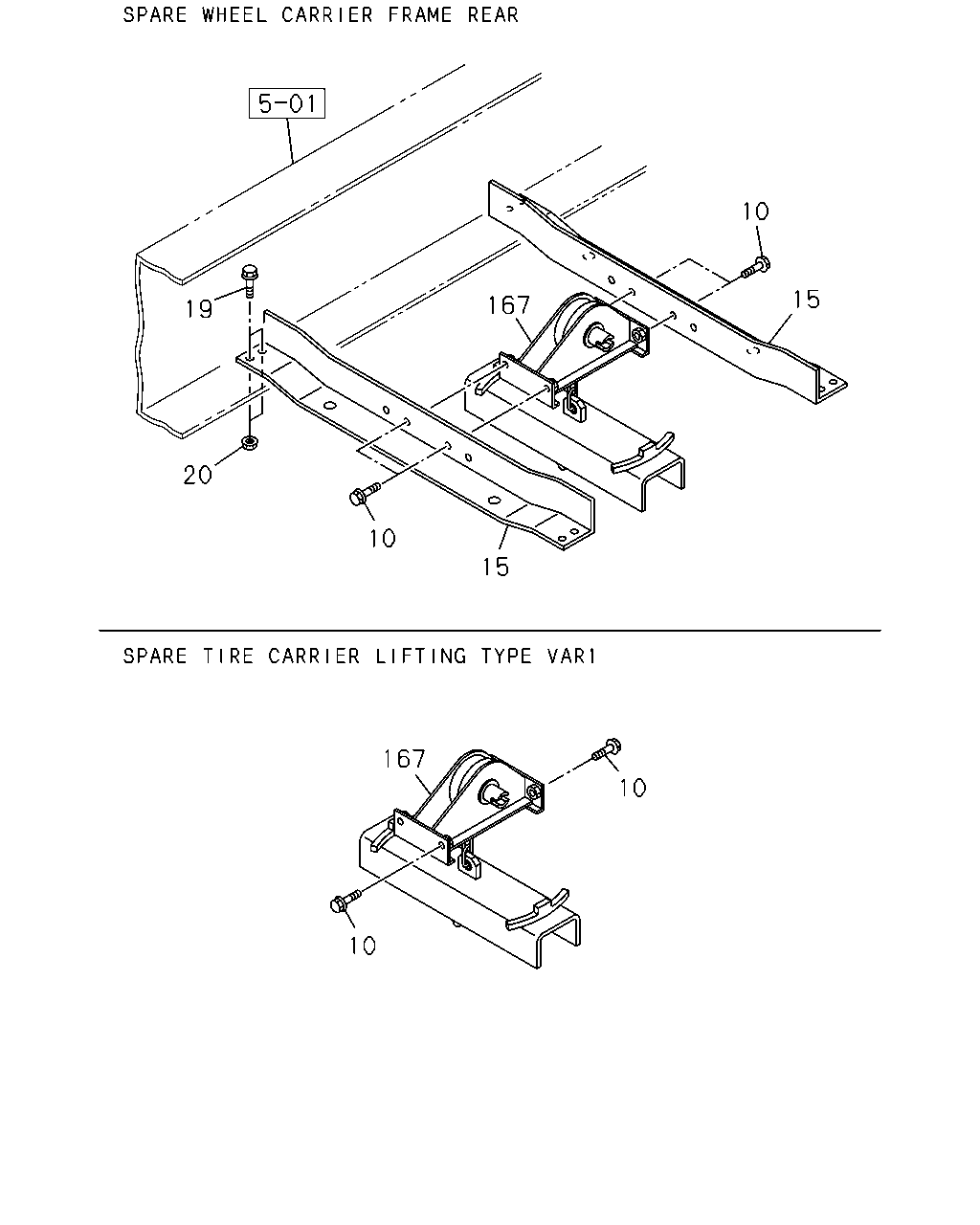

5-30 — SPARE TIRE CARRIER AND COVER
(#60911) — 10 parça
10
15
167
19
20
10
15
167
10
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE
0-28651-230-0
04
1
0906-1107
10
BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE
0-28651-230-0
04
1
1108-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M12X30 FLANGE
0-28651-230-0
04
1
1108-
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53631-395-1
02
1
0906-1107
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87)
1-53631-395-1
02
1
1108-
19
BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE
0-28051-030-0
08
1
0906-1107
19
BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M10X30 FLANGE
0-28051-030-0
08
1
1108-
20
NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE
0-91180-210-0
08
1
0906-1107
20
NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M10 FLANGE
0-91180-210-0
08
1
1108-
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>
1-53630-210-4
01
1
0906-
