Isuzu WW
▶
TRUCKS
▶
FVR
▶
11235 - FVR-RHD EURO5
▶
5 - Frame, Cab Mounting
▶

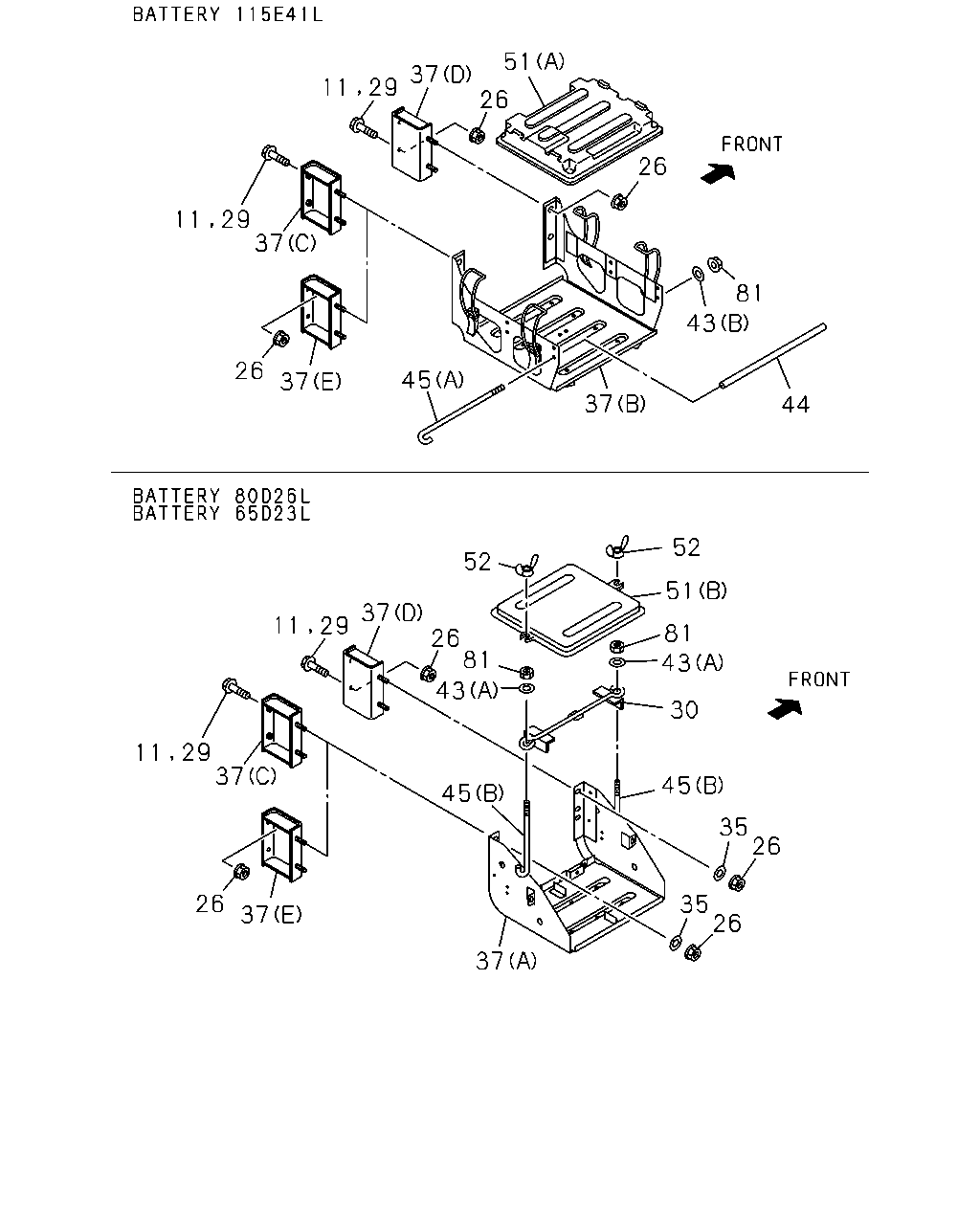

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#60910) — 25 parça
11
29
37
51
26
26
81
43
44
37
45
37
26
37
11
29
52
11
29
26
37
81
43
52
51
81
43
30
45
35
26
26
35
37
45
11
29
37
26
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; BRKT FIX
M10X35 FLANGE
0-28651-035-0
04
1
1005-
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0906-1004
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1005-
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1005-
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0906-1004
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
0906-1004
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
0906-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
0906-
37
BRACKET; BATTERY
(C)
8-98070-047-0
01
1
0906-0906
37
BRACKET; BATTERY
(C)
8-98144-194-0
01
1
0907-1004
37
BRACKET; BATTERY
(E)
8-98162-291-0
01
1
1005-
37
BRACKET; BATTERY
(D)
8-98088-828-0
01
1
0906-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-497-0
01
1
0906-1405
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1406-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
0906-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
0906-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
0906-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22
0-91614-708-0
02
1
0906-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1406-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
0906-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120
9-53616-615-0
02
1
0906-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
0906-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
0906-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
0906-
81
NUT; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M8 FLANGE
0-91180-108-0
02
1
0906-
