◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11235 - FVR-RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#60904) — 42 parça

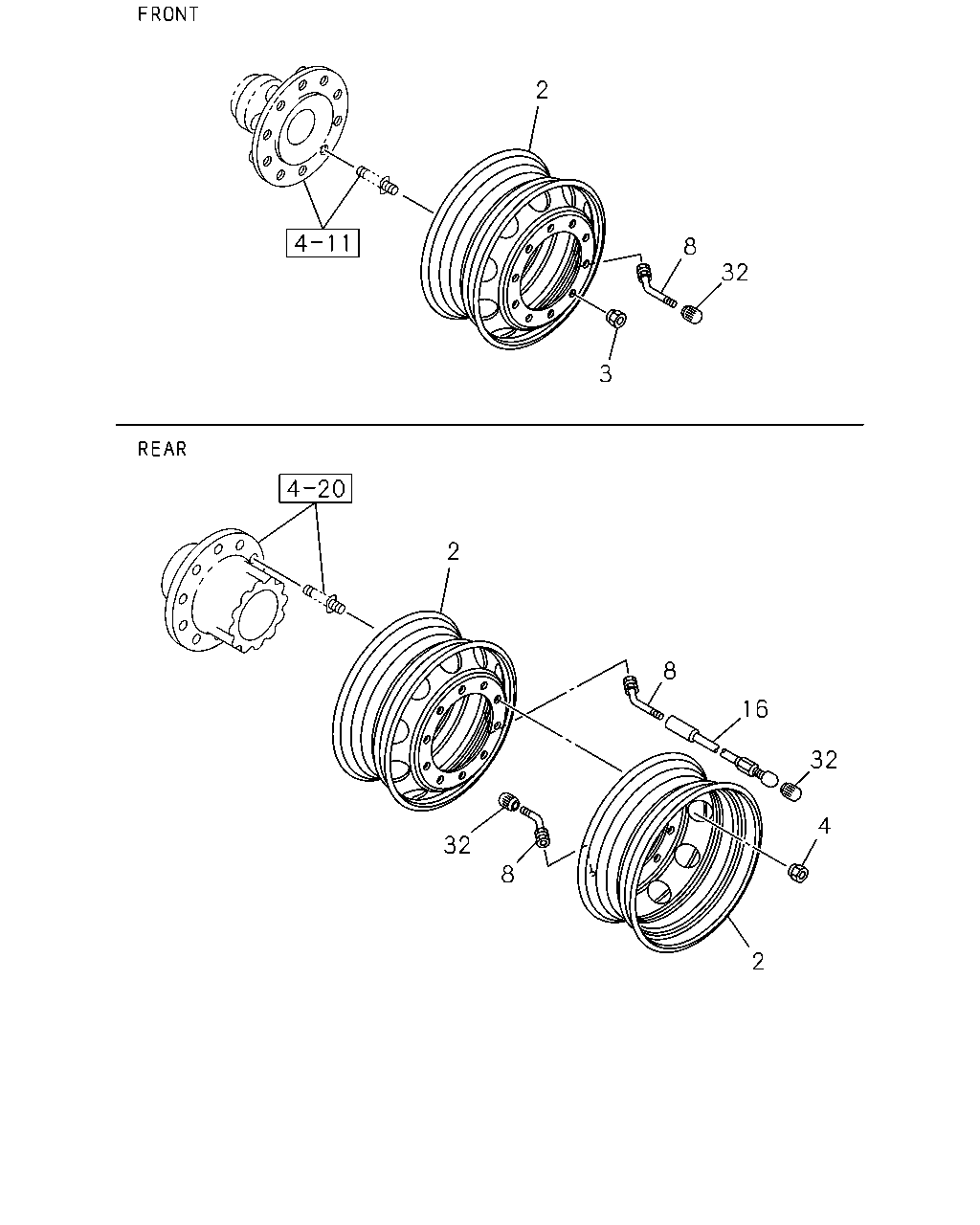

çizim 164745
2 8 32 3 2 8 16 32 4 32 8 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) FRONT,REAR 		1-42350-745-0 06 1 0906-1004
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) FRONT 		1-42350-745-0 02 1 1005-1211
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) FRONT 		1-42350-745-0 06 1 1212-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) REAR 		1-42350-745-0 04 1 1005-1211
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42350-745-0 01 1 0906-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR 		1-42350-730-0 06 1 0906-1004
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42350-730-0 02 1 1005-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		8-98217-247-0 02 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		8-98281-497-0 02 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42350-730-0 04 1 1005-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		8-98217-247-0 04 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		8-98281-497-0 04 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42350-730-0 01 1 0906-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		8-98217-247-0 01 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		8-98281-497-0 01 1 1408-
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22X1.5 		1-42333-050-1 20 1 0906-0907
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22X1.5 		1-42333-055-0 20 1 0908-
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22X1.5 		1-42333-050-1 20 1 0906-0907
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22X1.5 		1-42333-055-0 20 1 0908-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-048-0 02 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-019-3 02 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-048-0 04 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-019-3 04 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42370-048-0 01 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42370-019-3 01 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42370-020-3 01 1 0906-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42370-020-3 01 1 1206-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) FRONT,REAR 		1-42370-020-3 06 1 0906-1004
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) FRONT 		1-42370-020-3 02 1 1005-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) FRONT 		1-42370-020-3 02 1 1206-1211
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) FRONT 		1-42370-020-3 06 1 1212-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) REAR 		1-42370-020-3 04 1 1005-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) REAR 		1-42370-020-3 04 1 1206-1211
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) L=170 		1-42370-024-0 02 1 0906-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) L=170 		8-98167-052-0 02 1 1004-
32 CAP; VALVE
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 		1-42374-001-0 06 1 1212-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42374-001-0 01 1 0906-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) FRONT,REAR 		1-42374-001-0 06 1 0906-1004
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) FRONT 		1-42374-001-0 02 1 1005-1211
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 02 1 1212-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) REAR 		1-42374-001-0 04 1 1005-1211
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 04 1 1212-
