◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11235 - FVR-RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#60900) — 47 parça

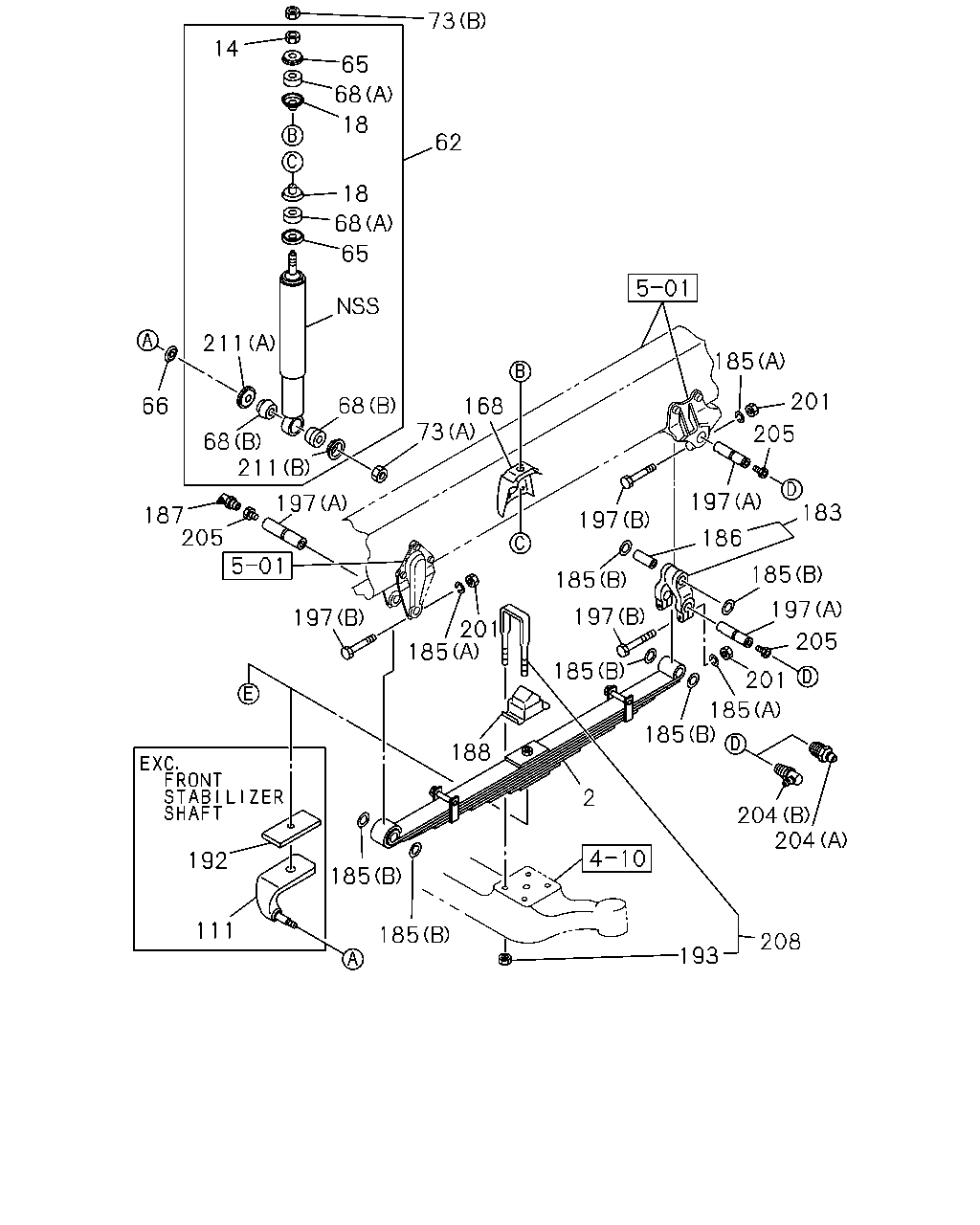

çizim 164736
73 14 65 68 18 62 18 68 65 211 185 201 68 66 168 205 73 68 211 183 197 197 187 205 197 186 185 185 197 197 197 201 185 205 185 201 185 185 188 2 204 204 192 185 111 185 208 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98010-512-0 02 1 0906-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> 		8-98029-096-0 02 1 0906-1203
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98029-096-0 02 1 0906-1203
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98029-096-0 02 1 1204-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 7-LEAF 		8-98029-096-0 02 1 1204-
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0906-
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 0906-
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		8-98029-372-0 02 1 0906-
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-579-0 02 1 0906-
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> BEST VALUE PARTS 		1-87610-155-0 02 1 0906-
65 WASHER; S/ABS
ID=16.5 		9-51631-040-0 04 1 0906-
66 WASHER; LK,S/ABS SETTING
ID=21 		0-91610-520-0 02 1 0906-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0906-
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 0906-
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 0906-
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 0906-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-826-1 01 1 0906-1004
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1005-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-825-1 01 1 0906-1004
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1005-
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0906-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0906-
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 0906-
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 0906-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0906-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0906-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-125-1 02 1 0906-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-096-2 02 1 0906-
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 AR 1 0906-
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0906-1011
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 1012-1206
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 0906-
197 PIN; FRT SPR,FRT
(A) 		1-51161-031-0 06 1 0906-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0906-
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0906-
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0906-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0906-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 0906-1206
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1207-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0906-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0906-
çizim 164793
140 138 377 377 137 377 140 137 377 138
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-98012-957-0 02 1 0906-0912
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-98128-356-1 02 1 1001-
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 06 1 0906-
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X45 		9-92061-445-0 06 1 0906-
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 12 1 0906-
