9-01 — TOOLS (#609) — 168 parça

47 50 52 53 145 84 230 93 71 62 85 72 72 95 102 181 132 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	WRENCH ASM; UNIVERSAL,INJ PUMP L TYPE ENG<90L> (B)	9-85113-901-0	01	1	8712-
47	WRENCH ASM; UNIVERSAL,INJ PUMP V TYPE ENG<91L> (A)	1-85220-018-0	01	1	8712-
50	REPLACER; NOZZLE HOLDER L TYPE ENG<90L> (B)	9-85232-001-0	01	1	8712-
50	REPLACER; NOZZLE HOLDER V TYPE ENG<91L> (A) L=500	1-85230-007-0	01	1	8712-
52	REMOVER; WATER PUMP L TYPE ENG<90L>	9-85210-097-0	01	1	8712-
53	PULLER; TAPER BUSHING L TYPE ENG<90L>	9-85210-123-0	01	1	8712-
62	TOOL ASM; SETTING WEAR RING L TYPE ENG<90L> (A)	1-85220-014-0	01	1	8712-
62	TOOL ASM; SETTING WEAR RING V TYPE ENG<91L> (B)	1-85221-008-0	01	1	8712-
71	TOOL; SETTING,OIL SEAL,FRT L TYPE ENG<90L>	1-85220-015-0	01	1	8712-
72	TOOL; SETTING,OIL SEAL,RR L TYPE ENG<90L> (A) WO/REAR PTO	1-85220-011-0	01	1	8712-8906
72	TOOL; SETTING,OIL SEAL,RR L TYPE ENG<90L> (B) W/REAR PTO	1-85220-013-0	01	1	8712-
72	TOOL; SETTING,OIL SEAL,RR L TYPE ENG<90L> (A) WO/REAR PTO	1-85220-035-0	01	1	8907-
84	REPLACER; VALVE SEAL L TYPE ENG<90L>	9-85221-289-0	01	1	8712-
85	REPLACER ASM; VALVE SPR L TYPE ENG<90L>	9-85231-436-0	01	1	8712-
93	SETTING KIT; VALVE GUIDE L TYPE ENG<90L> (B)	9-85231-222-0	01	1	8712-
93	SETTING KIT; VALVE GUIDE V TYPE ENG<91L> (A)	9-85231-202-0	01	1	8712-
95	SETTING TOOL; BRIDGE GUIDE L TYPE ENG<90L>	9-85221-324-0	01	1	8712-
102	ADAPTER; COMP GAGE L TYPE ENG<90L>	9-85431-505-0	01	1	8712-
132	WRENCH; NUT CR/SHF L TYPE ENG<90L> B=46 & 54 L=165	9-85112-320-0	01	1	8712-
145	REPLACER ASM; BUSHING	1-85230-008-0	01	1	8712-
181	PULLER ASM; AIR CMPR L TYPE ENG<90L>	1-85210-036-0	01	1	8712-
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	8712-
230	PUMP; GREASE	1-85556-007-2	01	1	8712-

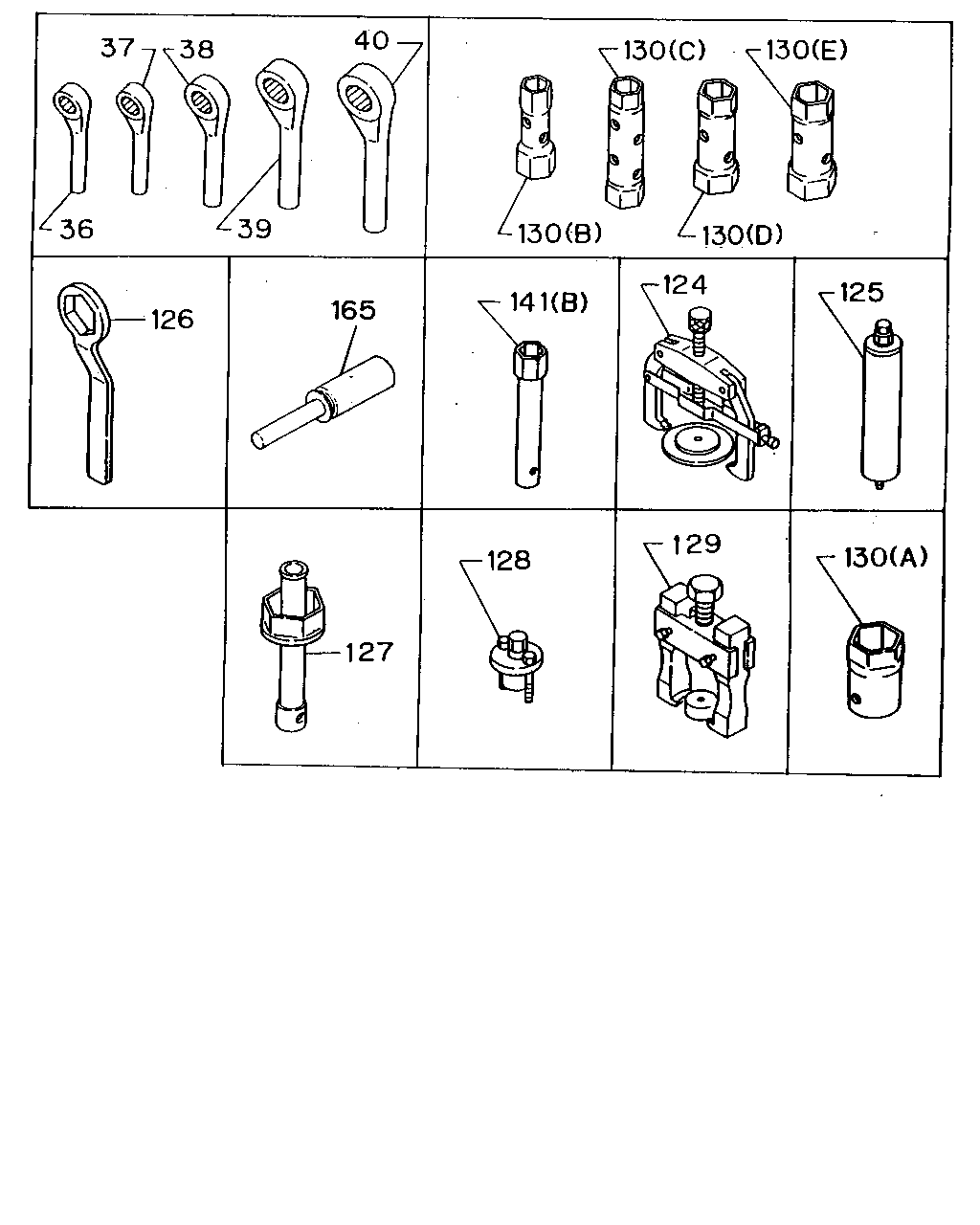

37 38 40 39 36 126 165 141 130 130 130 130 125 124 130 129 128 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	WRENCH; 24	9-85111-377-0	01	1	8712-
37	WRENCH; 27	9-85111-375-0	01	1	8712-
38	WRENCH; 32	9-85111-358-0	01	1	8712-
39	WRENCH; 36	9-85111-374-0	01	1	8712-
40	WRENCH; 41	9-85111-356-0	01	1	8712-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	8712-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	8712-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-0	01	1	8712-
127	WRENCH ASM; HUB BRG NUT BOLT HEAD OD=63	9-85113-509-0	01	1	8712-
127	WRENCH ASM; HUB BRG NUT BOLT HEAD OD=67	9-85113-524-0	01	1	8712-
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	8712-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	8712-
130	WRENCH; BOX (A) B=63	9-85111-368-0	01	1	8712-
130	WRENCH; BOX (E) B=46 & 54 L=165	9-85112-320-0	01	1	8712-
130	WRENCH; BOX (B) B=32 & 41 L=150	9-85112-322-0	01	1	8712-
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	8712-
130	WRENCH; BOX (D) B=41 & 46 L=165	9-85113-401-0	01	1	8712-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	8712-
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	8712-
141	HANDLE; WRENCH (A) OD=19 L=400	9-85114-306-0	01	1	8712-
141	HANDLE; WRENCH (A) OD=16 L=300	9-85114-307-0	01	1	8712-
165	SETTING TOOL; PTO L TYPE ENG<90L>	9-85241-702-0	01	1	8712-

135 156 141 232 146 153 152 151 77 146 154 167 166 106 158 146 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
77	TOOL; SETTING,CYL LINER L TYPE ENG<90L>	9-85220-043-0	01	1	8712-
106	TOOL; SETTING PILOT BRG L TYPE ENG<90L> (A)	9-85241-409-0	01	1	8712-
106	TOOL; SETTING PILOT BRG V TYPE ENG<91L> (B)	1-85221-057-0	01	1	8712-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	8712-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	8712-
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	8712-
141	HANDLE; WRENCH (A) OD=19 L=400	9-85114-306-0	01	1	8712-
141	HANDLE; WRENCH (A) OD=16 L=300	9-85114-307-0	01	1	8712-
146	REPLACER KIT; LEAF SPR (A)	1-85237-003-0	01	1	8712-9307
146	REPLACER KIT; LEAF SPR (A)	1-85237-016-0	01	1	9308-
146	REPLACER KIT; LEAF SPR (B) T=26	1-85237-007-0	01	1	8712-9307
146	REPLACER KIT; LEAF SPR (B)	1-85237-017-0	01	1	9308-
146	REPLACER KIT; LEAF SPR (C)	9-85231-556-0	01	1	8712-
151	REMOVER; OIL BRK,FRT RETURN SPR	1-85237-002-0	01	1	8712-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	8712-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	8712-
154	SLEEPER; KING PIN	1-85238-003-0	01	1	8712-
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	8712-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	8712-
166	ALIGNER; CLU RELEASE LEVER V TYPE ENG<91L> L=550 H=17.5	1-85253-010-0	01	1	9002-
167	ALIGNER; CLU PILOT 6RA1TC ENG(19L) L=300 OD=36.5	1-85253-021-0	01	1	9002-9003
167	ALIGNER; CLU PILOT 6RA1TC ENG(19L) L=300 OD=36.5	1-85253-021-0	01	1	9004-9306
167	ALIGNER; CLU PILOT 6RA1TC ENG(19L) EXC. NEW ZEALAND EQUIPMENT(PK5) L=300 OD=36.5	1-85253-021-0	01	1	9004-9306
167	ALIGNER; CLU PILOT 6RB1TC ENG(30L),10PD1 STD ENG(40L) L=300 OD=41.1	1-85253-020-0	01	1	9002-9003
167	ALIGNER; CLU PILOT 6RB1TC ENG(30L),10PD1 STD ENG(40L) L=300 OD=41.1	1-85253-020-0	01	1	9004-9306
167	ALIGNER; CLU PILOT 6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) L=300 OD=41.1	1-85253-020-0	01	1	9004-9306
167	ALIGNER; CLU PILOT 6RB1TC ENG(30L),10PD1 STD ENG(40L) L=300 OD=41.1	1-85253-020-0	01	1	9004-9306
167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	9307-
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	8712-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	8712-

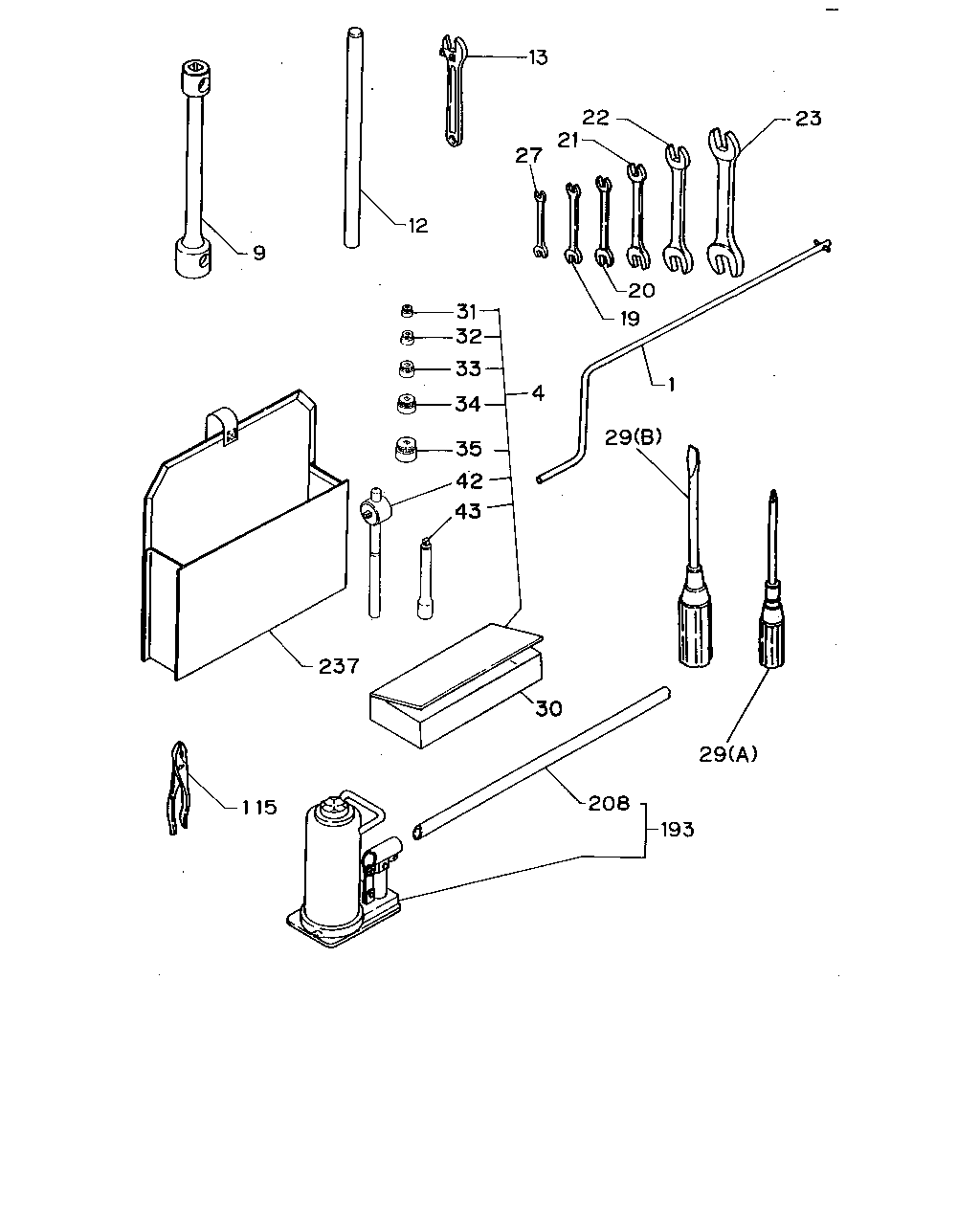

9 12 13 27 21 22 23 20 19 1 29 29 193 208 30 115 237 43 42 35 34 33 4 32 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	8712-9001
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	9002-
4	WRENCH KIT; SOCKET	9-85110-012-0	01	1	8712-
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	9112-
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> B=33X30 L=450	1-85111-033-0	01	1	8712-9111
9	WRENCH; WHEEL PIN EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=30 L=450	1-85111-032-0	01	1	8712-9111
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	8712-
13	WRENCH; MONKEY	1-85117-003-1	01	1	8712-9304
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9305-
19	WRENCH; 7X8 7X8	9-09592-107-0	01	1	8712-
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	8712-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	8712-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	8712-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	8712-
27	WRENCH; OPEN END 5.5X7 5.5X7	9-09592-105-0	01	1	8712-
29	DRIVER; SCREW (A) <+> L=205	9-09595-022-0	01	1	8712-
29	DRIVER; SCREW (A) <+> L=275	9-09595-023-0	01	1	8712-
29	DRIVER; SCREW (B) <-> L=205	9-09595-126-0	01	1	8712-
29	DRIVER; SCREW (B) <-> L=325	9-09595-129-0	01	1	8712-
30	BOX; SOCKET WRENCH	9-85581-260-0	01	1	8712-
31	WRENCH; 12	9-09590-012-0	01	1	8712-
32	WRENCH; 14	9-09590-014-0	01	1	8712-
33	WRENCH; 17	9-09590-017-0	01	1	8712-
34	WRENCH; 19	9-09590-019-0	01	1	8712-
35	WRENCH; 22	9-09590-022-0	01	1	8712-
42	HANDLE; SLIDING	9-09590-512-0	01	1	8712-
43	BAR; EXTENSION,SOCKET WRENCH	9-09590-812-0	01	1	8712-
115	PLIER	5-85171-001-0	01	1	9002-
193	JACK ASM 15TON	1-85510-004-2	01	1	8712-9310
193	JACK ASM 15TON	1-85510-019-0	01	1	9311-
208	HANDLE; JACK L=680	1-85515-004-0	01	1	8712-9405
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9406-
237	BAG; TOOL	1-85565-005-0	01	1	8712-8802
237	BAG; TOOL	9-85581-719-1	01	1	8803-8811
237	BAG; TOOL	8-94367-102-0	01	1	8812-9509
237	BAG; TOOL	8-97130-902-0	01	1	9510-

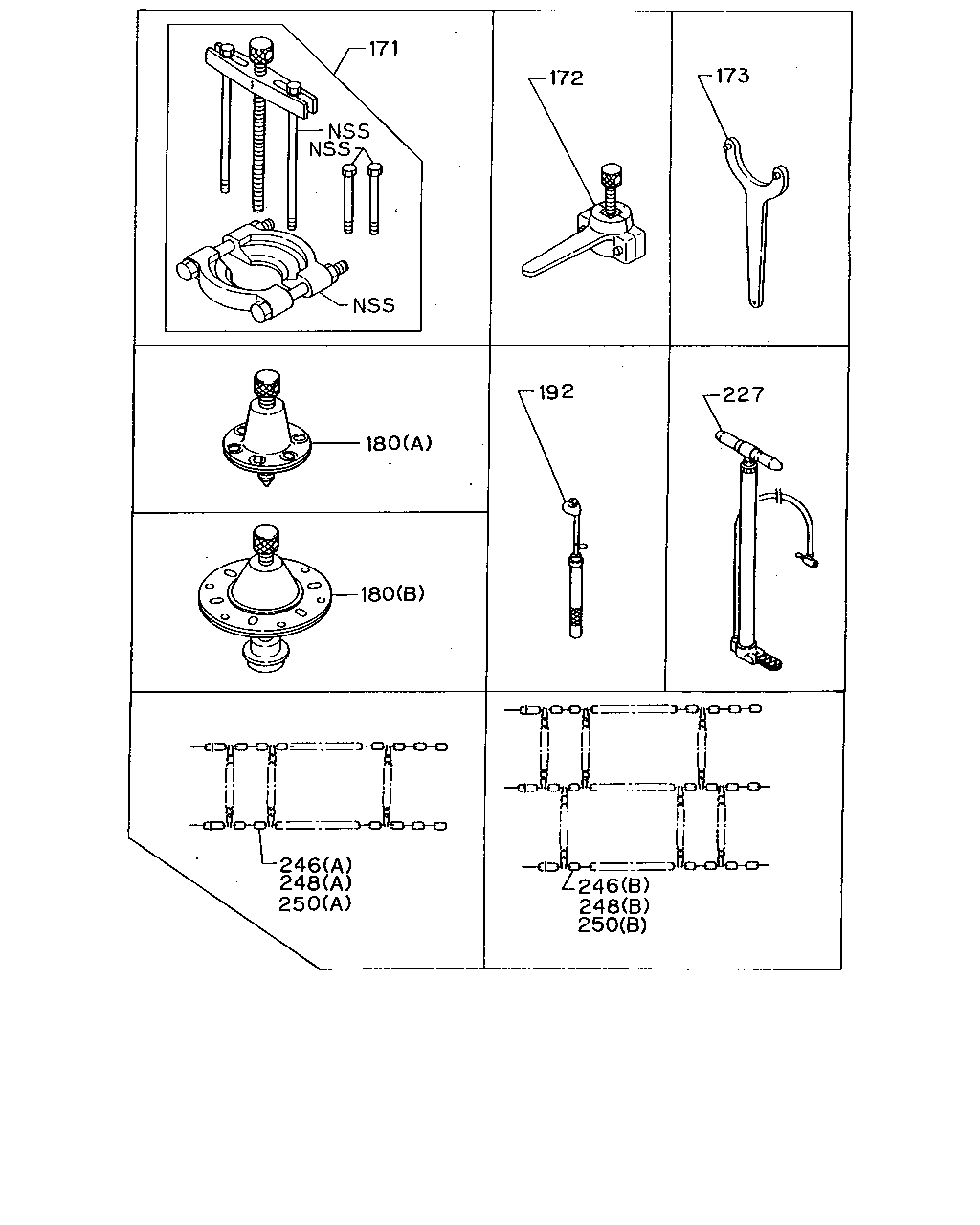

171 172 173 227 192 180 180 246 248 250 246 248 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	8712-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	8712-
173	WRENCH; COUPLING DRIVER	9-85111-944-0	01	1	8712-
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	8712-
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	8712-
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	8712-
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-001-0	01	1	8712-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	8712-
246	CHAIN; TIRE,1000-20,SINGLE (A) SIZE 10.00-2O 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	8712-
246	CHAIN; TIRE,1000-20,SINGLE (B) SIZE 11.00-2O 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	8712-
248	CHAIN; TIRE,1000-20,DOUBLE (A) SIZE 10.00-20 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	8712-
248	CHAIN; TIRE,1000-20,DOUBLE (B) SIZE 11.00-20 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	8712-
250	CHAIN; TIRE,1000-20,TRIPLE (A) SIZE 10.00-20 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	8712-
250	CHAIN; TIRE,1000-20,TRIPLE (B) SIZE 11.00-20 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	8712-

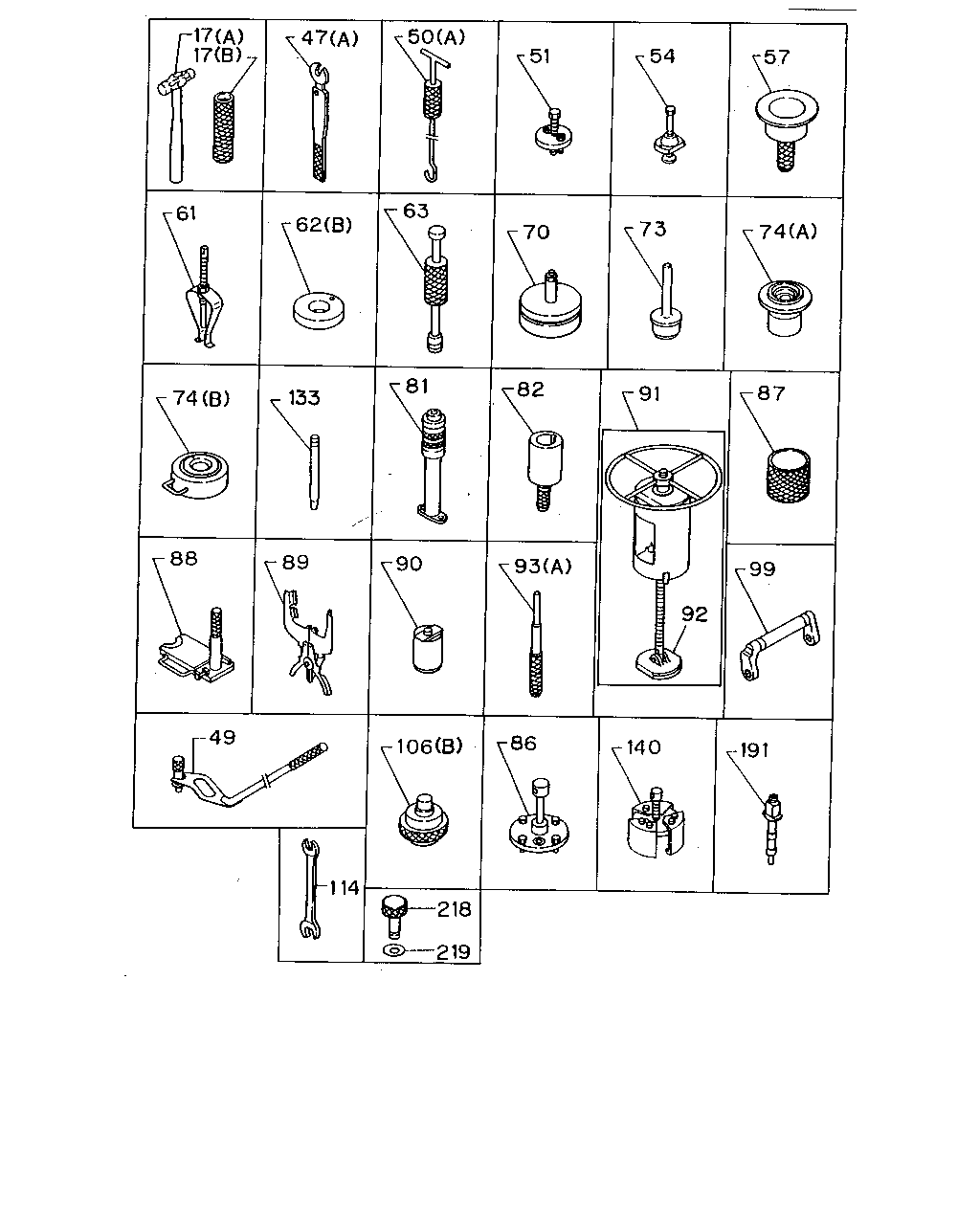

17 17 47 50 51 54 57 74 73 70 63 62 61 74 133 81 82 91 87 99 92 93 90 89 88 49 114 106 218 219 86 140 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	HAMMER (A)	9-85121-406-0	01	1	8712-
17	HAMMER V TYPE ENG<91L> (B)	1-85220-021-0	01	1	8712-
47	WRENCH ASM; UNIVERSAL,INJ PUMP L TYPE ENG<90L> (B)	9-85113-901-0	01	1	8712-
47	WRENCH ASM; UNIVERSAL,INJ PUMP V TYPE ENG<91L> (A)	1-85220-018-0	01	1	8712-
49	REPLACER ASM; VALVE V TYPE ENG<91L>	1-85235-001-0	01	1	8712-
50	REPLACER; NOZZLE HOLDER L TYPE ENG<90L> (B)	9-85232-001-0	01	1	8712-
50	REPLACER; NOZZLE HOLDER V TYPE ENG<91L> (A) L=500	1-85230-007-0	01	1	8712-
51	PULLER ASM; WATER PUMP V TYPE ENG<91L>	1-85210-028-0	01	1	8712-
54	PULLER; THERMOSTAT SEAL V TYPE ENG<91L>	1-85210-029-0	01	1	8712-
57	TOOL; SETTING CRANK GEAR L TYPE ENG<90L> OD=153	9-85220-025-0	01	1	8712-
57	TOOL; SETTING CRANK GEAR V TYPE ENG<91L> OD=175	1-85221-028-0	01	1	8712-
61	PULLER ASM; PILOT BRG	9-85210-157-0	01	1	8712-
62	TOOL ASM; SETTING WEAR RING L TYPE ENG<90L> (A)	1-85220-014-0	01	1	8712-
62	TOOL ASM; SETTING WEAR RING V TYPE ENG<91L> (B)	1-85221-008-0	01	1	8712-
63	PULLER; NOZZLE SLEEVE V TYPE ENG<91L>	1-85210-026-0	01	1	8712-
70	TOOL; SETTING,OIL SEAL V TYPE ENG<91L>	1-85220-008-0	01	1	8712-
73	TOOL; SETTING,THERMOSTAT SEAL V TYPE ENG<91L>	1-85221-034-0	01	1	8712-
74	TOOL; SETTING,INJ PUMP BRG V TYPE ENG<91L> (A)	1-85220-019-0	01	1	8712-
74	TOOL; SETTING,INJ PUMP BRG V TYPE ENG<91L> (B)	1-85220-020-1	01	1	8712-
81	PULLER; BRG CAP V TYPE ENG<91L>	1-85210-015-0	01	1	8712-
82	PULLER ASM; CR/SHF GEAR V TYPE ENG<91L>	9-85211-139-0	01	1	8712-
86	REPLACER; FLYWHEEL V TYPE ENG<91L>	1-85230-006-0	01	1	8712-
87	TOOL; PISTON L TYPE ENG<90L>	9-85221-319-0	01	1	8712-
87	TOOL; PISTON V TYPE ENG<91L>	1-85220-017-0	01	1	8712-
88	TOOL; CONNROD BUSHING L TYPE ENG<90L>	9-85220-042-0	01	1	8712-
88	TOOL; CONNROD BUSHING V TYPE ENG<91L>	1-85220-002-0	01	1	8712-
89	TOOL; PISTON RING L TYPE ENG<90L>	1-85221-025-0	01	1	8712-
89	TOOL; PISTON RING V TYPE ENG<91L>	1-85221-029-0	01	1	8712-
90	PULLER; INJ PUMP BRG V TYPE ENG<91L>	1-85210-039-0	01	1	8712-
91	REPLACER ASM; CYL LINER V TYPE ENG<91L>	1-85230-004-0	01	1	8712-
91	REPLACER ASM; CYL LINER 6RA1TC ENG(19L)	9-85231-186-0	01	1	8712-9306
92	ANKLE; REPLACER,CYL LINER 6RA1TC ENG(19L)	9-85231-180-0	01	1	8712-9306
93	SETTING KIT; VALVE GUIDE L TYPE ENG<90L> (B)	9-85231-222-0	01	1	8712-
93	SETTING KIT; VALVE GUIDE V TYPE ENG<91L> (A)	9-85231-202-0	01	1	8712-
99	WRENCH; CYL HD BOLT V TYPE ENG<91L>	1-85115-013-0	01	1	8712-
106	TOOL; SETTING PILOT BRG L TYPE ENG<90L> (A)	9-85241-409-0	01	1	8712-
106	TOOL; SETTING PILOT BRG V TYPE ENG<91L> (B)	1-85221-057-0	01	1	8712-
114	WRENCH; INJ PUMP V TYPE ENG<91L>	1-85220-027-0	01	1	8712-
133	WRENCH; NUT STARTER V TYPE ENG<91L>	1-85221-030-0	02	1	8712-
140	REMOVER; WEAR RING	1-85210-027-0	01	1	8712-
191	ADAPTER V TYPE ENG<91L>	1-85317-002-0	01	1	8712-
218	PLUG V TYPE ENG<91L>	1-15629-043-0	01	1	8712-
219	GASKET V TYPE ENG<91L>	9-09720-555-0	01	1	8712-
