3-77 — BRAKE PIPING; AIR,REAR
(#60886) — 63 parça
◀

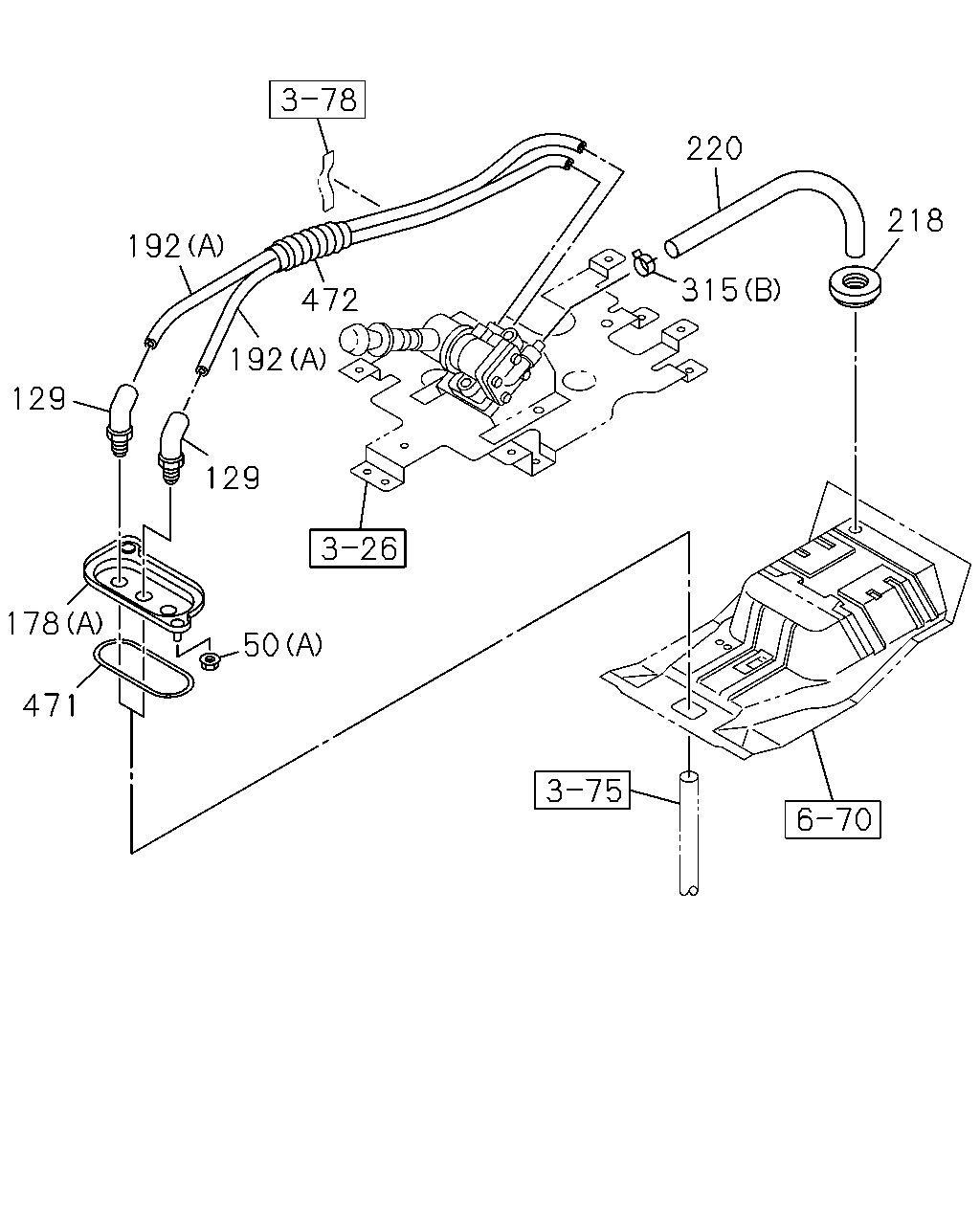

[377A] CAB SIDE (21 parça)

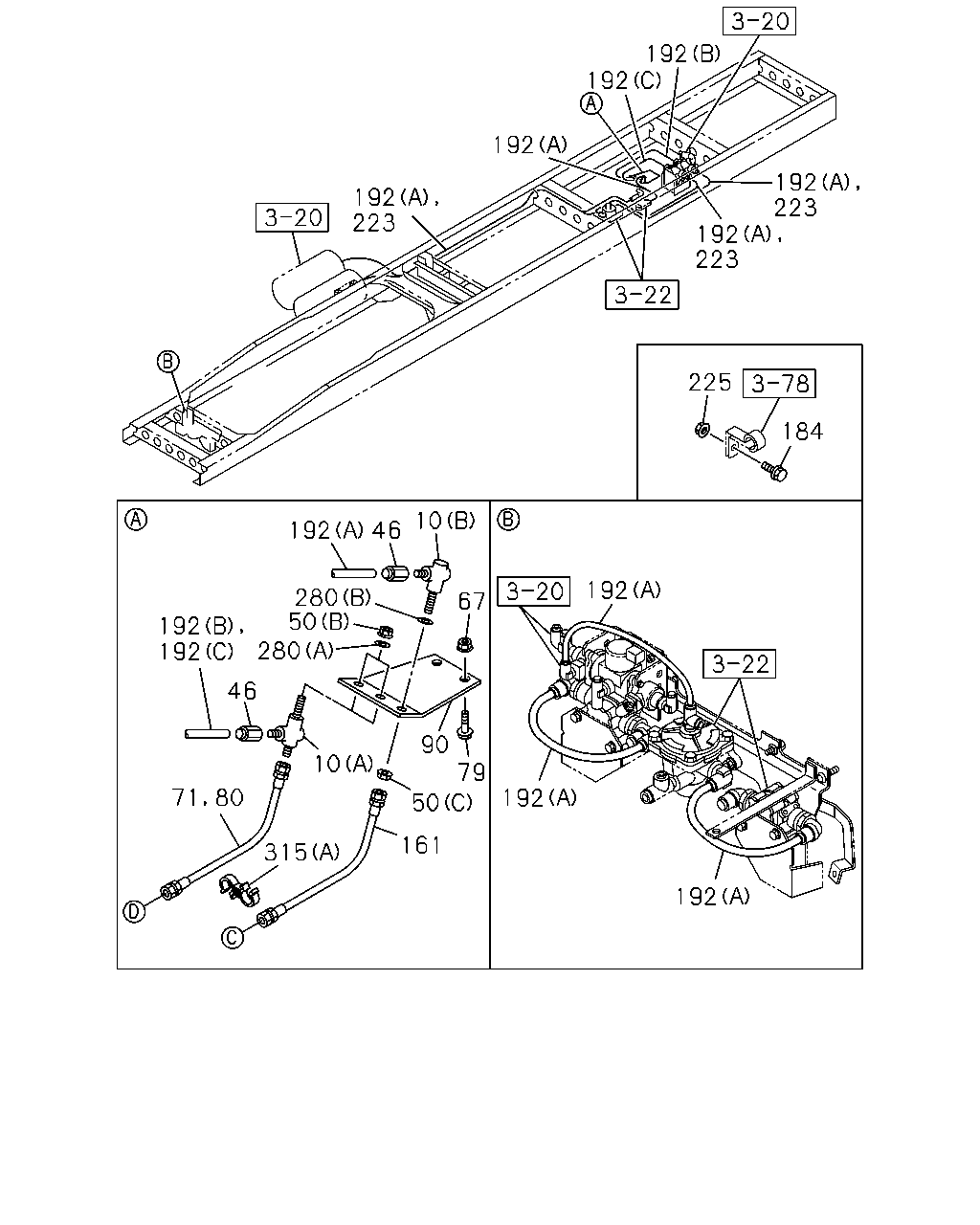

[377A] FRAME SIDE (26 parça)

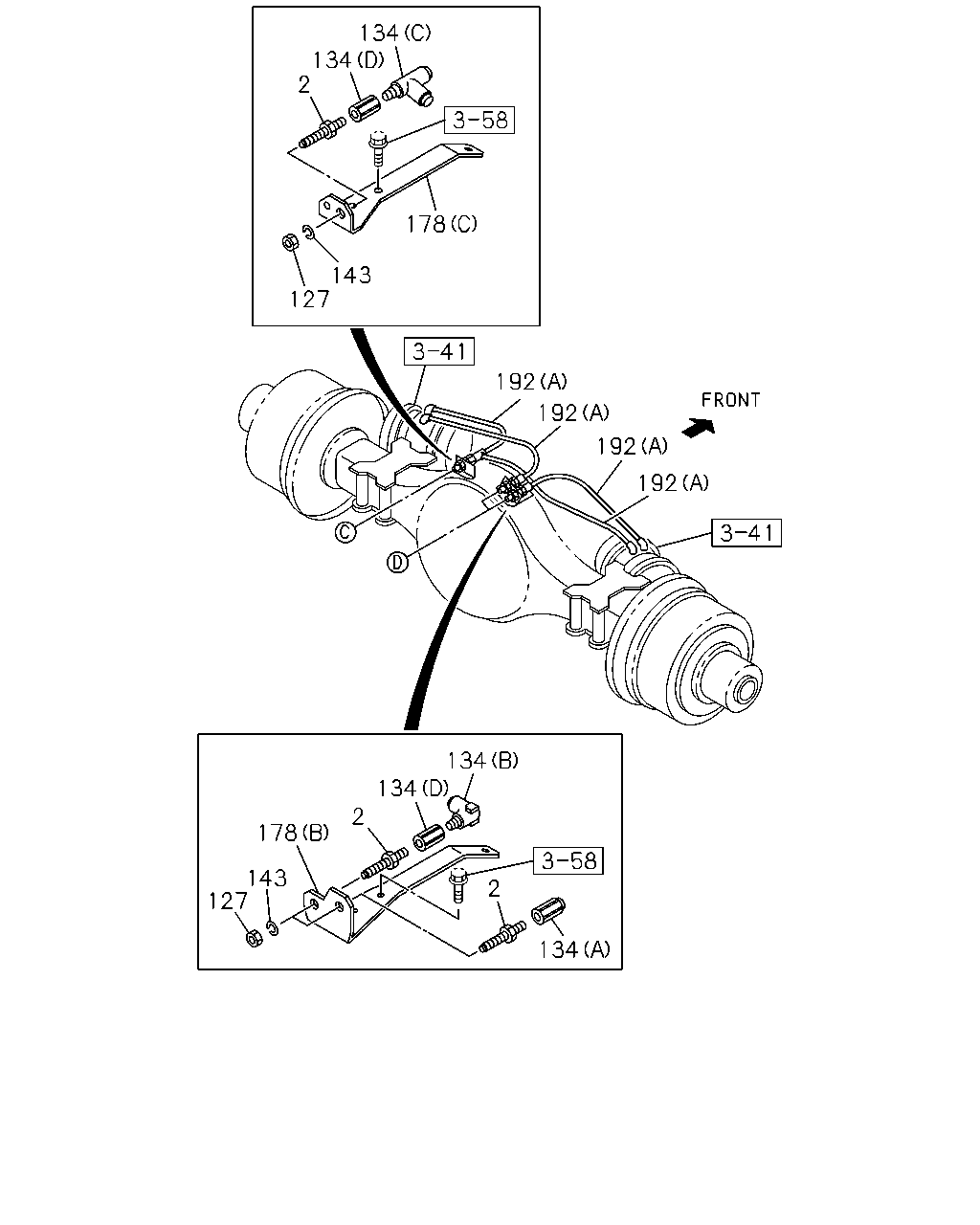

[377A] REAR AXLE SIDE (16 parça)
▶
220
218
192
315
472
192
129
129
178
50
471
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
NUT; UNION BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
0906-
50
NUT; UNION BRKT
(B) M12
0-91111-512-0
02
1
0906-
50
NUT; UNION BRKT
(C) M16
0-91111-516-0
01
1
0906-
129
CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW
8-97611-963-1
01
1
0906-1004
129
CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW
8-97611-963-1
01
1
0906-1004
129
CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW
8-97611-963-1
02
1
1005-
178
BRACKET; UNION
(A)
8-98017-054-1
01
1
0906-
178
BRACKET; UNION
(B)
8-98031-034-1
01
1
0906-
178
BRACKET; UNION
(C)
8-98057-823-0
01
1
0906-
192
TUBE; NYLON
(B)
8-98085-803-0
01
1
0906-
192
TUBE; NYLON
(C)
8-98085-806-0
01
1
0906-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0906-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0906-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0906-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0906-
218
GROMMET; VINYL HOSE
OD=24
9-61166-007-0
01
1
0912-
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
0912-
315
CLIP
(B) ID=14
8-94238-572-0
01
1
0912-
315
CLIP
(A) ID=18 & 18
8-94323-068-0
01
1
0906-
471
SEAL; BRKT
1-79738-832-0
01
1
0906-
472
TUBE; SPUTTER
8-98067-708-0
01
1
0906-
192
192
192
192
223
192
223
192
223
225
184
10
192
46
192
280
50
280
67
192
192
46
90
79
10
192
50
161
315
192
71
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CONNECTOR; FLEX HOSE
(B) M16 ELBOW
0-92135-210-0
01
1
0906-
10
CONNECTOR; FLEX HOSE
(A) M16 2WAY
1-09650-182-1
02
1
0906-
46
NIPPLE; AIR PIPE
DIN12 & M16 STRAIGHT
1-09660-876-0
03
1
0906-
50
NUT; UNION BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
0906-
50
NUT; UNION BRKT
(B) M12
0-91111-512-0
02
1
0906-
50
NUT; UNION BRKT
(C) M16
0-91111-516-0
01
1
0906-
67
NUT; HOSE BRKT
M8 FLANGE
0-91180-108-0
02
1
0906-
71
HOSE; FLEX,RWD RR
L=660
1-09363-814-0
02
1
0906-0910
79
BOLT; HOSE BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0906-
80
HOSE; FLEX,POWER CHAMBER
L=660
1-09363-814-0
02
1
0911-
90
BRACKET; PIPE UNION
1-47477-851-1
01
1
0906-
161
HOSE; FLEX,QUICK RELEASE VLV
L=680
1-09363-742-0
01
1
0906-
184
BOLT; TUBE CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0906-
192
TUBE; NYLON
(B)
8-98085-803-0
01
1
0906-
192
TUBE; NYLON
(C)
8-98085-806-0
01
1
0906-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0906-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0906-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0906-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0906-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0906-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0906-
225
NUT; TUBE CLIP
M8 FLANGE
0-91180-108-0
01
1
0906-
280
WASHER; LK
(A) ID=12.2
0-91510-812-0
02
1
0906-
280
WASHER; LK
(B) ID=16.2
0-91510-816-0
01
1
0906-
315
CLIP
(B) ID=14
8-94238-572-0
01
1
0912-
315
CLIP
(A) ID=18 & 18
8-94323-068-0
01
1
0906-
134
134
2
178
143
127
192
192
192
192
134
134
2
178
143
127
2
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
UNION; AIR PIPE
M16 L=74
0-92123-310-0
03
1
0906-
127
NUT; UNION
M16
0-91111-516-0
03
1
0906-
134
CONNECTOR
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0906-
134
CONNECTOR
(D) M16 & RC3/8 STRAIGHT
1-09660-882-0
02
1
0906-
134
CONNECTOR
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0906-
134
CONNECTOR
(C) DIN12X2 & R3/8 3WAY
1-09661-007-0
01
1
0906-
143
WASHER; LK,UNION
ID=16.2
0-91510-816-0
03
1
0906-
178
BRACKET; UNION
(A)
8-98017-054-1
01
1
0906-
178
BRACKET; UNION
(B)
8-98031-034-1
01
1
0906-
178
BRACKET; UNION
(C)
8-98057-823-0
01
1
0906-
192
TUBE; NYLON
(B)
8-98085-803-0
01
1
0906-
192
TUBE; NYLON
(C)
8-98085-806-0
01
1
0906-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0906-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0906-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0906-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0906-
