3-70 — BRAKE PIPING; AIR,AIR MASTER (#60884) — 41 parça

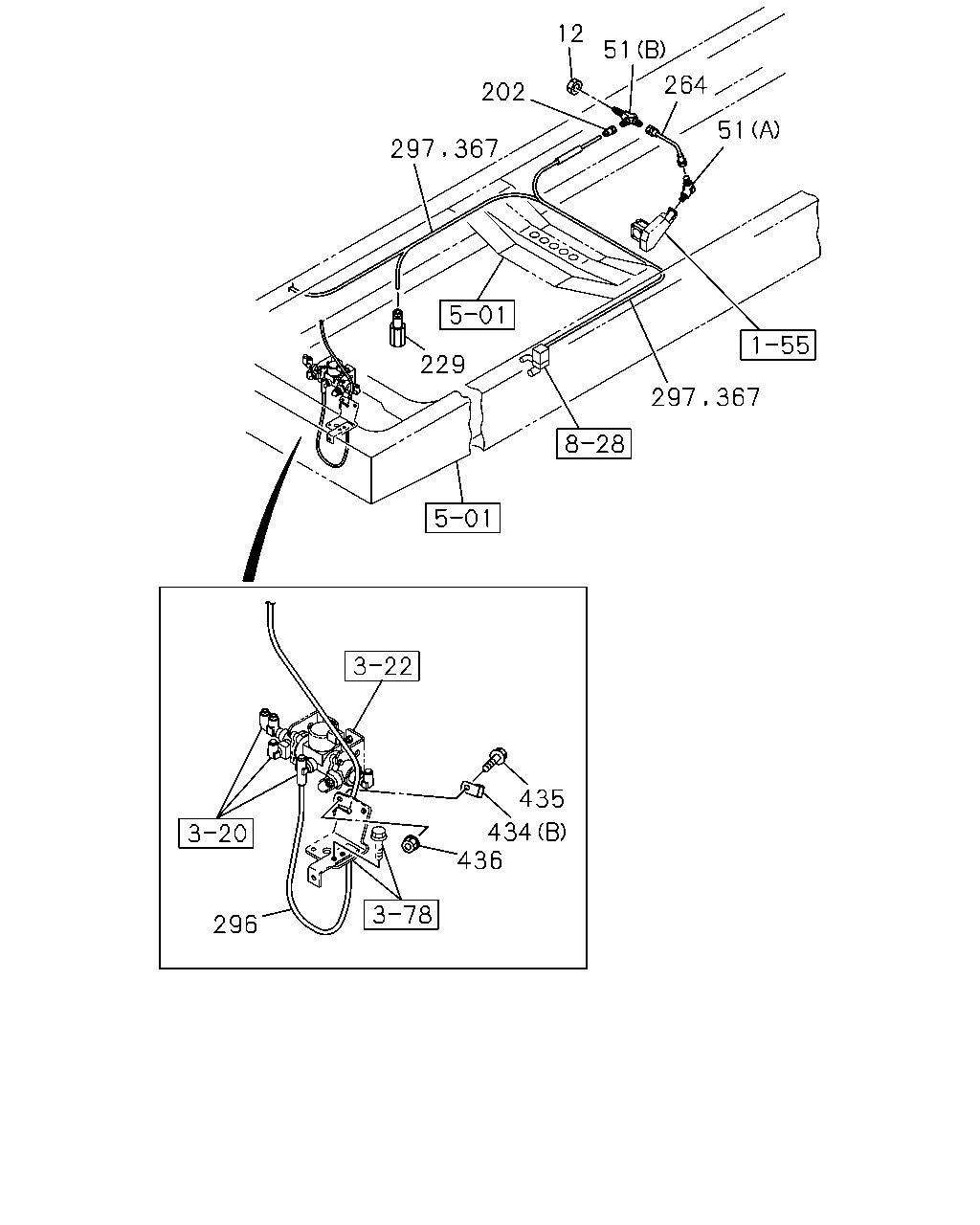

çizim 164653
12 51 264 202 51 229 435 434 436 296 297 367 297 367
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
M12 		0-91111-512-0 01 1 0906-
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906-
51 UNION
(B) M12 2WAY 		1-09654-059-2 01 1 0906-
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0906-
229 ADAPTER; NYLON TUBE
MZW6P M/T(RSZ) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012-
264 HOSE; FLEX
MZW6P M/T(RSZ) L=370 		1-09363-771-0 01 1 1012-
264 HOSE; FLEX
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) L=310 		1-09363-713-0 01 1 0906-
264 HOSE; FLEX
6HK1-TCS ENG(80L) L=340 		1-09363-617-0 01 1 0906-
264 HOSE; FLEX
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W) L=340 		1-09363-617-0 01 1 0906-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0906-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0906-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0906-
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0906-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0906-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0906-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0906-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0906-
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0906-1011
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1012-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 0906-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0906-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0906-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0906-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0906-

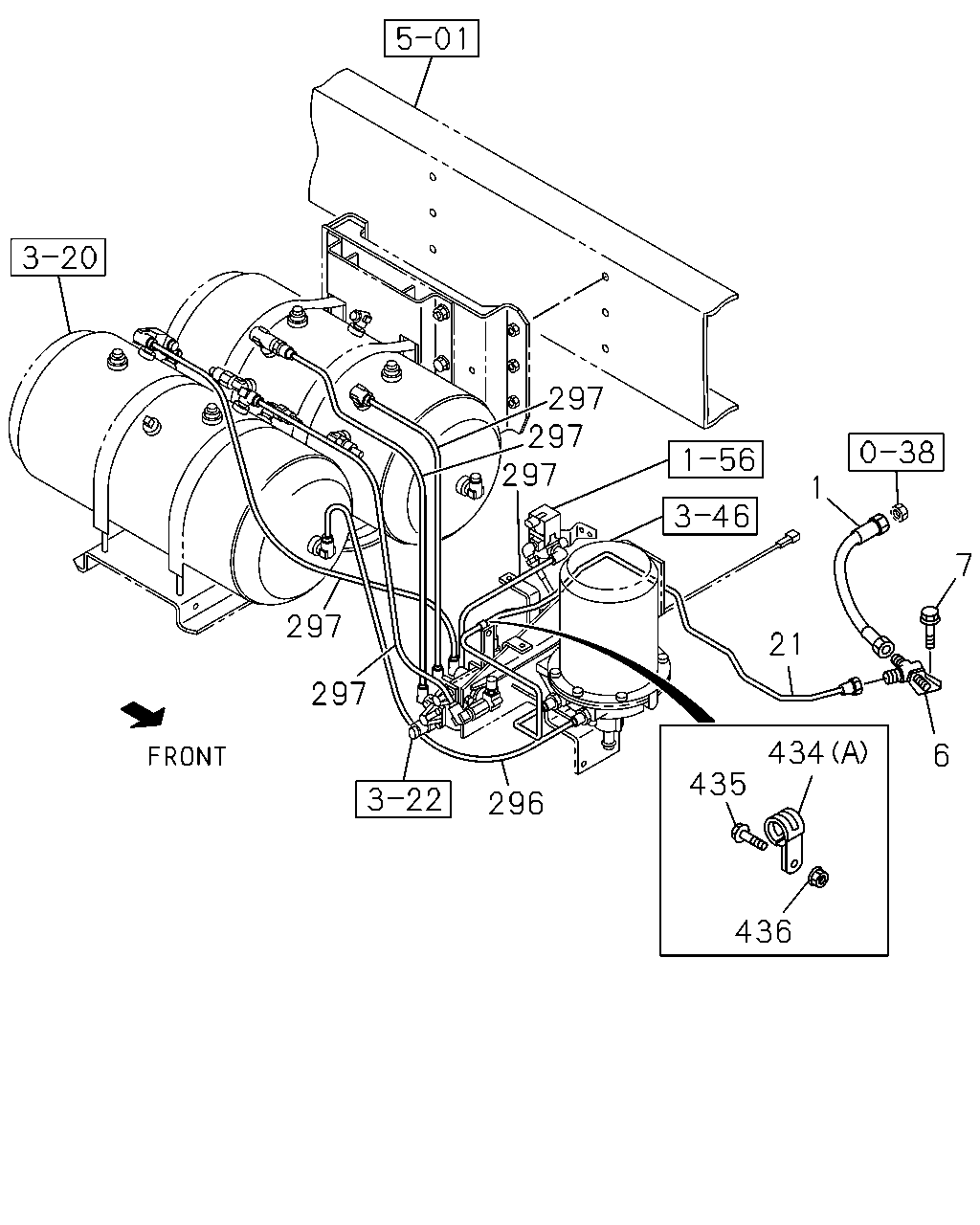

çizim 164771
297 297 297 1 7 297 21 297 434 6 435 296 436
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0906-
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 0906-1011
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 1012-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0906-
21 PIPE; AIR,UNION TO AIR DRYER
L=1715 		8-98095-083-0 01 1 0906-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0906-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0906-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0906-
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0906-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0906-
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0906-1011
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1012-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 0906-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0906-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0906-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0906-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0906-
