◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-80 - INJECTION PUMP ▶
0-80 — INJECTION PUMP (#6087) — 165 parça

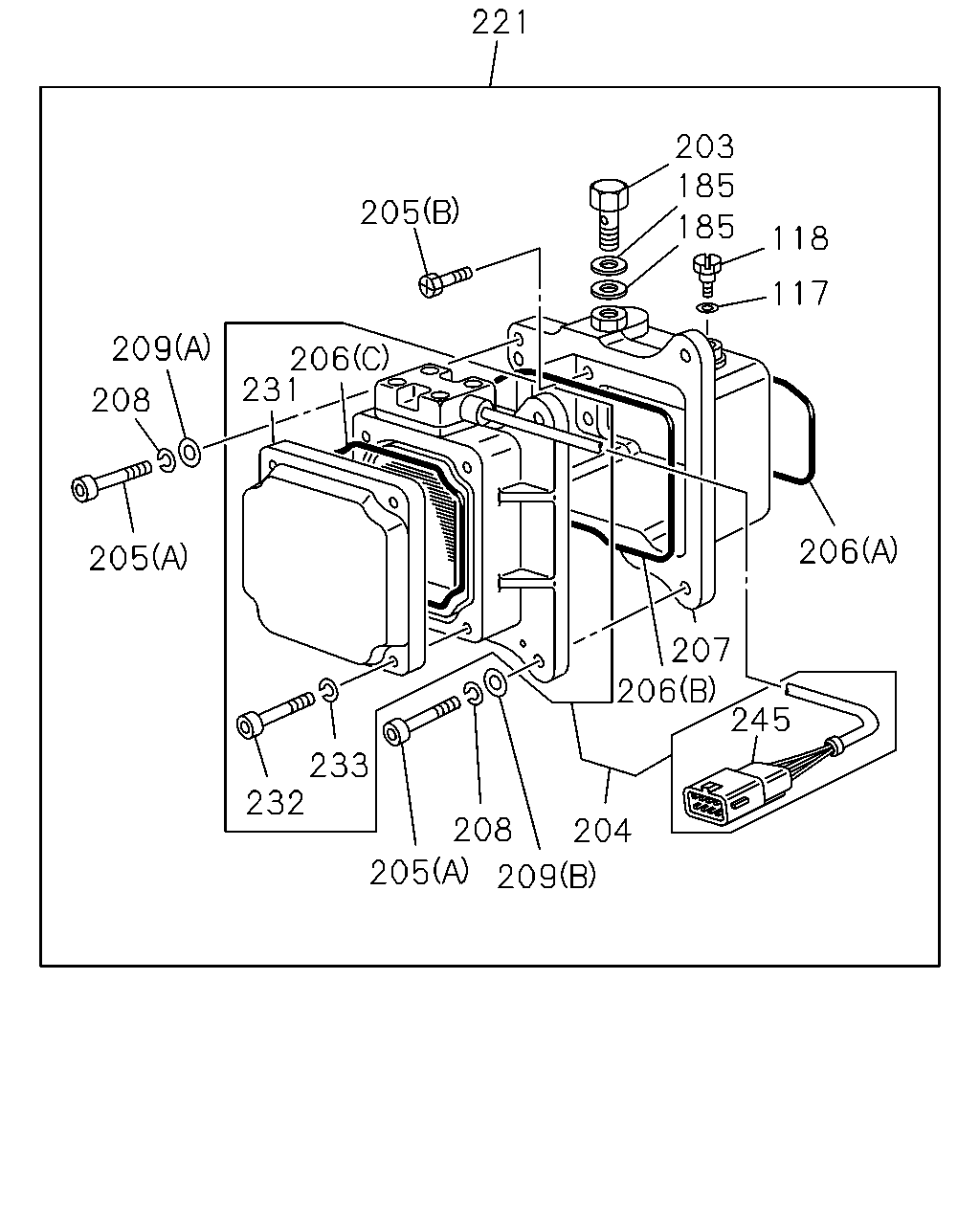

çizim 38124
221 203 185 185 205 118 117 209 206 231 208 206 205 207 206 245 233 232 208 204 205 209
BalonParca AdiParca NoAdetTipApplied Date
117 GASKET; EYE BOLT,INJ PUMP
ASM PART: A = 1-15603-295-4 		5-15729-099-0 01 1 -
118 BOLT; EYE,FUEL INL,INJ PUMP
ASM PART: A = 1-15603-295-4 		9-81215-148-0 01 1 -
185 GASKET; PLUG
ID=14.2 OD=19.2 ASM PART: A = 1-15603-295-4 		1-09630-085-0 02 1 -
203 BOLT; FUEL INL
ASM PART: A = 1-15603-295-4 		1-15759-011-0 01 1 -
204 ACTUATOR; INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15612-068-1 01 1 -
205 BOLT; ACTUATOR
(A) ASM PART: A = 1-15603-295-4 		1-09054-032-0 04 1 -
205 BOLT; ACTUATOR
(B) ASM PART: A = 1-15603-295-4 		1-15619-348-0 06 1 -
206 GASKET; ACTUATOR
(A) ASM PART: A = 1-15603-295-4 		1-15629-145-0 01 1 -
206 GASKET; ACTUATOR
(B) ASM PART: A = 1-15603-295-4 		1-15629-146-0 01 1 -
206 GASKET; ACTUATOR
(C) ASM PART: A = 1-15603-295-4 		1-15629-147-0 01 1 -
207 HOUSING; ACTUATOR
ASM PART: A = 1-15603-295-4 		1-15611-177-1 01 1 -
208 WASHER; LK,ACTUATOR
ASM PART: A = 1-15603-295-4 		8-94128-928-0 04 1 -
209 WASHER; PL,ACTUATOR
(B) ASM PART: A = 1-15603-295-4 		1-15619-351-0 01 1 -
209 WASHER; PL,ACTUATOR
(A) ASM PART: A = 1-15603-295-4 		1-15619-352-0 03 1 -
221 ACTUATOR ASM; INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15612-089-0 01 1 -
231 COVER; ACTUATOR
ASM PART: A = 1-15603-295-4 		1-15619-378-0 01 1 -
232 BOLT; ACTUATOR COVER
ASM PART: A = 1-15603-295-4 		1-09054-032-0 04 1 -
233 WASHER; ACTUATOR COVER
ASM PART: A = 1-15603-295-4 		8-94128-928-0 04 1 -
245 HOUSING; SOCKET,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15619-416-0 01 1 -

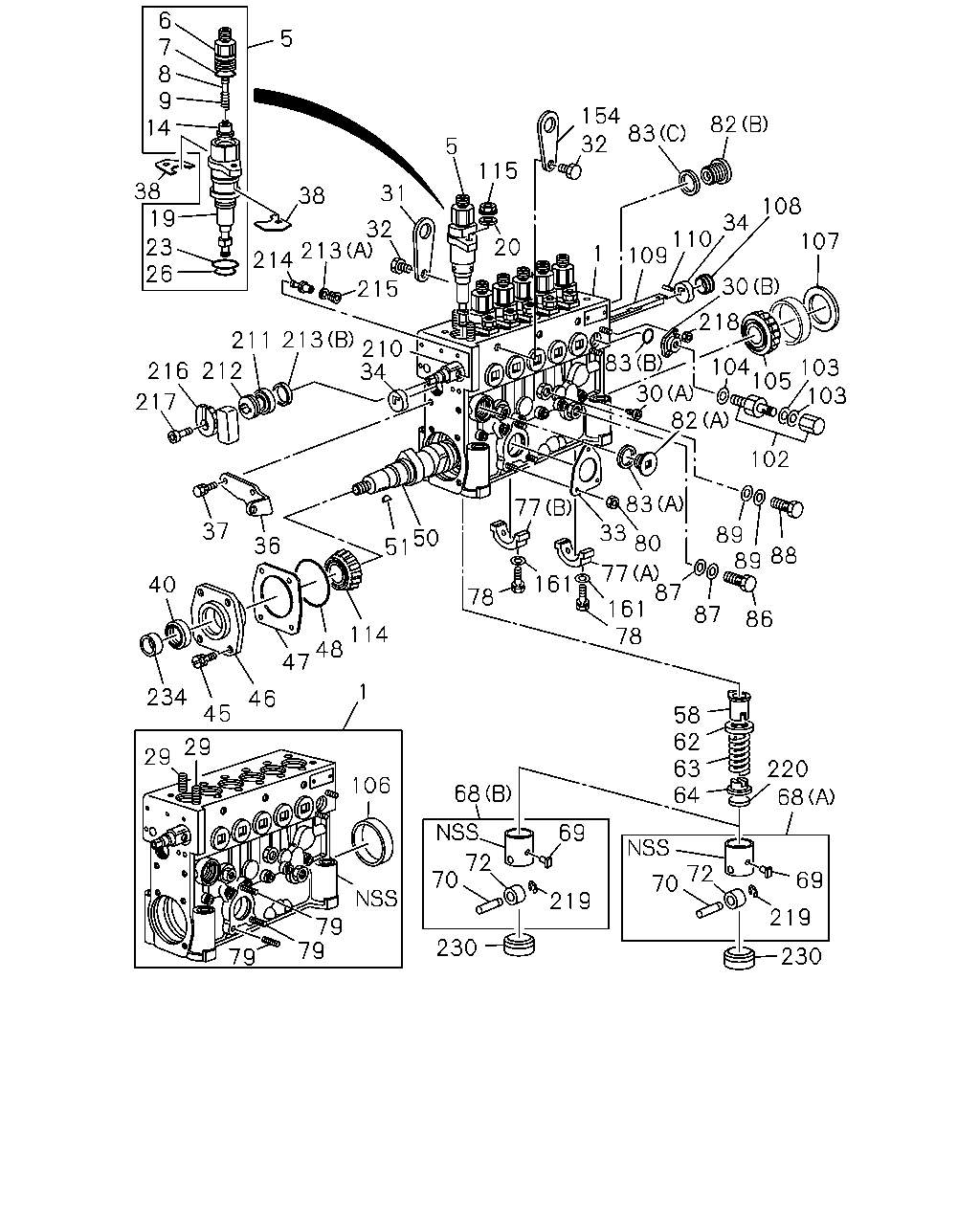

çizim 100502
6 7 8 9 14 5 154 83 82 32 5 115 38 19 31 38 108 34 32 110 109 107 23 26 20 213 214 1 215 30 218 83 30 82 213 210 34 211 104 105 103 212 216 103 217 102 77 83 37 33 80 89 88 89 50 51 36 77 87 161 40 78 161 78 87 86 114 48 47 1 234 46 45 58 62 63 64 29 29 220 106 68 68 69 72 70 72 70 69 219 219 79 79 230 230 79
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; PUMP,FUEL INJ
ASM PART: A = 1-15603-295-4 		1-15611-207-0 01 1 -
5 PLUNGER COMPL; INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15631-217-0 06 1 -
6 HOLDER; DELIVERY VLV,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15644-016-1 06 1 -
7 GASKET; HOLDER,DELIVERY VLV
ASM PART: A = 1-15603-295-4 		1-15629-095-0 06 1 -
8 STOPPER; DELIVERY VLV,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15639-104-0 06 1 -
9 SPRING; DELIVERY VLV
ASM PART: A = 1-15603-295-4 		1-15643-130-0 06 1 -
14 VALVE; DELIVERY,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15641-041-0 06 1 -
19 PLUNGER ASM; INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15632-054-0 06 1 -
20 WASHER; PLUNGER BARREL
ASM PART: A = 1-15603-295-4 		1-15639-020-0 12 1 -
23 GASKET; PLUNGER,BARREL SIDE
ASM PART: A = 1-15603-295-4 		1-15629-096-0 06 1 -
26 GASKET; PLUNGER UPR
ASM PART: A = 1-15603-295-4 		1-15629-097-0 06 1 -
29 STUD; PLUNGER FIX,PUMP HSG
ASM PART: A = 1-15603-295-4 		1-15619-328-0 12 1 -
30 PLUG; SCREW,INJ PUMP HSG
(B) ASM PART: A = 1-15603-295-4 		1-15619-345-0 01 1 -
30 PLUG; SCREW,INJ PUMP HSG
(A) ASM PART: A = 1-15603-295-4 		9-81215-130-0 06 1 -
31 HANGER; FRT,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15619-347-0 01 1 -
32 BOLT; HANGER TO INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15789-098-0 02 1 -
33 GASKET; FUEL FEED PUMP,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15619-320-0 01 1 -
34 BUSHING; CONT RACK,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15619-461-0 02 1 -0104
34 BUSHING; CONT RACK,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15619-493-0 02 1 0105-
36 POINTER; TIMING,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15619-408-0 01 1 -
37 BOLT; POINTER FIX,INJ PUMP
ASM PART: A = 1-15603-295-4 		5-15729-063-0 02 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.500 ASM PART: A = 1-15603-295-4 		1-15639-024-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.525 ASM PART: A = 1-15603-295-4 		1-15639-025-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.550 ASM PART: A = 1-15603-295-4 		1-15639-026-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.575 ASM PART: A = 1-15603-295-4 		1-15639-027-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.600 ASM PART: A = 1-15603-295-4 		1-15639-028-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.625 ASM PART: A = 1-15603-295-4 		1-15639-029-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.650 ASM PART: A = 1-15603-295-4 		1-15639-030-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.675 ASM PART: A = 1-15603-295-4 		1-15639-031-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.700 ASM PART: A = 1-15603-295-4 		1-15639-032-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.725 ASM PART: A = 1-15603-295-4 		1-15639-033-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.750 ASM PART: A = 1-15603-295-4 		1-15639-034-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.775 ASM PART: A = 1-15603-295-4 		1-15639-035-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.800 ASM PART: A = 1-15603-295-4 		1-15639-036-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.825 ASM PART: A = 1-15603-295-4 		1-15639-037-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.850 ASM PART: A = 1-15603-295-4 		1-15639-038-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.875 ASM PART: A = 1-15603-295-4 		1-15639-039-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.900 ASM PART: A = 1-15603-295-4 		1-15639-040-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.925 ASM PART: A = 1-15603-295-4 		1-15639-041-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.950 ASM PART: A = 1-15603-295-4 		1-15639-042-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=0.975 ASM PART: A = 1-15603-295-4 		1-15639-043-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.000 ASM PART: A = 1-15603-295-4 		1-15639-044-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.025 ASM PART: A = 1-15603-295-4 		1-15639-045-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.050 ASM PART: A = 1-15603-295-4 		1-15639-046-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.075 ASM PART: A = 1-15603-295-4 		1-15639-047-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.100 ASM PART: A = 1-15603-295-4 		1-15639-048-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.125 ASM PART: A = 1-15603-295-4 		1-15639-049-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.150 ASM PART: A = 1-15603-295-4 		1-15639-050-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.175 ASM PART: A = 1-15603-295-4 		1-15639-051-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.200 ASM PART: A = 1-15603-295-4 		1-15639-052-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.225 ASM PART: A = 1-15603-295-4 		1-15639-053-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.250 ASM PART: A = 1-15603-295-4 		1-15639-054-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.275 ASM PART: A = 1-15603-295-4 		1-15639-055-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.300 ASM PART: A = 1-15603-295-4 		1-15639-056-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.325 ASM PART: A = 1-15603-295-4 		1-15639-057-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.350 ASM PART: A = 1-15603-295-4 		1-15639-058-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.375 ASM PART: A = 1-15603-295-4 		1-15639-059-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.400 ASM PART: A = 1-15603-295-4 		1-15639-060-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.425 ASM PART: A = 1-15603-295-4 		1-15639-061-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.450 ASM PART: A = 1-15603-295-4 		1-15639-062-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.475 ASM PART: A = 1-15603-295-4 		1-15639-063-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.500 ASM PART: A = 1-15603-295-4 		1-15639-064-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.525 ASM PART: A = 1-15603-295-4 		1-15639-065-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.550 ASM PART: A = 1-15603-295-4 		1-15639-066-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.575 ASM PART: A = 1-15603-295-4 		1-15639-067-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.600 ASM PART: A = 1-15603-295-4 		1-15639-068-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.625 ASM PART: A = 1-15603-295-4 		1-15639-069-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.650 ASM PART: A = 1-15603-295-4 		1-15639-070-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.675 ASM PART: A = 1-15603-295-4 		1-15639-071-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.700 ASM PART: A = 1-15603-295-4 		1-15639-072-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.725 ASM PART: A = 1-15603-295-4 		1-15639-073-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.750 ASM PART: A = 1-15603-295-4 		1-15639-074-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.775 ASM PART: A = 1-15603-295-4 		1-15639-075-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.800 ASM PART: A = 1-15603-295-4 		1-15639-076-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.825 ASM PART: A = 1-15603-295-4 		1-15639-077-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.850 ASM PART: A = 1-15603-295-4 		1-15639-078-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.875 ASM PART: A = 1-15603-295-4 		1-15639-079-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.900 ASM PART: A = 1-15603-295-4 		1-15639-080-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.925 ASM PART: A = 1-15603-295-4 		1-15639-081-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.950 ASM PART: A = 1-15603-295-4 		1-15639-082-0 AR 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
T=1.975 ASM PART: A = 1-15603-295-4 		1-15639-083-0 AR 1 -
40 SEAL; OIL,CM/SHF FRT,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15629-100-0 01 1 -
45 BOLT; FRT COVER TO HSG
ASM PART: A = 1-15603-295-4 		1-15619-338-0 04 1 -
46 COVER; FRT,PUMP HSG
ASM PART: A = 1-15603-295-4 		1-15612-042-0 01 1 -
47 SHIM; FRT COVER,INJ PUMP HSG
T=0.10 ASM PART: A = 1-15603-295-4 		1-15639-097-0 AR 1 -
47 SHIM; FRT COVER,INJ PUMP HSG
T=0.12 ASM PART: A = 1-15603-295-4 		1-15639-098-0 AR 1 -
47 SHIM; FRT COVER,INJ PUMP HSG
T=0.14 ASM PART: A = 1-15603-295-4 		1-15639-099-0 AR 1 -
47 SHIM; FRT COVER,INJ PUMP HSG
T=0.16 ASM PART: A = 1-15603-295-4 		1-15639-100-0 AR 1 -
47 SHIM; FRT COVER,INJ PUMP HSG
T=0.18 ASM PART: A = 1-15603-295-4 		1-15639-101-0 AR 1 -
47 SHIM; FRT COVER,INJ PUMP HSG
T=0.30 ASM PART: A = 1-15603-295-4 		1-15639-102-0 AR 1 -
47 SHIM; FRT COVER,INJ PUMP HSG
T=0.50 ASM PART: A = 1-15603-295-4 		1-15639-103-0 AR 1 -
48 GASKET; FRT COVER TO HSG
ASM PART: A = 1-15603-295-4 		1-15629-101-0 01 1 -
50 CAMSHAFT; INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15621-114-0 01 1 -
51 KEY; DRIVE GEAR,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-09735-041-0 01 1 -
58 SLEEVE; CONT,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15635-003-0 06 1 -
62 SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15634-017-1 06 1 -
63 SPRING; PLUNGER,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15634-024-0 06 1 -
64 SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15643-009-0 06 1 -
68 TAPPET; CM/SHF,INJ PUMP
(B) ASM PART: A = 1-15603-295-4 		1-15612-126-0 04 1 0105-
68 TAPPET; CM/SHF,INJ PUMP
(A) ASM PART: A = 1-15603-295-4 		1-15612-127-0 02 1 0105-
68 TAPPET; CM/SHF,INJ PUMP
(A) ASM PART: A = 1-15603-295-4 		1-15622-009-0 02 1 -0104
68 TAPPET; CM/SHF,INJ PUMP
(B) ASM PART: A = 1-15603-295-4 		1-15622-010-0 04 1 -0104
69 GUIDE; TAPPET,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15629-063-0 06 1 -
70 PIN; TAPPET ROLLER,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15619-313-0 06 1 -
72 ROLLER; TAPPET,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15619-312-0 06 1 -
77 BEARING; CM/SHF CENTER,INJ PUMP
(A) ASM PART: A = 1-15603-295-4 		1-15619-396-0 01 1 -
77 BEARING; CM/SHF CENTER,INJ PUMP
(B) ASM PART: A = 1-15603-295-4 		1-15619-397-0 02 1 -
78 BOLT; CENTER BRG,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-09054-030-0 06 1 -
79 STUD; FUEL FEED PUMP TO HSG
ASM PART: A = 1-15603-295-4 		9-81215-115-0 03 1 -
80 NUT; FUEL FEED PUMP FIX
ASM PART: A = 1-15603-295-4 		8-94171-110-0 03 1 -
82 PLUG; HSG,INJ PUMP
(B) ASM PART: A = 1-15603-295-4 		1-15619-329-0 01 1 -
82 PLUG; HSG,INJ PUMP
(A) ASM PART: A = 1-15603-295-4 		9-81215-129-0 01 1 -
83 GASKET; HSG PLUG
(A) ASM PART: A = 1-15603-295-4 		1-15619-067-0 01 1 -
83 GASKET; HSG PLUG
(B) ASM PART: A = 1-15603-295-4 		1-15629-102-0 01 1 -
83 GASKET; HSG PLUG
(C) ASM PART: A = 1-15603-295-4 		5-15729-022-0 01 1 -
86 BOLT; EYE,OIL RETURN,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15759-011-0 01 1 -
87 GASKET; OIL RETURN BOLT,INJ PUMP
ID=14.2 OD=19.2 ASM PART: A = 1-15603-295-4 		1-09630-085-0 02 1 -
88 BOLT; EYE,OIL FEED,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15619-092-0 01 1 -
89 GASKET; OIL FEED BOLT,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15719-093-0 02 1 -
102 VALVE; OVERFLOW,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15719-346-0 01 1 -
103 GASKET; OVERFLOW VLV,INJ PUMP
ID=14.2 OD=19.2 ASM PART: A = 1-15603-295-4 		1-09630-085-0 02 1 -
104 GASKET; OVERFLOW VLV
ASM PART: A = 1-15603-295-4 		1-15729-850-0 01 1 -
105 BEARING; CM/SHF RR,INJ PUMP
ASM PART: A = 1-15603-295-4 		9-81225-068-0 01 1 -
106 RING; HSG,INJ PUMP
ASM PART: A = 1-15603-295-4 		9-81225-064-0 01 1 -
107 SHIM; RR BEARING,CM/SHF
T=1.60 ASM PART: A = 1-15603-295-4 		1-15639-105-0 01 1 -
108 BUSHING; CONT RACK END,INJ PUMP
ASM PART: A = 1-15603-295-4 		9-81215-125-0 01 1 -
109 RACK; CONT,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15637-048-0 01 1 -
110 PIN; CONT RACK,INJ PUMP
ASM PART: A = 1-15603-295-4 		9-88410-440-0 01 1 -
114 BEARING; CM/SHF FRT,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15629-099-0 01 1 -
115 NUT; PLUNGER FIX,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15619-337-0 12 1 -
154 HANGER; RR,INJ PUMP
ASM PART: A = 1-15603-295-4 		1-15619-347-0 01 1 -
161 GASKET; SCREW,CENTER BRG
ASM PART: A = 1-15603-295-4 		5-15729-099-0 06 1 -
210 ROD; CONT
ASM PART: A = 1-15603-295-4 		1-15637-019-0 01 1 -
211 BEARING; CONT ROD
ASM PART: A = 1-15603-295-4 		1-15629-098-0 01 1 -
212 BUSHING; CONT ROD
ASM PART: A = 1-15603-295-4 		1-15619-330-0 01 1 -
213 WASHER; CONT ROD
(A) ASM PART: A = 1-15603-295-4 		1-15619-331-0 06 1 -
213 WASHER; CONT ROD
(B) ASM PART: A = 1-15603-295-4 		1-15619-336-0 01 1 -
214 PIN; CONT ROD
ASM PART: A = 1-15603-295-4 		1-15619-332-0 06 1 -
215 SCREW; CONT ROD
ASM PART: A = 1-15603-295-4 		1-15619-333-0 06 1 -
216 CONNECTOR; CONT ROD
ASM PART: A = 1-15603-295-4 		1-15619-334-0 01 1 -
217 BOLT; CONT ROD
ASM PART: A = 1-15603-295-4 		1-15619-335-0 01 1 -
218 NUT; PLUG
ASM PART: A = 1-15603-295-4 		1-15619-344-0 02 1 -
219 RING; SNAP,ROLLER
ASM PART: A = 1-15603-295-4 		1-15619-314-0 06 1 -
220 SEAT; TAPPET
ASM PART: A = 1-15603-295-4 		1-15619-311-0 06 1 -
230 PLUG; TAPPET
ASM PART: A = 1-15603-295-4 		1-15619-388-0 06 1 -
234 SLEEVE; FRT COVER
ASM PART: A = 1-15603-295-4 		1-15635-004-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
