◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11235 - FVR-RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-38A - SHIFT CONTROL ▶
2-38A — SHIFT CONTROL (#60866) — 18 parça

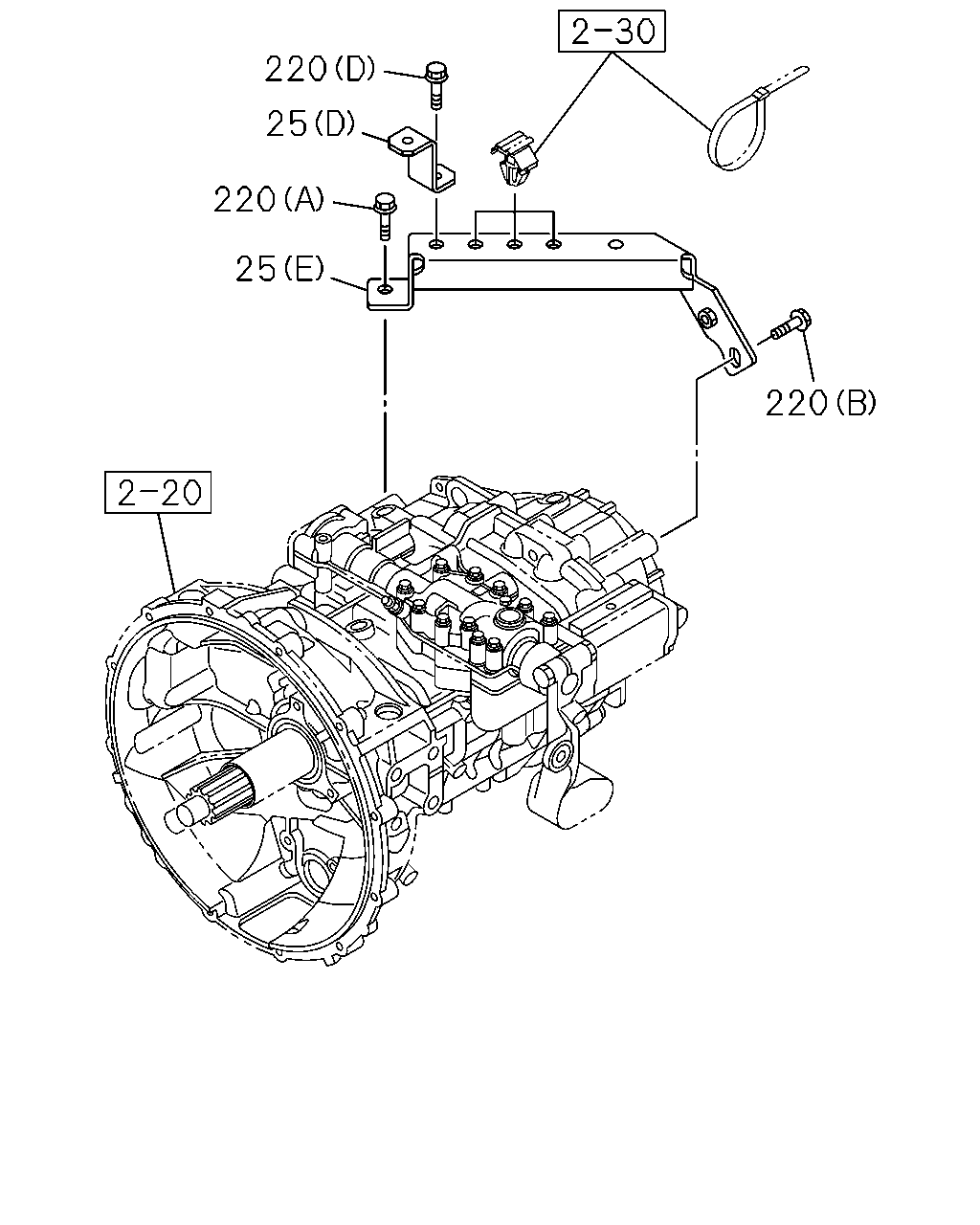

çizim 164635
220 25 220 25 220
BalonParca AdiParca NoAdetTipApplied Date A B
25 BRACKET; CLIP
(D) 		1-47478-113-0 01 1 0906- ●
25 BRACKET; CLIP
(E) 		8-98122-355-0 01 1 0906- ●
25 BRACKET; CLIP
(C) 		1-82698-659-1 01 1 0906- ●
25 BRACKET; CLIP
(A) 		8-98084-565-0 01 1 0906- ●
25 BRACKET; CLIP
(B) 		8-98085-342-0 01 1 0906- ●
220 BOLT; BRKT
(A) M10X20 FLANGE 		0-28151-020-0 01 1 0906- ●
220 BOLT; BRKT
(B) M12X25 FLANGE 		0-28151-225-0 01 1 0906- ●
220 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0906- ●
220 BOLT; BRKT
(C) M16X25 FLANGE 		0-28851-625-0 02 1 0906- ●

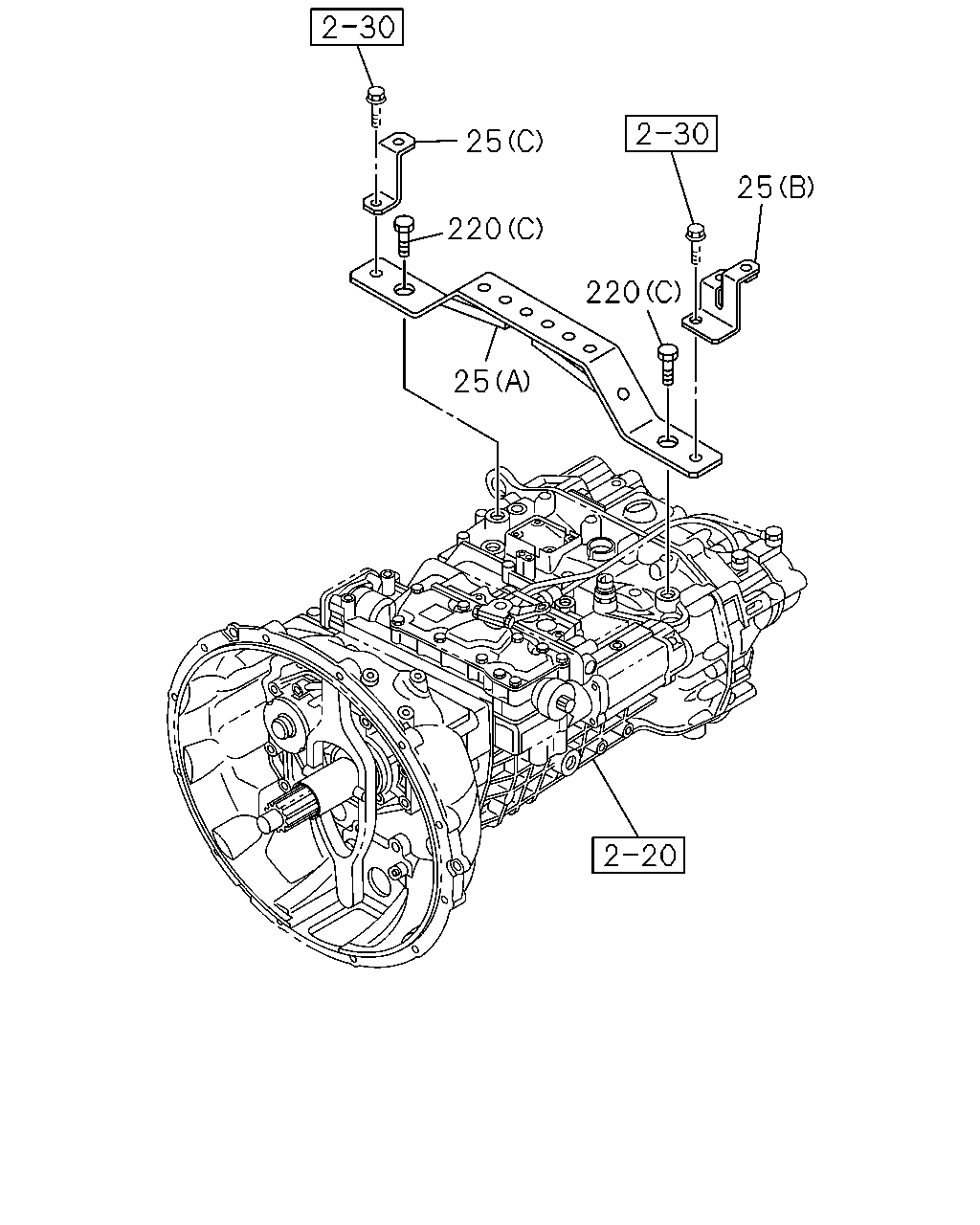

çizim 164644
25 25 220 220 25
BalonParca AdiParca NoAdetTipApplied Date A B
25 BRACKET; CLIP
(D) 		1-47478-113-0 01 1 0906- ●
25 BRACKET; CLIP
(E) 		8-98122-355-0 01 1 0906- ●
25 BRACKET; CLIP
(C) 		1-82698-659-1 01 1 0906- ●
25 BRACKET; CLIP
(A) 		8-98084-565-0 01 1 0906- ●
25 BRACKET; CLIP
(B) 		8-98085-342-0 01 1 0906- ●
220 BOLT; BRKT
(A) M10X20 FLANGE 		0-28151-020-0 01 1 0906- ●
220 BOLT; BRKT
(B) M12X25 FLANGE 		0-28151-225-0 01 1 0906- ●
220 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0906- ●
220 BOLT; BRKT
(C) M16X25 FLANGE 		0-28851-625-0 02 1 0906- ●
