◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11235 - FVR-RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#60865) — 21 parça

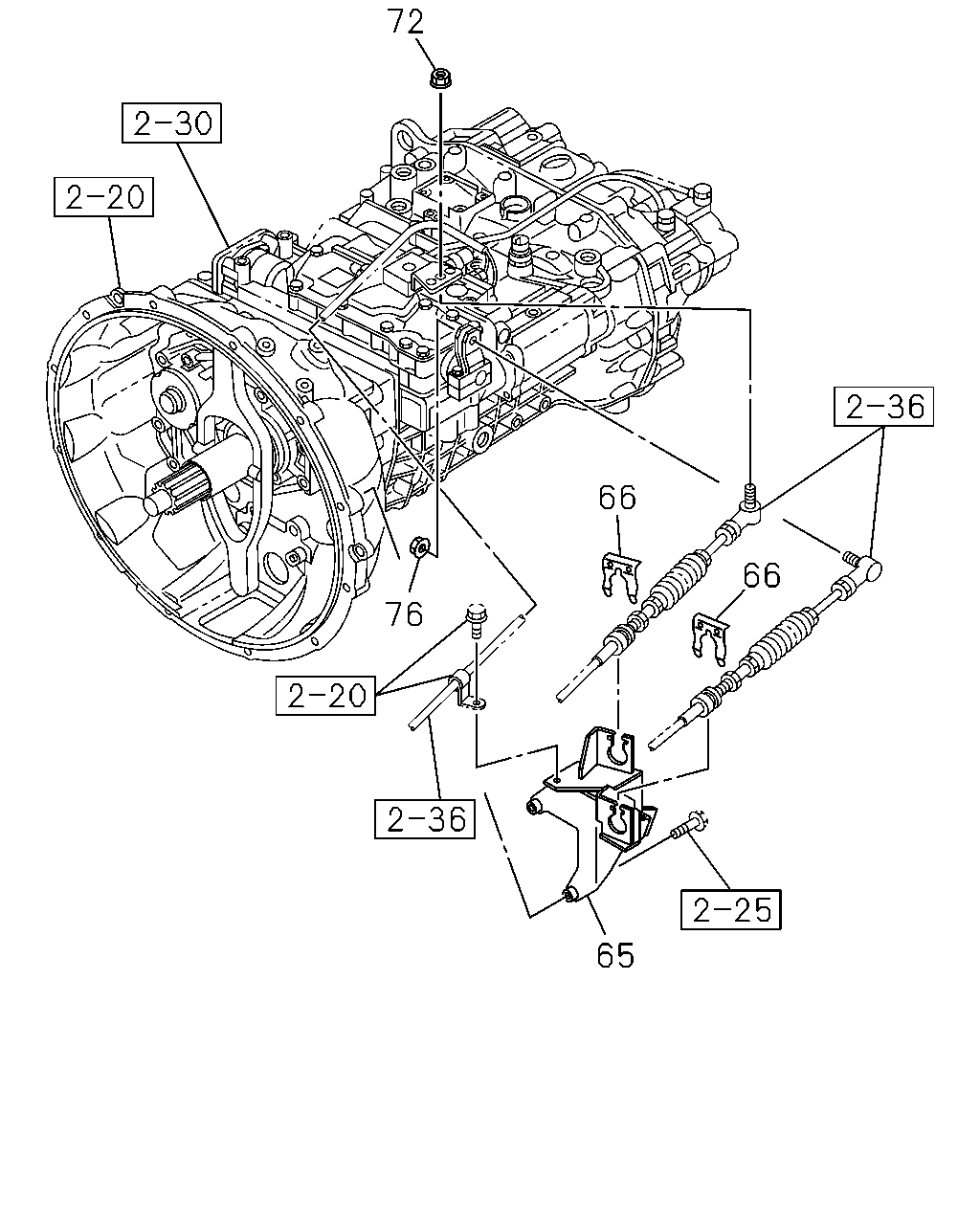

çizim 164619
72 66 66 76 65
BalonParca AdiParca NoAdetTipApplied Date
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZW6P M/T(RSZ) 		8-98010-160-0 01 1 1012-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF6S1000 M/T(Y5D) 		8-98149-274-0 01 1 0906-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) 		8-98049-613-1 01 1 0906-
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0906-
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0906-
76 NUT; BALL JOINT,SELECT WIRE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-049-0 01 1 0906-1011
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 1012-

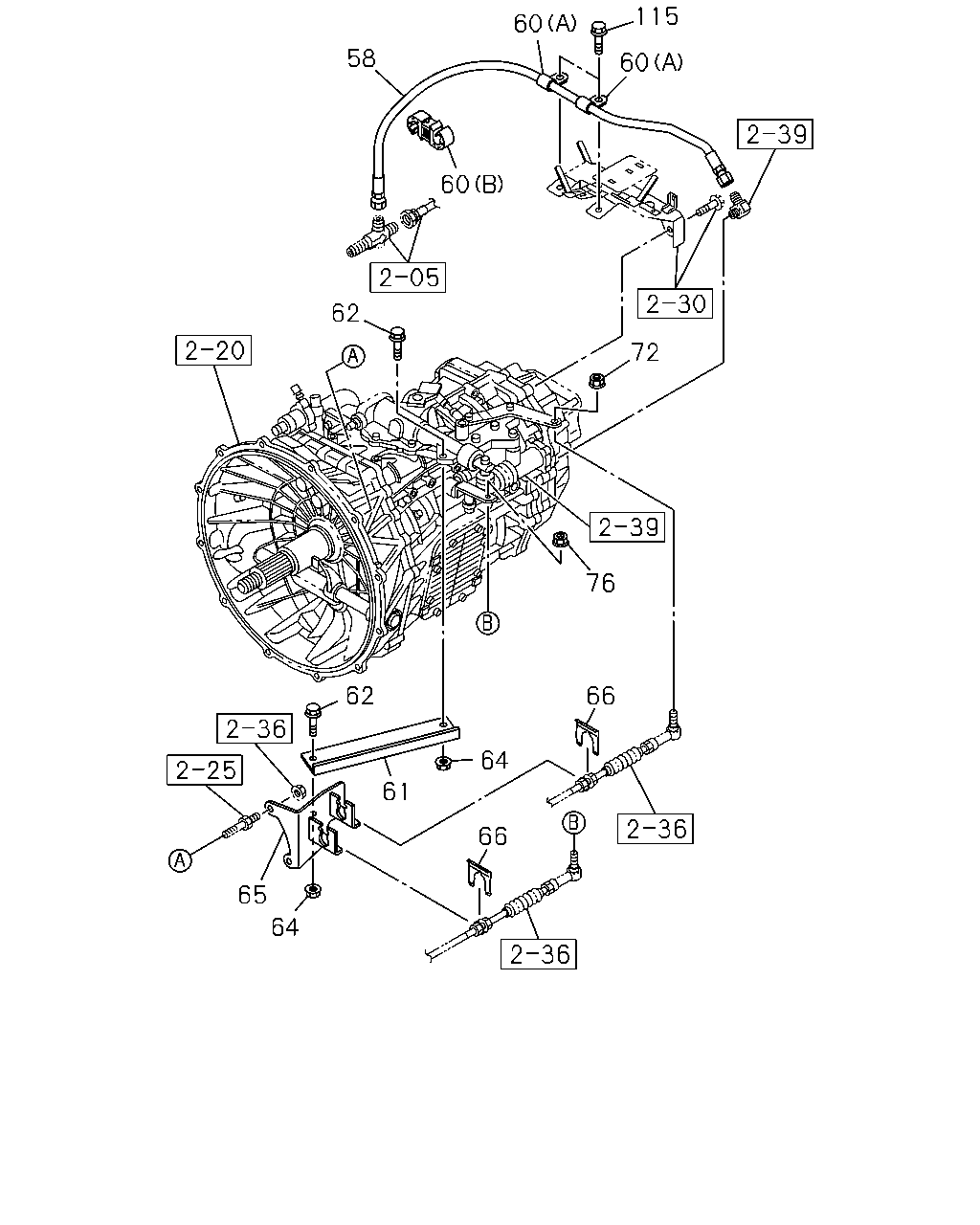

çizim 164683
115 60 58 60 60 62 72 76 62 66 64 61 66 65 64
BalonParca AdiParca NoAdetTipApplied Date
58 HOSE; FLEX,POWER ASSISTOR
MZW6P M/T(RSZ) L=640 		1-09363-626-1 01 1 1012-
60 CLIP; FLEX HOSE
MZW6P M/T(RSZ) (A) ID=13 L=20 		0-95235-235-0 02 1 1012-
60 CLIP; FLEX HOSE
MZW6P M/T(RSZ) (B) ID=10 & 10 		1-09709-277-1 01 1 1012-
61 STAY; BRKT,TRANS CONT
MZW6P M/T(RSZ) 		1-33657-267-0 01 1 1012-
62 BOLT; STAY
MZW6P M/T(RSZ) M10X30 FLANGE 		0-28651-030-0 02 1 1012-
64 NUT; STAY
MZW6P M/T(RSZ) M10 FLANGE 		0-91180-210-0 02 1 1012-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZW6P M/T(RSZ) 		8-98010-160-0 01 1 1012-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF6S1000 M/T(Y5D) 		8-98149-274-0 01 1 0906-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) 		8-98049-613-1 01 1 0906-
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0906-
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0906-
76 NUT; BALL JOINT,SELECT WIRE
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-049-0 01 1 0906-1011
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 1012-
115 BOLT; CLIP
MZW6P M/T(RSZ) M8X16 FLANGE 		0-28050-816-0 02 1 1012-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
