2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#60864) — 146 parça

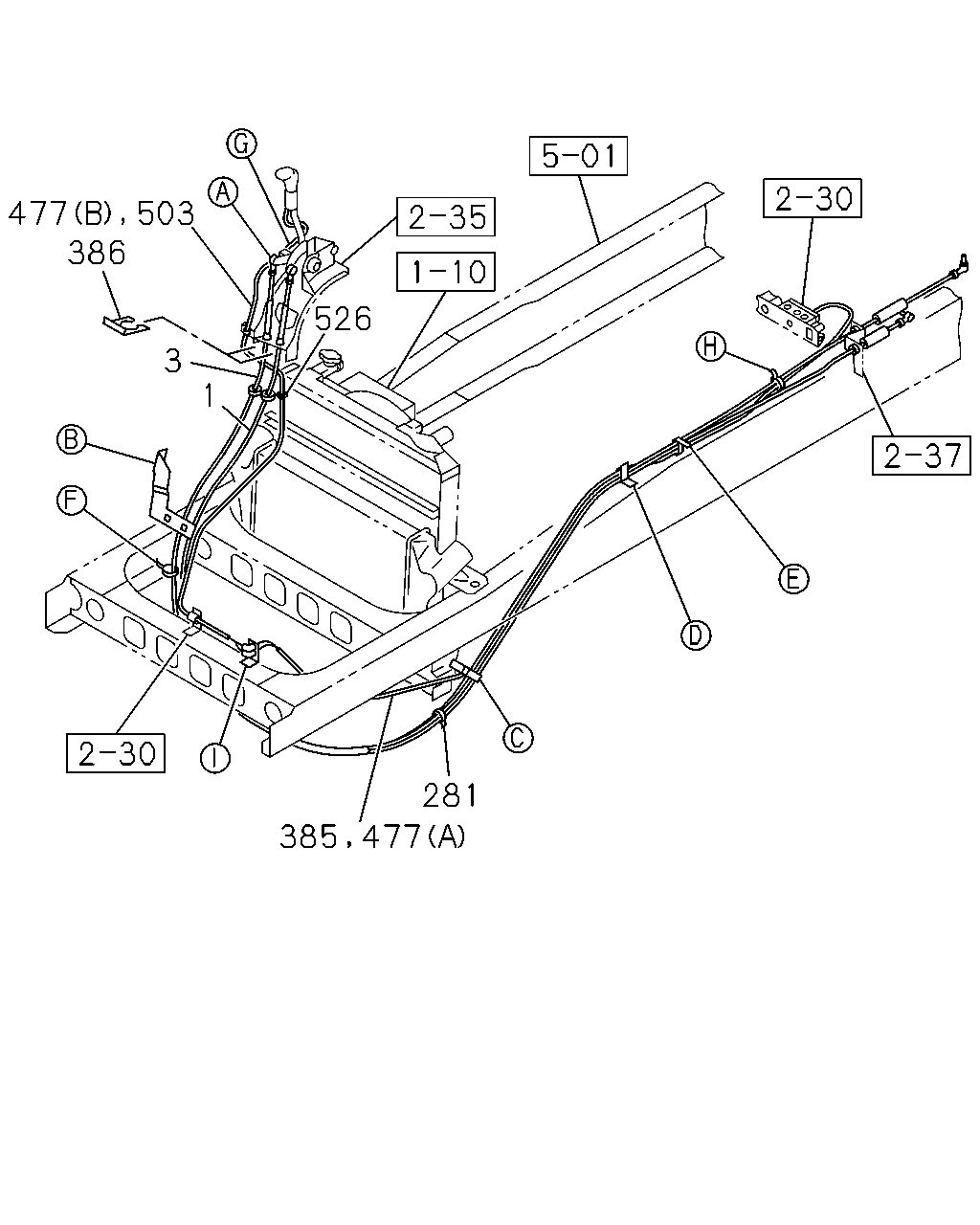

çizim 164588
386 526 3 1 281 477 503 385 477
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> L=3550 		8-98010-435-4 01 1 1012-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98010-434-4 01 1 1012-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D) CAB SUSPENSION FULL FLOATING<W16> L=3575 		8-98097-028-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3510 		8-98097-027-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> L=3600 		8-98047-804-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3530 		8-98047-803-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> L=3620 		8-98099-965-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3595 		8-98099-964-2 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> L=3755 		8-98010-475-2 01 1 1012-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690 		8-98010-474-2 01 1 1012-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D) CAB SUSPENSION FULL FLOATING<W16> L=3705 		8-98097-031-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3640 		8-98097-030-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> L=3680 		8-98047-818-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3610 		8-98047-817-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> L=3700 		8-98099-967-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3675 		8-98099-966-1 01 1 0906-
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 0906-
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0906-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0906-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0906-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0906-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0906-
526 GROMMET
ZF9S1110 M/T(Y5E) 		5-09333-062-0 01 1 0906-

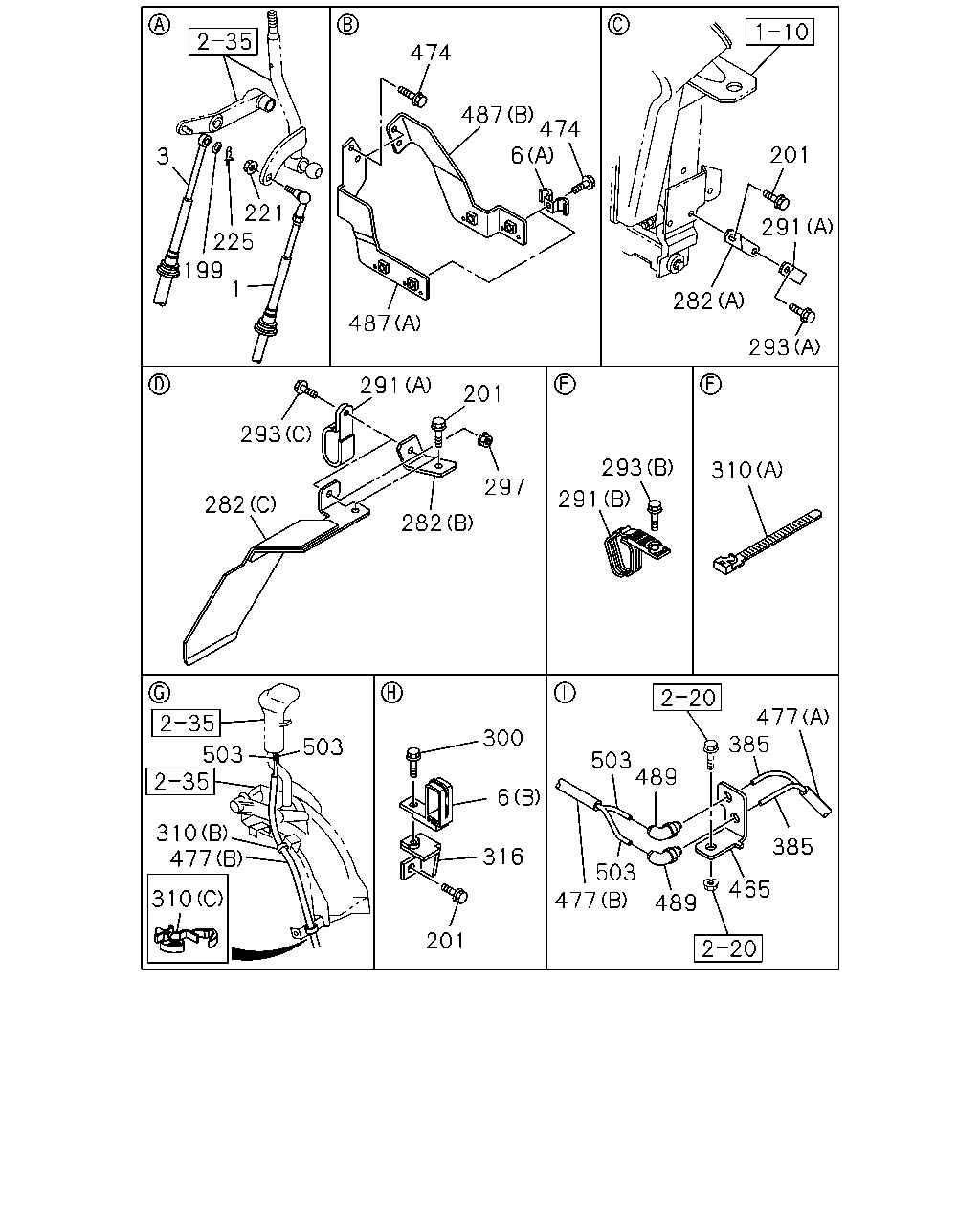

çizim 164600
474 487 474 6 201 3 221 291 225 199 1 282 487 293 291 201 293 293 310 297 291 282 282 477 385 300 503 503 503 489 6 310 477 385 316 465 503 477 310 489 201
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> L=3550 		8-98010-435-4 01 1 1012-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98010-434-4 01 1 1012-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D) CAB SUSPENSION FULL FLOATING<W16> L=3575 		8-98097-028-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3510 		8-98097-027-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> L=3600 		8-98047-804-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3530 		8-98047-803-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> L=3620 		8-98099-965-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3595 		8-98099-964-2 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> L=3755 		8-98010-475-2 01 1 1012-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690 		8-98010-474-2 01 1 1012-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D) CAB SUSPENSION FULL FLOATING<W16> L=3705 		8-98097-031-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3640 		8-98097-030-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> L=3680 		8-98047-818-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3610 		8-98047-817-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> L=3700 		8-98099-967-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3675 		8-98099-966-1 01 1 0906-
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0906-
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0906-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0906-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0906-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0906-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0906-
201 BOLT; BRKT
ZF6S1000 M/T(Y5D) M16X25 FLANGE 		0-28851-625-0 01 1 0906-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 0906-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0906-1011
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0906-
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 0906-1103
282 BRACKET; TRANS SIDE
(C) 		8-98171-762-0 01 1 1104-
282 BRACKET; TRANS SIDE
6HK1-TCC ENG(81L) (A) 		8-98010-418-0 01 1 0906-
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L) (A) 		8-98098-265-2 01 1 0906-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 0906-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0906-
293 BOLT; CLIP,SHIFT TO SELECT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0906-1011
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1012-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0906-
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0906-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0906-
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0906-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) (A) L=100 		5-09707-036-1 01 1 0906-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) (C) ID=12 		8-94218-436-0 01 1 0906-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) (B) ID=6 & 10-13 		8-97069-515-0 01 1 0906-
316 BRACKET; CLIP
MZW6P M/T(RSZ) 		8-98073-017-1 01 1 1012-
316 BRACKET; CLIP
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) 		8-98086-439-0 01 1 0906-
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0906-
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) 		8-98085-414-0 01 1 0906-0907
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) 		8-98141-474-0 01 1 0908-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 0906-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0906-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0906-
487 BRACKET; CONT CABLE
CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98021-923-2 01 1 0906-1012
487 BRACKET; CONT CABLE
CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98180-729-0 01 1 1101-
487 BRACKET; CONT CABLE
6HK1-TCC ENG(81L) EXC. CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98021-920-2 01 1 0906-1012
487 BRACKET; CONT CABLE
6HK1-TCC ENG(81L) EXC. CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98183-009-0 01 1 1101-
487 BRACKET; CONT CABLE
6HK1-TCS ENG(80L) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98100-413-0 01 1 0906-
489 CONNECTOR
ZF9S1110 M/T(Y5E) 		8-98085-747-0 02 1 0906-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0906-

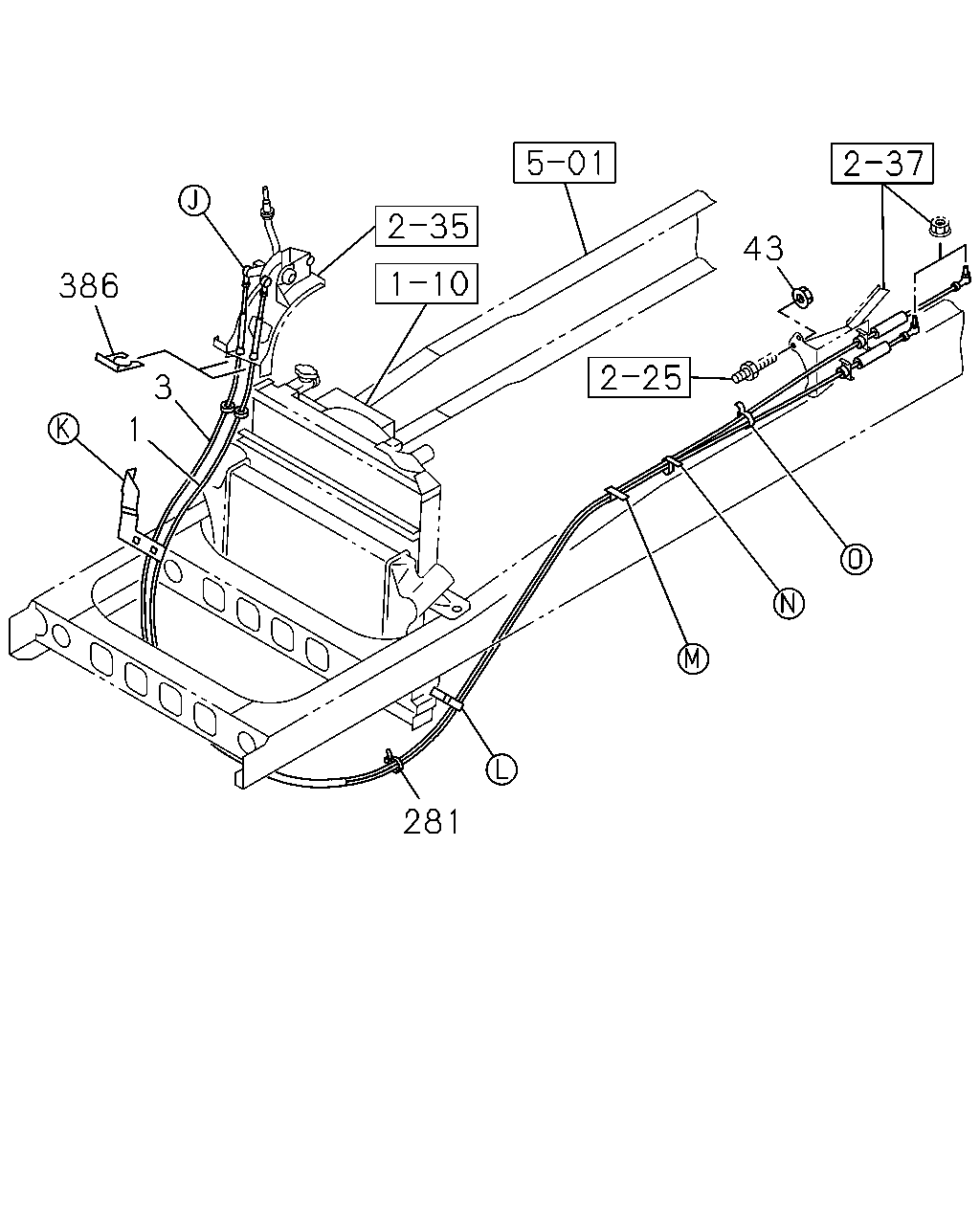

çizim 164671
43 386 3 1 281
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> L=3550 		8-98010-435-4 01 1 1012-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98010-434-4 01 1 1012-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D) CAB SUSPENSION FULL FLOATING<W16> L=3575 		8-98097-028-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3510 		8-98097-027-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> L=3600 		8-98047-804-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3530 		8-98047-803-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> L=3620 		8-98099-965-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3595 		8-98099-964-2 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> L=3755 		8-98010-475-2 01 1 1012-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690 		8-98010-474-2 01 1 1012-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D) CAB SUSPENSION FULL FLOATING<W16> L=3705 		8-98097-031-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3640 		8-98097-030-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> L=3680 		8-98047-818-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3610 		8-98047-817-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> L=3700 		8-98099-967-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3675 		8-98099-966-1 01 1 0906-
43 NUT; BRKT
MZW6P M/T(RSZ) M10 FLANGE 		0-91180-210-0 02 1 1012-
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 0906-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0906-

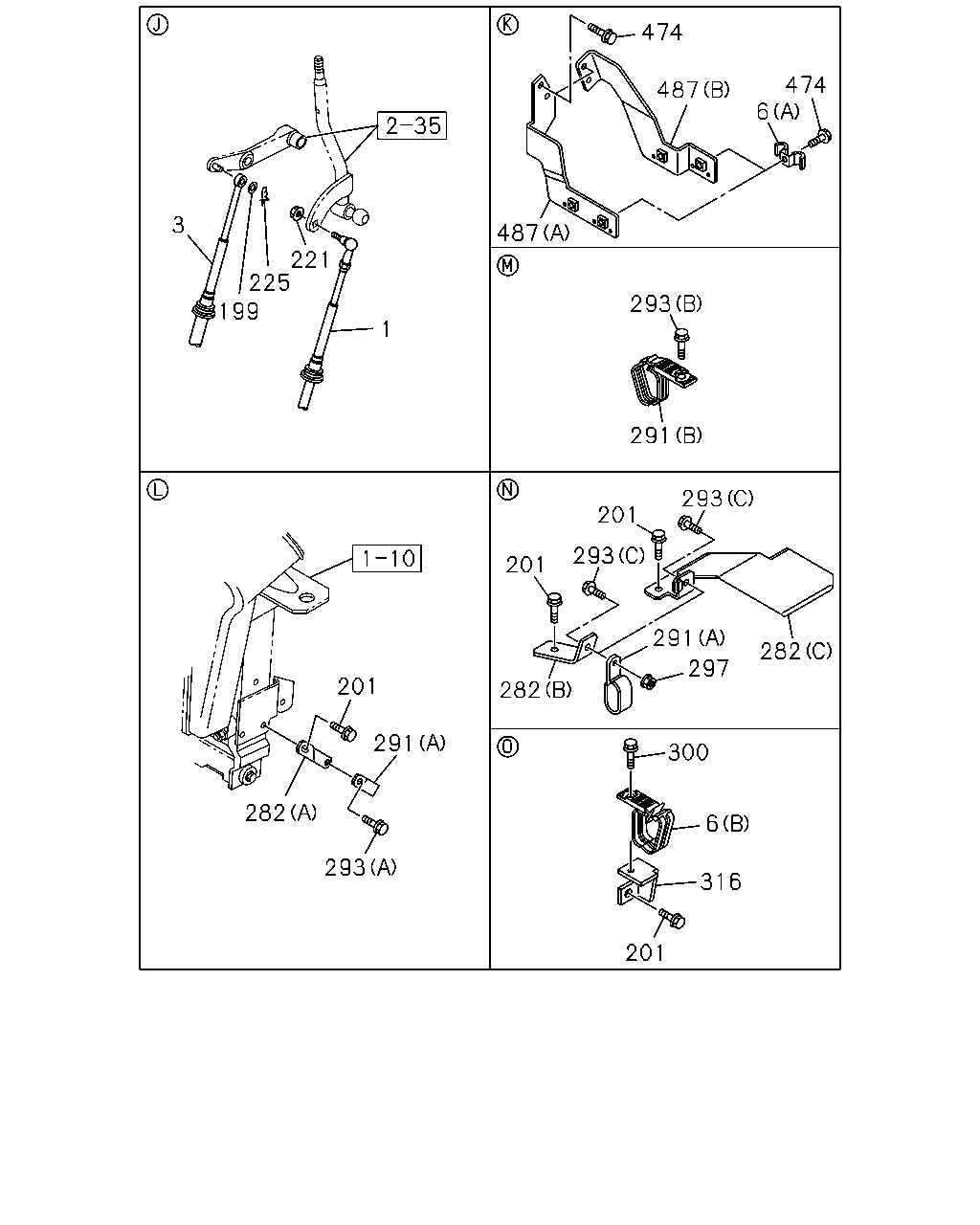

çizim 164677
474 474 6 487 3 487 221 225 293 199 1 291 293 201 293 201 291 282 297 201 282 291 300 282 6 293 316 201
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> L=3550 		8-98010-435-4 01 1 1012-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98010-434-4 01 1 1012-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D) CAB SUSPENSION FULL FLOATING<W16> L=3575 		8-98097-028-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3510 		8-98097-027-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> L=3600 		8-98047-804-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3530 		8-98047-803-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> L=3620 		8-98099-965-2 01 1 0906-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3595 		8-98099-964-2 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> L=3755 		8-98010-475-2 01 1 1012-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690 		8-98010-474-2 01 1 1012-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D) CAB SUSPENSION FULL FLOATING<W16> L=3705 		8-98097-031-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF6S1000 M/T(Y5D) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3640 		8-98097-030-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> L=3680 		8-98047-818-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3610 		8-98047-817-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> L=3700 		8-98099-967-1 01 1 0906-
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3675 		8-98099-966-1 01 1 0906-
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0906-
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0906-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0906-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0906-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0906-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0906-
201 BOLT; BRKT
ZF6S1000 M/T(Y5D) M16X25 FLANGE 		0-28851-625-0 01 1 0906-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 0906-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0906-1011
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0906-
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 0906-1103
282 BRACKET; TRANS SIDE
(C) 		8-98171-762-0 01 1 1104-
282 BRACKET; TRANS SIDE
6HK1-TCC ENG(81L) (A) 		8-98010-418-0 01 1 0906-
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L) (A) 		8-98098-265-2 01 1 0906-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 0906-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0906-
293 BOLT; CLIP,SHIFT TO SELECT
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0906-1011
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1012-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0906-
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0906-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0906-
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0906-
316 BRACKET; CLIP
MZW6P M/T(RSZ) 		8-98073-017-1 01 1 1012-
316 BRACKET; CLIP
ZF6S1000 M/T(Y5D),ZF9S1110 M/T(Y5E) 		8-98086-439-0 01 1 0906-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 0906-
487 BRACKET; CONT CABLE
CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98021-923-2 01 1 0906-1012
487 BRACKET; CONT CABLE
CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98180-729-0 01 1 1101-
487 BRACKET; CONT CABLE
6HK1-TCC ENG(81L) EXC. CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98021-920-2 01 1 0906-1012
487 BRACKET; CONT CABLE
6HK1-TCC ENG(81L) EXC. CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98183-009-0 01 1 1101-
487 BRACKET; CONT CABLE
6HK1-TCS ENG(80L) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98100-413-0 01 1 0906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
